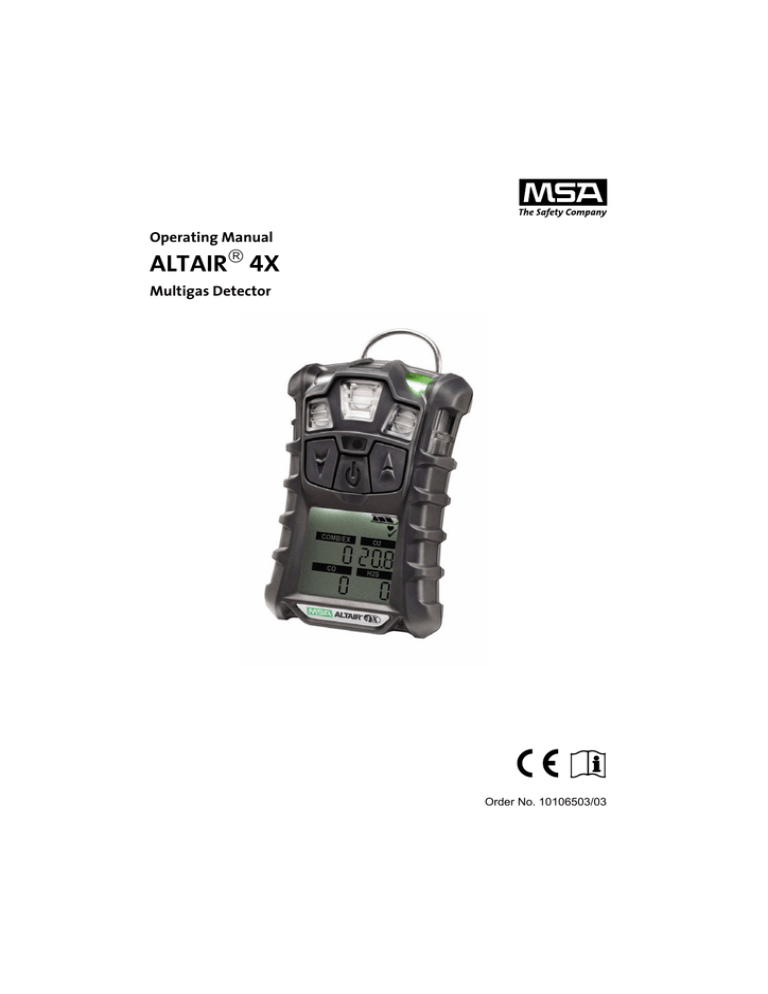

Operating Manual ALTAIR 4X

Operating Manual

ALTAIR

4X

Multigas Detector

Order No. 10106503/03

MSA AUER GmbH

Thiemannstrasse 1

D-12059 Berlin

Germany

© MSA AUER GmbH. All rights reserved

MSA EC Declaration of Conformity

GB

Manufactured by:

EC Declaration of Conformity

Mine Safety Appliances Company

1000 Cranberry Woods Drive

Cranberry Township, PA 16066 USA

The manufacturer or the European Authorized Representative:

MSA AUER GmbH

Thiemannstrasse 1 declares that the product

D-12059 Berlin

ALTAIR 4X

based on the EC-Type Examination Certificate:FTZU 07 ATEX 0169 X complies with the ATEX directive 94/9/EC, Annex III. Quality Assurance Notification complying with Annex IV of the ATEX Directive 94/9/EC has been issued by Ineris ,

Notified Body number: 0080.

Standards: EN 60079-0:2009, EN 60079-1:2007, EN 60079-11:2012,

EN 60079-18:2009, EN 60079-26:2007, EN 50303:2000

EN 60079-29-1:2007, EN 50271:2010, EN 50104:2010

The product is in conformance with the directive 2004/108/ EC, (EMC):

EN 50270:2006 Type 2 , EN 61000 - 6 - 3:2007

The product is in conformance with the directive 2010/68 EC, (MED):

EC-Type Examination Certificate: 213.048 Notified Body number: 0736

The product is in conformance with the directive 2006/66/EC.

MSA AUER GmbH

Dr. Axel Schubert

Manager R&D Instruments

& Approvals INT-T

Berlin, April 2014

ALTAIR 4X

3

Contents MSA

Contents

1 Safety Regulations ................................................................................................. 6

1.1

Correct Use .................................................................................................. 6

1.2

Liability Information ....................................................................................... 7

1.3

Safety and Precautionary Measures to be Adopted ..................................... 7

1.4

Warranty ....................................................................................................... 9

2 Description ........................................................................................................... 11

2.1

Overview ..................................................................................................... 11

2.2

Device Hardware Interfaces ....................................................................... 12

2.3

On-Screen Indicators .................................................................................. 14

2.4

Battery Care ............................................................................................... 15

2.5

Viewing Optional Displays .......................................................................... 17

2.6

Sensor Missing Alarm ................................................................................. 21

2.7

Sensor End of Life Warning ........................................................................ 21

2.8

Sensor End of Life Indicator ....................................................................... 21

2.9

Monitoring Toxic Gases .............................................................................. 21

2.10 Monitoring Oxygen Concentration .............................................................. 22

2.11 Monitoring Combustible Gases .................................................................. 23

3 Operation .............................................................................................................. 24

3.1

Environmental Factors ................................................................................ 24

3.2

Turning on the Device ................................................................................ 25

3.3

Measurement Mode [Normal Operation] .................................................... 30

3.4

Device Setup .............................................................................................. 32

3.5

Data Logging .............................................................................................. 36

3.6

Function Tests ............................................................................................ 37

3.7

Safe LED .................................................................................................... 37

3.8

Bump Test .................................................................................................. 37

3.9

Calibration .................................................................................................. 39

4

ALTAIR 4X

GB

MSA Contents

4 Maintenance ......................................................................................................... 44

4.1

Troubleshooting .......................................................................................... 45

4.2

Live Maintenance Procedure - Replacing and Adding a Sensor ................ 46

4.3

Cleaning ..................................................................................................... 48

4.4

Storage ....................................................................................................... 48

4.5

Scope of Delivery ....................................................................................... 48

5 Technical Data ...................................................................................................... 49

5.1

Factory-set Alarm Thresholds and Setpoints ............................................. 51

5.2

Performance Specification .......................................................................... 52

5.3

XCell Sensor Patents ................................................................................. 57

6 Certification .......................................................................................................... 58

6.1

Marking, Certificates and Approvals

According to the Directive 94/9/EC [ATEX] 59

6.2

Marking, Certificates and Approvals According to IECEx ........................... 60

7 Ordering Information ........................................................................................... 61

8 Appendix ............................................................................................................... 63

8.1

Start Up Sequence [Power on] ................................................................... 63

8.2

Fresh Air Setup [FAS] ................................................................................. 64

8.3

Reset Screen Controls ............................................................................... 65

8.4

Bump Test .................................................................................................. 67

8.5

Calibrations ................................................................................................. 68

8.6

Options Setup ............................................................................................. 69

8.7

Sensor Setup .............................................................................................. 70

8.8

Calibration Setup ........................................................................................ 71

8.9

Alarm Setup ................................................................................................ 72

8.10 Time and Date Setup .................................................................................. 73

GB

ALTAIR 4X

5

Safety Regulations MSA

1 Safety Regulations

1.1

Correct Use

The ALTAIR 4X Multigas Detector is intended for use by trained and qualified personnel. It is designed to be used when performing a hazard assessment to:

- assess potential worker exposure to combustible and toxic gases and vapours as well as low level of oxygen.

- determine the appropriate gas and vapour monitoring needed for a workplace.

The ALTAIR 4X Multigas Detector can be equipped to detect:

- Combustible gases and certain combustible vapours

- Oxygen-deficient or oxygen-rich atmospheres

- Oxygen for monitoring inertisation applications. The device is suitable and certified for the measurement of the oxygen concentration in gas mixtures for inertisation according to EN 50104 but without alarm function.

- Specific toxic gases for which a sensor is installed.

It is imperative that this operating manual be read and observed when using the product. In particular, the safety instructions, as well as the information for the use and operation of the product, must be carefully read and observed. Furthermore, the national regulations applicable in the user's country must be taken into account for a safe use.

The ATEX directive is only valid until 25% Vol O

2

.

Danger!

This product is supporting life and health. Inappropriate use, maintenance or servicing may affect the function of the device and thereby seriously compromise the user's life.

Before use the product operability must be verified. The product must not be used if the function test is unsuccessful, it is damaged, a competent servicing/maintenance has not been made, genuine MSA spare parts have not been used.

Alternative use, or use outside this specification will be considered as non-compliance. This also applies especially to unauthorised alterations to the product and to commissioning work that has not been carried out by MSA or authorised persons.

6

ALTAIR 4X

GB

MSA Safety Regulations

1.2

Liability Information

MSA accepts no liability in cases where the product has been used inappropriately or not as intended. The selection and use of the product are the exclusive responsibility of the individual operator.

Product liability claims, warranties also as guarantees made by MSA with respect to the product are voided, if it is not used, serviced or maintained in accordance with the instructions in this manual.

1.3

Safety and Precautionary Measures to be Adopted

Attention!

The following safety instructions must be observed implicitly. Only in this way can the safety and health of the individual operators, and the correct functioning of the device, be guaranteed.

Check Function

Before each day’s use, check the function of the device ( chapter 3.6).

MSA recommends carrying out a routine inspection prior to each day’s use.

Perform a bump test

Bump test frequency is often stipulated by national or corporate regulations; however, bump testing before each day´s use is generally the accepted best safety practice and is therefore MSA’s recommendation. The device must pass the bump test. If it fails the test, perform a calibration before using the device.

Perform a bump test more frequently if the device is subjected to physical shock or high levels of contaminants. Also, perform a bump test more frequently if the tested atmosphere contains the following materials, which may desensitize the combustible gas sensor and reduce its readings:

- Organic silicones

- Silicates

- Lead-containing compounds

- Hydrogen sulphide exposures over 200 ppm or exposures over 50 ppm for one minute.

Check minimum concentration of a combustible gas

The minimum concentration of a combustible gas in air that can ignite is defined as the Lower Explosive Limit [LEL]]. A combustible gas reading of "XXX” indicates the atmosphere is above 100 % LEL or 5.00 % vol CH ists. Move away from hazardous area immediately.

4

, and an explosion hazard ex-

GB

ALTAIR 4X

7

Safety Regulations MSA

Observe atmosphere

Do not use the device to test for combustible or toxic gases in the following atmospheres as this may result in erroneous readings:

- Oxygen-deficient or oxygen-rich atmospheres

- Reducing atmospheres

- Furnace stacks

- Inert environments

- Atmospheres containing combustible airborne mists/dusts.

Use the device only to detect gases/vapours for which a sensor is installed.

The device is suitable and certified for the measurement of the oxygen concentration in gas mixtures for inertisation according to EN 50104 but without alarm function.

Make sure adequate oxygen is present for accurate combustible readings with the catalytic sensor (>10% O

2

).

Not to be used for gases having a flashpoint in excess of 38 °C

Do not use the device to test for combustible gases in atmospheres containing vapours from liquids with a high flash point [above 38 °C], as this may result in erroneously low readings.

Physical shock

Recheck calibration if device is subjected to physical shock.

Sensor maintenance

Do not block sensor openings as this may cause inaccurate readings. Do not press on the face of the sensors, as this may damage them and cause erroneous readings. Do not use compressed air to clean the sensor holes, as the pressure may damage the sensors.

Observe Proper Time for Display Stabilising

Allow sufficient time for device to display accurate reading. Response times vary based on the type of sensor being utilized.

8

ALTAIR 4X

GB

MSA Safety Regulations

Observe proper battery maintenance

Use only battery chargers made available by MSA for use with this device; other chargers may damage the battery pack and the device. Dispose of in accordance with local health and safety regulations.

Use of the GALAXY GX2 Automated Test System is an alternate approved method for charging ALTAIR 4X devices.

Be aware of environmental conditions

A number of environmental factors may affect the sensor readings, including changes in pressure, humidity and temperature.

Pressure and humidity changes also affect the amount of oxygen actually present in the atmosphere.

Be Aware of the Procedures for Handling Electrostatically Sensitive

Electronics

The device contains electrostatically sensitive components. Do not open or repair the device without using appropriate electrostatic discharge (ESD) protection. The warranty does not cover damage caused by electrostatic discharges.

Be Aware of the Product Regulations

Follow all relevant national regulations applicable in the country of use.

Be Aware of the Warranty Regulations

The warranties made by Mine Safety Appliances Company with respect to the product are voided if the product is not used and maintained in accordance with the instructions in this manual. Please protect yourself and others by following them. We encourage our customers to write or call regarding this equipment prior to use or for any additional information relative to use or service.

1.4

Warranty

ITEM

Chassis and electronics

All sensors unless otherwise specified

XCell EX-H Sensor

Specific battery run-time over temperature is not warranted.

WARRANTY PERIOD

Three years

Three years

One year

GB

ALTAIR 4X

9

Safety Regulations MSA

This warranty does not cover filters, fuses, etc. As the battery pack ages, there will be a reduction in useable device run time. Certain other accessories not specifically listed here may have different warranty periods. This warranty is valid only if the product is maintained and used in accordance with Seller's instructions and/or recommendations.

The Seller shall be released from all obligations under this warranty in the event repairs or modifications are made by persons other than its own or authorised service personnel or if the warranty claim results from physical abuse or misuse of the product. No agent, employee or representative of the Seller has any authority to bind the

Seller to any affirmation, representation or warranty concerning this product. Seller makes no warranty concerning components or accessories not manufactured by the Seller, but will pass on to the Purchaser all warranties of manufacturers of such components.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IM-

PLIED OR STATUTORY, AND IS STRICTLY LIMITED TO THE TERMS HEREOF.

SELLER SPECIFICALLY DISCLAIMS ANY WARRANTY OF MERCHANTABILI-

TY OR OF FITNESS FOR A PARTICULAR PURPOSE.

Exclusive Remedy

It is expressly agreed that Purchaser's sole and exclusive remedy for breach of the above warranty, for any tortious conduct of Seller, or for any other cause of action, shall be the replacement at Seller's option, of any equipment or parts thereof, which after examination by Seller is proven to be defective.

Replacement equipment and/or parts will be provided at no cost to Purchaser,

F.O.B. Seller's Plant. Failure of Seller to successfully replace any nonconforming equipment or parts shall not cause the remedy established hereby to fail of its essential purpose.

Exclusion of Consequential Damage

Purchaser specifically understands and agrees that under no circumstances will seller be liable to purchaser for economic, special, incidental or consequential damages or losses of any kind whatsoever, including but not limited to, loss of anticipated profits and any other loss caused by reason of nonoperation of the goods. This exclusion is applicable to claims for breach of warranty, tortious conduct or any other cause of action against seller.

10

ALTAIR 4X

GB

MSA

2 Description

2.1

Overview

9

3

1 2

9

3

4

5

6

7

8

12

Description

10

13

11

9

Fig. 1 Device overview

1

2

5

6

3

4

7

Communication

Safe LED [green] and

Fault LED [yellow]

Sensor Inlets

Horn

Button

Button

ON/OFF Button

8

9

10

11

12

13

Display

Alarm LEDs [4]

Belt Clip

Charging Connection

Screws [4]

Charge LED [red/green]

The device monitors gases in ambient air and in the workplace.

It is available with a maximum of three sensors, which can display readings for four separate gases [one Dual Toxic Sensor provides both CO and H bilities in a single sensor].

2

S sensing capa-

The alarm levels for the individual gases are factory-set and can be changed through the Setup Menu. These changes can also be made through MSA Link soft-

GB

ALTAIR 4X

11

Description MSA

ware. Ensure that the latest version of the MSA Link software has been downloaded from MSA’s website www.msasafety.com.

If gas is present during Fresh Air Setup, the device will fail and enters

Measure mode.

2.2

Device Hardware Interfaces

Device operation is dialog driven from the display with the aid of the three function buttons [ Fig. 1].

The devices have three buttons for user operation. Each button can function as a

"soft key", as defined directly above the button.

Button Definitions

Button

ON/OFF

Description

The

ON/OFF button is used to turn device on or off and to confirm user action selections.When the  button and the ON/OFF button are pressed simultaneously for device start-up, the Options Setup

Mode displays.

The  button is used to move forward through data screens in measuring mode, or as page back and to decrease the values in set-up mode. Holding this button for 3 seconds while in Normal

Measure Mode will activate the InstantAlert alarm.

The  button is used to reset peak, STEL TWA and acknowledge alarms [where possible] or access calibration in measuring mode. It is also used as page up or to increase the values in set-up mode.

12

ALTAIR 4X

GB

MSA Description

LED Definitions

LED

GREEN

RED

YELLOW

Description

The Safe LED flashes once every 15 seconds to notify the user that the device is on and operating.This option can be turned off through the MSA Link software.

The red LEDs are visual indications of an alarm condition or any type of error in the device.

The yellow LED is a visual indication of an device fault condition.

This LED will be on with the following conditions:

- Device memory error

- Sensor Missing

- Sensor Error

RED

/

GREEN

The Charge LED is a visual indication of charge status.

- RED:

is charging

- GREEN: complete charge

Vibrating Alarm

The device is equipped with a vibrating alarm.

Backlight

The backlight automatically activates when any button is pressed. The backlight remains on for the duration of the user-selected timeout. This on/off duration can be set through MSA Link software.

Horn

The horn provides an audible alarm.

Operating Beep

This operating beep activates every 30 seconds by momentarily beeping the horn and flashing the alarm LEDs under the following conditions:

- Operating beep is enabled

- Device is on normal Measure Gases page

- Device is not in battery warning

- Device is not in gas alarm

- Audible and visual options are enabled

GB

ALTAIR 4X

13

Description

2.3

On-Screen Indicators

MSA

COMB/EX O2

1

2

3

SO2 CO NO2 H2S

Fig. 2

1

2

Display

Graphic Symbols

Gas Type

3 Gas Concentration

Alarm Symbol – Indicates alarm state.

Motion Alert – Indicates Motion Alert is active.

Bump Check Symbol – Indicates successful bump or cal.

Indicates required interaction.

Battery Condition – Indicates the battery charge level.

COMB/EX

O2

SO2

NO2

CO

H2S

Sensor Labels.

Cal Gas Cylinder – Indicates cal gas must be applied.

No Gas Cylinder – Indicates cal gas should not be applied and device must be exposed to fresh air.

Hourglass – Indicates user should wait.

14

ALTAIR 4X

GB

MSA Description

Minimum – Indicates a minimum value or low alarm.

PEAK Symbol – Indicates a PEAK reading or high alarm.

STEL Symbol – Indicates a STEL alarm.

TWA Symbol – Indicates a TWA alarm.

Sensor life Symbol – Indicates the end of sensor life

2.4

Battery Care

Battery Life Indicator

The battery condition icon is continuously displayed in the upper right-hand corner of the display. As the battery is depleted, battery icon segments blank until only the battery icon outline remains.

Each indicator segment represents approximately 25 % of the total battery capacity.

Battery Warning

Attention!

If battery warning alarm activates, stop using the device as it no longer has enough power to indicate potential hazards, and persons relying on this product for their safety could sustain serious personal injury or death.

The nominal run-time of the device at room temperature is 24 hours. Actual runtime will vary depending on ambient temperature and alarm conditions. The runtime of the device at -20 °C will be approximately 14 hours.

The alarm levels for the individual gases are factory-set and can be changed through the Setup Menu.

A Low Battery Warning indicates that a nominal 30 minutes of operation remain before the battery’s charge is depleted.

The duration of remaining device operation during a Low Battery

Warning depends on ambient temperatures.

GB

ALTAIR 4X

15

Description

When the device goes into Low Battery Warning, the:

- battery life indicator flashes

- alarm sounds

- alarm LEDs flash

- display shows " Low Batt" and

MSA

- device repeats this warning every 60 seconds and continues to operate until it is turned off or battery shutdown occurs.

Battery Shut Down

Attention!

If battery alarm displays, stop using the device as it no longer has enough power to indicate potential hazards, and persons relying on this product for their safety could sustain serious personal injury or death.

The device goes into battery shutdown mode 60 seconds before final shutdown

[when the batteries can no longer operate the device]:

- On the display flashes " Low Batt" and

- Alarm sounds and lights flash; alarm cannot be silenced,

- No other pages can be viewed; after approximately one minute, the device automatically turns off.

When battery shutdown condition occurs:

(1) Leave the area immediately.

(2) Recharge the battery.

16

ALTAIR 4X

GB

MSA Description

Battery Charging

Warning!

Risk of explosion: Do not recharge device in hazardous area.

Attention!

Use of any charger, other than the charger supplied with the device, may damage or improperly charge the batteries.

The charger is capable of charging a completely depleted pack in less than four hours in normal, room-temperature environments.

Allow very hot or cold devices to stabilise for one hour at room temperature before attempting to charge.

- Minimum and maximum ambient temperature to charge the device is 10 °C and

35 °C, respectively.

- For best results, charge the device at room temperature [23 °C].

To Charge the Device

- Firmly insert the device into the charging cradle.

- The battery symbol will scroll through a progressively increasing number of segments and the charge LED will be red until 90 % of full charge has been obtained. Then the battery symbol will remain fully illuminated and the charge LED will be green while the battery is trickle charged to its full capacity.

- If a problem is detected during charging, the battery symbol will flash and the charge LED will be orange. Remove, then replace the device in the charging cradle to reset the charge cycle.

2.5

Viewing Optional Displays

The Main Screen appears at device turn-on.

Optional displays can be viewed by pressing the  button to move to:

Bump Mode

(1) To select the Bump mode, press the ON/OFF button.

(2) To move forward, press the  button.

(3) To move backward to the Main page, press the  button.

GB

ALTAIR 4X

17

Description MSA

Peak Readings [PEAK page]

The peak icon [ chapter 2.3] shows the highest levels of gas recorded by the de-

vice since turn-on or since peak readings were reset.

To reset the peak readings:

(1) Access the PEAK page.

(2) Press the  button.

Minimum Readings [MIN page]

This page shows the lowest level of oxygen recorded by the device since turn-on or since the MIN reading was reset.

The minimum icon [ chapter 2.3] appears on the display.

To reset the MIN reading:

(1) Access the MIN page.

(2) Press the  button.

Short Term Exposure Limits [STEL page]

Attention!

If the STEL alarm activates, leave the contaminated area immediately; the ambient gas concentration has reached the preset STEL alarm level.

Failure to follow this warning will cause over-exposure to toxic gases and persons relying on this product for their safety could sustain serious personal injury or death.

The STEL icon [ chapter 2.3] appears on the display to show the average expo-

sure over a 15 minute period.

When the amount of gas detected by the device is greater than the STEL limit:

- Alarm sounds

- Alarm LEDs flash

- STEL icon flashes.

To reset the STEL:

(1) Access the STEL page.

(2) Press the  button.

The STEL alarm is calculated over a 15 minute exposure.

18

ALTAIR 4X

GB

MSA

STEL calculation examples:

Assume the device has been running for at least 15 minutes:

15 minute exposure of 35 ppm:

[15 minutes x 35 ppm]

15 minutes

= 35 ppm

10 minute exposure of 35 ppm and 5 minutes exposure of 5 ppm:

[10 minutes x 35 ppm] + [5 minutes x 5 ppm]

15 minutes

= 25 ppm

Description

Time Weighted Average [TWA page]

Attention!

If the TWA alarm activates, leave the contaminated area immediately; the ambient gas concentration has reached the preset TWA alarm level.

Failure to follow this warning will cause over-exposure to toxic gases and persons relying on this product for their safety could sustain serious personal injury or death.

The TWA icon [ chapter 2.3] appears on the display to show the average expo-

sure since the device was turned on or since the TWA reading was reset. When the amount of gas detected is greater than the eight-hour TWA limit:

- Alarm sounds

- Alarm LEDs flash

- TWA icon flashes.

To reset the TWA:

(1) Access the TWA page.

(2) Press the  button.

The TWA alarm is calculated over an eight-hour exposure.

GB

ALTAIR 4X

19

Description

TWA calculation examples:

1 hour exposure of 50 ppm:

[1 hour x 50 ppm] + [7 hours x 0 ppm]

8 hours

= 6.25 ppm

4 hour exposure of 50 ppm and 4 hour exposure of 100 ppm:

[4 hours x 50 ppm] + [4 hours x 100 ppm]

8 hours

12 hour exposure of 100 ppm:

[12 hours x 100 ppm]

8 hours

= 75 ppm

= 150 ppm

MSA

Time Display

Current time appears on the display in a 12 hour format by default.

A 24-hour format can be selected using MSA Link.

Date Display

Current date appears on the display in the format: MMM-DD-YYYY.

Last cal page

Displays the device last successful calibration date in the format:

MMM-DD-YYYY

Cal due page

Displays the days until the device's next calibration is due [user selectable].

Motion Alert Activation

To activate or deactivate the Motion Alert feature, press the  button while the

Motion Alert Activation page is displayed. When the Motion Alert feature is active,

the Motion Alert symbol [ chapter 2.3] will flash every 3 seconds. The device will

enter pre-alarm when no motion is detected for 20 seconds. This condition can be cleared by moving the device.

After 30 seconds of inactivity, the full Motion Alert alarm is triggered. This alarm can only be cleared by pressing the  button.

20

ALTAIR 4X

GB

MSA Description

2.6

Sensor Missing Alarm

The device enters the Sensor Missing alarm if the device detects the sensor is not properly installed in the device or is not functional.

If a sensor is detected as missing, the following occurs:

- " SENSOR ERROR" displays

- The flag above the sensor detected as missing flashes on the display

- Alarm sounds and lights flash.

- Yellow Fault LED is on solid.

- If there is a sensor error at startup, the device shuts off in 60 seconds.

2.7

Sensor End of Life Warning

If a sensor is nearing its end of life, the device will warn the user following a sensor calibration. The sensor is still fully functional at this point, but the warning gives the user time to plan for a replacement sensor and minimise downtime. The  symbol

will be continuously displayed. For more details see chapter 3.9.

2.8

Sensor End of Life Indicator

If the device cannot calibrate one or more sensors, the device will display

" SPAN ERR" followed by the Alarm symbol and  symbol to indicate end of sensor

life. For more details see chapter 3.9.

2.9

Monitoring Toxic Gases

The device can monitor the concentration of the following toxic gases in ambient air:

- Carbon Monoxide [CO]

- Hydrogen Sulphide [H

2

S]

The device displays the gas concentration in parts per million [PPM] or mg/m

3 the Measuring page until another page is selected or the device is turned off.

on

Attention!

If an alarm is triggered while using the device, leave the area immediately.

Remaining in the area under such circumstances can cause serious personal injury or death.

GB

ALTAIR 4X

21

Description MSA

The device has four gas alarms:

- HIGH Alarm

- LOW Alarm

- STEL Alarm

- TWA Alarm

If the gas concentration reaches or exceeds the alarm set point, the device:

- backlight turns on

- provides a vibrating alarm

- displays and flashes the Alarm symbol and either the Minimum icon

[LOW alarm] or the Maximum [PEAK] icon [HIGH alarm]

- enters an alarm state.

2.10 Monitoring Oxygen Concentration

The device monitors the oxygen concentration in ambient air. The alarm set points can be set to activate on two different conditions:

- Enriched - oxygen concentration > 20.8 vol. % or

- Deficient - oxygen concentration < 19.5 vol. %.

Attention!

If an alarm is triggered while using the device, leave the area immediately.

Remaining in the area under such circumstances can cause serious personal injury or death.

When the alarm set point is reached for either of the above conditions:

- an alarm sounds

- alarm LEDs flash

- a vibrating alarm triggers

- device displays and flashes the Alarm icon and either the Minimum icon [En-

riched alarm] or the Maximum icon [Deficient alarm] [ chapter 2.3] along with

the corresponding oxygen concentration.

22

ALTAIR 4X

GB

MSA Description

The LOW alarm [oxygen deficient] is latching and will not automatically reset when the O

2

concentration rises above the LOW set point. To reset the alarm press the  button. If the alarm condition still exists, the

 button only silences the alarm for five seconds.

False oxygen alarms can occur due to changes in barometric pressure

[altitude] or extreme changes in ambient temperature.

It is recommended that an oxygen calibration be performed at the temperature and pressure of use. Be sure that the device is in known fresh air before performing a calibration.

2.11 Monitoring Combustible Gases

The device can monitor these concentrations in ambient air:

- Methane

- Combustible gases

The device displays the gas concentration in % LEL or % CH

4

on the

Measuring page until another page is selected or the device is turned off.

Attention!

If an alarm is triggered while using the device, leave the area immediately.

Remaining in the area under such circumstances can cause serious personal injury or death.

The device has two alarm set points:

- HIGH Alarm

- LOW Alarm

If the gas concentration reaches or exceeds the alarm set point, the device:

- backlight turns on

- a vibrating alarm triggers

- displays and flashes the Alarm symbol and either the Minimum icon

[LOW alarm] or the Maximum [PEAK] icon [HIGH alarm]

- enters an alarm state.

GB

ALTAIR 4X

23

Operation MSA

When gas reading exceeds 100% LEL CH

4

, the device enters a

Lock Alarm state , the combustible sensor shuts down and displays

“ xxx” in place of the actual reading. This state can only be reset by turning the device off and on in a fresh air environment.

Attention!

A combustible gas reading of "100” indicates the atmosphere is above

100% LEL CH

4

and an explosion hazard exists. Move away from contaminated area immediately.

In such cases, the device LockAlarm feature activates.

Check your national standard values for 100 % LEL [EN60079-20-1].

3 Operation

3.1

Environmental Factors

A number of environmental factors may affect the gas sensor readings, including changes in pressure, humidity and temperature. Pressure and humidity changes affect the amount of oxygen actually present in the atmosphere.

Pressure Changes

If pressure changes rapidly [e.g., stepping through airlock], the oxygen sensor reading may temporarily shift and possibly cause the detector to alarm. While the percentage of oxygen may remain at or near 20.8 Vol %, the total amount of oxygen present in the atmosphere available for respiration may become a hazard if the overall pressure is reduced by a significant degree.

Humidity Changes

If humidity changes by any significant degree [e.g., going from a dry, air conditioned environment to outdoor, moisture laden air], oxygen readings can be reduced by up to 0.5 %, due to water vapour in the air displacing oxygen.

The oxygen sensor has a special filter to reduce the effects of humidity changes on oxygen readings. This effect will not be noticed immediately, but slowly impacts oxygen readings over several hours.

24

ALTAIR 4X

GB

MSA Operation

Temperature Changes

The sensors have built-in temperature compensation. However, if temperature shifts dramatically, the sensor reading may shift. Zero the device at the work site temperature for the least effect.

3.2

Turning on the Device

For more information, see the flow charts in [ chapter 7].

Turn the device on with the ON/OFF button.

The device performs a self test and then goes to Fresh Air Setup:

- all display segments are activated

- audible alarm sounds

- alarm LEDs light

- vibrating alarm is activated.

During the self test, the device checks for missing sensors. In the case of a missing sensor, the device displays the Sensor Missing screen and alarms until it is turned off. Otherwise, the turn-on sequence continues.

The device displays:

- Alarm & display self test

- Manufacturer name

- Device name

- Software version

- Sensor discovery

- Combustible gas type

- Toxic gas units

- Alarm set points [PEAK, MIN] [STEL, TWA]

- Calibration values

- Date and time display

- Last cal date [if activated]

- CAL due date [if activated]

- Fresh Air Setup option.

GB

ALTAIR 4X

25

Operation MSA

Screen Displays during Startup

During the startup sequence, all automatic page display timeouts are preset to a range from two to four seconds.

Several sequences and screens occur during start up:

Device Self Test

The device performs a self test.

COMB/EX O2

SO2 CO NO2 H2S

Device Name and Software version

Software version and device name display.

26

Combustible Gas Type

Name of Combustible Gas Type displays, e.g. BUTANE.

NOTE: Combustible gas type can be changed manually through the SENSOR SETUP menu or the MSA Link software.

COMB/EX

ALTAIR 4X

GB

MSA Operation

Toxic Gas Units

Name of Toxic Gas Units displays [ppm or mg/m

3

].

NOTE: Toxic units can only be modified through the MSA Link software.

CO

Alarm Set points

Alarm set points for all installed and activated sensors display.

LOW alarm set points display, followed by HIGH alarm set points.

NOTE: Alarm set points can be changed manually through the

Setup menu or the MSA Link software.

H2S

COMB/EX O2

CO H2S

GB

COMB/EX O2

CO H2S

STEL and TWA Set points

The preset STEL and TWA values for installed and activated sensors display.

CO

CO

H2S

ALTAIR 4X

27

Operation MSA

Calibration Values

The preset calibration values for installed and activated sensors display.

COMB/EX

O2

CO H2S

Time and Date

The date displays in a month, day and year format.

NOTE: In the event that the battery is fully discharged, the time and date reset. At startup, the user is prompted to enter the time and date.

If the time and date information is missing, they are reset to

[Jan-01-2008] with time stamp [00:00].

Last CAL Date and CAL Due

NOTE: These display options can be set by MSA Link software. If these options are not set, these screens are not displayed.

- By default Last Cal is activated.

- By default Cal Due is deactivated.

Fresh Air Setup [FAS]

The FAS screen is prompted.

COMB/EX O2

CO

H2S

28

ALTAIR 4X

GB

MSA Operation

Fresh Air Setup (FAS)

The FAS is for automatic Zero calibration of the device.

The Fresh Air Setup has limits. The zero of any sensor that is outside of these limits will not be adjusted by the FAS command.

Warning!

Do not activate the Fresh Air Setup unless you are certain you are in fresh, uncontaminated air; otherwise, inaccurate readings can occur which can falsely indicate that a hazardous atmosphere is safe. If you have any doubts as to the quality of the surrounding air, do not use the

Fresh Air Setup feature. Do not use the Fresh Air Setup as a substitute for daily calibration checks. The calibration check is required to verify span accuracy. Failure to follow this warning can result in serious personal injury or death.

If a battery charging cycle is interrupted before it is completed [4 hours for a fully discharged battery], allow the device’s internal temperature to stabilize for 30 minutes before performing a Fresh Air Setup.

COMB/EX O2

CO

H2S

Fig. 3 Fresh Air Setup

GB

ALTAIR 4X

29

Operation

COMB/EX O2

CO H2S

MSA

If this option is enabled, the device displays " FAS?", prompting the user to perform a Fresh Air Setup.

(3) Press the  button to bypass the Fresh Air Setup.

The Fresh Air Setup is skipped and the device goes to the Measuring page

[Main page].

(4) Press the ON/OFF button within 10 seconds to perform the Fresh Air Setup.

The device starts the FAS.

The screen shows a No Gas Symbol, a blinking hourglass, and all enabled gas sensor readings.

At the end of the FAS Calibration, the device displays " FAS OK" or

" FAS ERR". along with the flags of the sensors that were outside of the

FAS limits. All sensors that are within the FAS limits will be zeroed.

3.3

Measurement Mode [Normal Operation]

In Normal Operation mode, the user can check the Minimum and Peak readings prior to clearing the STEL and TWA values or performing a Span and Zero Calibration.

The following options pages can be executed from the Normal Operation screen:

Bump Page

This page allows the user to perform a bump check.

COMB/EX

O2

CO

Peak Page

This page shows the peak readings for all sensors.

Min Page

This page shows the minimum reading for the oxygen sensor.

O2

30

ALTAIR 4X

GB

MSA

STEL Page

This page shows the calculated STEL readings of the device.

CO

TWA Page

This page shows the calculated TWA readings of the device.

CO H2S

Time / Date Page

This page shows actual time and date settings of the device.

Motion Alert [optional]

This page allows the Motion Alert Feature to be activated or deactivated.

Operation

Using the three device buttons, the user can navigate through each sub-menu in a top/down sequence.

Refer to chapter 2.5 and in the appendix for detailed instructions on navigating

through these screens.

GB

ALTAIR 4X

31

Operation MSA

3.4

Device Setup

The setup menus can be accessed only when the device is turned on while pressing and holding the  button.

This mode can only be activated at device turn-on.

The operation is as follows:

(1) Press and hold the  button while turning the device on.

Use the  and  buttons to enter the setup password.

The default password is "672".

(2) Press ON/OFF button to enter the setup menus.

Incorrect password: device enters the Measure mode.

Correct password: device continues/beeps three times.

The password can be changed through the MSA Link software.

In the Setup mode:

- Press the ON/OFF button to store chosen value or go to the next page.

- Press  button to increase values by one or toggle a selection on or off.

- Press and hold  button to increase values by 10.

- Press  button to decrease values by one or toggle a selection on or off.

- Press and hold  button to decrease values by 10.

The following options are available by pressing the  and  buttons:

- Sensor Setup [ SENSOR SETUP]

- Calibration Setup [ CAL SETUP]

- Alarm Setup [ ALARM SETUP]

- Setup Time and Date [ TIME SET]

EXIT

32

ALTAIR 4X

GB

MSA

Sensor Setup

Each sensor can be turned on or off.

For more information, see the flow charts in [ chapter 8.5].

Operation

COMB/EX O2

CO

H2S

Fig. 4 Sensor Setup

(1) To bypass this setup, press the  or  button; otherwise, continue as follows.

(2) Press the

ON/OFF button to enter the submenu.

(3) Use the  or  button to change the option and confirm with the

ON/OFF button.

(4) Repeat this procedure for all other sensors.

(5) After setting the last sensor, continue to Calibration Setup.

Calibration Setup

The user can change and set the calibration values for each sensor.

It is also possible to select whether the Cal Due screen is displayed and set the number of days until the next calibration is due.

For more information, see the flow charts in [ chapter 8.5].

COMB/EX

O2

CO H2S

Fig. 5 Calibration Setup

GB

ALTAIR 4X

33

Operation MSA

(1) To bypass this setup, press the  or  button; otherwise, continue as follows.

(2) Press the ON/OFF button to enter the submenu.

The calibration gas concentration of the first sensor is shown.

(3) Press the or  button to change the value.

(4) Press the ON/OFF button to store the value.

Setup screen for the next sensor is displayed.

(5) Repeat the procedure for all other sensors.

After setting the last sensor, the user is prompted to set CALDUE.

(6) Press the  or  button to enable or disable CALDUE.

Press the ON/OFF button to confirm the selection.

(7) If CALDUE is set on, press the  or  button to select the number of days

(8) Confirm with the ON/OFF button.

(9) After confirmation, continue to Alarm setup.

Alarm Setup

The user can switch all alarms on or off and change the alarm set points for each sensor.

For more information, see the flow charts in [ chapter 8.9].

See chapter 5.1 for alarm adjustment limits. The value of the High Alarm can only

be set to a value that is higher than the Low Alarm set point.

34

COMB/EX

O2

CO H2S

Fig. 6 Alarm Setup

(1) To bypass this setup, press the  or  button; otherwise, continue as follows.

(2) Press the

ON/OFF button to enter the submenu.

(3) Set alarms on or off by pressing the  or  button.

(4) Press the

ON/OFF button to confirm the selection.

LOW ALARM settings for the first sensor display.

ALTAIR 4X

GB

MSA Operation

(5) Press the  or  button to change the value.

(6) Press the ON/OFF button to store the value.

HIGH ALARM settings for the first sensor display.

(7) Press the  or  button to change the value.

(8) Press the ON/OFF button to store the value.

STEL ALARM settings [for toxic sensors only] display.

(9) Press the  or  button to change the value.

(10) Press the ON/OFF button to store the value.

TWA ALARM settings [for toxic sensor only] for display.

(11) Press the  or  button to change the value.

(12) Press the ON/OFF button to store the value.

(13) Repeat the procedure for all other sensors.

(14) After setting the last sensor, continue to Time and Date setup.

60% L.E.L. or 3.0% volume of methane is the maximum High Alarm set point that can be programmed.

The alarm can be silenced momentarily by pressing the  button. However, if the gas concentration causing the alarm is still present, the device will go back into alarm.

GB

ALTAIR 4X

35

Operation

Setup Time and Date

This submenu is for setting date and time.

For more information, see the flow charts in [ chapter 8.10].

MSA

Fig. 7 Date and Time Setup

(1) To bypass this setup, press the  or  button; otherwise, continue as follows.

(2) Press the ON/OFF button to enter the submenu.

(3) Set month by pressing the or  button.

(4) Press the ON/OFF button to confirm month.

(5) Repeat this procedure for day, year, hours and minutes.

By default, time is displayed in 12 hour format.

The

EXIT screen will be displayed next.

(6) Confirming this screen with the ON/OFF button exits the device setup.

If the sensors have not warmed up yet, the countdown is displayed.

The device then goes to Measuring mode.

3.5

Data Logging

Connecting device to PC

(1) Switch on the device and align the Datalink Communication port on the device to the IR interface of the PC.

(2) Use the MSA Link software to communicate with the device.

See MSA Link documentation for detailed instructions.

36

ALTAIR 4X

GB

MSA Operation

3.6

Function Tests

Alarm Test

Turn on the device. Verify that:

- all LCD segments are activated momentarily

- alarm LEDs flash

- horn sounds briefly

- vibrating alarm triggers briefly.

3.7

Safe LED

The device is equipped with a green Safe LED. This green Safe LED flashes every

15 seconds under the following conditions:

- the SAFE LED feature is enabled

- device is in Measurement Mode [Normal Operation]

- combustible reading is 0% LEL or 0.00% CH

4

- Oxygen [O

2

] reading is 20.8%

- Carbon Monoxide [CO] reading is 0 ppm or mg/m

3

- Hydrogen Sulphide [H

2

S] reading is 0 ppm or 0 mg/m

3

- no gas alarms are present [low or high]

- device is not in Low Battery warning or alarm

- CO, H

2

S, STEL and TWA readings are 0 ppm or 0 mg/m³.

3.8

Bump Test

Attention!

Perform a Bump Test to verify proper device operation. Failure to perform this test can result in serious personal injury or death.

Bump test frequency is often stipulated by national or corporate regulations; however, bump testing before each day’s use is generally the accepted best safety practice and is therefore MSA’s recommendation.

This test quickly confirms that the gas sensors are functioning. Perform a full calibration periodically to ensure accuracy and immediately if the device fails the

Bump Test. The Bump Test can be performed using the procedure below or automatically using the GALAXY GX2 Test Stand.

GB

ALTAIR 4X

37

Operation MSA

Equipment

See accessory section for ordering information for these components.

- Calibration Check Gas Cylinder

- 0.25 liters/min. Flow Regulator

- 1/8” ID Superthane Ester Tubing

- Calibration Cap

Performing a Bump Test

(1) Connect the regulator to the Calibration Check

Gas Cylinder.

(2) From the normal measure screen press the

 button to display “ BUMP TEST?”.

(3) Verify the gas concentrations displayed match the Calibration Check Gas Cylinder. If they do not, adjust the values through the Calibration

Setup menu.

(4) Open the pressure reducer valve on test gas cylinder.

COMB/EX

CO

O2

H2S

38

ALTAIR 4X

GB

MSA Operation

(5) Press the ON/OFF button to start the bump test then open the valve on the regulator. The hourglass will flash and the sensors will respond to the gas.

(6) Close the valve after bump testing.

After the Bump Test completes, the device momentarily displays “ BUMP PASS” or “BUMP ERROR” along with the label of any sensor that failed before returning to Measure mode. If the device fails the

Bump Test, perform a calibration as described in

chapter 3.9.

COMB/EX

O2

The  symbol will be displayed in the Measure mode for 24 hours after a successful

Bump Test.

3.9

Calibration

The device can be calibrated either manually using this procedure or automatically using the GALAXY GX2 Test Stand.

Calibration must be performed using a flow regulator with a flow rate set to

0.25 litres per minute.

If a battery charging cycle is interrupted before it is completed [4 hours for a fully discharged battery], allow the device’s internal temperature to stabilise for

30 minutes before performing a Calibration.

Under normal circumstances MSA recommends calibration at least every six months, however, many European countries have their own guidelines. Please check your national legislation.

GB

ALTAIR 4X

39

Operation MSA

Fresh Air Setup and Zero Calibration

To skip the Zero procedure and move directly to the Calibration Span procedure, push the  button. If no button is pushed for 30 seconds, the device prompts user to perform a Span calibration before returning to the Normal Operation mode.

(1) Press and hold the  button in Normal Operation mode for three seconds.

(2) If calibration lockout option is selected, enter password.

ZERO screen is then displayed.

YES

Password correct?

NO

40

ALTAIR 4X

GB

MSA Operation

- If calibration lockout option is NOT selected:

ZERO screen displays.

COMB/EX

CO

O2

H2S

COMB/EX O2

CO H2S

(3) With the device exposed to fresh air, press the ON/OFF button to confirm the ZERO screen. A sensor refresh and

Zero Calibration will occur.

Alternatively press the  button to execute a Fresh Air setup [FAS].

See chapter 3.2 for more details.

After Zero calibration completes, the device momentarily displays “

ZERO PASS” or

“ ZERO ERR” along with the flag of any sensor that failed.

CO

During instrument zero calibration the O to 20.8% O

2 instrument span calibration, the O

2

2

sensor is also span calibrated

fresh air, adjusting the calibration curve as needed. During tion curve.

sensor's accuracy is checked against a known oxygen gas concentration without adjusting the calibra-

GB

ALTAIR 4X

41

Operation MSA

Span Calibration

To skip the Span procedure, push the  button.

If no button is pushed for 30 seconds, the device returns to the Measuring mode.

(1) Once the Zero is set, the SPAN screen displays.

(2) Connect the regulator to the Calibration Check Gas Cylinder.

(3) Connect the appropriate calibration gas to the device.

(4) Attach the calibration cap to the device.

Insert tab on calibration cap into slot on device.

Press calibration cap as shown until it seats onto device.

Press both side tabs down onto device until they snap into.

Ensure that the calibration cap is properly seated.

Connect one end of the tubing to the calibration cap.

Connect other end of tubing to the cylinder regulator [supplied in the calibration kit].

(5) Open the pressure reducer valve on test gas cylinder.

(6) Press the ON/OFF button to calibrate [span] the device.

LEDs flash

SPAN calibration starts.

(7) Close the valve after SPAN calibration.

COMB/EX

CO

COMB/EX

O2

H2S

O2

COMB/EX O2

42

ALTAIR 4X

GB

MSA Operation

- After the SPAN calibration completes, the device momentarily displays “ SPAN PASS” or

SPAN ERR” along with the label of any sensor that failed then returns to the Measuring mode.

COMB/EX

CO

O2

H2S

COMB/EX

CO

O2

H2S

If a sensor is nearing its end of life, this " SPAN PASS" indication will be followed by the end of sensor life warning [ symbol]. The  symbol, along with the gas type of the sensor nearing its end of life, will blink for 15 seconds when the device returns to measure mode. When in measure mode, the  symbol is continuously displayed.

Finishing Calibration

(1) Close the valve on the regulator.

(2) Remove the calibration cap.

The calibration procedure adjusts the span value for any sensor that passes the calibration test; sensors that fail calibration are left unchanged. Since residual gas may be present, the device may briefly go into an exposure alarm after the calibration sequence is completed.

Autocalibration Failure

Span calibration is unsuccessful:

- If the instrument cannot calibrate one or more sensor(s), it goes to the

SPAN ERR page and remains in alarm until the button is pressed.

- A sensor life indicator is displayed [Alarm symbol and  symbol] to show the sensor has reached its end of life and should be replaced.

This occurs if the span calibration is unsuccessful twice.

- The device will remain in alarm state until the  button is pressed.

- The Alarm symbol and  symbol will remain on the display until a successful calibration or sensor in question is replaced.

A span calibration can fail for many reasons besides sensor at the end of his life. If a span calibration failure occurs, items such as remaining gas in the calibration cylinder, gas expiration date, security of the calibration cap, etc. should be verified and calibration should be repeated prior to replacing the sensor.

GB

ALTAIR 4X

43

Maintenance MSA

4 Maintenance

If an error occurs during operation, use the displayed error codes to determine appropriate next steps. The device should be regularly checked and maintained by qualified personnel.

Warning!

Repair or alteration of the device beyond the procedures described in this manual or by anyone other than a person authorised by MSA, could cause the unit to fail to perform properly. Use only genuine MSA replacement parts when performing any maintenance procedures described in this manual.

Substitution of components can seriously impair performance of the unit, alter intrinsic safety characteristics or void agency approvals. Failure to follow this warning can result in serious personal injury or death.

Refer to EN 60079-29-2 [Guide for the selection, installation, use and maintenance of apparatus for the detection and measurement of combustible gases or oxygen] and EN 45544-4 [Guide for the selection, installation, use and maintenance of electrical apparatus used for the direct detection and direct concentration measurement of toxic gases and vapours].

44

ALTAIR 4X

GB

MSA Maintenance

4.1

Troubleshooting

Problem

ERROR TEMP

ERROR EE

ERROR PRG

ERROR RAM

ERROR UNK

LOW

BATT

BATT

ALARM

ERROR CHARGE

SENSOR ERROR

Device does not turn on

Description

Temperature is below

-40°C or above 75°C.

Reaction

Return device to normal temperature range and recalibrate.

Contact MSA

EEPROM Memory error Contact MSA

Flash Memory error Contact MSA

RAM Memory error

Unknown error

Battery warning repeats every 60 seconds.

Battery is completely discharged.

Contact MSA

Contact MSA

Remove from service as soon as possible and recharge battery

Device is no longer sensing gas.

Remove from service and recharge battery.

Charge error

Missing Sensor

Low battery

Device must be between 10° C and 36° C to charge.

Contact MSA if problem persists

Verify if sensor is properly installed

Charge device

&

Sensor warning

Sensor alarm

Sensor is near the end of its life

Sensor has reached the end of its life and cannot be calibrated. Replace sensor and recalibrate.

GB

ALTAIR 4X

45

Maintenance MSA

4.2

Live Maintenance Procedure - Replacing and Adding a Sensor

Warning!

Remove and reinstall sensors carefully, ensuring that the components are not damaged; otherwise device intrinsic safety may be adversely affected, wrong readings could occur, and persons relying on this product for their safety could sustain serious personal injury or death.

Attention!

Before handling the PC board, ensure you are properly grounded; otherwise, static charges from your body could damage the electronics.

Such damage is not covered by the warranty. Grounding straps and kits are available from electronics suppliers.

To add a sensor to an device that is not already equipped with a full array of sensors, remove the sensor plug from in front of the formerly unused sensor housing.

While device case is open, do not touch any internal components with metallic/conductive objects or tools.

Damage to the device can occur.

(1) Verify that the device is turned off.

(2) Remove the four case screws, and remove the case front while carefully noting the orientation of the sensor gasket.

(3) Gently lift out and properly discard the sensor to be replaced.

Using fingers only, gently remove the toxic, combustible, or oxygen sensor by gently rocking it while pulling it straight from its socket.

(4) Carefully align the new sensor contact pins with the sockets on the printed circuit board and pressing it firmly in place.

Ensure tab on sensor aligns with groove at top of holder.

Insert the toxic sensor by placing it in the left-hand position of the sensor holder.

Insert the O holder.

2

sensor by placing it in the right-hand position of the sensor

Insert the combustible sensor by placing it in the middle position of the sensor holder.

If any sensor is not to be installed, ensure that a sensor plug is installed properly in its place.

46

ALTAIR 4X

GB

MSA Maintenance

(5) Reinstall the case front.

(6) Re-install the screws.

(7) Turn on the device.

If the sensor replaced is the same as the previous sensor:

- The device starts up normally.

- The device automatically senses that a new sensor is installed and displays the " SENSOR DSCVRY" screen.

If the sensor replaced is not the same as the previous sensor or this sensor channel was deactivated:

- The device automatically senses

- "

" the difference and displays

SENSOR CHANGE".

ACCEPT?" appears on the display.

Accept the change with

 button or reject with

 button.

Go into the sensor setup and turn on the appropriate sensor

( chapter 3.4).

(8) Calibrate the device after the sensors have stabilised.

Danger!

Calibration is required after a sensor is installed; otherwise, the device will not perform as expected and persons relying on this product for their safety could sustain serious personal injury or death.

Allow sensors to stabilise at room temperature for at least 30 minutes

before calibration (chapter 3.9).

GB

ALTAIR 4X

47

Maintenance MSA

4.3

Cleaning

Clean the exterior of the device regularly using only a damp cloth. Do not use cleaning agents as many contain silicones which will damage the combustible sensor.

4.4

Storage

When not in use, store the device in a safe, dry place between 18 °C and 30 °C.

After storage, always recheck device calibration before use.

4.5

Scope of Delivery

Pack the device in its original shipping container with suitable padding. If the original container is unavailable, an equivalent container may be substituted.

48

ALTAIR 4X

GB

MSA Technical Data

5 Technical Data

Weight

Dimensions

(L x W x H)

Alarms

224 g (device with battery and clip)

112 x 76 x 33 mm – without fastening clip

Volume of audible alarm

Display

Battery type

Four gas alarm LEDs, a charge status LED, an audible alarm and a vibrating alarm

95 dBA at 30 cm typical

LCD display

Rechargeable Li polymer battery.

Li polymer battery must not be charged in Ex area.

Device run time 24 hours at 25 °C

Charging time

Warm up time

 4 hours

The maximum safe area charging voltage U

2 min m

= 6.7 VDC

Temperature range

-20°C to 60°C

For measuring Carbon Monoxide & Hydrogen Sulfide

-20°C to 60°C

For measuring Oxygen, Methane, Propane, Pentane & Hydrogen - ATEX Certified Performance

-40°C to 60°C

For intrinsic safety

10 °C to 35 °C while charging battery

Humidity range

15 % – 90 % relative humidity, non-condensing,

5 % – 95 % RH intermittent

Atmospheric pressure range

Ingress protection

Measuring methods

800 to 1200 mbar

IP 67

Combustible gases: Catalytic sensor

Oxygen: Electrochemical sensor

Toxic gases: Electrochemical sensor

GB

ALTAIR 4X

49

Technical Data MSA

Measuring range

Combustible

0-100% LEL

0-5.00% Vol.CH

4

H

2

S-LC

0-100 ppm

O

2

*

0-30% Vol.

NO

2

0-50 ppm

CO

0-1999 ppm

0-1999 mg/m

3

SO

2

0-20 ppm

H

2

S

0-200 ppm

0-284 mg/m³

* Certified for 0 - 25 vol.% O

2

The technical and performance specifications for the specialised EX-H and EX-M sensor are the same as for the standard EX sensor.

The ppm to mg/m³ conversion is calculated at 20° C and at atmospheric pressure.

50

ALTAIR 4X

GB

MSA Technical Data

5.1

Factory-set Alarm Thresholds and Setpoints

Check the monitor or calibration certificate for exact alarm levels as they vary depending on national regulations.

Sensor

Ex

EX-H

EX-M

(%vol)

H

2

S-LC

(ppm)

NO

SO

2

(ppm)

2

(ppm)

O

2

(%)

CO (ppm)

H

2

S (ppm)

LOW alarm

10 % LEL

10 % LEL

0.5

5

2

2

19.5

25

10

HIGH alarm

20 % LEL

20 % LEL

1.0

10

5

5

23.0

100

15

Sensor Min. alarm set point Max. alarm set po

Ex 5 % 60 %

EX-H

EX-M

(%vol)

5 %

0.1

60 %

3.0

H

2

S-LC

(ppm)

NO

2

(ppm)

SO

2

(ppm)

O

2

(%)

CO (ppm)

H

2

S (ppm)

1

1

1

5

10

5

70

47.5

17.5

24

1700

175

5

5

--

100

15

STEL

--

--

--

10

TWA

10

10

15.0

60

20

--

--

--

1

2

2

--

25

10

Auto-cal values

58 %

58 %

2.5

20

GB

ALTAIR 4X

51

Technical Data MSA

5.2

Performance Specification

Combustible Gas

Range

Resolution

Reproducibility

0 to 100 % LEL or 0 to 5 % CH

4

1 % LEL or 0.05 % vol CH

4

3 % LEL, 0 % to 50 % LEL reading or 0.15 % CH

4

, 0.00 % to 2.50 % CH

(normal temperature range)

4

5 % LEL, 50 % to 100 % LEL reading or 0.25 % CH

4

, 2.50 % to 5.00 % CH

(normal temperature range)

4

5 % LEL, 0 % to 50 % LEL reading or 0.25 % CH

4

, 0.00 % to 2.50 % CH

(extended temperature range)

4

8 % LEL, 50 % to 100 % LEL reading or 0.4 % CH

4

, 2.50 % to 5.00 % CH

(extended temperature range)

4

Response time 90 % of final reading in less than or equal to 15 sec (pentane) and 10 sec (methane) (normal temperature range)

Combustible Gas Cross Reference Factors for

General-Purpose Calibration Using Calibration Cylinder (Part No. 10053022)

Combustible Gas

Acetone

Acetylene

Butane

Cyclohexane

Diethylether

Ethane

Ethanol

Ethylene

Gasoline

Methane Calibration

1.45 Vol % CH

4

33% LEL

1.09

1.07

1.37

1.94

1.43

1.27

1.16

1.09

1.63

Set

Pentane Simulant Calibration

1.45 Vol % CH

4

Set 58 %LEL

0.62

0.61

0.79

1.11

0.82

0.73

0.66

0.62

0.93

52

ALTAIR 4X

GB

MSA Technical Data

Combustible Gas

n-Hexane

Hydrogen

Isobutane

Isopropyl Alcohol

Methane

Methanol

Methyl Ethyl Ketone

Nonane

Nonane with EX-H sensor

Pentane

Propane

Toluene

Xylene

Isobutane

Xylene with EX-H sensor

Methane Calibration

1.45 Vol % CH

4

33% LEL

Set

1.86

0.98

1.63

1.55

1.00

0.93

1.69

4.48

3.03

1.90

1.39

1.14

2.09

4.83

3.57

Pentane Simulant Calibration

1.45 Vol % CH

4

Set 58 %LEL

1.06

0.56

0.93

0.88

0.57

0.53

0.97

2.56

1.73

1.00

0.79

0.93

1.19

2.76

2.04

Response notes

(1) Some compounds may reduce the sensitivity of the combustible gas sensor by poisoning orinhibiting the catalytic action or by polymerizing on the catalytic surface.

(2) Multiply the displayed %LEL value by the conversion factor above to get the true %LEL.

(3) These conversion factors should be used only if the combustible gas is known.

(4) All factors are based on the IEC 100% LEL levels

 i.e. Methane 100% LEL = 4.4 Vol%,

Pentane 100% LEL = 1.1 Vol%

Propane 100% LEL = 1.7 Vol%

(5) These conversion factors are typical. Individual units may vary by ±25% from these values.

GB

ALTAIR 4X

53

Technical Data MSA

(6) The results are intended for guidance only. For the most accurate measurements, an instrument should be calibrated using the gas under investigation.

(7) The conversion factors for the standard EX and the specialised EX-H and

EX-M sensor are the same except for EX-H and Nonane and o-Xylene. The conversion factors for these two vapours are therefore especially mentioned in the table.

Oxygen

The oxygen sensor has built-in temperature compensation. However, if temperature shifts dramatically, the oxygen sensor reading may shift. Zero the device at a temperature within 30 °C of the work place temperature for the least effect.

Range

Resolution

Reproducibility

Response time

(90% of final reading)

Sensor Cross-Sensitivity

0 to 30 vol.% O

0.1 vol.% O

2

0.7 vol.% O

2

2

*

for 0 to 30 vol.% O

2

<10 second (normal temperature range)

The oxygen sensor has no common cross-sensitivities.

* Certified for 0 - 25 vol.% O

2

Carbon Monoxide

Data is presented as the indicated output in PPM which will result from the application of the test gas.

Range

Resolution

Reproducibility

Response time

0 - 1999 ppm (0 - 1999 mg/m

3

) CO

1 ppm (1.2 mg/m

3

±5 ppm (5.8 mg/m

) CO for 0 to 1999 ppm

3

) CO or 10 % of reading, whichever is greater

(normal temperature range)

±10 ppm (11.6 mg/m

3

) CO or 20 % of reading, whichever is greater

90% of final reading in less than or equal to

15 seconds (normal temperature range)

54

ALTAIR 4X

GB

MSA Technical Data

Test Gas Applied

Concentration (PPM)

Applied

Hydrogen Sulfide (H

2

S) 40

Carbon Monoxide (CO) 100

Nitric Oxide (NO)

Ammonia (NH

3

)

Toluene

50

Nitrogen Dioxide (NO

2

)

Sulfur Dioxide (SO

2

)

11

9

Chlorine (Cl

2

) 10

Hydrogen Cyanide (HCN) 30

25

53

Isopropanol

Hydrogen (H

2

)

100

100

Hydrogen Sulphide

Range

Resolution

Reproducibility

Response time

CO Channel %

Cross-sensitivity

0

100

84

0

-4

0

-5

0

0

-8

48

0 - 200 ppm (0 to 284 mg/m

3

) H

2

S

1 ppm (1.4 mg/m

3

) H

2

S, for 3 to 200 ppm (4,3 to 284 mg/m

3

) H

2

S

±2 ppm (2.8 mg/m

3

) H

2

S or 10 % of reading, whichever is greater (normal temperature range)

0 to 100 ppm (0 to 142 mg/m

3

) H

2

S,

±5 ppm (7,1 mg/m

3 whichever is greater

) H

2

S or 10 % of reading,

90% of final reading in less than or equal to

15 seconds (normal temperature range)

Test Gas Applied

Concentration (PPM)

Applied

Hydrogen Sulfide (H

2

S) 40

Carbon Monoxide (CO) 100

Nitric Oxide (NO)

Nitrogen Dioxide (NO

2

)

Sulfur Dioxide (SO

2

)

50

11

9

H

2

S Channel %

Cross-sensitivity

100

1

25

-1

14

GB

ALTAIR 4X

55

Technical Data MSA

Test Gas Applied

Concentration (PPM)

Applied

Chlorine (Cl

2

) 10

Hydrogen Cyanide (HCN) 30

Ammonia (NH

3

)

Toluene

25

53

Isopropanol

Hydrogen (H

2

)

100

100

Hydrogen Sulphide Low Concentration (H2S-LC)

Range

Resolution

Reproducibility

Response time (typical)

H

2

S Channel %

Cross-sensitivity

-14

-3

-1

0

-3

0

0 - 100 ppm H

2

S

0.1 ppm H

2

S

±0.2 ppm H

2

S or 10 % of reading, whichever is greater (normal temperature range)

±0.5 ppm H

2

S or 20 % of reading, whichever is greater (extended temperature range)

90% of final reading < 15 seconds (normal temperature range)

Nitrogen Dioxide

Range

Resolution

Reproducibility

Response time (typical)

0 - 50 ppm NO

0.1 ppm NO

2

2

±1 ppm NO

2

or 10 % of reading, whichever is greater (normal temperature range)

±2 ppm NO

2

or 20 % of reading, whichever is greater (extended temperature range)

90% of final reading < 20 seconds (normal temperature range)

56

ALTAIR 4X

GB

MSA Technical Data

Sulphur Dioxide

Range

Resolution

Reproducibility

Response time (typical)

0 - 20 ppm SO

2

0.1 ppm SO

2

±1 ppm SO

2

or 10 % of reading, whichever is greater (normal temperature range)

±2 ppm SO

2

or 20 % of reading, whichever is greater (extended temperature range)

90% of final reading < 20 seconds (normal temperature range)

5.3

XCell Sensor Patents

Combustible sensor

O

2

sensor

CO/H

2

S sensor

Part No.10106722

Part No.10106729

Part No.10106725

Patent Pending

Patent Pending

Patent Pending

GB

ALTAIR 4X

57

Certification MSA

6 Certification

See device label for the approvals that apply to your specific device.

USA and Canada

USA

See device label for the approvals that apply to your specific device.

Canada

See device label for the approvals that apply to your specific device.

Other Countries

Australia/New Zealand

TestSafe Australia

Ex ia sa I IP67 (Zone 0)

Ex ia sa IIC T4 IP67 (Zone 0)

Ta = -40 °C to +60 °C

58

ALTAIR 4X

GB

MSA Certification

6.1

Marking, Certificates and Approvals

According to the Directive 94/9/EC (ATEX)

Manufacturer: Mine Safety Appliances Company

1000 Cranberry Woods Drive

Cranberry Township, PA 16066 USA

Product:

ALTAIR 4X

EC-Type Examination Certificate: FTZU 07 ATEX 0169 X

Type of protection:

EN 60079-0: 2009, EN 60079-1: 2007,

EN 60079-11: 2012, EN 60079-18: 2009

EN 60079-26: 2007, EN 50303: 2000

Performance EN 60079-29-1: 2007, EN 50104:2010

Gas

EN 50271: 2010 measuring range 0-100% LEL:

Methane, Propane, Pentane, Hydrogen

Oxygen: measuring range 0-25 Vol %, indication 0-30 Vol %

Marking: II 1G Ex ia IIC T4 Ga when combustible XCell EX sensor is not installed

II 2G Ex d ia mb IIC T4 Gb

I M1 Ex ia I Ma

-40 °C  Ta  +60 °C

Um  6,7 V DC

Special Conditions:

The model ALTAIR 4X shall only be charged and opened in a non-hazardous area.

The model ALTAIR 4X shall not be used in Zone 0 when the combustible

XCell Ex sensor is installed.

The alarm set points are not applied for measuring oxygen inertisation and it shall be taken into account.

GB

ALTAIR 4X

59

Certification MSA

Quality Assurance Notification: 0080

Year of Manufacture:

Serial Nr.: see Label see Label

National Certification:

Performance:

Gas:

FTZU 08 E 0034

EN 45544-1:1999, EN 45544-2:1999

EN 50104 : 2010

CO: 0-1999 ppm

H

2

S: 0-200 ppm

Oxygen: measuring range 0-25 Vol%, indication range 0-30 Vol %

6.2

Marking, Certificates and Approvals According to IECEx

Manufacturer: Mine Safety Appliances Company

1000 Cranberry Woods Drive

Cranberry Township, PA 16066 USA

Product:

ALTAIR 4X

IECEx-Type Examination Certificate:

Type of protection:

IECEx TSA 08.0013X

IEC 60079-0:2004, IEC 60079-1:2003

Performance

IEC 60079-11:2006 none

Marking: Ex ia I IP67

EX ia mb IIC T4 IP67 when combustible XCELL sensor is installed

Ex ia IIC T4 IP67 when combustible XCELL sensor is not installed

Ta = -40 °C to +60 °C

Um  6,7 V

60

ALTAIR 4X

GB

MSA Ordering Information

7 Ordering Information

Description

Stainless steel suspender clip

Calibration Cylinder 58L quad gas mix

(1.45% CH

4

, 15% O

2

, 60 ppm CO, 20 ppm H

2

S)

Universal pump probe

Pressure reducer valve 0,25 l/min

Calibration assembly (cap, tube, connector)

North American Power Supply with Charge Connector

Global Power Supply with Charge Connector

Charging cradle assembly with Power supply ((North America)

Charging cradle assembly with Power supply (Australia)

Charging cradle assembly with Power supply (Europe)

Vehicle Charging cradle assembly

MSA Link Software CD-Rom

JetEye IR adapter with USB connector

Combustible sensor replacement kit

O

2

sensor replacement kit

CO/H

2

S Two Toxic sensor replacement kit

Front Housing with integrated dust filters (charcoal)

Front Housing with integrated dust filters (fluorescent)

Main board w/ battery pack

LCD Frame assembly (frame LCD, zebra strips, screws)

Sensors gasket, socket head cap screws (4x), self tapping (2x)

CD Manual ALTAIR 4 x

Combustible EX-M Sensor Replacement Kit

Combustible EX-H Sensor Replacement Kit

H2S-LC/CO Sensor Replacement Kit

CO/NO2 Sensor Replacement Kit

H2S/SO2 Sensor Replacement Kit

Part No.

10069894

10053022

10047596

467895

10089321

10092233

10092938

10087368

10089487

10086638

10095774

10088099

10082834

10106722

10106729

10106725

10110030

10110029

10106621

10110061

10110062

10106623

10121212

10121211

10121213

10121217

10121215

GB

ALTAIR 4X

61

Ordering Information MSA

GALAXY GX2, QuickCheck and additional accessories are available on request.

62

ALTAIR 4X

GB

MSA

8 Appendix

8.1

Start Up Sequence [Power on]

From Power on

(Press

)

CO H2S

COMB/EX COMB/EX COMB/EX

CO H2S

COMB/EX O2

CO H2S

COMB/EX O2

CO H2S CO

CO H2S

COMB/EX O2

CO H2S

Appendix

GB

COMB/EX O2

CO H2S

ALTAIR 4X

Begin Normal

Operation

63

Appendix

8.2

Fresh Air Setup (FAS)

From Start Up Sequence

Press

Press

Press key or wait 10 seconds

YES

FAS OK?

NO

Begin Normal

Operation

MSA

64

ALTAIR 4X

GB

MSA

8.3

Reset Screen Controls

Appendix

From Normal Operations

(Main Page)

Hold for 3 seconds

Button?

CAL Mode

Press

BUMP Page

Hold for 5 seconds

Instrument off

To Calibration

Press

Measure

Button ?

Press

Perform BUMP

Press

To Bump

To Next

Page

GB

ALTAIR 4X

65

Appendix MSA

From previous page

Press

COMB/EX O2

CO H2S

Press

Button ?

Press

O2

Press

Press

Button ?

Press

Press

CO

H2S

Press

Button ?

Press

CO H2S

Press

Main Page

Button ?

Press

Press

COMB/EX

O2

CO

H2S

O2

CO H2S

CO H2S

Set ON/OFF with

Begin

Normal Operation

66

ALTAIR 4X

GB

MSA

8.4

Bump Test

From Normal Operations

(Main Page)

Press

Appendix

No Button

Begin Normal Operation

Button ?

Button

COMB/EX

O2

CO H2S

COMB/EX

H2S

Press

GB

Begin Normal Operation

ALTAIR 4X

67

Appendix

8.5

Calibrations

ZERO CAL

From Measure Page when is held for 3 seconds

Press

Perform

ZERO CAL?

YES

Press

NO

Press

MSA

68

SPAN CAL

CO

Press

Press

COMB/EX O2

CO H2S

CAL COMPLETE

ALTAIR 4X

Return to

Normal Operation

GB

MSA

8.6

Options Setup

Appendix

GB

Begin Normal

Operation

COMB/EX O2

CO H2S

YES

Password

Correct?

NO

Button? or

Setup

COMB/EX O2

CO H2S

From

Date/Time

Setup

To Sensor

Setup

From

Alarm

Setup

To CAL

Setup

From

CAL

Setup

COMB/EX O2

CO

H2S

To Alarm

Setup

To Time/

Date Setup

ALTAIR 4X

69

Appendix

8.7

Sensor Setup

From

Setup Options

Set Sensor with or

Confirm Sensor with

COMB/EX COMB/EX

Combustible

MSA

O2 O2

O

2

70

CO

CO CO

H

2

S

H2S H2S

To Calibration Setup

ALTAIR 4X

GB

MSA

8.8

Calibration Setup

From

Setup Options

Set Calibration Value with

Confirm with or

COMB/EX

Combustible

O2

Appendix

GB

CO

H

2

S

CO

H2S

To Alarm Setup

Set ON/OFF with

Confirm with or

ALTAIR 4X

71

Appendix

8.9

Alarm Setup

From Setup Options

Set Alarms with or

Confirm Alarms with

Set Alarms on or off

Combustible

COMB/EX

COMB/EX

O2 O2

O

2

MSA

72

CO

CO CO CO CO

H

2

S

H2S H2S

H2S

To

Time/Date

Setup

H2S

ALTAIR 4X

GB

MSA

8.10 Time and Date Setup

From Options Setup

Set Time/Date with

Confirm Time/Date with

or

Appendix

To Exit Setup

GB

ALTAIR 4X

73

MSA in Europe

[

www.MSAsafety.com

]

Northern Europe

Netherlands

MSA Nederland

Kernweg 20

1627 LH Hoorn

Phone +31 [229] 25 03 03

Fax +31 [229] 21 13 40 [email protected]

Belgium

MSA Belgium N.V.

Duwijckstraat 17

2500 Lier

Phone +32 [3] 491 91 50

Fax +32 [3] 491 91 51 [email protected]

Southern Europe

France

MSA GALLET

Zone Industrielle Sud

01400 Châtillon sur

Chalaronne

Phone +33 [474] 55 01 55

Fax +33 [474] 55 47 99 [email protected]

Italy

MSA Italiana S.p.A.

Via Po 13/17

20089 Rozzano [MI]

Phone +39 [02] 89 217 1

Fax +39 [02] 82 59 228 [email protected]

Great Britain

MSA (Britain) Limited

Lochard House

Linnet Way

Strathclyde Business Park

BELLSHILL ML4 3RA

Scotland

Phone +44 [16 98] 57 33 57

Fax +44 [16 98] 74 01 41 [email protected]

Spain

MSA Española, S.A.U.

Narcís Monturiol, 7

Pol. Ind. del Sudoeste

08960 Sant-Just Desvern

[Barcelona]

Phone +34 [93] 372 51 62

Fax +34 [93] 372 66 57 [email protected]

Sweden

MSA NORDIC

Kopparbergsgatan 29

214 44 Malmö

Phone +46 [40] 699 07 70

Fax +46 [40] 699 07 77 [email protected]

MSA SORDIN

Rörläggarvägen 8

33153 Värnamo

Phone +46 [370] 69 35 50

Fax +46 [370] 69 35 55 [email protected]

Eastern Europe

Poland

MSA Safety Poland Sp. z o.o.

Ul. Wschodnia 5A

05-090 Raszyn k/Warszawy

Phone +48 [22] 711 50 00

Fax +48 [22] 711 50 19 [email protected]

Central Europe

Germany

MSA AUER GmbH

Thiemannstrasse 1

12059 Berlin

Phone +49 [30] 68 86 0

Fax +49 [30] 68 86 15 17 [email protected]

Czech republic

MSA Safety Czech s.r.o.

Dolnojircanska 270/22b

142 00 Praha 4 - Kamyk

Phone +420 241440 537

Fax +420 241440 537 [email protected]

Hungary

MSA Safety Hungaria

Francia út 10

1143 Budapest

Phone +36 [1] 251 34 88

Fax +36 [1] 251 46 51 info.h[email protected]

Austria

MSA AUER Austria

Vertriebs GmbH

Modecenterstrasse 22

MGC Office 4, Top 601

1030 Wien

Phone +43 [0] 1 / 796 04 96

Fax +43 [0] 1 / 796 04 96 - 20 [email protected]

Switzerland

MSA Schweiz

Eichweg 6

8154 Oberglatt

Phone +41 [43] 255 89 00

Fax +41 [43] 255 99 90 [email protected]

Romania

MSA Safety Romania S.R.L.

Str. Virgil Madgearu, Nr. 5

Ap. 2, Sector 1

014135 Bucuresti

Phone +40 [21] 232 62 45

Fax +40 [21] 232 87 23 [email protected]

Russia

MSA Safety Russia

Походный проезд д.14.

125373 Москва

Phone +7 [495] 921 1370

Fax +7 [495] 921 1368 [email protected]

European

International Sales

[Africa, Asia, Australia, Latin

America, Middle East]

MSA Europe

Thiemannstrasse 1

12059 Berlin

Phone +49 [30] 68 86 0

Fax +49 [30] 68 86 15 58 [email protected]

Ukraine

MSA Safety Ukraine

72 Krasnoarmeyskaya Str.,

7th floor

03680 Kiev

Ukraine

Phone +380 [44] 205 -5640

Fax +380 [44] 205 -5641

E-mail :[email protected]

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
