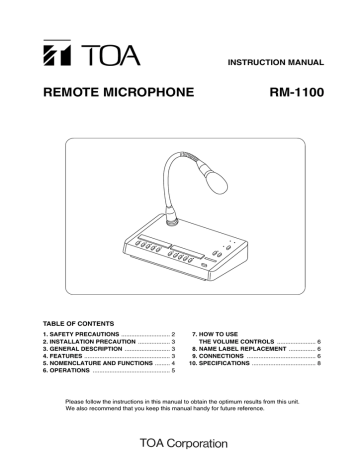

INSTRUCTION MANUAL
REMOTE MICROPHONE
RM-1100
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ............................. 2
2. INSTALLATION PRECAUTION ................... 3
3. GENERAL DESCRIPTION ........................... 3
4. FEATURES ................................................... 3
5. NOMENCLATURE AND FUNCTIONS ......... 4
6. OPERATIONS .............................................. 5
7. HOW TO USE
THE VOLUME CONTROLS ....................... 6
8. NAME LABEL REPLACEMENT ................ 6
9. CONNECTIONS ......................................... 6
10. SPECIFICATIONS ...................................... 8
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
1. SAFETY PRECAUTIONS
• Be sure to read the instructions in this section carefully before use.
• Make sure to observe the instructions in this manual as the conventions of safety symbols and messages
regarded as very important precautions are included.
• We also recommend you keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first so you are
thoroughly aware of the potential safety hazards as well as understand the safety symbols and messages.
WARNING
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
When Installing the Unit
• Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as
doing so may result in fire or electric shock.
• Do not cut, kink, otherwise damage nor modify the connection cables. In addition, avoid using the cables in
close proximity to heaters, and never place heavy objects on the cables, as doing so may result in fire.
• Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface.
Doing so may result in the unit falling down and causing personal injury and/or property damage.
When the Unit is in Use
• Should the following irregularity be found during use, immediately switch off the circuit breaker of the
junction panel to which the unit is connected. Then, contact your nearest TOA dealer. Make no further
attempt to operate the unit in this condition as this may cause fire or electric shock.
· If you detect smoke or a strange smell coming from the unit.
· If water or any liquid gets into the unit
· If the unit falls, or the unit case breaks
· If the connection cables are damaged (exposure of the core, disconnection, etc.)
• Do not place cups, bowls, or other containers of liquid on top of the unit. If they accidentally spill into the
unit, this may cause a fire or electric shock.
• Do not touch connection cables during thunder and lightning, as this may result in electric shock.
2
CAUTION
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
When Installing the Unit
• Avoid installing the unit in humid or dusty locations, in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or steam as doing otherwise may result in fire.
When the Unit is in Use
• Do not place heavy objects on the unit as this may cause it to fall or break which may result in personal
injury and/or property damage. In addition, the object itself may fall off and cause injury and/or damage.
• Cut off the power supply (24 VDC) to the unit for safety purposes when cleaning or leaving the unit unused
for 10 days or more. A fire may result.
2. INSTALLATION PRECAUTION
Use the unit only with the voltage specified on the junction panel to which the unit is connected. Using a
voltage higher than that which is specified may result in equipment failure.
3. GENERAL DESCRIPTION
A remote control unit for general-purpose broadcast, the RM-1100 can make broadcast to up to ten zones and
simultaneously to the entire area. When using multiple RM-1100 units, priority order (First-in-first-out priority or
Individual unit priority) can be set among them.
4. FEATURES
• Uni-directional microphone suited to announcements.
• AUX input jack permits broadcast from the cassette deck or CD player.
• Internal compressor circuit prevents sound distortion caused by significantly large input during an
announcement from the microphone.
• Connection cables can be routed from the rear or either side of the unit, facilitating installation in any place.
3
5. NOMENCLATURE AND FUNCTIONS
[Top panel]
[Bottom panel]
12
1
2
16
3
4
5
6
7
15
11
10
9
8
1 Power indicator
Lights when the power is switched on.
2 Busy indicator
Lights when the rack system or other remote
control unit is in use.
14
13
9 All-zone button
Turns on or off all-zone broadcast.
10 Zone selector buttons
Turn on or off broadcast to the selected zone.
11 Zone indicators
3 Broadcast indicator
Only when this lamp is on, broadcast can be
made from equipment connected to the AUX
input. Pressing the microphone button allows an
announcement to go through.
4 Power switch
Power is switched on and off with each depression
of this switch.
5 All-zone broadcast indicator
Lights when the all-zone broadcast button is
pressed.
6 Chime button
Pressing this button activates the main rack
system's chime unit and sounds a chime. This
button cannot be used if the chime unit is not
connected.
7 Level meter
Indicates an output level. Check to confirm that
the level is within the green area when using.
8 Microphone button
Press this button to make an announcement
when the broadcast indicator is on.
4
Light when the corresponding zone selector
button is pressed.
12 Name label
Used to show the name of each broadcasting zone.
Refer to p. 6 "8. NAME LABEL REPLACEMENT"
when using the label.
13 Microphone volume control
Adjusts the microphone volume. Refer to p. 6 "7. HOW
TO USE THE VOLUME CONTROLS" for details.
14 AUX input volume control
Adjusts the AUX input volume. Refer to p. 6 "7. HOW
TO USE THE VOLUME CONTROLS" for details.
15 AUX input jack (-20 dBV/100 kΩ)
Connects to a cassette deck, etc. Microphones
cannot be connected.
16 Terminals
Connect to cables from the Junction Panel JP0410, Pre-amplifier PP-025B or other remote
control unit. Refer to p. 6 "9. CONNECTIONS" for
details.
6. OPERATIONS
• Broadcast can be made only when the zone selector or all-zone broadcast button is pressed and the
broadcast indicator lights.
• While the main rack system or other remote control unit is in use, the busy lamp remains lit. In such cases,
wait till the indicator is extinguished.
• First-in-first-out priority or Individual unit priority can be set. It is impossible to make broadcast when other
equipment given higher priority is in use. When equipment with lower priority is in use, if you press the zone
selector or all-zone broadcast button, the broadcast indicator lights, permitting your broadcast to be made.
Check the priority relationship beforehand.
• When a cassette deck or CD player is connected to the AUX input jack, by pressing the all-zone broadcast
or individual zone selector buttons, background music (BGM) can be broadcast to the selected zones.
[Hint on convenient use]
If broadcasting zones are always the same, leave the corresponding zone selector or all-zone broadcast
button depressed.
Individual zone broadcast
1. Press the power switch. (The power indicator lights.)
2. Press the desired zone selector button.
(The broadcast indicator and the corresponding zone
indicator both light.)
3. Press
the chime button. (The main rack system's
chime unit is activated, and a chime plays.)
Note : The chime button cannot be used if the chime
unit is not connected to the main rack system.
4. Make
an announcement while holding down the
microphone button.
5. Press the zone selector button again after broadcast
completion. (The broadcast indicator and zone
indicator are both extinguished.)
6. Press the power switch again.
(The power indicator is extinguished.)
All-zone broadcast
1. Press the power switch. (The power indicator lights.)
2. Press the all-zone broadcast button.
(The broadcast indicator and the all-zone broadcast
indicator both light.)
3. Press
the chime button. (The main rack system's
chime unit is activated, and a chime plays.)
Note : The chime button cannot be used if the chime
unit is not connected to the main rack system.
4. Make
an announcement while holding down the
microphone button.
5. Press
the all-zone broadcast button again after
broadcast completion. (The broadcast indicator and
the all-zone indicator are both extinguished.)
6. Press the power switch again.
(The power indicator is extinguished.)
5
7. HOW TO USE THE VOLUME CONTROLS
1. Using the Phillips screwdriver, rotate the microphone volume control ( 13 ) and AUX input volume control ( 14 )
on the bottom surface fully counter-clockwise.
2. Making an announcement from the microphone, rotate the microphone volume control clockwise to adjust
the volume to an appropriate level.
3. Making broadcast from equipment connected to the AUX input, rotate the AUX input volume control
clockwise to adjust the volume to an appropriate level.
8. NAME LABEL REPLACEMENT
1. Raise the center of the label cover panel to remove it. (Figure 1)
2. Replace the name label.
3. Fit the cover panel in place lightly squeezing both ends of the cover panel. (Figure 2)
Figure 1
Figure 2
9. CONNECTIONS
Connect the RM-1100 unit to the main rack as follows.
Twin
shielded
cable
E
C
RM-1100
bottom-mounted terminal block
H
To pre-amplifier
PP-025B line input
GND 24 V CHIME
GEM RM PWR ACTI
GND
1
2
IN USE
3
4
REMOTE REMOTE
1
2
5
GND
GEN RM BUS
GND
6
7
TIMER
GND
1
8
9
PWR FAIL
10
CTRL
GND
11
12
AUX CONTROL
JP-0410 front panel middle row terminal block
6
13
14
Connect the remote control output to the PP-025B Pre-amplifier Panel's line input jack. Use the twin shielded
cable for connection.
H
C
E
Priority setting
First-in-first-out priority: Connect the First-in-first-out terminal of one remote control unit to the same terminal
of another. Up to five units can be connected for the FIFO priority function.
Remote Control Unit 1
R
T
PRIORITY
PRIORITY
ANN ON
- + COM
24 VDC
POWER
RM
E
1ST-IN-1ST-OUT
C
REMOTE
OUTPUT
ALL-ZONE
H
CHIME
T
ANN ON
R
RM
- + COM
24 VDC
POWER
1ST-IN-1ST-OUT
E
ALL-ZONE
C
REMOTE
OUTPUT
CHIME
H
Remote Control Unit 2
Of the two remote control units, the unit making an announcement first takes
precedence. While one unit is in use, other remote control unit cannot be used.
Individual unit priority: Connect the Individual unit priority/sending terminal of the remote control unit given
higher priority to the Individual unit priority/receiving terminal of the unit with lower
priority. Up to five units can be connected.
Remote Control Unit 1
R
T
PRIORITY
PRIORITY
ANN ON
- + COM
24 VDC
POWER
RM
E
1ST-IN-1ST-OUT
C
REMOTE
OUTPUT
ALL-ZONE
H
CHIME
T
ANN ON
R
RM
- + COM
24 VDC
POWER
1ST-IN-1ST-OUT
E
ALL-ZONE
C
REMOTE
OUTPUT
CHIME
H
Remote Control Unit 2
In this example, Remote Control Unit 1 takes precedence over Remote Control
Unit 2. While Unit 1 is making broadcast, Unit 2 cannot be used. Conversely, while
Unit 2 is making broadcast, Unit 1 can be used.
When not setting the priority order
When using only one RM-1100 unit or when using multiple units but not assigning priority, do not connect the
First-in-first-out terminal or Individual unit priority terminal.
Cable type vs. cable length
Cable length
Power/control cable
Shielded cable
Under 400 m
Over ø0.65 mm
Over ø0.26 mm
Under 800 m
Over ø0.9 mm
Over ø0.35 mm
Under 1200 m
Over ø1.2 mm
Over ø0.5 mm
7
10. SPECIFICATIONS
Power Source
Current Consumption
Output
Microphone
AUX Input
Chime
Speaker Control
Dimensions
Weight
Finish
Connection Cable
24 VDC
130 mA
0 dBV, 600 Ω, balanced
Electret condenser type gooseneck microphone (with windshield)
-20 dBV, 100 kΩ, unbalanced
Sounds a chime installed in the main rack.
10 zones + All-zone broadcast
274 (w) x 62 (h) x 155 (d) mm (Microphone excluded)
1.3 kg
Bright gray, paint
Twin shielded cable + 20 wires (external diameter: under 14 mm)
Note: The design and specifications are subject to change without notice for improvement.
Accessories
Gooseneck microphone (with windshield) ................ 1
Cable clip .................................................................. 1
Name label ................................................................ 4
Printed in Japan
133-12-591-30
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
