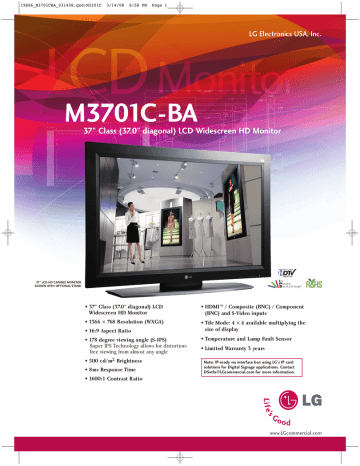

LG Electronics USA, Inc.
M3701C-BA
37" Class (37.0" diagonal) LCD Widescreen HD Monitor
37" LCD HD CAPABLE MONITOR
SHOWN WITH OPTIONAL STAND
• 37" Class (37.0" diagonal) LCD
Widescreen HD Monitor
• HDMI ™ / Composite (BNC) / Component
(BNC) and S-Video inputs
• 1366 768 Resolution (WXGA)
• Tile Mode: 4 4 available multiplying the
size of display
• 16:9 Aspect Ratio
• 178 degree viewing angle (S-IPS)
Super IPS Technology allows for distortionfree viewing from almost any angle
• 500 cd/m2 Brightness
• 8ms Response Time
• Temperature and Lamp Fault Sensor
• Limited Warranty 3 years
Note: IP-ready via interface box using LG's IP card
solutions for Digital Signage applications. Contact
[email protected] for more information.
• 1600:1 Contrast Ratio
www.LGcommercial.com
19686_M3701CBA_031408.qxd:M3201C
3/14/08
6:58 PM
Page 2
LG Electronics USA, Inc.
M3701C-BA
37" Class (37.0" diagonal) LCD Widescreen HD Monitor
FRONT VIEW
SIDE VIEW
BACK VIEW
SPECIFICATIONS
PANEL
LCD Panel Type
Display Area
Panel Type (TN,IPS)
Aspect Ratio
Native Resolution
Brightness
Contrast Ratio
Response Time
Viewing Angle
MTBF
Color Depth
Pixel Pitch
Lamp Quantity
Surface Treatment
VIDEO
Max Input Resolution
H-Scanning Frequency
V-Scanning Frequency
Synchronization Type
INPUTS AND OUTPUTS
15 Pin D-Sub
HDMI™(digital) with HDCP
S-Video
Component
Composite
PC Audio Input
RS-232C
Remote Control input
CONTROL
Key Number
Key Location
Key Type
LED color
OSD Language
POWER
Power Supply
Rated Voltage
On Mode
DPM Off
Off Mode
Sleep Mode
ENVIRONMENTAL CONDITIONS
Operational Condition Temperature
Storage Condition
REAR JACK PANEL
37” Widescreen TFT (Thin Film Transistor) –
LCD (Liquid Crystal Display)
37.0”
S-IPS
16:9
1366x768
500 cd/m2
1600:1
8 ms
178 / 178
50,000 Hrs
16.7 Million (8bits)
0.600 x 0.600
16 CCFL
AG (3H)
768p
RGB : 30 - 83 kHz; HDMI/DVI : 30 - 72 kHz
56 - 85 Hz
Separate/Composite/SOG (Sync On
Green)/Digital
RGB In / RGB Out
1 In / DVI (through HDMI™ to DVI adapter - not
included)
1 In
2 Component In (1080i) BNC with audio
1 in / 1 out(BNC) with audio
Yes
RS-232C In / RS-232C Out
Yes / IR Jack
8
Right Bottom
Tact Switch
Amber-off/Green-on
English,French,German,Italian,Spanish,
Portuguese,Korean
Internal
AC 100-240V~ 50/60Hz 2.0A
180W
1W
1W
<_1W (RGB) / 4W(HDMI/DVI)
Temperature: 50°F ~ 95°F, 10°C ~ 35°C ,
Humidity: 10% ~ 80%
Temperature: -4°F ~ 140°F, -20°C ~ 60°C ,
Humidity: 5% ~ 95%
CABINET
Front Color
Rear Color
Monitor Dimensions (W x H x D)
(Head Only)
Weight (Head Only)
Carton Dimensions (W x H x D)
Packed Weight
Kensington Lock
AUDIO FEATURES
Max Audio output
Audio
Black
Black
36.54 inches x 22.49 inches x 4.43 inches
67.16 lbs
41.97 inches x 32.76 inches x 14.18 inches
80.16 lbs
Yes
SSM
20Watt (10W x 2EA)
Built-in AMP, Equalizer, Auto Volume Limiter, Balance,
Speaker on/off
Surround Max, Flat, Music, Movie, Sports, User
SPECIAL FEATURES
XD Engine®
XD Demo
Pb Free
DDC/CI
Intelligent Auto (Auto Resolution)
Tile Mode
Temperature Sensor
Lamp Fault Sensor
LG Logo Light
ISM Method
PSM
CSM
Yes
Yes (Not Available in RBG PC/HDMI/DVI PC Mode)
Yes
Yes
Yes
Yes, Max 4 x 4
Yes
Yes
off / on selectable
Normal, Orbiter, Inversion, White Wash
Dynamic, Standard, Mild, User 1, 2
Warm, Normal, Cool, User
CERTIFICATIONS
UL(cUL)
TUV-GS
SEMKO
FCC-B, CE
VESA™ Mounting
CB scheme
VCCI
GOST
MIC
RoHS compliant
Yes
Yes
Yes
Yes
Yes (600 x 400)
Yes
Yes
Yes
Yes
Yes
ACCESSORIES
Remote Control/AAABatteries(2)
User's Guide/Driver CD-Rom/Warranty Card
15-pin D-Sub Signal Cable
Power Cable
Audio Cable (PC)
RCA-PC Audio Cable
OPTIONAL ACCESSORIES
Speakers (SP3700K)
Speaker Dimensions (W x H x D)
Weight
Stand (ST3700K)
Stand Dimensions (W x H x D)
Weight
Black
4.95 inches x 22.49 inches x 2.89 inches
2.56 lbs
Black/Silver
26.40 inches x 5.00 inches x 7.50 inches
6.86 lbs
LIMITED WARRANTY (PARTS/LABOR)
3 years
UPC CODE
719192182523
www.LGcommercial.com
LG Electronics USA, Inc., Commercial Division, 2000 Millbrook Drive, Lincolnshire, IL 60069 Customer Service: 1-888-865-3026
Contact your LG Regional Sales Manager Toll-Free – Hospitality: 1-800-228-1236; B2B: 1-800-897-8788; Channel Markets: 1-800-897-8871
Screen image is simulated. Dimensions and weights are approximate. Design, specifications, and features subject to change without notice.
©Copyright 2008 LG Electronics USA, Inc. All Rights Reserved. HDTV monitors require optional set-top box to receive high-definition broadcast. “LG Life’s Good” is a registered trademark
of LG Corp. VESA™ is a registered trademark of Video Electronics Association. All other product and brand names are trademarks or registered trademarks of their respective companies.
Printed in the USA. March 2008
