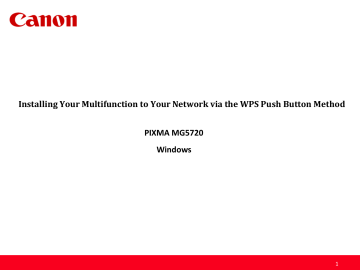

Installing Your Multifunction to Your Network via the WPS Push Button Method

PIXMA MG5720

Windows

1

Setup and Installation

Setup and Installation

To use the machine wirelessly with a computer, the printer must be connected to the Wireless LAN and software including the drivers needs to be copied (installed) to the computer's hard disk. Installation time varies depending on the computer environment or the number of application software to be installed.

IMPORTANT

Log on as the administrator (or a member of the Administrators group).

Quit all running applications before software installation.

Do not switch users during the installation process.

Internet connection may be required during the installation. Connection fees may apply. Consult the internet service provider.

It may be necessary to restart your computer during the installation process. Follow the on-screen instructions.

. The installation resumes once your computer has restarted.

If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting to access the network. If such a warning message appears, set the security software to always allow access.

2

Connecting to the Wireless LAN

1. From the

Home

screen, press the up or down arrows until

LAN settings

appears. Then press the function key underneath it.

3

Connecting to the Wireless LAN

2. Use the down arrow to select

Wireless LAN setup

and press

OK

.

4

Connecting to the Wireless LAN

3. Use the arrows to select

WPS (Push button method)

and press

OK

.

5

Connecting to the Wireless LAN

4. Press

OK

on this message.

6

Connecting to the Wireless LAN

5. Press and hold the WPS button on your wireless router for 5 seconds. Then, press

OK

on this message.

7

Connecting to the Wireless LAN

6. The printer will attempt to connect to the wireless LAN. Upon a successful connection, this screen will appear. Press

OK

and proceed with installing the software.

8

Connecting to the Wireless LAN

Insert the Setup CD-ROM into your computer.*

Click [ Run Msetup4.exe ] on the AutoPlay screen, then click [ Yes ] or [ Continue ] on the User Account Control dialog box.

If the CD-ROM does not autorun:

Double-click [ (My) Computer ] > CDROM icon > [ MSETUP4.EXE. ]

*If you don’t have or cannot use the Setup CD-ROM, follow the steps below to start the setup.

Download the software (click the link to download)

Double-click the downloaded .exe file (win-mg5700-1_0-jucd.exe)

If the

User Account Control

dialog box appears during the setup, click

Yes

or

Continue

.

Connecting to the Wireless LAN

Click

Start Setup

on the initial screen.

9

Connecting to the Wireless LAN

Continue following on-screen instructions to select country, License Agreement, etc. until the

Select Connection Method

screen appears. Be sure to select

Wireless LAN Connection

, then click

Next

..

10

Connecting to the Wireless LAN

Select

Connect via wireless router (recommended)

then click

Next.

11

Connecting to the Wireless LAN

Click

Next

on the

Check Power

screen.

12

Connecting to the Wireless LAN

On the

Printers on Network List

verify your printer is selected by checking the listing in the

Serial Number

column. This will show the last 5 digits of the printer's serial number. The serial number is found on a sticker on the back of the printer near the bottom. Click

Next

.

13

Connecting to the Wireless LAN

Click

Next

on the

Connection Completed

screen.

14

Installing the Drivers & Software

Continue to follow on-screen instructions. Click

Next

on the

Setup Complete

screen.

15

Installing the Drivers & Software

Continue to follow the on-screen instructions. On the

Software Installation List

, select any of the optional software to install and click

Next.

16

Installing the Drivers & Software

At this point the connection has been established and Drivers and Software has been installed. Please follow any remaining instructions to finish and exit the setup. Click

Exit

when the

Installation completed successfully

screen appears.
