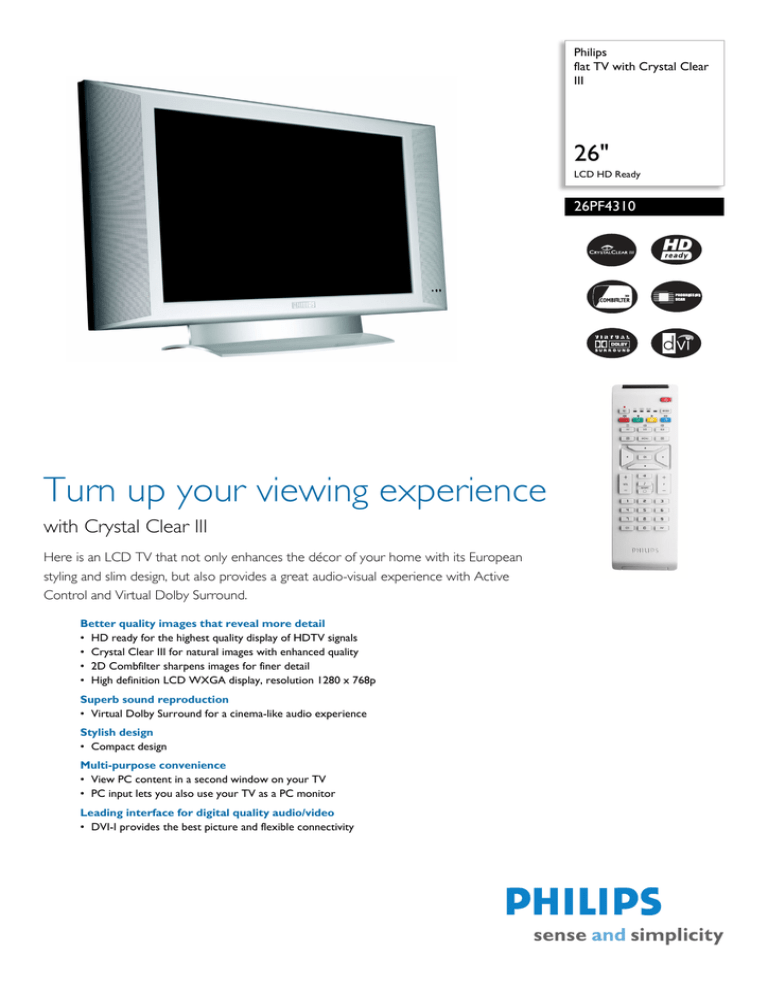

26PF4310/10 Philips flat TV with Crystal Clear III

26PF4310/10 Philips flat TV with Crystal Clear III
Philips
flat TV with Crystal Clear
III
26"
LCD HD Ready
26PF4310
Turn up your viewing experience
with Crystal Clear III
Here is an LCD TV that not only enhances the décor of your home with its European
styling and slim design, but also provides a great audio-visual experience with Active
Control and Virtual Dolby Surround.
Better quality images that reveal more detail
• HD ready for the highest quality display of HDTV signals
• Crystal Clear III for natural images with enhanced quality
• 2D Combfilter sharpens images for finer detail
• High definition LCD WXGA display, resolution 1280 x 768p
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Stylish design
• Compact design
Multi-purpose convenience
• View PC content in a second window on your TV
• PC input lets you also use your TV as a PC monitor
Leading interface for digital quality audio/video
• DVI-I provides the best picture and flexible connectivity
26PF4310/10
Flat TV with Crystal Clear III
26" LCD HD Ready
Specifications
Picture/Display
•
•
•
•
•
•
•
•
•
•
Aspect ratio: 15:9, Widescreen
Brightness: 400 cd/m²
Contrast ratio (typical): 500:1
Diagonal screen size: 26 inch / 66 cm
Display screen type: LCD WXGA Active Matrix
TFT
Picture enhancement: Contrast Plus, Progressive
Scan, 3/2 - 2/2 motion pull down, Digital Noise
Reduction, Jagged Line Suppression, 2D
Combfilter, Crystal Clear III
Screen enhancement: Anti-Reflection coated
screen
Viewing Angle (H / V): 176 / 176 degree
Panel resolution: 1280 x 768p
Response time (typical): 16 ms
Supported Display Resolution
• Computer formats
Resolution
Refresh rate
640 x 480
60, 67, 72, 75Hz
800 x 600
56, 60, 72, 75Hz
1024 x 768
60, 70, 75Hz
• Video Formats
Resolution
Refresh rate
640 x 480i
1Fh
640 x 480p
2Fh
720 x 576i
1Fh
720 x 576p
2Fh
1280 x 720p
3Fh
1920 x 1080i
2Fh
Sound
•
•
•
•
Sound Enhancement: Dynamic Bass Enhancement
Sound System: Virtual Dolby Surround, Stereo
Output power (RMS): 2 x 5 W
Equalizer: 5-bands
Convenience
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, Fine Tuning,
Plug & Play, Program Name, Sorting
• Ease of Use: Auto Volume Leveller (AVL),
Graphical User Interface, Program List, Smart
Picture Control, Smart Sound Control
• Remote control type: RCFE05SPS00
• Teletext: 10 page Smart Text
• Teletext enhancements: Program information
Line
• Picture in Picture: Picture in graphics, Twin page
text
• Remote Control: Amp, DVD, TV, Multi-functional
• Screen Format Adjustments: 4:3, Full screen,
Movie expand 14:9, Movie expand 16:9, Subtitle
Zoom, Super Zoom, Widescreen
• Clock: Sleep Timer
• VESA Mount: 100 x 100 mm
Tuner/Reception/Transmission
•
•
•
•
•
•
Tuner bands: Hyperband, S-Channel, UHF, VHF
TV system: PAL, SECAM
Video Playback: PAL, SECAM, NTSC
Aerial Input: 75 ohm coaxial (IEC75)
Tuner Display: PLL
Number of Preset Channels: 100
Connectivity
•
•
•
•
Ext 1 Scart: Audio L/R, CVBS in/out, RGB
Ext 2 Scart: Audio L/R, CVBS in/out, S-video in
Other connections: Antenna IEC75
Front / Side connections: CVBS in, Headphone
out, S-video in, Audio L/R in
• AV 3: DVI-I with HDCP, Audio-in mini jack 3.5mm
• Number of Scarts: 2
Power
• Power consumption: 110 W Normal
Operation W
• Standby power consumption: 1 W <
• Ambient temperature: +5 -/+ 40 C
Dimensions
• Product weight: 15 kg
• Weight incl. Packaging: 18.75 kg
• Dimensions (with base) (W x H x D):
792 x 483 x 241 mm
• Colour cabinet: Silver Frost
• Set dimensions (W x H x D):
792 x 431 x 109 mm
• Box dimensions (W x H x D):
863 x 207 x 242 mm
Accessories
• Included Accessories: Power cord, Quick start
guide, Registration card, Remote Control, User
Manual, Batteries for remote control, Table top
stand, DVI-I to YPbPr cable
Loudspeakers
• Built-in speakers: 2
• Number of Loudspeakers: 0
•
26PF4310/10
Flat TV with Crystal Clear III
26" LCD HD Ready
Product highlights
HD Ready
Enjoy the exceptional picture quality of a true High
Definition TV signal and be fully prepared for HD sources
like HDTV broadcast, Blu-ray DVD or HD-DVD. HD
ready is a protected label that offers picture quality
beyond that of progressive scan. It conforms to strict
standards laid out by EICTA to offer a HD screen that
displays the benefits of resolution and picture quality of a
High Definition TV signal. It has a universal connection for
both analogue YPbPr and uncompressed Digital
connection of DVI or HDMI, supporting HDCP. It can
display 720p and 1080i signals at 50 and 60Hz.
Crystal Clear III
Crystal Clear III combines a whole range of
enhancements to provide a better picture. They include a
2D Comb filter, Dynamic contrast, Blue stretch and
Green enhancement so that you always get the most
natural looking colours.
2D Combfilter
The 2D comb filter separates chrominance (colour) from
luminance (brightness) information in the video signal for
independent processing to improve picture resolution and
minimise distortion.
LCD WXGA display, 1280 x 768p
This WXGA display with state-of-the-art LCD screen
technology gives you HD resolution of 1280 x 768p
pixels. It produces brilliant flicker-free progressive scan
pictures with optimum brightness and superb colours.
This vibrant and sharp image will provide you with an
enhanced viewing experience.
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It will create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed in
your television experience.
Compact design
Picture in Graphics
Picture-in-Graphics is a small window in the main picture,
allowing to watch data/graphics in your main TV screen.
It provides the ability to simultaneously watch data/
graphics and the TV.
PC input
With PC input you can connect your TV to a computer
and use the TV as a PC monitor.
DVI-I Input
A DVI-I input connects the non-compressed highbandwidth digital RGB signal from source to screen. By
eliminating the conversion of the digital signals to
analogue, it delivers an unblemished and noise free
image, that is clear and flicker free. The DVI input
supports HDCP copy protection that allows viewing of
copy protected programs from Digital Set top boxes,
DVD players and HD recorders. DVI-I is future proof as
it can be connected to all HDMI devices (a converter
cable is required). The DVI-I input also supports analogue
PC-VGA signals.
Issue date 2007-12-01
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 7.0
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 22474
EAN: 87 10895 89242 1
www.philips.com
