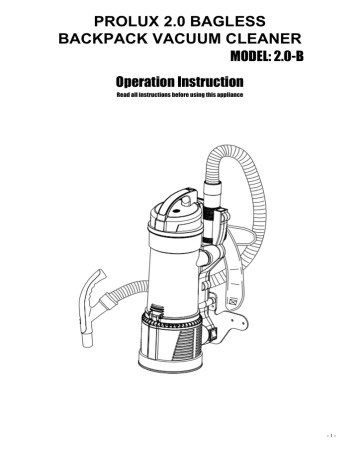

PROLUX 2.0 BAGLESS BACKPACK VACUUM CLEANER

PROLUX 2.0 BAGLESS BACKPACK VACUUM CLEANER
PROLUX 2.0 BAGLESS
BACKPACK VACUUM CLEANER
MODEL: 2.0-B
Operation Instruction
Read all instructions before using this appliance
-1-
For your safety please read owners manual in its entirety before use.
Congratulations on your purchase of your new Prolux 2.0 Battery Powered Bagless
Backpack Vacuum! We hope you love it!
Our team of vacuum experts and engineers
spent over 3 years designing it to make it perfect. The Prolux 2.0 Bagless is the worlds
FIRST bagless backpack vacuum with the new Prolux 2.0 Bagless Technology that makes
it 40% more powerful than current bagless vacuums. Large companies use backpack
vacuums, because they literally cut your cleaning time in half (compared to a upright
vacuum). Imagine the freedom of being able to clean your home twice as fast with no cord.
Whether if its stairs, flooring, under furniture or carpet your cleaning is going to be much
easier now!
It is designed to be so light you can hardly feel it and cut cleaning time in half.
Happy Cleaning J
-2-
Table of contents
Specifications ............................................................................................................................... 3
Safety Precautions ................................................................................................................... 4-5
Assembly
Getting To Know Your Vacuum ............................................................................................................... 6
Using The Accessories & Tools ................................................................................................................ 7-8
Operation
Operating Instructions/Adjusting The Harness ......................................................................................... 7-9
Battery Care & Operation .......................................................................................................................... 9-11
Maintenance
Emptying The Dust/Dirt Container ........................................................................................................... 12
Changing/Cleaning The Intake HEPA Filter ............................................................................................. 12
Changing/Cleaning The HEPA Exhaust Filter .......................................................................................... 13
Cleaning The Housing ............................................................................................................................... 13
Troubleshooting ........................................................................................................................ 13-14
Warranty ......................................................................................................................................... 14-15
Specifications
•
Lightweight – Only weighs 8 lbs. (8 lbs. w/o battery & 11 lbs. with battery).
•
Powerful deep cleaning motor with an amazing 52 Cubic Feet per Minute of Airflow (most battery powered
vacuums have 20)
•
Dependable - Motor Bypass valve adds years of life to the Motor allowing it to come with a 5 year motor
warranty, 3 Year body Warranty, and 90 day Warranty on the Battery & Charger.
•
Cleans 2x faster than your standard Upright Vacuums.
•
3-Stage filtration. H13 HEPA grade HEPA filter, to keep the air clean with 99.95% efficiency.
•
Powerful 25.2V, long lasting Lithium-Ion battery that lasts up to 30 minutes per charge.
•
1.5L dust bin capacity.
•
No power cord.
•
Deluxe 32mm tool attachment set.
-3-
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution should always be followed, including the following:
READ ALL INSTRUCTIONS IN THIS OPERATING MANUAL
BEFORE USING THIS APPLIANCE.
Keep the operating manual for reference.
Include the operating manual if you pass the appliance to third parties.
Violations of the operating instructions can lead to severe injuries as well as damages to the appliance. Prolux takes
no responsibility for damages due to violations of these operating instructions.
The Notices Given
Notices for your safety are especially marked. Always observe these notices to avoid any damages to the appliance.
WARNING:
ATTENTION:
NOTE:
Warning concerning health hazards describing possible risks of injury.
Warning concerning possible dangers to the appliance or other objects.
Highlights tips for you.
WARNING-To reduce the risk of fire, electric shock, or injury:
1. Do not leave the vacuum cleaner when plugged in or while battery is installed. Unplug from outlet or remove
battery when not in use, and before servicing.
2. Use only as described in this manual. Use only the recommended attachments, battery, charger, and
replacement parts.
3. To reduce the risk of electric shock, do not use outdoors, on wet surfaces, and do not use for wet
pickup/cleanup.
4. Use only as described in this manual. Use only the manufactures recommend attachments.
5. Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water, take it to a service center before use.
6. Do not pull or carry the vacuum by its power cord, do not use the power cord as a handle, do not close the
door on power cord, or pull the power cord around sharp edges or corners. Do not run vacuum cleaner over the
power cord. Keep the power cord away from heated surfaces.
7. Do not unplug the power cord from your wall by pulling on the cord. To unplug, grasp the end of the plug, not
the cord.
8. Do not handle the power cord/plug, battery, or vacuum cleaner with wet hands.
9. Do not put any object into the openings of the vacuum. Do not use the vacuum with any openings blocked.
Keep openings free of dust, lint, hair and anything that may reduce airflow.
10.Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts of the vacuum.
11.Turn all controls off before unplugging the vacuum.
12.Use extra care when cleaning on stairs.
13.Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be
present.
14. Do not allow end of plug to whip when winding up the power cord.
15.Unplug the vacuum or vacuum battery before connecting the hose.
16.Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
17.Do not use without dust bag and/or filter in place.
18.If the supply cord is damaged, the manufacturer or an authorized service center must replace it, in order to
avoid a hazard.
-4-
19.This appliance is not intended for use by persons (including children) with reduced physical, sensory or
Mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instructions concerning the use of the appliance by a person responsible for their safety.
Children should be supervised to ensure they do not play with the appliance.
Do not vacuum or clean:
- Hair and other parts of the body. They could be sucked in and cause injury.
- Pieces of Clothing (e, g, shoe laces, scarves, etc.).
They could be sucked in and cause injury.
- Water and other liquids, especially moisture from carpet cleaning agents. Moisture inside the
appliance can lead to short-circuiting.
- Toner dust (from laser printers. copying-machines. etc.).
There is danger of fire or explosion.
- Hot ash, burning cigarettes or matches. This could cause a fire.
- Pointed objects such as glass shards, nails, etc. Such objects destroy the filters.
- Plaster, cement, and fine drilling-dust, makeup. etc. The filters may clog causing damage to the
appliance.
- Bullets, bullet shells, fireworks or other explosive objects (this should be self explanatory on how you
should NEVER vacuum up explosive objects but you would be surprised at the number of live bullets
we have found sucked up in vacuums).
Never use the appliance near flammable or explosive materials -- there is danger of fire or explosion.
Never use the appliance outdoors -- there is danger of rain and dirt destroying the appliance.
Never stick objects into the appliance's openings -- it could cause the appliance to overheat.
Cord Connection
The vacuum and battery charger run on electricity, that means there is always danger of electric shock, so please observe
the following;
-
Never touch the plug with wet hands.
-
Always pull directly with the plug. If you want to disconnect the appliance from the outlet. Never pull on the cord,
as it might break.
-
Take care that the power cord is not bent, pinched, rolled over or gets in contact with heat sources.
-
Use only extension cords suited to the power requirements of the appliance.
-
Never immerse the appliance in water or other liquids.
-
Only operate the appliance if your outlet voltage is the same as that indicated on the appliance's nameplate.
Using the wrong voltage can destroy the appliance.
-
If the power cord of this appliance is damaged it must be replaced by the manufacturers, their authorized service
representative or a similarly qualified person to avoid danger to the user.
Never use a defective appliance or operate an appliance with a defective power cord. There is a major risk of injury.
Children
Never leave the appliance unattended and use it with special precaution if children or persons who cannot judge dangers
are nearby.
People (including children) who are unable to safely operate the appliance on account of their physical, sensory or mental
-5-
abilities or their lack of experience or knowledge should only use this appliance under supervision or instruction of a
responsible person.
Packing-materials are not toys. There is danger of suffocation, KEEP OUT OF REACH OF
CHILDREN.
GETTING TO KNOW YOUR BACK PACK VACUUM
1. Main motor unit
2. Flexible hose
3. Dust container
4. Shoulder straps
5. Exhaust HEPA filter
6. Air inlet filter
7. Carpet/Floor Brush
-6-
8. Crevice Tool
9.
Upholstery/Pet Hair tool
10. Dusting Brush
11. Telescopic Tube/wand
OPERATION INSTRUCTIONS
WARNING
To reduce the risk of electric shock, the power cord must be disconnected or the
battery removed before removing the dust container, changing the filters or
performing maintenance or troubling shooting checks
Assembling your vacuum
NOTE: Always remove the power plug from the wall outlet before assembling or removing accessories
n ATTACHING THE FLEXIBLE HOSE TO THE VACUUM
The flexible hose should be connect before strapping the unit
1. To connect the flexible hose to the unit slide the hose connector over the air inlet. (Fig1)
2. To remove the flexible hose, turn off the unit, remove the battery and pull out the hose connector from the air
inlet.
3. Pull the handle out from the telescopic tube. (Fig2)
n
USING THE ATTACHMENTS
DUSTING BRUSH
The Dusting Brush is used for all types of furniture. (Fig3)
CREVICE TOOL
Use for cleaning radiators, cracks & crevices along corners, and baseboards and in-between cushions. (Fig4)
PET HAIR REMOVAL BRUSH
The Pet Hair Removal Brush is used for removing pet hair from upholstery.
The unique design makes it an excellent tool for removing unwanted pet hair from virtually any surface. (Fig5)
NOTE: This tool is not a grooming tool and should not be used on animals.
Caution: DO NOT use the Pet Hair Removal Brush on delicate or woven fabrics that may snag.
DO NOT use the Pet Hair Removal Brush on wooden floors as this accessory may cause mild
-7-
scratching or scarring of the surface. Always test a surface in a area that cannot be seen before use.
CARPET/FLOOR BRUSH
The Prolux 2.0 includes a specially designed floor tool that can be
used on any surface without switching attachments. Easily
transition between high pile carpets, low pile carpets and hard floor
surface, with the Carpet/Floor Brush. (Fig 6)
To vacuum hard
floor surfaces press the button on the floor tool and soft bristles will
snap out.
When ready to vacuum Carpet or Throw Rugs press
the other buttons and the bristles will retract.
1.
Insert the handle (Fig. 3/1) into the upper end
of the telescopic tube (Fig 3/2).
2.
Attach the floor nozzle (Fig. 3/3) to the bottom
end of the telescopic tube (Fig 3/4).
NOTE:
Shove all the way together and firmly twist to the right to connect pieces.
3. Adjust the length of the telescopic tube.
Press down the release latch on the tube to do this (Fig. 4/1).
Then pull the handle of the telescopic tube to extend it to your desired length (Fig. 3/1). Let go of the release
catch while pulling until it locks in place. You will hear a distinct click.
Fig 3
n
Fig 4
Fig 5
Fig 6
MANUAL SUCTION CONTROL
Your vacuum cleaner includes a manual variable suction control on the flexible hose handle. The suction power
can be adjusted by moving the suction regulator to the desired position between open and closed. (Fig7)
Open gives you less suction, closed provides maximum suction. For example, less suction is required on
upholstery and draperies compared to thick carpets, which required maximum suction.
-8-
Fig 7
n
USING YOUR VACUUM
1. Insert the power plug into the wall outlet
2. Connect hose and telescopic tube if desired.
3. Correctly place shoulder straps on each shoulder and secure the waistband strap. (Fig 8 through Fig 8b)
Caution: If the waistband and both shoulder straps are not properly and securely in place, the unit could fall off
your back, causing damage or injury.
4. Turn the unit on/off by pressing the switch located near the base of unit. (Fig 9)
Fig 8
Fig 8A
Fig 8B
Fig 9
HOW TO CHARGE THE BATTERY PACK
When using the charger, basic precautions should always be followed, including the following:
Battery and Charging Safety
To reduce the risk of electric shock, fire, battery explosion, or injury:
1. Basic information and warning for the Battery and Charger are contained below. For detailed usage and
-9-
warning information, read the HOW TO CHARGE THE BATTERY PACK carefully before using this
unit.
2. DO NOT expose battery pack to temperatures above 122°F (50°C). Never leave battery packs in
automobiles on hot days, where temperatures can be much higher than the outside temperature.
3. DO NOT use or store vacuum or batteries in wet or moist conditions, or with flammable or combustible
materials.
4. DO NOT charge batteries or store battery for extended periods, more than 24 hours, in temperatures
above 90°F (32°C) or below 40°F (5°C).
5. When charging, make sure that the charger has at least 6 inches of clearance on all sides. Adequate
airflow is required to cool the charger when use.
6. DO NOT use a damaged cord or plug for charging.
7. DO NOT pull on charger’s cord to unplug. Grasp and pull the plug, not the cord.
8. DO NOT handle the charger’s cord plug with wet hands when inserting into electrical outlet.
9. Keep sparks and flames away from batteries. Do not smoke near batteries or charger.
10. DO NOT charge the unit outdoors.
11. DO NOT attempt to repair, service, or modify the battery system or charger. Contact the service with
any issues.
12. DO NOT short-circuit the battery or charger terminals with conductive items such as paper clips. This
can deliver high current, resulting in heat and fire.
13. DO NOT crush, drop, incinerate or damage the battery pack. DO NOT use a battery pack that has been
damaged in any way. DO NOT incinerate the battery even if it is severely damaged or non-working. The
battery can explode in a fire.
SPECIFICATIONS AND PARTS
Charger Specification:
Charger input: 120V 50/60Hz AC only
Charger output: 30V 1A
Battery Specification:
Lithium Polymer chemistry 25.2V
Approximate charge time: 8 hours
Approximate run time for new battery: 30 minutes.
(1.Battery pack) (2.Charger)
OPERATION
- 10 -
Charge in a well ventilated area. DO NOT block charger vents. Keep them clear to allow proper
ventilation.
CHARGING LITHIUM POLYMER BATTERY PACKS
Lithium Polymer batteries deliver fade-free power for their entire run time. The Prolux vacuum will not
gradually lose power due to decreasing battery charge. The vacuum will perform at its normal performance
level until the battery has been depleted. Once this happens, recharging of the battery is required. It is not
necessary to drain the battery pack completely before recharging.
If the charger’s light is not lit at any point during the charging process, remove the battery pack from the
charger to avoid damaging the product. DO NOT insert another battery.
Contact the service with any issues.
BATTERY PROTECTION FEATURE
The 25.2-volt Lithium Polymer batteries are designed with features that protect the Lithium Polymer cells
and maximize battery life. When the battery has reached its minimum voltage level the electronics will
shut off the battery. Once the battery shuts off, it must be recharged.
PREPARING BATTERY PACK FOR CHARGING
1. Turn off the power switch. Confirm the switch is on the off position.
2. Unlock the battery pack from the vacuum by pulling up on the metal battery hook located on the top of
the battery, and take the battery pack out from the vacuum. (Fig 17)
3. Plug the round connector on the charger’s cord into the battery pack. (Fig 18)
4. Plug the charger’s power cord into 120V wall outlet (Fig 19)
5. The Battery pack may require approximately 8 hours to full charge.
Note: Battery pack may get warm while charging.
Before you assemble the battery pack back into the vacuum, please check the on/off switch is on the off
position.
Figure 17 below shows how the battery is inserted into the vacuum.
Make sure it is firmly shoved down
all the way. To remove battery, lift of wire handle and pull out.
Always make sure vacuum switch is
turned to off position before inserting or removing handle.
Figure 18 below shows to plug the charger into the battery to recharge.
Figure 19 below shows how to plug the charger into the wall outlet.
- 11 -
n
HOW TO EMPTY THE DUST CONTAINER
You will want to empty the dirt in the dust container as soon as it has reached the “MAX” mark indicated on the
outside of the tank, or if the suction power has dropped.
To empty the Dust Container, please follow the
instructions below.
1. Switch the vacuum cleaner to the “Off” position and disconnect the plug from the wall outlet.
2. Release the dust container by pressing down the release button. (Fig 10)
3. Pull the dust container away from the vacuum cleaner.
4. Hold the dust container low over your trash receptacle, to avoid dust falling onto your floors.
5. Then press the release button. When the release button is pressed, the bottom cover will open and the dust
will drop into your trash receptacle. (Fig 11)
- 12 -
Fig 10
Fig 11
n HOW TO CLEAN AND REPLACE THE HEPA FILTER
There are two filters in this unit, when the filters are dirty and the suction power is reduced, you must clean or
replace the HEPA filter.
Clean and replace the Air Inlet HEPA filter
1. Open the dust container cover by rotating the cover counterclockwise. (Fig 12)
2. Pull the top inlet HEPA filter from the container by rotating it counterclockwise to unlock it, and then pull it up
and out of the unit. (Fig 12)
3. Clean the filter by knocking the dirt loose, cleaning with compressed air, or using warm water, then allow the
filter to air dry completely. Once the filter has completely air dried, then assemble the filter back into the
container. Or, if the filter is too dirty or in an unusable condition, replace the filter with a new one.
Clean and replace the exhaust HEPA filter
1. Open the exhaust cover by rotating in count clockwise. (Fig 13)
2. Put the exhaust HEPA out of the unit. (Fig 13)
3. Clean the filter by knocking the dirt loose, cleaning with compressed air, or using warm water, then allow the
filter to air dry completely. Once the filter has completely air dried, then assemble the filter back into the
container. Or, if the filter is too dirty or in an unusable condition, replace the filter with a new one.
- 13 -
Fig 13
Cleaning the Housing
WARNING: Always switch off the appliance and disconnect it from the outlet before cleaning it. See section "Switching
Off and Retracting Power Cord.”
ATTENTION: Do not use Alcohol, cleaning or scouring agents to clean your machine, as these may damage the
appliance. Clean the outside of the housing using only a slightly damp washcloth.
Troubleshooting
WARNING:
Never use a defective appliance. Always switch off the appliance and disconnect it from the outlet or
remove the battery before you start to troubleshoot.
Fault
Possible Cause(s)
Solution
The vacuum will not turn on.
The battery is not charged.
Make sure the battery is fully
charged by plugging the battery
into the charger, then plug the
charger into your wall outlet and
keep the battery plugged into the
charger until the charger light turns
Green.
The battery is not fully inserted
Make sure to insert the battery into
into the vacuum.
the vacuum, making sure the raised
center channel of the battery aligns
with the notch inside the battery
compartment of the vacuum. Place
battery all the way down into the
vacuum and press firmly until top
of battery is flush with top of the
battery compartment.
Switch is in the “off” position.
Turn the on/off switch to the “on”
position. Refer to page 9-10 in this
manual.
- 14 -
Suction power is low.
The Dust/Dirt bin is full or
Empty/clean the Dust/Dirt bin.
clogged.
Nozzle, telescopic tube or suction
Remove the debris that is causing
hose are clogged.
the clog. If necessary, use a long
wooden stick (e.g. a broomstick) or
coat hanger to do this.
The Dirt/Dust container is installed
Remove the Dirt/Dust container
incorrectly.
and reinstall; making sure the
container is locked into place when
reinstalling.
The “carpet/hard floor” switch (Fig
Set the “carpet/hard floor” switch
1/10) is in the wrong position for
to the correct position for the
the particular type of floor.
particular type of floor. See page 7.
The tool attachment being used,
Attach the appropriate tool for the
does not work properly on the
surface you are vacuuming. See
surface you are vacuuming.
pages 8.
Dirty filter(s).
Change/clean the filter(s).
See
pages 12-13.
The vacuum makes unusual noises,
The
power
nozzle,
attachment
Remove the object(s). If necessary,
or is louder than usual.
wand, suction hose, or filters are
use a long wooden stick (e.g. a
clogged.
broomstick) or coat hanger to do
this.
FIVE (5) YEAR LIMITED WARRANTY
Prolux warranties this product’s motor free from defects in material and workmanship for a period
of five (5) years on the motor, three (3) years on the body of the vacuum, and 90 days on the
Battery & Charger. Free from manufacturer defects in material and workmanship from the
original date of purchase, when utilized for normal household use. (90 days on the motor and body if used
commercially)
Subject to the following conditions, exclusions, and exceptions:
This limited warranty does not extend to and expressly excludes:
1. Attachments or accessories, extension cords, hoses, filters, and other items that are commonly
worn our by use.
2. Damage or burnout of the Backpack or Canister motor resulting from failure to clear a
blockage occurring during the normal course of use.
3. Loss or damage to the Backpack or Canister resulting from conditions beyond the control of
Prolux including without limitation, misuse, accidents, abuse, neglect, negligence from the customer,
overuse beyond capacity of the vacuum, or unauthorized modification and/or alteration.
4. Loss or damage to the vacuum resulting from failure to use the Backpack or canister in
accordance with written instructions from Prolux, guidelines or the terms of its Owner’s Manual.
- 15 -
If your appliance fails to operate properly while in use under normal household conditions within
the warranty period, please contact your authorized PROLUX dealer you purchased the unit from.
Non-durable parts including, without limitation, filters, accessories, brushes, belts, and electrical
parts, which normally require replacement, are specifically excluded from warranty.
This warranty is limited solely to the cost of the repair or replacement of the unit at Prolux’s option.
This warranty does not apply to any unit that has been tampered (by unauthorized user) with or
used for commercial purposes. This limited warranty does not cover damage caused by shipping
damage, misuse, abuse, negligent handling, or damage due to faulty packaging or mishandling in
transit.
This warranty is extended to the original purchaser of the unit only and is not transferable.
*IMPORTANT: Before sending unit back for warranty work, contact your authorized
PROLUX retailer you bought the unit from first. Unauthorized warranty claims may be sent
back.
Authorized Warranty claims: PROLUX shall be responsible for all parts and labor and the
customer shall be responsible for all shipping charges to and from the PROLUX service
center.
Prolux is constantly striving to improve our products. Therefore, the specifications contained
herein are subject to change without notice.
Product Warranty Registration
Please follow the link below to register your Prolux product.
http://www.proluxcleaners.com
For more information on this product, including warranty information, how to videos and to contact
Prolux Customer Service, Please follow the link below:
http://www.proluxcleaners.com/bagless-2-0-batt.html
Environmental tips
Once any electronic product is no longer functional, it should be disposed of in such a way as to cause minimum
environmental impact, in accordance with the regulations of your local authority. In most cases you can take
such products to your local recycling station.
- 16 -
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
