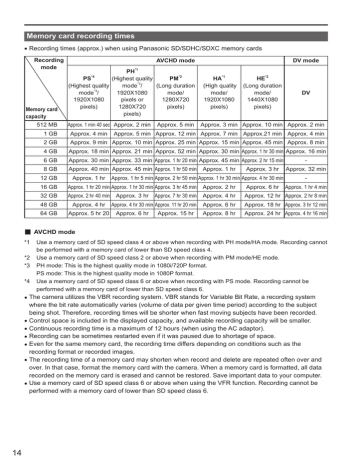

Memory card recording times

Memory card recording times
Memory card recording times
••Recording times (approx.) when using Panasonic SD/SDHC/SDXC memory cards
Recording
mode
Memory card
capacity
512 MB
1 GB
AVCHD mode
DV mode
*1
PH
PS*4
(Highest quality
PM*2
*3
(Highest quality
(Long duration
mode /
mode*3/
1920X1080
mode/
1920X1080
pixels or
1280X720
pixels)
1280X720
pixels)
pixels)
Approx. 1 min 40 sec Approx. 2 min
Approx. 4 min
Approx. 5 min
HA*1
(High quality
mode/
1920X1080
pixels)
HE*2
(Long duration
mode/
1440X1080
pixels)
DV
Approx. 3 min Approx. 10 min Approx. 2 min
Approx. 5 min Approx. 12 min Approx. 7 min Approx.21 min Approx. 4 min
2 GB
Approx. 9 min Approx. 10 min Approx. 25 min Approx. 15 min Approx. 45 min Approx. 8 min
4 GB
Approx. 18 min Approx. 21 min Approx. 52 min Approx. 30 min Approx. 1 hr 30 min Approx. 16 min
6 GB
Approx. 30 min Approx. 33 min Approx. 1 hr 20 min Approx. 45 min Approx. 2 hr 15 min
8 GB
Approx. 40 min Approx. 45 min Approx. 1 hr 50 min
12 GB
Approx. 1 hr
Approx. 1 hr
Approx. 3 hr
Approx. 1 hr 5 min Approx. 2 hr 50 min Approx. 1 hr 30 min Approx. 4 hr 30 min
Approx. 32 min
-
16 GB
Approx. 1 hr 20 min Approx. 1 hr 30 min Approx. 3 hr 45 min
Approx. 2 hr
Approx. 6 hr
32 GB
Approx. 2 hr 40 min
Approx. 7 hr 30 min
Approx. 4 hr
Approx. 12 hr Approx. 2 hr 8 min
48 GB
Approx. 4 hr
Approx. 4 hr 30 min Approx. 11 hr 20 min
Approx. 6 hr
Approx. 18 hr Approx. 3 hr 12 min
64 GB
Approx. 5 hr 20
Approx. 8 hr
Approx. 24 hr Approx. 4 hr 16 min
Approx. 3 hr
Approx. 6 hr
Approx. 15 hr
Approx. 1 hr 4 min
„„AVCHD mode
*1 Use a memory card of SD speed class 4 or above when recording with PH mode/HA mode. Recording cannot
be performed with a memory card of lower than SD speed class 4.
*2 Use a memory card of SD speed class 2 or above when recording with PM mode/HE mode.
*3 PH mode: This is the highest quality mode in 1080i/720P format.
PS mode: This is the highest quality mode in 1080P format.
*4 Use a memory card of SD speed class 6 or above when recording with PS mode. Recording cannot be
performed with a memory card of lower than SD speed class 6.
••The camera utilizes the VBR recording system. VBR stands for Variable Bit Rate, a recording system
where the bit rate automatically varies (volume of data per given time period) according to the subject
being shot. Therefore, recording times will be shorter when fast moving subjects have been recorded.
••Control space is included in the displayed capacity, and available recording capacity will be smaller.
••Continuous recording time is a maximum of 12 hours (when using the AC adaptor).
••Recording can be sometimes restarted even if it was paused due to shortage of space.
••Even for the same memory card, the recording time differs depending on conditions such as the
recording format or recorded images.
••The recording time of a memory card may shorten when record and delete are repeated often over and
over. In that case, format the memory card with the camera. When a memory card is formatted, all data
recorded on the memory card is erased and cannot be restored. Save important data to your computer.
••Use a memory card of SD speed class 6 or above when using the VFR function. Recording cannot be
performed with a memory card of lower than SD speed class 6.
14
SIMUL REC
When memory cards are inserted in both of the two slots, activating this function enables recording the
same video to both the memory cards. Set the [SIMUL REC] item on the setup menu [RECORDING
SETUP] screen to [ON] to enter the SIMUL REC mode.
In the media capacity display on the screen, the available recording time possible for SIMUL REC (the
available recording time of the memory card with lower memory capacity) is displayed, and the icon
[ ] is displayed.
••Recording stops when one of the memory cards in Slot 1 or Slot 2 has no remaining space.
(The following figure shows the case that the memory card in Slot 1 becomes full.)
Memory card recording time
Start
recording
End recording
Start
recording
Slot 1
Clip A
Standby
Clip B
Slot 2
Clip A
Standby
Clip B
Stop recording
(No space left on memory card)
When the capacity of Slot 1 (the memory card with
lower remaining memory) becomes full, SIMUL REC
will stop.
To resume the SIMUL REC, replace the memory card
to a new memory card and press the
<START/STOP> button.
Standby
Clip C
Start recording(normal recording)
If you press the <START/STOP> button without replacing the memory card in Slot
1, video will be recorded normally on the memory card in Slot 2 (the memory card
with remaining memory).
• If the remaining capacity of the memory card in Slot 1 is same as in Slot 2, the remaining capacity in
Slot 1 is displayed.
• SIMUL REC cannot be used at the same time as relay recording, VFR recording, or INTERVAL REC.
• During SIMUL REC, if recording has stopped because a recording error has occurred in one of the
memory cards, the other memory card will continue to record.
• After SIMUL REC ends, when there is capacity remaining on one of the memory cards, that memory
card will automatically be selected as the memory card for recording. Press the <START/STOP>
button again for normal recording.
• While in SIMUL REC mode, if only one memory card is inserted, normal recording takes place.
• After SIMUL REC, the REC CHECK function does not operate.
• After SIMUL REC, the [LAST CLIP] function does not operate.
• When switching to <PB> mode after SIMUL REC, the thumbnails of the memory card in slot 1 will be
displayed.
32
„„In DV mode
1
2
3
4
10
XX !
X !
6
7
8
9
5
1 Thumbnail display status (Page 60)
The types of clips displayed as thumbnails
appear in this area.
8 Recording format display
Displays recording format of the clip with the
cursor position.
2 Repeat playback indicator (Page 58)
Displayed during repeat playback.
9 Duration display
Displays duration of the clip with the cursor
position.
3 Media status display
Displays status of memory card.
4 Battery level display (Page 25 of Vol. 1)
Displays remaining battery level.
5 Cursor (Orange frame)
Displayed on currently selected thumbnail.
6 Recording mode display
Displays recording mode if the clip currently
highlighted by the cursor has been shot in PS,
PH, PM, and DV modes. (Page 14)
7 Time display (Page 60)
Displays a time code at start of clip recording/
user information at start of clip recording/
shooting time/shooting date/shooting date and
time - according to settings.
56
12
10 Clip number
Displayed in order of shooting. (Up to 1000
clips) Numbers of clips that cannot be played
back (e.g. clips with different recording formats)
are displayed in red.
To play clips displayed in red, set the [PB
FORMAT] item in the setup menu [PLAY
SETUP] screen to the appropriate recording
format. (Page 99)
11 [
]: Clip protect display (AVCHD mode
only)
Displayed on protected clips.
Playback settings [PLAY SETUP]
Make settings for playback format and method.
Setting playback format [PB FORMAT]
(only in AVCHD mode)
Set format for playback.
Use this setting to repeatedly play back all
available clips on the selected slot.
1Press the <MENU> button.
Menu operation (Page 31 of Vol. 1)
1Press the <MENU> button.
2Set the [REPEAT PLAY] item in the [PLAY
2
3Press the <MENU> button to return to the
Menu operation (Page 31 of Vol. 1)
Select the [PB FORMAT] item in the [PLAY
SETUP] screen, and push the OPERATION
lever (or tilt in the direction).
3Tilt the OPERATION lever in the <
>< >
directions to select the format for playback,
and push the OPERATION lever.
••The setting for the [REC FORMAT] item
on the setup menu [RECORDING SETUP]
screen is reflected as the initial setting.
••Clip numbers will be displayed in black
where playback is possible, and in red where
playback is not possible.
••Even if the playback format is set, the
recording format set in the [REC FORMAT]
item on the setup menu [RECORDING
SETUP] screen is restored when the camera
is switched to <CAMERA> mode.
••If the playback format does not conform to the
clips created at the relay destination using the
relay recording function, thumbnail images
will not be displayed ([!] will be displayed).
Thumbnail images will be displayed when the
playback format is matched to the clips.
58
Repeat playback [REPEAT PLAY]
SETUP] screen to [ON].
thumbnail screen.
The repeat playback indicator will be displayed.
When the playback operation is performed, the
playable clips are played back repeatedly.
••Repeat playback will continue until playback
is paused.
••To turn the repeat playback setting [OFF],
select [OFF] in step 2.
„„Output list when external devices (TV/Monitor) are connected
[SYSTEM FREQ] = [59.94Hz]
Menu settings
SDI&HDMI DOWNCON
REC FORMAT
OUT SEL
MODE*6
1080/60i(30P),
1080/60P
1080/24P
Disabled
SDI
OUT
DV
1080/60i(30P),
1080/24P
ON
720/60P(30P),
720/24P
1080/60i(30P),
1080/24P
720/60P(30P),
720/24P
480/60i
480/30P
480/24P
ON
OFF
Disabled
SIDE CROP
LETTER BOX
SQUEEZE*1
DOWN
CONV
SIDE CROP
LETTER BOX
SQUEEZE
Disabled
Disabled
Output terminal format
HDMI
VIDEO
SDI OUT
OUT
OUT
Disabled 1080/60i
720/60P(30P),
1080i/720P
720/24P
AVCHD
SDI
24PsF
OFF
ON
OFF
ON
OFF
*5
1080/60i
*5
*2
1080/24PsF No output
1080/60i
1080/60i
DV OUT
No output
No output
No output
720/60P
720/60P
No output
No output
1080/60i
480/60i
No output
720/60P
480/60i*3
No output
Editing
Mode
Disabled
Disabled
Disabled
480/60i
480/60P*4 No output
No output
480/60P*4
480/60i
480/60i
No output
480/60i
480/60i
No output
No output
480/60i
480/60i
[SYSTEM FREQ] = [50Hz]
Mode
REC FORMAT
1080/50i(25P),
1080/50P
720/50P(25P)
AVCHD
1080/50i(25P)
Menu settings
SDI&HDMI DOWNCON
OUT SEL
MODE*6
1080i/720P
720/50P(25P)
DV
SDI OUT
Menu settings
disabled
ON
SIDE CROP
LETTER BOX
SQUEEZE*1
OFF
1080/50i(25P)
720/50P(25P)
DOWN
CONV
SIDE CROP
LETTER BOX
SQUEEZE
576/50i
576/25P
Disabled
Disabled
SDI OUT
Output terminal format
HDMI
VIDEO
OUT
OUT
DV OUT
1080/50i*5 1080/50i*5 No output
720/50P
720/50P
No output
No output
1080/50i
576/50i
No output
720/50P
576/50i*3
No output
576/50P*4 No output
ON
576/50i
OFF
No output
576/50P*4
576/50i
ON
576/50i
No output
576/50i
576/50i
OFF
No output
No output
576/50i
576/50i
*1 Both of the formats are enabled only when output is performed with <VIDEO OUT>.
*2 When the [SDI 24PsF] item of the setup menu [AV OUT SETUP] screen is set to [ON], <HDMI> will not be
output.
*3 Video is not output from <VIDEO OUT> when HDMI connection is in use. Output when HDMI connection is
not used.
*4 In AVCHD mode, if the [SDI&HDMI OUT SEL] item on the [AV OUT SETUP] screen is set to [DOWN CONV],
the signal is converted to progressive (480P or 576P) and output from the HDMI OUT terminal.
*5 Even when the recording format is 1080/60P or 1080/50P, video is not output at 1080/60P or 1080/50P. It is
output at 1080/60i or 1080/50i.
*6 When the [VIDEO OUT OSD] item of the setup menu [DISPLAY SETUP] screen is set to [ON] and under the
following settings, video is automatically displayed in [LETTER BOX] mode after the menu opens, in order
to prevent characters from cropping during <SDI OUT>/<HDMI>/<VIDEO OUT> output. When the menu is
closed, video returns to [SIDE CROP] mode.
AVCHD mode: When the [DOWNCON MODE] item of the [AV OUT SETUP] screen is set to [SIDE CROP]
DV mode: When the [ASPECT CONV] item of the [RECORDING SETUP] screen is set to [SIDE CROP]
71
Menu
Setup menu list
[SCENE FILE] screen
[VFR MODE]
Description of settings
<CAMERA> [LOAD]: Loads the scene file settings saved in this camera.
[SAVE]: Saves the updated scene file settings.
[INIT]:
Returns the scene file settings selected using the <SCENE FILE>
dial, to the factory settings.
[NO]:
Returns to the previous screen.
Enables the VFR (Variable Frame Rate) mode.
<CAMERA> [ON]:
(AVCHD
[OFF]:
Disables the VFR mode.
mode only)
Operates only when [REC FORMAT] is [PH 1080/24P], [PH 1080/30P], or [PH
1080/25P].
When [SDI 24PsF] = [ON], VFR operation is disabled.
When [VFR MODE] = [ON], you cannot record audio.
When VFR mode is set to [ON], INTERVAL REC, relay recording, and SIMUL
REC settings will all be cancelled. This mode cannot be used with INTERVAL
REC, relay recording, SIMUL REC, and pre-rec functions.
[FRAME RATE] <CAMERA> Sets [FRAME RATE].
Operates when [VFR MODE] is [ON].
(AVCHD
mode only) You can set using <SHTR/F.RATE> on the left side of the camera body.
When [SYSTEM FREQ] = [59.94Hz]
When [REC FORMAT] = [PH 1080/24P] [PH 1080/30P]:
[2]/[6]/[9]/[12]/[15]/[18]/[20]/[21]/[22]/[24]/[25]/[26]/[27]/[28]/[30]/[32]/[34]/[36]/
[40]/[44]/[48]/[54]/[60]
When [SYSTEM FREQ] = [50Hz]
When [REC FORMAT] = [PH 1080/25P]
[2]/[6]/[9]/[12]/[15]/[18]/[20]/[21]/[22]/[23]/[24]/[25]/[26]/[27]/[28]/[30]/[32]/[34]/
[37]/[42]/[45]/[48]/[50]
[SYNC SCAN
TYPE]
<CAMERA> Selects the synchro scan display setting.
[deg.]: Sets to angle display.
[sec]: Sets to speed display.
[SYNCHRO
SCAN]
<CAMERA> Adjusts the synchro scan shutter speed used for shooting images on a TV
screen, etc.
Holding the OPERATION lever tilted upward or downward will cause the values
to change at a faster rate.
When [SYSTEM FREQ] = [59.94Hz]
•• When [SYNC SCAN TYPE] = [sec]
60i/60 P mode: [1/60.0] - [1/249.8] secs
30 P mode: [1/30.0] - [1/48.0] - [1/249.8] secs
24 P mode: [1/24.0] - [1/48.0] - [1/249.8] secs
•• When [SYNC SCAN TYPE] = [deg.]
[3.0 d] - [180.0 d] - [360.0 d] (0.5 d increments, angle display)
When [SYSTEM FREQ] = [50Hz]
•• When [SYNC SCAN TYPE] = [sec]
50i/50 P mode: [1/50.0] - [1/250.0] secs
25 P mode: [1/25.0] - [1/50.0] - [1/250.0] secs
•• When [SYNC SCAN TYPE] = [deg.]
[3.0 d] - [180.0 d] - [360.0 d] (0.5 d increments, angle display)
Displays
[LOAD/SAVE/
INIT]
Display
mode
Menu
Item
is the factory default mode for the <SCENE FILE> dial <F1>.
83
Item
Display
mode
Description of settings
[DETAIL
LEVEL]
<CAMERA> Adjusts the level of the image outline correction (in the horizontal and vertical
directions).
[-7] … [0] … [+7]
[V DETAIL
LEVEL]
<CAMERA> Adjusts the level of outline correction in the vertical direction.
[-7] … [0] … [+7]
[DETAIL
CORING]
<CAMERA> Adjusts the level of noise reduction of the detail signal.
Set to – for a clearer image, but noise increases slightly.
Set to + to reduce noise.
[-7] … [0] … [+7]
[CHROMA
LEVEL]
<CAMERA> Adjusts the chroma level.
[-7] … [0] … [+7]
[CHROMA
PHASE]
<CAMERA> Adjusts the chroma phase.
[-7] … [0] … [+7]
[COLOR TEMP <CAMERA> Make fine adjustments to the color temperature (after white balance Ach
adjustment).
Ach]
[-7] … [0] … [+7]
[COLOR TEMP <CAMERA> Make fine adjustments to the color temperature (after white balance Bch
adjustment).
Bch]
[-7] … [0] … [+7]
[MASTER PED] <CAMERA> Adjusts the master pedestal (black level of the image) as the basis for images.
[-15] … [0] … [+15]
[A.IRIS LEVEL] <CAMERA> Sets the desired AUTO IRIS level.
[-6] … [0] … [+6]
[DRS]
<CAMERA> Selects the [DRS] (dynamic range stretcher) function.
[ON]:
Enables the [DRS] function.
[OFF]:
Disables the [DRS] function.
•• If you assign the [DRS] function to the USER button, pressing the USER
button switches it ON/OFF.
[DRS EFFECT] <CAMERA> Selects the level of the [DRS] (dynamic range stretcher) function.
It enables the dynamic range to be expanded by compressing the level of the
video signals in the high-brightness areas where overexposure results during
normal shooting.
[1], [2], [3]
•• The higher the number of the setting, the higher the compression level of the
high-brightness areas.
is the factory default mode for the <SCENE FILE> dial <F1>.
84
Item
[GAMMA]
Display
mode
Description of settings
<CAMERA> Selects the gamma curve.
[HD NORM]:
This gamma setting is suitable for HD shooting.
[LOW]:
[KNEE]
<CAMERA> To avoid overexposure, select the compression level (knee point) of the high
intensity video signals received through the image pickup device.
[AUTO]:
Sets the level automatically according to the received signals.
[LOW]:
Low setting (Compression starts at approx. 80%)
[MID]:
Medium setting (Compression starts at approx. 90%)
[HIGH]:
High setting (Compression starts at approx. 100%)
•• Not available when a [DRS] value is set, or when [GAMMA] is set to [CINELIKE].
[MATRIX]
<CAMERA> Selects the MATRIX table suitable for the desired color expression during
shooting.
[NORM1]:
Suitable for shooting in the open air or under a halogen lamp.
[NORM2]:
Suitable for brighter colors than the [NORM1] mode.
[FLUO]:
Suitable for shooting under fluorescent lights indoors.
[CINE-LIKE]:
Suitable for cinema-like images.
[SKIN TONE
DTL]
<CAMERA> Switches skin tone details [ON]/[OFF]. Select ON to reduce the skin tone details
and soften the skin tone.
[ON] [OFF]
[CARD READ]
<CAMERA> Reads scene files from the memory card.
[SLOT1]: Reads scene files (all scenes from <F1> to <F6>) saved on the
memory card of slot 1 after selecting the setting values.
[SLOT2]: Reads scene files (all scenes from <F1> to <F6>) saved on the
memory card of slot 2 after selecting the setting values.
[NO]:
Returns to the previous screen.
Menu
Makes a mellow image using the gamma curve that has a
gentle incline in low-brightness curve. The contrast sharpens.
[SD NORM]:
This is the normal video setting carried over from Panasonic
AG-DVX100 series.
[HIGH]:
Expands the tone of dark parts and makes a brighter image
using the gamma curve that has a sharp incline in lowbrightness curve. The contrast softens.
[B.PRESS]:
Makes the contrast sharper than LOW.
[CINE-LIKE D]: Uses a gamma curve designed to create cinema-like images.
[CINE-LIKE V]: Uses a gamma curve designed to create cinema-like images
with emphasized contrast.
•• When you select [CINE-LIKE] gamma, we recommend setting the lens
aperture lower than normal image level (approximately 1/2) for optimal results.
[CARD WRITE] <CAMERA> Saves scene files to the memory card.
[SLOT1]: Saves the setting values of scene files (all scenes from <F1> to
<F6>) on the memory card of Slot 1.
[SLOT2]: Saves the setting values of scene files (all scenes from <F1> to
<F6>) on the memory card of Slot 2.
[NO]:
Returns to the previous screen.
[NAME EDIT]
<CAMERA> Edits the name of the currently selected scene file.
[YES] [NO]
is the factory default mode for the <SCENE FILE> dial <F1>.
85
[SW MODE] screen
Item
[FUNCTION
KNOB]
Display
mode
Description of settings
<CAMERA> Sets the function assigned to the AREA operation of the <FUNCTION> knob.
[INH]:
No function is assigned.
[FOCUS]:
AUTO FOCUS / FOCUS BAR function
[IRIS]:
AUTO IRIS/IRIS METER function
[Y GET]:
[Y GET] (Luminance measurement) function
[FOCUS/IRIS]:
Simultaneous operation of [FOCUS] and [IRIS] described
above
[FOCUS/Y GET]: Simultaneous operation of [FOCUS] and [Y GET] described
above
[LOW GAIN]
<CAMERA> Sets the gain value assigned to the <L> position of the <GAIN> switch.
[0dB], [3dB], [6dB], [9dB], [12dB], [15dB], [18dB]
[MID GAIN]
<CAMERA> Sets the gain value assigned to the <M> position of the <GAIN> switch.
[0dB], [3dB], [6dB], [9dB], [12dB], [15dB], [18dB]
[HIGH GAIN]
<CAMERA> Sets the gain value assigned to the <H> position of the <GAIN> switch.
[0dB], [3dB], [6dB], [9dB], [12dB], [15dB], [18dB]
[SUPER GAIN] <CAMERA> Selects the super gain value assigned to the USER button.
[24dB], [30dB]
[ATW]
<CAMERA> Assigns [ATW] (Auto Tracking White) function on the <WHITE BAL> switch (on
the position <A>, <B>, or <PRST>). When the [ATW] function is assigned to the
USER button, the USER button operation remains effective.
[Ach]:
Activates the [ATW] function when the <WHITE BAL> switch
is set to <A>.
[Bch]:
Activates the [ATW] function when the <WHITE BAL> switch
is set to <B>.
[PRST]:
Activates the [ATW] function when the <WHITE BAL> switch
is set to <PRST>.
[OFF]:
Deactivates the [ATW] function with <WHITE BAL> switch
[MF ASSIST]
<CAMERA> Activates automatic final focus when in manual focus mode.
[ON]:
Activates automatic final focus.
[OFF]:
Deactivates automatic focus.
•• When there is large discrepancy in focus, you may not be able to focus.
•• Cannot be activated by an operation on the remote control connected to the
<CAM REMOTE> terminal.
[FOCUS
ASSIST]
<CAMERA> Sets the function assigned to the <FOCUS ASSIST> button.
[IN RED]:
The image contour has red edges.
[EXPAND]:
The screen center of the LCD monitor is enlarged.
[HANDLE
ZOOM]
<CAMERA> Sets the zoom speed assigned to positions of the <HANDLE ZOOM> switch.
[L/OFF/H]:
Sets LOW (slow)/OFF/HIGH (fast) to the <1>/<2>/<3>
positions.
(OFF deactivates ZOOM operations.)
[L/M/H]:
Sets LOW (slow)/MID (medium)/HIGH (fast) to the
<1>/<2>/<3> positions.
[L/OFF/M]:
Sets LOW (slow)/OFF/MID (medium) to the <1>/<2>/<3>
positions. (OFF deactivates ZOOM operations.)
is the factory default mode.
86
Display
mode
Description of settings
[USER1]
<CAMERA> Sets the function assigned to the <USER1> button.
<PB>
[INH]:
No function is assigned.
This is the face detection function. Performs the AUTO IRIS/
[FACE
AUTO FOCUS operation centering around the detected face.
DETECT]:
Enabled when both focus control and iris control are set to
auto.
[WFM]:
Selects the wave form display. This is displayed on the LCD
when shooting.
[EVF DTL]:
Pressing the button emphasizes the outlines of the screen
images, making it easier to focus.
Selects magnification of DIGITAL ZOOM function. Each press
[D.ZOOM]:
of the button moves to the next setting in a sequence of OFF (x
1) x 2x 5x 10, and OFF (x 1).
[DRS]:
Switches the [DRS] function [ON]/[OFF].
[S.GAIN]:
Selects the set value ([24dB]/[30dB]).
[ATW]:
Switches the [ATW] function [ON]/[OFF].
[ATW LOCK]:
Fixes the white balance value when the button is pressed
during [ATW]. Press again to perform [ATW] function.
[SHOT MARK]: Records shot mark. (Page 29) Enabled during recording,
thumbnail display, and clip display.
[INDEX]:
Enabled during index recording (Page 29) (AVCHD only).
[LAST CLIP]:
Deletes the last recorded clip. (Page 29)
•• You cannot delete clips if the following operations are performed after
shooting.
- When switched to <PB> mode
- When changing the recording format
- When connecting to a computer using a USB cable
- When powering off the camera
- When opening the memory card slot cover
[BACKLIGHT]:
Auto iris control for the backlight compensation
[SPOTLIGHT]:
Switches auto iris control ON/OFF for the spotlight.
[BLACKFADE]: Black fade (Page 27)
[WHITEFADE]:
White fade (Page 27)
[USER2]
<CAMERA> Sets the function assigned to the <USER2> button.
The setting contents are the same as [USER1].
<PB>
[D.ZOOM]
[USER3]
<CAMERA> Sets the function assigned to the <USER3> button.
The setting contents are the same as [USER1].
<PB>
[SHOT MARK]
[WFM]
<CAMERA> Switches the WAVE FORM display that appears when the <WFM> button is
pressed.
[WAVE]:
[VECTOR]:
[WAVE/
VECTOR]:
Menu
Item
Displays as a waveform.
Displays as a vector.
Each press of the button moves to the next setting in a
sequence of [OFF][WAVE][VECTOR], and [OFF].
is the factory default mode.
87
Item
[LCD]
Display
mode
Description of settings
<CAMERA> Sets the function assigned to the <LCD> button.
<PB>
Flips the image displayed on the LCD vertically and horizontally.
[LCD REV]:
[LCD BL]:
Selects the brightness of the LCD backlight.
•• The setting selected using the <LCD> button is reflected in the setting of the
[LCD BACKLIGHT] item on the [DISPLAY SETUP] screen.
[FACE
FRAMING]
<CAMERA> Frames the faces detected during operation of the [FACE DETECT] function
with the USER button. The maximum number of detected frames is 15, and
faces bigger and closer to the center of the screen are given priority.
[OFF]:
Frames are not displayed.
[PRIMARY]:
Displays only the high-priority frames.
[ALL]:
Displays all frames.
•• Displays the high-priority frames with an orange border. Focuses on highpriority frames and adjusts brightness.
is the factory default mode.
[AUTO SW] screen
Item
[A.IRIS]
Display
mode
Description of settings
<CAMERA> [ON]:
[OFF]:
Activates auto iris control when in Auto mode. In this mode, the
<IRIS> button is disabled.
Deactivates auto iris control when in Auto mode. Performs iris control
operation selected using <IRIS> button.
[AGC]
<CAMERA> Sets auto gain control operation when [ON] is selected in the [A.IRIS] item.
[OFF]:
Deactivates auto gain control when in Auto mode. Performs gain
control operation selected using <GAIN> switch.
[6dB]:
Activates auto gain control with a maximum of 6 dB when in Auto
mode.
[12dB]: Activates auto gain control with a maximum of 12 dB when in Auto
mode.
[18dB]: Activates auto gain control with a maximum of 18 dB when in Auto
mode.
[ATW]
<CAMERA> [ON]:
[OFF]:
[AF]
<CAMERA> [ON]:
[OFF]:
Activates [ATW] (Auto Tracking White) function when in Auto mode.
At this time, the [ATW] function operation cannot be switched [ON]/
[OFF] using the <WHITE BAL> switch or the USER button. However,
if you have assigned [ATW LOCK] to the USER button, you can use
the USER button to fix the white balance value.
Deactivates the [ATW] function when in Auto mode. Activates white
balance function selected using the <WHITE BAL> switch.
Activates auto focus when in Auto mode. At this time, the <FOCUS>
switch is disabled.
Deactivates auto focus when in Auto mode. Performs focus operation
selected using <FOCUS> switch.
is the factory default mode.
88
[RECORDING SETUP] screen
Item
Display
mode
Description of settings
[HD/SD MODE] <CAMERA> Switches the mode AVCHD/DV.
[AVCHD], [DV]
•• If the [TURN POWER OFF] message is displayed, switch the camera OFF
and then ON again. Switching the camera ON/OFF switches the mode.
[REC FORMAT] <CAMERA>
„„AVCHD mode
Selects the recording format. (Page 14)
•• [PH 1080/24P] and [PH 720/24P] are for native recording.
When [SYSTEM FREQ] = [59.94Hz]
[PS 1080/60P], [PH 1080/60i], [PH 1080/30P], [PH 1080/24P],
[PH 720/60P], [PH 720/30P], [PH 720/24P], [PM 720/60P], [HA 1080/60i],
[HE 1080/60i]
When [SYSTEM FREQ] = [50Hz]
[PS 1080/50P], [PH 1080/50i], [PH 1080/25P], [PH 720/50P], [PH 720/25P],
[PM 720/50P], [HA 1080/50i], [HE 1080/50i]
Selects the recording format. (Page 14)
When [SYSTEM FREQ] = [59.94Hz]
[DV 480/60i], [DV 480/30P], [DV 480/24P]
When [SYSTEM FREQ] = [50Hz]
[DV 576/50i], [DV 576/25P]
[ASPECT
CONV]
<CAMERA> Selects aspect ratio for DV mode recording.
(DV mode
[SIDE CROP]:
Records in 4:3. Crops the left and right edges.
only)
[LETTER BOX]:
Records in 16:9. Adds black bands at the top and bottom of
the screen.
[SQUEEZE]:
Records with horizontal compression of picture.
[PREREC
MODE]
<CAMERA> Sets the pre recording to ON or OFF.
[ON]:
Enables the pre-rec function.
[OFF]:
Disables the pre-rec function.
•• [TCG] is set to [FREE RUN].
•• The INTERVAL REC setting will be released.
[SIMUL REC]
<CAMERA> Records the same images to both memory card slots. (Page 32)
[ON]:
[OFF]:
[RELAY REC]
<CAMERA> [ON]:
[OFF]:
Menu
„„DV mode
Enables the simul recording.
Enables the normal recording.
Enables the relay recording. When the memory card used for
recording has no remaining space, recording continues on another
memory card if the memory card that can be used for recording is
inserted in another memory card slot.
Relay recording is not performed. Recording stops when the selected
memory card has no remaining space.
is the factory default mode.
89
Item
Display
mode
Description of settings
[INTERVAL
REC]
<CAMERA> Scenes changing slowly over a long period are recorded as short movies by
(AVCHD
providing a recording interval. One frame is recorded in each recording time
mode only) period that has been set, and in the AVCHD mode 24 frames (PAL 25 frames)
form a one-second video.
[OFF], [1SECOND], [10SECONDS], [30SECONDS], [1MINUTE], [2MINUTES]
When INTERVAL REC is enabled, set the recording format as follows. If the
recording format is not set to the following, the [INTERVAL REC] item of the
[RECORDING SETUP] screen is grayed out and cannot be enabled.
When [SYSTEM FREQ] = [59.94Hz]: [PH 1080/24P]
When [SYSTEM FREQ] = [50Hz]: [PH 1080/25P]
•• When set to [PH 1080/24P], TC RECRUN is fixed to NDF.
•• The maximum shooting time is 168 hours.
•• Audio recording is disabled.
[TIME STAMP]
<CAMERA> Enables a function to superimpose [DATE]/[TIME] information over the shot
images.
[ON]:
The information set in the [DATE]/[TIME] item is superimposed.
[OFF]:
Date and time information are not superimposed on the image.
[PS/PH AUDIO
MODE]
<CAMERA> Selects the format of audio recording when [REC FORMAT] = PS/PH.
(AVCHD
[LINEAR PCM]: Recording is performed in uncompressed LPCM.
mode only) [Dolby Digital]: Recording is performed in Dolby Digital.
•• The camera is fixed to Dolby Digital other than PS/PH mode.
•• Content recorded with [LINEAR PCM] cannot be played back on our previous
model.
[AUDIO
LIMITER CH1]
<CAMERA> Enables the limiter function on CH1 audio input.
[AUDIO
LIMITER CH2]
<CAMERA> Enables the limiter function on CH2 audio input.
[MIC GAIN1]
<CAMERA> Sets the input level of the external microphone connected to the AUDIO INPUT1
terminal.
[-40dB], [-50dB], [-60dB]
[MIC GAIN2]
<CAMERA> Sets the input level of the external microphone connected to the AUDIO INPUT2
terminal.
[-40dB], [-50dB], [-60dB]
[ON]:
Level is reduced only when input exceeds limit (adjustable using
<AUDIO LEVEL> knob).
[OFF]:
No limiter (adjustable using <AUDIO LEVEL> knob)
[ON]:
Level is reduced only when input exceeds limit (adjustable using
<AUDIO LEVEL> knob).
[OFF]:
No limiter (adjustable using <AUDIO LEVEL> knob)
is the factory default mode.
90
[TC/UB SETUP] screen
Display
mode
Description of settings
[TC MODE]
<CAMERA> Selects the correction mode of the internal time code when the time code of the
internal time code generator is recorded.
[DF]: Uses the drop frame mode.
[NDF]: Uses the non-drop frame mode.
•• Automatically set to [NDF] when you set the recording frame rate of the
recording format to 24P.
•• Enabled only when [SYSTEM FREQ] = [59.94Hz].
[TCG]
<CAMERA> Sets the mode in which you advance the internal time code generator.
[FREE RUN]: The time code is advanced regardless of the operation mode. A
slight time error may occur when switching to <PB> mode if the
frame rate is set to 24P.
[REC RUN]:
The time code is advanced when shooting.
[TC PRESET]
<CAMERA> Sets the initial time code.
When you set the frame rate of the recording format to 24P, set the frame value
to 0 or a multiple of 4 in AVCHD mode and to 5 frame units in DV mode. If any
other value is set, the recorded time code will mismatch.
[YES] [NO]
[UB MODE]
<CAMERA> Sets the content to be recorded as the user information.
(DV mode
[USER]:
Records the user information.
only)
[TIME]:
The time is recorded.
[DATE]:
The date and time are recorded.
[TCG]:
Records the value of the time code generator.
[FRAME RATE]: Records the frame rate information of frame conversion.
[UB PRESET]
<CAMERA> Sets the user information.
[YES] [NO]
Menu
Item
[EXT TC LINK] <CAMERA> Synchronizes the initial time code value during multi-camera shooting. ([SLAVE]
camera time codes are synchronized to the [MASTER] internal [TCG] value.)
[MASTER]:
Sets the mode to master mode.
[SLAVE]:
Sets the mode to slave mode. When the <RESET/TC SET>
button is pressed, input time codes are synchronized to the
internal [TCG].
[NO]: Returns to the previous screen.
•• [MASTER] and [SLAVE] mode settings are in effect only when this menu is
open. When the menu is closed, [EXT TC LINK] is automatically canceled.
is the factory default mode.
91
[AV OUT SETUP] screen
Item
Display
mode
Description of settings
[SDI&HDMI
OUT SEL]
<CAMERA> Sets the video format of the <SDI OUT> and <HDMI> output.
<PB>
[1080i/720P]:
Outputs at the resolution set in [REC FORMAT]. Outputs at
(AVCHD
1080/60i or 1080/50i in PS mode.
mode only) [DOWN CONV]:
When [SYSTEM FREQ] = [59.94Hz], <SDI OUT> is output
at 480i, while <HDMI> is output at 480P. When [SYSTEM
FREQ] = [50Hz], <SDI OUT> is output at 576i, while
<HDMI> is output at 576P.
[SDI OUT]
<CAMERA> Sets the video output from the <SDI OUT> terminal.
<PB>
[ON]:
Video is output from <SDI OUT>.
During this time, simultaneous LCD monitor and viewfinder display is
not supported. When using the viewfinder, please close the monitor.
[OFF]:
No video is output from <SDI OUT>.
[SDI 24PsF]
<CAMERA> Sets the video format output from <SDI OUT> to 24PsF.
<PB>
[ON]:
Operates only when [REC FORMAT] = 1080/24P. If it is set to [ON],
(AVCHD
VFR operation is disabled. During 24PsF output, HDMI output is
mode only)
halted.
[OFF]:
SDI output is in the 1080/60i format.
•• When [SYSTEM FREQ] = [50Hz], this item is not available.
[SDI EDH]
<CAMERA> Sets superimposition of EDH onto the <SDI OUT> during <SDI OUT> output.
<PB>
[ON]:
Superimposes EDH.
[OFF]:
Does not superimpose EDH.
[DOWNCON
MODE]
<CAMERA> Switches down-conversion output mode.
<PB>
[SIDE CROP]:
Crops the left and right edges. Images output from the
(AVCHD
external output terminals <VIDEO OUT>, <HDMI>, <SDI
mode only)
OUT> will have portions which extend beyond the edges of
the screen and cannot be seen.
[LETTER BOX]:
Adds black bands at the top and bottom of the image.
[SQUEEZE]:
Squeezes images horizontally.
[HP MODE]
<CAMERA> Selects the sound heard from the headphones.
[LIVE]:
The sound input from the microphone is output as is. This
setting is selected when delays in the sound are annoying.
[RECORDING]:
The sound in the status to be recorded (the sound
synchronized with the images) is output.
[TEST TONE]
<CAMERA> Sets test tone output to channels 1 and 2 when BARS setting is ON.
[LEVEL1]:
Outputs the 1 kHz test tone.
[LEVEL2]:
Test tone is output at lower volume than LEVEL1.
[OFF]:
Does not output the test tone.
is the factory default mode.
92
Item
Display
mode
Description of settings
[VIDEO SETUP] <CAMERA> Sets the setup level of video signals.
<PB>
[0%]:
<VIDEO OUT> terminal output and recording setup levels will both
be set to 0%.
[7.5%A]:
<VIDEO OUT> terminal output setup level will be set to 7.5%,
while recording setup level will be set to 0%.
•• When [SYSTEM FREQ] = [50Hz], this item is not available.
[AUDIO OUT]
<CAMERA> Sets the audio signals to output from the <AUDIO OUT> terminal (A/V OUT).
<PB>
[CH1/CH2]: CH1 terminal = CH1 signals, CH2 terminal = CH2 signals
[CH1]:
CH1 terminal = CH1 signals, CH2 terminal = CH1 signals
[CH2]:
CH1 terminal = CH2 signals, CH2 terminal = CH2 signals
•• When a memory card containing 5.1 channel content recorded on another
equipment is played back on the camera, it is down-mixed to 2 channels when
output through the <AUDIO OUT> and headphone terminals.
is the factory default mode.
[DISPLAY SETUP] screen
Display
mode
Description of settings
[ZEBRA
DETECT1]
<CAMERA> Selects the brightness level of the right-leaning zebra patterns on the screen.
[105%], [100%], [95%], [90%], [85%], [80%], [75%], [70%], [65%], [60%],
[55%], [50%]
[ZEBRA
DETECT2]
<CAMERA> Selects the brightness level of the left-leaning zebra patterns on the screen.
[OFF], [105%], [100%], [95%], [90%], [85%], [80%], [75%], [70%], [65%],
[60%], [55%], [50%]
[Y GET
MARKER]
<CAMERA> Sets the display of the marker used for displaying the luminance level to [ON]/
[OFF].
Select [ON] to display the marker by pressing the <ZEBRA> button.
[ON], [OFF]
[SAFETY
ZONE]
<CAMERA> Sets [SAFETY ZONE].
Menu
Item
„„AVCHD mode
[90%]:
[4:3]:
[14:9]:
[1.85:1]:
[2:1]:
[2.35:1]:
[2.39:1]:
[GRID]:
[OFF]:
90% display at 16:9
100% display at 4:3
100% display at 14:9 (the size between 16:9 and 4:3)
100% display at 1.85:1 (the size of American vista)
100% display at 2:1 (scope size)
100% display at 2.35:1 (the size of Cinemascope)
100% display at 2.39:1
16:9 angular field of view with nine grid lines
The SAFETY ZONE is not displayed.
[90%]:
[4:3]:
[OFF]:
90% display at 16:9
100% display at 4:3
The SAFETY ZONE is not displayed.
„„DV mode
is the factory default mode.
93
Item
Display
mode
Description of settings
[CENTER
MARKER]
<CAMERA> Sets the marker display to [ON]/[OFF].
Select [ON] to display the marker by pressing the <ZEBRA> button.
[ON], [OFF]
[FOCUS BAR]
<CAMERA> Sets the FOCUS ASSIST bar display to [ON]/[OFF]. Select [ON] to display the
FOCUS ASSIST bar.
[ON], [OFF]
[IRIS METER]
<CAMERA> Sets [IRIS METER] display.
[ON]:
Displays the difference from an optimum value for the brightness of
the image, as judged by the camera. The bar appears on the right:
The image is too bright. The bar appears on the left: The image is
too dark.
[OFF]:
IRIS METER is not displayed.
[REC
COUNTER]
<CAMERA> Selects counter operation during shooting.
[TOTAL]: The count continues to increase until the <COUNTER> button is
pressed to reset it.
[CLIP]:
Resets the counter at the start of recording and counts the time of
each recording session.
•• The count is not displayed in <PB> mode.
[VIDEO OUT
OSD]
<CAMERA> Select [ON] to output the information displayed on the viewfinder or LCD monitor
together with the signals from the VIDEO OUT jack.
<PB>
[ON], [OFF]
•• The external outputs <VIDEO OUT>, <SDI OUT>, <HDMI> include items that
are not displayed.
[DATE/TIME]
<CAMERA> Sets whether to display the date and time on the viewfinder or LCD monitor and
<PB>
whether to output the date and time from the VIDEO OUT jack.
[OFF]:
The date and time are not displayed.
[TIME]:
The time is displayed.
[DATE]:
The date is displayed.
[TIME&DATE]: The date and time are displayed.
[DATE
FORMAT]
<CAMERA> Changes the style of displaying the year, month, and day. (The factory setting
<PB>
values may vary depending on the region.)
[Y/M/D]:
Year/Month/Day
[M/D/Y]:
Month/Day/Year
[D/M/Y]:
Day/Month/Year
[LEVEL
METER]
<CAMERA> Switches the audio level meter display [ON]/[OFF].
[ON], [OFF]
<PB>
[ZOOM&
FOCUS]
<CAMERA> Selects the unit of zoom and focus values.
[OFF], [NUMBER], [mm/m], [mm/feet]
•• The [mm/feet] display and [mm/m] display may be in error, so please use them
as approximations.
is the factory default mode.
94
Item
Display
mode
Description of settings
[CARD&
BATTERY]
<CAMERA> Select [ON]/[OFF] to display/hide the remaining memory card recording capacity
and remaining battery charge.
<PB>
[ON], [OFF]
[OTHER
DISPLAY]
<CAMERA> Selects how much information to display on the viewfinder and LCD monitor.
[OFF], [PARTIAL], [ALL]
<PB>
<CAMERA> Adjusts the display level of images on the LCD monitor.
<PB>
[BRIGHTNESS]: brightness
[COLOR]:
color level
[CONTRAST]:
contrast
[EVF SET]
<CAMERA> Adjusts the display level of images on the viewfinder.
<PB>
[BRIGHTNESS]: brightness
[COLOR]:
color level
[CONTRAST]:
contrast
[LCD
<CAMERA> Adjusts the backlight of the LCD monitor.
BACKLIGHT]
<PB>
[+1], [0], [-1], [-2], [-3]
[+1]:
The backlight becomes brighter.
[-3]:
The backlight becomes the darkest.
[SELF SHOOT] <CAMERA> Switches the LCD monitor to mirror mode for self-portrait shooting.
Select [MIRROR] to flip the left and right side of the LCD monitor image during
self-portrait shooting.
[NORMAL], [MIRROR]
[EVF MODE]
<CAMERA> Switches the screen display of images.
<PB>
[AUTO]:
If you open the LCD monitor, images on the viewfinder disappear.
[ON]:
Images are always displayed on the viewfinder.
•• When the [SDI OUT] item on the [AV OUT SETUP] screen is [ON], the camera
is forced to operate in [AUTO] setting.
[EVF COLOR]
<CAMERA> Switches viewfinder images to color/black and white.
<PB>
[ON]:
Color
[OFF]:
Black and white
Menu
[LCD SET]
is the factory default mode.
95
[CARD FUNCTIONS] screen
Item
Display
mode
Description of settings
[CARD
FORMAT]
<CAMERA> Formats memory card.
<PB>
[SLOT1]: Formats the memory card inserted in slot 1.
[SLOT2]: Formats the memory card inserted in slot 2.
[NO]:
Returns to the previous screen.
[CARD
STATUS]
<CAMERA> Displays the memory card status.
<PB>
[SLOT1]: Displays information about the memory card inserted in slot 1.
[SLOT2]: Displays information about the memory card inserted in slot 2.
[NO]:
Returns to the previous screen.
[CLIP
PROPERTY]
<PB>
Displays information about the selected clip.
[YES]:
Displays clip information.
[NO]:
Returns to the previous screen.
This can also be displayed using the <DISP/MODE CHK> button.
is the factory default mode.
[USER FILE] screen
Item
[CARD READ]
Display
mode
Description of settings
<CAMERA> Reads the user files saved on the memory card.
<PB>
[SLOT1]: Reads user files from the memory card inserted in slot 1.
[SLOT2]: Reads user files from the memory card inserted in slot 2.
[NO]:
Returns to the previous screen.
•• When reading the user files with different system frequency, change the
system frequency on the camera in advance.
[CARD WRITE] <CAMERA> Saves user files on the memory card. You can also add a title to the saved files.
<PB>
[SLOT1]: Saves user file on the memory card inserted in slot 1.
[SLOT2]: Saves user file on the memory card inserted in slot 2.
[NO]:
Returns to the previous screen.
[LOAD/SAVE/
INIT]
<CAMERA> [LOAD]:
Loads the settings in a previously stored user file.
<PB>
[SAVE]:
Saves the updated user file settings.
[INIT]:
Returns the settings in the user file to the factory settings.
[NO]:
Returns to the previous screen.
•• After performing [LOAD] or [INIT], turn POWER/MODE switch of the camera
OFF and then ON again to enable the new settings.
•• When [INIT] is executed, the setting value of the scene file, time code, the
[TIME ZONE] item, the [CLOCK SET] item, and the [TIME ZONE] item remain
unchanged.
is the factory default mode.
96
[META DATA] screen (AVCHD mode only)
Display
mode
Description of settings
[CARD READ]
<CAMERA> Loads the metadata recorded on the memory card into the camera.
[SLOT1] [SLOT2] [NO]
(AVCHD
mode only) •• [NO FILE] is displayed when there is no metadata recorded on the memory
card.
[RECORD]
<CAMERA> Sets whether to simultaneously record the metadata on a memory card as it is
(AVCHD
loaded into the camera.
mode only) [ON]:
Records simultaneously.
[OFF]: Does not record simultaneously.
[USER CLIP
NAME]
<CAMERA> Sets [USER CLIP NAME] recording method.
(AVCHD
[TYPE1]:
The user clip name is the same as the [CLIP NAME] if no
mode only)
metadata is uploaded or if no uploaded data exists.
[TYPE2]:
[META DATA
PROP]
The user clip name is the same as the [CLIP NAME] if no
combination of data and COUNT value is uploaded, or if no
uploaded data exists.
<CAMERA> Displays the metadata recorded in the unit.
[YES] [NO]
(AVCHD
mode only)
[CLIP
<CAMERA> Resets the COUNT value to 1.
COUNTER RST] (AVCHD
[YES] [NO]
mode only)
[META INIT
SET]
<CAMERA> Initializes the metadata recorded in the unit.
All settings, including the [ON]/[OFF] setting for [RECORD] are cleared.
(AVCHD
mode only) [YES] [NO]
Menu
Item
is the factory default mode.
[OTHER FUNCTIONS] screen
Item
[IR REMOTE]
Display
mode
Description of settings
<CAMERA> Sets the operations of the supplied remote control unit.
<PB>
[ON]:
Accepts commands from the remote control.
•• Note that if the same type of remote control is used near the
unit, the unit may receive commands from the other remote
control during shooting, for example, and suddenly operate in an
unexpected manner.
[OFF]:
Does not accept commands from the remote control.
[DV CONTROL] <CAMERA> Specifies the control method when a backup device is connected to the <DV
(DV mode
OUT> terminal for backup recording.
only)
[OFF]:
Backup device is not controlled.
[EXT]:
Backup device controlled using <START/STOP> button. Note,
however, that recording on the camera is not performed.
[BOTH]:
Backup recording performed by the unit and the backup device.
[CHAIN]:
When the recording nears the end, recording on the backup device
which is on standby will automatically start.
is the factory default mode.
97
Item
Display
mode
Description of settings
[DV CMD SEL] <CAMERA> Sets the recording operation to be performed by the backup device when you
(DV mode
press the <START/STOP> button.
only)
[REC P]:
Pauses and unpauses the recording.
[STOP]:
Starts and stops the recording.
[TALLY LAMP]
<CAMERA> Sets lighting of the tally lamp.
[FRONT]: The front tally lamp (microphone side) lights.
[REAR]:
The rear tally lamp (viewfinder side) lights.
[BOTH]:
Both tally lamps light.
[OFF]:
No tally lamp lights.
[CLOCK SET]
<CAMERA> Sets the built-in calendar of the camera.
<PB>
[TIME ZONE]
<CAMERA> Adds to or deducts from GMT the time value of [-12:00] to [+13:00] in 30-minute
<PB>
steps. (Refer to the following table.)
[0:00]
Time
difference
+00:00
–01:00
–02:00
–03:00
–04:00
–05:00
–06:00
–07:00
–08:00
–09:00
–10:00
–11:00
–12:00
+13:00
+12:00
+11:00
+10:00
+09:00
+08:00
+07:00
+06:00
+05:00
+04:00
+03:00
+02:00
+01:00
[LANGUAGE]
Region
Greenwich
Azores
Mid-Atlantic
Buenos Aires
Halifax
New York
Chicago
Denver
Los Angeles
Alaska
Hawaii
Midway Islands
Kwajalein Atoll
New Zealand
Solomon Islands
Guam
Tokyo
Beijing
Bangkok
Dacca
Islamabad
Abu Dhabi
Moscow
Eastern Europe
Central Europe
Time
difference
–00:30
–01:30
–02:30
–03:30
–04:30
–05:30
–06:30
–07:30
–08:30
–09:30
–10:30
–11:30
+12:30
+11:30
+10:30
+09:30
+08:30
+07:30
+06:30
+05:30
+04:30
+03:30
+02:30
+01:30
+00:30
Region
Newfoundland Island
Marquesas Islands
Norfolk Island
Lord Howe Island
Darwin Islands
Yangong
Mumbai
Kabul
Tehran
<CAMERA> Sets the Menu language.
<PB>
[English], [Español], [Français] (AG-AC160AP)
[English], [Español], [Français], [Deutsch], [Italiano] (AG-AC160AEJ)
[English], [Español], [Русский] (AG-AC160AEN)
[SYSTEM
FREQ]
<CAMERA> Sets the system frequency. (The factory setting values may vary depending on
the region.)
[59.94Hz]: NTSC region
[50Hz]: PAL region
•• If the [TURN POWER OFF] message is displayed, switch the camera OFF and
then ON again. Every time the power is turned on, the system frequency changes.
[SYSTEM
INFO]
98
<CAMERA> Displays the version of the system in this camera.
<PB>
is the factory default mode.
Item
Display
mode
Description of settings
[MENU INIT]
<CAMERA> Returns the menu settings (scene files and user files) to factory default settings.
(Except for time code/[OPERATION TIME] item/[CLOCK SET] item/[TIME
ZONE] item settings)
[OPERATION
TIME]
<CAMERA> Displays the power-on time (a 5-digit figure).
<PB>
is the factory default mode.
[OPTION MENU] screen
Item
Display
mode
Description of settings
[1394 STATUS] <CAMERA> Displays IEEE1394 status.
[YES] [NO]
(DV mode
only)
[1394 CONFIG] <CAMERA> Sets IEEE1394.
[DFLT], [1] - [255]
(DV mode
only)
is the factory default mode.
Menu
[OPTION MENU] is displayed when you press the <MENU> button while holding down the <DISP/MODE CHK>
button.
[PLAY SETUP] screen
Item
Display
mode
Description of settings
[PB FORMAT]
<PB>
(AVCHD
mode only)
Sets the playback format.
When [SYSTEM FREQ] = [59.94Hz]
[1080/60P], [1080/60i(30P)], [1080/24P], [720/60P(30P)], [720/24P]
When [SYSTEM FREQ] = [50Hz]
[1080/50P], [1080/50i(25P)], [720/50P(25P)]
•• The [REC FORMAT] setting in the <CAMERA> mode prior to migrating to the
PB mode becomes the default value of the [PB FORMAT].
[REPEAT
PLAY]
<PB>
[ON] [OFF]
When [ON] is selected, supported clips are played repeatedly.
[RESUME
PLAY]
<PB>
[ON] [OFF]
When [ON] is selected, playback resumes from the video position where clip
playback had stopped.
[SKIP MODE]
<PB>
(AVCHD
mode only)
Selects the starting position for cued playback after pausing.
[CLIP]:
Stops playback at the beginning of the previous clip.
[CLIP & INDEX]:
Stops at the beginning of the clip and the INDEX.
is the factory default mode.
99
[THUMBNAIL] screen
Item
Display
mode
Description of settings
[THUMBNAIL
MODE]
<PB>
Selects the thumbnail display method.
[ALL]:
Displays all clips.
[SAME
Displays clips in the same recording format. (AVCHD mode
FORMAT]:
only)
[MARKER]:
Displays clips with shot marks.
[INDEX]:
Displays clips with an INDEX. (AVCHD mode only)
[INDICATOR]
<PB>
Sets whether or not to display the indicator.
[ON]:
Displays indicator.
[OFF]:
Does not display indicator.
[DATA
DISPLAY]
<PB>
Selects the information to be displayed in the time display area of the clips.
[TC]:
Time code
[UB]:
User information
[TIME]:
Shooting time
[DATE]:
Shooting date
[DATE&TIME]: Shooting date and time
[DATE
FORMAT]
<PB>
Selects display order for [DATE] or [DATE&TIME] of the [DATA DISPLAY] item.
(The factory setting values may vary depending on the region.)
[Y/M/D]:
Year/Month/Day
[M/D/Y]:
Month/Day/Year
[D/M/Y]:
Day/Month/Year
is the factory default mode.
[OPERATION] screen
Item
[DELETE]
Display
mode
<PB>
Description of settings
Deletes clips.
[ALL CLIPS]: Deletes all clips.
[SELECT]:
Deletes only the selected clips. Press <EXEC> to delete.
[NO]:
Returns to the previous screen.
•• Clips for which CLIP PROTECT is specified are not deleted.
[INDEX]
<PB>
(AVCHD
mode only)
Adds or deletes an [INDEX] to a clip.
[YES]:
Displays.
[NO]:
Does not display.
[CLIP
PROTECT]
<PB>
(AVCHD
mode only)
Protects clips to prevent accidental deletion.
[YES]:
Enables clip protection or releases protection.
[NO]:
Returns to the previous screen.
•• Formatting the memory card will delete all clips even if they are protected.
[REPAIR]
<PB>
(DV mode
only)
Restores defective clips. (Page 62)
is the factory default mode.
100
Reference
Specifications
General
Supply voltage
DC 7.2 V (when the battery is used)/
DC 7.3 V (when the AC adaptor is used)
Power consumption
Recording: 11.8 W
indicates safety items.
Ambient operating temperature
0°C - 40°C (32°F to 104°F)
Ambient operating humidity
10% to 80% (no condensation)
Weight
Approx. 2.4 kg (5.3 lb) (excluding the battery and
accessories)
Dimensions (W x H x D)
180 mm x 195 mm x 438 mm (7 inches x 7-11/16
inches x 17-1/4 inches)
(excluding width, height, depth, and protruding
part)
Camera
Pickup devices
1/3 MOS fixed pickup device x 3
(2.2 mega pixels progressive supported)
Lens
Optical image stabilizer lens,
Electric/manual switching, 22X zoom,
F1.6 - 3.2 (f = 3.9 mm to 86 mm)
(35 mm conversion: 28 mm - 616 mm)
Color separation optical system
Prism format
Filter diameter
72 mm
ND filter
OFF, 1/4, 1/16, 1/64
Minimum shooting distance
Approx. 1 m
Gain settings
0/+3/+6/+9/+12/+15/+18/+24/+30 dB
* +24 dB and +30 dB are assigned to the USER
button (S.GAIN)
Color temperature settings
ATW, ATW LOCK, preset 3200 K,
preset 5600 K, preset VAR, Ach, Bch
38
Digital zoom
2X/5X/10X
* assigned to the USER button (ratio is changed
every time the button is pressed)
Minimum subject illumination
0.4 lx (F1.6, gain +30 dB, shutter speed 1/30
seconds)
Lens hood
Wide field large lens hood
Shutter speed
Preset
when SYSTEM FREQ = 59.94 Hz:
60i/60P mode:
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000,
1/2000 seconds
30P mode:
1/30, 1/50, 1/60, 1/120, 1/250, 1/500,
1/1000, 1/2000 seconds
24P mode:
1/24, 1/50, 1/60, 1/120, 1/250, 1/500,
1/1000, 1/2000 seconds
when SYSTEM FREQ = 50 Hz:
50i/50P mode:
1/50, 1/60, 1/120, 1/250, 1/500, 1/1000,
1/2000 seconds
25P mode:
1/25, 1/50, 1/60, 1/120, 1/250, 1/500,
1/1000, 1/2000 seconds
*Underline indicates value when shutter is OFF
Synchro scan
when SYSTEM FREQ = 59.94 Hz:
when SYNC SCAN TYPE = sec
60i/60P mode:
1/60.0 seconds - 1/249.8 seconds
30P mode:
1/30.0 seconds - 1/249.8 seconds
24P mode:
1/24.0 seconds - 1/249.8 seconds
when SYNC SCAN TYPE = deg
3.0d - 180.0d - 360.0d
(0.5d increments, angle display)
when SYSTEM FREQ = 50 Hz:
when SYNC SCAN TYPE = sec
50i/50P mode:
1/50.0 seconds - 1/250.0 seconds
25P mode:
1/25.0 seconds - 1/250.0 seconds
when SYNC SCAN TYPE = deg
3.0d - 180.0d - 360.0d
(0.5d increments, angle display)
Image/Recording/Playback
„„AVCHD mode
Recording format
AVCHD Ver.2.0 standard compliant (AVCHD
Progressive)
Compression formats
MPEG-4 AVC/H.264
Recording media
SD memory card:
512 MB, 1 GB, up to 2 GB
(FAT12, FAT16 formats supported)
SDHC memory card:
4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 32 GB
(FAT32 format supported)
SDXC memory card:
48 GB, 64 GB, up to 2 TB
(exFAT format supported)
However, memory cards above Class 4 are
supported in PH/HA mode, memory cards above
Class 2 are supported in PM/HE mode, and
memory cards above Class 6 are supported in
PS mode or during VFR recording.
Recording format (recording mode and
resolution)
when SYSTEM FREQ = 59.94 Hz (The frame
rates in the setup menu are 60P, 60i, 30P, and
24P.):
PS 1080/59.94P
PH 1080/59.94i
PH 1080/29.97P
PH 1080/23.98P (Native recording)
PH 720/59.94P
PH 720/29.97P
PH 720/23.98P (Native recording)
PM 720/59.94P
HA 1080/59.94i
HE 1080/59.94i
when SYSTEM FREQ = 50 Hz:
PS 1080/50P
PH 1080/50i
PH 1080/25P
PH 720/50P
PH 720/25P
PM 720/50P
HA 1080/50i
HE 1080/50i
Transmission rate
PS mode: Approx. 25 Mbps (VBR)
PH mode: Approx. 21 Mbps (VBR)
PM mode: Approx. 8 Mbps (VBR)
HA mode: Approx. 17 Mbps (VBR)
HE mode: Approx. 6 Mbps (VBR)
Interval recording
OFF/1 s/10 s/30 s/1 min/2 min
* For the recording mode, PH 1080/24P (when
SYSTEM FREQ = 59.94 Hz), PH 1080/25P
(when SYSTEM FREQ = 50 Hz) fixed, and
shooting time has a maximum of 168 hours
(1 week)
VFR recording
when REC FORMAT = 1080/24P, 1080/30P:
2*/6/9/12/15/18/20/21/22/24/25/
26/27/28/30/32/34/36/40/44/48/
54/60 frames/second
when REC FORMAT = 1080/25P:
2*/6/9/12/15/18/20/21/22/23/24/
25/26/27/28/30/32/34/37/42/45/
48/50 frames/second
* Gain value is fixed at 0 dB and the camera is
set to manual focus mode.
Reference
Slow shutter speed (can only be set when the
VFR MODE in the SCENE FILE screen is OFF)
when SYSTEM FREQ = 59.94 Hz:
60i/60P mode:
1/8, 1/15, 1/30 seconds
30P mode:
1/8, 1/15 seconds
24P mode:
1/6, 1/12 seconds
when SYSTEM FREQ = 50 Hz:
50i/50P mode:
1/6, 1/12, 1/25 seconds
25P mode:
1/6, 1/12 seconds
„„DV mode
Recording format
DV standard compliant
File format
AVI Type2
Recording media
SD memory card:
512 MB, 1 GB, 2 GB
(FAT12, FAT16 formats supported)
SDHC memory card:
4 GB, 8 GB, 16 GB, 32 GB
(FAT32 format supported)
SDXC memory card:
48 GB, 64 GB, up to 2 TB
(exFAT format supported)
However, it is possible to use Class 6 or higher.
Recording format (recording mode and
resolution)
when SYSTEM FREQ = 59.94 Hz (The frame
rates in the setup menu are 60i, 30P, and 24P.):
480/59.94i
480/29.97P 480/23.98P
when SYSTEM FREQ = 50Hz:
576/50i
576/25P
39
Image output
Audio recording playback
„„AVCHD mode
„„AVCHD mode
SDI OUT terminal
BNC, 0.8 V [p-p], 75 Ω
HD SDI
when SYSTEM FREQ = 59.94 Hz:
1080/60i, 1080/24PsF, 720/60P
when SYSTEM FREQ = 50 Hz:
1080/50i, 720/50P
SD SDI
when SYSTEM FREQ = 59.94 Hz:
480/60i
when SYSTEM FREQ = 50 Hz:
576/50i
HDMI OUT terminal
HDMI (HDMI Type A terminal)
when SYSTEM FREQ = 59.94 Hz:
1080/60i, 720/60P, 480/60P
when SYSTEM FREQ = 50 Hz:
1080/50i, 720/50P, 576/50P
(VIERA Link not supported)
VIDEO OUT terminal
Pin jack, 1.0 V [p-p], 75 Ω
when SYSTEM FREQ = 59.94 Hz:
480/60i
when SYSTEM FREQ = 50 Hz:
576/50i
Compression formats
Recording/Playback:
PS/PH Mode
Dolby Digital/2 ch, linear PCM switch
PM/HA/HE mode
Dolby Digital/2 ch
Sampling frequency
48 kHz
Encoding
16 bit
Compressed bit rate
PS/PH mode: 384 kbps
PM/HA/HE mode: 256 kbps
„„DV mode
SDI OUT terminal
SD SDI
when SYSTEM FREQ = 59.94 Hz:
480/60i
when SYSTEM FREQ = 50 Hz:
576/50i
VIDEO OUT terminal
Pin jack, 1.0 V [p-p], 75 Ω
when SYSTEM FREQ = 59.94 Hz:
480/60i
when SYSTEM FREQ = 50 Hz:
576/50i
40
„„DV mode
Compression formats
Recording/Playback:
linear PCM (digital 2 ch)
Sampling frequency
48 kHz
Encoding
16 bit
Audio input
Built-in microphone
Stereo microphone
XLR input
XLR (3-pin) x 2 (AUDIO INPUT1, AUDIO
INPUT2), LINE/MIC selectable, high impedance
LINE: 0 dBu
MIC: -40/-50/-60 dBu (menu selectable)
MIC POWER +48 V ON/OFF switchable
Audio output
Audio output
Output level: 600 Ω, 316 mV
Pin jack x 2 (CH1, CH2)
SDI OUT
2 ch (linear PCM)
HDMI OUT (AVCHD mode only)
2 ch (linear PCM)/5.1ch (Dolby Digital)
Headphones
3.5 mm diameter, stereo mini jack x 1
Speaker
Round, 20 mm diameter
AC adaptor
(For AG-AC160AP/AG-AC160AEN only)
Camera remote terminal
2.5 mm diameter, super mini jack x 1 (ZOOM S/S)
3.5 mm diameter, mini jack x 1 (FOCUS/IRIS)
INDEX remote terminal
2.5 mm diameter, super mini jack x 1
TC PRESET IN/OUT terminal
VIDEO OUT terminal dual-purpose
IN: 1.0 V - 4.0 V [p-p], 10 kΩ
OUT: 2.0 V±0.5 V [p-p], low impedance
USB2.0 terminal
Memory card reader/writer function (without
copyright protection)
Type mini B connector (USB2.0 compliant)
DV OUT terminal (DV mode only)
6-pin (IEEE1394 standard compliant), digital
output only
Weight
Approx. 140 g (0.31 lb)
Dimensions (W x H x D)
103 mm x 36 mm x 62 mm
(4-1/16 inches x 1-13/32 inches x 2-7/16 inches)
Monitor
AC adaptor (For AG-AC160AEJ only)
LCD
3.45 inch wide LCD color monitor
(approx. 920,000 dots)
Viewfinder
0.45 inch wide LCD color monitor
(approx. 1,220,000 dots equivalent)
Power Source:
110 V - 240 V AC, 50 Hz/60 Hz
22 W
Power Output:
7.3 V DC, 1.75 A (Camera-recorder)
8.4 V DC, 1.3 A (Charge)
indicates safety information.
Power Source: 100 V - 240 V AC, 50 Hz - 60 Hz
0.4 A
Power Output: 7.3 V DC, 1.95 A
indicates safety information.
Weight
Approx. 165 g
Dimensions (W x H x D)
42 mm x 31 mm x 104.4 mm
Reference
Other terminals
Battery charger (For AG-AC160AEJ
only)
Power Source: 110 V - 240 V AC, 50 Hz/60 Hz
22 W
Power Output: 8.4 V DC, 1.3 A
indicates safety information.
Weight
Approx. 140 g
Dimensions (W x H x D)
103 mm x 36 mm x 62 mm
Inrush current, measured according to European
standard EN55103-1:6.5 A (AC Adaptor), 5.5 A (Battery charger)
41
