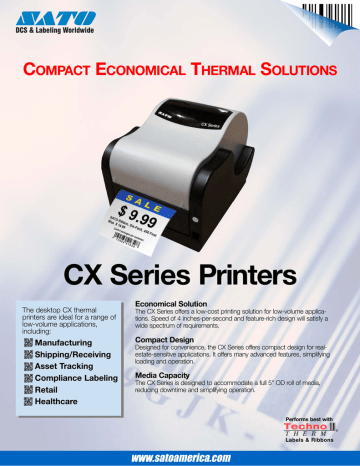

CX Series Printers
COMPACT ECONOMICAL THERMAL SOLUTIONS
CX Series Printers
The desktop CX thermal
printers are ideal for a range of
low-volume applications,
including:
Manufacturing
Shipping/Receiving
Asset Tracking
Compliance Labeling
Retail
Healthcare
Economical Solution
The CX Series offers a low-cost printing solution for low-volume applications. Speed of 4 inches-per-second and feature-rich design will satisfy a
wide spectrum of requirements.
Compact Design
Designed for convenience, the CX Series offers compact design for realestate-sensitive applications. It offers many advanced features, simplifying
loading and operation.
Media Capacity
The CX Series is designed to accommodate a full 5" OD roll of media,
reducing downtime and simplifying operation.
Performs best with
Labels & Ribbons
www.satoamerica.com
SPECIFICATIONS
CX400
THE BEST PERFORMING
COMPACT
Out of the box
... and ready to go!
Complete with:
• Labeling Software
• Parallel Printer Cable
• Starter Roll of Media & Ribbon
• Power Supply
• User’s & Programmer’s Guide
CX400
Thermal Transfer/Direct Thermal
Printing Method
203 dpi (8 dpmm)
Print Resolution
Print Speed
4 ips (100 mm/second)
Media Width
Max. 4.69" (119 mm) /Min 0.87" (22 mm)
4.1" (104 mm)
Max. Print Width
Min. Print Length
Max. Print Length
Max. Ribbon Size
Dimensions
0.87" (22 mm)
45" (1143 mm)
4.4" (110 mm) W x 328 ft. (100 m) L; Face-Out
7.76" W x 10.2" D x 6.5" H
(197 mm W x 257 mm D x 164 mm H)
Weight
Sensing:
Adjustable transmissive sensor for gap.
Reflective sensor for black mark. Automatic,
programmable setting of top of form. Label
present sensor - optional with label dispenser.
Ribbon-out sensor
Memory:
2 MB DRAM
2 MB Flash ROM
4 MB or 6 MB Optional Flash
Processor:
32-BIT
Media:
Roll-fed or fan-fold, die-cut or continuous
direct thermal or thermal transfer labels, synthetics, and tag stock with or without black
mark, gap, or notch.
Max. Caliper:
0.0075" (0.254 mm)
Max. Roll Diameter: 5" (127 mm)
Wind:
Face-Out or Face-In
Ribbon:
Max. Roll Diameter: 1.41" (36 mm)
Min. Core Diameter: 0.75" (19 mm)
Wind:
Face-Out
Interface:
• Serial RS232 (up to 38.4k bps)
• Centronics Parallel
Barcode Symbologies:
Elementary: UPC-A, UPC-E, EAN-8, EAN13, Code 39, Code 93, Code 128, Codabar,
MSI, Bookland, Industrial 2/5, Interleaved
2/5, Matrix 2/5, Postnet, UCC/EAN 128
2-Dimensional: PDF417, Maxicode
Fonts:
Bitmap - 12 proportional, mono-spaced and
outline fonts (Code table 858).
8.09 lbs (3.67 kg)
Barcode & Font Formatting:
360° rotation of barcodes and text, character expansion horizontally and vertically,
sequential numbering, form overlay for highspeed editing of complex formats.
Graphic Support:
Printing & storage of .PCX, .BMP format,
SATO Hex/binary
Software:
Windows® Drivers (Windows® 95, 98, ME,
NT4.0, 2000, XP)
“Label Gallery Free” - Label Software
Printer Utilities
Electrical Requirements:
100-120VAC/200-240VAC, 50/60 Hz (± 1%)
Agency Certifications: CE, UL, CSA, TÜV
Environmental Requirements:
Operating: 40° to 100°F (4° to 38°C)
30-80% RH, non-condensing
Storage: -4° to 122°F (-20° to 50°C)
Max. 85% RH, non-condensing
ESD:
8kV
Optional Features:
Label Cutter (factory installed), Label
Dispenser (factory installed), 220 V Power
Supply, External USB, External Ethernet,
Memory Expansion, Rewinder, Keyboard
Cutter
Label Gallery
Keyboard
RWG500 Rewinder
SATO America, Inc.
10350-A Nations Ford Road, Charlotte, NC 28273
Phone: (704) 644-1650 Fax: (704) 644-1659
E-mail: [email protected]
© 2006 SATO America, Inc. All rights reserved. Specifications subject to change without notice. Rev. 10/06
www.satoamerica.com
