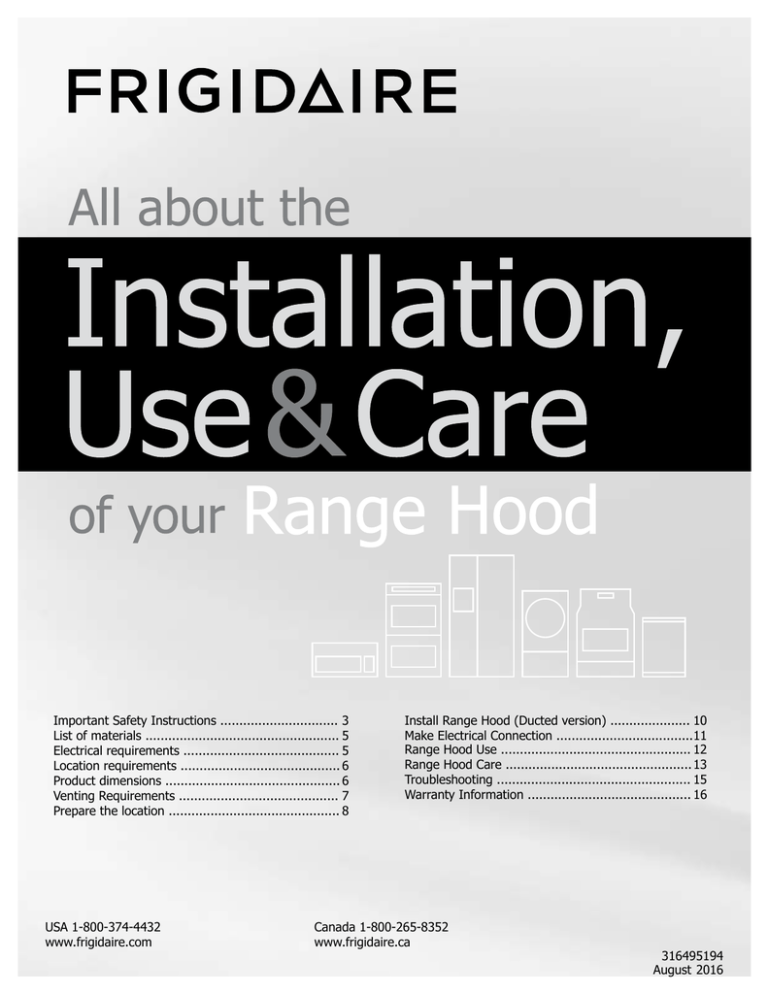

Frigidaire FHWC3650RSA, FHWC3050RSA, FHWC3650RSB, FHWC3650RS, FHWC3050RS Owner's manual

Frigidaire FHWC3650RSA, FHWC3050RSA, FHWC3650RSB, FHWC3650RS, FHWC3050RS Owner's manual
Important Safety Instructions ............................... 3
List of materials ................................................... 5
Electrical requirements ......................................... 5
Location requirements .......................................... 6
Product dimensions .............................................. 6
Venting Requirements .......................................... 7
Prepare the location ............................................. 8
USA 1-800-374-4432
www.frigidaire.com
Install Range Hood (Ducted version) ..................... 10
Make Electrical Connection ....................................11
Range Hood Use .................................................. 12
Range Hood Care ................................................. 13
Troubleshooting ................................................... 15
Warranty Information ........................................... 16
Canada 1-800-265-8352
www.frigidaire.ca
316495194
August 2016
WELCOME & CONGRATULATIONS
Questions?
1-800-374-4432
(United States)
1-800-265-8352
(Canada)
Congratulations on your purchase of a new range hood! At Electrolux Home Products,
we are very proud of our product and are completely committed to providing you with the best
service possible. Your satisfaction is our number one priority.
We know you’ll enjoy your new range hood and Thank You for choosing our product. We
hope you consider us for future purchases.
PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS
This Use & Care Manual provides specific operating instructions for your model. Use your
range hood only as instructed in this manual. These instructions are not meant to cover
every possible condition and situation that may occur. Common sense and caution must be
practiced when installing, operating and maintaining any appliance.
Please record your model and serial numbers below for future reference.
Please attach sales receipt
here for future reference.
Model Number: ______________________________________________________________________________
Serial Number: ______________________________________________________________________________
Purchase Date: ______________________________________________________________________________
NEED HELP?
Visit the Frigidaire Web Site at: http://www.frigidaire.com
Before you call for service, there are a few things you can do to help us serve you better.
Read this manual.
It contains instructions to help you use and maintain your range hood properly.
If you received a damaged range hood... immediately contact the dealer (or builder)
that sold you the range hood.
Save time and money.
Check the section titled “Troubleshooting”. This section helps you solve common problems
that might occur. If you do need service, you can relax knowing help is only a phone call away.
A list of toll-free customer service numbers is included in the back of this manual. Or call
Frigidaire Customer Services at 1-800-374-4432, Monday through Saturday from 8 am
to 8 pm Eastern Standard Time.
Serial Plate
Location
Hinge down the vent grille and remove the grease filters. Refer to page 13 for
additional information
The serial plate is located on the left inside of the range hood
EN-
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future references
Approved for residential appliances
For residential use only
Do not attempt to install or operate your appliance until
you have read the safety precautions in this manual.
Safety items throughout this manual are labeled with a
WARNING or CAUTION based on the risk type.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messeges
that follow this symbol to avoid possible injury or deat'h.
WARNING
This symbol alerts you to situations that may
cause serious body harm, death or property
damage.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
IMPORTANT
IMPORTANT indicates installation, operation,
maintenance or valuable information that is not hazard
related.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
FOR GENERAL VENTILATING USE ONLY. DO NOT
USE TO EXHAUST HAZARDOUS OR EXPLOSIVE
MATERIALS OR VAPORS.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
A. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer
B. Before servicing or cleaning the unit, switch power
off at service panel and lock service panel
disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to
the service panel.
C. Installation Work and Electrical Wiring Must Be Done
By Qualified Person(s) In Accordance With all
Aplicable Codes & Standards, Including Fire-rated
Construction.
D.Sufficient air is needed for proper combustion and
exhausting of gases through the flue (Chimney) of fuel
burning equipment to prevent back- drafting. Follow
the heating equipment manufacturers guideline and
safety standards such as those published by the
National Fire Protection Association (NFPA), the
American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code
authorities.
E. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
F. Ducted systems must always be vented to the outdoors.
CAUTION
To reduce risk of fire and to properly exhaust
air, do not vent exhaust air into spaces within
walls, ceilings, attics, crawl spaces, or garages.
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL
DUCT WORK.
Install this hood in accordance with all requirements
specified.
EN-
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To Reduce The Risk Of Fire Or Electric Shock, Do
Not Use This Hood With Any External Solid State
Speed Control Device.
WARNING
TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE.
a) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food (l.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware
appropriate for the size of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS,
IN THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING:
a)SMOTHER FLAMES with a close - fitting lid, cookie sheet, or other metal tray, then turn off the gas
burner or the electric element. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out
immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
b)NEVER PICK UP A FLAMING PAN - you may be
burned.
c)DO NOT USE WATER, including wet dishcloths or
towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1)You know you have a class ABC extinguisher, and you already know how to operate it.
2)The fire is small and contained in the area where it started.
3)The fire department is being called.
4)You can fight the fire with your back to an exit.
OPERATION
Always leave safety grills and filters in place.Without
these components, operating blowers could catch onto
hair, fingers and loose clothing.
The manufacturer declines all responsibility in the
event of failure to observe the instructions given here
for installation,maintenance and suitable use of the
product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of
the unit automatically expires due to improper maintenance.
LIST OF MATERIALS
CAUTION
Remove carton carefully. Wear gloves to protect
against sharp edges.
LIST OF MATERIALS
Parts included in your hood
• 3 1/4" x 10" Rectangular vent damper
• 2 - Grease filters
• Use and Care / Installation Manual
• Mounting screw kit
2 - 0.49 * 5.0 cm mounting screws
4 - 0.50 * 1.9 cm mounting screws
6 - 0.40 * 0.8 cm rectangular vent damper screws
2 - plastic wall anchores
Tools/Materials required
• Wire nuts
• Metal duct length to suit installation
• Vent clamps/duct tape as required
• UL listed or CSA approved ½” strain relief
• Remove the protective film covering the product before
putting into operation.
• 5/64” drill bit for cabinet pilot holes
• Pencil
• Wire cutter / stripper
• Measuring tape
Caulking gun and weatherproof caulking compound
•
• Flat-blade screwdriver
• Phillips screwdriver
• Saber or keyhole saw
• Safety glasses
• Gloves
For cabinets with recessed bottoms:
• Two - 2” (5.1 cm) wide filler strips. Length and
thickness determined by recess dimensions.
• Four flat head wood screws or machine screws
with washers and nuts (to attach filler strips).
NOTE
ELECTRICAL REQUIREMENTS
Observe all governing codes and ordinances.
Ensure that the electrical installation is adequate and in
conformance with National Electrical Code, ANSI/NFPA
70 (latest edition), or CSA Standards C22.1-94, Canadian
Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that
the ground path is adequate.
A copy of the above code standards can be obtained
from:
National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
• A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.
• If the house has aluminum wiring, follow the
procedure below:
1. Connect a section of solid copper wire to the
pigtail leads.
. Connect the aluminum wiring to the added
section of copper wire using special co
and/or tools designed and UL listed
for joining copper to aluminum.
Follow the electrical connector manufacturer’s recommended procedure. Aluminum/copper connection must
conform with local codes and industry accepted wiring
practices.
• Wire sizes and connections must conform with
the rating of the appliance as specified on the
model/serial rating plate.
The model/serial plate is located on the left side of
the range hood.
• Wire sizes must conform to the requirements of
the National Electrical Code, ANSI/NFPA 70 (la
est edition), or CSA Standards C22. 1-94, Canadan
Electrical Code, Part 1 and C22.2 No. 0-M91
(latest edition) and all local codes and ordinances.
If configuring for recirculation venting, range hood
model FHWC3050RS uses recirculation kit
FHWRKT30RS and if using range hood model
FHWC3650RSB recirculation kit FHWRKT36RS
would be used.
EN-
LOCATION REQUIREMENTS
IMPORTANT
Cabinet Dimensions
Observe all governing codes and ordinances.
• It is the installer’s responsibility to comply with
installation clearances'.
Range hood location should be away from
•
strong draft areas, such as windows, doors and
strong heating vents.
• Cabinet opening dimensions that are shown must
be used. Given dimensions provide minimum
clearance.
• Grounded electrical outlet is required. See
“Electrical Requirements” section.
• All openings in ceiling and wall where canopy hood
will be installed must be sealed.
B
A
For Mobile Home Installations
The installation of this range hood must conform to the
Manufactured Home Construction Safety Standards, Title
24 CFR, Part 328 (formerly the Federal Standard for
Mobile Home Construction and Safety, Title 24, HUD, Part
280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI
A225.1/NFPA 501A, or latest edition, or with local codes.
PRODUCT DIMENSIONS
EN-
C
A. 24 ” (61.0 cm) min. for electric cooking surfaces
27” (68.6 cm) min. for gas cooking surfaces
30” (76.2 cm) suggested max.
B. 30” (76.2 cm) min. cabinet opening width for 30” (76.2 cm)
models and 36” (91.4 cm) min. cabinet width for 36” (91.4 cm)
models.
C. 36” (91.4 cm) base cabinet height
Dim B
Dim C
Dim D
FHWC3050RS
29 7/8” (75.8 cm)
30” Hood Model
hood model
Dim A
6 1/2”
(16.7 cm)
3” (7.6cm)
27 3/4”
(70.5 cm)
FHWC3650RSB
35 7\/8” (91.1 cm)
36” Hood Model
9 9/16”
(24.3 cm)
6'(15.2 cm)
33 15/16”
(86.2 cm)
VENTING REQUIREMENTS
• Do not terminate the vent system into an attic or other
enclosed area.
• Do not use a 4” (10.2 cm) laundry-type wall cap.
• Use metal vent only. Rigid metal vent is recommended.
Plastic or metal foil vent is not recommended.
• The length of vent system and number of elbows
should be kept to a minimum to provide efficient
performance.
For the most efficient and quiet operation:
• Use no more than three 90° elbows.
• Make sure there is a minimum of 24” (61 cm) of straight
vent between the elbows if more than 1 elbow is used.
• Do not install 2 elbows together.
• Use clamps or duct tape to seal all joints in the
vent system.
• The vent system at exit must have a cold air damper.
• Use caulking to seal exterior wall or roof opening
around the cap.
• Best performances are reached with straight piping,
without elbows and using smooth pipe.
Roof Venting
Wall Venting
Calculating Vent System Length
To calculate the length of the system you need, add the
equivalent feet (meters) for each vent piece used in the
system.
These directions are for rectangular vent installation only.
If you choose to use round rigid metal venting the minimum
diameter to use is "'8”.??
¼” x 10” (8.3 cm x 25.4 cm) rectangular Vent System
Vent Piece
Cold Weather Installations
An additional back draft damper should be installed to
minimize backward cold air flow and a thermal break
should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should
be on the cold air side of the thermal break.
The break should be as close as possible to where the
vent system enters the heated portion of the house.
Makeup Air
Local building codes may require the use of makeup air
systems when using ventilation systems greater than
specified CFM of air movement. The specified CFM varies
from locale to locale. Consult your HVAC professional for
specific requirements in your area.
Venting Methods
Vent system can terminate either through the roof or wall.
Use 3¼” x 10” (8.3 x 25.4 cm) rectangular with a maximum
vent length of 35 ft (10.7 m) for vent system.
NOTE
Flexible vent is not recommended. Flexible vent
creates both back pressure and air turbulence
that greatly reduce performance.
3¼” x 10” (8.3 cm x 25.4 cm)
90° elbow
5.0 ft
(1.5 m)
3¼” x 10” (8.3 cm x 25.4 cm)
flat elbow
12.0 ft
(3.7 m)
3¼” x 10” (8.3 cm x 25.4 cm)
wall cap
0.0 ft
(0.0 m)
Example Vent System
3¼” x 10”
(8.3 x 25.4 cm)
elbow
6 ft (1.8 m)
Wall Cap
2 ft
(0.6 m)
Maximum Recommended Length
= 35 ft (10.7 m)
1 - 90° elbow
8 ft (2.4 m) straight
1 - wall cap
= 5.0 ft (1.5 m)
= 8.0 ft (2.4 m)
= 0.0 ft (0.0 m)
Length of 3¼” x 10”
(8.3 cm x 25.4 cm) system
= 13.0 ft (3.9 m)
EN-
VENTING REQUIREMENTS
. Use 5/64” drill bit and drill 4 pilot holes as shown
for top range hood support.
NOTE: Make the drill holes on the thin area of the slot.
PREPARE THE LOCATION
NOTE
Before making cutouts, make sure there is
proper clearance within the ceiling, wall or cabinet.
Fitting material is provided to secure
the hood to most types of walls and cabinets.
However, a qualified technician must
verify suitability of the materials in
accordance with the type of wall and cabinet.
1. Disconnect power.
. Select a flat surface for assembling the range hood.
Place covering over that surface.
. Lift the range hood and set it upside down onto covered
surface.
4. If cabinet has recessed bottom, add "two - 2” (5.1 cm)
wide filler strips. Length and thickness determined by
recess dimensions. Four flat head wood screws or
machine screws with washers and nuts to attach filler
strips in locations shown.
3” (7.6 cm)
Wood filler strips
(recessed cabinet
bottoms only)
A. Drill pilot hole
A
. Install the 4 - 0.50 cm x 1.9 cm mounting screws in
pilot holes. Leave about ¼” (6.4 mm) space between
screw heads and cabinet to slide range hood into place.
¹⁄4”
(6.4 mm)
8. Install framing for hood rear support
If drywall is present, using the rear mounting screw
hole locations marked in the previous step cut away
enough drywall to expose 2 vertical studs at the rear
mounting screw holes locations. Install horizontal
support at least 2” X 4 ” between two wall studs at
the rear mounting screw holes location. The horizontal
support must be flush with the room side of the studs.
Use cleats behind both sides of the support to secure
to wall studs. Reinstall drywall and refinish.
IMPORTANT – Framing must be capable of supporting
100 lbs.
Cabinet
bottom
Wall
3” (7.6 cm)
8-1/2” min. opening for ductwork
View From Rear
Cleats
. Lift the range hood up under cabinet and determine
final location by centering beneath cabinet. Mark on
the underside of cabinet the location of the 4 keyhole
mounting slots on the range hood (See slot dimensions
on page 6). Mark rear mounting screw hole locations.
Set range hood aside on a covered surface.
A
2” x4” Min.
Mounting
Support
A
Centerline of
Installation
Space
A. Keyhole slot
PREPARE THE LOCATION
Determine Wiring Hole Location
1. Determine and clearly mark a vertical centerline on
the wall and cabinet bottom.
A Centerline
Roof Venting
To make a 4¼” x 10½” (10.8 cm x 26.7 cm) rectangular
cutout on the underside of cabinet top and bottom:
1. Mark lines 5 8 (1.6 cm) and 4 ¼” (10.8 cm) from the
back wall on the centerline of the underside of cabinet.
. Mark lines 5¼” (13.3 cm) to the right and left of the
centerline on the underside of cabinet.
. Use saber or keyhole saw to cut a rectangular opening
for vent.
4. Repeat steps 1-3 for the underside of the top of the
cabinet.
A
Centerline
To wire through top:
2. Mark a line distance (A) from the right of the
centerline on the underside of the cabinet. Mark the
point on this line that is 1 1/2"(3.8cm) from back wall.
Drill a 1¼” (3.2 cm) diameter hole (B) through the
cabinet at this point.
Cabinet cutouts
* 5/8 (1.6 cm)
4/1 4 "
(10.8 cm)
51/4"
(13.3 cm)
51/4"
(13.3 cm)
*From wall, not cabinet frame
hood
model
30” & 36”
models
Dim
A
8 5/8”
(21.9 cm)
A
B
1 1/2"(3.8cm)
from wall,
not cabinet frame
Centerline
To wire through wall:
1. Mark a line distance (A) from the right of the
centerline on the underside of the wall. Mark the point on this line that is 1 1/2"(3.8cm) from the underside
of
the cabinet. Drill a 1¼” (3.2 cm) diameter hole (B)
through the rear wall at this point.
B
hood
model
30” & 36”
models
A
1 1/2"(3.8cm)
Wall Venting
To make a 4¼” x 10½” (10.8 cm x 26.7 cm) rectangle in
the wall:
1. Make 2 lines by measuring¼” (0.63 cm) and 4”
(10.16 cm) down from underside of cabinet and mark on
the centerline on the back wall.
. Mark lines 5¼” (13.3 cm) to the right and left of the
centerline on the wall.
. Use saber or keyhole saw to cut a rectangular opening
in the wall for the vent.
Centerline
Cabinet
front
Dim
A
8 5⁄8”
(21.9 cm)
4”
(10.16 cm)
1
⁄4”
(0.63 cm)
51/4”
(13.3 cm)
51/4”
(13.3 cm)
A Centerline
PREPARE THE LOCATION
Install Vent System
1. Install vent through the vent opening in upper cabinet
or wall. Complete venting system according to the
selected venting method. See “Venting Requirements”
section.
. Use caulking to seal exterior wall or roof opening
around the cap.
Vent Damper Installation
Install 3¼” x 10” (8.3 x 25.4 cm) vent damper.
Attach to range hood using the indicated screws
provided in hardware kit.
Install the 3¼” x 10” (8.3 x
25.4 cm) rectangular vent
transition
A. 3¼” x 10” (8.3 x 25.4 cm)
rectangular vent transition
B. 6 - 0.40 x 0.80 cm screws
C. Rectangular vent knockouts
B
INSTALL RANGE HOOD
(Ducted version)
1. Detach the 3¼” x 10” (8.3 x 25.4 cm) rectangular vent
damper from the package.
C
A
B
• If a vent damper is installed with a wall cap with
damper, check that they do not interfere with each
other. Remove the vent damper flap if they interfere.
Power Supply Cable Installation
1. For direct wire installations, run the home power
supply cable according to the National Electric Code
or CSA standards and local codes and ordinances.
NOTE
A
A. 3¼” x 10” (8.3 x 25.4 cm) rectangular vent damper
• For roof installations, remove the top rectangular
vent knockout A. For wall installations, remove the
rear rectangular vent knockout B.
A
Do not reconnect power until the installation is
complete.
Before starting the installation, remove the
vent grill and grease filters.
. Remove the screws from the terminal box cover.
Remove terminal box cover and set aside.
B
A. Top rectangular knockout
B. Rear rectangular knockout
B
EN-10
A. Terminal box cover
B. Screw
A
INSTALLING THE HOOD
. Remove the power supply knockout from the top
or rear of the vent hood (depending on the incoming
location of your home power supply cable) and
install a UL listed or CSA approved ½” strain relief.
1. Disconnect power.
A. White wires
B. Black wires
C. Green ground wire
D. UL listed wire connector
E. Home power supply cable
F. UL listed or CSA approved
½” strain relief
A
A. Power supply
knockout
2.
3.
Use UL listed wire connectors and connect white wires (A) together.
Use UL listed wire connectors and connect black wires (B) together.
WARNING
4. Lift the hood into final position.
Feed enough electrical wire through the ½” UL listed
or CSA approved strain relief to make connections in
the terminal box. Tighten the strain relief screws.
. Position the range hood so that the large end of
the keyhole slots are over the mounting screws.
Then push the hood toward the wall so that the screws are in the neck of the slots. Tighten the mounting screws,
making sure the screws are in the narrow neck of slots.
. Add the 2 rear 0.49 * 5.0 cm rear mounting screws
into the narrow neck of the rear keyhole slots.
These should screw into the horizontal support
that was placed between the two wall studs in
section PREPARE THE LOCATION on page 8.
. Connect ventwork to hood. Seal joints with vent
clamps or duct tape to make secure and airtight.
8. Check that back draft dampers work properly.
MAKE ELECTRICAL CONNECTION
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
Fire Hazard
Electrically ground the blower. Use copper wire.
Connect ground wire to green wire in
terminal box. Failure to do so can result in death,
fire, or electrical shock.
4. Connect green (or bare) ground wire from power supply
to green wire in terminal box .
5.
Install terminal box cover.
6. Reconnect power.
Complete Installation
1. Install grease filters . See the “Range Hood
Use” section.
. Check the operation of the range hood fan and light. See “Range Hood Use” section.
If range hood does not operate, check to see whether a
circuit breaker has tripped or a household fuse has blown.
Disconnect power and check wiring connections.
NOTE
To get the most efficient use from your new
range hood, read the “Range Hood Use” section.
EN-11
RANGE HOOD USE
RANGE HOOD USE
Cleaning
The range hood is designed to remove smoke and cooking vapors from the cooktop area. For best results, start
the hood before cooking and allow it to operate several
minutes after the cooking is complete to clear all smoke
from the kitchen.
A
WARNING
To Reduce The Risk Of Fire Or Electrical shock
disconnect from power supply before cleaning.
D
IMPORTANT
B
Clean the hood and grease filters frequently
according to the following instructions. Replace
grease filter before operating hood.
C
IMPORTANT
A. LED lights
B. Grease filter
C. Vent Grille
D. Control knobs
Exterior Surfaces
Do not use soap-filled scouring pads, abrasive cleaners,
Cooktop Polishing Creme, steel wool, gritty washcloths
or paper towels.
To avoid damage to the stainless steel, do not use
cleaners that contain chlorine.
A
Range Hood Controls
The hood controls are located at the bottom
front section of the unit.
Cleaning Method:
Light
OFF
ON
FRONT
Fan
REAR
Knob Graphics
OFF
Light Icon
HI
Knob Graphics
Operating the Light
Push in on knob to release and then
rotate it counter clockwise for light
On/Front/Rear/Off.
Operating the Fan
Push in on knob to release and then
rotate it counter clockwise for fan
speeds Hi/Med/Lo/Off.
EN-1
MED
LO
Fan Icon
SMUDGE-PROOF™ STAINLESS STEEL
Your range hood has Smudge-Proof TM Stainless
Steel finish. Clean the stainless with warm soapy
water using a clean sponge or cloth. Rinse with clean
water and dry with a soft clean cloth. DO NOT USE any
cleaners like Stainless Steel cleaners or any other types
of cleaners containing any abrasive, chlorides, chlorines
or ammonia. It is recommended to use mild dish soap
and water or a 50/50 solution of water and vinegar.
RANGE HOOD CARE
To clean or replace grease filter:
1. Push in at the indicated area to open the
vent grille. The vent grille will hinge down for
access to the grease filters.
PUSH TO OPEN
WARNING
Electrical Shock Haxzard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
Replacing the Front LED lights
1. Remove the vent grille and grease filters.
. To remove or install the grease filters push tab
towards the back of the unit.
2. Remove the screws at the front support
and slide the panel back.
. To clean grease filter, soak the filters in hot water using
a mild detergent. Rinse well and shake to dry.
NOTE
3. Disconnect the front LED lights wiring
Do not use ammonia. The aluminum on the
grease filter will corrode and darken.
NOTE
The grease filter is dishwasher safe.
To avoid grease filter damage while cleaning,
place filter into the dishwasher top rack for
cleaning.
4. Squeeze LED lamp mounting clips and push
down the LED lights as shown below
Squeeze here
Squeeze here
5. Replace with new LED lights P art number 5304503879
and re-install the front support
EN-15
RANGE HOOD CARE
WARNING
Electrical Shock Haxzard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
Replacing the Rear LED lights
1. Remove the vent grille and grease filters.
2. Disconnect the rear LED lamp wiring
3. Squeeze LED lamp mounting clips and push
down the LED lights as shown below.
Squeeze here
Squeeze here
4. Replace with new LED lights.
P art number 5304503879
EN-14
TROUBLESHOOTING
Problem
Possible Causes
Solutions
After installation,
the unit doesn’t
work.
1. The power line and the cable connector
is not connected properly.
1. Check the power connections.
2. The wires from the switches are disconnected
or loose.
2. Make sure the wires on the switches are
connected properly.
Light works,
but motor is not
turning.
1. The motor is defective, possible seized.
1. Change the motor.
2. The motor wire is not connected.
2. Make sure the motor wire is plugged into the
terminal box connector.
The unit is
vibrating.
1. The motor is not secure in place.
1. Tighten the motor in place.
2. Damaged blower wheel.
2. Change the blower.
3. The hood is not secured in place.
3. Check the installation of the hood.
The motor is
working, but the
lights are not.
1. Defective lamp.
1. Change the lamp.
2. The lamp is loose.
2 . Make sure the lamp is seated properly.
3. The wires on the light switch are loose.
3. Make sure the wires on light switch are
connected properly.
The hood is
not venting out
properly.
1. The hood might be hanging to high from the
cook top.
1 . Check installation instructions.
2. The wind from the opened windows or opened 2. Close all the windows and doors to eliminate
doors in the surrounding area are affecting the
the outside wind flow.
ventilation of the hood.
Vent grill or
grease filter
is vibrating.
3. Blockage in the duct opening or duct work.
3. Remove all the blocking from the duct work or
duct opening.
4. The direction of duct opening is against the
wind.
4. Adjust the duct opening direction.
5. Using the wrong size of ducting.
5. Change the ducting to correct size.
1 . Vent grill or grease filter is loose.
1 . Make sure vent grill or grease filter is installed
correctly.
EN-1
Warranty
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase,
Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in
materials or workmanship when such appliance is installed, used and maintained in accordance with the provided
instructions.
Exclusions
This warranty does not cover the following:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Products with original serial numbers that have been removed, altered or cannot be readily determined.
Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
Rust on the interior or exterior of the unit.
Products purchased “as-is” are not covered by this warranty.
Food loss due to any refrigerator or freezer failures.
Products used in a commercial setting.
Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc., which are not a part of the appliance when it is shipped from the factory.
Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR
OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE
SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE
FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME
STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU
MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need
Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should
service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under
this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a
division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person
to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux
or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Home Products, Inc.
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
