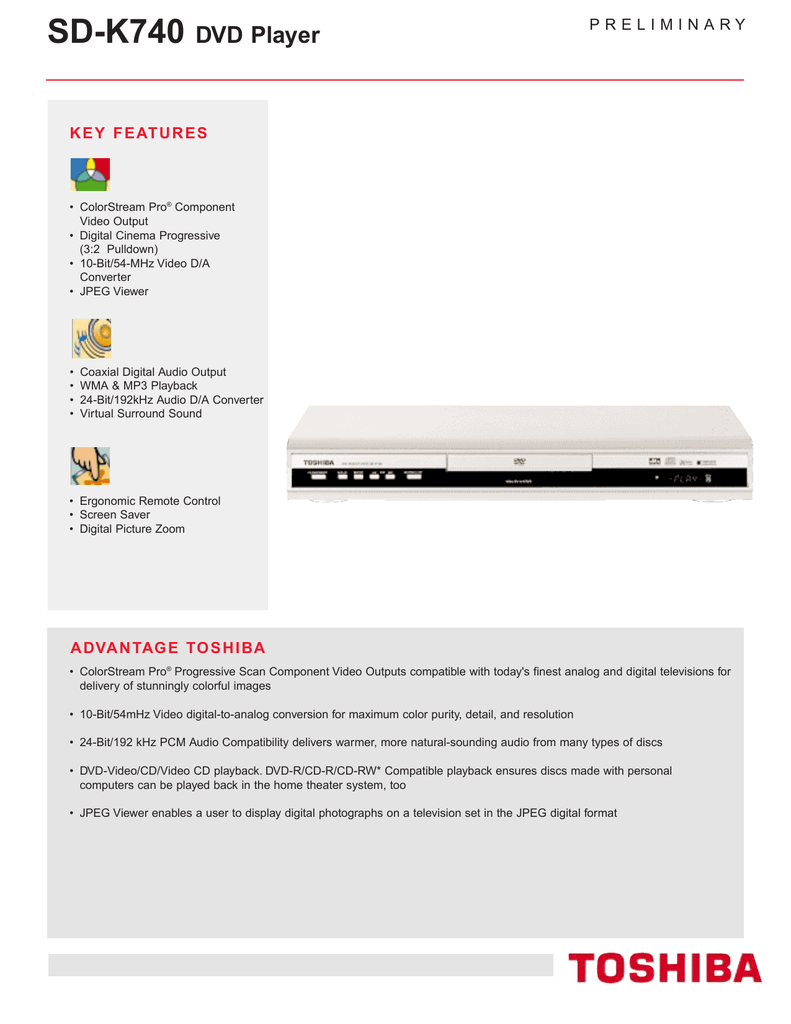

Toshiba SD-K740 DVD & Blu-ray Specification

SD-K740
DVD Player
PRELIMINARY
K E Y F E AT U R E S
• ColorStream Pro® Component
Video Output
• Digital Cinema Progressive
(3:2 Pulldown)
• 10-Bit/54-MHz Video D/A
Converter
• JPEG Viewer
•
•
•
•
Coaxial Digital Audio Output
WMA & MP3 Playback
24-Bit/192kHz Audio D/A Converter
Virtual Surround Sound
• Ergonomic Remote Control
• Screen Saver
• Digital Picture Zoom
A DVA N TAG E TO S H I BA
• ColorStream Pro® Progressive Scan Component Video Outputs compatible with today's finest analog and digital televisions for
delivery of stunningly colorful images
• 10-Bit/54mHz Video digital-to-analog conversion for maximum color purity, detail, and resolution
• 24-Bit/192 kHz PCM Audio Compatibility delivers warmer, more natural-sounding audio from many types of discs
• DVD-Video/CD/Video CD playback. DVD-R/CD-R/CD-RW* Compatible playback ensures discs made with personal
computers can be played back in the home theater system, too
• JPEG Viewer enables a user to display digital photographs on a television set in the JPEG digital format
PRELIMINARY
SD-K740
TECHNOLOGY & BENEFITS
VIDEO
• ColorStream Pro® Component Video Outputs - These outputs
allow the video signal to be sent from the DVD player to a
component video equipped interlaced or progressive scan TV.
When this connection is utilized with today's HD-compatible sets,
typical NTSC artifacts-like video noise, dot crawl, and flicker-are
virtually eliminated, resulting in a low-noise, highly detailed picture
with unequaled color purity.
• Digital Cinema Progressive (3/2 Pulldown) - Delivers the
smoothest, most film-like images to any progressive scan television,
such as an HD-compatible one, and ensures maximum resolution.
• JPEG Viewer - Enables the display of digital photographs captured
in the JPEG format. Simply load the CD with your favorite photos
and create custom slide shows with a few simple clicks of the
player's remote control.
AUDIO
• WMA & MP3 Playback - Recordable Compact Discs (CD-R &
CD-RW) with music stored in either the Windows Media™ Audio or
MP3 file formats can be enjoyed.
• Virtual Surround Sound - Provides a simulated surround sound
effect from sources that contain only a stereo soundtrack.
Convenient when playing older DVD films or for use with home
theaters not equipped with multi-channel playback compatibility.
CONVENIENCE
• Digital Picture Zoom - This interactive DVD feature allows you to
select an area of the picture you want to zoom in on and magnify it.
Enhanced digital processing during moving video or freeze-frame
playback produces superior color fidelity and resolution, even when
you're zoomed in. Also can be used to expand letterbox-only films
to increase the viewable area on-screen.
• Screen Saver - The player can be set to automatically go into a
screen saver mode after five minutes of inactivity. While in this
mode, the Toshiba DVD logo appears and "ping-pongs" across the
screen. Many movies will display the main movie menu indefinitely
after the movie has ended. If left onscreen for a prolonged period,
burn-in on the TV screen may result without this feature.
• Coaxial Dolby® Digital and DTS® Surround Sound Output Use the single RCA-type jack to send signature multi-channel audio
to an audio/video receiver with a compatible input.
S P E C I F I C AT I O N S
SD-K740
Disc Qty
1
Disc Play
DVD-Video/ DVD-R/ VCD/CD/CD-R/CD-RW*
Video
Video D/A
Component Video Output
Progressive Scan 3:2 Pulldown
Resolution
10-Bit/54MHz
Remote Control
Ergonomic Remote
Terminals
Y/Pr/Pb
1 set
S-Video
1
ColorStream Pro®
RCA-Video
1
Digital Cinema Progressive
L-R Audio
1 pair
540 Lines
Coaxial Out
1
JPEG Viewer
x
Digital Picture Zoom
4x
Weight
tbd
Fast Scan
x
Box Weight
tbd
Slow Motion
x
Dimension (WHD)
17 x 2 x tbd inches
Multi-Camera Angle Select
x
Carton Dimension
19-1/4 x 4-1/4 x 11-1/2 inches
Multi-Language Select
x
UPC Code
Multi-Subtitle Select
x
Audio
Audio D/A
Dolby® Digital/DTS® Compatible
24-bit/192kHz
x
WMA & MP3 Playback
x
Virtual Surround Sound
3-D
Extra
Screen Saver
x
Parental Lock
x
022265411162
*CD-R/CD-RW discs recorded by CD-CA method can be played back.
Some CD-R/CD-RW discs may be incompatible due to laser pick-up and
disc design. DVD-R discs recorded by DVD Video method can be played.
Some DVD-R discs may be incompatible due to laser pick-up and disc
design. WMA, MP3 and JPEG discs may be incompatible due to different
recording format or condition of disc.
http://www.tacp.toshiba.com Customer Service: 800.631.3811
Marketing Communications © Toshiba America Consumer Products, L.L.C.
82 Totowa Road, Wayne, NJ 07470 (2004). All Rights Reserved (01/04.01)
Dolby is a registered trademark of Dolby Laboratories. DTS is a registered
trademark of Digital Theater Systems. ColorStream Pro is a registered
trademark of Toshiba America Consumer Products. Windows Media is a
trademark of Microsoft Corporation.
Product design and specification subject to change or modification
without notice.
