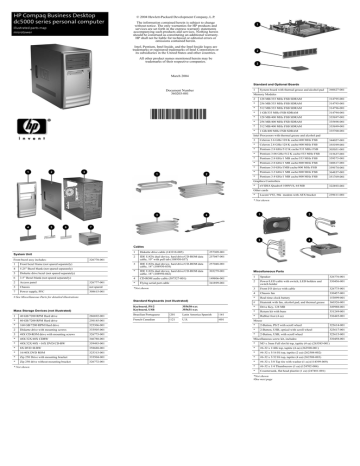

Illustrated Parts Map
HP Compaq Business Desktop
dc5000 series personal computer
illustrated parts map
microtower
© 2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change
without notice. The only warranties for HP products and
services are set forth in the express warranty statements
accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or
omissions contained herein.
Intel, Pentium, Intel Inside, and the Intel Inside logos are
trademarks or registered trademarks of Intel Corporation or
its subsidiaries in the United States and other countries.
All other product names mentioned herein may be
trademarks of their respective companies.
March 2004
Standard and Optional Boards
1
Document Number
360203-001
System board with thermal grease and alcohol pad
360427-001
Memory Modules
2
128 MB/333 MHz FSB SDRAM
314795-001
*
256 MB/333 MHz FSB SDRAM
314793-001
*
512 MB/333 MHz FSB SDRAM
314796-001
*
1 GB/333 MHz FSB SDRAM
314794-001
*
128 MB/400 MHz FSB SDRAM
335697-001
*
256 MB/400 MHz FSB SDRAM
335698-001
*
512 MB/400 MHz FSB SDRAM
335699-001
*
1 GB/400 MHz FSB SDRAM
335700-001
Intel Processors with thermal grease and alcohol pad
3
Celeron 2.6 GHz/128 K cache/400 MHz FSB
344057-001
*
Celeron 2.8 GHz/128 K cache/400 MHz FSB
355399-001
*
Pentium 2.8 GHz/512 K cache/533 MHz FSB
305051-001
*
Pentium 3.06 GHz/512 K cache/533 MHz FSB
315637-001
*
Pentium 2.8 GHz/1 MB cache/533 MHz FSB
359573-001
*
Pentium 2.8 GHz/1 MB cache/800 MHz FSB
348617-001
*
Pentium 3.0 GHz/1MB cache/800 MHz FSB
359574-001
*
Pentium 3.2 GHz/1 MB cache/800 MHz FSB
364837-001
*
Pentium 3.4 GHz/1 MB cache/800 MHz FSB
351769-001
Graphics Controllers
*
nVIDIA Quadro4 100NVS, 64 MB
322893-001
Other cards
*
Lucent V92, 56k modem with ATX bracket
239411-001
* Not shown
Cables
System Unit
Front bezel assy includes:
1
5.25” Bezel blank (not spared separately)
5
Diskette drive bezel (not spared separately)
6
3.5” Bezel blank (not spared separately)
2
Access panel
3
7
Diskette drive cable (143218-005)
257309-001
2
IDE UATA dual device, hard drive/CD-ROM data
cable, 10” with pull tab (108950-037)
257047-001
3
IDE UATA dual device, hard drive/CD-ROM data
cable, 14” (108950-038)
257048-001
*
IDE UATA dual device, hard drive/CD-ROM data
cable, 18” (108950-042)
303279-001
4
CD-ROM audio cable (387527-001)
149806-001
326778-001
Front bezel frame (not spared separately)
4
1
326777-001
*
Chassis
not spared
*Not shown
Power supply, PFC
308615-001
Flying serial port cable
341899-001
# See Miscellaneous Parts for detailed illustrations
Standard Keyboards (not illustrated)
Keyboard, PS/2
Keyboard, USB
Mass Storage Devices (not illustrated)
355630-xxx
355631-xxx
Brazilian Portuguese
-201
Latin America Spanish
-161
French Canadian
-121
U.S.
-001
Miscellaneous Parts
1
Speaker
326776-001
2
Power/LED cable with switch, LED holders and
switch holder
330456-001
3
Front I/O device with cable
326775-001
4
Chassis fan
330457-001
*
Real-time clock battery
153099-001
#
Heatsink with fan, alcohol pad, and thermal grease
360326-001
*
Drive Key, 128 MB
349988-001
*
Return kit with buns
331249-001
*
Rubber foot (4 ea)
336445-001
1
40 GB/7200 RPM Hard drive
286692-001
*
80 GB/7200 RPM Hard drive
250185-001
*
160 GB/7200 RPM Hard drive
325306-001
*
2-Button, PS/2 with scroll wheel
323614-001
2
Diskette drive with mounting screws
333505-001
*
2-Button, USB, optical with scroll wheel
323617-001
3
48X CD-ROM drive with mounting screws
326773-001
*
2-Button, USB, with scroll wheel
323615-001
*
48X/32X/48X CDRW
346788-001
Miscellaneous screw kit, includes:
*
48X/32X/48X +16X DVD/CD-RW
359493-001
*
M3 x 5mm Full slot hi top, taptite (4 ea) (263585-001)
*
8X DVD+R/RW
358688-001
*
#6-32 x 1/4Hi top, taptite (4 ea) (262508-001)
*
16/40X DVD ROM
325313-001
*
#6-32 x 5/16 Hi top, taptite (2 ea) (262508-002)
*
Zip 250 Drive with mounting bracket
333504-001
*
#6-32 x 3/32 Hi top, taptite (4 ea) (262508-003)
*
Zip 250 drive without mounting bracket
326772-001
*
#6-32 x 3/8 Tap tite with washer (1 ea) (114399-069)
* Not shown
Mouse
*
#6-32 x 1/4 Thumbscrew (1 ea) (124702-004)
*
Countersunk, flat head plastite (1 ea) (247481-001)
*Not shown
#See next page
330458-001
Clearing CMOS*
The computer's configuration (CMOS) may occasionally be corrupted. If it is, it is necessary to clear the CMOS
memory using switch SW50.
To clear and reset the configuration, perform the following procedure:
1. Prepare the computer for disassembly.
Ä
2.
3.
4.
5.
CAUTION: The power cord must be disconnected from the power source before pushing the Clear CMOS
Button (NOTE: All LEDs on the board should be OFF). Failure to do so may damage the system board
Remove the access panel.
Press the CMOS button located on the system board and keep it depressed for 5 seconds.
Replace the access panel.
Turn the computer on and run F10 Computer Setup (Setup-utility) to reconfigure the system.
*When the CMOS button is pushed or the jumper is removed, both the power-on password and the setup password
become invalid because both are stored in the configuration memory. You will need to reset the passwords.
Disabling or Clearing the Power-On and Setup Passwords*
1.
2.
3.
4.
5.
6.
System Board Connectors and Jumpers (position of some untitled components may vary in location)
CR1
5V_Aux LED
P16
Power supply fan control
E49
Password jumper
P20
Primary IDE
J20
PCI slot 1
P21
Secondary IDE
J21
PCI slot 2
P23
Front panel audio connector
J22
PCI slot 3
P24
Front panel USB connector
P1
Main power (20 pin)
P54
Serial Port “B”
P3
CPU regulator power (4 pin)
P70
CPU fan
P5
Front panel
SW50
CMOS button
P6
Internal chassis speaker
XBT1
Battery
P7
CD audio in
XMM1
Memory socket
P8
Chassis fan
XMM2
Memory socket
P10
Diskette drive
XMM3
Memory socket
P11
Aux audio in
XMM4
Memory socket
P14
Boot block
7.
8.
Turn off the computer and any external devices, and disconnect the power cord from the power outlet.
Remove the access panel.
Locate the header and jumper labeled E49.
Remove the jumper from pins 1 and 2. Place the jumper over pin 2 only, in order to avoid losing it.
Replace the access panel.
Plug in the computer and turn on power. Allow the operating system to start.
NOTE: Placing the jumper on pin 2 clears the current passwords and disables the password features.
To re-enable the password features, repeat steps 1-3, then replace the jumper on pins 1 and 2.
Repeat steps 5-6, then establish new passwords.
Refer to the Computer Setup (F10 Setup) instructions to establish new passwords.
*When the CMOS button is pushed or the jumper is removed, both the power-on password and the setup password
become invalid because both are stored in the configuration memory. You will need to reset the passwords.
Computer Setup (F10) Utility Features (not all features may be available)
File
System Information
About
Set Time and date
Save to Diskette
Restore From Diskette
Set defaults and Exit
Ignore Changes and Exit
Save Changes and Exit
Storage
Device Configuration
Options
IDE DPS Self-Test
Controller Order
Boot Order
Security
Setup Password
Power-On Password
Password Options
Smart Cover
Smart Sensor
DriveLock
Master Boot Record Security
Save Master Boot Record
Restore Master Boot Record
Device Security
Network Service Boot
System IDs
Advanced
Power-On Options
Onboard devices
PCI Devices
Bus Options
Device Options
PCI VGA Configuration
Note: See Computer Setup (F10) Utility Guide on the Documentation Library CD.
Heat Sink Removal
‘
System Hardware Interrupts
IRQ
System Function
IRQ
0
Timer Interrupt
8
System Function
Real-Time Clock
1
Keyboard
9
Unused
2
Interrupt Controller Cascade
10
Unused, available for PCI
3
Serial Port (COM B)
11
Unused, available for PCI
4
Serial Port (COM A)
12
Mouse
5
Unused, available for PCI
13
Coprocessor
6
Diskette Drive
14
Primary ATA (IDE) Controller
7
Parallel Port (LPT 1)
15
Secondary ATA (IDE) Controller
Computer Diagnostic LEDs (on front of computer)
LED
Color
LED Activity
State/Message
Power
Green
On
(S0) Computer on
Power
Green
1 blink every 2 seconds
(S1) Suspend Mode
Power
Green
1 blink every 2 seconds
(S3) Suspend to RAM
Power
Green
Off
(S4) Suspend to Disk (if applicable)
Power
Clear
Off
(S5) Computer off
Power
Red
1 blink followed by 2-second
pause - Repeat
Power Supply failure
Power
Red*
2 blinks 1 second apart
CPU thermal shutdown
Power
Red*
3 blinks 1 second apart
CPU not installed
Power
Red*
4 blinks 1 second apart
Power supply overload (crow bar)
Power
Red*
5 blinks 1 second apart
No memory
Power
Red*
6 blinks 1 second apart
No graphics
Power
Red*
7 blinks 1 second apart
System board failure (detected prior to video)
Power
Red*
8 blinks 1 second apart
Invalid ROM
Hard Drive
Green
Blinking
Hard drive activity
*Blinking codes are repeated after a 2 second pause.
Keyboard Diagnostic LEDs, PS/2 Keyboards Only
LED
Color
LED Activity
State/Message
Num, Caps,
Scroll Lock
Green
On (Rising Tone)
ROM reflashed successfully
Num Lock
Green
On
ROMPaq diskette not present, is bad, or drive
not ready.*
Caps Lock
Green
On
Enter password.
Num, Caps,
Scroll Lock
Green
Blink On in sequence, one at a
time - N, C, SL
Keyboard locked in network mode
* Insert valid ROMPaq diskette in drive A. Turn power switch off, then on to reflash ROM. If ROM flash is successful, all
three keyboard LEDs will light up, and you will hear a rising tone series of beeps. Remove diskette and turn power off,
then on to restart the computer. For more information about flashing the ROM, refer to the Troubleshooting guide.
