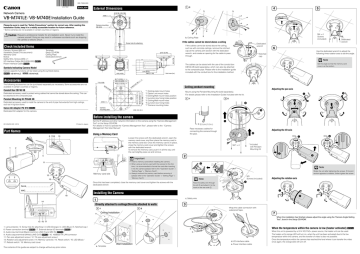

Network Video Solutions

Network Video Solutions
BIE-7069-000
ENGLISH
1 -3 External Dimensions
Network Camera
b
60 (2.36) 60 (2.36)
5
Please be sure to read the “Safety Precautions” section for correct use. After reading this
Installation Guide, keep it in a readily accessible location for future reference.
* Some cameras are not available in certain countries or regions.
60 (2.36) 60 (2.36)
4-M4 (*1, *2)
Installation Guide
/
4
b
Camera mounting
tab slots
Caution Request a professional installer for all installation work. Never try to install the
camera yourself. Doing so may result in unforeseen accidents such as dropping
the camera or electric shock.
M4 × 4
Screws
(included)
b. Ceiling Plate
If the cables cannot be stored above a ceiling
Screw hole for attaching
Check Included Items
Camera, Screws (M4) x 4
Template
Installation Guide (This document)
Setup CD-ROM
Warranty Card
Ceiling Plate
Notice
Dedicated wrench
Safety Wire, Screws (M3) x 1
I/O Interface Cable (BK2-0035-000)
Power Interface Cable
111 (4.37)
96 (3.78)
151 (5.94)
Symbols Indicating Camera Model
Camera specific functions will be listed using the symbols below.
: VB-M741LE
: VB-M740E
214 (8.43)
288 (11.34)
102 (4.02)
85.7 (3-3/8) (*3, *4)
83.5 (3-9/32) (*4)
46.0 (1-13/16) (*4)
14
2(
Conduit Box CB740-VB
-
14
5.5
9)
5
4.
46.0 (1-13/16) (*4)
Dedicated accessory used to protect wiring cables that cannot be stored above the ceiling. This can
be attached to the composite pipe.
Pendant Mounting Kit PC640-VB
Dedicated accessory used to install the camera to the end of pipe that extends from high ceilings,
such as in big-box stores.
4-M4 (*7)
Canon AC Adapter PA-V18
Camera
mounting tabs
Dedicated AC adapter for this camera.
Use the dedicated wrench to adjust the
following three rotation axes to set the angle.
Notched
cap
Note
Set the angle so that the memory card
cover is at the bottom.
The cables can be stored with the use of the conduit box
CB740-VB (sold separately), which can also be attached
to the composite pipe. Please refer to the installation guide
included with the conduit box for the installation method.
6)
8
.1
(0
Ceiling pendant mounting
83.5 (3-9/32) (*4)
7.0 (0.28)
The following accessories can be purchased separately as necessary. Some accessories are not
available in certain countries or regions.
Unit: mm (in.)
6
,*
*5
)(
85.7 (3-3/8) (*3, *4)
Accessories
Dedicated
wrench
If the cables cannot be stored above the ceiling,
such as with concrete ceilings, remove the notched
cap at the camera joint section with the dedicated
wrench, and create an opening for the cable to pass
through.
Dedicated
wrench
*1 Ceiling plate mount holes
*2 Option unit mount holes
*3 Ceiling/Wall mount holes position
*4 Junction box fixing holes position
*5 Ceiling/Wall mount holes
*6 Junction box fixing holes
*7 Camera mounting holes
Adjusting the pan axis
Mount using the Pendant Mounting Kit (sold separately).
For details please refer to the Installation Guide included with the kit.
1 -1 ❺
❶
1 -2
❷
❷
❹
❸
Unit: mm (in.)
❸
Before installing the camera
© CANON INC. 2015
Printed in Japan
Part Names
6 78 9
1
M3*
Pass necessary cables for
connecting the camera through
the pipe.
❹
Loosen the screws with the dedicated wrench, open the
memory card cover, and then place the memory card in
the memory card slot. Once the memory card is in place,
close the memory card cover and tighten the screws
with the dedicated wrench.
To remove the memory card, push it in all the way until
the card slightly pops out and remove.
2
Important
Memory card slot
12
13
MAC_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
18
14
❷
Note
❷
Note
Pass the safety wire through
the slit
and attach it to the
hook on the rear side .
Shake the unit after tightening the screws. If the joint
section appears to wobble, further tighten the screw.
c
M3
Screws (included)
❶
❸
❷
c. Safety wire
1 -1 3
Wrap the cable connection with
waterproof tape.
1 -2
Ceiling Installation
7
When the installation has finished, please adjust the angle using the “Camera Angle Setting
Tool”, found in the Setup CD-ROM.
15 16 17
a
1. Lens protector / 2. Screw hole for attaching / 3. LED (Orange) / 4. LED (Blue) / 5. Notched cap /
6. Power connection terminal
/ 7. External device I/O terminals
/
8. Audio input terminal (Black) (common LINE IN and MIC IN)
/
9. Audio output terminal (White) (LINE OUT)
/ 10. 100Base-TX LAN connector
11. Pan axis adjustment screw / 12. Tilt axis adjustment screw /
13. Rotation axis adjustment screw / 14. Memory card slot / 15. Reset switch / 16. LED (Blue) /
17. Reboot switch / 18. Memory card cover
The contents of this guide are subject to change without any prior notice.
Adjusting the rotation axis
❶
Directly attached to ceilings/Directly attached to walls
a
❸
❸
Installing the Camera
1
❹
❶
2
Once this has been completed, close the memory card cover and tighten the screws with the
dedicated wrench.
Serial_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Adjusting the tilt axis
* Included
with Pendant
Mounting Kit
M4* × 4
•Insert a memory card before installing the camera.
•When using a memory card with the camera for the first
time, it is recommended to format the card after inserting
it into the camera (please refer to the “Operation Guide” >
“Setting Page” > “Memory Card”).
•Always unmount the memory card before removing it
(please refer to the “Operation Guide” > “Setting Page” >
“Memory Card”).
11
4
2.5 cm (1.0 in.)
Using a Memory Card
10
5
3
❶
Set the IP address and other network information on the camera using the “Camera Management
Tool” on the Setup CD-ROM.
For details on how to operate the “Camera Management Tool”, please refer to the “Camera
Management Tool User Manual”.
When the temperature within the camera is low (heater activated)
d
When the unit is powered by a 24 V AC/ PoE+ power source, the heater unit can be used.
e
a. Template
Wall Installation
The heater unit’s orange LED will turn on, when the unit has been activated due to the low
temperature within the camera, and the transfer of video is also not possible.
d. I/O interface cable
e. Power interface cable
Once the temperature within the camera has reached the level where it can transfer the video
once again, the orange LED will turn off.
Rebooting/resetting the camera

Rebooting
Green
To reboot the camera by turning its power off and on,
open the memory card cover and press the reboot
switch.
LED
Power Interface
Cable
Safety Precautions
AC Adapter
Brown
Installation Precautions
Black
Warning
Blue
Do not install in the following places:
White
•Places in strong direct sunlight, near heat-generating objects, or locations subject to
high temperatures
•Places near fire sources or flammable solvents (alcohol, thinner, fuel, etc.)
•Places subject to oily smoke or steam
•Confined or enclosed places
Note
Rebooting can be done from the camera settings page
as well (please refer to the “Operation Guide” > “Setting
Page” > “Maintenance”).
Reboot switch

Reset switch
Resetting
To reset the camera to its factory default settings, press
the reset switch and the reboot switch while checking
the LED in the following order.
1)Hold the reset switch down, and press the reboot
switch with a pointed object.
2)After holding down the reset switch for at least three
seconds, release the reboot switch.
3)After the LED starts to blink, release the reset switch.
When the blinking has stopped, the unit has finished
resetting.
Once this has been completed, close the memory card cover and tighten the screws with the
dedicated wrench.
Connecting the Camera
Power can be supplied to the camera in the three ways described below. Please be sure to read
the user manual for the dedicated power supply before use.
•
Only use the dedicated AC Adapter (sold separately) for AC power.
•Do not set any heavy objects on the power cable (or the LAN cable for a PoE+/PoE
power supply).
•Do not pull, forcibly bend, scratch, or modify the power cable (or the LAN cable for a
PoE+/PoE power supply).
Do not cover or wrap the AC adapter (sold separately) with cloth or blankets.
•
Failure to do so may result in fire or electric shock.
Caution
For installation or inspection of this camera, consult the dealer where you purchased
the product.
•This installation should be made by a qualified service person and should conform to
all local codes.
•When installing, make sure the surface is capable of withstanding the total weight of the
camera and accessories, and that it is sufficiently reinforced.
•Be sure to use installation screws designed for the type of surface the camera is to be
installed.
•Periodically check the parts and screws for rust and loosening, in order to prevent
injuries and equipment damage due to falling items.
•When connecting sensors and switches, connect terminals that are electrically isolated from the
respective power and GND.
•Check with your dealer for more information about PoE+/PoE HUB and Midspan technology.
Midspan (a LAN cable power supply device) is a device that, like a PoE+/PoE HUB, supplies power to
the camera via a LAN cable.
•Some PoE+/PoE HUBs allow the limitation of currents for each port, but applying limits may interfere
with performance. If using this type of PoE+/PoE HUB, do not limit the operating current.
•Some PoE+/PoE HUBs have limits for the total current consumption for the ports which can interfere with
performance when multiple ports are in use. For more information, check the instruction guide for your
PoE+/PoE HUB.
•
When the camera is connected to both a PoE+/PoE HUB and an external power supply (12 V
DC or 24 V AC), power will be supplied in the following order of precedence.
External power supply (24 V AC) > PoE+/PoE HUB > External power supply (12 V DC)
However, when connecting power from both, certain combinations could cause problems such as
unstable network connections. If a problem arises, either set the PoE+/PoE HUB power supply to
“disabled” or use the optional AC adaptor as the external power supply.
External Power Supply
12 V DC or 24 V AC input can be used. Use the included interface cable to connect to the camera
power connection terminal.
1: BROWN Power 24 V AC / 12 V DC non-polar
2: BLUE Power 24 V AC / 12 V DC non-polar
3: GREEN FG (frame ground)
1
3
External Device Output Terminals (OUT1, OUT2)
12 V DC can be connected in a non-polar configuration.
Important
•The power supply should be within the following voltage range.
•24 V AC: Voltage fluctuation within ±10% of 24 V AC (50 Hz or 60 Hz ±0.5 Hz or less)
Current supply capacity of at least 1.0 A per camera
•12 V DC: V
oltage fluctuation within ±10% of 12 V DC Current supply capacity of at least 1.5 A per camera
•When using a 12 V DC battery power supply, be sure to connect resistors of at least 0.5 – 1.0 Ω/20 W in
series to the power line.
•For an external power supply, use a double-insulated device.
Recommended Power Cables [Reference]
24
22
20
18
16
Conductor size mm
(in.)
0.52
( 0.020)
0.65
( 0.026)
0.82
( 0.032)
1.03
( 0.041)
1.30
( 0.051)
12 V DC maximum cable lengthm
(ft.)
5
(16.4)
9
(29.5)
14
(45.9)
23
(75.5)
32
(105.0)
24 V AC maximum cable lengthm
(ft.)
11
(36.1)
18
(59.1)
29
(95.1)
46
(150.9)
64
(210.0)
Please use UL cable (UL-1015 or equivalent) for 12 V DC or 24 V AC wiring.
AC Adapter
Please use the dedicated AC Adapter (sold separately).
Remove the power connector attached to the AC adaptor, then connect the power interface cable
from the power connector included in the package, as shown in the following diagram. Wrap the
cable connection with waterproof tape.
External device
0.1 µF
Input terminal
IN1, IN2
Output terminal
OUT1, OUT2
Each audio input/output terminal has one input system and one output system.
Connecting the camera to an audio input/output device such as a microphone or a speaker with
an amplifier allows you to send/receive audio through the Viewer.
Use the 3.5 mm ( 0.14 in.) monaural mini-jack connector to connect an audio input/output
device.
Audio Input Terminal Common LINE IN/MIC IN (monaural input)
Although the camera only has a single audio input system, it supports two types of microphone
input: LINE IN and MIC IN. Before using the audio input, please confirm the [Audio Input] on
the Setting Page (please refer to the “Operation Guide” > “Audio Input”). LINE IN is selected by
default.
Input terminal: 3.5 mm ( 0.14 in.) mini jack (monaural)
•Dynamic MIC IN
Input impedance: 1.75 kΩ ±20%
* Supported microphones: Output impedance: 400 – 600 Ω
•Condenser MIC IN
Input impedance (microphone bias resistance): 2.2 kΩ ±20%
Microphone power supply: plug-in power (voltage: 1.8 V)
* Supported microphones: Condenser microphones with plug-in power support
•LINE IN
Input level: Max. 1 Vp-p
* Please use a microphone with an amplifier.

Audio Output Terminal LINE OUT (monaural output)
Connect the camera to a speaker with an amplifier. Audio can be sent to the speaker from Viewer.
Output terminal: 3.5 mm ( 0.14 in.) mini jack (monaural)
Output level: Max. 1 Vp-p
* Please use a speaker with an amplifier.
Symbols Indicating Safety Precautions
This Installation Guide uses the following symbols to indicate important information the user should
know in order to use the product safely. Explanations are provided for each symbol so that users
will understand the level of importance for each. Be sure to observe these items.
Warning
Failure to follow the instructions accompanied by this symbol may result
in death or serious injury.
Caution
Failure to follow the instructions accompanied by this symbol may result in
injury.
Caution
Failure to follow the instructions accompanied by this symbol may result
in property damage.
Important This symbol indicates important or restricted items.
Note
•Do not install in unstable places, places subject to significant vibration or impact, or
places subject to salt damage or corrosive gas.
•Do not install in places subject to strong winds.
•Do not install where snow can accumulate directly on the camera.
•Be sure to attach the safety wire when installing the camera.
Failure to do so may result in the camera falling or other accidents.
•Do not touch the edges of metal parts with bare hands.
•Take care not to catch your fingers when installing.
Failure to do so may result in injuries.
External device
Audio Input/Output Terminals

Insulate the ends of cables you are not using.
Notes on Power Supply
External device input terminals consist of two sets (IN1, IN2) of two terminals, with the negative
terminals connected to the camera interior GND. Connecting cables to the positive and negative
terminals and opening or closing the circuit notifies the Viewer.
Internal controller
Important
Cable (AWG)
•
Failure to insulate will cause fire or electric shock.
External Device Input Terminals (IN1, IN2)
The load connected to the output terminals should be within the following rating range.
Rating between output terminals:
Internal Connection Diagram
Maximum voltage 50 V DC
+3.3 V
Continuous load current at or below 100 mA
1 kΩ
10 kΩ
10 kΩ
On resistance: Max. 30 Ω
/PoE (Power over Ethernet)
Power can be supplied to the camera by using a LAN cable connected to a PoE HUB that
conforms to the IEEE802.3at Type 2 (PoE+)/Type 1 (PoE) standard.

8
External device output terminals consist of two sets (OUT1, OUT2) of two terminals. The sets
have no polarity. Controls from the Viewer can be used to open and close the circuit between
the terminals. Using optical couplers, the output terminals are isolated from the camera’s internal
circuit.
•Power supply should conform to all local codes.
•The power supply should also comply with IEC/UL60950-1 (SELV/LPS) standards.

Failure to do so may result in fire or electric shock.
1: BROWN External device input 1 IN1 (+)
2: BLACK External device input 1 IN1 (-)
3: RED External device input 2 IN2 (+)
4: BLACK External device input 2 IN2 (-)
5: ORANGE External device output 1 OUT1
6: YELLOW External device output 1 OUT1
7: GREEN External device output 2 OUT2
8: BLUE External device output 2 OUT2
1

Note
PoE+
External device I/O terminals consist of two input and output systems each. The Viewer can be
used to check external device input status and control output to an external device (Please refer
to the “Operation Guide” > “External device output operation” and “Event display panel.”).
Use the included I/O interface cable to connect to external device input/output terminals.
Important
Power Connection

External Device I/O Terminals

Specifications
Contains reference information for operation or additional
explanations.
Avoid looking directly at the infrared illumination at close distances for long
periods of time.
Intense infrared illumination can cause eye damage.
•
Caution
•Do not install on an unstable surface.
•After turning off the power, do not turn the power on again for at least five seconds.
•Take measures to remove static electricity before performing any procedures.
•If there is condensation, please wait to power on, until the condensation dissipates.
•Please waterproof and dust-proof camera as necessary, when installing outdoors.
Failure to do so may result in malfunctions.
•Take care not to damage wiring or piping.
Failure to do so may result in damage to peripheral items.
Important
•We recommend the installation of a lightning arrester (a surge protection device) as a measure against
failures caused by lightning strikes. Please .refer to our website for details.
Precautions for Installing the Camera Outdoor
When installing the camera outdoors, observe the following precautions
to retain waterproof/dustproof capabilities.
•Waterproof the cable connections and the ends of cables you are
not using, including their connectors.
•・When mounting the camera onto a wall or other upright surface,
position the cables straight down to prevent rain infiltration.
•・If wiring by connecting the camera to the composite pipe, bridge
the gap using the conduit box (sold separately). When connecting
the conduit box and the pipe, apply silicon sealant as necessary
to seal it tightly after attaching the pipe to prevent rain infiltration.
Precautions for Use
Warning
•If you discover defective conditions such as smoke, strange sounds, heat or strange
odors, immediately stop using the camera and contact your nearest dealer.
Fire or electric shock may result from continued use of the product.
•If thunder starts, stop installation or inspection etc. and do not touch the camera or
continue connecting the cable.
•Do not disassemble or modify the camera.
•Do not damage the connecting cable.
•Do not insert foreign objects such as water or metal into the camera.
•Do not use flammable sprays near the camera.
•Do not leave LAN cables, external power supply, or the power connector for the AC
adaptor (sold separately) connected when the camera is not in use for long periods.
•Do not use flammable solvents such as alcohol, paint thinner or benzine when cleaning
the camera.
Failure to do so may result in fire or electric shock.
Please refer to the installation procedures or the Appendix – Specifications for specifications not
listed below.
Camera
Lens
Viewing Angle
Min. Subject Illumination
Pan Angle Range
Tilt Angle Range
2.4 optical zoom (4x digital zoom) lens (electric drive)
For 16:9 aspect ratios
Horizontal: 113.4° (W) – 46.5° (T)
Vertical: 61.4° (W) – 26.2° (T)
For 4:3 aspect ratios
Horizontal: 113.4° (W) – 46.5° (T)
Vertical: 83.0° (W) – 34.9° (T)
Day Mode (color):
0.02 lux (F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE)
Night Mode (monochrome):
0 lux (F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE with IR lamp on)
0.001 lux (F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE)
Day Mode (color):
0.02 lux (F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE)
Night Mode (monochrome):
0.001 lux (F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE)
344° (±172°)
93° (-3° – +90°) C
amera is at 0° when attached to the ceiling and facing straight down, and
90° when at a horizontal position.
Rotation Angle Range 344° (±172°)
Interface
Network Terminal
LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
Audio Input Terminal
3.5 mm ( 0.14 in.) mini-jack connector (monaural)
(Common LINE IN & MIC IN)
LINE IN (connect to an amplifier microphone) or
MIC IN (connect to a microphone w/o amplifier)
Switch LINE IN/MIC IN in the setting page.
Audio Output Terminal 3.5 mm ( 0.14 in.) mini-jack connector (monaural)
(LINE OUT)
LINE OUT (connect to an amplifier speaker)
External Device I/O Terminal
Input x 2, Output x 2
Memory Card *
SD Memory Card, SDHC Memory Card, SDXC Memory Card Compatible.
Recorded Content: Log, Video (Event, Manual, ONVIF, Timer, Upload)
Frame Rate: M
ax. 1 fps (JPEG)
Max. 30 fps (H.264)
* Use CLASS 10 cards. Cards under CLASS 10 may not have sufficient performance for tasks
such as video recording.
Others
Operating Environment
Temperature
Operating Temperature Range (including direct sun exposure) :
AC, PoE+: -50°C – +55°C (-58°F – +131°F)
DC, PoE: -10°C – +55°C (+14°F – +131°F)
Start-up Temperature Range (including direct sun exposure) :
AC, PoE+: -30°C – +55°C (-22°F – +131°F)
DC, PoE: -10°C – +55°C (+14°F – +131°F)
Humidity: 5% – 85% (without condensation)
Temperature
Operating Temperature Range (including direct sun exposure) :
PoE: -10°C – +55°C (+14°F – +131°F)
Humidity: 5% – 85% (without condensation)
Storage Environment Temperature: -30°C – +60°C (-22°F – +140°F)
Humidity: 5% – 90% (without condensation)
Installation Method
Ceiling mount/Surface mount
Power Supply
PoE: P
oE power supply via LAN connector (IEEE802.3at Type1/Type2 compliant)
AC Adapter: PA-V18 (100 – 240 V AC) (sold separately)
External power source: 24 V AC/12 V DC
PoE: PoE power supply via LAN connector (IEEE802.3at Type1 compliant)
Power Consumption
PoE+: Max. approx. 21.2 W
PoE: Max. approx. 10.1 W
AC Adapter PA-V18: M
ax. approx. 12.8 W (100 V AC)
Max. approx. 12.8 W (240 V AC)
DC: Max. approx. 11.1 W
AC: Max. approx. 22.2 W
PoE: Max. approx. 7.4 W
Weight
Approx. 2120 g (4.68 lb.)
Approx. 2040 g (4.50 lb.)
Dust-resistant/
Waterproof Specification IP66 rated
Only for European Union and EEA (Norway, Iceland and Liechtenstein)
These symbols indicate that this product is not to be disposed of with your household waste,
according to the WEEE Directive (2012/19/EU), the Battery Directive
(2006/66/EC) and/or national legislation implementing those Directives.
If a chemical symbol is printed beneath the symbol shown above, in
accordance with the Battery Directive, this indicates that a heavy metal
(Hg = Mercury, Cd = Cadmium, Pb = Lead) is present in this battery or
accumulator at a concentration above an applicable threshold specified in
the Battery Directive.
This product should be handed over to a designated collection point, e.g., on an authorized
one-for-one basis when you buy a new similar product or to an authorized collection site for
recycling waste electrical and electronic equipment (EEE) and batteries and accumulators.
Improper handling of this type of waste could have a possible impact on the environment and
human health due to potentially hazardous substances that are generally associated with EEE.
Your cooperation in the correct disposal of this product will contribute to the effective usage of
natural resources.
For more information about the recycling of this product, please contact your local city office,
waste authority, approved scheme or your household waste disposal service or visit www.
canon-europe.com/weee, or www.canon-europe.com/battery.
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
CANON EUROPA N.V.
Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands
