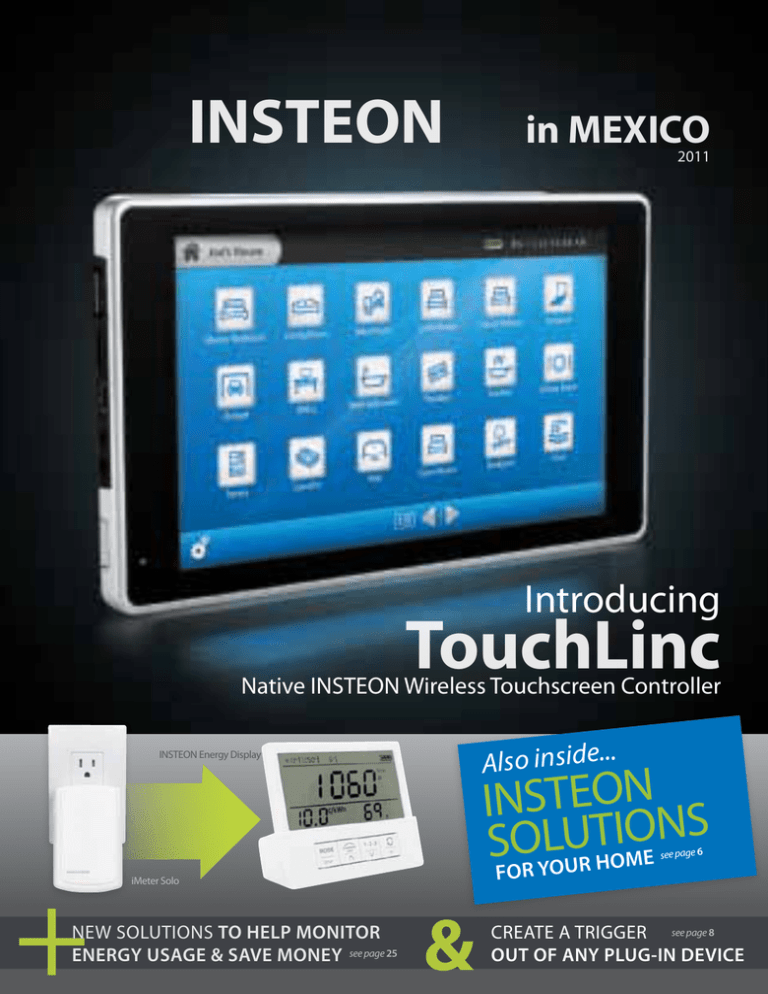

INSTEON

in MEXICO

2011

Introducing

TouchLinc

Native INSTEON Wireless Touchscreen Controller

INSTEON Energy Display iMeter Solo

+

NEW SOLUTIONS TO HELP MONITOR

ENERGY USAGE & SAVE MONEY

see page 25

Also inside...

INSTEON

SOLUTIONS

FOR YOUR HOME

see page 6

&

CREATE A TRIGGER

see page 8

OUT OF ANY PLUG-IN DEVICE

Home control is not just affordable and easy to implement, but has now become a necessity to help reduce energy costs. From lighting and appliance control to security and heating and cooling (HVAC) automation, our INSTEON technology allows you to create your own perfect smart home.

WHY INSTEON

Reasons to go with INSTEON

CONVENIENCE EFFICIENCY

INSTEON provides all of the amenities of a fully-automated home. Control your lighting, entertainment and your thermostat all from the comfort of your couch…or even from across the globe.

RELIABILITY

The dual-mesh network allows devices to communicate through RF and power line signals. With no single point of failure INSTEON provides a significant advantage over similar home control systems.

Dimming your lights alone can save you from running up huge energy bills. Using automation, timed lighting scenes, controlled HVAC and monitoring your power consumption can cut your energy bill in half.

FLEXIBILITY

2 200

Start with two. Expand to two-hundred or more. INSTEON is designed to work at any scale from small residential homes to large installations. Device signal propagation allows larger networks to communicate efficiently.

AFFORDABILITY

=

INSTEON vs. Competitors’ pricing

Packed with the latest technology, and rigorously tested,

INSTEON devices offer all of the features at a fraction of the cost of our leading competitors, all backed by an industryleading guarantee.

VALUE

Home automation is one of the most cost-effective ways to increase the value and salability of your home. The

INSTEON network provides features that any potential buyer will have to think twice about passing up.

HOME CONTROL

With award winning INSTEON

CONTROL

INTEGRATE

AUTOMATE

MANAGE

Control your lighting, thermostats, door locks and more from anywhere in the house and remotely from any web-enabled phone or computer. Any 110V or standard home device can be linked to the INSTEON system.

Link your entire house together with an INSTEON system.

Security and alarm systems can be linked to turn on the lights or dial out to your cell phone when the alarm is triggered.

Have your lights or thermostat turn on or off or change to a different setting at a specific time. Set timers for switches and other devices. Make sure energy is not wasted when you leave a room.

Take full control over your energy bills with INSTEON compatible thermostats. Monitor temperatures remotely to help you avoid disasters while you are away.

LIGHTING & APPLIANCE CONTROL

Once you have remote control of the lights and appliances in your home, you may never go back to manually operating them again.

Turn your bathroom light on or off without getting out of bed. Create custom lighting scenes and control it all from your mobile device. See solutions on page 7.

AUDIO/VIDEO CONTROL

With INSTEON you can convert an existing wall switch into a remote control keypad for your audio or video system. You can also turn any ordinary universal remote into an INSTEON controller. Dim lights as you get ready to watch a movie or turn on the kitchen lights for a snack during intermission. See solutions on page 7.

TEMPERATURE CONTROL

Control your thermostat from anywhere in the house. Change temperature settings from your bed or use your web-enabled phone or computer to set the perfect temperature before you get home. Make sure you aren’t wasting energy while you are gone. See solutions on page 6.

SENSORS & CUSTOM APPLICATIONS

Have the freedom to create, manage and trigger scenes via customized security sensors or other low voltage devices. Close the garage door from the master bedroom or unlock the front door from your mobile phone. Monitor water levels or get a phone call if a leak is detected. See solutions on page 7.

A dealer near you. for assistance, call Mexico 01800- 837-00-37

HOW IT WORKS

How to easily integrate and manage INSTEON

What makes INSTEON the most reliable home automation technology is its dual-mesh network. The “dual” part of the network refers to INSTEON devices using both radio frequency signals and the home’s existing electrical wiring to talk to each other.

Unlike all other mesh networks, the INSTEON “mesh” network has EVERY INSTEON DEVICE

(except battery powered devices) acting as a repeater — receiving and sending every message to all other devices on the network. So instead of stressing the network by adding more INSTEON devices, you actually strengthen it. Other mesh networks use router tables, and only those products involved in routing the signal act as repeaters – creating a less reliable network.

SIGNAL PROPAGATION

INSTEON Transmitter INSTEON Device INSTEON Device INSTEON Receiver

1

Transmitting device sends RF signal to

2

INSTEON devices receive signal and repeat to all other devices.

3

Receiving device accepts and confirms the signal.

EASY MANAGEMENT & AUTOMATION

HouseLinc 2 - INSTEON Desktop Software gives you the power to easily link and manage your entire INSTEON network. The easy to use interface provides the ability to quickly link your devices, manage timed events and create amazing lighting scenes for and INSTEON device. See page

20 for more information on HouseLinc.

ANY LOCATION, ANY DEVICE

From your desk at home to a beach in the Caribbean, INSTEON allows complete control of your home from any location with internet access. The new TouchLinc provides touch screen control and management with a beautifully intuitive interface (for more information see page 21). The SmartLinc browser-based control allows access from any web-enabled device (see page 23 for more information). And a wide variety of apps are available for devices including the iPad, iPhone and Android smart phones (see page 23 for more information on INSTEON apps).

TouchLinc

MobiLinc HD for

GET STARTED

Looking for an easy way to get started with home automation? We’ve carefully selected some of our best products for a range of kits that are a great starting point for anyone looking to automate their home. Starter kits range from the easiest installation, with nothing more than a few open outlets required, to whole-house projects designed to allow you to completely control your home lighting, outlets, thermostats and more.

Integration Level

Controls two lamps from a handheld remote

Controls two switches and two outlets from a handheld remote

Controls two lamps and one appliance from your iPhone

iPhone not

RemoteLinc Lamp Control Kit, Silver

.

RemoteLinc Dimmer & Outlet Control Kit SmartLinc Plug-in Starter Kit

Controls three switches from your iPhone

Controls lighting for multiple rooms from your iPhone

Controls and manages lighting and appliance of your whole house

iPhone not iPhone not iPhone not

SmartLinc - INSTEON Light Control Kit Multi-Room INSTEON Lighting Control Kit Whole House INSTEON Control Kit

Need INSTEON Help?

INSTEON Mexico: 01800-837-00-37

Mon - Fri 9:30am - 6:00pm

Elizabeth ([email protected]) and his team are here to answer all your INSTEON-related questions. Whether you’re interested in saving electricity or making your life more convenient, Elizabeth`s team has the answers for you.

Our exclusive final customer Support team is ready to help with all your pre and post purchase INSTEON questions.

5

SOLUTIONS

Easy home solutions

Plug-In Light Control

This kit will enable you to control 2 plug-in lights in less than 10 mins.

RemoteLinc

LampLinc

(Dual-Band)

RemoteLinc sends

On/Off/Dim/Bright commands via RF signal up to 150’ away from an Access

Point or dual-band product such as the

LampLinc Dual-Band

(shown here).

Control thermostat remotely

Why get up out of bed when you can pick up a remote and adjust the thermostat?

Link each button on the RemoteLinc to a preset temperature.

RemoteLinc talks directly to the

INSTEON thermostat setting your desired temperature.

RemoteLinc INSTEON Thermostat

RemoteLinc - INSTEON Lamp Control Kit (Silver Remote)

#2490A1

RemoteLinc, Black

#2440BK

| INSTEON Remote Control Thermostat

#2491T1

(see page 24 for more information)

Control Lights from the Web

Connect SmartLinc to your router and turn any iPhone or other web-enabled device into a home controller. Use it to control lighting such as plug-in lamps & overhead lights.

Modem Router KeypadLinc

SwitchLinc

SmartLinc

LampLinc

(Dual-Band)

Access your home from anywhere you have internet access. Use the example above OR customize your own home control.

See SmartLinc in action at

www.insteon.mx

Multi-room INSTEON Lighting Control Kit

#2490C3

Access Your Thermostat on the Way Home from Work

Using your web-enabled phone or PC, access your INSTEON network and set the thermostat to your desired temperature setting. This way your house will be at the perfect temperature when you arrive.

Modem INSTEON Thermostat

Web-enabled device communicates to the SmartLinc and then to the

Thermostat via an Access Point

(or other dual-band product such as

LampLinc Dual-Band pictured here).

Router

SmartLinc

Watch the video, visit:

insteon.mx

LampLinc

(Dual-Band) or other dual-band devices

SmartLinc – INSTEON Central Controller

#2412N

| LampLinc (Dual-Band)

#2457D2

| INSTEON Remote Control Thermostat

#2491T1

More INSTEON solutions at www.insteon.mx

Integration Level

Easy Intermediate

Control Your Home Theater Equipment from an iPhone or Mobile Device

Create a whole home theater control system that will turn on lights and A/V gear with your iPhone or web-enabled device.

Wi-Fi

LampLinc

(Dual-Band)

Advanced

SwitchLinc

Web-enabled Device Router SmartLinc IRLinc Transmitter

SmartLinc – INSTEON Central Controller

#2412N

$

|

IRLinc Transmitter – INSTEON to IR Converter

#2411T

Add SwitchLinc Dimmers (pg 8) or lamp modules (pg 17) to also control lighting.

Control Access to Your Home from any Web Device

Unlock the door from your mobile phone or any other web-enabled device.

Wi-Fi

Morning Industry

RF Door Lock

SmartLinc

Web-enabled Device

Router MorningLinc

Once installed, this solution gives you the ability to unlock your door from anywhere there’s access to the web. Imagine you get a call from your wife who accidentally locked herself out of the home. You can simply use your web-enabled phone or computer to unlock it for her. Add some other INSTEON-compatible switches and turn the front lights on for her as well. See SmartLinc in action at

www.insteon.mx

SmartLinc – INSTEON Central Controller

#2412N

$

| MorningLinc

#2458A1

| RF Door Lock (Morning Industry brand) see page 36

Wireless Garage Door Monitor + Controller

This combination of products allows you to see that your garage door is closed or left open from inside your home. You can also close the door by simply pressing the keypad button.

Door Motor KeypadLinc

Replace an existing wall switch with the KeypadLinc, set up your I/O Linc Garage Door Control & Status Kit and link one button on the KeypadLinc to the I/O Linc. Now when the garage door opens, the LED on that button will light up. Press the KeypadLinc button to close the garage.

Magnet

Door Button

I/O Linc

It’s that simple.

Caution: You should only remotely close a garage door when you can be sure it is safe, either by watching it directly or through a camera.

Use of safety beam devices can further increase the safety of remote garage door control and are usually required by law.

I/O Linc - INSTEON Garage Door Control & Status Kit

#74551

| KeypadLinc

#2486DWH6

INSTEON PRODUCTS

SwitchLinc family of wall switches

SwitchLinc

The Most Advanced, User-Friendly, Remote Controllable Light Switch

8-Step LED Indicator

Shows the switch’s current light level in increments of 8, although there are 32 levels of brightness. Ships with White LED’s.

Optional LED color change kits available.

Night Light

LED is lit when the light is turned OFF providing a convenient night light. Optional

LED color change kits available.

Dual-Band

The new version (2477D) features ability to send & receive commands via RF and power line making INSTEON ever more reliable.

Paddle and Trim Frame

The switch ships with a White frame, however replacement paddle & trim kits are available in Ivory, Almond, Light Almond,

Black, Gray and Brown making it easy to match your decór.

True Rocker Paddle

Crisp, tactile response. Tap the top to turn lights on, tap the bottom to turn lights off.

Press and hold the top to brighten, press and hold the bottom to dim.

Set Button

Used for linking to other INSTEONcompatible devices. Also used for setting

Ramp Rate and On-Level.

Remote control options

Hand-Held Remote

see page 24

Mobile Devices

see page 33

Software

see page 30

Wall Keypads

see page 20

SwitchLinc features and options

Adjustable On-Level

Adjust your light to your favorite brightness level and single-tap the Set Button. You can always tap the switch again to go to full bright.

Adjustable Ramp Rate

Set the speed at which the light turns to its On-Level. This time can be instant or up to 9 seconds (longer ramp rates are available via software sold separately, see page 30).

LED Color Change Options Custom-Etching Options

Lighting Scenes

When using more than one dimmer, you can create lighting scenes. Each scene can have individual Ramp Rates and

On-levels.

Remote Controllable

Trim Plates

Control this switch from a handheld remote, iPhone, computer and more

See controllers on pages 14,

21 and 23

w

For all options visit

www.insteon.mx

With a SwitchLinc Dimmer, you can do it all; turn lights on or off, dim or brighten to specific brightness levels and specify how fast you want them to ramp up or down.

Standard SwitchLinc dimmers handle up 600 Watts.

For applications with greater power demands, 1000 Watt SwitchLinc Dimmers are available and SwitchLinc Relay is available for non-dimming applications such as compact fluorescent (CFL), LED bulbs, fans or motors (up to 15 amps).

SwitchLinc paddle-style switches are available in six different colors. Trim plate sold separately.

“Just put these in about a week ago, I’ve enjoyed them immensely. Hooking these up in 3-way or more is as easy as cross-linking them to each other. I looked into other RF lighting systems Lutron, Leviton and they were immensely more expensive for no apparent gain. ...The feel is quality, and they are extremely easy and intuitive to install, setup and operate. Finally, I’ve spoken with Smarthome’s customer service and felt very taken care of and appreciated. This is an A+ operation they’re running!”

DAVID — HOUSTON, TX

SwitchLinc Dual-Band

The World’s Smartest Switch Just Got Smarter

A new member to the SwitchLinc family, this SwitchLinc

Dimmer packs in the features. Not only can it receive signals directly from RF controllers (RemoteLinc,

TriggerLinc, Motion Sensor, etc.) but it also acts as a repeater, re-broadcasting power line commands to RF and

RF signals to power line - making your INSTEON network even more reliable than ever before.

SwitchLinc Dimmer 600W

Model

2476D

Color

White

2476DIV

2476DAL

Ivory

Almond

2476DLAL Light Almond

2476DBK

2476DBR

2476DGY

Black

Brown

Gray

CUSTOMER RATING

SwitchLinc Dimmer 1000W

2476DH White

2476DHIV Ivory

2476DHAL Almond

SwitchLinc Relay 15 Amp

2476S

2476SIV

2476SAL

White

Ivory

Almond

Dual-Band

Receives signals directly from RF devices and converts power line signals into RF — eliminating the need for an Access Point.

SwitchLinc Dual-Band 600W

2477D

2477DIV

White

Ivory

2477DAL Almond

2477DLAL Light Almond

2477DBK

2477DBR

Black

Brown

2477DGY Gray

SwitchLinc Dual-Band 1000W

2477DH White

2477DHIV Ivory

2477DHAL Almond

Dimming Function

All listed dual-band SwitchLinc switches have dimming capability.

SwitchLinc alternatives

All the Features of a SwitchLinc But in a Traditional Toggle-Style Switch

Operates similar to standard toggle switches but the switch is spring-loaded to return to a middle-position. Flick the switch up or down to control the light, or press up or down to dim or brighten. Also available in a non-dimming relay version. Trim plate sold separately.

ToggleLinc Switches

Dimmer 600W

#2466DW

Relay 15-Amp

#2466SW

Need INSTEON Help?

Not sure where to start with home control? Let us help.

Whether it’s choosing the right switch or how to wire a 3-way, our INSTEON DEALER SUPPORT.

FIND AN INSTEON DEALER:

Mexico 01800-837-00-37

Mon - Fri 9:30-

Ivan, INSTEON SUPPORT

INSTEON PRODUCTS

KeypadLinc family of wall switches

KeypadLinc

Control Lights Throughout Your Home from a Single Location

Monitor and Control Up to 5 Devices

Large buttons control local load while small buttons can remotely control other devices or groups of devices

Backlit Buttons

Let’s you quickly identify which lights are on and off

Quick Press-and-Hold Programming

Program a whole group of lights in minutes

Create Custom Lighting Scenes

Easily setup and recall multiple lighting levels from the keypad

No Rewiring Necessary

Replaces most existing switches and communicates with other devices through your existing electrical wires

Easily Replaces an Existing Wall Switch

Turn your existing wall switch into a multi-purpose keypad controller. This keypad replaces any standard wall switch and gives you control of four other lights or appliances around your home. Perfect for the master bedroom so you can turn lights off as you go to bed or turn on lights if you’ve heard a noise in the middle of the night.

Includes Built-in Dimmer

The On and Off buttons control whatever your old switch was controlling and just like the SwitchLinc

(page 8), you’ll be able to set the on level and ramp rate for your light. Also available in a Relay (non-dimming) version.

Outside Lights Garage Family Room Bathroom

Available Colors

1

5

KeypadLinc features and options

Adjustable Status LEDs

The backlit buttons let you know at a glance which lights are on. You can even adjust the LED brightness to your preferred level.

Button Behavior

Buttons can be set to Toggle

Mode (press once for On, press again for Off) or Non-

Toggle (always send same command).

2 3 4

6 7

1. White

2. Almond

3. Light Almond

4. Ivory

5. Gray

6. Brown

7. Black

Optional Button Customizing

Computer Programmable

Use software such as

HouseLinc 2 (pg 20) to remotely program the

KeypadLinc, making setup quick and easy.

Optional Backlighting Colors Optional Transparent Buttons

Print your own personalized labels

w

To learn more about the KeypadLinc and to see all options, visit us online:

www.insteon.mx

KeypadLinc Dimmer is more than a 600-watt local dimmer, using the six-button KeypadLinc you can operate five different INSTEON controlled devices or sets of devices in and around your home. You can even use it as a monitoring station as you’ll be able to see the on/ off status of any device or group of devices to which you have linked.

The KeypadLinc Dimmer can control hardwired incandescent bulbs and other low-voltage lights. For non-dimmable compact fluorescent (CFL) lights, LED lights, fans or appliances, a use a KeypadLinc Relay.

With this in-wall keypad you can create several different scenes in minutes that are controllable from the same location. KeypadLinc is available in seven different trim colors with several backlighting and custom button options. Trim plate sold separately.

KeypadLinc button packs

Give your KeypadLinc the ultimate in custom personalization, without the custom price tag! Choose from 2 affordable multi-packs of the most common custom etched KeypadLinc buttons. The

25-pack features the most popular rooms and devices controlled by

KeypadLinc and the 50-pack gives you an additional 20 names plus 5 duplicate named buttons for the most common rooms and scenes in the home.

Popular Printed Button Packs

25 Button Pack, White

#2401BT25

50 Button Pack, White

#2401BT50

6-BUTTON

6-Button KeypadLinc with Dimmer

Model Color

2486DWH6 White

2486DIV6 Ivory

2486DAL6 Almond

2486DLAL6 Light Almond

2486DBK6 Black

2486DBR6 Brown

2486DGY6 Gray

6-Button KeypadLinc with Relay

2486SWH6 White

ALL ON *

(2 large 1 small)

ALL OFF *

(2 large 1 small)

KITCHEN

OUTSIDE LIGHTS

HALLWAY

LIVING ROOM

DINING

OFF

CEILING

ON

GARAGE

FRONT LIGHTS

STAIRS

LAMP *

FAN

FOYER

PORCH

ENTRY

PARTY

PATIO

POOL

FAMILY ROOM

MASTER BEDROOM

MOVIE

25 Button Pack

8-BUTTON

8-Button KeypadLinc with Dimmer

Model Color

2486DWH8 White

2486DIV8 Ivory

2486DAL8 Almond

2486DLAL8 Light Almond

2486DBK8 Black

2486DBR8 Brown

2486DGY8 Gray

TABLE LAMP

OFFICE

CLOSET

ISLAND

CABINET LIGHTS

LIGHT

NIGHT LIGHT

BEDROOM *

BATH ROOM *

SCONCES

AWAY

NIGHT

50 Button Pack

DECK

HOME

ALL LIGHTS

CHANDELIER

BAR

DIM

BRIGHT

*2 included in 50 pack

Customization

KeypadLinc comes with a standard set of buttons, however they won’t tell you what lights, appliances or scenes they control. Custom etched buttons are available that take the guesswork out of using your

KeypadLinc by indicating the exact function of each button. Single button (small or large), 6-button or

8-button configurations are laser etched with your desired text, putting you in control. For the ultimate appearance and ease of use, custom etched buttons will provide a professional finish to any home installation.

w

To view all customization options, visit:

www.insteon.mx

Tabletop enclosure

Take full advantage of KeypadLinc in a portable plug-in tabletop unit. This set includes a KeypadLinc 6-Button Dimmer along with a tabletop enclosure.

KeypadLinc with Enclosure

White

#2486PWH

Black

#2486PBK

COMPARE CHART

Wall switches

Use this comparison chart to help you decide which switch best fits your requirements. If you will be replacing existing switches be sure to determine if the device they are controlling is dimmable (incandescent, halogen, etc.) or can only be controlled On/Off (compact fluorescent, motor load, etc.). Because these INSTEON switches, dimmers and keypads require power to transmit and receive commands, they must be connected to a neutral wire. These are typically 2 or more white wires that are connected together with a wire-nut and tucked away in the back of the switch box.

DIMMERS

Description

Item #

SwitchLinc Dimmer

600W/1000W

2476D/DH

SwitchLinc Dimmer

600W/1000W

(Dual-Band)

2477D/DH

ToggleLinc Dimmer

2466DW

KeypadLinc

6 or 8-Button Scene Control

Keypad with Dimmer

2486DWH6/8

Load

Incandescent or

Halogen

Fluorescent/Motors

Load Capacity

Operation

Dimming

Adjustable On Level

Brightness Indicators

Ramp/Fade Rate

Built-in Countdown

Timer

3-Way Support

Yes

No

600W*/1000W*

Yes

No

600W*/1000W*

Yes

No

600W*

Yes

No

600W*

Yes

Yes

Yes

Adjustable locally up to 9 sec.; remotely programmable up to 8 min.

Yes

Yes

Yes

Adjustable locally up to 9 sec.; remotely programmable up to 8 min.

Yes

Yes

Yes

Adjustable locally up to 9 sec.; remotely programmable up to 8 min.

Yes

Yes

No

Adjustable locally up to 9 sec.; remotely programmable up to

8 min.

No No No No

Multi-Way Circuit Support: One switch controls load, Cross-Link any number of INSTEON-compatible switch dimmers or relays

Maximum # of

INSTEON Links

*Derating

417 417 417 417

DIMMERS: Mounts in single or “multiple-gang” junction box. Controls 200 watts less load for each immediately adjacent electronic dimmer installed. For example, 600 watt load capacity becomes 400 watt with another electronic dimmer installed to the immediate right or left. Note: the 1000W SwitchLinc has heat-sink tabs that may need to be removed if mounting in a multi-gang application. Tabs can be removed but de-rating will occur (100W per tab).

Options

Custom Etching

LED Color Change

Color Options

General

Warranty

Yes

Yes

White, Ivory, Almond, Light

Almond, Black, Brown, Gray

Yes

Yes

White, Ivory, Almond, Light

Almond, Black, Brown, Gray

2 yr.

2 yr.

No

No

White, Ivory

2 yr.

Yes

Yes

White, Ivory, Almond, Light

Almond, Black, Brown, Gray, Clear

2 yr.

SwitchLinc Relay

2476S

ToggleLinc Relay

2466SW

KeypadLinc Relay

(6-Button Scene Control

Keypad with Switch)

2486SWH6

Yes

Yes

15A / 480W

No

N/A

No

N/A

Yes

Yes

15A / 480W

No

N/A

No

N/A

Yes

Yes

13A / 480W

No

N/A

No

N/A

No No No

Multi-Way Circuit Support: One switch controls load, Cross-Link any number of INSTEON-compatible switch dimmers or relays

417

N/A

417

N/A

417

N/A

Yes

Yes

White, Ivory, Almond, Light

Almond, Black, Brown, Gray

2 yr.

No

No

White, Ivory

2 yr.

Yes

Yes

White, Ivory, Almond, Light

Almond, Black, Brown, Gray,

Clear

2 yr.

SwitchLinc Timer

2476ST

KeypadLinc Timer

(8-Button Countdown

Wall Switch Timer)

2484DWH8

Yes

Yes

15A / 480W

Yes

No

600W*

No

N/A

No

N/A

Yes (can be disabled)

Yes

No

Adjustable locally up to 9 sec.; remotely programmable up to

8 min.

Yes (local & remote) Yes (local only)

Multi-Way Circuit Support: One switch controls load,

Cross-Link any number of INSTEON-compatible switch dimmers or relays

417 417

N/A See *Derating

Yes

Yes

White, Ivory, Almond,

Light Almond, Black,

Brown, Gray

2 yr.

Yes

Yes

White

2 yr.

Description

Item #

SwitchLinc Dimmer

600W/1000W

2476D/DH

SwitchLinc Dimmer

600W/1000W

(Dual-Band)

2477D/DH

ToggleLinc Dimmer

2466DW

KeypadLinc

6 or 8-Button Scene Control

Keypad with Dimmer

2486DWH6/8

Load

Incandescent or

Halogen

Fluorescent/Motors

Load Capacity

Operation

Dimming

Adjustable On Level

Brightness Indicators

Ramp/Fade Rate

Built-in Countdown

Timer

3-Way Support

Yes

No

600W*/1000W*

Yes

No

600W*/1000W*

Yes

No

600W*

Yes

No

600W*

Yes

Yes

Yes

Adjustable locally up to 9 sec.; remotely programmable up to 8 min.

Yes

Yes

Yes

Adjustable locally up to 9 sec.; remotely programmable up to 8 min.

Yes

Yes

Yes

Adjustable locally up to 9 sec.; remotely programmable up to 8 min.

Yes

Yes

No

Adjustable locally up to 9 sec.; remotely programmable up to

8 min.

No No No No

Multi-Way Circuit Support: One switch controls load, Cross-Link any number of INSTEON-compatible switch dimmers or relays

Maximum # of

INSTEON Links

*Derating

417 417 417 417

DIMMERS: Mounts in single or “multiple-gang” junction box. Controls 200 watts less load for each immediately adjacent electronic dimmer installed. For example, 600 watt load capacity becomes 400 watt with another electronic dimmer installed to the immediate right or left. Note: the 1000W SwitchLinc has heat-sink tabs that may need to be removed if mounting in a multi-gang application. Tabs can be removed but de-rating will occur (100W per tab).

Options

Custom Etching

LED Color Change

Color Options

General

Warranty

Yes

Yes

White, Ivory, Almond, Light

Almond, Black, Brown, Gray

Yes

Yes

White, Ivory, Almond, Light

Almond, Black, Brown, Gray

2 yr.

2 yr.

No

No

White, Ivory

2 yr.

Yes

Yes

White, Ivory, Almond, Light

Almond, Black, Brown, Gray, Clear

2 yr.

STANDARD SWITCH WIRING

In most homes the wall switches will be wired as you see here with the neutral wires (white wires) capped off in the back of the switch box.

RELAY [ON/OFF]

TYPICAL INSTEON SWITCH WIRING

INSTEON switches wire just like standard switches with the exception of connecting to the neutral wires in the back of the switch box. The reason for this connection is because INSTEON switches require a very small amount of power to function.

TIMERS

SwitchLinc Relay

2476S

ToggleLinc Relay

2466SW

KeypadLinc Relay

(6-Button Scene Control

Keypad with Switch)

2486SWH6

Yes

Yes

15A / 480W

No

N/A

No

N/A

Yes

Yes

15A / 480W

No

N/A

No

N/A

Yes

Yes

13A / 480W

No

N/A

No

N/A

No No No

Multi-Way Circuit Support: One switch controls load, Cross-Link any number of INSTEON-compatible switch dimmers or relays

417

N/A

417

N/A

417

N/A

Yes

Yes

White, Ivory, Almond, Light

Almond, Black, Brown, Gray

2 yr.

No

No

White, Ivory

2 yr.

Yes

Yes

White, Ivory, Almond, Light

Almond, Black, Brown, Gray,

Clear

2 yr.

SwitchLinc Timer

2476ST

KeypadLinc Timer

(8-Button Countdown

Wall Switch Timer)

2484DWH8

Yes

Yes

15A / 480W

Yes

No

600W*

No

N/A

No

N/A

Yes (can be disabled)

Yes

No

Adjustable locally up to 9 sec.; remotely programmable up to

8 min.

Yes (local & remote) Yes (local only)

Multi-Way Circuit Support: One switch controls load,

Cross-Link any number of INSTEON-compatible switch dimmers or relays

417 417

N/A See *Derating

Yes

Yes

White, Ivory, Almond,

Light Almond, Black,

Brown, Gray

2 yr.

Yes

Yes

White

2 yr.

INSTEON PRODUCTS

Remote controller & sensors

RemoteLinc

Control Lights from Anywhere in the House

• Control up to 6 INSTEON devices or scenes plus ALL ON & OFF and DIM/BRIGHT functions

• RemoteLinc scenes can control up to a total of 417 devices

• Excellent range - over 150’ from nearest Access Point or dual-band device

RemoteLinc allows you to control whole-room or whole-house scenes with the touch of a button from the comfort of your couch. So you can dim the lights in your home theater and turn off the lights in surrounding rooms without getting up!

With one button press, you can easily adjust your chandelier lighting, painting spotlights, and sconces to that perfect brightness every time, allowing you turn on your lights without diverting your attention from your guests. The possibilities are endless: with minimal funds and a little bit of imagination, you can begin turning your home into the home of the future today. Requires at least one Access Point or dual-band INSTEON device.

RemoteLinc

Silver

#2440

|

Black

#2440BK

CUSTOMER RATING

RemoteLinc in use

RemoteLinc

INSTEON Signal (RF)

Thermostat (RF)

SwitchLinc

LampLinc

(Dual-Band)

(or any dual-band device)

How it Works

RemoteLinc is a battery powered RF remote that can control other RF devices directly such as an INSTEON thermostat (pg 24) or LampLinc dual-band (pg 17). When controlling power line only devices such as the SwitchLinc

(pg 8) you must have an Access Point or dual-band device to translate the signal onto the homes electrical power line.

Tip

Easily program the RemoteLinc using your computer.

Use HouseLinc 2 (pg 20) to quickly create and manage links between your RemoteLinc and INSTEON devices throughout your home.

RemoteLinc starter kits

This example kit will get you up and remotely controlling your plug-in lamps in minutes. The kit consists of a handheld remote

(RemoteLinc) and two LampLinc (Dual-Band) dimmer modules .

Lamp Control

This remote lighting example kit control puts you in control over your lights and appliances. Whether you’re sitting down to watch a movie and want to dim down the lights or going to bed and forgot to shut off the downstairs lights, this kit puts the control in the palm

TriggerLinc

Turn On a Closet or Pantry Light Only When the Door is Opened and Off When It’s Closed

• Automatically control lights and appliances when doors open and close

• Battery-operated for easy installation

• Excellent range - up to 150’ from nearest Access Point or any dual-band device

Attach this magnetic sensor and transmitter to a door and have an INSTEON-controlled light turn on when the door opens and off when the door closes. Great for a closet or pantry. Requires that the home have at least one Access Point or dual-band INSTEON device.

TriggerLinc

#2421

CUSTOMER RATING

TriggerLinc in use

TriggerLinc

SwitchLinc

LampLinc

(Dual-Band)

(or any dual-band device)

How it Works

TriggerLinc is mounted to a door frame and the included magnet attaches to the door. When the magnet is separated from TriggerLinc

(door opening) it sends a wireless RF signal to an Access Point or dual-band device (dual-band LampLinc shown here) which in turn relays the signal over your existing power wires to turn on things like lamps or wall switches.

Tip

TriggerLinc has one hardwired input that can be used to string multiple wired magnetic contacts together. This is useful if you have a lot of windows in a single location and want to keep your costs down.

Motion Sensor

Turn On Lights When Someone Enters a Room and Off After They Leave

• Built-in countdown timer automatically turns lights off after you leave

• Optional night-only mode allows you to keep your lights off during the day

• Adjustable countdown timer from 30 seconds up to 2 hours

• Adjustable high/low motion sensitivity provides flexible placement

Control wall switches, plug-in modules and other INSTEON-compatible devices when motion is detected. This easy-to-use wireless motion sensor has a 110° 40-ft field of view and sends wireless signals up to 150 feet to the nearest Access Point or dual-band device (required, sold separately).

“What a great product. I installed this in our master bathroom water closet and it performs perfectly. I am thinking of adding some more of these to a few closets. As often as people leave lights on in my home, I bet I pay for my whole INSTEON network in no time!!”

DALE — ALAMEDA, CA

CUSTOMER RATING

INSTEON Motion Sensor

#2420M

$

Programming

Adjust the motion sensor settings locally or make adjustments and manage links remotely via

HouseLinc 2 software (pg 20).

Motion Sensor in use

INSTEON Motion Sensor

SwitchLinc

LampLinc

(Dual-Band)

(or any dual-band device)

How it Works

When the sensor detects motion it sends a wireless RF signal to a plug-in Access

Point or dual-band device (dual-band LampLinc shown here) which in turn relays the signal over your existing power lines to turn on things like lamps or wall switches. After the countdown has expired and no further motion has been detected, the sensor turns those same lights (or appliances) off.

INSTEON PRODUCTS

Lamp & appliance control

Smart Modules for Remote Control of Plug-in Lights and Appliances

LampLinc

For Controlling Lamps Using Standard Dimmable Bulbs

Control a lamp remotely, turning it on and off and adjusting brightness levels

Incorporates a lamp into multiple lighting design scenes in minutes

This simple-to-use plug-in dimmer has advanced features that include adjustable ramp rate that slowly brings the lamp on, a preset dim level that stores your preferred choice of 32 brightness levels when turning the lamp on, as well as local control, so you can still use the lamp’s built-in switch to turn the light on and off. This LampLinc is made to be plugged into a 3-pin grounded outlet.

LampLinc

#

2456D3

ApplianceLinc

For Controlling Lamps Using CFL or LED Bulbs or Appliances

Control a non-dimmable fluorescent light or appliance, turning it on and off remotely

Super-quiet ON/OFF operation

This simple-to-use plug-in on/off switch has advanced features that include local control, so you can still use the appliance’s built-in switch to turn device on and off. This on/off module controls all standard appliances like fans, fluorescent lights, and many other non-dimmable devices up to 15 amps and incandescent lights up to 480 watts. The

ApplianceLinc is made to plug into a 3-pin outlet.

ApplianceLinc

#

2456S3

OutletLinc

Control Your Plug-In Devices with a Decora-Style Outlet

Clean in-wall design blends in anywhere in your home

Manual ON/OFF button for added convenience

Built-in relay allows you to connect devices of any type up to 15 amps

Top outlet is INSTEON controlled, bottom outlet is always on

Do you have lamps and appliances you want to automate that are plugged into exposed outlets? If so, OutletLinc is a perfect fit; it gives you fast, reliable INSTEON control with the sleek look of a modern, decorastyle outlet. Available in White, Ivory, Almond, Black, Brown and Gray.

OutletLinc

White

#

2473SWH

Almond

#

2473SAL

Brown

#

2473SBR

Light Almond

#

2473SLAL

Ivory

#

2473SIV

Black

#

2473SBK

Gray

#

2473SGY

TimerLinc

Manually Program On/Off Times for a Single or Group of INSTEON Devices

Two products in one: INSTEON 15amp ApplianceLinc plus INSTEON timer

Supports up to 14 ‘On’ and 14 ‘Off’ independent timers, providing maximum flexibility

Customizable: Choose which days of the week your timers run

See it in action online, search for TimerLinc at:

www.insteon.mx

This plug-in timer can set On and Off times for INSTEON controlled lights and appliances without the need for a computer. TimerLinc -

INSTEON Plug-In Timer is similar to ApplianceLinc as a full-featured plug-in on/off switch that can be remotely controlled by other

INSTEON devices. Additionally, it has a built-in timer that is packed with features such as 28 independent programs, daily, weekly and weekend settings, and a random timer variance for security.

TimerLinc

#2456S3T

Dual-Band LampLinc

Full-Featured Lamp Module

• Transmits and receives INSTEON commands via power line and RF

• Full local control (Dim/Bright, On/Off)

• Doubles as an Access Point

Until now lamp and appliance controllers only received INSTEON signals via the power line. Now with the dual-band LampLinc you not only receive

RF commands directly from any RF INSTEON device

(RemoteLinc, TriggerLinc, Motion Sensor) but the device doubles as an Access Point - relaying RF and power line signals to other devices.

This 2-pin module can control incandescent lighting up to 300 watts.

LampLinc Dimmer (Dual-Band)

#2457D2

Features at a glance

Dual-Band

Receives signals directly from RF devices and converts power line signals into RF — eliminating the need for an Access Point.

Full Local Control

On/Off and Dim/Bright directly at the module making programming ramp-rates or preset levels easier.

LED Indicator

Located at the top for easier viewing when programming or troubleshooting.

Slimmer Design

Lighter weight and smaller size, shift focus away from the modules and keeps the attention on your décor.

LampLinc (Dual-Band) in use

RemoteLinc

LampLinc

(Dual-Band)

How it Works

RemoteLinc sends RF commands directly to

LampLinc (dual-band) from a distance up to 150 feet. The

LampLinc also relays signals to other power line-only devices acting like an Access Point.

Like the New Design but

Don’t Need Dual-Band?

Now Available in Power Line Only.

LampLinc Dimmer

# 2457D2X

Outdoor ApplianceLinc

Remote Control of Outdoor Devices

• Controls outdoor lighting and appliances up to 15 Amps

• Reliable operation in temperatures from -4° F to 122° F (-20° C to 50° C)

• NEMA 3R tested for protection against falling rain and ice formation

This simple-to-use switch offers many of the same features as the original ApplianceLinc, allowing you to control all standard appliances like fans, fluorescent lights, and many other devices up to 15 amps and incandescent lights up to 1800 watts. This new model has the added benefit of being built into an outdoor rated housing, perfect for automated control over outdoor appliances such as fountain pumps and landscape or holiday lighting. No hardwiring or complicated installation is necessary, just plug it in, plug in the device you want to control and link it to an INSTEON switch, keypad or remote – then just sit back and enjoy the benefits of automated lighting.

“Works exactly as expected even in Alaska temperatures. I had it on this years exterior lights and it never failed to ‘turn on the magic’. ”

DAVE — AUKE BAY, AK

Outdoor ApplianceLinc

#2456S3E

CUSTOMER RATING

w

See more info online at:

www.insteon.mx

COMPARE CHART

Lamp & appliance controllers

Use this comparison chart to help you decide which lamp and appliance controller best fits your application. If the lamp you want to control is using incandescent or halogen bulbs you’ll want to take advantage of their ability to be dimmed thus saving energy and reducing your electric bill. If you use low power consuming bulbs such as CFL or LED light bulbs you’ll want one of the relay (on/off) controllers. For any appliance control (fan, space heater, etc) you’ll also want to select the relay versions.

Smart Tips

1. Hear buzzing sounds coming from an incandescent light bulb when using a dimmer? Try using a rough service bulb typically found at your local home improvement store.

2. If you decide to use a dimmer with dimmable CFLs remember that some of them typically dim in larger increments (not a smooth transition between levels).

3. If you are using LED lights that are very low wattage, you may notice that the LEDs do not turn off completely when plugged into a relay plugin controller. In this case, you’ll need to add to the load with more LEDs or higher wattage bulbs - generally higher than 5 watts.

DIMMERS

Description

Item #

Product Line

Dimming

Adjustable On Level

Ramp/Fade Rate

Maximum # of INSTEON Links

Plug-style

Pass-thru outlet

Color Options

Installation

Voltage

Fluorescent/Motors

Incandescent/Halogen

Load Capacity

Local Control

Load Sense

Built-in Timer

Dual-Band

(Transmits and receives radio frequency and power line signals.

Doubles as Access Point)

Warranty

LampLinc - Plug-In Lamp

Dimmer Module, 3-Pin

LampLinc Dimmer, 2-Pin LampLinc Dimmer (Dual-

Band), 2-Pin

2456D3 2457D2X 2457D2

Plug-in

120V AC

No

Yes

300W

No

Yes

No

No

LampLinc

Yes

Yes

Adjustable locally up to 9 sec.; remotely programmable up to 8 min.

417

3-pin

Yes

White

LampLinc

Yes

Yes

Adjustable locally up to 9 sec.; remotely programmable up to 8 min.

417

2-pin

No

White

LampLinc

Yes

Yes

Adjustable locally up to 9 sec.; remotely programmable up to

8 min.

417

2-pin

No

White

Plug-in

120V AC

No

Yes

300W

Yes

Yes

No

No

Plug-in

120V AC

No

Yes

300W

Yes

Yes

No

Yes

2 yr.

2 yr.

2 yr.

417

3-pin

Yes

White

Plug-in

120V AC

Yes

Yes

15A / 480W

Yes

Yes

No

No

ApplianceLinc -

Plug-in Appliance

On/Off Module,

3-Pin

2456S3

ApplianceLinc - Outdoor

On/Off Module, 3-Pin

2456S3E

OutletLinc - Remote

Control Outlet, 3-Pin

2473SWH

ApplianceLinc

No

N/A

N/A

ApplianceLinc

No

N/A

N/A

OutletLinc

No

N/A

N/A

417

3-pin

No

Black

Plug-in

120V AC

Yes

Yes

15A / 1800W

Yes

Yes

No

No

417

3-pin

Bottom outlet is always on

White, Ivory, Almond, Light

Almond, Black, Brown, Gray

Hardwired

Yes

Yes

No

No

120V AC

Yes

Yes

15A / 480W

2 yr.

2 yr.

2 yr.

TimerLinc - Plug-In Timer, 3-Pin

2456S3T

TimerLinc

No

N/A

N/A

417

3-pin

No

White

Plug-in

120V AC

Yes

Yes

15A / 480W

Yes

Yes

Yes

No

2 yr.

Description

Item #

Product Line

Dimming

Adjustable On Level

Ramp/Fade Rate

Maximum # of INSTEON Links

Plug-style

Pass-thru outlet

Color Options

Installation

Voltage

Fluorescent/Motors

Incandescent/Halogen

Load Capacity

Local Control

Load Sense

Built-in Timer

Dual-Band

(Transmits and receives radio frequency and power line signals.

Doubles as Access Point)

Warranty

LampLinc - Plug-In Lamp

Dimmer Module, 3-Pin

LampLinc Dimmer, 2-Pin LampLinc Dimmer (Dual-

Band), 2-Pin

2456D3 2457D2X 2457D2

Plug-in

120V AC

No

Yes

300W

No

Yes

No

No

LampLinc

Yes

Yes

Adjustable locally up to 9 sec.; remotely programmable up to 8 min.

417

3-pin

Yes

White

LampLinc

Yes

Yes

Adjustable locally up to 9 sec.; remotely programmable up to 8 min.

417

2-pin

No

White

LampLinc

Yes

Yes

Adjustable locally up to 9 sec.; remotely programmable up to

8 min.

417

2-pin

No

White

Plug-in

120V AC

No

Yes

300W

Yes

Yes

No

No

Plug-in

120V AC

No

Yes

300W

Yes

Yes

No

Yes

2 yr.

2 yr.

2 yr.

New

Create a Trigger Out of Any Plug-in Device with SynchroLinc

Imagine converting your every day electronics into automation triggers, turning a TV into a scene lighting trigger (TV on = dim the lights to 50% and close the drapes) or the simple act of turning off a desk lamp in your home office, automatically shuts down power to the printer, modem, router and other electronics. With

SynchroLinc it’s possible to do this and more. Just plug whatever you want to be your trigger into the outlet on the SynchroLinc and link it to other INSTEON responding devices. See page 28 for more info.

Need

help with

INSTEON?

INSTEON Dealer Support team is here to help. [email protected].mx

INSTEON:

01-800-837-00-37

Mon - Fri 9:30am - 6:00pm

RELAY [ON/OFF] TIMER

417

3-pin

Yes

White

Plug-in

120V AC

Yes

Yes

15A / 480W

Yes

Yes

No

No

ApplianceLinc -

Plug-in Appliance

On/Off Module,

3-Pin

2456S3

ApplianceLinc - Outdoor

On/Off Module, 3-Pin

2456S3E

OutletLinc - Remote

Control Outlet, 3-Pin

2473SWH

ApplianceLinc

No

N/A

N/A

ApplianceLinc

No

N/A

N/A

OutletLinc

No

N/A

N/A

417

3-pin

No

Black

Plug-in

120V AC

Yes

Yes

15A / 1800W

Yes

Yes

No

No

417

3-pin

Bottom outlet is always on

White, Ivory, Almond, Light

Almond, Black, Brown, Gray

Hardwired

Yes

Yes

No

No

120V AC

Yes

Yes

15A / 480W

2 yr.

2 yr.

2 yr.

TimerLinc - Plug-In Timer, 3-Pin

2456S3T

TimerLinc

No

N/A

N/A

417

3-pin

No

White

Plug-in

120V AC

Yes

Yes

15A / 480W

Yes

Yes

Yes

No

2 yr.

INSTEON PRODUCTS

Management software & native controller

HouseLinc 2

Management & Advanced Features

Features at a glance

Device pane

Controllers

Responders

Drag-N-Drop Method for Easy Link Creation &

Management

• Includes a dual-band power line interface for improved performance

• New and Improved Device Support: More features for more products

• Schedule lights to turn on and off at specific times and create lighting events

• Easily set up scenes for your entire INSTEON network from your PC

• E-mail feature allows you to setup alerts that go straight to your inbox

• Comes with HouseLinc 2 software plus INSTEON PowerLinc Modem

Houselinc 2 - INSTEON desktop software includes everything you’ll need to easily configure devices, create condition-based events, and most importantly manage your home automation network all from the comfort of your PC.

Link Management

Delete unused or unwanted links and create new links with an easy drag-and-drop method. Create whole-house lighting scenes in a fraction of the time it would take to do so manually.

Time-based Events

Set timer-based events, scheduling lights to turn on at dusk and off at bedtime on specific days, even triggering lights to turn on at the same time every day or randomized for security purposes.

Automatic Network Discovery

Synchronize your INSTEON network to find all of the devices in your home that are linked to one another.

Scene Device Setup & Events

Set ramp rates, preset on levels, and more for your scenes from your computer. Set up an event to e-mail when a device is activated such as a garage light is turned on or motion sensor is activated.

Tutorial video on how to setup and program

HouseLinc 2 at:

training Mexico level 2

HouseLinc 2 in use

HouseLinc 2 software

• Manage

• Automate

• Access advanced features

• Trigger events

HouseLinc 2 interface

INSTEON compatible devices

Operation requirements

• HouseLinc 2 Enabled Interface, included

• Windows 2000, XP, Vista, 7

• 15 MB of free disc space

• Minimum 128 MB or RAM

• Additional INSTEON devices to control

Please Note:

Your PC will need to remain on in order to execute timed commands and triggered events. HouseLinc 2 INSTEON Desktop

Software does not download to the interface.

HouseLinc 2 products

Item Number

2413UH

2413SH

2448A7H

Description

HouseLinc 2 - INSTEON Desktop Software with USB Interface (Dual-Band)

Houselinc 2 - INSTEON Desktop Software with Serial Interface (Dual-Band)

HouseLinc 2 - INSTEON Desktop Software with Portable USB Adapter

Interface

USB

Serial

USB

Band

RF & Power line

RF & Power line

RF

Native Controller

Native INSTEON interface allows faster communication and better status confirmation from responding INSTEON devices.

TouchLinc

Native INSTEON Wireless Touchscreen Controller

Easy Operations

Easier and more flexible room and device creation with customizable icons for quick and easy operations.

Rich Interface

An intuitive, richer, and more dynamic interface makes setting up and controlling your

INSTEON network a breeze.

Support

Frequent app updates add valuable new features to

TouchLinc.

Access and Control Your INSTEON Home from a Simple-to-Use Touchscreen

Control lights, temperature, appliances and more from the convenience of a handheld 7” color touchscreen. The TouchLinc sends and receives

INSTEON signal via the INSTEON USB Stick, and can access and control INSTEON devices throughout your home.

Can be tabletop or wall mounted with the included TouchLinc Stand/Wall-Mount with Stylus.

TouchLinc features

Better Controls

Give your devices easy to recognize graphics and control them with a simple toggle action

TouchLinc in use

USB Stick

Send/Receive INSTEON RF signal

Software Configurable

HouseLinc 2 software manages all devices including names, icons and more

Access Point

(or any dual-band device)

INSTEON

compatible devices

Fast, Direct Commands

Get up to 150’ range with the INSTEON USB stick for TouchLinc, transmitting commands directly.

Operation requirements

• HouseLinc 2 Enabled Interface

• INSTEON USB Stick for TouchLinc

• Additional INSTEON devices to control

TouchLinc Kit

#2490C5

(includes USB Stick & Stand)

TouchLinc Kit with HouseLinc 2

#2490C6

(includes USB Stick & Stand)

INSTEON PRODUCTS

Advanced controllers & mobile apps

ISY Series

Stand-Alone, Full Featured INSTEON Automation Controller

Can send SMS/e-mail notification

• Remotely Accessible from any Standard Web Browser

• Timer and Macro Functions are Stored in Internal Memory

• Does Not Require a PC to Operate

• Supports up to 1000+ devices and scene controls

• Optional infrared (IR) control

The ISY-99i Series of devices provide the most comprehensive and flexible control for programming and controlling switches and modules on your INSTEON network. Unlike other computer controllers for INSTEON, each ISY home automation controller is a standalone device and doesn’t require your computer to remain on. Use your ISY-99i to monitor and control all the INSTEON-compatible devices in your home from your computer using the included INSTEON Dual-Band PLM interface module or connect the included ethernet cable to your router and enjoy access from a web-browser anywhere in the world!

Kits include a Dual-Band Interface for increased reliability, faster linking and support for more advanced functionality found in newer INSTEON devices.

Dual-Band

Receives signals directly from RF devices and converts power line signals into RF — eliminating the need for an Access Point.

Apple iOS and Android apps are available for the

ISY. See next page or visit us online for more info:

smarthome.com/apps

ISY in use

Computers or web-enabled devices ISY

INSTEON & X10 compatible devices

1

Remotely access and control your devices from any web-enabled computer or devices

(requires router with Internet access)

2

ISY interface

(Dual-Band)

ISY is a standalone controller and doesn’t require the computer to remain on to trigger time-based events/scenes.

3

Access, manage and control INSTEONcompatible devices from your home

The ISY comes in four different styles (see chart below). IR series models allow you to program an infrared (IR) universal remote to control all your

INSTEON/X10 devices and scenes. PRO series models extend the capabilities of the ISY for large installations. Other features inherent to all lSY models include; setting up notifications to send status messages (via SMS, pagers or e-mail), compatibility with both Pocket PC and Microsoft Media Center, embedded with an intuitive GUI (graphical user interface) browser with no need for any software installation, scheduler equipped with Sunrise and Sunset times for most states/cities in the US, and a Floor Plan feature captures the physical locations of each INSTEON Device in your home.

Item

Number

12231DB

12232DB

12233DB

12234DB

Description

ISY-99i with Dual-Band PLM

ISY-99i/IR with Dual-Band PLM and IR Control

ISY-99i PRO with Dual-Band PLM

ISY-99i/IR PRO with Dual-Band PLM and IR Control

Maximum # of

Devices / Scenes

256

256

1024

1024

Maximum # of Programs

300

300

1000

1000

Infrared (IR)

Support

No

Yes

No

Yes

SmartLinc

Control Your Home from the Web

• Allows mobile web-enabled devices to remotely control INSTEON-compatible wall switches, lamp dimmers and more

• Stores and executes On and Off timers for your devices, all without a PC

• IP camera support allows for remote surveillance and camera control

• Offers sunrise and sunset timer support, device status feedback and thermostat support

Access and control lights, appliances and other devices in your home using a computer, iPod touch, iPhone, iPad or any other web-enabled device. This easy to setup controller puts your home in the palm of your hand. Find out if you’ve left lights on and turn them off all while away from home. You can also find out if you’ve left the garage door open and close it (requires additional hardware). In addition to direct control, you can also set timers for lights based on sunrise and sunset for your city and selected days of the week. No dedicated computer required.

SmartLinc

#2412N

iPhone not included

Apps

Applications to Control Your Home from Mobile Devices

iOS Android

Ever wish you could control a light with your Apple iOS or Android devices? How about adjusting the thermostat or checking a web cam and unlocking a door? The following apps let you to do all this and more. Each app featured below requires an interface which allows the iOS or Android device to communicate to INSTEON devices in your home. These devices include wall switches and dimmers, plug-in lamp and appliance controllers, thermostats and more.

Note: Prices and features subject to change without notice. Be sure to check iTunes or the

Android app store for the most up-to-date version features and pricing.

w

Check out video at:

www.insteon.mx

MobiLinc HD for iPad & MobiLinc for

Android shown

MobiLinc

Using Wi-Fi, 3G or EDGE communication,

MobiLinc supports control and real-time monitoring of up to 1024 INSTEON or X10 devices, 1024 scenes, and 1024 programs on your iOS or Android devices anywhere in the world. Control all of your lights, thermostats, devices, programs and irrigation system while on vacation or away from home, home automation from the palm of your hand has never been easier.

Easily sort devices by name or status for quick and easy access.

MobiLinc Pro works with SmartLinc and ISY central controllers.

Available through iTunes: MobiLinc Lite (1 device support)

MobiLinc Pro

Requires ISY-99i or SmartLinc

Free

Indigo Touch now includes native iPad support.

Indigo Touch

Indigo Touch is an iPhone, iPad, and iPod touch optimized application for remotely controlling lighting, appliances, HVAC, and sprinklers from anywhere. It will automatically connect to the required

Indigo v4.1+ home control software, installed in your home, to communicate with INSTEON compatible hardware. Now you can adjust your home’s thermostat, run the sprinkler, and turn off the lights from anywhere in the world!

Available through iTunes for free and requires Indigo 4.0 software

#1430D

and INSTEON PowerLinc Controller

#2414U

Apple iOS and the Apple logo are registered trademarks of Apple, Inc. Android logo is a registered trademark of Google, Inc.

INSTEON PRODUCTS

Thermostat & energy monitoring

INSTEON Controllable Thermostat

Get Control Over Your Most Expensive Appliance

• Save energy and money on bills by remotely controlling your thermostat

• Works with heat/cool and heat pump systems

• Perfect for anyone whose schedule varies throughout the week

Control the temperature from anywhere in the house! INSTEON Remote

Control Thermostat allows you to recall stored set point/mode settings from any INSTEON-compatible controller. Faster than grabbing a blanket, you can use your coffee table RemoteLinc to recall “comfort mode,” bringing a room to that perfect temperature. When turning off your lights for the night from your bedside KeypadLinc, you can also save energy and money by recalling “energysavings mode” which minimizes the activity of your HVAC system while you’re sleeping. Because you can program any button on an INSTEON controller to any temperature and mode on the thermostat, the possibilities are endless.

INSTEON Controllable Thermostat

1-Day Programmable

#2491T1

7-Day Programmable

#2491T7

Remote control options

Hand-Held Remote

see page 24

Mobile Devices

see page 33

Additional features

• Reports changes in temperature, temperature set points, mode, and fan mode

• Controller functionality on heat call, cool call, and fan call (auto & manual ON)

• Supports +1, -1 degree on incremental control via bright/dim commands

Thermostat energy savings

KeypadLinc

Software

see page 30

Wall Keypads

see page 20

How it Works

In this application the INSTEON thermostat receives either a Home or Away trigger from a KeypadLinc installed near your front door as you enter or leave each day. The signals are received via an Access Point or dual-band device which is required to take power line signals from the KeypadLinc and convert them into RF signals which are understood by the INSTEON thermostat.

Access Point

(or any dual-band device)

INSTEON Thermostat

iMeter Solo

Monitor Power Consumption of Plug-In Lamps and Appliances in Your Home

• Read power consumption on the Energy Display (#2448A2) or on your PC via the

HouseLinc 2 software (see page 30 for more information on HouseLinc 2)

• Use as many iMeter Solo’s as desired

NEW

Discover and graph energy consumption of appliances in your home on your PC using the iMeter

Solo. Simply plug an appliance (up to 15Amps) into iMeter and plug the iMeter into an outlet. You can then retrieve the data in the iMeter Solo from a tabletop Energy Display or any compatible

INSTEON computer controller such as HouseLinc 2 (page 20) or ISY-99i (page 22). Enter how much you pay for electricity (kWh) and you’ll be able to estimate the costs associated with using your appliances per month or year.

iMeter Solo

#2423A1

iMeter Solo in use with HouseLinc 2

iMeter Solo HouseLinc 2 Interface HouseLinc 2

1

Plug the device you want to monitor into the iMeter Solo. Plug into wall outlet.

2

Link iMeter Solo to HouseLinc 2 and set your electricity cost.

3

View appliance energy costs on your PC.

Displays power consumption as well as average costs.

Energy Display

NEW

Monitor Power Consumption of Up to Three iMeter Solo’s

• Displays energy information from up to three iMeter Solo’s (current watts used as well as cost and energy consumption per month for each device)

• Built-in thermometer displays current temperature

Keep track of energy consumption of appliances no matter where you are in the home with the portable Energy Display. Link up to three iMeter Solo energy meters to the Energy Display (requires at least one Access Point or dual-band INSTEON device) and see current power use, average energy use per month, and average cost per month based on your monthly billing rate. Also includes a built in thermometer for displaying the room temperature.

INSTEON Energy Display

#2448A2

INSTEON PRODUCTS

Doorlock & low voltage control

MorningLinc

Use INSTEON Controllers to Lock or Unlock Your Door

Add access control to your INSTEON network by using the MorningLinc - INSTEON Morning Industry RF Doorknob/Deadbolt Controller. Replace your standard deadbolts and/or doorlocks with Morning Industry RF deadbolts and/or doorlocks (sold separately) and use MorningLinc to lock or unlock your door from any INSTEON controller. Using INSTEON automation, you can remotely unlock doors from other areas of your property using a keypad or remote control (each sold separately). Combine this with a SmartLinc or iGateway and you can lock and unlock a Morning Industry’s deadbolt or doorlock via a web browser from anywhere in the world.

MorningLinc - RF Doorknob/Deadbolt Controller

#2458A1

Compatible MorningLinc locks

These door lock solutions receive lock/unlock commands from the MorningLinc (or included RF Keyfob). They are available in knob or dead bolt styles and in a variety of finishes. Also available with a keypad for more flexibility. Each kit runs on 4 AA batteries (sold separately).

RF Door Knob

Model

51891

(shown)

Finish

Brass

51891N Satin

Each of these compatible Morning

Industry locks include an RF keyfob and standard keys, giving you a multitude of lock control options.

Model

51890

(shown)

51890N

RF Dead Bolt

Finish

Brass

Satin

RF + Keypad Door Knob

Model

51893B

51893AB

(shown)

51893SN

51893OB

Finish

Brass

Antique

Brass

Satin

Oil

Rubbed

Bronze

RF + Keypad Dead Bolt

Model

51892B

51892AB

(shown)

51892SN

51892OB

Finish

Brass

Antique

Brass

Satin

Nickel

Oil

Rubbed

Bronze

Important note

The MorningLinc converts INSTEON commands to Morning Industry’s RF commands. Since this RF is one-way, an INSTEON system cannot confirm whether the lock has received the RF command or not. Please exercise your best judgment when remotely controlling or automating door locks.

I/O Linc

Create INSTEON Control for Any Low Voltage Device

• Monitor and control pool valves, electric door strikes, garage doors and more using your INSTEON network

• 4 output relay modes allow you to control many different types of devices

• Control INSTEON lights and appliances using standard sensors

• Contains 1 sensor input and 1 output relay (NO/NC)

Expand your INSTEON Network to monitor and control low voltage and contact closure devices. This amazing plug-in device gives you the power to create custom monitoring and control applications.

I/O Linc - Low Voltage/Contact Closure Interface

I/O Linc

#2450

Available in stock

Popular application

KeypadLinc inside the house lets you know if your garage door is left open. Press the button to close garage door. I/O Linc triggers the motor and when the door closes, the I/O Linc sends a status of “Closed” to the

Keypad button.

Caution: You should only remotely close a garage door when you can be sure it is safe, either by watching it directly or through a camera. Use of safety beam devices can further increase the safety of remote garage door control and are usually required by law.

I/O Linc - INSTEON Garage Door Control & Status Kit

#74551

| KeypadLinc Dimmer

#2486DWH6

We also recommend using a SmartLinc with your iPhone and web camera so that you can view and control your garage away from home.

Other I/O Linc kits More I/O options

Enhances your INSTEON network by generating a chime to alert you that there is something happening in or around your home, such as a door being opened

Remote Chime Alert Kit

#50810

Add access notification to your home using an invisible photobeam and an

INSTEON I/O Linc to trigger lights or appliances when a visitor arrives at or enters your property.

Indoor/Outdoor Photobeam Entry Alert

Kit

#70414

Eight I/O Relay Controller 8-Zone Sprinkler Controller w

See all SimpleHomeNet products online at:

www.insteon.mx

INSTEON PRODUCTS

A/V, high-voltage and in-line controllers

IRLinc Transmitter

Include A/V into Your INSTEON Home Control System

IRLinc - INSTEON IR Transmitter allows you to turn any KeypadLinc,

RemoteLinc or SmartLinc into a remote that will integrate INSTEON controlled lights and devices with your whole-home music system, home theater, or even your IR-controllable blinds or drapes. For example you can set up

KeypadLinc buttons for play, stop, volume up, volume down, previous track, next track, change source and power to control your whole-home music system.

IRLinc Transmitter - INSTEON to IR Converter

#2411T

INSTEON to IR

IRLinc Receiver

IRLinc INSTEON IR Receiver allows you to control your lights from the comfort of your couch. Use the included remote or your own universal remote and set up an extra function button to a compatible IR code and you’re ready to go! Set up “Movie Scene” to dim your sconces and turn off the kitchen light while settling in for a Friday night flick. Need more popcorn? Press the intermission button to brighten the sconces and turn on the kitchen light: No more fumbling around for light switches in the dark.

IRLinc Receiver - IR to INSTEON Converter

#2411R

IR to INSTEON

SynchroLinc

Trigger Lights and Appliances Based on a Load State

NEW

• Have the TV automatically set the room lights when turned on or off

• Can be used to provide advanced on/off status for conditional automation logic

• Create a notification if a critical appliance fails

Imagine converting your everyday electronics into automation triggers, turning a TV into a scene lighting trigger (TV on = dim the lights to 50% and close the drapes) or the simple act of turning off a desk lamp in your home office, automatically shuts down power to the printer, modem, router and other electronics. With SynchroLinc it’s possible to do this and more. Just plug whatever you want to be your trigger into the outlet on the SynchroLinc and link it to other INSTEON responding devices.

SynchroLinc - Power Synching INSTEON Controller

#2423A5

Need

help with

INSTEON?

Create a trigger out of any plug-in electronic device

Give us a call, our INSTEON Dealers Support team near you

INSTEON DEALERS:

Mexico 01800-837-00-37

Mon - Fri 9:30am - 6:00pm

INSTEON 220V/240V Load Controller

Heavy-Duty Appliance Control

• Remotely control 220V / 240V devices via INSTEON

• Economically priced solution for controlling heavy-duty appliances up to 30 AMPs

• Dual-band device acts as Access Point for INSTEON RF only products

• Acts as an active phase repeater for INSTEON signals

Take a step towards saving energy and cutting down on utility costs with the INSTEON

220V / 240V 30 AMP Load Controller which allows you to efficiently control the use of heavy duty appliances. You can remotely turn on/off appliances, such as a hot water heater, that run on higher voltage, up to 30 Amps.

Two versions available:

Normally Closed

If the device fails, it will fail closed and the Load will stay ON. It can detect when the load “asks” for power and light up the Load Active LED as well as send a command to another INSTEON device.

This does not mean that the Load is ON.

Normally Open

If the device fails, it will fail open and the Load will stay OFF.

Includes long wire leads for easy installation

INSTEON 220V/240V 30 AMP Load Controller

Normally Closed

#2477SA2

Normally Open

#2477SA1

In-LineLinc

Wires In-line Lighting Circuits Without Wall Switches

Use these convenient little modules for automating lighting circuits without wall switches. Perfect for reducing large gangs of switches. Best when used in conjunction with a KeypadLinc.

• Wires in-line for lighting circuits without wall switches (e.g. recessed kitchen lights)

• Control individual lights remotely, turning them on and off and adjusting brightness levels

This dimmer can be installed within a junction box or in a ceiling fixture allowing you remote control over lights that may not have a direct connection to a wall switch. This allows you to pair this device with any number of INSTEON remote controllers.

The dimmer can control incandescent bulbs and low-voltage halogen (e.g. track) up to 400 watts.

If you need to control a fluorescent light fixture, ceiling fan or any hardwired appliance, try the

In-LineLinc Switch. Rated at 15 Amps.

In-LineLinc

In-LineLinc Dimmer

#2475D

In-LineLinc Switch (non-dimming)

#2475S2

Optional yellow

“Sense” wire for custom applications

Dimmer

Switch

(on/off)

Medellin 79, Col. Roma. Mexico City, 06760

Want to know

more about

INSTEON?

Visit us online to find more.

www.insteon.mx

INSTEON: LOCATE A DEALER NEAR YOU.

Need INSTEON Help?

Ivan and his team are here to answer all your INSTEON-related questions. Whether you’re interested in saving electricity or making your life more convenient, Ivan’s team has the answers for you. Our exclusive

INSTEON Support team is ready to help with all your pre and post purchase INSTEON questions.

INSTEON DEALERS: Mexico 01800-837-00-37

Mon - Fri 9:30am - 6:00pm

Ivan, INSTEON Engineer

Supervisor

A dealer near you. for assistance, call 01800- 837-00-37

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
