FEATURES
SPECIFICATIONS
Long Recording Time of 4.5 Hours
Via its simple i.LINK®*1 connection, the HVR-DR60 Hard Disk
Recording Unit can record HDV 1080i streams from a compatible
HDV camcorder or DVCAM/DV streams from a compatible
DVCAM camcorder. The internal 1.8-inch hard disk drive (HDD)
offers a large capacity of 60 GB, which translates into a long 4.5
hours (270 minutes) recording time for both formats.
HDV 1080i streams are recorded as native HDV files (.m2t)*2,
2
while DVCAM/DV streams are recorded as DV-AVI (Type1)* or
RAW-DV*2 files.
HDV
HDV 1080i stream
Hard disk drive
Recording capacity
Disk size
File system
Interface
i.LINK
File format
HDV
DVCAM/DV SP
Built-in output device
LCD monitor
OS compatibility
OS
Hybrid Operation
for Reliable Recording and Archiving
The HVR-DR60 offers a hybrid recording function, in which
video and audio material along with its time code is recorded
simultaneously to the hard disk and camcorder tape,
limiting the possibility that important shots could get lost or
accidentally deleted. This hybrid function also facilitates
instant archiving of source footage – which in many cases
does not allow for retakes. After a shoot, operators can
immediately archive the source tape and use the HVR-DR60
material as work footage. This saves the time and effort
required to copy the source footage to a separate
high-capacity medium.
General
Weight
Power requirements
Power consumption
Operating temperature
Storage temperature
Supplied accessories
®
60 GB*
1.8 inches
FAT32
IEEE 1394a, 6-pin connector
MPEG-2-TS (.m2t)
AVI-Type1 (.AVI), RAW-DV (.DV)
23.02 x 11.5 mm (picture size), 128 x 64 dots
Windows® 2000 Professional (Service Pack 4), Windows XP Home Edition (Service Pack 2),
Windows XP Professional (Service Pack 2), Mac® OS X (v10.3)
8 oz (230 g)
DC 7.2 V (battery pack), DC 8.4 V (AC adaptor)
2.7 W (in recording mode with LCD monitor on)
32 to 104 °F (0 to 40 °C)
-4 to 140 °F (-20 to +60 °C)
i.LINK cable (6-pin to 4-pin, 80 cm)
Shoe adaptor
Operating instructions
*In this specification, 1GB indicates 1 billion bytes. A portion of the recording capacity is used for data management.
M2T
file
Format
4
Feed
movie files
i.LINK
2
HDV 1080i Camcorder
NLE
PC
3
•HD/SD Tape
•HD/SD Optical Disc
•HD/SD Movie File
DIMENSIONS
HVR-DR60
3 1/4(81)
DVCAM
1 3/4(45)
3 1/8(78.4)
HVR-V1U
DVCAM Camcorder
i.LINK
HDV Files Stored on the HVR-DR60 Displayed
on a PC Monitor
5
Tape
Simultaneous recording
2 Feed movie files
4 Format HVR-DR60 for next shoot
5 Archive recorded tape for repurposing
4(100)
DV stream
DV-AVI/
RAW-DV
file
•Archiving
•Repurposing
3 Edit the files
Direct File Access from a Computer
When connected to a computer via an i.LINK connection,
the HVR-DR60 is recognized by the computer as a standard
Unit: inches (mm)
external drive, and its recorded footage can be accessed
*1 i.LINK is a trademark of Sony used only to designate that a product
contains an IEEE 1394 connector. Not all products with an i.LINK
connector will necessarily communicate with each other. For
information on compatibility, operating conditions, and proper
connection, please refer to the documentation supplied with any
device with an i.LINK connector. For information on devices that
include an i.LINK connection, please contact your nearest Sony office.
directly like any normal video file. This saves the time
previously required for digitizing material from the tape to the
computer. Furthermore, video files stored on the HVR-DR60
can be transferred to a computer running compatible
nonlinear editing software at a high speed of approximately
80 Mb/s (around three times faster than real time), which
drastically reduces the time needed to copy source material
to the editor’s local drive. These features allow operators to
focus on more creative and productive editing tasks.
HVR-DR60
*2 During playback, interruptions in video may appear between
recordings. These interruptions do not occur after the recordings are
copied to an i.LINK compatible nonlinear editor system via the i.LINK
connection, and the recordings can be correctly edited. For
information on compatible nonlinear editors, please contact your
nearest Sony office or authorized dealer.
Hard Disk Recording Unit
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
www.sony.com/HDV
3
V-2357
MK10374V1
© 2006 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
Sony, DVCAM, i.LINK, and InfoLITHIUM are trademarks of Sony.
HDD HARD DISK DRIVE logo is a trademark of Sony Corporation.
HDV and the HDV logo are trademarks of Sony Corporation and
Victor Company of Japan, Limited.
Printed in U.S.A. 3/07
www.sony.com/HDV
FEATURES
Versatile Recording Modes
VTR-like Controls
User-free Area
The HVR-DR60 can be used with HDV and DVCAM camcorders
that are equipped with an i.LINK connector. Three recording
modes can be selected to support various camcorder models
and operational needs.
The HVR-DR60 is equipped with buttons that provide VTR-like
control for functions such as record, play, stop, next, previous, fast
forward (approximately three times normal speed), and fast
rewind (approximately three times normal speed). Using these
buttons, the unit can output HDV/DVCAM/DV streams with
time code via the i.LINK connector.
The HVR-DR60 has a user-free area of approximately 1 GB in
the hard disk, where common data files such as still images
and project files of nonlinear editing systems can be stored.
SYNCHRO mode
When using camcorders that support external rec control,
such as the HVR-V1U, HVR-Z1U, DSR-450WS, DSR-400 and
DSR-250, recording to the HVR-DR60 is directly controlled by
the press of the camcorder’s rec start button.*3
*3 In this mode, a rec start delay of approximately 0.5 seconds may
occur after the camcorder rec start button is pressed.
FOLLOW mode
Revolutionizing HDV and DV Productions
– Streamlining Your Workflow from Acquisition,
to Editing, to Material Archiving
Sony HVR-DR60 Hard Disk Recording Unit offers stunning innovations for all aspects of the
production process – from acquisition to editing, and onto material archiving.
Three advanced technologies are used in the HVR-DR60 to
provide reliable recording performance:
Using the control buttons of the HVR-DR60, stored footage can
be instantly accessed and previewed on the LCD monitor of
the connected camcorder for a quick review of recordings.
this status.*4
*4 In this mode, a rec start delay of up to 2 seconds may occur after
Additional Features When Used with
the HVR-V1U HDV Camcorder
the camcorder rec start button is pressed.
When used with the HVR-V1U camcorder, the HVR-DR60
offers additional unique convenient features.
The HVR-DR60 can disregard the rec trigger or recording
status of the camcorder and allow recording to be started
and stopped using it’s own control buttons. This allows
control of the HVR-DR60 independent of camcorder
operations.*5
*5 In HDV mode, interruptions in time code and video may appear in
the recording when the camcorder rec control buttons are pressed.
Extremely compact and lightweight, the HVR-DR60 can be mounted on a camcorder,
HDD Smart
Protection
The HVR-DR60 offers a repeat playback function that allows
for one desired clip or all clips to be repeated and transferred
via the i.LINK connector to an i.LINK compatible device.
3G
Sensor
The benefits of integrating the HVR-DR60 with a tape-based camcorder are limitless.
After a shoot, you can simply connect the unit to a compatible nonlinear editor and edit
your footage instantly. The HVR-DR60 offers direct access to recordings, which makes the
time-consuming digitizing process a thing of the past.
And for peace of mind in the field, the HVR-DR60 not only secures your footage by acting
as a backup recording device, but also extends recording time to 4.5 hours, allowing long
HVR-V1U
DSR-450WS
DSR-400
DSR-570WS
DSR-390
HVR-Z1U
DSR-250
HVR-A1U
DSR-PD170
DSR-PD150
DSR-PDX10
SYNCHRO
mode
FOLLOW
mode
Independent
Recording
●*
●*
●*
●*
●*
●
●
●
●
●
●
●
●
●
●
●
●
●
●*
●*
●*
●*
●*
●*
●*
●*
●*
●*
●*
—
—
—
—
HDV
DVCAM
DV
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
—
—
—
—
●
—
●
—
—
—
—
—
●
●
●
●
●
●
*Recordable without a tape
events to be recorded continuously without any cumbersome tape exchanges.
And finally, by using the HVR-DR60 as your edit source feed, you can immediately archive
Cache Recording
the footage recorded on tape. This provides a safe copy of your all-important source
The HVR-DR60 offers a cache recording function, in which up
to 14 seconds of video and audio are continuously buffered
in the memory. This helps prevent the loss of important
footage, and eliminates the time and effort usually required to dub work tapes.
Combine the HVR-DR60 with your HDVTM or DVCAMTM camcorder for a true taste of
workflow innovation.
scenes or events that occur 14 seconds before the rec start
button is pressed*6, as that footage is automatically recorded
to the hard disk.
Buffer
Memory
The HVR-DR60 measures just 3 1/4 x 1 3/4 x 4 inches
(81 x 45 x 100 mm) in size and only about 8 oz (230 g) in
weight. It can be mounted on a camcorder’s cold shoe
using the supplied shoe adapter, or attached using an
optional VCT-1BP Bracket.
1) Rubber shock absorbers hold the
HDD unit in place, helping to prevent
external shock from being transmitted
when the HVR-DR60 chassis is
subject to impact.
Shock Absorbers
Checking the Operational Status on the HVR-V1U
On the LCD monitor and viewfinder of the HVR-V1U, the
operational status of the HVR-DR60 such as connection,
recording format, battery level, remaining recording time,
recording folder name, etc. can be checked. This keeps
operators informed of both the camcorder and hard drive
status, without taking their eyes away from what is being shot.
2) A 3G sensor detects gravitational acceleration in three
dimensions, so however the HVR-DR60 may be oriented, the
sensor can detect if it has been dropped. Should this occur,
power to the HDD is shut off and the recording heads are
Supported Camcorder Models
thereby converting it to a ‘hybrid’ recording system consisting of both hard disk and tape.
The HVR-DR60 uses the same infoLITHIUM® L Series batteries
as the HVR-V1U, HVR-Z1U, and DSR-PD170 camcorders.
With the smallest capacity NP-F570 battery, the HVR-DR60
can run continuously up to 5.5 hours (330 min), and with the
largest capacity NP-F970, this increases up to 18 hours
(1080 min). Long operating hours are offered using the
same camcorder batteries HDV operators already have at
hand.
Compact and Lightweight
Shock
Absorber
Repeat Playback
When using camcorders that do not support external rec
control, such as the HVR-A1U and DSR-PD170, the FOLLOW
mode can be used to start and stop recording of the
HVR-DR60. In this mode, the HVR-DR60 periodically checks
whether the camcorder is in rec mode or not, and follows
Independent Recording
Speed, reliability, operability, and versatility are key concerns in any video production. The
Quick Review of Recordings
HDD Smart Protection
– Robust Recording and Shock Resistance
Long Operating Hours Using Common
Camcorder Batteries
3G sensor
HVR-DR60 Status Check
Tapeless Recording
To trigger recording of the HVR-DR60, most HDV camcorders
require a tape to be loaded. However, this is not the case
when using it with the HVR-V1U. The HVR-V1U sends the
same rec start/stop trigger that controls its tape transport to
the HVR-DR60. This feature offers operators the choice of
tapeless operation or hybrid operation.
retracted from the disk platter,
pausing read/write operations.
This helps protect the HDD from being
damaged when the unit is accidentally
dropped and
subject to
strong impact.
3) A buffer memory can store
approximately 14 seconds of video
and audio footage. Recordings are
made by first writing the data to the
buffer, and then writing the buffer
data to the disk platter. Consequently,
if the 3G sensor temporarily interrupts
disk writes, video footage is not lost.
Thanks to such advanced technologies,
the HVR-DR60 should continue to record
stably even when dropped from as high as
39 3/8 inches (100 cm) (based on Sony's testing).
*6 In HDV mode, approximately 0.5 seconds of the video captured
before and after the camcorder rec start button is pressed may be lost.
2
4
5
FEATURES
Versatile Recording Modes
VTR-like Controls
User-free Area
The HVR-DR60 can be used with HDV and DVCAM camcorders
that are equipped with an i.LINK connector. Three recording
modes can be selected to support various camcorder models
and operational needs.
The HVR-DR60 is equipped with buttons that provide VTR-like
control for functions such as record, play, stop, next, previous, fast
forward (approximately three times normal speed), and fast
rewind (approximately three times normal speed). Using these
buttons, the unit can output HDV/DVCAM/DV streams with
time code via the i.LINK connector.
The HVR-DR60 has a user-free area of approximately 1 GB in
the hard disk, where common data files such as still images
and project files of nonlinear editing systems can be stored.
SYNCHRO mode
When using camcorders that support external rec control,
such as the HVR-V1U, HVR-Z1U, DSR-450WS, DSR-400 and
DSR-250, recording to the HVR-DR60 is directly controlled by
the press of the camcorder’s rec start button.*3
*3 In this mode, a rec start delay of approximately 0.5 seconds may
occur after the camcorder rec start button is pressed.
FOLLOW mode
Revolutionizing HDV and DV Productions
– Streamlining Your Workflow from Acquisition,
to Editing, to Material Archiving
Sony HVR-DR60 Hard Disk Recording Unit offers stunning innovations for all aspects of the
production process – from acquisition to editing, and onto material archiving.
Three advanced technologies are used in the HVR-DR60 to
provide reliable recording performance:
Using the control buttons of the HVR-DR60, stored footage can
be instantly accessed and previewed on the LCD monitor of
the connected camcorder for a quick review of recordings.
this status.*4
*4 In this mode, a rec start delay of up to 2 seconds may occur after
Additional Features When Used with
the HVR-V1U HDV Camcorder
the camcorder rec start button is pressed.
When used with the HVR-V1U camcorder, the HVR-DR60
offers additional unique convenient features.
The HVR-DR60 can disregard the rec trigger or recording
status of the camcorder and allow recording to be started
and stopped using it’s own control buttons. This allows
control of the HVR-DR60 independent of camcorder
operations.*5
*5 In HDV mode, interruptions in time code and video may appear in
the recording when the camcorder rec control buttons are pressed.
Extremely compact and lightweight, the HVR-DR60 can be mounted on a camcorder,
HDD Smart
Protection
The HVR-DR60 offers a repeat playback function that allows
for one desired clip or all clips to be repeated and transferred
via the i.LINK connector to an i.LINK compatible device.
3G
Sensor
The benefits of integrating the HVR-DR60 with a tape-based camcorder are limitless.
After a shoot, you can simply connect the unit to a compatible nonlinear editor and edit
your footage instantly. The HVR-DR60 offers direct access to recordings, which makes the
time-consuming digitizing process a thing of the past.
And for peace of mind in the field, the HVR-DR60 not only secures your footage by acting
as a backup recording device, but also extends recording time to 4.5 hours, allowing long
HVR-V1U
DSR-450WS
DSR-400
DSR-570WS
DSR-390
HVR-Z1U
DSR-250
HVR-A1U
DSR-PD170
DSR-PD150
DSR-PDX10
SYNCHRO
mode
FOLLOW
mode
Independent
Recording
●*
●*
●*
●*
●*
●
●
●
●
●
●
●
●
●
●
●
●
●
●*
●*
●*
●*
●*
●*
●*
●*
●*
●*
●*
—
—
—
—
HDV
DVCAM
DV
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
—
—
—
—
●
—
●
—
—
—
—
—
●
●
●
●
●
●
*Recordable without a tape
events to be recorded continuously without any cumbersome tape exchanges.
And finally, by using the HVR-DR60 as your edit source feed, you can immediately archive
Cache Recording
the footage recorded on tape. This provides a safe copy of your all-important source
The HVR-DR60 offers a cache recording function, in which up
to 14 seconds of video and audio are continuously buffered
in the memory. This helps prevent the loss of important
footage, and eliminates the time and effort usually required to dub work tapes.
Combine the HVR-DR60 with your HDVTM or DVCAMTM camcorder for a true taste of
workflow innovation.
scenes or events that occur 14 seconds before the rec start
button is pressed*6, as that footage is automatically recorded
to the hard disk.
Buffer
Memory
The HVR-DR60 measures just 3 1/4 x 1 3/4 x 4 inches
(81 x 45 x 100 mm) in size and only about 8 oz (230 g) in
weight. It can be mounted on a camcorder’s cold shoe
using the supplied shoe adapter, or attached using an
optional VCT-1BP Bracket.
1) Rubber shock absorbers hold the
HDD unit in place, helping to prevent
external shock from being transmitted
when the HVR-DR60 chassis is
subject to impact.
Shock Absorbers
Checking the Operational Status on the HVR-V1U
On the LCD monitor and viewfinder of the HVR-V1U, the
operational status of the HVR-DR60 such as connection,
recording format, battery level, remaining recording time,
recording folder name, etc. can be checked. This keeps
operators informed of both the camcorder and hard drive
status, without taking their eyes away from what is being shot.
2) A 3G sensor detects gravitational acceleration in three
dimensions, so however the HVR-DR60 may be oriented, the
sensor can detect if it has been dropped. Should this occur,
power to the HDD is shut off and the recording heads are
Supported Camcorder Models
thereby converting it to a ‘hybrid’ recording system consisting of both hard disk and tape.
The HVR-DR60 uses the same infoLITHIUM® L Series batteries
as the HVR-V1U, HVR-Z1U, and DSR-PD170 camcorders.
With the smallest capacity NP-F570 battery, the HVR-DR60
can run continuously up to 5.5 hours (330 min), and with the
largest capacity NP-F970, this increases up to 18 hours
(1080 min). Long operating hours are offered using the
same camcorder batteries HDV operators already have at
hand.
Compact and Lightweight
Shock
Absorber
Repeat Playback
When using camcorders that do not support external rec
control, such as the HVR-A1U and DSR-PD170, the FOLLOW
mode can be used to start and stop recording of the
HVR-DR60. In this mode, the HVR-DR60 periodically checks
whether the camcorder is in rec mode or not, and follows
Independent Recording
Speed, reliability, operability, and versatility are key concerns in any video production. The
Quick Review of Recordings
HDD Smart Protection
– Robust Recording and Shock Resistance
Long Operating Hours Using Common
Camcorder Batteries
3G sensor
HVR-DR60 Status Check
Tapeless Recording
To trigger recording of the HVR-DR60, most HDV camcorders
require a tape to be loaded. However, this is not the case
when using it with the HVR-V1U. The HVR-V1U sends the
same rec start/stop trigger that controls its tape transport to
the HVR-DR60. This feature offers operators the choice of
tapeless operation or hybrid operation.
retracted from the disk platter,
pausing read/write operations.
This helps protect the HDD from being
damaged when the unit is accidentally
dropped and
subject to
strong impact.
3) A buffer memory can store
approximately 14 seconds of video
and audio footage. Recordings are
made by first writing the data to the
buffer, and then writing the buffer
data to the disk platter. Consequently,
if the 3G sensor temporarily interrupts
disk writes, video footage is not lost.
Thanks to such advanced technologies,
the HVR-DR60 should continue to record
stably even when dropped from as high as
39 3/8 inches (100 cm) (based on Sony's testing).
*6 In HDV mode, approximately 0.5 seconds of the video captured
before and after the camcorder rec start button is pressed may be lost.
2
4
5
FEATURES
Versatile Recording Modes
VTR-like Controls
User-free Area
The HVR-DR60 can be used with HDV and DVCAM camcorders
that are equipped with an i.LINK connector. Three recording
modes can be selected to support various camcorder models
and operational needs.
The HVR-DR60 is equipped with buttons that provide VTR-like
control for functions such as record, play, stop, next, previous, fast
forward (approximately three times normal speed), and fast
rewind (approximately three times normal speed). Using these
buttons, the unit can output HDV/DVCAM/DV streams with
time code via the i.LINK connector.
The HVR-DR60 has a user-free area of approximately 1 GB in
the hard disk, where common data files such as still images
and project files of nonlinear editing systems can be stored.
SYNCHRO mode
When using camcorders that support external rec control,
such as the HVR-V1U, HVR-Z1U, DSR-450WS, DSR-400 and
DSR-250, recording to the HVR-DR60 is directly controlled by
the press of the camcorder’s rec start button.*3
*3 In this mode, a rec start delay of approximately 0.5 seconds may
occur after the camcorder rec start button is pressed.
FOLLOW mode
Revolutionizing HDV and DV Productions
– Streamlining Your Workflow from Acquisition,
to Editing, to Material Archiving
Sony HVR-DR60 Hard Disk Recording Unit offers stunning innovations for all aspects of the
production process – from acquisition to editing, and onto material archiving.
Three advanced technologies are used in the HVR-DR60 to
provide reliable recording performance:
Using the control buttons of the HVR-DR60, stored footage can
be instantly accessed and previewed on the LCD monitor of
the connected camcorder for a quick review of recordings.
this status.*4
*4 In this mode, a rec start delay of up to 2 seconds may occur after
Additional Features When Used with
the HVR-V1U HDV Camcorder
the camcorder rec start button is pressed.
When used with the HVR-V1U camcorder, the HVR-DR60
offers additional unique convenient features.
The HVR-DR60 can disregard the rec trigger or recording
status of the camcorder and allow recording to be started
and stopped using it’s own control buttons. This allows
control of the HVR-DR60 independent of camcorder
operations.*5
*5 In HDV mode, interruptions in time code and video may appear in
the recording when the camcorder rec control buttons are pressed.
Extremely compact and lightweight, the HVR-DR60 can be mounted on a camcorder,
HDD Smart
Protection
The HVR-DR60 offers a repeat playback function that allows
for one desired clip or all clips to be repeated and transferred
via the i.LINK connector to an i.LINK compatible device.
3G
Sensor
The benefits of integrating the HVR-DR60 with a tape-based camcorder are limitless.
After a shoot, you can simply connect the unit to a compatible nonlinear editor and edit
your footage instantly. The HVR-DR60 offers direct access to recordings, which makes the
time-consuming digitizing process a thing of the past.
And for peace of mind in the field, the HVR-DR60 not only secures your footage by acting
as a backup recording device, but also extends recording time to 4.5 hours, allowing long
HVR-V1U
DSR-450WS
DSR-400
DSR-570WS
DSR-390
HVR-Z1U
DSR-250
HVR-A1U
DSR-PD170
DSR-PD150
DSR-PDX10
SYNCHRO
mode
FOLLOW
mode
Independent
Recording
●*
●*
●*
●*
●*
●
●
●
●
●
●
●
●
●
●
●
●
●
●*
●*
●*
●*
●*
●*
●*
●*
●*
●*
●*
—
—
—
—
HDV
DVCAM
DV
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
—
—
—
—
●
—
●
—
—
—
—
—
●
●
●
●
●
●
*Recordable without a tape
events to be recorded continuously without any cumbersome tape exchanges.
And finally, by using the HVR-DR60 as your edit source feed, you can immediately archive
Cache Recording
the footage recorded on tape. This provides a safe copy of your all-important source
The HVR-DR60 offers a cache recording function, in which up
to 14 seconds of video and audio are continuously buffered
in the memory. This helps prevent the loss of important
footage, and eliminates the time and effort usually required to dub work tapes.
Combine the HVR-DR60 with your HDVTM or DVCAMTM camcorder for a true taste of
workflow innovation.
scenes or events that occur 14 seconds before the rec start
button is pressed*6, as that footage is automatically recorded
to the hard disk.
Buffer
Memory
The HVR-DR60 measures just 3 1/4 x 1 3/4 x 4 inches
(81 x 45 x 100 mm) in size and only about 8 oz (230 g) in
weight. It can be mounted on a camcorder’s cold shoe
using the supplied shoe adapter, or attached using an
optional VCT-1BP Bracket.
1) Rubber shock absorbers hold the
HDD unit in place, helping to prevent
external shock from being transmitted
when the HVR-DR60 chassis is
subject to impact.
Shock Absorbers
Checking the Operational Status on the HVR-V1U
On the LCD monitor and viewfinder of the HVR-V1U, the
operational status of the HVR-DR60 such as connection,
recording format, battery level, remaining recording time,
recording folder name, etc. can be checked. This keeps
operators informed of both the camcorder and hard drive
status, without taking their eyes away from what is being shot.
2) A 3G sensor detects gravitational acceleration in three
dimensions, so however the HVR-DR60 may be oriented, the
sensor can detect if it has been dropped. Should this occur,
power to the HDD is shut off and the recording heads are
Supported Camcorder Models
thereby converting it to a ‘hybrid’ recording system consisting of both hard disk and tape.
The HVR-DR60 uses the same infoLITHIUM® L Series batteries
as the HVR-V1U, HVR-Z1U, and DSR-PD170 camcorders.
With the smallest capacity NP-F570 battery, the HVR-DR60
can run continuously up to 5.5 hours (330 min), and with the
largest capacity NP-F970, this increases up to 18 hours
(1080 min). Long operating hours are offered using the
same camcorder batteries HDV operators already have at
hand.
Compact and Lightweight
Shock
Absorber
Repeat Playback
When using camcorders that do not support external rec
control, such as the HVR-A1U and DSR-PD170, the FOLLOW
mode can be used to start and stop recording of the
HVR-DR60. In this mode, the HVR-DR60 periodically checks
whether the camcorder is in rec mode or not, and follows
Independent Recording
Speed, reliability, operability, and versatility are key concerns in any video production. The
Quick Review of Recordings
HDD Smart Protection
– Robust Recording and Shock Resistance
Long Operating Hours Using Common
Camcorder Batteries
3G sensor
HVR-DR60 Status Check
Tapeless Recording
To trigger recording of the HVR-DR60, most HDV camcorders
require a tape to be loaded. However, this is not the case
when using it with the HVR-V1U. The HVR-V1U sends the
same rec start/stop trigger that controls its tape transport to
the HVR-DR60. This feature offers operators the choice of
tapeless operation or hybrid operation.
retracted from the disk platter,
pausing read/write operations.
This helps protect the HDD from being
damaged when the unit is accidentally
dropped and
subject to
strong impact.
3) A buffer memory can store
approximately 14 seconds of video
and audio footage. Recordings are
made by first writing the data to the
buffer, and then writing the buffer
data to the disk platter. Consequently,
if the 3G sensor temporarily interrupts
disk writes, video footage is not lost.
Thanks to such advanced technologies,
the HVR-DR60 should continue to record
stably even when dropped from as high as
39 3/8 inches (100 cm) (based on Sony's testing).
*6 In HDV mode, approximately 0.5 seconds of the video captured
before and after the camcorder rec start button is pressed may be lost.
2
4
5

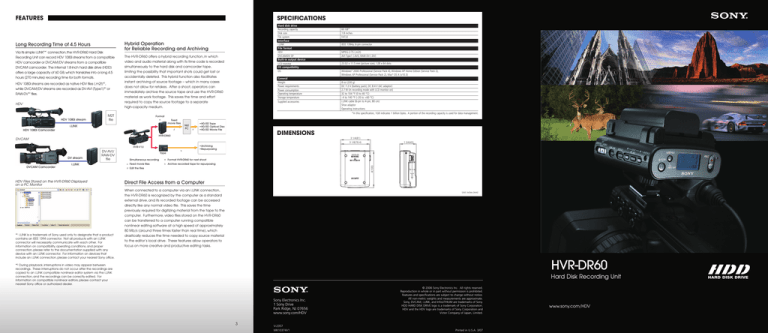

FEATURES
SPECIFICATIONS
Long Recording Time of 4.5 Hours
Via its simple i.LINK®*1 connection, the HVR-DR60 Hard Disk
Recording Unit can record HDV 1080i streams from a compatible
HDV camcorder or DVCAM/DV streams from a compatible
DVCAM camcorder. The internal 1.8-inch hard disk drive (HDD)
offers a large capacity of 60 GB, which translates into a long 4.5
hours (270 minutes) recording time for both formats.
HDV 1080i streams are recorded as native HDV files (.m2t)*2,
2
while DVCAM/DV streams are recorded as DV-AVI (Type1)* or
RAW-DV*2 files.
HDV
HDV 1080i stream
Hard disk drive
Recording capacity
Disk size
File system
Interface
i.LINK
File format
HDV
DVCAM/DV SP
Built-in output device
LCD monitor
OS compatibility
OS
Hybrid Operation
for Reliable Recording and Archiving
The HVR-DR60 offers a hybrid recording function, in which
video and audio material along with its time code is recorded
simultaneously to the hard disk and camcorder tape,
limiting the possibility that important shots could get lost or
accidentally deleted. This hybrid function also facilitates
instant archiving of source footage – which in many cases
does not allow for retakes. After a shoot, operators can
immediately archive the source tape and use the HVR-DR60
material as work footage. This saves the time and effort
required to copy the source footage to a separate
high-capacity medium.
General
Weight
Power requirements
Power consumption
Operating temperature
Storage temperature
Supplied accessories
®
60 GB*
1.8 inches
FAT32
IEEE 1394a, 6-pin connector
MPEG-2-TS (.m2t)
AVI-Type1 (.AVI), RAW-DV (.DV)
23.02 x 11.5 mm (picture size), 128 x 64 dots
Windows® 2000 Professional (Service Pack 4), Windows XP Home Edition (Service Pack 2),
Windows XP Professional (Service Pack 2), Mac® OS X (v10.3)
8 oz (230 g)
DC 7.2 V (battery pack), DC 8.4 V (AC adaptor)
2.7 W (in recording mode with LCD monitor on)
32 to 104 °F (0 to 40 °C)
-4 to 140 °F (-20 to +60 °C)
i.LINK cable (6-pin to 4-pin, 80 cm)
Shoe adaptor
Operating instructions
*In this specification, 1GB indicates 1 billion bytes. A portion of the recording capacity is used for data management.
M2T
file
Format
4
Feed
movie files
i.LINK
2
HDV 1080i Camcorder
NLE
PC
3
•HD/SD Tape
•HD/SD Optical Disc
•HD/SD Movie File
DIMENSIONS
HVR-DR60
3 1/4(81)
DVCAM
1 3/4(45)
3 1/8(78.4)
HVR-V1U
DVCAM Camcorder
i.LINK
HDV Files Stored on the HVR-DR60 Displayed
on a PC Monitor
5
Tape
Simultaneous recording
2 Feed movie files
4 Format HVR-DR60 for next shoot
5 Archive recorded tape for repurposing
4(100)
DV stream
DV-AVI/
RAW-DV
file
•Archiving
•Repurposing
3 Edit the files
Direct File Access from a Computer
When connected to a computer via an i.LINK connection,
the HVR-DR60 is recognized by the computer as a standard
Unit: inches (mm)
external drive, and its recorded footage can be accessed
*1 i.LINK is a trademark of Sony used only to designate that a product
contains an IEEE 1394 connector. Not all products with an i.LINK
connector will necessarily communicate with each other. For
information on compatibility, operating conditions, and proper
connection, please refer to the documentation supplied with any
device with an i.LINK connector. For information on devices that
include an i.LINK connection, please contact your nearest Sony office.
directly like any normal video file. This saves the time
previously required for digitizing material from the tape to the
computer. Furthermore, video files stored on the HVR-DR60
can be transferred to a computer running compatible
nonlinear editing software at a high speed of approximately
80 Mb/s (around three times faster than real time), which
drastically reduces the time needed to copy source material
to the editor’s local drive. These features allow operators to
focus on more creative and productive editing tasks.
HVR-DR60
*2 During playback, interruptions in video may appear between
recordings. These interruptions do not occur after the recordings are
copied to an i.LINK compatible nonlinear editor system via the i.LINK
connection, and the recordings can be correctly edited. For
information on compatible nonlinear editors, please contact your
nearest Sony office or authorized dealer.
Hard Disk Recording Unit
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
www.sony.com/HDV
3
V-2357
MK10374V1
© 2006 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
Sony, DVCAM, i.LINK, and InfoLITHIUM are trademarks of Sony.
HDD HARD DISK DRIVE logo is a trademark of Sony Corporation.
HDV and the HDV logo are trademarks of Sony Corporation and
Victor Company of Japan, Limited.
Printed in U.S.A. 3/07
www.sony.com/HDV
FEATURES
SPECIFICATIONS
Long Recording Time of 4.5 Hours
Via its simple i.LINK®*1 connection, the HVR-DR60 Hard Disk
Recording Unit can record HDV 1080i streams from a compatible
HDV camcorder or DVCAM/DV streams from a compatible
DVCAM camcorder. The internal 1.8-inch hard disk drive (HDD)
offers a large capacity of 60 GB, which translates into a long 4.5
hours (270 minutes) recording time for both formats.
HDV 1080i streams are recorded as native HDV files (.m2t)*2,
2
while DVCAM/DV streams are recorded as DV-AVI (Type1)* or
RAW-DV*2 files.
HDV
HDV 1080i stream
Hard disk drive
Recording capacity
Disk size
File system
Interface
i.LINK
File format
HDV
DVCAM/DV SP
Built-in output device
LCD monitor
OS compatibility
OS
Hybrid Operation
for Reliable Recording and Archiving
The HVR-DR60 offers a hybrid recording function, in which
video and audio material along with its time code is recorded
simultaneously to the hard disk and camcorder tape,
limiting the possibility that important shots could get lost or
accidentally deleted. This hybrid function also facilitates
instant archiving of source footage – which in many cases
does not allow for retakes. After a shoot, operators can
immediately archive the source tape and use the HVR-DR60
material as work footage. This saves the time and effort
required to copy the source footage to a separate
high-capacity medium.
General
Weight
Power requirements
Power consumption
Operating temperature
Storage temperature
Supplied accessories
®
60 GB*
1.8 inches
FAT32
IEEE 1394a, 6-pin connector
MPEG-2-TS (.m2t)
AVI-Type1 (.AVI), RAW-DV (.DV)
23.02 x 11.5 mm (picture size), 128 x 64 dots
Windows® 2000 Professional (Service Pack 4), Windows XP Home Edition (Service Pack 2),
Windows XP Professional (Service Pack 2), Mac® OS X (v10.3)
8 oz (230 g)
DC 7.2 V (battery pack), DC 8.4 V (AC adaptor)
2.7 W (in recording mode with LCD monitor on)
32 to 104 °F (0 to 40 °C)
-4 to 140 °F (-20 to +60 °C)
i.LINK cable (6-pin to 4-pin, 80 cm)
Shoe adaptor
Operating instructions
*In this specification, 1GB indicates 1 billion bytes. A portion of the recording capacity is used for data management.
M2T
file
Format
4
Feed
movie files
i.LINK
2
HDV 1080i Camcorder
NLE
PC
3
•HD/SD Tape
•HD/SD Optical Disc
•HD/SD Movie File
DIMENSIONS
HVR-DR60
3 1/4(81)
DVCAM
1 3/4(45)
3 1/8(78.4)
HVR-V1U
DVCAM Camcorder
i.LINK
HDV Files Stored on the HVR-DR60 Displayed
on a PC Monitor
5
Tape
Simultaneous recording
2 Feed movie files
4 Format HVR-DR60 for next shoot
5 Archive recorded tape for repurposing
4(100)
DV stream
DV-AVI/
RAW-DV
file
•Archiving
•Repurposing
3 Edit the files
Direct File Access from a Computer
When connected to a computer via an i.LINK connection,
the HVR-DR60 is recognized by the computer as a standard
Unit: inches (mm)
external drive, and its recorded footage can be accessed
*1 i.LINK is a trademark of Sony used only to designate that a product
contains an IEEE 1394 connector. Not all products with an i.LINK
connector will necessarily communicate with each other. For
information on compatibility, operating conditions, and proper
connection, please refer to the documentation supplied with any
device with an i.LINK connector. For information on devices that
include an i.LINK connection, please contact your nearest Sony office.
directly like any normal video file. This saves the time
previously required for digitizing material from the tape to the
computer. Furthermore, video files stored on the HVR-DR60
can be transferred to a computer running compatible
nonlinear editing software at a high speed of approximately
80 Mb/s (around three times faster than real time), which
drastically reduces the time needed to copy source material
to the editor’s local drive. These features allow operators to
focus on more creative and productive editing tasks.
HVR-DR60
*2 During playback, interruptions in video may appear between
recordings. These interruptions do not occur after the recordings are
copied to an i.LINK compatible nonlinear editor system via the i.LINK
connection, and the recordings can be correctly edited. For
information on compatible nonlinear editors, please contact your
nearest Sony office or authorized dealer.
Hard Disk Recording Unit
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
www.sony.com/HDV
3
V-2357
MK10374V1
© 2006 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
Sony, DVCAM, i.LINK, and InfoLITHIUM are trademarks of Sony.
HDD HARD DISK DRIVE logo is a trademark of Sony Corporation.
HDV and the HDV logo are trademarks of Sony Corporation and
Victor Company of Japan, Limited.
Printed in U.S.A. 3/07
www.sony.com/HDV
