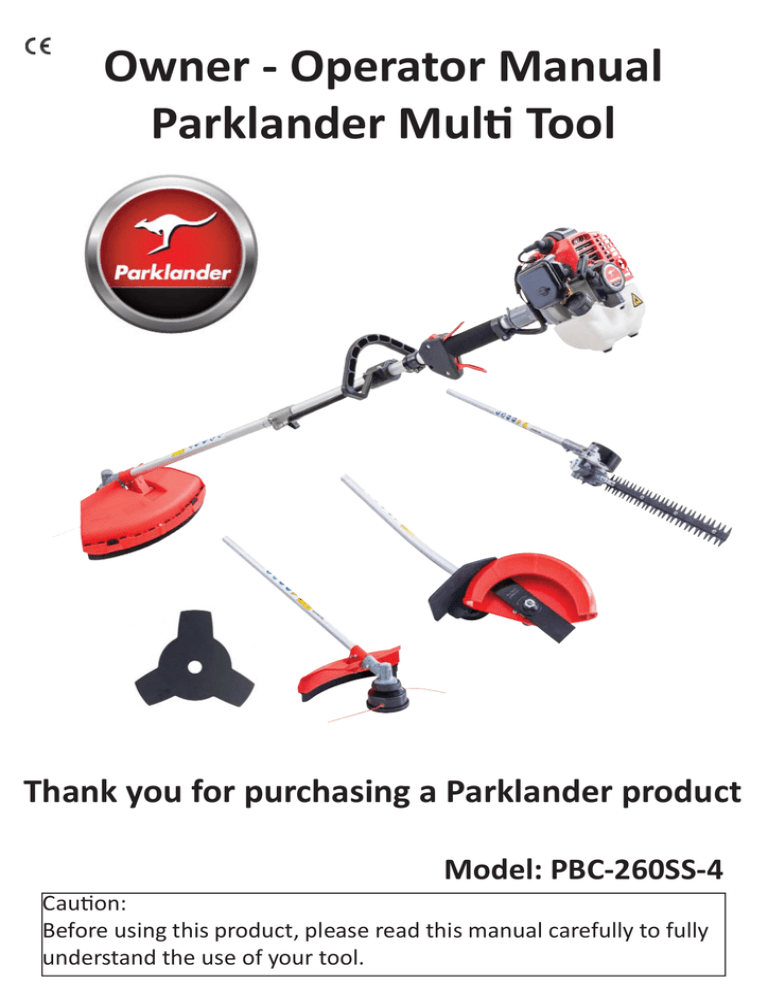

Owner - Operator Manual

Parklander MulƟ Tool

Thank you for purchasing a Parklander product

Model: PBC-260SS-4

CauƟ on:

Before using this product, please read this manual carefully to fully understand the use of your tool.

PARTS LOCATION-----------------------------------------------------------------------1

PART 1: LONG REACH TRIMMER---------------------------------------------2-23

PART 2: BRUSH CUTTER--------------------------------------------------------24-51

PART 3: LAWN EDGER-----------------------------------------------------------52-58

1. Knob bolt

2. Drive shaft housing

3. Loop handle

4. Shoulder strap hanger

5. Ignition switch

6.Throttle cable

7. Throttle lever

8. Throttle cable

9.Air cleaner cover

10.Fuel tank

11. Starter knob

12. Cutting line head

13.Gear case

14.Debris guard

15. Blade

16. Blade

17.Gear case

18.Blade

19. Blade guard

20. Gear case

21. wheel

PARTS LOCATION

OWNER/OPERATOR MANUAL

MULTI-FUNCTION TOOL

(PART 1: LONG REACH TRIMMER)

Original Instructions

CAUTION:

Thank you for purchasing a product. Before using our long reach trimmer,

Please use this manual carefully to understand the proper use of your unit.

MODEL: PBC-260SS

INTRODUCTION/TECHNICAL DATA ---------------------------------------------4

SYMBOL------------------------------------------------------------------------------------5

INENTIFICATION OF MAIN COMPONENTS-----------------------------------7

GENERAL SAFETY PRECAUTIONS-----------------------------------------------8

FUEL HANDLING-----------------------------------------------------------------------11

STARTING AND STOPPING----------------------------------------------------------13

WORKING TECHNIQUES------------------------------------------------------------15

USING THE MACHINE----------------------------------------------------------------18

MAINTENANCE AND STORAGE---------------------------------------------------21

MAINTENANCE-------------------------------------------------------------------------22

INTRODUCTION

Thank you for your purchasing the trimmer of our Company. The present manual explains how to handle the trimmer well. Before using it, please read this operator's manual carefully, operate the machine correctly and engage in your task safely.

By the way, due to changes of specifications, all details of your machine may not agree with this manual. Please understand accordingly.

TECHNICAL DATA

Main unit

Model

Remote type

Maximum speed of gear shaft/engine speed (/min)

Idle speed(/min)

Reduction ratio

Blade rotation direction

Type of handle

Weight when dry(kg)

Type of cut

Cutting

Attachment

Number of teeth

Tooth pitch

Useful cutting width

Maximum cutting diameter

Name of engine

Type

4500/ 9000

2800±280 2500(+400，-150)

1：2

6.9

PBC-260SS(PART 1: LONG REACH

TRIMMER)

Spiral bevel gear; Drive shaft

Counter-Clockwise(seen from the top)

Double grip

7.2 7.8

Cutting blades

30 mm

390 mm

5 mm

1E34F

1E34F-2E

1E36F-2A 1E36F-2E

Air-cooled; 2 cycle; vertical piston valve; gasoline engine

Engine

Maximum output(kW//min)

Fuel tank capacity(L)

Dry weight(kg)

0.75/7500 0.75/7500

0.7

2.4

0.65

2.7

0.9/6500 0.9/7000

0.75

3.3

3.5

Air-cooled; 2 cycle; vertical piston valve; gasoline

Type engine

Carburetor Diaphragm-type

Ignition

Method of starting

Non-contact electronic ignition

Recoil type

Fuel used

Gasoline mixed with lubricating oil

(ratio of 30:1)

Technical Data subject to changed without notice.

SYMBOLE

Some of the following symbols may be used on this tool. Please study them and understand their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

SYMBOL NAME

Safety Alert

DESIGNATION/EXPLANATION

Indicates danger, warning or caution. It means attention!

Read The Operator’

Manual

Your safety is involved.

Read the operation manual and follow all warnings and safety instructions.

Cutting Tool Do not touch the tool without first switching off the engine.

Keep high-voltage power lines away

Keep all bystanders at least 15m (50 ft) away.Keep the pole pruner a sufficient distance away from electrical power lines.

Always keep a distance of at least 10 m between the machine and high-voltage power lines and/or any objects that are touching them.

Keep bystanders away

Boots Wear non-slip safety footwear when using this equipment.

Gloves Wear non-slip, heavy-duty gloves.

No Smoking Do not smoke when mixing fuel or filling fuel tank.

Petrol

Oil

Use unleaded petrol intended for motor vehicle use with an octane rarting of 91([R+M]/2) or higher.

Use 2-stroke oil for air cooled engines.

Mix Petrol and Oil Mix the fuel mix thoroughly and also each time before refuelling.

Fully press and release the prime bulb 5 times.

All relevant directives, which require the CE-marking and which are applicable for the product, are fulfilled.

Wear eye, hearing and head protection when operating this equipment.

To reduce the risk of injury or damage, avoid contact with any hot surface.

Guaranteed sound power level

Note the following before starting:

Please read the operator’s manual carefully.

WARNING! Long-term exposure to noise can result in permanent hearing impairment. So always use approved hearing protection.

WARNING! Under no circumstances may the design of the machine be modified without the permission of the manufacturer. Only use spare parts which are identical with the original one to replace damaged accessories. Find your nearest dealer for spare parts. Non-authorized modifications and/or accessories can result in serious personal injury or the death of the operator or others.

Your warranty may not cover damage or liability caused by the use of non-authorized accessories or replacement parts.

WARNING! Incorrect or careless use of a trimmer can turn it into a dangerous tool that can cause serious or even fatal injury. It is extremely important that you read and understand the contents of this operator’s manual.

INENTIFICATION OF MAIN COMPONENTS

MAIN COMPONENTS

1.Gear case

2.Connecting rod

3.Cutting device (blade)

4.Release lever (to regulate the inclination)

5.Blade protection

GENERAL SAFETY PRECAUTIONS

Important

The machine is only designed for cutting branches and twigs.

Never use a machine that has been modified in any way from its original specification.

Never use the machine if you are tired, if you have drunk alcohol, or if you are taking medication that could affect your vision, your judgement or your co-ordination.

Wear personal protective equipment. See instructions under the heading ”Personal protective equipment”.

Never use the machine in extreme weather conditions such as severe cold, very hot and/or humid climates.

Never use a machine that is faulty. Carry out the checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists.

See instructions under the heading Maintenance.

All covers and guards must be fitted before starting.

Ensure that the spark plug cap and ignition lead are undamaged to avoid the risk of electric shock.

WARNING! This machine produces an electromagnetic field during operation.

This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

WARNING!

Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning.

WARNING!

Never allow children to use or be in the vicinity of the machine. As the machine can be started by low speed and force on the starter handle, even small children under some circumstances can produce the force necessary to start the machine. This can mean a risk of serious personal injury.

Therefore remove the spark plug cap when the machine is not under close supervision.

WARNING!

Faulty blades can increase the risk of accidents.

Personal protective equipment

Important

Incorrect or careless use of a trimmer can turn it nto a dangerous tool that can cause serious or even fatal injury. It is extremely important that you read and understand the contents of this operator’s manual.

You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen.

Ask your dealer for help in choosing the right equipment.

WARNING!

Listen out for warning signals or shouts when you are wearing hearing protection.

Always remove your hearing protection as soon as the engine stops.

HEARING PROTECTION

Wear hearing protection that provides adequate noise reduction.

EYE PROTECTION

Always wear approved eye protection. If you use a visor then you must also wear approved protective goggles.

GLOVES

Gloves should be worn when necessary, e.g., when fitting cutting attachments.

BOOTS

Wear sturdy, non-slip boots or shoes.

GENERAL SAFETY PRECAUTIONS

CLOTHING

Wear clothes made of a strong fabric and avoid loose clothing that can catch on twigs and branches.

Always wear heavy, long pants. Do not wear jewellery, shorts sandals or go barefoot. Secure hair so it is above shoulder level.

FIRST AID KIT

Always have a first aid kit nearby.

Machine’s safety equipment

This section describes the machine’ s safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly.

The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest servicing dealer.

IMPORTANT!

All servicing and repair work on the machine requires special training. This is especially true of the machine’s safety equipment. If your machine fails any of the checks described below you must contact your service agent. When you buy any of our products we guarantee the availability of professional repairs and service. If the retailer who sells your machine is not a servicing dealer, ask him for the address of your nearest service agent.

WARNING!

Never use a machine with faulty safety equipment. The machine’s safety equipment must be checked and maintained as described in this section.

If your machine fails any of these checks contact your service agent to get it repaired.

Adjusting the harness

You should always use the harness with the machine to give maximum control over the machine and reduce the risk of fatigue in your arms and back.

1.Put on the harness.

2.Hook the machine onto the harness support hook.

3.Adjust the length of the harness so that the support hook is roughly level with your right hip.

FUEL HANDLING

Fuel safety

Never start the machine:

1.If you have spilled fuel on it. Wipe off the spillage and allow remaining fuel to evaporate.

2.If you have spilled fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water.

3.If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines.

Transport and storage

●Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or naked flames, for example, from electrical machinery, electric motors, electrical relays/switches or boilers.

●When storing and transporting fuel always use approved containers intended for this purpose.

●When storing the machine for long periods the fuel tank must be emptied. Contact your local gas station to find out where to dispose of excess fuel.

●Ensure the machine is cleaned and that a complete service is carried out before long-term storage.

●The transport guard must always be fitted to the cutting attachment when the machine is being transported or in storage.

●Secure the machine during transport.

In order to prevent unintentional starting of the engine, the spark plug cap must always be removed during long-term storage, if the machine is not under close supervision and when performing all service measures.

WARNING!

Take care when handling fuel.

Bear in mind the risk of fire, explosion and inhaling fumes.

Fuel

CAUTION!

The machine is equipped with a two-stroke engine and must always been run using a mixture of gasoline and two-stroke engine oil. It is important to accurately measure the amount of oil to be mixed to ensure that the correct mixture is obtained. When mixing small amounts of fuel, even small inaccuracies can drastically affect the ratio of the mixture.

WARNING!

Fuel and fuel fumes are highly inflammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation.

Gasoline

CAUTION!

Always use a quality gasoline/oil mixture with an octane rating of at least 91 octane

((RON+MON)/2). If your machine is equipped with a catalytic converter (see chapter on Technical data) always use a good quality unleaded gasoline/oil mixture. Leaded gasoline will destroy the catalytic converter.

Mixing

●Always mix the gasoline and oil in a clean container intended for fuel.

●Always start by filling half the amount of the gasoline to be used. Then add the entire amount of oil.

Mix (shake) the fuel mixture. Add the remaining amount of gasoline.

●Mix (shake) the fuel mixture thoroughly before filling the machine’s fuel tank.

Do not mix more than one month’s supply of fuel at a time.

If the machine is not used for some time the fuel tank should be emptied and cleaned.

WARNING!

The catalytic converter muffler gets very hot during and after use. This also applies during idling. Be aware of the fire hazard, especially when working near flammable substances and/or vapours.

Fueling

WARNING!

Taking the following precautions, will lessen the risk of fire:

1.Do not smoke or place hot objects near fuel.

2.Always shut off the engine before refuelling.

3.Always stop the engine and let it cool for a few minutes before refuelling.

4.When refuelling, open the fuel cap slowly so that any excess pressure is released gently.

5.Tighten the fuel cap carefully after refuelling.

6.Always move the machine away from the refuelling area before starting.

●Clean the area around the fuel cap. Contamination in the tank can cause operating problems.

●Ensure that the fuel is well mixed by shaking the container before filling the tank.

STARTING AND STOPPING

Check before starting

●Inspect the working area. Remove any objects that could be thrown out.

●Check the cutting attachment. Never use blades that are dull, cracked or damaged.

●Check that the machine is in perfect working order.

Check that all nuts and screws are tight.

●Make sure the gear housing is lubricated correctly.

See instructions under the heading Gear housing.

●Check that the cutting attachment always stops when the engine is idling.

●Only use the machine for the purpose it was intended for.

●Make sure that the handle and safety features are in good working order. Never use a machine that lacks a part or has been modified outside its specifications.

●All covers must be correctly fitted and undamaged before you start the machine.

Starting and stopping

WARNING!

The complete clutch cover and shaft must be fitted before the machine is started, otherwise the clutch can come loose and cause personal injury.

WARNING!

Always move the machine about 3 metres from the refuelling position before starting. Place the machine on a firm surface. Remember that the blades may start to move when the engine is started. Make sure the blades cannot come into contact with any object. Make sure that no unauthorised persons are in the working area, otherwise there is a risk of serious personal injury.

WARNING!

The safety distance is 15 metres.

Starting

Primer bulb:

Press the air purge repeatedly until fuel begins to fill the bulb. The bulb need not be completely filled.

Choke:

Set the choke control in the choke position.

Hold the body of the machine on the ground using your left hand (CAUTION! Not with your foot!).

Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance

(the starter pawls grip), now quickly and powerfully pull the cord.

Push the choke control back to its original position as soon as the engine fires, and continue trying

to start until the engine starts.

CAUTION!

Do not pull the starter cord all the way out and do not let go of the starter handle when the cord is fully extended. This can damage the machine.

CAUTION!

Do not put any part of your body in marked area. Contact can result in burns to the skin, or electrical shock if the spark plug cap has been damaged. Always use glo ves. Do not use a machine with damaged spark plug cap.

Stopping

The engine is switched off by moving the stop switch to the stop position.

WORKING TECHNIQUES

General working instructions

IMPORTANT!

This section takes up the basic safety precautions for working with a trimmer.

If you encounter a situation where you are uncertain how to proceed you should ask an expert.

Contact your dealer or your service workshop.

Avoid all usage which you consider to be beyond your capability.

WARNING!

The machine can cause serious personal injury. Read the safety instructions carefully. Learn how to use the machine.

WARNING!

Cutting tool. Do not touch the tool without first switching off the engine.

Personal protection

● Always wear boots and other equipment described under the heading Personal protective equipment.

●Always wear working clothes and heavy-duty long trousers.

●Never wear loose clothing or jewellery.

●Make sure your hair does not hang below shoulder

Safety instructions regarding the surroundings

●Never allow children to use the machine.

●Ensure that no-one comes closer than 15 m while you are working.

●Never allow anyone else to use the machine without first ensuring that they have understood the contents of the operator’s manual.

●Never work from a ladder, stool or any other raised position that is not fully secured.

●Keep in mind that the operator is responsible for accidents or hazards occuring to other people or their property.

Safety instructions while working

●Always ensure you have a safe and stable working position.

●Always use both hands to hold the machine. Hold the machine at the side of your body.

●Use your right hand to control the throttle setting.

●Make sure that your hands and feet do not come near the cutting attachment when the engine is running.

●When the engine is switched off, keep your hands and feet away from the cutting attachment until it has stopped completely.

●Watch out for stumps of branches that can be thrown out during cutting.

●Always lay the machine on the ground when you are not using it.

●Do not cut too close to the ground. Stones and other objects can be thrown out.

●Check the working area for foreign objects such as electricity cables, insects and animals, etc, or other objects that could damage the cutting attachment, such as metal items.

●If any foreign object is hit or if vibrations occur stop the machine immediately. Disconnect the connection between the ignition coil and spark plug from the spark plug. Check that the machine is not damaged. Repair any damage.

●If anything jams in the blades while you are working, switch off the engine and wait until it has stopped completely before cleaning the blades. Disconnect the connection between the ignition coil and spark plug from the spark plug.

●Never put the machine down with the engine running unless you have it in clear sight.

●This machine is not electrically insulated. If the machine touches or comes close to high-voltage power lines it could lead to death or serious bodily injury. Electricity can jump from one point to another by arcing. The higher the voltage, the greater the distance electricity can jump. Electricity can also travel through branches and other objects, especially if they are wet. Always keep a distance of at least 10 m between the machine and high-voltage power lines and/or any objects that are touching them. If have to work within this safe distance you should always contact the relevant power company to make sure the power is switched off before you start work.

Safety instructions after completing work

●The transport guard should always be fitted to the cutting attachment when the machine is not in use.

●Make sure the cutting attachment has stopped before cleaning, carrying out repairs or an inspection.

Disconnect the connection between the ignition coil and spark plug from the spark plug.

●Always wear heavy-duty gloves when repairing the cutting attachment. This is extremely sharp and can easily cause cuts.

●Store the machine out of reach of children.

●Use only original spare parts for repairs.

Basic working techniques

●Work with a swinging action from the bottom upwards when trimming sides.

●Adjust the throttle setting to suit the load.

●When trimming a hedge the engine should always face away from the hedge.

●Hold the machine as close to your body as possible to get the best balance.

●Make sure that the tip does not touch the ground.

●Do not rush the work, but work steadily until all the branches have been cut back cleanly.

USING THE MACHINE

ASSEMBLING THE ROD (if supplied separately)(Fig.1)

●Insert the rod(1) in the sleeve (2) so that the hole (3) coincides with the screw(4).

●Tighten the two screws (4) and (5) completely.The head of the screw(4) must not stick out when tightened.

CONNECTING THE TRIMMER (Fig.2)

●Pull out the stop pin (1) and push the rod (2) right down until the stop pin (1) clicks into the hole (3) in the rod.This is easier to do if you rotate the bottom of the rod (2) slightly in both directions.The pin

(1) is in place when it is completely lodged in the hole.

●Once inserted,tighten the knob (4) securely.

SETTING AT WORK

IMPORTANT! Also carefully read the operator’s manual for the brush cutter fitted with the hedge trimming device.

Before staring work please:

●Check that all the screws on the machine and the blade are tightly fastened;

●Check that the blades are sharp and there are no signs of any damage;

●Check that the protection devices are well fastened and working efficiently;

●Check that the handgrips are well fastened

Directions for use

●Cut branches up to a maximum diameter of 4.5mm; cutting branches with a larger diameter could damage the trimmer.

●ONLY adjust the tilt angle with the motor switched off. SWITCH OFF themotor before removing any branches caught up in the blades.

● Never bring the blades close to body parts while working.

●Always fit the blade guards when the device is switched off.

Adjustment of blade inclination (Fig. 3)

●Turn the engine off and wait for the blade to stop.

●Loosen the knob (1) and incline the cutting device (2) as desired.

●Tighten the knob (1) securely. If the knob does not move enough to guarantee it is tight, extract it and re-position it so that it can be tightened securely.

WARNING!

Do not work unless thecutting device is blocked securely.

Vertical trimming (Fig. 4)

Proceed to cut by using curved movements from the bottom towards the top, keeping the blade as far from the body as possible.

Horizontal trimming (Fig. 5)

The best results will be obtained with the blade slightly inclined (5° - 10°) in the direction you are cutting, proceed with a curved movement, slowly and without interruptions, especially in the case of very thick hedges.

LUBRICATING THE BLADES DURING JOBS(Fig. 6)

If the cutting device gets excessively hot during operations,grease the blade's internal surfaces with the specific oil.

WARNING!

This operation must only be performed when the blades have stopped running and the motor is switched off.

MAINTENANCE AND STORAGE

WARNING!

Always work with the motor switched off.

1. BLADE REDUCTION GEAR GUARD (Fig. 7)

●Lubricate every 20 hours through the grease nipples provided.

●Only use lithium-based grease for high temperatures and extreme pressures.

2. MAINTENANCE AND SHARPENING OF THE BLADE

WARNING!

Periodically check that the blades are not bent or damaged and that the fixed comb on the blade is intact.

Adjustment of the distance between blades is not necessary, as this is predetermined by the manufacturer.

If the blades are used correctly, following all the instructions provided, they will not require anymaintenance work and will not need sharpening.

It is necessary to sharpen the blades only when the trimming performance decreases and the branches tend to stick together.

NOTE:

Any intervention on the blade should always be conducted at a specialised Centre that has the most appropriate tools and is able to performthe operations without compromising the safety of the machine

MAINTENANCE

Maintenance schedule

The following is a list of the maintenance that must be performed on the machine. Most of the items are described in the Maintenance section. The user must only carry out the maintenance and service work described in this manual. More extensive work must be carried out by an authorized service workshop.

Maintenance

Clean the outside of the machine.

Make sure the throttle trigger lock and the throttle function correctly from a safety point of view.

Check that the stop switch works correctly.

Daily maintenance

√

Weekly maintenance

Monthly maintenance

Check that the blades do not move when the engine is idling or when the choke is in the start throttle position.

Check that the blades are undamaged and show no signs of cracking or other damage. Replace the blades if necessary.

Clean the air filter. Replace if necessary.

√

Check that nuts and screws are tight.

√

Check that there are no fuel leaks from the engine, tank or fuel lines.

Check the starter and starter cord.

√

Check that the vibration damping elements are not damaged.

Clean the outside of the spark plug. Remove it and check the electrode gap. Adjust the gap to 0.5 mm (.20”), or replace the spark plug. Check that the spark plug is fitted with a suppressor.

Clean the machine’s cooling system.

√

Clean or replace the spark arrestor screen on the muffler

(only applies to mufflers without a catalytic converter).

Clean the outside of the carburettor and the space around it.

Fill the gear housing with grease. This should be carried out approximately every 60 working hours.

√

Check that the screws that hold the blades together are correctly tightened.

Clean the fuel tank.

Check the fuel filter from contamination and the fuel hose from cracks or other defects. Replace if necessary.

Check all cables and connections.

Check the clutch, clutch springs and the clutch drum for wear. Replace if necessary by an autorized service workshop.

Replace the spark plug. Check that the spark plug is fitted with a suppressor.

Check and clean the spark arrestor screen on the muffler

(only applies to mufflers fitted with a catalytic converter).

To reduce the fire hazard, clean dirt, leaves and surplus lubricant, etc from the muffler and engine.

√

OWNER/OPERATOR MANUAL

MULTI-FUNCTION TOOL

(PART 2: BRUSH CUTTER)

Original Instructions

CAUTION:

Thank you for purchasing a product. Before using our brush cutter, Please use this manual carefully to understand the proper use of your unit.

MODEL: PBC-260SS

INTRODUCTION/TECHNICAL DATA ---------------------------------------------26

SYMBOL------------------------------------------------------------------------------------27

SAFETY RULES ＆ PRECAUTIONS----------------------------------------------29

DESCRIPTION----------------------------------------------------------------------------32

ASSEMBLY--------------------------------------------------------------------------------35

RULES FOR SAFE OPERATION----------------------------------------------------37

ASSEMBLING AND USING THE SHOULDER HARNESS-------------------39

CUTTING WITH A NYLON HEAD--------------------------------------------------40

CUTTING WITH A BLADE------------------------------------------------------------42

FUEL ＆ OIL MIXTURE--------------------------------------------------------------44

PREPARING FOR OPERATIONS----------------------------------------------------45

OPERATIONS-----------------------------------------------------------------------------46

MAINTENANCE ＆ CARE-----------------------------------------------------------47

TRANSPORT ＆ STORAGE ---------------------------------------------------------49

TROUBLE SHOOTING GUIDE------------------------------------------------------50

INTRODUCTION

Thank you for your purchasing the brush cutter of our Company. The present manual explains how to handle the brush cutter well. Before using it, please read this operator's manual carefully, operate the machine correctly and engage in your task safely.

By the way, due to changes of specifications, all details of your machine may not agree with this manual. Please understand accordingly.

TECHNICAL DATA

Main unit

Engine

Model

Remote type

Maximum speed of gear shaft/engine speed (/min)

PBC-260SS(PART 3: BRUSH CUTTER)

Automatic centrifugal clutch;

Spiral bevel gear; Drive shaft

7000/ 9000

2800 ± 280 2500(+400，-150)

6.03 5.65 5.68 2.34

Idle speed(r/min)

Equivalent vibration level(m/s

)

(in accordance with EN ISO

22867)Uncertainty of vibration measurement K=1.5m/s

Nylon head

Blade 4.73 3.66 3.59 4.27

Equivalent sound pressure values[dB(A)](in accordance with

EN ISO 22868)Uncertainty of

Nylon head

Blade

98.2 92.7 100.9 95.7

97.1 90.3 93.5 93.6 noise measurement 3dB(A)

Sound power values[dB(A)]

(in accordance with EN ISO

22868)Uncertainty of noise measurement 3dB(A)

Reduction ratio

Blade rotation direction

Type of handle

Weight when dry(kg)

Standard blades(mm)

Standard nylon head/nylon rope

Name of engine

Displacement(mL)

Maximum output(kW//min)

Nylon head

108.3 109.2 107.9 106.4

Blade 103.6 109.3 102.4 109.3

Counter-Clockwise(seen from the top)

5.9

Double grip

6.2

17:22

7.1 7.3

CG420-2/255mm/3-blade（255×1.4)

CG520-HL.17/CG520-HS.1/

φ2.5mm(nylon66)

1E34F

1E34F-2E

1E36F-2A 1E36F-2E

25.4 25.4 32.6 32.6

0.75/7500 0.75/7500

0.9/6500 0.9/7000

Fuel tank capacity(L) 0.7 0.65 0.75 1

2.4 2.7 3.3 3.5

Type

Air-cooled; 2 cycle; vertical piston valve; gasoline engine

Carburetor Diaphragm-type

Ignition

Method of starting

Fuel used

Non-contact electronic ignition

Recoil type

Gasoline mixed with lubricating oil (ratio of 30:1)

Technical Data subject to changed without notice.

SYMBOLE

Some of the following symbols may be used on this tool. Please study them and understand their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

SYMBOL NAME

Safety Alert

DESIGNATION/EXPLANATION

Indicates danger, warning or caution. It means attention!

Read The Operator’

Manual

Your safety is involved.

Read the operation manual and follow all warnings and safety instructions.

Ricochet Alert Danger of Ricochet.

Keep Bystanders

Away

Keep all bystanders (especially children and pets) at least

15m away from the work area.

Do not use toothed blade

This unit is not intended for use with a toothed saw type blade.

RPM Decal Rotational direction and maximum speed of the shaft for the cutting attachment.

Boots Wear non-slip safety footwear when using this equipment.

Gloves Wear non-slip, heavy-duty gloves.

No Smoking Do not smoke when mixing fuel or filling fuel tank.

Petrol Use unleaded petrol intended for motor vehicle use with an octane rarting of 91([R+M]/2) or higher.

Oil Use 2-stroke oil for air cooled engines.

Mix Petrol and Oil Mix the fuel mix thoroughly and also each time before refuelling.

Fully press and release the prime bulb 5 times.

All relevant directives, which require the CE-marking and which are applicable for the product, are fulfilled.

Wear eye, hearing and head protection when operating this equipment.

To reduce the risk of injury or damage, avoid contact with any hot surface.

Beware Of Blade

Thrust

Guaranteed sound power level

Continued movement of saw blade after cutting through log.

A harzard from fire/flammable materials.

SAFETY RULES & PRECAUTIONS

WARNING

CAUTION

Before using the product，Please Confirm the local laws and regulations no limit to this kind of product .Or the product can meet the requirements of local laws and regulations.

Proper safety precautions must be observed. Like all power equipment this unit must be handled carefully.

DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER Follow these general rules.

Do not permit others to use this machine unless they are thoroughly responsible and have read, and understand the machine manual and are trained in its operation.This machine is not to be operated by children. z Always wear safety goggles for eye protection. Dress properly , do not wear loose clothing or jewelry that could become caught in moving parts of the unit. Safe, sturdy, nonskid footwear should always be worn. Long hair should be tied back. It is recommended that legs and feet be covered to protect from flying debris during operation. z Before using and after dropping or other impacts,inspect the entire machine for loose parts

(nuts, bolts, screws, etc.) and any damage. Repair or replace as necessary. z DO NOT USE any attachment with this power head other than the ones recommended by our company. Serious injury to the operator or bystanders could result as well as damage to the machine. z Keep the handles free from oil and fuel. z Always use proper handles and shoulder strap when cutting. z Do not smoke while mixing fuel or filling tank. z Do not mix fuel in an enclosed room or near open flames. Ensure adequate ventilation. z Always mix and store the fuel in a properly marked container that is approved by local codes and ordinances for such usage. z Never remove the fuel tank cap while the engine is running. z Never start or run the engine inside a closed room or building. Fumes from the exhaust contain dangerous carbon monoxide. z Never attempt to make engine adjustments while the unit is running and strapped to the operator. Always make engine adjustments with the unit resting on a flat, clear surface. z Do not pull on the cable. z Do not lift the machine other than by the handle of the shaft. z Do not rest the machine on the ground while the engine runs (e.g.in idling). z Regular check for damages,failing of parts,component or cables. z Do not use the unit if it is damaged or poorly adjusted. Never remove the machine's guard.

Serious injury to the operator or bystanders could result as well as damage to the machine. z Inspect the area to be cut and remove all debris that could become entangled in the nylon cutting head. Also remove any objects that the unit may throw during cutting. z Keep children away. Onlookers should be kept at a safe distance from the work area, at least 15

METER(50 FEET).

z Never leave the machine unattended. z Do not use this unit for any job other than those for which it is intended as described in this manual. z Do not overreach. Keep proper footing and balance at all times. Do not run the unit while standing on a ladder or on any other unstable footing location. z Keep hands and feet clear of the nylon cutting head while unit is in use . z Do not use this type of machine for sweeping away debris. z Do not use the unit when you are tired, ill or under the influence of medication, drugs or alcohol. z Use nylon cutting head which is free of damage. If a stone or any other obstacle is hit, stop the engine and check the nylon cutting head. A broken or unbalanced nylon cutting head must never be used.

FOLLOW INSTRUCTION FOR CHANGING ACCESSORIES. z Do not store in a closed area where fuel vapors can reach an open flame from hot water heaters, heaters, furnaces, etc. Store in a locked, well ventilated area only. z Ensure safe and proper performance of your product. These part are available from your dealer.

The use of any other accessories or attachments may cause a potential hazard or injury to the user, damage to the machine and void this warranty. z Clean the machine completely, especially, the fuel tank, its surroundings, and the air cleaner. z When refueling, be sure to stop the engine and confirm that it is cooled down. Never refuel when the engine is running or hot. When gasoline spills, be sure to wipe it up completely and properly dispose of those materials before starting the engine. z Stay clear of other workers or bystanders by at least 15 meters /50 feet. z When ever approaching an operator of the machine, carefully call his attention and confirm that the operator stops the engine. Be careful not to startle or distract the operator which can cause an unsafe situation. z Never touch the nylon cutting head when ever the engine is running. If it is necessary to adjust the protector or nylon cutting head, be sure to stop the engine and confirm that the nylon cutting head has stopped running. z The engine should be turned off when the machine is moved between work areas. z Be careful not to hit the nylon cutting head against stones, or the ground. z Unreasonable rough operation will shorten the life of the machine as well as create an unsafe environment for yourself and those around you. z Pay attention to loosening and overheating of parts. If there is any abnormality of the machine, stop operation immediately and check the machine carefully. If necessary, have the machine serviced by a authorized dealer. Never continue to operate a machine which may be malfunctioning. z In start-up or during operation of the engine, never touch hot parts such as the muffler, the high voltage wire or the spark plug. z After the engine has stopped, the muffler is still hot. Never place the machine in any places where there are flammable materials (dry grass, etc.), combustible gasses or combustible liquids. z Pay special attention to operation in the rain or just after the rain as the ground may be slippery. z If you slip or fall to the ground or into a hole, release the throttle lever immediately.

z Be careful not to drop the machine or hit it against obstacles. z Before proceeding to adjust or repair the machine, be sure to stop the engine and detach the spark plug cap from the spark plug. z When the machine is placed in storage for a long time, drain fuel from the fuel tank and carburetor, clean the parts, move the machine to a safe place and confirm that the engine is cooled down. z Make periodic inspections to assure safe and efficient operation. For a thorough inspection of your machine, please contact a dealer. z Keep the machine away from fire or sparks. z It is believed that a condition called Raynaud's phenomenon, which affects the fingers of certain individuals may be brought about by exposure to vibration and cold. Exposure to vibration and cold may cause tingling and burning sensations followed by loss of color and numbness in the fingers. The following precautions are strongly recommended because the minimum exposure which might trigger the ailment is unknown.

Keep your body warm, especially the head, neck, feet, ankles, hands and wrists.

Maintain good blood circulation by performing vigorous arm exercises during frequent work breaks and also by not smoking.

Limit the hours of operation. Try to fill each day with jobs where operating the brush cutter or other hand-held power equipment is not required.

If you experience discomfort, redness and swelling of the fingers followed by whitening and loss of feeling, consult your physician before further exposing yourself to cold and vibration. z Always wear ear protection, as being exposed to loud noise for long time can result in diminished hearing or even loss of hearing. Total face and head protection must be worn to prevent bodily injury from either slipping or falling into shrubbery,branches,or bushes. z Wear no-slip heavy duty work gloves to improve your grip on the brush cutter handle. Gloves also reduce the transmission of machine vibration to your hands. z WARNING:

The cutter area is still dangerous while the machine is coasting to a stop.

Note: Noise and vibration

1.The running at low speed can reduce the noise and quiver.

2.In order to lower noise, the grass trimmer should be operated in an open environment.

3.The vibration can be lowered if the handle is grasped firmly.

4.In order to avoid disturbing others, the machine should be operated in daytime.

5.Wear personal protective equipment, such as gloves and ear protection during the operation.

6.The machine is not for professional work and not for long time operation.

7.In order to keep the user's fit and prolong the machine's life, please do not work more than 2 hours in a whole day and don't keep working more than 10 minutes at a time.

DESCRIPTION

TOOL LIST

Socket Spanner

TOOL BESCHREIBUNG

Hex Key 4/5

DESCRIPTION

SAFETY MANUAL included with unit.

Read before operating and keep for future reference to learn proper,safe operating techniques.

NYLON CUTTER HEAD

Contains replaceable nylon trimming line that advances when the trimmer head is tapped against the ground while the head is turning at normal operating speed.

2. DRIVE SHAFT ASSEMBLY

Contains a specially designed liner flexible drive shaft.

3. HANDLE ASS'Y

This handle can be adjusted at your convenience for comfort.

4. HARNESS ASS'Y

A attachment which hang the machine on the operator and adjustable in length.

5. IGNITION SWITCH

“Slide switch”mounted on top of the Throttle Trigger Housing.Move switch FORWARD to Run,

BACK to STOP.

6. SAFETY LEVER

Before acceleration, compress it please.

7. FUEL TANK LID.

Mit dem Gurtzeug können Sie das Gerät an Ihrem Körper befestigen und Ihrer Größe entsprechend anpassen.

8. PURGE BULB

Pushing purge lulb(7 to 10 times before starting),will remove all air and stale fuel from fuel system and bring fresh fuel to the carburetor.

9. FUEL TANK

Contains fuel and fuel filter.

10. THROTTLE TRIGGER

Spring loaded to return to idle when released.When acc elerating,press trigger gradually for best operating technique .Do not hold trigger while starting.

11. AIR CLEANER COVER

Contains replaceable felt element.

12. CHOKE

The choke control is located on the top of the filter cover.

COLD STARTS

Pull lever up to close choke for cold starts.push lever down for RUN position.

13. STARTER HANDLE

Pull handle until engine starts,then return handle slowly.DO NOT let handle snap back ,if not,starter will be damaged.

14. DEBRIS SHIELD

Mounted just above the cutting attachment .Helps protect operator by deflecting debris produced during the trimming operation .Do not operate unit without shield.

15. CUT-OFF KNIFE

Trims nylon filament to the correct length-7",head to end of line-when nylon trimming head is bumped on the ground during opration,line advance.if trimmer is operated without a cut-off knife the line becomes too long(more than 7") the operating speed will slow down the engine,which will overheat or damage the engine.

WARNING

CAUTION

Before using the product，Please Confirm the local laws and regulations no limit to this kind of product .Or the product can meet the requirements of local laws and regulations

ASSEMBLY

INSTALLING PLASTIC SHIELD

Install the safety cover on the shaft with the safety cover bracket and the screws provided.

Tighten the screws after setting the safetycover bracket at the appropriate position.

WARNING CAUTION

INSTALLING NYLON LINE CUTTER HEAD

Align hole in adapter plate with hole in shaft and install locking tool.

Thread cutter head onto shaft (turning it clockwise) until it is tight.

Remove locking tool.

INSTALLING HANDLE

Install handle and lower cap on the rubber cover, and tighten four M5×25 screws.

WARNING CAUTION

(4) securely.

Do not attempt to disassemble the two special screws.

The two clamps position has been adjusted at a suitable place,do not attempt to remove or move them.Otherwise,it can result in serious personal injury.

Pull out the stop pin (2) and push the lower part of the rod (1) right down until the stop pin (2) slots into the hole (3) in the rod. This is easier to do if you rotate the bottom of the rod (4) slightly in both directions. The pin (2) is in place when it is completely lodged in the hole. - Lastly, tighten the knob

RULES FOR SAFE OPERATION

WARNING DANGER

All models trimmers can throw small stone , metal or small objects as well as the material being cut. Read these"Rules for Safe Operation"with care. Follow the instructions in your operator's manual.

Read the operator's manual carefully. Be thoroughly familiar with the controls and proper use of the unit. Know how to stop the unit and shut off the engine.Know how to unhook a harnessed unit quickly.

Never allow anyone to use the unit without proper instruction.Be sure the operator wears the foot, leg, eye, face and hearing protection.

Do not rely on the debris shield on the unit to protect your eyes from ricocheting or thrown objects.

Keep the area clear of bystanders, children and pets. Never allow children to operate or play with the unit.

Do not allow anyone to enter the operating DANGER ZONE with you. The danger zone is an area

15 meters in radius (about 16 paces) or 50 feet.

Insist that persons in the RISK ZONE beyond the danger zone wear eye protection from thrown objects. If the unit must be used where there are unprotected people, operate at a low throttle speed to reduce the risk of thrown objects.

Move the stop switch to "stop" position when the engine idles, here by ensuring it is reliable before cutting. Only may continue to operate the unit when stop switch is in good condition.

Routines for checking that the cutting attachment stops turning when the engine idles.

Hold the grass trimmer with the right hand on the trigger handle and the left hand on the front handle.

Keep a firm grip with both hands while in operation.

Grass trimmer should be held at a comfortable position with the trigger handle about hip height.Maintain your grip and balance on both feet. Position yourself so that you will not be drawn

off balance by the kick-back reaction of the nylon head.

Use the shoulder harness at all times.Adjust both harness and harness clamp on the unit so that the unit hangs a few inches above ground level. The cutting head and the plastic debris shield should be level in all directions. Harness the unit on the right side of your body.

WARNING DANGER

In addition to head, eye, face and ear protectors wear shoes to protect your feet and improve your footing on slippery surfaces. Do not wear ties, jewelry, or loose, dangling clothing which could be caught in the unit.

Do not wear open-toed footwear, or go barefoot or bare legged. In certain situations you must wear total face and head protection.

Pay attention so as not to kick back and blade thrust.

ASSEMBLING AND USING THE SHOULDER HARNESS

1.Assemble and adjust the shoulder harness and belt,as shown.

2.Adjust the shoulder-harness button,and move the hook to your waist, then adjust the belt(If there is a belt).

3.Hang the latch tab on the harness hook.

4.If the trimmer does't balance,then adjust the harness hanger,and the handlebar,until the grass trimmer balances.

WARNING CAUTION

The hook is situated at your right hip,and the quick-release latch is situated at the outside.

5.To quickly detach the grass trimmer from the harness,pull the quick-release latch tab upward;

6.Insert the latch tongue in the slot of the quick-release latch to reattach the grass trimmer to the harness.

WARNING DANGER

Before using,please check the shoulder harness and confirm it is OK.Encounter danger,please stop the grass trimmer immediately,and pull the quick-release latch tab,the grass trimmer will be depart from your body.

CUTTING WITH A NYLON HEAD

Line head rotates in a counter CLOCKWISE direction.The CUT-OFF KNIFE will be on the right side of the debris shield.

WARNING DANGER

The proper debris shield must be in place on the unit when nylon cutting line is used. The cutting line can flap around if too much line is exposed. Always use the plastic debri shield with cut-off knife when using nylon cutting heads.

For nearly all cutting, it is good to tilt the line head so that contact is made on the part of the line circle where the line is moving AWAY from you and the debris shield. (See appropraite picture)

This results in the debris being thrown AWAY from you.

WARNING DANGER

Tilting the head to the wrong side will shoot the debris TOWARDS you.If the line head is held flat to the ground so that cutting occurs on the whole line circle, debris will be THROWN at you, drag will slow the engine down, and you will use up a lot of line.

WARNING DANGER

Use only quality nylon monofilament line of the diameter 2.5mm. Never use wire or wire-reinforced line in place of nylon trimmer line. Load your nylon line cutting head only with nylon trimmer line of the proper diameter.

WARNING DANGER

Use extreme caution when operating over bare spots and gravel,because the line can throw small rock particles at high speeds.Debris shields on the unit cannot stop objects which bounce or ricochet off hard surfaces.

CUTTING WITH A NYLON HEAD

TRIMMING:

This is feeding the trimmer carefully into the material you wish to cut.Tilt the head slowly to direct debris away from you. If cutting up to a barrier such as fence, wallor tree,approach from an angle where anydebris ricocheting off the barrier will fly away from you.Move the line head slowly until the grass is cut right up the barrier,but do not jam(overfeed )the line into the barrier.

If trimming up to a wire mesh or chain linked fence be careful to feed only up to wire. If you go to far the line will snap off around the wire.Trimming can be done to cut through weed stems one at a time. Place the trimmer line head near the bottom of the weed-never high up which could cause the weed to chatter and catch the line. Rather than cut the weed right through, just use the very end of the line to wear through thestem slowly.

WARNING DANGER

Do not use a steel blade for edging or scalping.

SCALPING AND EDGING:

Both of these are done with the line head tilted at a steep angle Scalping is removing top growth leaving the earth bear.Edging is trimming the grass back where ithas spread over a sidewalk or drive way.During both edging and scalping, hold the unit a steep angle and in a position where the debris, and any dislodging dirt and stones,will not come back towards you even if it ricochets off the hard surface. Although the picture shows how to edge and scalp every oprator must find for himself the angles which suits his body size and cutting situation.

WARNING DANGER

Do not trim in any area where there are strands of fencing wire. Wear protective safety protecting,

Do not cut where you cannot see what the cutting device is cutting.

CUTTING WITH A BLADE

There are many different types of blades, however the two most commonly used are the following.

BRUSHBLADE is used for cutting brush and weeds up to 3/4" in diameter. Only CG420-2

255mm 3-blade can be used in this type of brush cutter.

SAWBLADE is used for cutting growth from 3/4" to 3" in diameter.

WARNING DANGER

DO NOT USE A BRUSH CUTTER FOR CUTTING TREES.

WARNING DANGER

Do not cut with dull, cracked or damaged metal blade.

Before cutting growth, inspect for obstructions such as boulders, metal stakes or strands of wire from broken fences. If an obstruction cannot be removed, mark its location so that you can avoid it with the blade. Rocks and metal will dull or damage a blade. Wires can catch on the blade head and flap around or be thrown into the air.

Blade thrust is the reaction which may occur when the spinning blade contacts anything it cannot cut.This contact may cause the blade to stop for an instant ,and suddenly "thrust" the unit away from the object that was hit.This reaction can be violent enough to cause the operator to lose control of the unit.Blade thrust may occur without warning if the blade snags ,stalls or binds.This is more likely to occur in areas where it is difficult to see the material being cut.For cutting ease and safely,approach the weeds being cut from the right to the left,in the event that an unexpected object or woody stock is encountered,this could minimise the blade thrust reaction.

SCYTHING WEEDS

This is cutting by swinging the blade in a level arc. It can quickly clear areas of field grass and weeds. Scything should not be used to cut large, tough weeds or woody growths.

WARNING DANGER

Do not use a brush blade to cut trees which exceed a diameter of 1/2 to 3/4 inches.

Scything can be done in both directions, or just in one way which results in the debris being thrown away from you.

That is using the side of the blade that it is rotating away from you. Tilt down the blade slightly on this same side .You will be hit by some debris if you scythe in both directions.

SAWING

This must be done with a saw blade when the weeds are too thick and strong for scything.

If kickback occurs, the blade may be dull, or the material so thick and hard that you should use a saw blade instead of the brush blade.

Growth up to 3-inches in diameter, which is too thick for scything, may be cut by sawing. Sawing requires judgement on your part whether to cut on the side where the blade pulls away from you but throws back the debris ,or on the side where the debris is thrown away from you but the reaction is push which could become a kickout(blade thrust).

Always cut on the side of the tree which will cause the tree to fall away from the unit. A kickout or bind may result if the tree falls toward the unit and pinches the blade.

Do not force the blade to cut. Do not change the angle of cut after into the wood. Avoid using any pressure or leverage which could cause the blade to bind or crack.

FUEL ＆ OIL MIXTURE

z Never fill the fuel tank to the very top. z Never add fuel to the tank in a closed non-ventilated area. z Do not add fuel to this unit close to an open fire or sparks. z Be sure to wipe off spilled fuel before attempting to start engine. z Do not attempt to refuel a hot engine

Fuel used for this model is a mixture of unlead gasoline and approved engine lubricant. When mixing gasoline with two-cycle engine oil, use only gasoline which contains NO ETHANOL or

METHANOL(Types of Alcohol) Use Branded 89 octane or higher unlead gasoline known to be of good quality. This will help to avoid possible damage to engine fuel lines and other engine parts.

OIL-1 PART MIXTURE RATIO IS 30:1

GASLINE

30 PART GASLINE-30PART ----OIL-1 PART

Fuel mixture at the rate other than 30:1 may cause damage to the engine,Ensure mixture ratio is correct.

FUEL

The engine uses two-stroke fuel, a mixture of gasoline and 2-stroke lubricant 30:1

GASOLINE

Use branded 89 octane or higher unlead gasoline known to be of good quality.

STORING FUEL

Store fuel only in a clean,safe,aprroved container. Check and follow local ordinances on type and location of storage container.

IMPORTANT

Two-stroke fuel may separate.Shake fuel container thoroughly before each use.

Stored fuel ages. Do not mix more fuel than you expect to use within a month.

FUEL AND OIL MIXTURE

Inspect fuel tank making sure that it is clean and fill with fresh fuel. Use a mixture of 30:1.

PREPARING FOR OPERATIONS

WHEN MIXING GASOLINE WITH TWO CYCLE ENGINE OIL, USE ONLY GASOLINE

WHICH CONTAINS NO ETHANOL OR METHANOL(TYPES OF ALCOHOL). THIS

WILL HELP TO AVOID POSSIBLE DAMAGE TO ENGINE FUEL LINES AND OTHER

ENGINE PARTS.

DO NOT MIX GASOLINE AND OIL DIRECTLY IN THE ENGINE FUEL TANK.

IMPORTANT:Failure to follow proper fuel mix instructions may cause damage to the engine.

1.When preparing fuel mixture, mix only the amount needed for the job you are to do.

Do not use fuel that has been stored longer than two months.Fuel mixture stored longer than this will cause hard starting and poor performance.If fuel mix has been stored longer than this time, it should be removed and filled with fresh mixture.

WARNING DANGER

2.Never fill the fuel tank to the very top.(under 3/4 of the tank)

3.Never add fuel to the tank in a closed non-ventilated area.

4.Do not add fuel to this unit close to an open fire or sparks.

5.Be sure to wipe off spilled fuel before attempting to start engine

6.Do not attempt to refuel a hot engine.

CHECK POINTS BEFORE OPERATION

1.Check for loose bolts, nuts and fittings.

2.Check the air cleaner for dirt. Clean the air filter of all dirt, etc. before operation.

3.Check to be sure that protector is securely in place.

4.Check to be sure that fuel is not leaking.

5.Check to be sure that blade is not cracked.

WARNING DANGER

The engine exhaust from this product contains chemicals known to cause cancer, birth defects, or other reproductive harm.

OPERATIONS

ENGINE STARTING AND STOPPING PROCEDURES

STARTING COLD ENGINE

1. Move the stop switch to "START" position.

2. Give a gentle push on the primer pump repeatedly (7-10times) until fuel comes into the primer pump.

3. Cold Starts:Pull lever up to close choke.

4. Pull starter handle until engine false fires.

5. Push choke lever inwards( excessive cranking with choke lever will cause flooding engine making it difficult to start.)

6. Pull starter handle until engine starts.

7. Allow engine to warm up for a few minutes before using.

STARTING WARM ENGINE

If fuel tank was not run dry, pull starter one to three times and engine should start.

DO NOT USE CHOKE

z If fuel tank was run dry, after refilling repeat steps 3 thru 7 in STARTING COLD ENGINE.

STOPPING THE ENGINE

z Move switch to STOP position.

MAINTENANCE ＆CARE

WARNING CAUTION

Use only original manufacturer's replacement parts, accessories and attachments. Failure to do so can cause possible injury, poor performance and may void your warranty. z The cutting attachment must not rotate in idle mode.If this requirement is not satisfied,the cluth has to be adjusted or the machine needs an urgent maintenance by a qualified technician. z You may make adjustments and repairs described here.For other repairs,have the trimmer serviced by an authorized service agent. z Consequences of improper maintenance may include excess carbon deposits resulting in loss of performance and discharge of black oily residue dripping from the muffler. z Make sure all guards,straps,deflectors and handles are properly and securely attached to avoid the risk of personal injury.

EXHAUST PORT AND SILENCER

z Depending on the type of fuel used,the type and amount of oil used,and/or your operating conditions,the exhaust port and silencer may become blocked with carbon deposits.If you notice a power loss with your petrolpowered tool.a qualified service technician will need to remove these deposits to restore performance.

AIR FILTER

Accumulated dust in the air filter will reduce engine efficiency. Increase fuel consumption and allow abrasive particles to pass into the engine. Remove the air filter as often as necessary to maintain in a clean condition. z Light surface dust can readily be removed by tapping the filter. Heavy deposits should be washed out in suitable solvent. z Remove filter cover by loosening air filter cover knob.

ADJUSTING CARBURETOR

NOTE

Do not adjust carburetor unless necessary. If you have trouble with the carburetor, see your dealer.

Improper adjustment may cause engine damage and void warranty.

FUEL FILTER

z Fuel tank is fitted with a filter.

Filter is situated at the free end of fuel pipe and can be picked out through fuel port with a piece of hooked wire or the like. z Check the fuel filter periodically. Do not allow dust to enter into fuel tank.Clogged filter will cause difficulty in starting engine or abnormalities in engine performance. z When filter is dirty, replace the filter. z When the inside of the fuel tank is dirty, it can be cleaned by rinsing the tank out with gasoline.

CHECK SPARK PLUG z Do not attempt to remove the plug from a hot engine in order to avoid possible damage to the threads. z Clean or replace the plug if fouled with heavy oily deposits. z Replace the plug if the center electrode is worn rounded at the end. z Spark gap 0.6-0.7mm (.023".028") z Fastening torque =145-155kg.cm(125-135in.lb)

TRANSPORT ＆ STORAGE

TRANSPORT, HANDLING

z The engine should be turned off when the unit is moved between work areas. z After the engine has stopped ,the muffler is still hot. never touch hot Parts such as the muffler. z Confirm that the fuel has not leaked from the tank. z Allow the engine to cool;empty the fuel tank and secure the unit from moving before transporting in a vehicle,if the blade is fitted ,always use the blade guard. z Installing blade guard.

Open the blade guard and install on the blade ,then put the pin into the guard notch.

WARNING DANGER

Always place the blade guard on the blade when the unit is not in use.Remove the blade guard before using the unit. If not removed,the blade guard could become a thrown object as the blade begins to turn.

WARNING DANGER

Please empty the fuel tank before transporting,to avoiding the engine leaked.

For avoiding the cutting attachment damaged the brush cutter and people, please removed the cutting attachment ,and at the same time, resile the brush cutter as factory state,and then casting all parts into the package. Before transporting,all parts should be packed and validated safe.

EXTENDED STORAGE

z Inspect, clean and repair unit if necessary. z Remove all fuel from tank. z Start engine-This will consume all fuel in fuel line and carburetor. z Remove spark plug and pour one tea spoon of clean motor oil into spark plug hole of cylinder-replace spark plug. z Store in clean, dry, dust free area.

WARNING DANGER

Do not store in a closed area where fuel vapors can reach an open flame from hot water heaters, heaters, furnaces, etc. Store in a locked, well ventilated area only.

1. FAILURE TO START

TROUBLE SHOOTING GUIDE

cylinder compress pressure normal spark plug spark normal fuel system normal fuel system abnormality fuel system normal fuel high voltage wire spark normal high voltage wire spark abnormality park plug these is no fuel in tank fuel filter obstructed add fuel in tank clean fuel filter fuel is too dirty there is water in fuel there is too much fuel in cylinder mixture ratio is improper spark plug fouled with oily deposits spark plug insulation damage spark gap is too large or small high voltage wire breach or break off coil looseness replace fuel replace fuel take down spark plug and dry it mixture proration clean the oily deposits replace spark plug adjust spark gap

0.6-0.7mm replace or tighten tighten fuel system normal

Ignition system normal compression pressure is inadequate compression normal piston ring attrite piston ring is broken piston ring cementation spark plug looseness conjoint surface of the replace a new replace eliminate tighten eliminate cylinder and crank cass leak high voltage wire and tighten the spark plug cap spark plug contact poor stop switch failure or short circuit repair or replace

2. LOW OUTPUT

flameout when speedup the smoke is thin, carburetor spout backward fuel filter obstruct, fall short of fuel muffler fouled with oily deposits

remedy

clean fuel filter、clean fuel road、 adjust carburetor clean the oily deposits replace piston、piston ring cylinder attrite conjoint surface of the cylinder repair inadequate engine leak the end of two crank shaft leak and crank cass leak the seal is bad engine overheats burning room fouled with oily deposits

3.ENGINE RUNNING UNSTABLE

replace seal avoid use it for long time 、 high speed and heavy load clean the oily deposits there are knock sound in engine piston、piston ring、 cylinder attrite、 piston pin、piston attrite gasoline branded is unfit engine ignition break off there is water in fuel spark gap is wrong coil gap is wrong

4.THE ENGINE SUDDENLY STOPPED remedy

replace piston、piston ring replace piston pin、piston bearing of crank shaft replace bearing attrite avoid use it for long time 、 there are metal knock engine overheats sound burning room fouled with oily deposits high speed and heavy load clean the oily deposits replace with required branded octane instead fuel adjust spark gap 0.6-0.7mm adjust coil gap 0.3-0.4mm

probable cause

fuel has been used up spark plug fouled with oily deposits and short circuit high voltage wire fall off

remedy

add fuel clean the oily deposits connect

OWNER/OPERATOR MANUAL

MULTI-FUNCTION TOOL

(PART 3: LAWN EDGER)

Original Instructions

CAUTION:

Thank you for purchasing a product. Before using our lawn edger, Please use this manual carefully to understand the proper use of your unit.

MODEL: PBC-260SS

INTRODUCTION/TECHNICAL DATA ---------------------------------------------54

SYMBOL------------------------------------------------------------------------------------55

ATTACHING THE TOOLS TO THE DRIVE SHAFT ASSEMBLY----------57

Operation

---------------------------------------------------------------------------------58

INTRODUCTION

Thank you for your purchasing the lawn edger of our Company. The present manual explains how to handle the lawn edger well. Before using it, please read this operator's manual carefully, operate the machine correctly and engage in your task safely.

By the way, due to changes of specifications, all details of your machine may not agree with this manual. Please understand accordingly.

TECHNICAL DATA

Main unit

Engine

Model

Remote type

Maximum speed of gear shaft/engine speed

PBC-260SS(PART 4: LAWN EDGER)

Spiral bevel gear; Drive shaft

7000/ 9000

(/min)

Idle speed(/min)

Weight when dry(kg)

Reduction ratio

Type of handle

Cutting

Attachment

Maximum Operating Depth

Thickness of the Blade

Name of engine

Displacement(mL)

Maximum output(kW//min)

Fuel tank capacity(L)

2800±280 2500(+400，-150)

6.3 6.6 7.2 7.4

17：22

Double grip

1E34F 1E34F-2E 1E36F-2A 1E36F-2E

25.4 25.4 32.6 32.6

0.75/7500 0.75/7500

0.7 0.65

65 mm

3 mm

0.9/6500 0.9/7000

0.75 1

Type

2.4 2.7 3.3 3.5

Air-cooled; 2 cycle; vertical piston valve; gasoline engine

Carburetor Diaphragm-type

Ignition Non-contact electronic ignition

Method of starting Recoil type

Fuel used Gasoline mixed with lubricating oil (ratio of 30:1)

Technical Data subject to changed without notice.

SYMBOLE

Some of the following symbols may be used on this tool. Please study them and understand their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

SYMBOL NAME

Safety Alert

DESIGNATION/EXPLANATION

Indicates danger, warning or caution. It means attention!

Read The Operator’

Manual

Your safety is involved.

Read the operation manual and follow all warnings and safety instructions.

Ricochet Alert Danger of Ricochet.

Keep Bystanders

Away

Keep all bystanders (especially children and pets) at least

15m away from the work area.

Do not use toothed blade

This unit is not intended for use with a toothed saw type blade.

RPM Decal Rotational direction and maximum speed of the shaft for the cutting attachment.

Boots Wear non-slip safety footwear when using this equipment.

Gloves Wear non-slip, heavy-duty gloves.

No Smoking Do not smoke when mixing fuel or filling fuel tank.

Petrol Use unleaded petrol intended for motor vehicle use with an octane rarting of 91([R+M]/2) or higher.

Oil Use 2-stroke oil for air cooled engines.

Mix Petrol and Oil Mix the fuel mix thoroughly and also each time before refuelling.

Fully press and release the prime bulb 5 times.

All relevant directives, which require the CE-marking and which are applicable for the product, are fulfilled.

Wear eye, hearing and head protection when operating this equipment.

To reduce the risk of injury or damage, avoid contact with any hot surface.

Beware Of Blade

Thrust

Guaranteed sound power level

Continued movement of saw blade after cutting through log.

A harzard from fire/flammable materials.

ATTACHING THE TOOLS TO THE DRIVE SHAFT ASSEMBLY

1. Rest the power unit/shaft assembly on a flat firm surface.

2. Ensure that the clamping wing nut (2) is loose, pull out locator pin (1).

3. Carefully fit attachment drive shaft assembly (5) into coupler (3).

4. After the attachment drive shaft is in the coupler, release the locator pin (1).

5. Turn the attachment drive shaft until the locator pin engages with the locating hole (4) in the drive shaft, when this has happened it will not be possible to twist the drive shaft.

6. Secure the drive shaft by tightening the clamping wing nut (2).

Operation

Always wear eye protection such as safety goggles. Never lean over the rotating cutting head.

Rocks or other debris could be thrown into eyes and face and cause serious personal injury.

Keep the blade guard and the mad guard attached in place at all times when the unit is operated.

Before starting a job, check the area and remove all obstacles and objects that could be thrown by the blade.

Do not adjust the wheel height or try to remove anything entangled to the blade with the engine running.

1. Before starting a job, plan your direction of travel so that you can always hold the edger on you right side and can walk on a hard surface as much as possible.

2. When starting to edge, run the engine at full throttle, and slowly have the blade cut into the edge groove.

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Husqvarna 129R Brushcutter and Trimmer Omaniku manuaal

Ronix 4552 Gasoline Grass Cutter User Manual

HHT2655

MTD TB525ET Owner Manual

Operator’s Manual TB10CS 2-Cycle Gasoline Trimmer SAVE THESE INSTRUCTIONS

Makita EE2650H Instruction manual

Husqvarna 125E-CANADA Gas Line Trimmer Owner's Manual

McCulloch B26PS (2020) Chainsaw Kasutusjuhend

Operator Manual for Husqvarna 128LDX
