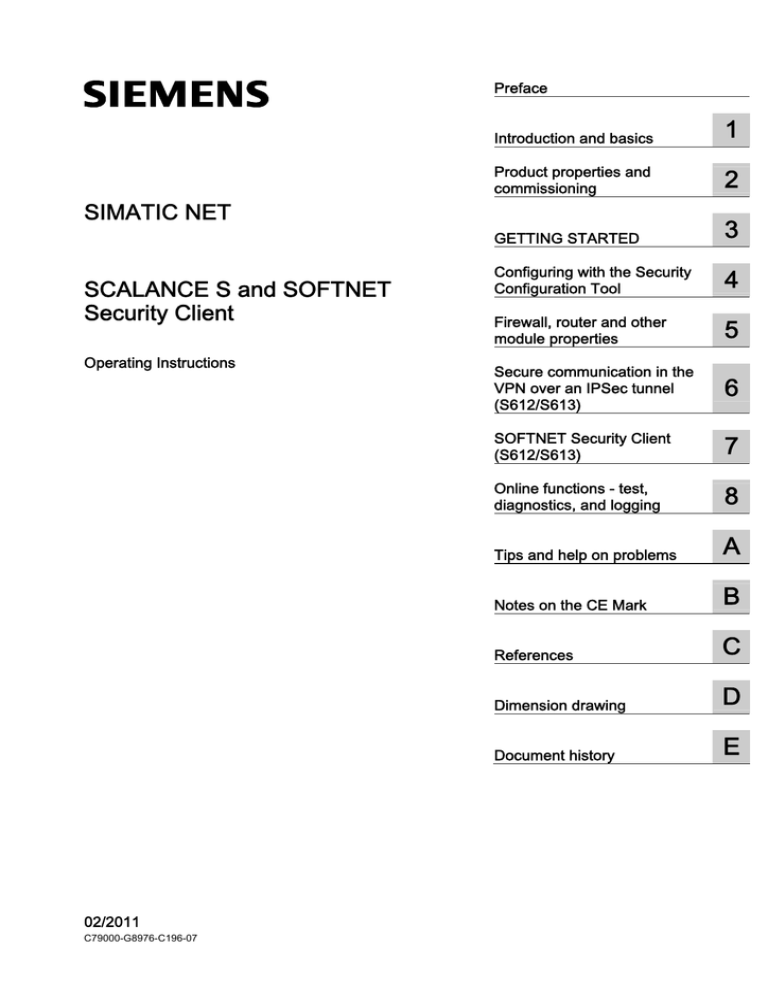

SCALANCE S and SOFTNET Security Client

SCALANCE S and SOFTNET Security Client
Preface
SIMATIC NET
SCALANCE S and SOFTNET
Security Client
Operating Instructions
02/2011
C79000-G8976-C196-07
Introduction and basics
1
Product properties and
commissioning
2
GETTING STARTED
3
Configuring with the Security
Configuration Tool
4
Firewall, router and other
module properties
5
Secure communication in the
VPN over an IPSec tunnel
(S612/S613)
6
SOFTNET Security Client
(S612/S613)
7
Online functions - test,
diagnostics, and logging
8
Tips and help on problems
A
Notes on the CE Mark
B
References
C
Dimension drawing
D
Document history
E
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
with a safety alert symbol, indicates that minor personal injury can result if proper precautions are not taken.
CAUTION
without a safety alert symbol, indicates that property damage can result if proper precautions are not taken.
NOTICE
indicates that an unintended result or situation can occur if the corresponding information is not taken into
account.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation for the specific task, in particular its warning notices and
safety instructions. Qualified personnel are those who, based on their training and experience, are capable of
identifying risks and avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be adhered to. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of the Siemens AG. The remaining trademarks in this
publication may be trademarks whose use by third parties for their own purposes could violate the rights of the
owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
Siemens AG
Industry Sector
Postfach 48 48
90026 NÜRNBERG
GERMANY
order number: C79000-G8976-C196-07
Ⓟ 02/2011
Copyright © Siemens AG 2006,
2007, 2008, 2010, 2011.
Technical data subject to change
Preface
This manual…
...supports you when commissioning the SCALANCE S602 / S612 / S613 security modules
and the SOFTNET Security Client. The variants SCALANCE S602 / S612 / S613 are simply
called SCALANCE S in the rest of the manual.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
3
Preface
New in this issue
This issue includes descriptions of the following new functions:
● Security Configuration Tool V2.3
To improve handling and achieve a better overview of the various module types, the
procedures for module integration and module replacement have been improved.
You can configure a SOFTNET Security Client V3.0 together with an MD741-1 and
create the corresponding configuration files (see GETTING STARTED Example 5:
Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
(Page 86)).
For the IKE mode (phase 1), you can set the encryption algorithms AES-128, AES-192
and AES-256.
Apart from the operating systems Windows XP SP2 and Windows XP SP3, the Windows
7 operating system is also supported (not the Home version).
● SOFTNET Security Client V3.0
To improve visualization and diagnostics of the statuses of the connections, new icons
were implemented and an additional diagnostics overview ("Advanced diagnostics") was
added.
For the logging console in the tunnel overview, you can now make settings relating to the
messages to be displayed and the size of the log files.
To save costs on volume-oriented connections, you have the option of deactivating the
reachability test at the cost of the diagnostics capability of the SOFTNET Security Client
V3.0.
During diagnostics of the reachability of tunnel partners, it is possible that the reachability
is shown as being negative although communication does work in principle. This occurs
with tunnels via slower transmission paths (UMTS, GPRS etc.). In this case, the wait time
for the ping reply (reachability test) can be globally increased.
Connection establishment to an MD741-1 is supported. In this context, a DynDNS
address can be configured (see GETTING STARTED Example 5: Remote access - VPN
tunnel example with MD741-1 and SOFTNET Security Client (Page 86)).
Apart from the operating systems Windows XP SP2 and Windows XP SP3, the Windows
7 operating system is also supported (not the Home version).
● Configuration data for module MD 741-1
To configure an external MD741-1 for access with the SOFTNET Security Client V3.0,
you can export the configuration data to a text file with the Security Configuration Tool
V2.3. (GETTING STARTED Example 5: Remote access - VPN tunnel example with
MD741-1 and SOFTNET Security Client (Page 86)).
SCALANCE S and SOFTNET Security Client
4
Operating Instructions, 02/2011, C79000-G8976-C196-07
Preface
Validity of this manual
This manual is valid for the following devices and components:
● SIMATIC NET SCALANCE S602 6GK5 602-0BA00-2AA3 - with firmware version as of
V2.3
● SIMATIC NET SCALANCE S612 V2 6GK5 612-0BA00-2AA3 - with firmware version as
of V2.3
● SIMATIC NET SCALANCE S613 V2 6GK5 613-0BA00-2AA3 - with firmware version as
of V2.3
● SIMATIC NET SOFTNET Security Client 6GK1 704-1VW02-0AA0 - as of version 2008
● Security Configuration Tool - version V2.3
Audience
This manual is intended for personnel involved in the commissioning of SCALANCE S
Security Modules and the SOFTNET Security Client in a network.
Further documentation
The "SIMATIC NET Industrial Ethernet Twisted Pair and Fiber Optic Networks“ manual
contains additional information on other SIMATIC NET products that you can operate along
with the SCALANCE S security module in an Industrial Ethernet network.
You can download this network manual in electronic format from Customer Support at the
following address:
http://support.automation.siemens.com/WW/view/de/1172207
(http://support.automation.siemens.com/WW/view/de/1172207)
Standards and approvals
The SCALANCE S device meets the requirements for the CE mark. For more detailed
information, refer to the appendix of this manual.
Symbols used in this manual
This symbol highlights special tips in the manual.
This symbol indicates specific further reading material.
This symbol indicates that detailed help texts are available in the context help. You can call
this with the F1 key or using the "Help" button in the relevant dialog.
F1
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
5
Preface
References /.../
References to other documentation are shown in slashes /.../. Based on these numbers, you
can find the title of the documentation in the references at the end of the manual.
SCALANCE S and SOFTNET Security Client
6
Operating Instructions, 02/2011, C79000-G8976-C196-07
Contents

Preface ...................................................................................................................................................... 3
1
2
3
Introduction and basics............................................................................................................................ 11
1.1
Uses of the SCALANCE S612, S613 and SOFTNET Security Client .........................................11
1.2
Using the SCALANCE S602 ........................................................................................................14
1.3
Configuration and administration .................................................................................................16
Product properties and commissioning .................................................................................................... 17
2.1
2.1.1
2.1.2
2.1.3
2.1.4
2.1.5
2.1.6
2.1.7
2.1.8
2.1.9
Product Characteristics................................................................................................................17
Hardware characteristics and overview of the functions .............................................................17
Components of the product..........................................................................................................18
Unpacking and checking..............................................................................................................19
Attachment to Ethernet ................................................................................................................19
Power supply................................................................................................................................20
Signaling contact..........................................................................................................................21
Reset button - resetting the configuration to factory defaults ......................................................22
Displays........................................................................................................................................23
Technical specifications ...............................................................................................................24
2.2
2.2.1
2.2.2
2.2.3
2.2.4
Installation ....................................................................................................................................26
Installation on a DIN rail...............................................................................................................28
Installation on a standard rail .......................................................................................................30
Wall mounting ..............................................................................................................................30
Grounding ....................................................................................................................................31
2.3
2.3.1
2.3.2
Commissioning.............................................................................................................................31
Step 1: Connecting the SCALANCE S module............................................................................33
Step 2: Configuring and downloading..........................................................................................33
2.4
C-PLUG (configuration plug)........................................................................................................35
2.5
Transferring firmware...................................................................................................................38
GETTING STARTED ............................................................................................................................... 39
3.1
3.1.1
3.1.2
3.1.3
3.1.4
3.1.5
3.1.6
3.1.7
Example 1: VPN tunnel - IPsec tunnel example with SCALANCE S612 / S613 .........................40
Overview ......................................................................................................................................40
Set up SCALANCE S and the network ........................................................................................41
Make the IP settings for the PCs .................................................................................................42
Create the project and modules...................................................................................................44
Configuring a tunnel connection ..................................................................................................45
Download the configuration to the SCALANCE S module ..........................................................46
Test the tunnel function (ping test) ..............................................................................................47
3.2
3.2.1
3.2.2
3.2.3
3.2.4
Example 2: Firewall - Operating a SCALANCE S as a firewall ...................................................48
Overview ......................................................................................................................................48
Set up SCALANCE S and the network ........................................................................................50
Make the IP settings for the PCs .................................................................................................51
Create the project and module.....................................................................................................52
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
7
Contents
3.2.5
3.2.6
3.2.7
3.2.8
Configure the firewall .................................................................................................................. 54
Download the configuration to the SCALANCE S module.......................................................... 56
Test the firewall function (ping test) ............................................................................................ 56
Log firewall data traffic ................................................................................................................ 58
3.3
3.3.1
3.3.2
3.3.3
3.3.4
3.3.5
3.3.6
3.3.7
3.3.8
Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router................ 59
Overview ..................................................................................................................................... 59
Set up SCALANCE S and the network ....................................................................................... 61
Make the IP settings for the PCs ................................................................................................ 62
Create the project and module.................................................................................................... 63
Configuring the NAT router mode ............................................................................................... 65
Configure the firewall .................................................................................................................. 67
Download the configuration to the SCALANCE S module.......................................................... 70
Test the NAT router function (ping test)...................................................................................... 70
3.4
Example 4: Remote access - VPN tunnel example with SCALANCE S612 / S613 and
SOFTNET Security Client ........................................................................................................... 73
Overview ..................................................................................................................................... 73
Set up SCALANCE S and the network ....................................................................................... 75
Make the IP settings for the PCs ................................................................................................ 76
Create the project and modules.................................................................................................. 78
Configuring a tunnel connection ................................................................................................. 81
Loading the configuration on the SCALANCE S and saving the SOFTNET Security Client
configuration................................................................................................................................ 82
Set up a tunnel with the SOFTNET Security Client .................................................................... 83
Test the tunnel function (ping test).............................................................................................. 84
3.4.1
3.4.2
3.4.3
3.4.4
3.4.5
3.4.6
3.4.7
3.4.8
3.5
3.5.1
3.5.2
3.5.3
3.5.4
3.5.5
3.5.6
3.5.7
3.5.8
3.5.9
4
Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security
Client ........................................................................................................................................... 86
Overview ..................................................................................................................................... 86
Setting up the MD741-1 and the network ................................................................................... 88
Make the IP settings for the PCs ................................................................................................ 89
Create the project and modules.................................................................................................. 90
Configuring a tunnel connection ................................................................................................. 91
Saving the configuration of the MD741-1 and the SOFTNET Security Client ............................ 94
Configuring the MD741-1 ............................................................................................................ 94
Setting up a tunnel with the SOFTNET Security Client ............................................................ 101
Test the tunnel function (ping test)............................................................................................ 103
Configuring with the Security Configuration Tool ................................................................................... 107
4.1
Range functions and how they work ......................................................................................... 107
4.2
Installation ................................................................................................................................. 109
4.3
User interface and menu commands ........................................................................................ 110
4.4
4.4.1
4.4.2
4.4.3
4.4.4
4.4.5
Managing projects..................................................................................................................... 113
Overview ................................................................................................................................... 113
Creating and editing projects .................................................................................................... 115
Setting up users ........................................................................................................................ 118
Consistency checks .................................................................................................................. 120
You can assign symbolic names for IP / MAC addresses. ....................................................... 121
4.5
Download the configuration to the SCALANCE S module........................................................ 124
4.6
Configuration data for MD 740 / MD 741 .................................................................................. 126
SCALANCE S and SOFTNET Security Client
8
Operating Instructions, 02/2011, C79000-G8976-C196-07
Contents
5
6
Firewall, router and other module properties ......................................................................................... 129
5.1
5.1.1
5.1.2
5.1.3
Overview / basics.......................................................................................................................129
SCALANCE S as firewall ...........................................................................................................129
SCALANCE S as router .............................................................................................................130
SCALANCE S as DHCP server .................................................................................................131
5.2
Creating modules and setting network parameters ...................................................................131
5.3
5.3.1
5.3.2
Firewall - module properties in standard mode..........................................................................135
Configure the firewall .................................................................................................................135
Firewall defaults .........................................................................................................................138
5.4
5.4.1
5.4.2
5.4.3
5.4.4
5.4.5
5.4.6
5.4.7
5.4.8
5.4.9
5.4.10
Firewall - module properties in advanced mode ........................................................................140
Configure the firewall .................................................................................................................141
Global firewall rules....................................................................................................................142
Setting local IP packet filter rules...............................................................................................144
IP packet filter rules ...................................................................................................................146
Defining IP services ...................................................................................................................149
defining ICMP services ..............................................................................................................151
Setting MAC packet filter rules...................................................................................................153
MAC packet filter rules...............................................................................................................154
defining MAC services ...............................................................................................................156
Setting up service groups ..........................................................................................................158
5.5
Time synchronization .................................................................................................................159
5.6
Creating SSL certificates ...........................................................................................................161
5.7
5.7.1
5.7.2
5.7.3
5.7.4
Routing mode.............................................................................................................................162
Routing.......................................................................................................................................162
NAT/NAPT routing .....................................................................................................................164
NAT/NAPT routing - Examples of configuration part 1 ..............................................................168
NAT/NAPT routing - Examples of configuration part 2 ..............................................................170
5.8
DHCP server ..............................................................................................................................172
Secure communication in the VPN over an IPSec tunnel (S612/S613) ................................................. 177
6.1
VPN with SCALANCE S ............................................................................................................177
6.2
6.2.1
6.2.2
Groups .......................................................................................................................................180
Creating groups and assigning modules ...................................................................................180
Module types within a group ......................................................................................................182
6.3
Tunnel configuration in standard mode .....................................................................................183
6.4
6.4.1
6.4.2
6.4.3
6.4.4
Tunnel configuration in advanced mode....................................................................................183
Configuring group properties .....................................................................................................184
Including a SCALANCE S in a configured group.......................................................................187
SOFTNET Security Client ..........................................................................................................188
Configuring module-specific VPN properties .............................................................................189
6.5
6.5.1
6.5.2
6.5.3
Configuring internal network nodes ...........................................................................................192
How the learning mode works....................................................................................................192
Displaying the detected internal nodes......................................................................................194
Configuring nodes manually ......................................................................................................195
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
9
Contents
7
8
A
SOFTNET Security Client (S612/S613) ................................................................................................. 199
7.1
Using the SOFTNET Security Client......................................................................................... 199
7.2
7.2.1
7.2.2
Installation and commissioning of the SOFTNET Security Client............................................. 202
Installing and starting SOFTNET Security Client ...................................................................... 202
Uninstalling SOFTNET Security Client ..................................................................................... 203
7.3
Creating a configuration file with the Security Configuration Tool ............................................ 203
7.4
Working with SOFTNET Security Client ................................................................................... 206
7.5
Setting up and editing tunnels................................................................................................... 209
Online functions - test, diagnostics, and logging .................................................................................... 219
8.1
Overview of the functions in the online dialog........................................................................... 220
8.2
8.2.1
8.2.2
8.2.3
Logging events.......................................................................................................................... 222
Local log - settings in the configuration..................................................................................... 223
Network Syslog - settings in the configuration .......................................................................... 225
Configuring packet logging........................................................................................................ 228
Tips and help on problems..................................................................................................................... 231
A.1
SCALANCE S module does not boot correctly ......................................................................... 231
A.2
SCALANCE S module cannot be reached................................................................................ 231
A.3
Replacing a SCALANCE S module .......................................................................................... 231
A.4
SCALANCE S module is compromised .................................................................................... 231
A.5
Key from the configuration data compromised or lost .............................................................. 232
A.6
General operational response................................................................................................... 233
B
Notes on the CE Mark ........................................................................................................................... 235
C
References ............................................................................................................................................ 237
D
Dimension drawing ................................................................................................................................ 239
E
Document history................................................................................................................................... 241
E.1
Document history ...................................................................................................................... 241
Glossary / abbreviations and acronyms ................................................................................................. 243
Index...................................................................................................................................................... 255
SCALANCE S and SOFTNET Security Client
10
Operating Instructions, 02/2011, C79000-G8976-C196-07
Introduction and basics
1
With SIMATIC NET SCALANCE S and SIMATIC NET SOFTNET Security Client, you have
chosen the SIEMENS security concept that meets the exacting requirements of secure
communication in industrial automation engineering.
This chapter provides you with an overview of the security functions of the devices and
components.
● SCALANCE S Security Module
● SOFTNET Security Client
Tip:
To get started quickly with the SCALANCE S, work through Chapter 3 "GETTING
STARTED".
1.1
Uses of the SCALANCE S612, S613 and SOFTNET Security Client
All-round protection - the job of SCALANCE S612 / S613
With a combination of different security measures such as firewall, NAT/NAPT routers and
VPN (Virtual Private Network) over IPsec tunnels, the SCALANCE S612 / S613 devices
protect individual devices or even entire automation cells from:
● Data espionage
● Data manipulation
● Unauthorized access
SCALANCE S612 / S613 allows this protection flexibly, without repercussions, protocolindependent (as of Layer 2 according to IEEE 802.3) and without complicated handling.
SCALANCE S612 / S613 and SOFTNET Security Client are configured with the Security
Configuration Tool.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
11
Introduction and basics
1.1 Uses of the SCALANCE S612, S613 and SOFTNET Security Client
Service computer
with
62)71(7
Security client
External
931YLD,3VHFWXQQHO
Internal
+RVWFRPSXWHU
external network
6&$/$1&(6
6&$/$1&(6
6&$/$1&(6
• )LUHZDOO
External
External
External
ವ5RXWHU
ವ1$71$37
5RXWHU
Internal
Internal
Internal
IE/PB
Link
ET 200X
HMI
0
S7-400
OP 270
LQWHUQDO2SHUDWRUFRQWUROPRQLWRULQJ
Figure 1-1
1
LQWHUQDO$XWRPDWLRQFHOO
S7-300
LQWHUQDO$XWRPDWLRQFHOO
Network configuration with SCALANCE S612 / S613
Security functions
● Firewall
– IP firewall with stateful packet inspection;
– Firewall also for Ethernet "non-IP" frames according to IEEE 802.3
(layer 2 frames; does not apply if router mode is used)
– Bandwidth limitation
All network nodes located in the internal network segment of a SCALANCE S are
protected by its firewall.
● Communication made secure by IPsec tunnels
SCALANCE S612 / S613 devices and SOFTNET Security Clients can be configured to
form groups. IPsec tunnels are created between all SCALANCE S612 / S613 devices and
a SOFTNET Security Client of a group (VPN, Virtual Private Network). All internal nodes
of this SCALANCE S can communicate securely with each other through these tunnels.
SCALANCE S and SOFTNET Security Client
12
Operating Instructions, 02/2011, C79000-G8976-C196-07
Introduction and basics
1.1 Uses of the SCALANCE S612, S613 and SOFTNET Security Client
● Protocol-independent
Tunneling also includes Ethernet frames according to IEEE 802.3 (layer 2 frames; does
not apply if router mode is used).
Both IP and non-IP frames are transmitted through the IPsec tunnel.
● Router mode
By operating the SCALANCE S as a router, you connect the internal network with the
external network. The internal network connected by SCALANCE S therefore becomes a
separate subnet.
● Protection for devices and network segments
The firewall and VPN protective function can be applied to the operation of single
devices, several devices, or entire network segments.
● No repercussions when included in flat networks (bridge mode)
Internal network nodes can be found without configuration. This means that when a
SCALANCE S612 / S613 is installed in an existing network infrastructure, the end
devices do not need to be reconfigured.
The module attempts to find internal nodes; internal nodes that cannot be found in this
way must nevertheless be configured.
PC/PG communication in the VPN - job of the SOFTNET Security Client
With the SOFTNET Security Client PC software, secure remote access is possible from
PCs/PGs to automation systems protected by SCALANCE S via public networks.
With the SOFTNET Security Client, a PC/PG is configured automatically so that it can
establish secure IPsec tunnel communication in the VPN (Virtual Private Network) with one
or more SCALANCE S devices.
PG/PC applications such as NCM Diagnostics or STEP 7 can then access devices or
networks in an internal network protected by SCALANCE S over a secure tunnel connection.
The SOFTNET Security Client PC software is also configured with the Security Configuration
Tool ensuring fully integrated configuration without any special security know-how.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
13
Introduction and basics
1.2 Using the SCALANCE S602
Internal and external network nodes
SCALANCE S612 / S613 divides networks into two areas:
● Internal network: Protected areas with the "internal nodes"
Internal nodes are all the nodes secured by a SCALANCE S.
● External network: Unprotected areas with the "external nodes"
External nodes are all the nodes located outside the protected areas.
NOTICE
The internal network is considered to be secure (trustworthy).
Connect an internal network segment to the external network segments only over
SCALANCE S.
There must be no other paths connecting the internal and external network!
1.2
Using the SCALANCE S602
Firewall and router - the job of the SCALANCE S602
With a combination of different security measures such as firewall and NAT/NAPT routers,
the SCALANCE S602 protects individual devices or even entire automation cells from:
● Data espionage
● Unauthorized access
SCALANCE S602 allows this protection flexibly and without complicated handling.
SCALANCE S602 is configured with the Security Configuration Tool.
SCALANCE S and SOFTNET Security Client
14
Operating Instructions, 02/2011, C79000-G8976-C196-07
Introduction and basics
1.2 Using the SCALANCE S602
H[WHUQDOQHWZRUN
SCALANCE S
SCALANCE S
SCALANCE S
External
External
External
Internal
Internal
Internal
• )LUHZDOO
ವ5RXWHU
ವ1$71$37
URXWHU
ET 200X
IE/PB
Link
HMI
0
1
S7-400
OP 270
"internal": Operator control & monitoring
Figure 1-2
"internal": Automation cell
S7-300
"internal": Automation cell
Network configuration with SCALANCE S602
Security functions
● Firewall
– IP firewall with stateful packet inspection;
– Firewall also for Ethernet "non-IP" frames according to IEEE 802.3
(layer 2 frames; does not apply to S602 if router mode is used);
– Bandwidth limitation
All network nodes located in the internal network segment of a SCALANCE S are
protected by its firewall.
● Router mode
By operating the SCALANCE S as a router, you separate the internal network from the
external network. The internal network connected over SCALANCE S therefore becomes
a separate subnet; SCALANCE S must be addressed explicitly as a router using its IP
address.
● Protection for devices and network segments
The firewall protective function can be applied to the operation of single devices, several
devices, or entire network segments.
● No repercussions when included in flat networks (bridge mode)
This means that when a SCALANCE S602 is installed in an existing network
infrastructure, the settings of end devices do not need to be made again.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
15
Introduction and basics
1.3 Configuration and administration
Internal and external network nodes
SCALANCE S602 divides networks into two areas:
● Internal network: Protected areas with the "internal nodes"
Internal nodes are all the nodes secured by a SCALANCE S.
● External network: Unprotected areas with the "external nodes"
External nodes are all the nodes located outside the protected areas.
NOTICE
The internal network is considered to be secure (trustworthy).
Connect an internal network segment to the external network segments only over
SCALANCE S.
There must be no other paths connecting the internal and external network!
1.3
Configuration and administration
The most important features at a glance
In conjunction with the Security Configuration Tool, you are guided to a simple and secure
application of the SCALANCE S modules:
● Configuration without expert IT knowledge with the Security Configuration Tool
With the Security Configuration Tool, a SCALANCE S module can be set by non IT
experts. When necessary, more complex settings can be made in an extended mode.
● Secure administrative communication
The settings are transferred to SCALANCE S over an SSL-encrypted connection.
● Access protection in the Security Configuration Tool
The user administration of the Security Configuration Tool ensures access protection for
the SCALANCE S devices and the configuration data.
● C-PLUG exchangeable memory medium can be used
The C-PLUG is a plug-in memory medium on which the encrypted configuration data can
be stored. It allows configuration without a PC/PG when replacing a SCALANCE S.
SCALANCE S and SOFTNET Security Client
16
Operating Instructions, 02/2011, C79000-G8976-C196-07
Product properties and commissioning
2
This chapter will familiarize you with the handling and all important properties of the
SCALANCE S device.
You will learn how the device can be installed and commissioned in a few simple steps.
Further information
How to configure the device for standard applications is shown in a condensed form in the
Chapter "GETTING STARTED".
For details on configuration and the online functions, refer to the reference section of the
manual.
2.1
Product Characteristics
Note
The specified approvals apply only when the corresponding mark is printed on the product.
2.1.1
Hardware characteristics and overview of the functions
All SCALANCE S modules have the following essential characteristics:
Hardware
● Robust housing with degree of protection IP30
● Optional mounting on an S7-300 or DIN 35 mm rail
● Redundant power supply
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
17
Product properties and commissioning
2.1 Product Characteristics
● Signaling contact
● Extended temperature range (-20 °C to +70 °C SCALANCE S613)
Overview of the functions of the device types
The following table shows you the functions supported by your device.
Note
This manual describes all functions. Based on the following table, you can recognize which
descriptions apply to the device you are using.
You should also note the additional information in the titles of the sections.
Table 2- 1
Overview of the functions
Function
S602
S612 V1
S612 V2
S613 V1
S613 V2
Firewall
x
x
x
x
x
NAT/NAPT router
x
-
x
-
x
DHCP server
x
-
x
-
x
Network Syslog
x
-
x
-
x
IPsec tunnel (VPN, Virtual Private Network)
-
x
x
x
x
SOFTNET Security Client
-
x
x
x
x
x Function supported
- Function not supported
2.1.2
Components of the product
What ships with the SCALANCE S?
● SCALANCE S device
● 2-pin plug-in terminal block
SCALANCE S and SOFTNET Security Client
18
Operating Instructions, 02/2011, C79000-G8976-C196-07
Product properties and commissioning
2.1 Product Characteristics
● 4-pin plug-in terminal block
● Information on the product
● CD with the following content:
– Manual
– Security Configuration Tool
2.1.3
Unpacking and checking
Unpacking, checking
1. Make sure that the package is complete.
2. Check all the parts for transport damage.
WARNING
Do not use any parts that show evidence of damage!
2.1.4
Attachment to Ethernet
Possible attachments
SCALANCE S has 2 RJ-45 jacks for attachment to Ethernet.
Note
TP cords or TP-XP cords with a maximum length of 10 m can be connected at the RJ-45 TP
port.
In conjunction with the Industrial Ethernet FastConnect IE FC Standard Cable and IE FC RJ45 Plug 180, a total cable length of maximum 100 m is possible between two devices.
NOTICE
The Ethernet attachments at port 1 and port 2 are handled differently by the SCALANCE S
and must not be swapped over when connecting to the communication network:
 Port 1 - external network
upper RJ-45 jack, marked red = unprotected network area;
 Port 2 - Internal Network
Lower RJ-45 jack, marked green = network protected by SCALANCE S;
If the ports are swapped over, the device loses its protective function.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
19
Product properties and commissioning
2.1 Product Characteristics
Autonegotiation
SCALANCE S supports autonegotiation.
Autonegotiation means that the connection and transmission parameters are negotiated
automatically with the addressed network node.
MDI /MDIX autocrossover function
SCALANCE S supports the MDI / MDIX autocrossover function.
The advantage of the MDI /MDIX autocrossover function is that straight-through cables can
be used throughout and crossover Ethernet cables are unnecessary. This prevents
malfunctions resulting from mismatching send and receive wires. This greatly simplifies
installation.
2.1.5
Power supply
WARNING
The SCALANCE S is designed for operation with safety extra-low voltage. This means that
only safety extra-low voltages (SELV) complying with IEC950/EN60950/ VDE0805 can be
connected to the power supply terminals.
The power supply unit to supply the SCALANCE S must comply with NEC Class 2 (voltage
range 18 - 32 V, current requirement 250 mA).
The device may only be supplied by a power unit that meets the requirements of class 2 for
power supply units of the "National Electrical Code, Table 11 (b)". If the device is connected
to a redundant power supply (two separate power supplies), both must meet these
requirements.
NOTICE
Never connect the SCALANCE S to AC voltage or to DC voltage higher than 32 VDC.
The power supply is connected using a 4-pin plug-in terminal block. The power supply can
be connected redundantly. Both inputs are isolated. There is no distribution of load. When a
redundant power supply is used, the power supply unit with the higher output voltage
supplies the SCALANCE S alone. The power supply is connected over a high resistance
with the enclosure to allow an ungrounded set up.
SCALANCE S and SOFTNET Security Client
20
Operating Instructions, 02/2011, C79000-G8976-C196-07
Product properties and commissioning
2.1 Product Characteristics
Figure 2-1
2.1.6
Power supply
Signaling contact
NOTICE
The signaling contact can be subjected to a maximum load of 100 mA (safety extra-low
voltage (SELV), DC 24 V).
Never connect the SCALANCE S to AC voltage or to DC voltage higher than 32 V DC.
The signaling contact is connected to a 2-pin plug-in terminal block. The signaling contact is
a floating switch with which error/fault states can be signaled by breaking the contact.
The following errors/faults can be signaled by the signaling contact:
● Fault in the power supply
● Internal fault
If a fault occurs or if no power is applied to the SCALANCE S, the signaling contact is
opened. In normal operation, it is closed.
Figure 2-2
Signaling contact
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
21
Product properties and commissioning
2.1 Product Characteristics
2.1.7
Reset button - resetting the configuration to factory defaults
SCALANCE S has a reset button. The reset button is located on the rear of the housing
below a cover secured with screws immediately beside the C-PLUG.
The reset button is mechanically protected against being activated accidentally.
NOTICE
Make sure that only authorized personnel has access to the SCALANCE S.
What does the button do?
Two functions can be triggered with the reset button:
● Restart
The module is restarted. The loaded configuration is retained.
● Reset to factory settings
The module is restarted and reset to the status set in the factory. A loaded configuration
is deleted.
Restart - follow the steps below
1. If necessary, remove the SCALANCE S module from its mounting to allow access to the
recess.
2. Remove the M32 plug on the rear of the device.
The reset button is in a recess on the rear of the SCALANCE S directory beside the slot
for the C-PLUG. This recess is protected by a screw plug. The button is located in a
narrow hole and is therefore protected from being activated accidentally.
3. Press the reset button for less than five seconds.
The restart takes up to 2 minutes. During the restart, the fault LED is lit yellow. Make sure
that the power supply is not interrupted during the reset.
On completion of the restart, the device automatically changes to productive mode. The
fault LED is then lit permanently green.
4. Close the recess with the M32 plug and mount the device again.
Reset to factory settings - follow the steps below
NOTICE
If a C-PLUG is plugged in when you reset to factory settings, the C-PLUG is erased!
SCALANCE S and SOFTNET Security Client
22
Operating Instructions, 02/2011, C79000-G8976-C196-07
Product properties and commissioning
2.1 Product Characteristics
1. If necessary, remove the SCALANCE S module from its mounting to allow access to the
recess.
2. Remove the M32 plug on the rear of the device.
The reset button is in a recess on the rear of the SCALANCE S directory beside the slot
for the C-PLUG. This recess is protected by a screw plug. The button is located in a
narrow hole and is therefore protected from being activated accidentally.
3. Press the reset button and keep it pressed for longer than 5 seconds until the fault LED
flashes yellow-red.
Resetting takes up to 2 minutes. During the reset, the fault LED flashes yellow-red. Make
sure that the power supply is not interrupted during the reset.
On completion of the reset, the device starts up again automatically. The fault LED is
then lit yellow.
4. Close the recess with the M32 plug and mount the device again.
2.1.8
Displays
3RUWVWDWXV/('V3DQG7;
3RUWVWDWXV/('V3DQG7;
)DXOWDQGSRZHU/('V
Fault LED
Display of the operating state:
Status
Meaning
Lit red
Module detects an error.
(Signaling contact is open).
The following faults are detected:

Internal error/fault (for example: startup failed)

Invalid C-PLUG (invalid formatting)
Lit green
Module in productive operation
NOT lit
Module failure; no power supply
(Signaling contact closed).
(Signaling contact open).
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
23
Product properties and commissioning
2.1 Product Characteristics
Status
Meaning
Lit yellow (constant)
Module in startup.
(Signaling contact open).
If no IP address exists, the module remains in this status.
Flashes yellow and red
alternately
Module resets itself to factory settings.
(Signaling contact open).
Power LEDs (L1, L2)
The status of the power supply is indicated by two LEDs:
Status
Meaning
Lit green
Power supply L1 or L2 is connected.
Not lit
Power supply L1 or L2 not connected or < 14 V (L+)
Lit red
Power supply L1 or L2 failed during operation or < 14 V (L+)
Port status LEDs (P1 and TX, P2 and TX)
The status of the interfaces is indicated by 2 LEDs for each of the two ports:
Status
Meaning
LED P1 / P2
Lit green
TP link exists
Flashes / lit yellow
Receiving data at RX
off
No TP link or no data being received
LED TX
2.1.9
Flashes / lit yellow
Data being sent
off
No data being sent
Technical specifications
Connectors
Attachment of end devices or network
components over twisted pair
2xRJ–45 jacks with MDI-X pinning 10/100 Mbps
(half/full duplex)
Connector for power supply
1x4-pin plug-in terminal block
Connector for signaling contact
1x2-pin plug-in terminal block
Electrical data
Power supply
Power loss at 24 V DC
24 V DC power supply (18 through 32 V DC)

Implemented redundantly

Safety extra-low voltage (SELV)
3.84 W
SCALANCE S and SOFTNET Security Client
24
Operating Instructions, 02/2011, C79000-G8976-C196-07
Product properties and commissioning
2.1 Product Characteristics
Current consumption at rated voltage
250 mA maximum
Permitted cable lengths
Connection over
Industrial Ethernet FC TP cables:
0 - 100 m
Industrial Ethernet FC TP standard cable with
IE FC RJ-45 plug 180
or
Over Industrial Ethernet FC outlet RJ-45 with 0 90 m Industrial Ethernet FC TP standard cable
+ 10 m TP cord
0 - 85 m
Industrial Ethernet FC TP marine/trailing cable
with IE FC RJ-45 plug 180
or
0 - 75 m
Industrial Ethernet FC TP marine/trailing cable +
10 m TP cord
Software configuration limits for VPN
Number of IPsec tunnels
SCALANCE S612
64 maximum
SCALANCE S613
128 maximum
Software "firewall" configuration limits
Number of firewall rules
SCALANCE S602
256 maximum
SCALANCE S612
256 maximum
SCALANCE S613
256 maximum
Permitted environmental conditions / EMC
Operating temperature SCALANCE S602
0 °C through +60 °C
Operating temperature SCALANCE S612
0 °C through +60 °C
Operating temperature SCALANCE S613
-20 °C through +70 °C
Storage/transport temperature
-40 °C through +80 °C
Relative humidity in operation
95% (no condensation)
Operating altitude
Up to 2000 m above sea level at max. 56 °C
ambient temperature
Up to 3000 m above sea level at max. 50 °C
ambient temperature
RF interference level
EN 50081-2 Class A
Immunity
EN 50082-2
Degree of protection
IP 30
Certification
c-UL-us
UL 60950
CSA C22.2 No. 60950
c-Ul-us for hazardous locations
UL 1604, UL 2279Pt.15
FM
FM 3611
C-TICK
AS/NZS 2064 (Class A).
CE
EN 50081-2, EN 50082-2
ATEX Zone 2
EN50021
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
25
Product properties and commissioning
2.2 Installation
MTBF
81.09 years
Construction
Dimensions (W x H x D) in mm
60 x 125 x 124
Weight in g
780
Installation options

DIN rail

S7-300 standard rail

Wall mounting
Order numbers
SCALANCE S602
6GK5602-0BA00-2AA3
SCALANCE S612
6GK5612-0BA00-2AA3
SCALANCE S613
6GK5613-0BA00-2AA3
"Industrial Ethernet TP and Fiber Optic Networks" 6GK1970-1BA10-0AA0
manual
Order numbers for accessories
IE FC Stripping Tool
2.2
6GK1901-1GA00
IE FC blade cassettes
6GK1901-1GB00
IE FC TP standard cable
6XV1840 2AH10
IE FC TP trailing cable
6XV1840-3AH10
IE FC TP marine cable
6XV1840-4AH10
IE FC RJ–45 Plug 180
pack of 1
6GK1 901-1BB10-2AA0
IE FC RJ–45 Plug 180
pack of 10
6GK1 901-1BB10-2AB0
IE FC RJ–45 Plug 180
pack of 50
6GK1 901-1BB10-2AE0
Installation
Note
The requirements of EN61000-4-5, surge test on power supply lines are met only when a
Blitzductor VT AD 24V type no. 918 402 is used.
Manufacturer:
DEHN+SÖHNE GmbH+Co.KG Hans Dehn Str.1 Postfach 1640 D-92306 Neumarkt,
Germany
SCALANCE S and SOFTNET Security Client
26
Operating Instructions, 02/2011, C79000-G8976-C196-07
Product properties and commissioning
2.2 Installation
WARNING
When used under hazardous conditions (zone 2), the SCALANCE S product must be
installed in an enclosure.
To comply with ATEX 95 (EN 50021), this enclosure must meet the requirements of at least
IP54 in compliance with EN 60529.
WARNING
EXPLOSION HAZARD: DO NOT DISCONNECT EQUIPMENT WHEN A FLAMMABLE OR
COMBUSTIBLE ATMOSPHERE IS PRESENT.
Types of installation
The SCALANCE S can be installed in various ways:
● Installation on a 35 mm DIN rail
● Installation on a SIMATIC S7-300 standard rail
● Wall mounting
Note
When installing and operating the device, keep to the installation instructions and safetyrelated notices as described here and in the manual SIMATIC NET Industrial Ethernet
Twisted Pair and Fiber Optic Networks /1/.
NOTICE
We recommend that you provide suitable shade to protect the device from direct
sunlight.
This avoids unwanted warming of the device and prevents premature aging of the
device and cabling.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
27
Product properties and commissioning
2.2 Installation
2.2.1
Installation on a DIN rail
Installation
Install the SCALANCE S on a 35 mm DIN rail complying with DIN EN 50022.
1. Place the upper catch of the device over the top of the DIN rail and then push in the lower
part of the device against the rail until it clips into place.
2. Install the electrical connecting cables and the terminal block for the signaling contact.
Figure 2-3
SCALANCE S installation on a DIN rail (35 mm)
SCALANCE S and SOFTNET Security Client
28
Operating Instructions, 02/2011, C79000-G8976-C196-07
Product properties and commissioning
2.2 Installation
Uninstalling
To remove the SCALANCE S from the DIN rail:
1. First disconnect the TP cables and pull out the terminal blocks for the power supply and
the signaling contact.
2. Use a screwdriver to release the lower rail catch of the device and pull the lower part of
the device away from the rail.
Figure 2-4
SCALANCE S removing from a DIN rail (35 mm)
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
29
Product properties and commissioning
2.2 Installation
2.2.2
Installation on a standard rail
Installation on a SIMATIC S7-300 standard rail
1. Place the upper guide at the top of the SCALANCE S housing in the S7 standard rail.
2. Screw the SCALANCE S device to the lower part of the standard rail.
Figure 2-5
2.2.3
SCALANCE S installation on a SIMATIC S7-300 standard rail
Wall mounting
Installation fittings
Use the following fittings, for example when mounting on a concrete wall:
● 4 wall plugs, 6 mm in diameter and 30 mm long
● Screws 3.5 mm in diameter and 40 mm long
Note
The wall mounting must be capable of supporting at least four times the weight of the
device.
SCALANCE S and SOFTNET Security Client
30
Operating Instructions, 02/2011, C79000-G8976-C196-07
Product properties and commissioning
2.3 Commissioning
2.2.4
Grounding
Installation on a DIN rail
The device is grounded over the DIN rail.
S7 standard rail
The device is grounded over its rear panel and the neck of the screw.
Wall mounting
The device is grounded by the securing screw in the unpainted hole.
NOTICE
Please note that the SCALANCE S must be grounded over one securing screw with
minimum resistance.
2.3
Commissioning
NOTICE
Before putting the device into operation, make sure that you read the information in the
sections "Product properties" and "Installation" carefully and follow the instructions there,
particularly those in the safety notices.
Principle
To operate the SCALANCE S, you need to download a configuration created with the
Security Configuration Tool. This procedure is described below.
A SCALANCE S configuration includes the IP parameters and the setting for firewall rules
and, if applicable, the setting for IPsec tunnels (S612 / S613) or router mode.
Before putting the device into operation, you can first create the entire configuration offline
and then download it. For the first configuration (device with factory settings), use the MAC
address printed on the device.
Depending on the application, you will download the configuration to one or more modules
during the commissioning phase.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
31
Product properties and commissioning
2.3 Commissioning
6HFXULW\
&RQILJXUDWLRQ
7RRO
2IIOLQH
&RQILJXUDWLRQGDWD
0HQXFRPPDQG
7UDQVIHUಶ7R0RGXOH
6&$/$1&(6
6&$/$1&(6
External
Internal
Figure 2-6
External
+XE6ZLWFK
Internal
Overview of commissioning
Factory defaults
With the factory defaults (settings as supplied or after resetting to factory defaults), the
SCALANCE S behaves as follows after turning on the power supply:
● IP communication is not possible since the IP settings are missing; the SCALANCE S
itself does not yet have an IP address.
As soon as the SCALANCE S module is assigned a valid IP address by the configuration,
the module is accessible even over routers (IP communication is then possible).
● The device has a fixed, default MAC address; the MAC address is printed on the device
and must be used during configuration.
● The firewall is preconfigured with the following basic firewall rules:
– Unsecured data traffic from internal port to external port and vice versa
(external ↔ internal) is not possible;
The unconfigured status can be recognized when the F LED is lit yellow.
See also
Product Characteristics (Page 17)
Installation (Page 26)
SCALANCE S and SOFTNET Security Client
32
Operating Instructions, 02/2011, C79000-G8976-C196-07
Product properties and commissioning
2.3 Commissioning
2.3.1
Step 1: Connecting the SCALANCE S module
Follow the steps below:
1. First unpack the SCALANCE S and check that it is undamaged.
2. Connect the power supply to the SCALANCE S.
Result: After connecting the power, the Fault LED (F) is lit yellow.
3. Now establish the physical network connections by plugging the network cable
connectors into the ports being used (RJ-45 jacks).
Connect port 1 (external port) with the external network to which the configuration PC/PG
is connected.
Connect port 2 (internal port) with the internal network.
Note:
During commissioning, you can, in principle, initially connect the configuration PC/PG to
port 1 or port 2 and do without a connection to other network nodes until the device has
been supplied with a configuration. If you connect to port 2, however, you must configure
each individual SCALANCE S module separately!
4. Now continue with the next step "Configuring and downloading".
2.3.2
Step 2: Configuring and downloading
The section below describes how to configure the SCALANCE S module starting from the
factory settings.
Follow the steps below:
1. Start the supplied Security Configuration Tool.
2. Select the menu command Project ▶ New.
You will be prompted to enter a user name and a password. The user entry you specify
here will be assigned the role of an administrator.
3. Enter a user name and a password and confirm your entries to create a new project.
4. The "Selection of the module or software configuration" dialog is automatically displayed.
Now configure your product type, the module and the firmware release.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
33
Product properties and commissioning
2.3 Commissioning
5. In the box for the "MAC Address" in the "Configuration" area, enter the MAC address
printed on the module housing in the specified format.
You will find this address on the front of the SCALANCE S module (see figure).
6. Enter the external IP address and the external subnet mask in the relevant boxes in the
"Configuration" area and confirm the dialog with "OK". Your module will then be included
in the list of configured modules.
7. Select your module and, if necessary, enter the IP address of the default router by
clicking in the "Default Router" column.
Optional: Configure any other properties of the module and module groups if required.
8. Save the project under a suitable name with the following menu command:
Project ▶ Save As...
SCALANCE S and SOFTNET Security Client
34
Operating Instructions, 02/2011, C79000-G8976-C196-07
Product properties and commissioning
2.4 C-PLUG (configuration plug)
9. Select the following menu command:
Transfer ▶ To Module...
The following transfer dialog opens.
10.If you click on the "Start" button, you transfer the configuration to the SCALANCE S
module.
Result: The SCALANCE S module is now configured and can communicate at the IP
level. This mode is indicated by the Fault LED being lit green.
2.4
C-PLUG (configuration plug)
Area of application
The C-PLUG is an exchangeable medium for storage of the configuration and project
engineering data of the basic device (SCALANCE S). This means that the configuration data
remains available if the basic device is replaced.
How it works
Power is supplied by the end device. The C-PLUG retains all data permanently when the
power is turned off.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
35
Product properties and commissioning
2.4 C-PLUG (configuration plug)
Inserting in the C-PLUG slot
The slot for the C-PLUG is located on the back of the device. You insert the C-PLUG as
follows:
1. Remove the M32 screw cover.
2. Insert the C-PLUG in the intended slot.
3. Then close the slot with the M32 screw cover.
NOTICE
Check the operating status
The C-PLUG may only be inserted or removed when the power is off!
Figure 2-7
Inserting the C-PLUG in the device and removing the C-PLUG from the device with a
screwdriver
Function
If an empty C-PLUG (factory settings) is inserted, all configuration data of the SCALANCE S
is saved to it when the device starts up. Changes to the configuration during operation are
also saved on the C-PLUG without any operator intervention being necessary.
A basic device with an inserted C-PLUG automatically uses the configuration data of the CPLUG when it starts up. This is, however, only possible when the data was written by a
compatible device type.
SCALANCE S and SOFTNET Security Client
36
Operating Instructions, 02/2011, C79000-G8976-C196-07
Product properties and commissioning
2.4 C-PLUG (configuration plug)
This allows fast and simple replacement of the basic device. If a device is replaced, the CPLUG is taken from the failed component and inserted in the replacement. After it has
started up, the replacement device has the same device configuration as the failed device.
Note
Consistent project data - adapting the MAC address
After replacing the device with a spare, the project engineering data should be consistent. To
achieve this, you should adapt the MAC address from the project engineering to the MAC
address printed on the replacement device.
If you use the previously configured C_PLUG of the device you are replacing, this is not
absolutely necessary to start up and run the device.
NOTICE
Reset to factory settings
If a C-PLUG is plugged in when you reset to factory settings, the C-PLUG is erased!
Using a previously written C-PLUG
Use only C-PLUGs that are formatted for the relevant SCALANCE S module type. C-PLUGs
that have already been used in other device types and formatted for these device types must
not be used.
The following table shows which C-PLUG you can use for which SCALANCE S module type:
SCALANCE S module
type
C-PLUG formatted by
S602
S602
x
-
-
S612
-
x
x *)
S613
-
x
x
x
C-PLUG can be used with the module type
-
C-PLUG cannot be used with the module type
*)
Compatibility depends on configuration limits.
S612
S613
Removing the C-PLUG
It is only necessary to remove the C-PLUG if the basic device fails (hardware fault).
NOTICE
Check the operating status
The C-PLUG may only be removed when the power is off!
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
37
Product properties and commissioning
2.5 Transferring firmware
Diagnostics
Inserting a C-PLUG that does not contain the configuration of a compatible device type,
inadvertently removing the C-PLUG, or general malfunctions of the C-PLUG are indicated by
the diagnostic mechanisms of the end device (fault LED red).
2.5
Transferring firmware
You can download new firmware versions to the SCALANCE S modules using the Security
Configuration Tool.
Requirements
To transfer new firmware to a SCALANCE S module, the following conditions must be met:
● You must have administrator permissions for the project;
● SCALANCE S must already have been configured with an IP address.
The transfer is secure
The firmware is transferred over a secure connection and can therefore also be transferred
from the unprotected network.
The firmware itself is signed and encrypted. This ensures that only authentic firmware can be
downloaded to the SCALANCE S module.
The transfer can take place during operation
The firmware can be transferred while a SCALANCE S module is in operation.
Communication is, however, interrupted after the download until the automatic restart of the
SCALANCE S is completed. Newly downloaded firmware only becomes active after the
SCALANCE S module has been restarted.
If the transfer is disturbed and aborted, the module starts up again with the old firmware
version.
How to make the transfer
Select the following menu command:
Transfer ▶ Firmware Update...
SCALANCE S and SOFTNET Security Client
38
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3
Getting results fast with GETTING STARTED
Based on a simple test network, this chapter shows you how to work with SCALANCE S and
the Security Configuration Tool. You will soon see that you can implement the security
functions of SCALANCE S in the network without any great project engineering effort.
Working through the chapter, you will be able to implement the basic functions SCALANCE
S/ SOFTNET Security Client based on various security examples:
● With SCALANCE S612 / S613:
– Configuring a VPN with SCALANCE S modules as IPsec tunnel endpoints
– Configuring a VPN with SCALANCE S modules and SOFTNET Security Client as
IPsec tunnel endpoints
● With all SCALANCE S modules:
– Configuring SCALANCE S as a firewall;
– Configuring SCALANCE S as NAT/NAPT router and firewall
● With SOFTNET Security Client
– Configuring a VPN with SCALANCE S modules and SOFTNET Security Client as
IPsec tunnel endpoints
– Configuring a VPN with MD741-1 and SOFTNET Security Client as IPsec tunnel
endpoints
If you want to know more
You will find more detailed information in the next chapters of this manual. They describe the
entire functionality in detail.
Note
The IP settings in the examples are freely selected and do not cause any conflicts in the
isolated test network.
In a real network, you would need to adapt these IP settings to avoid possible address
conflicts.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
39
GETTING STARTED
3.1 Example 1: VPN tunnel - IPsec tunnel example with SCALANCE S612 / S613
3.1
Example 1: VPN tunnel - IPsec tunnel example with SCALANCE
S612 / S613
3.1.1
Overview
In this example, the tunnel function is configured in the "standard mode" project engineering
view. SCALANCE S module 1 and SCALANCE S module 2 are the two tunnel endpoints for
the secure tunnel connection in this example.
With this configuration, IP traffic and layer 2 traffic (bridge mode only) is possible only over
the established tunnel connections with authorized partners.
Setting up the test network
PC3
PC1
PC2
7XQQHO
internes
Netz 1
LQWHUQDOQHWZRUN
externes Netz
internes
Netz 2
LQWHUQDOQHWZRUN
H[WHUQDOQHWZRUN
● Internal network - attachment to SCALANCE S port 2 ("internal network" port)
In the test setup, in the internal network, the network node is implemented in each case
by one PC connected to the "internal network" port (port 2, green) of a SCALANCE S
module.
– PC1: Represents a node in internal network 1
– PC2: Represents a node in internal network 2
– SCALANCE S module 1: SCALANCE S module for internal network 1
– SCALANCE S module 2: SCALANCE S module for internal network 2
● External network - attachment to SCALANCE S port 1 ("external network" port)
The public external network is attached to the "external network" port (port 1, red) of a
SCALANCE S module.
PC3: PC with the Security Configuration Tool
SCALANCE S and SOFTNET Security Client
40
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.1 Example 1: VPN tunnel - IPsec tunnel example with SCALANCE S612 / S613
Required devices/components:
Use the following components to set up to the network:
● 2 x SCALANCE S modules, (optional: one or two suitably installed standard rails with
fittings);
● 1 x or 2 x 24 V power supplies with cable connections and terminal block plugs (both
modules can also be operated from a common power supply);
● 1 x PC on which the "Security Configuration Tool" is installed;
● 2 x PCs in the internal networks to test the configuration;
● 1 x network hub or switch to set up the network connections with the two SCALANCE S
modules and the PCs/PGs;
● The required network cable, TP cable (twisted pair) complying with the IE FC RJ-45
standard for Industrial Ethernet.
Overview of the next steps:
6HWXS6&$/$1&(6DQGWKHQHWZRUN
0DNHWKH,3VHWWLQJVIRUWKH3&V
&UHDWHWKHSURMHFWDQGPRGXOH
&RQILJXUHWKHWXQQHOIXQFWLRQ
'RZQORDGWKHFRQILJXUDWLRQWRWKH6&$/$1&(6PRGXOH
7HVWWKHILUHZDOOIXQFWLRQSLQJWHVW
3.1.2
Set up SCALANCE S and the network
Follow the steps outlined below:
1. First unpack the SCALANCE S devices and check that they are undamaged.
2. Connect the power supply to the SCALANCE S.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
41
GETTING STARTED
3.1 Example 1: VPN tunnel - IPsec tunnel example with SCALANCE S612 / S613
Result: After connecting the power, the Fault LED (F) is lit yellow.
WARNING
The SCALANCE S is designed for operation with safety extra-low voltage. This means that
only safety extra-low voltages (SELV) complying with IEC950/EN60950/ VDE0805 can be
connected to the power supply terminals.
The power supply unit to supply the SCALANCE S must comply with NEC Class 2 (voltage
range 18 - 32 V, current requirement approx. 250 mA).
When installing and connecting the SCALANCE S modules, refer to Chapter 2 "Product
characteristics and commissioning".
1. Now establish the physical network connections by plugging the network cable
connectors into the ports being used (RJ-45 jacks):
– Connect PC1 with port 2 of module 1 and PC2 with port 2 of module 2.
– Connect port 1 of module 1 and port 1 of module 2 with the hub/switch.
– Connect PC3 to the hub/switch as well.
2. Now turn on the PCs.
NOTICE
The Ethernet attachments at port 1 and port 2 are handled differently by the SCALANCE
S and must not be swapped over when connecting to the communication network:
 Port 1 - external network
Upper RJ-45 jack, marked red = unprotected network area;
 Port 2 - internal network
Lower RJ-45 jack, marked green = network protected by SCALANCE S;
If the ports are swapped over, the device loses its protective function.
3.1.3
Make the IP settings for the PCs
For the test, the PCs should be given the following IP address settings:
PC
IP address
Subnet mask
PC1
191.0.0.1
255.255.0.0
PC2
191.0.0.2
255.255.0.0
PC3
191.0.0.3
255.255.0.0
SCALANCE S and SOFTNET Security Client
42
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.1 Example 1: VPN tunnel - IPsec tunnel example with SCALANCE S612 / S613
Follow the steps below for PC1, PC2, and PC3:
1. On the relevant PC, open the Control Panel with the following menu command:
Start ▶ Control Panel
2. Click "Network and Sharing Center" and select the "Change Adapter Settings" option in
the navigation menu on the left.
3. In the "Local Area Connection Properties" dialog, enable the "Internet Protocol Version 4
(TCP/IPv4)" check box and click the "Properties" button.
4. In the "Internet Protocol Version 4 (TCP/IPv4) Properties" dialog, select the "Use the
following IP address" radio button: and enter the values assigned to the PC from the table
"Make the IP setting of the PCs" in the respective fields.
Close the dialogs with "OK" and exit the Control Panel.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
43
GETTING STARTED
3.1 Example 1: VPN tunnel - IPsec tunnel example with SCALANCE S612 / S613
3.1.4
Create the project and modules
Follow the steps below:
1. Start the Security Configuration Tool on PC3.
2. Create a new project with the following menu command:
Project ▶ New
You will be prompted to enter a user name and a password. The user entry you specify
here will be assigned the role of an administrator.
3. Enter a user name and a password and confirm your entries to create a new project.
4. The "Selection of the module or software configuration" dialog is automatically displayed.
Now configure your product type, the module and the firmware release and close the
dialog with "OK".
5. Create a second module with the following menu command:
Insert ▶ Module
Now configure your product type, the module and the firmware release and close the
dialog with "OK".
This module is automatically given a name according to the defaults for the project along
with default parameter values. The IP address is incremented from "Module1" and is
therefore different.
6. In the navigation area, click on "All Modules" and then on the row with "Module1" in the
content area.
7. Now click on the "MAC Address" column and enter the MAC address in the specified
format.
You will find this address on the front panel of the SCALANCE S module (see figure).
SCALANCE S and SOFTNET Security Client
44
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.1 Example 1: VPN tunnel - IPsec tunnel example with SCALANCE S612 / S613
8. Now click on the "IP Address ext." column and enter the IP address in the specified
format and adapt the subnet mask accordingly.
– For module 1: IP address: 191.0.0.201 subnet mask: 255.255.0.0
– For module 2: IP address: 191.0.0.202 subnet mask: 255.255.0.0
9. Repeat steps 6 through 8 for "Module 2".
3.1.5
Configuring a tunnel connection
Two SCALANCE S modules can establish one IPsec tunnel for secure communication when
they are assigned to the same group in the project.
Follow the steps below:
1. Select "All Groups" in the navigation area and create a new group with the following
menu command:
Insert ▶ Group
This group is automatically given the name "Group1".
2. Select the SCALANCE S module "Module1" in the content area and drag it to "Group1" in
the navigation area.
The module is now assigned to this group (is a member of the group).
The color of the key symbol of the module icon changes from gray to blue.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
45
GETTING STARTED
3.1 Example 1: VPN tunnel - IPsec tunnel example with SCALANCE S612 / S613
3. Select the SCALANCE S module "Module2" in the content area and drag it to the
"Group1" in the navigation area.
The module is now also assigned to this group.
4. Save this project under a suitable name with the following menu command:
Project ▶Save As...
The configuration of the tunnel connection is now complete.
3.1.6
Download the configuration to the SCALANCE S module
Follow the steps below:
1. Using the menu command below, open the following dialog:
Transfer ▶ To All Modules...
2. Select the two modules using the "Select All" button.
3. Start the download with the "Start" button.
If the download was completed free of errors, the SCALANCE S is restarted automatically
and the new configuration activated.
Result: SCALANCE S in productive operation
The SCALANCE S is now in productive operation. This mode is indicated by the Fault LED
being lit green.
The configuration has now been commissioned and the two SCALANCE S modules can now
establish a communication tunnel over which network nodes from the two internal networks
can communicate.
SCALANCE S and SOFTNET Security Client
46
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.1 Example 1: VPN tunnel - IPsec tunnel example with SCALANCE S612 / S613
3.1.7
Test the tunnel function (ping test)
How can you test the configured function?
The function can be tested as described below using a ping command.
As an alternative, you can also use other communication programs to test the configuration.
NOTICE
In Windows, the firewall can be set so that as default the PING commands do not pass
through. If necessary, you will need to enable the ICMP services of the type Request and
Response.
Test phase 1
Now test the function of the tunnel connection established between PC1 and PC2:
1. Open the following menu command from the taskbar Start menu on PC2:
Start ▶ All Programs ▶ Accessories ▶ Command Prompt
2. Enter the Ping command from PC1 to PC2 (IP address 191.0.0.2)
In the command line of the "Command Prompt" window, enter the following command
ping 191.0.0.2
.
You will then receive the following message: (positive reply from PC2).
Result
If the IP packets have reached PC2, the "Ping statistics for 191.0.0.2" display the following:
● Sent = 4
● Received = 4
● Lost = 0 (0% loss)
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
47
GETTING STARTED
3.2 Example 2: Firewall - Operating a SCALANCE S as a firewall
Since no other communication is permitted, these packets must have been transported
through the VPN tunnel.
Test phase 2
Now repeat the test by sending a ping command from PC3.
1. Open the following menu command from the taskbar Start menu on PC3:
Start ► All Programs ► Accessories ► Command Prompt
2. Send the same ping command (ping 191.0.0.2) in the Command Prompt window of PC3.
You will then receive the following message: (no reply from PC2).
Result
The IP frames from PC3 cannot reach PC2 since neither tunnel communication between
these two devices is configured nor is normal IP data traffic permitted.
This is shown in the "Ping statistics" for 191.0.0.2 as follows:
● Sent = 4
● Received = 0
● Lost = 4 (100% loss)
3.2
Example 2: Firewall - Operating a SCALANCE S as a firewall
3.2.1
Overview
In this example, the firewall is configured in the "standard mode" project engineering view.
The standard mode includes predefined sets of rules for data traffic.
With this configuration, IP traffic can only be initiated from the internal network; only the
response is permitted from the external network.
SCALANCE S and SOFTNET Security Client
48
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.2 Example 2: Firewall - Operating a SCALANCE S as a firewall
Setting up the test network
3&
6&$/$1&(6PRGXOH
External
Internal
3&
H[WHUQDOQHWZRUN
LQWHUQDOQHWZRUN
)LUHZDOO
● Internal network - attachment to SCALANCE S port 2
In the test setup, in the internal network, the network node is implemented by one PC
connected to the "internal network" port (port 2, green) of a SCALANCE S module.
– PC2: Represents a node in the internal network
– SCALANCE S module 1: SCALANCE S module for the internal network
● External network - attachment to SCALANCE S port 1
The public external network is attached to the "external network" port (port 1, red) of a
SCALANCE S module.
– PC1: PC with the Security Configuration Tool
Required devices/components:
Use the following components to set up to the network:
● 1 x SCALANCE S module, (additional option: a suitably installed DIN rail with fittings)
● 1 x 24 V power supply with cable connector and terminal block plug
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
49
GETTING STARTED
3.2 Example 2: Firewall - Operating a SCALANCE S as a firewall
● 1 x PC on which the Security Configuration Tool is installed
● 1 x PC in the internal network to test the configuration
● The required network cable, TP cable (twisted pair) complying with the IE FC RJ-45
standard for Industrial Ethernet
Overview of the next steps:
6HWXS6&$/$1&(6DQGWKHQHWZRUN
0DNHWKH,3VHWWLQJVIRUWKH3&V
&UHDWHWKHSURMHFWDQGPRGXOH
&RQILJXUHWKHILUHZDOO
'RZQORDGWKHFRQILJXUDWLRQWRWKH6&$/$1&(6PRGXOH
7HVWWKHILUHZDOOIXQFWLRQSLQJWHVWORJJLQJ
3.2.2
Set up SCALANCE S and the network
Follow the steps below:
1. First unpack the SCALANCE S and check that it is undamaged.
2. Connect the power supply to the SCALANCE S.
Result: After connecting the power, the Fault LED (F) is lit yellow.
WARNING
The SCALANCE S is designed for operation with safety extra-low voltage. This means that
only safety extra-low voltages (SELV) complying with IEC950/EN60950/ VDE0805 can be
connected to the power supply terminals.
The power supply unit to supply the SCALANCE S must comply with NEC Class 2 (voltage
range 18 - 32 V, current requirement approx. 250 mA).
When installing and connecting the SCALANCE S modules, refer to Chapter 2 "Product
characteristics and commissioning"
SCALANCE S and SOFTNET Security Client
50
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.2 Example 2: Firewall - Operating a SCALANCE S as a firewall
3. Now establish the physical network connections by plugging the network cable
connectors into the ports being used (RJ-45 jacks):
– Connect PC2 with port 2 of module 1.
– Connect PC1 with port 1 of module 1.
4. Now turn on the PCs.
NOTICE
The Ethernet attachments at port 1 and port 2 are handled differently by the SCALANCE
S and must not be swapped over when connecting to the communication network:
 Port 1 - external network
Upper RJ-45 jack, marked red = unprotected network area;
 Port 2 - Internal Network
Lower RJ-45 jack, marked green = network protected by SCALANCE S;
If the ports are swapped over, the device loses its protective function.
3.2.3
Make the IP settings for the PCs
For the test, the PCs should be given the following IP address settings:
PC
IP address
Subnet mask
PC1
191.0.0.1
255.255.0.0
PC2
191.0.0.2
255.255.0.0
Follow the steps below for PC1 and PC2:
1. On the relevant PC, open the Control Panel with the following menu command:
Start ▶ Control Panel
2. Click "Network and Sharing Center" and select the "Change Adapter Settings" option in
the navigation menu on the left.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
51
GETTING STARTED
3.2 Example 2: Firewall - Operating a SCALANCE S as a firewall
3. In the "Local Area Connection Properties" dialog, enable the "Internet Protocol Version 4
(TCP/IPv4)" check box and click the "Properties" button.
4. In the "Internet Protocol Version 4 (TCP/IPv4) Properties" dialog, select the "Use the
following IP address" radio button: and enter the values assigned to the PC from the table
"Make the IP setting of the PCs" in the respective fields.
Close the dialogs with "OK" and exit the Control Panel.
3.2.4
Create the project and module
Follow the steps below:
1. Install and start the Security Configuration Tool on PC1.
2. Create a new project with the following menu command:
Project ▶ New
You will be prompted to enter a user name and a password. The user entry you specify
here will be assigned the role of an administrator.
SCALANCE S and SOFTNET Security Client
52
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.2 Example 2: Firewall - Operating a SCALANCE S as a firewall
3. Enter a user name and a password and confirm your entries to create a new project.
4. The "Selection of the module or software configuration" dialog is automatically displayed.
Now configure your product type, the module and the firmware release.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
53
GETTING STARTED
3.2 Example 2: Firewall - Operating a SCALANCE S as a firewall
5. In the box for the "MAC Address" in the "Configuration" area, enter the MAC address
printed on the module housing in the specified format.
You will find this address on the front of the SCALANCE S module (see figure).
6. Enter the external IP address also in the required format (191.0.0.200) and the external
subnet mask (255.255.0.0) and confirm the dialog with "OK". Your module will then be
included in the list of configured modules.
3.2.5
Configure the firewall
In standard mode, the firewall can be set simply with predefined sets of rules. You can
activate these sets of rules by clicking on them.
Follow the steps below:
1. Select the "Module1" row in the content area.
2. Select the following menu command:
Edit ▶ Properties…
3. Select the "Firewall" tab in the displayed dialog.
SCALANCE S and SOFTNET Security Client
54
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.2 Example 2: Firewall - Operating a SCALANCE S as a firewall
4. Enable the option shown below:
This means that IP traffic can only be initiated from the internal network; only the
response is permitted from the external network.
5. You should also select the Logging options to record data traffic.
6. Close the dialog with "OK".
7. Save this project under a suitable name with the following menu command:
Project ▶ Save As...
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
55
GETTING STARTED
3.2 Example 2: Firewall - Operating a SCALANCE S as a firewall
3.2.6
Download the configuration to the SCALANCE S module
Follow the steps below:
1. Select the module in the content area.
2. Select the following menu command:
Transfer ▶ To Module…
3. Start the download with the "Start" button.
If the download was completed free of errors, the SCALANCE S module is restarted
automatically and the new configuration activated.
Result: SCALANCE S in productive operation
The SCALANCE S is now in productive operation. This mode is indicated by the Fault LED
being lit green.
Commissioning the configuration is now complete and the SCALANCE S is now protecting
the internal network (PC2) with the firewall according to the configured rule: "Allow IP traffic
from internal to external network".
3.2.7
Test the firewall function (ping test)
How can you test the configured function?
The function can be tested as described below using a ping command.
As an alternative, you can also use other communication programs to test the configuration.
NOTICE
In Windows, the firewall can be set so that as default the PING commands do not pass
through. If necessary, you will need to enable the ICMP services of the type Request and
Response.
SCALANCE S and SOFTNET Security Client
56
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.2 Example 2: Firewall - Operating a SCALANCE S as a firewall
Test phase 1
Now test the function of the firewall configuration, first with allowed outgoing IP data traffic as
follows:
1. Open the following menu command from the taskbar Start menu on PC2:
Start ▶ All Programs ▶ Accessories ▶ Command Prompt
2. Enter the Ping command from PC2 to PC1 (IP address 191.0.0.1)
In the command line of the "Command Prompt" window, enter the following command:
ping 191.0.0.1
You will then receive the following message: (positive reply from PC1).
Result
If the IP packets have reached PC1, the "Ping statistics for 191.0.01" display the following:
● Sent = 4
● Received = 4
● Lost = 0 (0% loss)
Due to the configuration, the ping packets can pass from the internal network to the external
network. The PC in the external network has replied to the ping packets. Due to the "stateful
inspection" function of the firewall, the reply packets arriving from the external network are
automatically passed into the internal network.
Test phase 2
Now test the function of the firewall configuration with blocked outgoing IP data traffic as
follows:
1. Now reopen the firewall dialog as described above.
2. Deselect the "Allow IP traffic from internal to external network" box in the "Firewall
Settings" tab.
Close the dialog with "OK".
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
57
GETTING STARTED
3.2 Example 2: Firewall - Operating a SCALANCE S as a firewall
3. Now download the modified configuration to the SCALANCE S module again.
4. If the downloading is completed free of errors, enter the same ping command again (ping
191.0.0.1) in the Command Prompt window of PC2 as described above.
You will then receive the following message: (no reply from PC1).
Result
The IP packets from PC2 now cannot reach PC1 since the data traffic from the "internal
network" (PC2) to the "external network" (PC1) is not permitted.
This is shown in the "Ping statistics for 191.0.0.1" as follows:
● Sent = 4
● Received = 0
● Lost = 4 (100% loss)
3.2.8
Log firewall data traffic
On the SCALANCE S, the local logging of system, audit and packet filter events is enabled
as default.
While working through this example, you also activated the logging options when configuring
the firewall.
You can therefore display the recorded events in online mode.
Follow the steps below:
1. Now change to online mode on PC1 in the Security Configuration Tool with the following
menu command:
View ▶ Online
2. Select the following menu command:
Edit ▶ Online Diagnostics...
3. Select the "Packet Filter Log" tab.
SCALANCE S and SOFTNET Security Client
58
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.3 Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router
4. Click the "Start Reading" button.
5. Acknowledge the displayed dialog with OK.
Result: The log entries are read from the SCALANCE S and displayed here.
3.3
Example 3: Firewall and router - Operating a SCALANCE S as a
firewall and router
3.3.1
Overview
In this example, you configure the NAT router mode. You configure in the "advanced mode"
configuration view.
With the configuration introduced here, you have the situation that all the packets sent from
the internal subnet to the PC1 node in the external network are allowed to pass the firewall.
The packets are forwarded to the outside with an IP address transformed to the IP address
of the SCALANCE S and with a dynamically assigned port number.
Only the replies to these packets is allowed to pass from the external network.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
59
GETTING STARTED
3.3 Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router
Setting up the test network
3&
6&$/$1&(6PRGXOH
External
Internal
3&
H[WHUQDOQHWZRUN
LQWHUQDOQHWZRUN
)LUHZDOO
● Internal network - attachment to SCALANCE S port 2
In the test setup, in the internal network, the network node is implemented by one PC
connected to the "internal network" port (port 2, green) of a SCALANCE S module.
– PC2: Represents a node in the internal network
– SCALANCE S module 1: SCALANCE S module for the internal network
● External network - attachment to SCALANCE S port 1
The public external network is attached to the "external network" port (port 1, red) of a
SCALANCE S module.
PC1: PC with the Security Configuration Tool
Required devices/components:
Use the following components to set up to the network:
● 1 x SCALANCE S module, (additional option: a suitably installed DIN rail with fittings);
● 1 x 24 V power supply with cable connector and terminal block plug;
● 1 x PC on which the Security Configuration Tool is installed;
SCALANCE S and SOFTNET Security Client
60
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.3 Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router
● 1 x PC in the internal network to test the configuration;
● The required network cable, TP cable (twisted pair) complying with the IE FC RJ-45
standard for Industrial Ethernet.
Overview of the next steps:
6HWXS6&$/$1&(6DQGWKHQHWZRUN
0DNHWKH,3VHWWLQJVIRUWKH3&V
&UHDWHWKHSURMHFWDQGPRGXOH
&RQILJXUHWKH1$7URXWHUPRGH
&RQILJXUHWKHILUHZDOO
'RZQORDGWKHFRQILJXUDWLRQWRWKH6&$/$1&(6PRGXOH
7HVWWKH1$7URXWHUIXQFWLRQSLQJWHVW
/RJGDWDWUDIILF
3.3.2
Set up SCALANCE S and the network
Follow the steps below:
1. First unpack the SCALANCE S and check that it is undamaged.
2. Connect the power supply to the SCALANCE S.
Result: After connecting the power, the Fault LED (F) is lit yellow.
WARNING
The SCALANCE S is designed for operation with safety extra-low voltage. This means that
only safety extra-low voltages (SELV) complying with IEC950/EN60950/ VDE0805 can be
connected to the power supply terminals.
The power supply unit to supply the SCALANCE S must comply with NEC Class 2 (voltage
range 18 - 32 V, current requirement approx. 250 mA).
When installing and connecting the SCALANCE S modules, refer to Chapter 2 "Product
characteristics and commissioning"
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
61
GETTING STARTED
3.3 Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router
3. Now establish the physical network connections by plugging the network cable
connectors into the ports being used (RJ-45 jacks):
– Connect PC2 with port 2 of module 1.
– Connect PC1 with port 1 of module 1.
4. Now turn on the PCs.
NOTICE
The Ethernet attachments at port 1 and port 2 are handled differently by the SCALANCE
S and must not be swapped over when connecting to the communication network:
 Port 1 - External Network
Upper RJ-45 jack, marked red = unprotected network area;
 Port 2 - Internal Network
Lower RJ-45 jack, marked green = network protected by SCALANCE S;
If the ports are swapped over, the device loses its protective function.
3.3.3
Make the IP settings for the PCs
For the test, the PCs should be given the following IP address settings:
PC
IP address
Subnet mask
Default gateway
PC1
192.168.10.100
255.255.255.0
192.168.10.1
PC2
172.10.10.100
255.255.255.0
172.10.10.1
For standard gateway, you specify the IP addresses that will be assigned to the SCALANCE
S module for the internal and external interface in the subsequent project engineering:
● PC1 uses the external interface.
● PC2 uses the internal interface.
Follow the steps below for PC1 and PC2:
1. On the relevant PC, open the Control Panel with the following menu command:
Start ▶ Control Panel
2. Click "Network and Sharing Center" and select the "Change Adapter Settings" option in
the navigation menu on the left.
SCALANCE S and SOFTNET Security Client
62
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.3 Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router
3. In the "Local Area Connection Properties" dialog, enable the "Internet Protocol Version 4
(TCP/IPv4)" check box and click the "Properties" button.
4. In the "Internet Protocol Version 4 (TCP/IPv4) Properties" dialog, select the "Use the
following IP address" radio button: and enter the values assigned to the PC from the table
"Make the IP setting of the PCs" in the respective fields.
Close the dialogs with "OK" and exit the Control Panel.
3.3.4
Create the project and module
Follow the steps below:
1. Install and start the Security Configuration Tool on PC1.
2. Create a new project with the following menu command:
Project ▶ New
You will be prompted to enter a user name and a password. The user entry you specify
here will be assigned the role of an administrator.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
63
GETTING STARTED
3.3 Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router
3. Enter a user name and a password and confirm your entries to create a new project.
4. The "Selection of the module or software configuration" dialog is automatically displayed.
Now configure your product type, the module and the firmware release.
5. In the box for the "MAC address" in the "Configuration" area, enter the MAC address
printed on the module housing in the specified format.
You will find this address on the front panel of the SCALANCE S module (see figure).
6. Enter the external IP address also in the required format (192.168.10.1) and the external
subnet mask (255.255.255.0) and confirm the dialog with "OK". Your module will then be
included in the list of configured modules.
SCALANCE S and SOFTNET Security Client
64
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.3 Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router
3.3.5
Configuring the NAT router mode
The common use case in which all internal nodes send packets to the external network and
keep their IP addresses hidden by the NAT functionality is preconditioned on the
SCALANCE S. As shown below, you can enable this behavior simply by clicking in routing
mode.
Enabling router mode - follow the steps below:
1. First change the configuration view to advanced mode.
2. Select the following menu command:
View ▶ Advanced Mode
3. Now double-click on the SCALANCE S module. This opens the dialog for setting the
module properties.
4. Select the "Routing Mode" tab in the displayed dialog.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
65
GETTING STARTED
3.3 Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router
5. Select the "Routing active" option in the group box.
6. In the "Routing" group box, you now add the address information for the interface of the
SCALANCE S to the internal subnet:
– Internal module IP address: 172.10.10.1
– Internal subnet mask: 255.255.255.0
To enable NAT router mode for internal nodes - follow the steps below:
The next step is to configure the required address conversion for NAT mode.
1. Select the options "NAT active" and "Allow Internal > External for all users" in the NAT
group box.
You will see that an entry has been added to the end of the address conversion list in the
"NAT" group box. The "*" entry in the "internal IP address" column now stands for all
nodes in the internal network.
2. Close the dialog with "OK".
The only thing left to do is to make sure that the firewall allows the packets to pass from
internal to external.
SCALANCE S and SOFTNET Security Client
66
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.3 Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router
3.3.6
Configure the firewall
You now need to define a set of rules that allows the traffic from the internal node (PC2) to
the node in the external network (PC1).
The example also shows you how to define a global set of rules and assign it to a module. If
you then configure additional modules in the same project, you then simply need to assign
the defined set of rules to the other modules using drag and drop. This, of course, assumes
that the same rules apply.
To define a global rule set, follow the steps below:
1. Expand the "Global FW Rulesets" object and select "FW IP Rulesets".
2. Select the following menu command with the right mouse button:
Insert > Firewall rule set
3. Enter a rule set in the dialog as shown below:
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
67
GETTING STARTED
3.3 Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router
4. Click in the "Log" column in the row for the new rule set. This enables the packet filter
logging option. Packets to which the defined rule is applied are then logged.
You will use this log in the example shown here in the final test of the configuration.
5. Close the dialog with "OK".
To assign a global rule set, follow the steps below:
1. Select the "Module1" object in the navigation area and holding down the left mouse
button, drag it to the newly created global firewall rule set.
SCALANCE S and SOFTNET Security Client
68
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.3 Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router
2. You can check the assignment by reopening the dialog for setting the module properties
and selecting the "Firewall" tab.
You will see that the global firewall rule was saved there.
3. If you click the "Expand Rulesets" button, you can view the rule set in detail.
This completes offline configuration.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
69
GETTING STARTED
3.3 Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router
3.3.7
Download the configuration to the SCALANCE S module
Follow the steps below:
1. Select the module in the content area.
2. Select the following menu command:
Transfer ▶ To Module…
3. Start the download with the "Start" button.
If the download was completed free of errors, the SCALANCE S module is restarted
automatically and the new configuration activated.
Result: SCALANCE S in productive operation
The SCALANCE S is now in productive operation. This mode is indicated by the Fault LED
being lit green.
Commissioning the configuration is now complete and the SCALANCE S is now protecting
the internal network (PC2) with the firewall according to the configured rule: "Allow outgoing
IP traffic" from the internal to the external network.
3.3.8
Test the NAT router function (ping test)
How can you test the configured function?
The function can be tested as described below using a ping command. To be able to
recognize the effects of the NAT router mode, use the packet filter logging on the firewall
interface.
A reminder: In the definition of the global firewall rule, you have already enabled the packet
filter logging option.
SCALANCE S and SOFTNET Security Client
70
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.3 Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router
Note on the ping command: As an alternative, you can also use other communication
programs to test the configuration.
NOTICE
In Windows, the firewall can be set so that as default the PING commands do not pass
through. If necessary, you will need to enable the ICMP services of the type Request and
Response.
Test part 1 - sending the ping command
Now test the function of the NAT router mode in IP data traffic from internal to external as
follows:
1. Open the following menu command from the taskbar Start menu on PC2:
Start ▶ All Programs ▶ Accessories ▶ Command Prompt
2. Enter the ping command from PC2 to PC1 (IP address 192.168.10.100)
In the command line of the "Command Prompt" window, enter the following command:
ping 192.168.10.100
You will then receive the following message: (positive reply from PC1).
Test part 2 - evaluating the result
1. Now change to the online mode of the Security Configuration Tool. Select the following
menu command:
View ▶ Online
2. Select the module you want to edit and then select the following menu command to open
the online dialog
Edit ▶ Online Diagnostics...
Select the "Packet Filter Log" tab.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
71
GETTING STARTED
3.3 Example 3: Firewall and router - Operating a SCALANCE S as a firewall and router
3. Click the "Start Reading" button.
4. Acknowledge the displayed dialog with "OK".
Result: The log entries are read from the SCALANCE S and displayed here.
Result
You will see the following in the log output:
● Output row 1
The IP addresses of the packets from PC2 to PC1 are displayed on the interface to the
external network with the external IP address of the SCALANCE S module
(192.168.10.01). This matches the expected address conversion (note: the additional port
assignment is not shown here).
● Output row 2
SCALANCE S and SOFTNET Security Client
72
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.4 Example 4: Remote access - VPN tunnel example with SCALANCE S612 / S613 and SOFTNET Security Client
The reply packets are displayed with the destination address of the node in the internal
subnet (PC2: 172.10.10.100). You can see that the address conversion had already
taken place before the reply packet passed the firewall.
3.4
Example 4: Remote access - VPN tunnel example with SCALANCE
S612 / S613 and SOFTNET Security Client
3.4.1
Overview
In this example, the VPN tunnel function is configured in the "standard mode" configuration
view. In this example, a SCALANCE S and the SOFTNET Security Client form the two tunnel
endpoints for the secure tunnel connection via a public network.
With this configuration, IP traffic is possible only over the established VPN tunnel
connections with authorized partners.
Setting up the test network
PC3
6&$/$1&(6
0RGXOH
PC2
PC1
External
Internal
Hub / Switch
7XQQHO
LQWHUQDOQHWZRUN
H[WHUQDOSXEOLFQHWZRUN
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
73
GETTING STARTED
3.4 Example 4: Remote access - VPN tunnel example with SCALANCE S612 / S613 and SOFTNET Security
Client
● Internal network - attachment to SCALANCE S port 2 ("internal network" port)
In the test setup, in the internal network, a network node is implemented by one PC
connected to the "internal network" port (port 2, green) of a SCALANCE S module.
– PC1: Represents a node in the internal network
– SCALANCE S module 1: SCALANCE S module for protection of the internal network
● External, public network - attachment to SCALANCE S port 1 ("external network" port)
The external public network is attached to the "external network" port (port 1, red) of a
SCALANCE S module.
– PC2: PC with Security Configuration Tool configuration software and the SOFTNET
Security Client software for secure VPN access to the internal network
– PC3: Test PC for test phase 2
Note
In the example, a local area network is used as a substitute for an external public WAN to
illustrate the principles of the functionality.
Explanations relating to the use of a WAN are provided where necessary.
Required devices/components:
Use the following components to set up to the network:
● 1 x SCALANCE S module, (optional: a suitably installed DIN rail with fittings);
● 1 x 24 V power supply with cable connector and terminal block plug;
● 1 x PC on which the "Security Configuration Tool" and VPN client "SOFTNET Security
Client" are installed;
● 1 x PC in the internal network to test the configuration;
● 1 x PC in the external network to test the configuration;
● 1 x network hub or switch to set up the network connections with the SCALANCE S
module and the PCs;
● The required network cable, TP cable (twisted pair) complying with the IE FC RJ-45
standard for Industrial Ethernet.
SCALANCE S and SOFTNET Security Client
74
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.4 Example 4: Remote access - VPN tunnel example with SCALANCE S612 / S613 and SOFTNET Security Client
Overview of the next steps:
6HWXS6&$/$1&(6DQGWKHQHWZRUN
0DNHWKH,3VHWWLQJVIRUWKH3&V
&UHDWHWKHSURMHFWDQGPRGXOHV
&RQILJXUHWKHWXQQHOIXQFWLRQ
/RDGWKHFRQILJXUDWLRQRQWKH6&$/$1&(6DQGVDYHWKH
62)71(76HFXULW\&OLHQWFRQILJXUDWLRQ
6HWXSDWXQQHOZLWKWKH62)71(76HFXULW\&OLHQW
7HVWWKHWXQQHOIXQFWLRQ
3.4.2
Set up SCALANCE S and the network
Follow the steps outlined below:
1. First unpack the SCALANCE S device and check that it is undamaged.
2. Connect the power supply to the SCALANCE S module.
Result: After connecting the power, the Fault LED (F) is lit yellow.
WARNING
The SCALANCE S is designed for operation with safety extra-low voltage. This means that
only safety extra-low voltages (SELV) complying with IEC950/EN60950/ VDE0805 can be
connected to the power supply terminals.
The power supply unit to supply the SCALANCE S must comply with NEC Class 2 (voltage
range 18 - 32 V, current requirement approx. 250 mA).
When installing and connecting the SCALANCE S modules, refer to Chapter 2 "Product
characteristics and commissioning".
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
75
GETTING STARTED
3.4 Example 4: Remote access - VPN tunnel example with SCALANCE S612 / S613 and SOFTNET Security
Client
1. Now establish the physical network connections by plugging the network cable
connectors into the ports being used (RJ-45 jacks):
– Connect PC1 with port 2 of module 1.
– Connect port 1 of module 1 with the hub/switch.
– Connect PC2 and PC3 to the hub/switch as well.
2. Now turn on the PCs.
Note
To use a WAN as an external public network, the connections to the hub/switch must be
replaced by the connections to the WAN (Internet access).
NOTICE
The Ethernet attachments at port 1 and port 2 are handled differently by the SCALANCE
S and must not be swapped over when connecting to the communication network:
 Port 1 - "external network"
Upper RJ-45 jack, marked red = unprotected network area;
 Port 2 - "internal network"
Lower RJ-45 jack, marked green = network protected by SCALANCE S;
If the ports are swapped over, the device loses its protective function.
3.4.3
Make the IP settings for the PCs
For the test, the PCs should be given the following IP address settings.
PC
IP address
Subnet mask
Default gateway
PC1
192.168.0.1
255.255.255.0
192.168.0.201
PC2
191.0.0.2
255.255.0.0
191.0.0.201
PC3
191.0.0.3
255.255.0.0
191.0.0.201
For standard gateway, you specify the IP addresses that will be assigned to the SCALANCE
S module for the internal and external interface in the subsequent project engineering:
● PC1 uses the internal interface.
● PC2 and PC3 use the external interface.
Note
To use a WAN as an external public network, the relevant IP settings for the connection
to the WAN (Internet) must be made on PC2 and PC3.
SCALANCE S and SOFTNET Security Client
76
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.4 Example 4: Remote access - VPN tunnel example with SCALANCE S612 / S613 and SOFTNET Security Client
Follow the steps below for PC1, PC2, and PC3:
1. On the relevant PC, open the Control Panel with the following menu command:
Start ► Control Panel
2. Click "Network and Sharing Center" and select the "Change Adapter Settings" option in
the navigation menu on the left.
3. In the "Local Area Connection Properties" dialog, enable the "Internet Protocol Version 4
(TCP/IPv4)" check box and click the "Properties" button.
4. In the "Internet Protocol Version 4 (TCP/IPv4) Properties" dialog, select the "Use the
following IP address" radio button: and enter the values assigned to the PC from the table
"Make the IP setting of the PCs" in the respective fields.
Close the dialogs with "OK" and exit the Control Panel.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
77
GETTING STARTED
3.4 Example 4: Remote access - VPN tunnel example with SCALANCE S612 / S613 and SOFTNET Security
Client
3.4.4
Create the project and modules
Follow the steps outlined below:
1. Start the Security Configuration Tool on PC2.
2. Create a new project with the following menu command:
Project ▶ New
You will be prompted to enter a user name and a password. The user entry you specify
here will automatically be assigned the role of an administrator.
3. Enter a user name and a password and confirm your entries to create a new project.
4. The "Selection of the module or software configuration" dialog is automatically displayed.
Now configure your product type, the module and the firmware release and close the
dialog with "OK".
5. Create a second module with the following menu command:
Insert ► Module
Now configure the product type "SOFTNET Configuration", the "SOFTNET Security
Client" module and the firmware release of your SOFTNET Security Client version and
then close the dialog with "OK".
This module is automatically given a name according to the defaults for the project.
6. In the navigation area, click on "All Modules" and then on the row with "Module1" in the
content area.
7. Now click on the "MAC Address" column and enter the MAC address in the specified
format.
You will find this address on the front panel of the SCALANCE S module (see figure).
SCALANCE S and SOFTNET Security Client
78
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.4 Example 4: Remote access - VPN tunnel example with SCALANCE S612 / S613 and SOFTNET Security Client
8. Now click on the "IP Address ext." column and enter the IP address in the specified
format and adapt the subnet mask accordingly.
For module 1: IP address: 191.0.0.201, subnet mask: 255.255.0.0
Note
To use a WAN as an external public network, enter the static IP address you received
from your provider as the "IP Address ext." via which the SCALANCE S module will then
be accessible in the WAN (Internet).
Before the SCALANCE S module can send packets in the WAN (Internet), you will need
to enter your DSL router as the "Default Router".
If you use a DSL router as Internet gateway, the following ports (at least) must be
forwarded on it:
• Port 500 (ISAKMP)
• Port 4500 (NAT-T)
For configuration downloads (not through an active tunneL), port 443 (HTTPS) must also
be forwarded.
9. Now open the properties menu of "Module1" by right-clicking on the entry and selecting
the "Properties..." menu command.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
79
GETTING STARTED
3.4 Example 4: Remote access - VPN tunnel example with SCALANCE S612 / S613 and SOFTNET Security
Client
10.Now activate routing mode as shown below in the "Routing Mode" tab, enter the internal
IP address (192.168.0.201) and the subnet mask (255.255.255.0) of the SCALANCE S
module and confirm with "OK".
11.In the navigation area, click on "All Modules" and then on the row with "Module2" in the
content area.
12.Click in the "Name" column and enter the name "SSC-PC2".
The SOFTNET Security Client does not require any further settings.
Your screen should now resemble the following screenshot.
SCALANCE S and SOFTNET Security Client
80
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.4 Example 4: Remote access - VPN tunnel example with SCALANCE S612 / S613 and SOFTNET Security Client
3.4.5
Configuring a tunnel connection
A SCALANCE S and the SOFTNET Security Client can establish one IPsec tunnel for
secure communication when they are assigned to the same group in the project.
Follow the steps outlined below:
1. Select "All Groups" in the navigation area and create a new group with the following
menu command:
Insert ► Group
This group is automatically given the name "Group1".
2. Select the SCALANCE S module "Module1" in the content area and drag it to "Group1" in
the navigation area.
The module is now assigned to this group (is a member of the group).
The color of the key symbol of the module icon changes from gray to blue.
3. Select the SOFTNET Security Client in the content area and drag it to "Group1" in the
navigation area.
The module is now also assigned to this group.
4. Save this project under a suitable name with the following menu command:
Project ► Save As...
The configuration of the tunnel connection is now complete.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
81
GETTING STARTED
3.4 Example 4: Remote access - VPN tunnel example with SCALANCE S612 / S613 and SOFTNET Security
Client
3.4.6
Loading the configuration on the SCALANCE S and saving the SOFTNET
Security Client configuration
Follow the steps outlined below:
1. Using the menu command below, open the following dialog:
Transfer ► To All Modules...
2. Start the download with the "Start" button.
3. Save the configuration file "projectname.SSC-PC2.dat" in your project folder and assign a
password for the private key of the certificate.
If the download was completed free of errors, the SCALANCE S is restarted automatically
and the new configuration activated.
Result: SCALANCE S in productive operation
The SCALANCE S is now in productive operation. This mode is indicated by the Fault LED
being lit green.
The configuration has now been commissioned and the SCALANCE S module and the
SOFTNET Security Client can now establish a communication tunnel over which network
nodes from the two internal networks can communicate securely with PC2 from within the
internal network.
Note
To use a WAN as an external public network, you cannot configure a SCALANCE S module
with the factory settings via the WAN. In this case, configure the SCALANCE S module from
within the internal network.
SCALANCE S and SOFTNET Security Client
82
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.4 Example 4: Remote access - VPN tunnel example with SCALANCE S612 / S613 and SOFTNET Security Client
3.4.7
Set up a tunnel with the SOFTNET Security Client
Follow the steps outlined below:
1. Start the SOFTNET Security Client on PC2.
2. Click the "Load Configuration" button, change to your project folder and load the
"Projectname.SSC-PC2.dat" configuration file.
3. Enter the password for the private key of the certificate and confirm with "Next".
4. Confirm the "Enable all statically configured nodes?" dialog with "Yes".
5. Click the "Tunnel Overview" button.
Result: Active tunnel connection
The tunnel between SCALANCE S and SOFTNET Security Client was established. This
status is indicated by the green circle beside the "Module1" entry.
In the log console of the tunnel overview of the SOFTNET Security Client, you can see
several messages from your system indicating what happened during the connection attempt
and whether or not a policy for the communication connection was created.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
83
GETTING STARTED
3.4 Example 4: Remote access - VPN tunnel example with SCALANCE S612 / S613 and SOFTNET Security
Client
The configuration has now been commissioned and the SCALANCE S module and the
SOFTNET Security Client have established a communication tunnel over which network
nodes can communicate securely with PC2 from within the internal network.
3.4.8
Test the tunnel function (ping test)
How can you test the configured function?
The function can be tested as described below using a ping command.
SCALANCE S and SOFTNET Security Client
84
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.4 Example 4: Remote access - VPN tunnel example with SCALANCE S612 / S613 and SOFTNET Security Client
As an alternative, you can also use other communication programs to test the configuration.
NOTICE
In Windows, the firewall can be set so that as default the PING commands do not pass
through. If necessary, you will need to enable the ICMP services of the type Request and
Response.
Test phase 1
Now test the function of the tunnel connection established between PC1 and PC2:
1. Open the following menu command from the taskbar Start menu on PC2:
Start ► All Programs ► Accessories ► Command Prompt
2. Enter the ping command from PC2 to PC1 (IP address 192.168.0.1).
In the command line of the "Command Prompt" window, enter the following command
ping 192.168.0.1
.
You will then receive the following message: (positive reply from PC1).
Result
If the IP packets have reached PC1, the "Ping statistics for 192.168.0.1" display the
following:
● Sent = 4
● Received = 4
● Lost = 0 (0% loss)
Since no other communication is permitted, these packets must have been transported
through the VPN tunnel.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
85
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
Test phase 2
Now repeat the test by sending a ping command from PC3.
1. Open the following menu command from the taskbar Start menu on PC3:
Start ► All Programs ► Accessories ► Command Prompt
2. Send the same ping command (ping 192.168.0.1) in the Command Prompt window of
PC3.
You will then receive the following message: (no reply from PC1).
Result
The IP frames from PC3 cannot reach PC1 since neither tunnel communication between
these two devices is configured nor is normal IP data traffic permitted.
This is shown in the "Ping statistics" for 192.168.0.1 as follows:
● Sent = 4
● Received = 0
● Lost = 4 (100% loss)
3.5
Example 5: Remote access - VPN tunnel example with MD741-1
and SOFTNET Security Client
3.5.1
Overview
In this example, the VPN tunnel function is configured in the "advanced mode" project
engineering view. An MD741-1 and the SOFTNET Security Client form the two tunnel
endpoints for the secure tunnel connection via a public network.
SCALANCE S and SOFTNET Security Client
86
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
With this configuration, IP traffic is possible only over the established VPN tunnel connection
with authorized partners.
Note
To configure this example, you need a public, fixed IP address from your provider (mobile
wireless provider) for the SIM card of the MD741-1 that can also be reached from the
Internet.
(As an alternative, it is also possible to work with a DynDNS address for the MD741-1.)
Setting up the test network:
0'
3&
3&
:$1
'6/5RXWHU
7XQQHO
H[WHUQDOSXEOLFQHWZRUN
LQWHUQDOQHWZRUN
● Internal network - attachment to MD741-1 port X2 ("internal network")
In the test setup, in the internal network, a network node is implemented by a PC
connected to the "internal network" port (port X2) of an MD741-1 module.
– PC1: Represents a node in the internal network
– MD741-1: MD741-1 module for protection of the internal network
External, public network - connection via MD741-1 antenna ("external network")
The external, public network must be a GSM or mobile wireless network that can be
selected by the user at the provider (mobile wireless provider) and is reached via the
antenna of the MD741-1.
– PC2: PC with Security Configuration Tool configuration software and the SOFTNET
Security Client software for secure VPN access to the internal network
Required devices/components:
Use the following components to set up to the network:
● 1 x MD741-1 module with SIM card, (optional: a suitably installed DIN rail with fittings);
● 1 x 24 V power supply with cable connector and terminal block plug;
● 1 x PC on which the "Security Configuration Tool" and VPN client "SOFTNET Security
Client" are installed;
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
87
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
● 1 x PC in the internal network of the MD741-1 with a browser for configuring the MD741-1
and testing the configuration;
● 1 x DSL router (connection to the Internet for the PC with the VPN client (ISDN, DSL,
UMTS etc.))
● The required network cable, TP cable (twisted pair) complying with the IE FC RJ-45
standard for Industrial Ethernet.
Overview of the next steps
6HWWLQJXSWKH0'DQGWKHQHWZRUN
0DNHWKH,3VHWWLQJVIRUWKH3&V
&UHDWHWKHSURMHFWDQGPRGXOHV
&RQILJXUHWKHWXQQHOIXQFWLRQ
6DYLQJWKHFRQILJXUDWLRQRIWKH0'DQGWKH62)7
1(76HFXULW\&OLHQW
&RQILJXULQJWKH0'
6HWXSDWXQQHOZLWKWKH62)71(76HFXULW\&OLHQW
7HVWWKHWXQQHOIXQFWLRQ
3.5.2
Setting up the MD741-1 and the network
Follow the steps outlined below:
1. First unpack the MD741-1 device and check that it is undamaged.
2. Follow the step-by-step commissioning as described in the MD741-1 system manual up
to the point at which you need to set it up to suit your own requirements. To do this, use
PC1; for setting up the MD741, refer to the section Configuring the MD741-1 (Page 94).
3. Now establish the physical network connections by plugging the network cable
connectors into the ports being used (RJ-45 jacks):
– Connect PC1 with Port X2 ("internal network") of the MD741-1
– Connect PC2 with the DSL router
4. Now turn on the PCs.
SCALANCE S and SOFTNET Security Client
88
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
3.5.3
Make the IP settings for the PCs
For the test, the PCs should be given the following IP address settings.
PC
IP address
Subnet mask
Default gateway
PC1
192.168.1.101
255.255.255.0
192.168.1.1
PC2
192.168.2.202
255.255.255.0
192.168.2.1
Under Default gateway for PC1, specify the IP address that you will assign to the MD741-1
module (for the internal network interface) in the subsequent configuration. For PC2, specify
the IP address of the DSL router (for the internal network interface).
Follow the steps below with PC1 and PC2 to open the network connections on the relevant PC:
1. On the relevant PC, open the Control Panel with the following menu command:
Start ► Control Panel
2. Open the "Network and Sharing Center" icon.
3. In the "Local Area Connection Properties" dialog, enable the "Internet Protocol Version 4
(TCP/IPv4)" check box and click the "Properties" button.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
89
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
4. In the "Internet Protocol Version 4 (TCP/IPv4) Properties" dialog, select the "Use the
following IP address" radio button: off. Now enter the values assigned to the PC from the
table "Make the IP settings for the PCs" in the relevant boxes.
Close the dialogs with "OK" and exit the Control Panel.
3.5.4
Create the project and modules
Follow the steps outlined below:
1. Start the Security Configuration Tool on PC2.
2. Create a new project with the following menu command:
Project ▶ New
You will be prompted to enter a user name and a password. The user entry you specify
here will automatically be assigned the role of an administrator.
3. Enter a user name and a password and confirm your entries to create a new project.
The "Selection of a module or software configuration" dialog opens automatically.
4. Now configure the product type "SOFTNET Configuration (SOFTNET Security Client,
MD74x)", the module "SOFTNET Security Client", the firmware version "V3.0" and assign
the module name "SSC-PC2".
5. Close the dialog with "OK".
6. Create a second module with the following menu command:
Insert ► Module
Now configure the product type "SOFTNET Configuration (SOFTNET Security Client,
MD74x)", the module "MD74x" and assign the module name "MD741-1".
7. Now click on the "IP Address (ext.)" box in the "Configuration" area and enter the IP
address in the specified format. Configure the corresponding external subnet mask as
well.
Note
To configure this example, you need a public, fixed IP address from your provider (mobile
wireless provider) for the SIM card of the MD741-1 that can also be reached from the
Internet. Enter this IP address as the external IP address for your module.
If you work with dynamic addresses for the MD741-1, you require a DynDNS address for
the module. In this case, you do not need to adapt the external IP address at this point.
The IP address entered therefore serves simply as a placeholder.
When configuring the SOFTNET Security Client later, specify a DNS name instead of an
external IP address.
SCALANCE S and SOFTNET Security Client
90
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
8. Now click on the "IP Address (int.)" box in the "Configuration" area and enter the IP
address in the specified format. (IP address: 192.168.1.1) Configure the corresponding
internal subnet mask as well. (Subnet mask: 255.255.255.0)
9. Now close the dialog with "OK".
You obtain a view similar to that in the following figure.
3.5.5
Configuring a tunnel connection
An MD741-1 and the SOFTNET Security Client can establish one IPsec tunnel for secure
communication when they are assigned to the same group in the project.
Follow the steps outlined below:
1. Select "All Groups" in the navigation area and create a new group with the following
menu command:
Insert ► Group
This group is automatically given the name "Group1".
2. Select the MD741-1 module "MD741-1" in the content area and drag it to "Group1" in the
navigation area.
The module is now assigned to this group (is a member of the group).
The color of the key symbol of the module icon changes from gray to blue. Which
indicates that an IPsec connection was configured for the module.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
91
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
3. Select the SOFTNET Security Client module "SSC-PC2" in the content area and drag it to
"Group1" in the navigation area.
The module is now also assigned to this group.
4. Now change your project to advanced mode with the following menu command:
View ► Advanced Mode
5. Open the group properties of Group1 by selecting the "Properties..." shortcut menu.
6. Change the SA Life for Phase 1 and Phase 2 to 1440 minutes and leave all other settings
at their default values.
SCALANCE S and SOFTNET Security Client
92
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
NOTICE
A successful tunnel connection between MD741-1 and the SOFTNET Security Client
can only be established if you keep exactly to the parameters listed below.
If you use different parameter settings, it is possible that the two tunnel partners will not
be able to set up a VPN connection between them.
Authentication method: Certificate
Advanced Settings Phase 1:
 IKE Mode: Main




Phase 1 DH Group: Group2
Phase 1 Encryption: 3DES-168
SA Life (minutes): 1440
Phase 1 Authentication: SHA1
Advanced Settings Phase 2:
 SA Lifetype: Time
 Phase 2 Encryption: 3DES-168
 SA Life (minutes): 1440
 Phase 2 Authentication: SHA1
7. Save this project under a suitable name with the following menu command:
Project ► Save As...
The configuration of the tunnel connection is now complete.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
93
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
3.5.6
Saving the configuration of the MD741-1 and the SOFTNET Security Client
Follow the steps outlined below:
1. Using the menu command below, open the following dialog:
Transfer ► To All Modules...
2. Start the download with the "Start" button.
3. Save the configuration file "projectname.SSC-PC2.dat" in your project folder and assign a
password for the private key of the certificate. The following files will be saved in your
project directory:
– "Projectname.SSC-PC2.dat"
– "Projectname.string.SSC-PC2.p12"
– "Projectname.group1.cer"
4. Save the configuration file "projectname.MD741-1.txt" in your project folder and assign a
password for the private key of the certificate. The following files will be saved in your
project directory:
– "projectname.MD741-1.txt"
– "projectname.string.MD741-1.p12"
– "projectname.group1.MD741-1.cer"
You have now saved all the necessary files and certificates and can put the MD741-1 and
the SOFTNET Security Client into operation.
3.5.7
Configuring the MD741-1
The using the saved text file "projectname.MD741-1.txt" you can create the configuration of
the MD741-1 very simply based on its Web-based management. Below, this example shows
you the configuration of the MD741-1 step-by-step.
SCALANCE S and SOFTNET Security Client
94
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
The following is assumed for the configuration:
● MD741-1 has a public, fixed IP address that can be reached via the Internet;
● The SOFTNET Security Client has a dynamic IP address assigned by the provider.
At the relevant points, you will also be given information about configuring a DynDNS name
for the MD741-1.
Follow the steps outlined below:
1. Connect to the Web user interface of the MD741-1 via PC1.
Note: If the MD741-1 has its factory settings, the internal interface of the module has the
IP address 192.168.1.1
2. Go to the following directory:
IPsec VPN ► Certificates
3. You saved the required certificates on PC2 in the last section and assigned a password
for the private key. Transfer the certificates ("projectname.string.MD741-1.p12",
"projectname.group1.MD741-1.cer") for the MD741-1 initially to PC1.
4. Now upload the certificates of the partners (projectname. group1.MD741-1.cer" and the
PKCS 12 file "projectname.string.MD741-1.p12" to the module.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
95
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
VPN Roadwarrior mode of the MD741-1
Since the SOFTNET Security Client has a dynamic IP address, the VPN Roadwarrior mode
of the MD741-1 is used to establish a secure connection.
● Roadwarrior mode of the MD741-1:
– In the VPN Roadwarrior mode, the SINAUT MD741-1 can accept VPN connections
from partners with an unknown address. These can, for example, be mobile partners
that obtain their IP address dynamically.
– The VPN connection must be established by the partner. Only one VPN connection is
possible in Roadwarrior mode. VPN connections in standard mode can be operated at
the same time.
Follow the steps outlined below:
1. Go to the following directory:
IPsec VPN ► Connections
2. Edit the settings of the Roadwarrior VPN as shown in the following figure and save your
entries.
You can get the "Remote ID" from the "projectname.MD741-1.txt" text file. As an option,
you can enter the "Remote ID" here.
SCALANCE S and SOFTNET Security Client
96
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
3. Edit the IKE settings of the Roadwarrior VPN as shown in the following figure and save
your entries.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
97
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
NOTICE
A successful tunnel connection between MD741-1 and the SOFTNET Security Client
can only be established if you keep exactly to the parameters listed below.
If you use different parameter settings, the two tunnel partners will not be able to set up
a VPN connection between them. You should therefore always keep to the settings in
the exported text file (as shown extra below).
Authentication method: X.509 partner certificate
Phase 1 - ISKAMP SA:
 ISAKMP-SA encryption:3DES-168
 ISAKMP-SA hash: SHA-1
 ISAKMP-SA mode: Main mode
 ISAKMP-SA Lifetime (seconds): 86400
Phase 2 - IPSec SA:
 IPSec SA encryption: 3DES-168
 IPSec SA hash: SHA-1
 IPSec SA lifetime (seconds): 86400
DH/PFS group: DH-2 1024
SCALANCE S and SOFTNET Security Client
98
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
4. To be able to use the diagnostics function of the SOFTNET Security Client for
successfully established VPN tunnels in conjunction with the MD741-1, you need to allow
a ping from the external network of the MD741-1.
To do this, go to the directory:
Security ► Advanced Settings
Set the "External ICMP to the MD741-1" function to the value "Allow Ping" and save your
entry. Note also the following figure.
Note
If you do not enable this function, you will not be able to use the diagnostics function of
the SOFTNET Security Client for successfully established VPN tunnels in conjunction
with the MD741-1. You then do not receive any feedback as to whether the tunnel was
successfully established but can nevertheless communicate securely via the tunnel.
5. To allow you to access the Web interface of the MD741-1 module via the external
interface as well, enable the HTTPS remote access.
This gives you the opportunity of configuring and diagnosing the MD741-1 remotely via
an established tunnel.
To do this, go to the directory:
Access ► HTTPS
Set in the "Enable HTTPS remote access" function to the value "Yes" as shown in the
following figure and save your entry.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
99
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
Note
If you want to access the MD741-1 using a DNS name, make the settings for the
DynDNS server connection in the following directory:
External Network ► Advanced Settings ► DynDNS
1. Change the setting "Log on to to DynDNS server" to the value "Yes".
2. Specify your username and the password of your DynDNS account.
3. Enter the full DynDNS address in the "DynDNS hostname" box. Remember to specify
the domain for this address as well. (Example: "mydns.dyndns.org")
The commissioning of the MD741-1 module is now complete. The module and the
SOFTNET Security Client can establish a communication tunnel over which network nodes
can communicate securely with PC2 from within the internal network.
SCALANCE S and SOFTNET Security Client
100
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
3.5.8
Setting up a tunnel with the SOFTNET Security Client
Follow the steps outlined below:
1. Start the SOFTNET Security Client on PC2.
2. Click the "Load Configuration" button, change to your project folder and load the
"Projectname.SSC-PC2.dat" configuration file.
3. For an MD741-1 configuration, the SOFTNET Security Client opens the dialog "IP-/DNS
settings MD741-1". In this dialog, enter the public IP address of the MD741-1 module that
you received from your provider. Confirm the dialog with "OK".
Note: If you work with a DNS name, you can configure this instead of an IP address in
this dialog.
4. Enter the password for the certificate and confirm with "Next".
5. Confirm the "Enable all statically configured nodes?" dialog with "Yes".
6. Click the "Tunnel Overview" button.
Note
If you want to reach the MD741-1 module using a DNS name, set the full DynDNS
address in the "DNS Name" input box in step 3. (Example: "mydns.dyndns.org")
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
101
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
Result: Active tunnel connection
The tunnel between MD741-1 and SOFTNET Security Client was established.
The blue icon beside the "MD741-1" entry indicates that a policy was created for this
communication connection.
Accessibility of the MD741-1 is indicated by the 'green circle' beside the "MD741-1" entry.
Note
Remember that this function depends on enabling the ping function on the MD741-1 module.
In the Logging Console of the tunnel view of the SOFTNET Security Client, you will see
additional feedback from your system from which you can deduce the following:
● How did the connection attempt go?
● Was the policy created for your communication connection?
SCALANCE S and SOFTNET Security Client
102
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
The commissioning of the configuration is now complete. The MD741-1 module and the
SOFTNET Security Client have established a communication tunnel over which network
nodes can communicate securely with PC2 from within the internal network.
3.5.9
Test the tunnel function (ping test)
How can you test the configured function?
The function is tested as described below using a ping command.
As an alternative, you can also use other communication programs to test the configuration.
NOTICE
In Windows, the firewall can be set so that as default the ping commands do not pass
through. If necessary, you will need to enable the ICMP services of the type Request and
Response.
Testing
Now test the function of the tunnel connection established between PC1 and PC2:
1. Open the following menu command from the taskbar Start menu on PC2:
Start ► All Programs ► Accessories ► Command Prompt
2. Enter the ping command from PC2 to PC1 (IP address 192.168.1.101).
In the command line of the "Command Prompt" window, enter the following command
Ping 192.168.1.101
.
You will then receive the following message: (positive reply from PC1).
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
103
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
Result
If the IP packets have reached PC1, the "Ping statistics for 192.168.1.101" display the
following:
● Sent = 4
● Received = 4
● Lost = 0 (0 % loss)
Since no other communication is permitted, these packets must have been transported
through the VPN tunnel.
SCALANCE S and SOFTNET Security Client
104
Operating Instructions, 02/2011, C79000-G8976-C196-07
GETTING STARTED
3.5 Example 5: Remote access - VPN tunnel example with MD741-1 and SOFTNET Security Client
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
105
Configuring with the Security Configuration Tool
4
The Security Configuration Tool is the configuration tool is supplied with SCALANCE S.
This chapter will familiarize you with the user interface and the functionality of the
configuration tool.
You will learn how to set up, work with, and manage SCALANCE S projects.
Further information
How to configure modules and IPsec tunnels is described in detail in the next chapters of this
manual.
You will find detailed information on the dialogs and parameter settings in the online help.
You can call this with the F1 key or using the "Help" button in the relevant dialog.
F1
4.1
Range functions and how they work
Scope of performance
You use the Security Configuration Tool for the following tasks:
● Configuration of SCALANCE S
● Configuration of SOFTNET Security Client (S612 / S613 / MD 741-1)
● Creating the configuration data for MD 740-1 / MD 741-1
● Test and diagnostic functions, status displays
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
107
Configuring with the Security Configuration Tool
4.1 Range functions and how they work
Modes
The Security Configuration Tool has two modes:
● Offline - configuration view
In offline mode, you create the configuration data for the SCALANCE S modules and
SOFTNET Security Clients. Prior to downloading, there must already be a connection to
a SCALANCE S.
● Online
The online mode is used for testing and diagnostics of a SCALANCE S.
2IIOLQH
&RQILJXUDWLRQGDWD
'RZQORDG
2QOLQH'LDJQRVWLFVDQGWHVW
Two operating views
The Security Configuration Tool provides two operating views in offline mode:
● Standard mode
Standard mode is the default mode in the Security Configuration Tool. It allows fast,
uncomplicated configuration of SCALANCE S operation.
● Advanced mode
Advanced mode provides extended options allowing individual settings for the firewall
rules and security functionality.
How it works - security and consistency
● Access only for authorized users
You can protect each project from unauthorized access by assigning passwords.
● Consistent project data
Consistency checks are running even while you make the entries in the dialogs. You can
also start a project-wide consistency check for all dialogs at any time.
Only consistent project data can be downloaded.
● Protecting project data by encryption
The saved project and configuration data are protected by encryption both in the project
file and on the C-PLUG.
SCALANCE S and SOFTNET Security Client
108
Operating Instructions, 02/2011, C79000-G8976-C196-07
Configuring with the Security Configuration Tool
4.2 Installation
4.2
Installation
You install the Security Configuration Tool from the supplied SCALANCE S CD.
Requirements
The prerequisites for installation and operation of the Security Configuration Tool on a
PC/PG are as follows:
● Operating system Windows XP SP2 or SP3 (not Home), Windows 7 (not Home);
● PC/PG with at least 128 Mbytes of RAM and a 1 GHz CPU or faster.
Follow the steps below
NOTICE
Before you install the Security Configuration Tool, make sure that you read the "README"
file on the CD. This file contains important notes and any late modifications.
● Insert the SCALANCE S CD in your CD-ROM drive; if the Autorun function is active, the
user interface with which you make the installation starts automatically.
or
● Start the "start.exe" application on the supplied SCALANCE S CD.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
109
Configuring with the Security Configuration Tool
4.3 User interface and menu commands
4.3
User interface and menu commands
Layout of the user interface
①
The navigation area functions as a project Explorer with the following main folders:

Global firewall rules
The node contains the configured global firewall rule sets. Other folders:

–
IP rule set
–
MAC rule set
All Modules
The node contains the configured SCALANCE S modules or SOFTNET Security Clients of the project.

All Groups
The "All Groups" node contains all created VPNs.
When you select an object in the navigation area, you will see detailed information on this object in the content
area.
SCALANCE S and SOFTNET Security Client
110
Operating Instructions, 02/2011, C79000-G8976-C196-07
Configuring with the Security Configuration Tool
4.3 User interface and menu commands
②
Content area:
When you select an object in the navigation area, you will see detailed information on this object in the content
area.
Several parameters can be entered here.
③
By double clicking on the objects, you open properties dialogs in which you can enter further parameters.
Status bar
The status bar displays operating states and current status messages; these include:

The current user and user type

The operator view - standard mode/advanced mode

The mode - online/offline
Menu bar
Below, you will see an overview of the available menu commands and their meaning.
Menu command
Meaning / remarks
Project ▶…
Functions for project-specific settings and for downloading and
saving the project file.
New
Create a new project
Open…
Open the existing project.
Save
Save the open project in the current path and under the current
project name.
Save As…
Save the open project in a selectable path and under a selectable
project name.
Properties…
Open dialog for project properties.
Recent Projects
Allows you to select previously opened projects directly.
Shortcut
Quit
Edit ▶…
Note:
If you have selected an object, some of the functions listed here
are also available in the popup menu available with the right
mouse button.
Copy
Copy the selected object.
Ctrl+C
Paste
Fetch object from the clipboard and paste.
Ctrl+V
Delete
Delete the selected object.
Del
Rename
Rename the selected object.
F2
Properties
Open the properties dialog for the selected object.
F4
Online Diagnostics…
Access test and diagnostic functions.
This menu command is only available in the online view.
Insert ▶…
Module
(Menu commands only in offline mode)
Create new module.
Ctrl+M
The menu command is enabled only when a module object or a
group is selected in the navigation area.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
111
Configuring with the Security Configuration Tool
4.3 User interface and menu commands
Menu command
Meaning / remarks
Shortcut
Group
Create new group.
Ctrl+G
The menu command is enabled only when a group object is
selected in the navigation area.
Firewall rule set
Create a new globally valid set of firewall IP rules or MAC rules.
Ctrl+F
The menu command is enabled only when a firewall object is
selected in the navigation area.
Transfer ▶…
To Module…
Download data to the selected modules.
To All Modules…
Download data to all configured modules.
Note: Only consistent project data can be downloaded.
Note: Only consistent project data can be downloaded.
Configuration Status…
Display configuration status of the configured modules in a list.
Firmware Update...
Download new firmware to the selected SCALANCE S.
View ▶…
Advanced mode
Ctrl+E
Switch from the standard to the advanced mode.
Notice: If you switch to the advanced mode for the current project,
you can only switch back as long as you have made no
modifications.
The standard mode is the default.
Offline
Is the default.
Ctrl+Shift+D
Online
Ctrl+D
Options ▶…
IP Service Definitions …
Open a dialog for service definitions for IP firewall rules.
This menu command is only available in the "advanced mode"
view.
MAC Service
Definitions…
Open a dialog for service definitions for MAC firewall rules.
Change Project
Password...
Function for changing the user password.
Network adapter...
Function for selecting the local network adapter over which a
connection will be established to a SCALANCE S.
Log Files…
This menu command is only available in the "advanced mode"
view.
Displays log files.
Log files can be read and logs can be started.
Symbolic Names...
You can assign symbolic names for IP addresses or MAC
addresses.
Consistency checks
Check the consistency of the entire project. A result list is
displayed.
Help ▶…
Contents ...
Help on the functions and parameters required in the Security
Configuration Tool.
Ctrl+Shift+F1
SCALANCE S and SOFTNET Security Client
112
Operating Instructions, 02/2011, C79000-G8976-C196-07
Configuring with the Security Configuration Tool
4.4 Managing projects
Menu command
Meaning / remarks
Shortcut
Index...
Help on the functions and parameters required in the Security
Configuration Tool.
Ctrl+Shift+F2
Info...
Information on the version and revision of the Security
Configuration Tool.
4.4
Managing projects
4.4.1
Overview
SCALANCE S project
A project in the Security Configuration Tool includes all the configuration and management
information for one or more SCALANCE S devices, SOFTNET Security Clients and MD74x
devices.
You create a module for each SCALANCE S device, each SOFTNET Security Client and
each MD74x device in the project.
Generally, the configurations of a project contain the following:
● Valid settings throughout the project
● Settings for specific modules
● Group assignments for IPsec tunnel (S612 / S613 / SOFTNET Security Client)
User management also handles access permissions to the project data and therefore to the
SCALANCE S devices.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
113
Configuring with the Security Configuration Tool
4.4 Managing projects
Valid settings throughout the project
● Project properties
These include not only address and name information but also initialization values and
authentication settings.
● Global firewall rules
Global firewall rules can be assigned to several modules at the same time. In many
situations, this simplifies the configuration compared with configuring local sets of firewall
rules in the settings for specific modules.
● Service definitions
Using the IP service definitions, you can define succinct and clear firewall rules.
Settings for specific modules
Most functions are configured in the properties dialog of a module. Here, you will find an
overview of the tabs available and their functions:
Function / tab in the properties dialog
Specified in mode ...
Standard
Advanced
X
X
X
X
Network
Here, you can specify addresses of any routers in your network.
Firewall
In standard mode, you enable the firewall with simple standard
rules. You can also enable logging settings here.
In advanced mode, you can define detailed packet filter rules.
You can also define explicit logging settings for each packet
filter rule.
SSL certificates
When necessary, for example with a compressed certificate,
you can import a certificate or use the Security Configuration
Tool to create a new certificate.
X
Time synchronization
Here, you specify the type of synchronization for the date and
time.
X
X
Logging
Here, you can make more precise settings for recording and
storing logged events.
X
Nodes
For a module in bridge mode, you can configure the static
internal subnets and internal IP/MAC nodes here and enable or
disable the learning of internal nodes.
X
For a module in routing mode, you can enter the internal nodes
/ complete subnets to be tunneled.
SCALANCE S and SOFTNET Security Client
114
Operating Instructions, 02/2011, C79000-G8976-C196-07
Configuring with the Security Configuration Tool
4.4 Managing projects
Function / tab in the properties dialog
Specified in mode ...
Standard
Advanced
VPN
If the module is in a group, you can configure dead peer
detection, the type of connection establishment and the WAN
IP address here.
X
Routing mode
In standard mode, you can enable the "Router" function here.
X
X
In advanced mode, you can also enable the NAT/NAPT router
function and specify the address conversion in a list.
DHCP server
You can enable the module as a DHCP server for the internal
network.
X
You will find a detailed description of this function in the section "Firewall, routers and other
module properties".
Group assignments for IPsec tunnel (S612 / S613 / SOFTNET Security Client)
These specify which SCALANCE S modules, SOFTNET Security Clients and MD74x
modules can communicate with each other over an IPsec tunnel.
By assigning SCALANCE S modules, SOFTNET Security Clients and MD74x modules to a
group, these modules can establish a communication tunnel over a VPN (virtual private
network).
Only modules in the same group can communicate securely with each other over tunnels
and SCALANCE S modules, SOFTNET Security Clients and MD74x modules can belong to
several groups at the same time.
4.4.2
Creating and editing projects
How to create a project
Select the following menu command
Project ▶ New…
You will be prompted to assign a user name and a password. The user you create here is of
the type Administrator.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
115
Configuring with the Security Configuration Tool
4.4 Managing projects
As default, the Security Configuration Tool then creates a project and automatically opens
the "Selection of a module or software configuration" dialog in which you can configure your
first module.
Specifying initialization values for a project
With the initialization values, you specify the properties to be adopted when you create new
modules.
To enter the initialization values, select the following menu command:
Project ▶ Properties…, "Default Initialization Values" tab
SCALANCE S and SOFTNET Security Client
116
Operating Instructions, 02/2011, C79000-G8976-C196-07
Configuring with the Security Configuration Tool
4.4 Managing projects
Protecting project data by encryption
The saved project and configuration data are protected by encryption both in the project file
and on the C-PLUG.
See also
Firewall, router and other module properties (Page 129)
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
117
Configuring with the Security Configuration Tool
4.4 Managing projects
4.4.3
Setting up users
User types and permissions
Access to projects and SCALANCE S modules is managed by configurable user settings.
SCALANCE S recognizes two user types with different permissions:
● Administrators
With the "Administrator" user role, you have unrestricted access to all configuration data
and the SCALANCE S modules.
● User
With the "User" user role, you have the following access permissions:
– Read access to configurations; exception: You are not permitted to change your own
password.
– Read access to a SCALANCE S in the "Online" mode for testing and diagnostics.
User authentication
The users of the project must authenticate themselves during access. For each user, you
can specify a password authentication.
NOTICE
Make sure that you keep your passwords safely.
If you forget your user passwords, you can no longer access the relevant project and its
configurations nor the SCALANCE S modules.
You can then only access the SCALANCE S modules by resetting them to factory settings;
however, you will lose the configurations.
Dialog for setting up users
Select the following menu command to set up users:
Project ▶ Properties…, "Authentication Settings" tab.
SCALANCE S and SOFTNET Security Client
118
Operating Instructions, 02/2011, C79000-G8976-C196-07
Configuring with the Security Configuration Tool
4.4 Managing projects
Protection against accidental prevention of access
The system makes sure that always one user of the type "Administrator" is retained in a
project. This prevents access to a project being lost entirely by accidentally deleting yourself.
NOTICE
if the authentication settings are changed, the configuration must be downloaded to the
SCALANCE S modules again before the settings (for example, new users, password
changes) become active on the modules.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
119
Configuring with the Security Configuration Tool
4.4 Managing projects
4.4.4
Consistency checks
Overview
The Security Configuration Tool distinguishes between:
● Local consistency checks
● Project-wide consistency checks
Refer to the "Consistency check" sections of the dialog descriptions in the manual for
information on the rules that are checked during input in the dialogs.
Local consistency checks
A consistency check is local when it can be performed directly within a dialog. Checks can
be made during the following actions:
● After exiting a box
● After exiting a row in a table
● When you close the dialog with "OK"
Project-wide consistency checks
Project-wide consistency checks provide you with information on correctly configured
modules. Since continuous consistency checks throughout the project take too much time,
and because inconsistent project data is normally created in the project engineering stage of
a project, there is an automatic check only when the following actions are performed:
● When you save the project
● When you open the project
● Before you download a configuration
NOTICE
You can only download configuration data when the entire project is consistent.
How to start a project-wide consistency check
You can start a consistency check for an open project with the following menu command:
Options ▶ Check Consistency
The test result is output in the form of a list. The status bar also draws your attention to the
results of the consistency check if the project contains inconsistent data. By positioning the
mouse pointer in the status bar, you can then display the list.
SCALANCE S and SOFTNET Security Client
120
Operating Instructions, 02/2011, C79000-G8976-C196-07
Configuring with the Security Configuration Tool
4.4 Managing projects
4.4.5
You can assign symbolic names for IP / MAC addresses.
Meaning and advantages
In a SCALANCE S project, you can assign symbolic names in a symbol table that stand for
IP addresses and MAC addresses.
This makes it simpler and more reliable when configuring the individual services.
Symbolic names within the project are taken into account by the following functions and can
be used during their configuration:
● Firewall
● NAT/NAPT router
● Syslog
● DHCP
Validity and uniqueness
The validity of the symbolic names specified in the symbol table is restricted to configuration
within a SCALANCE S project.
Each symbolic name must be assigned uniquely to a single IP address or MAC address
within the project.
Automatic entry of symbolic names in the symbol table
You can use symbolic names instead of IP addresses for the listed functions - for example,
when creating firewall rules - without these already being assigned in the symbol table
described here.
Symbolic names assigned in this way are automatically entered in the symbol table and can
be assigned at a later point in time. Within the framework of the consistency check, you will
be informed of missing assignments.
Dialog for assigning symbolic names
To avoid inconsistencies between an "IP address - symbolic name" assignment, and "MAC
address - symbolic name", the symbolic names are managed in a single symbol table.
You can open the symbol table with the following menu command:
Options ▶ Symbolic Names...
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
121
Configuring with the Security Configuration Tool
4.4 Managing projects
Follow the steps below to include entries in the symbol table:
● New entries
1. Click the "Add" button to add a new symbolic name in the next free table row.
2. Enter the symbolic name so that it is DNS-compliant. 1)
3. Add either the IP address or the MAC address to the entry. You can also specify both
addresses.
Legend:
DNS-compliance according to RFC1035 involves the following rules:
- Restriction to 255 characters in total (letters, numbers, dash or period);
- The name must begin with a letter;
- The name may only end with a letter or a number;
- A separate name within the name, in other words a string between two periods may be a
maximum of 63 characters long;
- No special characters such as umlauts, brackets, underscores, slashes or spaces etc.
1)
● Automatic entries
If the symbolic name has already been assigned within the framework of a service, you will
find a corresponding entry in the symbol table.
1. Click on the input box for the IP address or for the MAC address.
2. Add either the IP address or the MAC address to the entry. You can also specify both
addresses.
If you delete an entry in the symbol table, the symbolic names used in the services remain.
In this case, the consistency check recognizes undefined symbolic names. This applies both
to manual as well as to automatically generated entries.
Tip:
SCALANCE S and SOFTNET Security Client
122
Operating Instructions, 02/2011, C79000-G8976-C196-07
Configuring with the Security Configuration Tool
4.4 Managing projects
The use of the project-wide consistency check is especially practical for the symbol table
described here. Based on the list, you can recognize every inconsistency and correct it.
You can start a consistency check for an open project with the following menu command:
Options ▶ Check Consistency
Consistency check - these rules must be adhered to
Remember the following rules when making the entries.
Check / rule
Check made1)
locally
The assignment of a symbolic name to an IP or MAC address must be
unique in both directions.
project-wide
x
The symbolic names must be DNS-compliant. 2)
x
Each row of the symbol table must contain a symbolic name. Either an
IP address or a MAC address or both must be specified.
x
No symbolic names may be assigned to the IP addresses of the
SCALANCE S modules.
x
Symbolic names used in the project for IP or MAC addresses must be
included in the symbol table.
x
Inconsistencies can occur when entries in the symbol table are deleted
and not removed or corrected in the configuration dialogs.
Legend:
1)
Note the explanations in the section "Consistency checks".
DNS-compliance according to RFC1035 involves the following rules:
- Restriction to 255 characters in total (letters, numbers, dash or period);
- The name must begin with a letter;
- The name may only end with a letter or a number;
- A separate name within the name, in other words a string between two periods may be a
maximum of 63 characters long;
- No special characters such as umlauts, brackets, underscores, slashes or spaces etc.
2)
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
123
Configuring with the Security Configuration Tool
4.5 Download the configuration to the SCALANCE S module
4.5
Download the configuration to the SCALANCE S module
The configuration data created offline is downloaded to the SCALANCE S modules available
on the network using suitable menu commands.
2IIOLQH
&RQILJXUDWLRQGDWD
7UDQVIHU
WRPRGXOH
WRDOOPRGXOHV
SCALANCE S and SOFTNET Security Client
124
Operating Instructions, 02/2011, C79000-G8976-C196-07
Configuring with the Security Configuration Tool
4.5 Download the configuration to the SCALANCE S module
Requirements
● Ports
In principle, you can download the configuration data both over device port 1 or device
port 2.
Ideally, you should configure the modules of a group over the common external network
of these modules (device port 1).
If the configuration computer is located in an internal network, you must enable the IP
addresses of the other modules of the group explicitly in the firewall of this SCALANCE S
and configure this module first. (This procedure is only supported when all SCALANCE S
modules have already been assigned an IP address: see "Point note during initial
configuration")
NOTICE
Using multiple network adapters during initial configuration
If you operate more than one network adapter in your PC/PG, first select the network
adapter over which you can reach the SCALANCE S module prior to initial configuration.
Use the menu command "Options ▶ Network Adapter…"
● Operating state
Configurations can be downloaded while the SCALANCE S devices are operating. After
downloading, the devices are automatically restarted. Following the download, there may
be a short interruption in communication between the internal and external network.
NOTICE
Point note during initial configuration
As long as a module has not yet set IP parameters; in other words, prior to the first
configuration, there must be no router or SCALANCE S between the module and the
configuration computer.
NOTICE
Changing the PC port
If you swap a PC from the internal to the external interface of the SCALANCE S, access
from this PC to the SCALANCE S is blocked for approximately 10 minutes (security
function to defend against "ARP cache spoofing").
NOTICE
The project must be consistent
You can only download configuration data when the entire project is consistent. If there
is an inconsistency, a detailed check list is displayed.
Secure transfer
The data is transferred with a secure protocol.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
125
Configuring with the Security Configuration Tool
4.6 Configuration data for MD 740 / MD 741
Follow the steps below
To download, use the following alternative menu commands:
● Transfer ▶ To Module…
This transfers the configuration to all selected modules.
● Transfer ▶ To All Modules...
This transfers the configuration to all modules configured in the project.
Synchronizing configuration discrepancies
It is not possible to read back configuration data from the SCALANCE S module to the
project.
4.6
Configuration data for MD 740 / MD 741
Transferring to a module
You can generate your VPN information for the assignment of parameters to an MD 740-1 /
MD 741-1 using the Security Configuration Tool. Once you have generated files, you can
use them to configure the MD 740-1 / MD 741-1.
The following file types are generated:
● Export file with the configuration data
– File type: ".txt" file in ASCII format
– Contains the exported configuration information for the MD 740 / MD 741 including
information on the additionally generated certificates.
● Module certificate
– File type: ".p12" file
– The file contains the module certificate and the key material.
– Access is password protected.
● Group certificate
– File type: ".cer" file
The configuration files for the MD 740-1 / MD 741-1 can also be used to configure other VPN
client types that are not included in the module selection. Minimum requirement for the use
of these VPN clients is support of IPsec VPNs in tunnel mode.
SCALANCE S and SOFTNET Security Client
126
Operating Instructions, 02/2011, C79000-G8976-C196-07
Configuring with the Security Configuration Tool
4.6 Configuration data for MD 740 / MD 741
Figure 4-1
Export file for MD 741-1
Note
No configuration files are transferred to the module. Only an ASCII file is generated with
which you can configure the MD 740-1 / MD 741-1. This is, however, only possible when the
module is located in at least one VPN group in which there is also a SCALANCE S module
or a SOFTNET Security Client V3.0.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
127
Configuring with the Security Configuration Tool
4.6 Configuration data for MD 740 / MD 741
Follow the steps below
1. Select the "MD 740-1" / "MD 741-1" module in the content area and then select Transfer
▶ To Module...
2. In the save dialog that then opens, enter the path and file name of the configuration file
and click "Save".
3. You will then be asked whether you want to create your own password for the two
created certificate files.
If you select "No", the name of the configuration is assigned as the password (for
example DHCP_without_Routing_02), not the project password.
If you select "Yes" (recommended), you enter your password in the next dialog.
Result: The files (and certificates) are stored in the folder you specify.
Note
After the files have been stored, a message reminds of the upwards compatibility of the
project. Projects stored, for example, with the Security Configuration Tool V2.1 cannot be
loaded with the Security Configuration Tool V2.
Note
For more information on the configuration of the MD 740-1 / MD 741-1, refer to the
system manual MD 741-1 / MD 740-1.
SCALANCE S and SOFTNET Security Client
128
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5
This chapter familiarizes you with the procedures for creating modules and the possible
settings for the individual modules in a project. The main emphasis is on the settings for the
firewall function and NAT/NAPT function of SCALANCE S.
Note
S612/S613
The firewall settings you can make for the individual modules can also influence
communication handled over the IPSec tunnel connections in the internal network (VPN).
Further information
How to configure IPSec tunnels is described in detail in the next chapter of this manual.
You will find detailed information on the dialogs and parameter settings in the online help.
You can call this with the F1 key or using the "Help" button in the relevant dialog.
F1
NOTICE
Performance features and device types
Note which functions the device type you are using supports.
See also
Online functions - test, diagnostics, and logging (Page 219)
Hardware characteristics and overview of the functions (Page 17)
5.1
Overview / basics
5.1.1
SCALANCE S as firewall
Meaning
The firewall functionality of SCALANCE S has the task of protecting the internal network
from influences or disturbances from the external network. This means that; depending on
the configuration, only certain previously specified communication relations between network
nodes from the internal network and network nodes from the external network are allowed.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
129
Firewall, router and other module properties
5.1 Overview / basics
All network nodes located in the internal network segment of a SCALANCE S are protected
by its firewall.
The firewall functionality can be configured for the following protocol levels:
● IP firewall with stateful packet inspection;
● Firewall also for Ethernet "non-IP" frames according to IEEE 802.3; (Layer 2 frames)
● Bandwidth limitation
Firewall rules
Firewall rules rules for data traffic in the following directions:
● from the internal to the external network and vice versa;
● from the internal network into an IPsec tunnel and vice versa (S612/S613).
Project engineering
A distinction must be made between the two operating views:
● In standard mode, simple, predefined rules are used.
● In advanced mode, you can define specific rules.
In advanced mode, a further distinction must be made between local firewall rules and
global firewall rules for modules:
– Local firewall rules are always assigned to a module. They are configured in the
properties dialog of the modules.
– Global firewall rules can be assigned to several modules at the same time. This option
simplifies configuration in many situations.
With the aid of service definitions, you can also define firewall rules clearly in a compact
form. You can reference these service definitions both directly in the local firewall rules and
in the global firewall rule sets.
5.1.2
SCALANCE S as router
Meaning
By operating the SCALANCE S as a router, you connect the internal network with the
external network. The internal network connected by SCALANCE S therefore becomes a
separate subnet.
You have the following options:
● Routing - can be set in both standard and advanced mode
● NAT/NAPT routing - can be set in advanced mode
SCALANCE S and SOFTNET Security Client
130
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.2 Creating modules and setting network parameters
Routing - can be set in both standard and advanced mode
Packets intended for an existing IP address in the subnets (internal or external) are
forwarded. The firewall rules for the direction of transmission also apply.
For this mode, you must also configure an IP address for the internal subnet.
Note: In contrast to the bridge mode of the SCALANCE S , VLAN tags are lost in routing
mode.
NAT/NAPT routing - can be set in advanced mode
In this mode, the IP addresses are also converted. The IP addresses of the devices in the
internal subnet are mapped to external IP addresses and are therefore not "visible" in the
external network.
For this mode, you configure the address conversion in a list. You assign an external IP
address to an internal IP address.
Depending on the method you want to use, the following applies to the assignment:
● NAT (Network Address Translation)
The following applies here: Address = IP address
● NAPT (Network Address Port Translation)
The following applies here: Address = IP address + port number
5.1.3
SCALANCE S as DHCP server
Meaning
You can operate SCALANCE S on the internal network as a DHCP server. This allows IP
addresses to be assigned automatically to the devices connected to the internal network.
The IP addresses are assigned either dynamically from an address band you have specified
or you can select a specific IP address for a particular device.
Project engineering
Configuration as a DHCP server is possible in the "advanced mode" view
5.2
Creating modules and setting network parameters
Creating modules
When you create a new project, the Security Configuration Tool opens the "Selection of a
module or software configuration" dialog in which you can configure your first module.
You can create further modules with the following menu commands:
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
131
Firewall, router and other module properties
5.2 Creating modules and setting network parameters
Insert ▶ Module
As an alternative: Using the context menu with the "All Modules" object selected.
In the next step in this dialog, select your product type, the module and the firmware release.
Network settings of a module
The network settings of a module include the following:
● Address parameters of the module
● Addresses of external routers
Address parameters
You can configure some address parameters in the "Selection of a module or software
configuration" dialog when you create a module.
You can also enter the address parameters in the content area by selecting the "All
Modules" object in the navigation area:
The following properties of the modules are displayed in columns:
SCALANCE S and SOFTNET Security Client
132
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.2 Creating modules and setting network parameters
Table 5- 1
IP parameters - "All Modules" selected
Property/column
Meaning
Number
Consecutive module number
Assigned automatically
Name
Technologically relevant module name.
Freely selectable
IP address ext.
IP address over which the device can be
reached in the external network, for
example for downloading the configuration.
Assigned as suitable in the network
Subnet mask ext.
Subnet mask
Assigned as suitable in the network
IP address int.
IP address over which the device can be
reached in the internal network when it is
configured as a router.
Assigned as suitable in the network
Subnet mask
Assigned as suitable in the network
Subnet mask int.
Comment/selection
The input box can be edited only when
router mode was enabled in the module
properties.
The input box can be edited only when
router mode was enabled in the module
properties.
Default Router
IP address of the router in the external
network
Assigned as suitable in the network
MAC address
Hardware address of the module
The MAC address is printed on the module
housing.
Type
Device type

Remember the additional MAC address
in routing mode (you will find more
information below this table).

SCALANCE S602

SCALANCE S612 V1

SCALANCE S612 V2

SCALANCE S613 V1

SCALANCE S613 V2

SOFTNET Security Client 2005

SOFTNET Security Client 2008

SOFTNET Security Client V3.0
 MD 74x
There is no "Properties dialog" for these
module types.
For MD 74x, you can set the IP addresses
and the subnet masks in the contents area.
Comment
Useful technological information on the
module and the subnet protected by the
module.
Freely selectable
Additional MAC address in routing mode
In routing mode, SCALANCE S uses an additional MAC address on the interface to the
internal subnet. This second MAC address is derived from the MAC address printed on the
device:
● MAC address (internal) = printed MAC address + 1
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
133
Firewall, router and other module properties
5.2 Creating modules and setting network parameters
When operating in flat networks (bridge mode), the printed MAC address is valid both on the
internal and on the external interface.
The currently valid MAC addresses are displayed in the "Status" tab in the online dialog of
the Security Configuration Tool.
"Network / External Routers" dialog
Depending on the existing network structure, it is possible that you must specify further
routers in addition to the standard router.
Select the module you want to edit and then select the following menu command to set up
external routers:
Edit ▶ Properties..., "Network" tab.
Figure 5-1
"Network" dialog
See also
Overview of the functions in the online dialog (Page 220)
SCALANCE S and SOFTNET Security Client
134
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.3 Firewall - module properties in standard mode
5.3
Firewall - module properties in standard mode
5.3.1
Configure the firewall
Protection from disturbances from the external network
The firewall functionality of SCALANCE S has the task of protecting the internal network
from influences or disturbances from the external network. This means that only certain
previously specified communication relations between network nodes from the internal
network and network nodes from the external network are allowed.
With packet filter rules, you define whether the data traffic passing through is permitted or
restricted based on properties of the data packets.
With SCALANCE S612 / S613, the firewall can be used for encrypted (IPsec tunnel) and
unencrypted data traffic.
In standard mode, it is only possible to make settings for unencrypted data traffic.
Note
Routing mode
If you have enabled the routing mode for the SCALANCE S module, MAC rules are
irrelevant.
Dialog
Select the module you want to edit and then select the following menu command to set up
the firewall:
Edit ▶ Properties..., "Firewall" tab
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
135
Firewall, router and other module properties
5.3 Firewall - module properties in standard mode
"Configuration" option group - predefined rules
NOTICE
Please remember that the risks increase the more options you enable.
The standard mode includes the following predefined rules for the firewall that you can select
in the "Configuration" input area:
SCALANCE S and SOFTNET Security Client
136
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.3 Firewall - module properties in standard mode
Table 5- 2
Predefined rules of the simple firewall
Rule/option
Function
Default
setting
Tunneled communication only
(S612/S613)
This is the default setting.
On
Tunnel communication only
With this setting, only encrypted IPsec data transfer is
permitted; only nodes in the internal networks of SCALANCE
S can communicate with each other.
This option can only be selected when the module is in a
group.
If this option is deselected, tunnel communication and the
type of communication selected in the other check boxes are
permitted.
Allow outgoing IP traffic
Allow outgoing IP traffic
Internal nodes can initiate a communication connection to
nodes in the external network. Only response packets from
the external network are passed on to the internal network.
Off
No communication connection can be initiated from the
external network to nodes in the internal network.
Allow outgoing S7 protocol
Allow outgoing S7 protocol
Internal nodes can initiate an S7 communication connection
Off
(S7 protocol - TCP/port 102) to nodes in the external network.
Only response packets from the external network are passed
on to the internal network.
No communication connection can be initiated from the
external network to nodes in the internal network.
Allow access to external DHCP
server
Allow access to external DHCP
server
Allow access to external NTP server
Allow access to external NTP server
Internal nodes can initiate a communication connection to a
DHCP server in the external network. Only the response
packets of the DHCP server are passed into the internal
network.
Off
No communication connection can be initiated from the
external network to nodes in the internal network.
Internal nodes can initiate a communication connection to an
NTP (Network Time Protocol) server in the external network.
Only the response packets of the NTP server are passed into
the internal network.
Off
No communication connection can be initiated from the
external network to nodes in the internal network.
Allow access to external SiClock
server
This option allows SiClock time-of-day frames from the
external network to the internal network.
Off
Internal nodes can initiate a communication connection to a
DNS server in the external network. Only the response
packets of the DNS server are passed into the internal
network.
Off
Allow access to external SiClock
server
Allow access to external DNS server
Allow access to external DNS server
(The option cannot
be used in routing
mode.)
No communication connection can be initiated from the
external network to nodes in the internal network.
Allow access from external or internal
nodes via DCP server
Allow access from external or internal
nodes via DCP server
The DCP protocol is used by the PST tool to set the IP
parameters (node initialization) of SIMATIC NET network
components.
This rule allows nodes in the external network to access
nodes in the internal network using the DCP protocol.
Off
(The option cannot
be used in routing
mode.)
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
137
Firewall, router and other module properties
5.3 Firewall - module properties in standard mode
"Log" group - setting recording options
You can log the incoming and outgoing data traffic.
5.3.2
Firewall defaults
Response with defaults
The firewall defaults have been selected so that no IP data traffic is possible.
Communication between the nodes in the internal networks of SCALANCE S modules is
allowed only if you have configured an IPSec tunnel.
The following diagrams show the default settings in detail for the IP packet filter and the
MAC packet filter.
SCALANCE S and SOFTNET Security Client
138
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.3 Firewall - module properties in standard mode
Default setting for the IP packet filter
LQWHUQDOQRGHV
6&$/$1&(6
H[WHUQDOQRGHV
1
H[WHUQDO6&$/$1&(6
3
2
4
5
,3VHFWXQQHO
)LUHZDOO
①
②
③
④
⑤
⑥
All packet types from internal to external are blocked.
All packets from internal to SCALANCE S are allowed (only useful for HTTPS).
All packets from external to internal and to SCALANCE S are blocked (including ICMP echo request).
Frames of the following types are permitted from external sources (external nodes and external SCALANCE S) to
SCALANCE S:

HTTPS (SSL)

ESP protocol (encryption)

IKE (protocol for establishing the IPSec tunnel)

NAT Traversal (protocol for establishing the IPSec tunnel)
IP communication over an IPSec tunnel is allowed.
Frames of the type Syslog and NTP in the direction of external are allowed by SCALANCE S.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
139
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
Default setting for the MAC packet filter
LQWHUQDOQRGHV
6&$/$1&(6
H[WHUQDOQRGHV
H[WHUQDO6&$/$1&(6
1
2
3
5
6
7
,3VHFWXQQHO
l
)LUHZDOO
①
②
③
④
⑤
All packet types from internal to external are blocked.
All packets from internal to SCALANCE S are allowed.
ARP packets from internal to external are allowed.
All packets from external to internal and to SCALANCE S are blocked.
Packets from external to internal of the following types are allowed:

⑥
⑦
5.4
ARP with bandwidth limitation
Packets from external to SCALANCE S of the following types are allowed:

ARP with bandwidth limitation

DCP
MAC protocols sent through an IPSec tunnel are permitted.
Firewall - module properties in advanced mode
Advanced mode provides extended options allowing individual settings for the firewall rules
and security functionality.
Switch over to advanced mode
To use all the functions and menu commands described in section, switch over the mode:
SCALANCE S and SOFTNET Security Client
140
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
View ▶ Advanced Mode...
Note
If you switch to the advanced mode for the current project, you can no longer switch back if
you make any modifications.
Symbolic names are supported
You can also enter the IP addresses or MAC addresses as symbolic names in the functions
described below.
5.4.1
Configure the firewall
In contrast to the configuration of fixed packet filter rules in standard mode, you can
configure individual packet filter rules in the Security Configuration Tool in advanced mode.
You can set the packet filter rules in selectable tabs for the following protocols:
● IP protocol (layer 3)
● MAC protocol (layer 2)
If you do not enter any rules in the dialogs described below, the default settings apply as
described in the section "Firewall defaults".
Note
Routing mode
If you have enabled the routing mode for the SCALANCE S module, MAC rules are
irrelevant (dialogs are disabled).
Global and local definition possible
● Global firewall rules
A global firewall rule can be assigned to several modules at the same time. This option
simplifies configuration in many situations.
● Local firewall rules
A local firewall rule is assigned to a module. This is configured in the properties dialog of
a module.
Several local firewall rules and several global firewall rules can be assigned to a module.
In principle, the definition of global and local rules is identical. The following description
therefore applies to both methods.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
141
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
5.4.2
Global firewall rules
Application
Global firewall rules are configured outside the module at the project level. Just like the
modules, they are visible in the navigation area of the Security Configuration Tool.
By selecting a configured module and dragging it to the global firewall rule, you assign the
firewall rule to the module. This global firewall rule then appears automatically in the modulespecific list of firewall rules.
You can define firewall rules for the following:
● IP rule sets
● MAC rule sets
The following schematic illustrates the relationship between globally defined rule sets and
locally used rule sets.
SCALANCE S and SOFTNET Security Client
142
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
3URMHFW
JOREDOUXOHVHWQ
0RGXOH
JOREDOUXOHVHW
JOREDOUXOHVHW
ORFDOUXOHVHW
ORFDOUXOHO
5XOHJ
JOREDOUXOHVHW
5XOHJ
ORFDOUXOHO
5XOHJ
JOREDOUXOHVHW
When are global firewall rules useful?
Global firewall rules are useful when you can define identical filter criteria for communication
with the external network for subnets protected by several SCALANCE S modules.
You should, however, remember that this simplified project engineering can lead to
unwanted results if the module assignment is incorrect. You should therefore always check
the module-specific local firewall rules in the result. Inadvertent assignment of a rule cannot
be detected in the automatic consistency check.
Global firewall rules are used locally - conventions
The following conventions apply when creating a global set of firewall rules and when
assigning them to a module.
● View in the Security Configuration Tool
Global firewall rules can only be created in the advanced mode setting.
● Priority
As default, locally defined rules have higher priority than global rules; newly assigned
global rules are therefore initially inserted at the bottom of the local rule list.
The priority can be changed by changing the position in the rule list.
● Granularity
Global firewall rules can only be assigned to a module as an entire set.
● Entering, changing or deleting rules
Global firewall rules cannot be edited in the local rule list of the firewall rules in the
module properties. They can only be displayed there and positioned according to the
required priority.
It is not possible to delete a single rule from an assigned set of rules. You can take the
entire set of rules out of the local rule list but this does not change the definition in the
global rule list.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
143
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
Creating and assigning global packet filter rules
If you want to define and assign a global firewall rule set, follow the steps below:
1. Select one of the following folders from the navigation area:
– Global FW Rulesets / FW IP Rulesets.
– Global FW Rulesets / FW MAC Rulesets.
2. Select the following menu command to set up a global rule set:
Insert ▶ Firewall rule set
3. Enter the firewall rules in the list one after the other; note the parameter description and
the evaluation in the following section or in the online help.
4. Assign the global firewall rule to the modules in which you want it to be used. You do this
by selecting a module in the navigation area and dragging it to the relevant global rule set
in the navigation area.
Result:
The global rule set is used by the selected module as a local rule set.
5.4.3
Setting local IP packet filter rules
Using the IP packet filter rules, you can filter IP packets such as UDP, TCP, ICMP packets.
Within an IP packet filter rule, you can also include service definitions and further restrict the
filter criteria. If you do not specify services, the IP packet filter rule applies to all services.
SCALANCE S and SOFTNET Security Client
144
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
Opening the dialog for local IP packet filter rules
Select the module you want to edit and then select the following menu command to set up
the firewall:
Edit ▶ Properties...
Entering IP packet filter rules
Enter the firewall rules in the list one after the other; note the following parameter description
and the examples in the following sections or in the online help.
Using global rule sets
Global rule sets you have assigned to the module are automatically entered in the local rule
set. These are initially at the end of the rule list and are therefore processed with lowest
priority. You can change the priority by changing the position of a local or global rule set in
the rule list.
The online help explains the meaning of the individual buttons.
F1
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
145
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
5.4.4
IP packet filter rules
IP packet rules are processed based on the following evaluations:
● Parameters entered in the rule;
● Order and associated priority of the rule within the rule set.
Parameter
The configuration of an IP rule includes the following parameters:
Name
Meaning/comment
Available options / ranges of
values
Action
Allow/disallow (enable/block)

Allow
Allow packets according to
definition.

Drop
Block packets according to
definition.
Direction
Specifies the direction of data traffic

Internal → external
("Tunnel / Any" only for S612/S613)

Internal ← external

Tunnel → internal

Tunnel ← internal

Internal → any

Internal ← any
Source IP
Source IP address
Destination IP
Destination IP address
Refer to the section "IP
addresses in IP packet filter
rules" in this chapter.
As an alternative, you can enter
symbolic names.
Service
Name of the IP/ICMP service or service group used.
Using the service definitions, you can define succinct and clear
packet filter rules.
Here, you select one of the services you defined in the IP
services dialog:
 IP services
or
The drop-down list box displays
the configured services and
service groups you can select.
No entry means: No service is
checked, the rule applies to all
services.
 ICMP services
If you have not yet defined any services or want to define a
further service, click the "IP/MAC Service Definition..." button.
Bandwidth (Mbps)
Option for setting a bandwidth limitation.
Range of values:
A packet passes through the firewall if the pass rule matches and 0.001 to 100 Mbps
the permitted bandwidth for this rule has not yet been exceeded.
Logging
Enable or disable logging for this rule
Comment
Space for your own explanation of the rule
SCALANCE S and SOFTNET Security Client
146
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
IP addresses in IP packet filter rules
The IP address consists of four decimal numbers with the range from 0 to 255, each number
separated by a period; example: 141.80.0.16
In the packet filter rule, you have the following options for specifying IP addresses:
● Nothing specified
There is no check, the rule applies to all IP addresses.
● An IP address
The rule applies specifically to the specified address.
● Address range
The rule applies to all the IP addresses covered by the address range.
An address range is defined by specifying the number of valid bit places in the IP address
in the format:
[IP address]/[number of bits to be included]
– [IP address]/24 therefore means that only the most significant 24 bits of the IP address
are included in the filter rule: These are the first three octets or numbers numbers in
the IP address.
– [IP address ]/25 means that only the first three octets and the highest bit of the fourth
octet of the IP address are included in the filter rule.
Table 5- 3
Examples of address ranges in IP addresses
Source IP or destination
IP
Address range
Number of
addresses*)
from
to
192.168.0.0/16
192.168.0.0
192.168.255.255
65.536
192.168.10.0/24
192.168.10.0
192.168.10.255
256
192.168.10.0/25
192.168.10.0
192.168.10.127
128
192.168.10.0/26
192.168.10.0
192.168.10.63
64
192.168.10.0/27
192.168.10.0
192.168.10.31
32
192.168.10.0/28
192.168.10.0
192.168.10.15
16
192.168.10.0/29
192.168.10.0
192.168.10.7
8
192.168.10.0/30
192.168.10.0
192.168.10.3
4
*) Note: Note that the address values 0 and 255 in the IP address have special functions (0 stands for
a network address, 255 for a broadcast address). The number of actually available addresses is
therefore reduced.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
147
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
Order for rule evaluation by SCALANCE S
The packet filter rules are evaluated by a SCALANCE S as follows:
● The list is evaluated from top to bottom; if rules are contradictory, the rule higher in the list
is therefore applied.
● In rules for communication between the internal and external network, the final rule is: All
packets except for the packets explicitly allowed in the list are blocked.
● In rules for communication between the internal network and IPsec tunnel, the final rule
is: All packets except for the packets explicitly blocked in the list are allowed.
Example
The packet filter rules shown as examples in the dialog above have the following effects:
SCALANCE S and SOFTNET Security Client
148
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
LQWHUQDOQRGHV
H[WHUQDOQRGHV
1
H[WHUQDO6&$/$1&(6
2
3DFNHWILOWHUUXOH
3
3DFNHWILOWHUUXOH
4
3DFNHWILOWHUUXOH
5
6
,3VHFWXQQHO
)LUHZDOO
①
②
③
④
⑤
⑥
5.4.5
All packet types from internal to external are blocked as default, except for those explicitly allowed.
All packet types from external to internal are blocked as default, except for those explicitly allowed.
IP packet filter rule 1 allows packets with the service definition "Service X1" from internal to external.
IP packet filter rule 2 allows packets from external to internal when the following conditions are met:

IP address of the sender: 196.65.254.2

IP address of the recipient: 197.54.199.4

Service definition: "Service X2"
IP packet filter rule 3 blocks packets with the service definition "Service X2" in the VPN (IPsec tunnel).
IPsec tunnel communication is allowed as default except for the explicitly blocked packet types.
Defining IP services
Using the IP service definitions, you can define succinct and clear firewall rules for specific
services. You select a name and assign the service parameters to it.
These services defined in this way can also be grouped together under a group name.
When you configure the global or local packet filter rule, you simply use this name.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
149
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
Dialog / tab
Open the dialog as follows:
● Using the menu command Options ▶ IP/MAC Service Definition...
or
● From the "Firewall/IP Rules" tab with the "IP Service Definitions..." button.
Parameters for IP services
You define the IP services using the following parameters:
Table 5- 4
IP services: Parameter
Name
Meaning/comment
Available options / ranges of values
Name
User-definable name for the service that is used as
identification in the rule definition or in the group.
Can be selected by user
SCALANCE S and SOFTNET Security Client
150
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
Name
Meaning/comment
Available options / ranges of values
Protocol
Name of the protocol type
TCP
UDP
Any (TCP and UDP)
Source port
The filtering is based on the specified port number; this defines
the service access at the packet sender.
Examples:
*: Port is not checked
20 or 21: FTP service
Destination port
The filtering is based on the specified port number; this defines
the service access at the packet recipient.
Examples:
*: Port is not checked
80: Web HTTP service
102: S7 protocol - TCP/port
5.4.6
defining ICMP services
Using the ICMP service definitions, you can define succinct and clear firewall rules for
specific services. You select a name and assign the service parameters to it.
These services defined in this way can also be grouped together under a group name.
When you configure the packet filter rules, you simply use this name.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
151
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
Dialog / tab
Open the dialog as follows:
● With the menu command
Options ▶ IP Service Definition...
or
● From the "Firewall" tab with the "IP Service Definitions.." button .
Parameters for ICMP services
You define the ICMP services using the following parameters:
Table 5- 5
ICMP services: Parameter
Name
Meaning/comment
Available options / ranges of values
Name
User-definable name for the service that is used as
identification in the rule definition or in the group.
Can be selected by user
Type
Type of ICMP message

Code
Codes of the ICMP type
Values depend on the selected type.
Refer to the dialog illustration
SCALANCE S and SOFTNET Security Client
152
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
5.4.7
Setting MAC packet filter rules
With MAC packet filter rules, you can filter MAC packets.
Note
Routing mode
If you have enabled the routing mode for the SCALANCE S module, MAC rules are
irrelevant (dialogs are disabled).
Dialog / tab
Select the module you want to edit and then select the following menu command to set up
the firewall:
Edit ▶ Properties..., "Firewall", "MAC Rules" tab
Figure 5-2
"MAC Rules" dialog, based on an example of SCALANCE S602
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
153
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
Entering packet filter rules
Enter the firewall rules in the list one after the other; note the following parameter description
and the examples in the following sections or in the online help.
Using global rule sets
Global rule sets you have assigned to the module are automatically entered in the local rule
set. These are initially at the end of the rule list and are therefore processed with lowest
priority. You can change the priority by changing the position of a local or global rule set in
the rule list.
The online help explains the meaning of the individual buttons.
5.4.8
F1
MAC packet filter rules
MAC packet filter rules are processed based on the following evaluations:
● Parameters entered in the rule;
● Priority of the rule within the rule set.
MAC packet filter rules
The configuration of a MAC rule includes the following parameters:
Table 5- 6
MAC rules: Parameter
Name
Meaning/comment
Available options / ranges of
values
Action
Allow/disallow (enable/block)

Allow
Allow packets according to
definition.

Drop
Block packets according to
definition.
Direction
Specifies the direction and type of data traffic

Internal → external
("Tunnel / Any" only for S612/S613)

Internal ← external

Tunnel → internal

Tunnel ← internal

Internal → any

Internal ← any
Source MAC
Source MAC address
Destination MAC
Destination MAC address
As an alternative to specifying
a MAC address, you can enter
a symbolic name.
SCALANCE S and SOFTNET Security Client
154
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
Name
Meaning/comment
Available options / ranges of
values
Service
Name of the MAC service or service group used.
The drop-down list box displays
the configured services and
service groups you can select.
No entry means: No service is
checked, the rule applies to all
services.
Range of values:
A packet passes through the firewall if the pass rule matches and 0.001 to 100 Mbps
the permitted bandwidth for this rule has not yet been exceeded.
Bandwidth (Mbps)
Option for setting a bandwidth limitation.
Logging
Enable or disable logging for this rule
Comment
Space for your own explanation of the rule
How SCALANCE S evaluates the rules
The packet filter rules are evaluated by a SCALANCE S as follows:
● The list is evaluated from top to bottom; if rules are contradictory, the rule higher in the list
is therefore applied.
● The following applies to all packets not explicitly listed for the rules for communication in
the direction internal -> external and internal <- external: All packets except for the
packets explicitly allowed in the list are blocked.
● The following applies to all packets not explicitly listed for the rules for communication in
the direction internal -> IPsec tunnel and internal <- IPsec tunnel: All packets except for
the packets explicitly blocked in the list are allowed.
NOTICE
In bridge mode: IP rules apply to IP packets, MAC rules apply to layer 2 packets
If a module is in bridge mode, both IP and MAC rules can be defined for the firewall.
Rules for editing in the firewall are based on the Ethertype.
IP packets are forwarded or blocked depending on the IP rules and layer 2 packets are
forwarded or blocked depending on the MAC rules.
It is not possible to filter an IP packet using a MAC firewall rule, for example based on a
MAC address.
Examples
You can apply the example of an IP packet filter in Section 5.4.3 analogously to the MAC
packet filter rules.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
155
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
5.4.9
defining MAC services
Using the MAC service definitions, you can define succinct and clear firewall rules for
specific services. You select a name and assign the service parameters to it.
These services defined in this way can also be grouped together under a group name.
When you configure the global or local packet filter rule, you simply use this name.
Dialog
Open the dialog as follows:
● With the following menu command:
Options ▶ MAC Service Definition...
or
● From the "Firewall/MAC Rules" tab with the "MAC Service Definitions..." button .
SCALANCE S and SOFTNET Security Client
156
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
Parameters for MAC services
A MAC service definition includes a category of protocol-specific MAC parameters:
Table 5- 7
MAC services - parameters
Name
Meaning/comment
Available options / ranges of values
Name
User-definable name for the service that is used as
identification in the rule definition or in the group.
Can be selected by user
Protocol
Name of the protocol type:


ISO
ISO

SNAP
ISO identifies packets with the following properties:

0x (code entry)
Lengthfield <= 05DC (hex),
DSAP= userdefined
SSAP= userdefined
CTRL= userdefined

SNAP
SNAP identifies packets with the following properties:
Lengthfield <= 05DC (hex),
DSAP=AA (hex),
SSAP=AA (hex),
CTRL=03 (hex),
OUI=userdefined,
OUI-Type=userdefined
DSAP
Destination Service Access Point: LLC recipient address
SSAP
Source Service Access Point: LLC sender address
CTRL
LLC control field
OUI
Organizationally Unique Identifier (the first three bytes of
the MAC address = vendor identification)
OUI-Type
Protocol type/identification
*) The protocol entries 0800 (hex) and 0806 (hex) are not accepted since these values apply to IP or ICMP packets. These
packets are filtered using IP rules.
Special settings for SIMATIC NET services
To filter special SIMATIC NET services, please use the following SNAP settings:
● DCP (Primary Setup Tool):
PROFINET
● SiClock :
OUI= 08 00 06 (hex) , OUI-Type= 01 00 (hex)
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
157
Firewall, router and other module properties
5.4 Firewall - module properties in advanced mode
5.4.10
Setting up service groups
Forming service groups
You can put several services together by creating service groups. In this way, you can set up
more complex services that can be used in the packet filter rules simply by selecting the
name.
Dialogs / tabs
Open the dialog as follows:
● With the following menu command:
Options ▶ IP/MAC Service Definition...
or
● From the "Firewall/IP Rules" tab or "Firewall/MAC Rules" with the "IP/MAC Service
Definitions.." button. .
SCALANCE S and SOFTNET Security Client
158
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.5 Time synchronization
5.5
Time synchronization
Meaning
The date and time are kept on the SCALANCE S module to check the validity (time) of a
certificate and for the time stamps of log entries.
Note
Time-of-day synchronization relates solely to the SCALANCE S module and cannot be used
to synchronize devices in the internal network of the SCALANCE S.
Alternative methods of timekeeping
The following alternatives can be configured:
● Local PC clock
The module time is set automatically to the PC time when a configuration is downloaded.
● NTP server
Automatic setting and periodic synchronization of the time using an NTP server (Network
Time Protocol).
Opening the dialog for configuring time synchronization
Select the module you want to edit and then the following menu command:
Edit ▶ Properties..., "Time Synchronization" tab
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
159
Firewall, router and other module properties
5.5 Time synchronization
Synchronization by an NTP time server
If you want the time to be synchronized by an NTP time server, specify the two following
parameters in the configuration:
● IP address of the NTP server
● The update interval in seconds
NOTICE
If the NTP server cannot be reached by the SCALANCE S over an IPsec tunnel
connection, you must allow the packets from the NTP server explicitly in the firewall
(UDP, Port 123).
External time frames
External time frames are not secure and can be corrupted/counterfeited in the external
network. This can, for example, lead to falsification of the local time in the internal network
and on SCALANCE S modules.
For this reason, NTP servers should be located in internal networks.
SCALANCE S and SOFTNET Security Client
160
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.6 Creating SSL certificates
5.6
Creating SSL certificates
Meaning
SSL certificates are sued for authentication of the communication between a device and
SCALANCE S in online communication.
Opening the dialog for managing SSL certificates
Select the module you want to edit and then the following menu command:
Edit ▶ Properties ..., "SSL Certificate" tab
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
161
Firewall, router and other module properties
5.7 Routing mode
5.7
Routing mode
5.7.1
Routing
Meaning
If you have enabled routing mode, packets intended for an existing IP address in the subnets
(internal or external) are forwarded. The firewall rules for the direction of transmission also
apply.
For this mode, you configure an internal IP address and an internal subnet mask for
addressing the router in the internal subnet in the dialog shown below.
Operating view
Configuration of this function is identical in standard and advanced mode.
SCALANCE S and SOFTNET Security Client
162
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.7 Routing mode
Enabling router operation
1. Select the module you want to edit and then the following menu command:
Edit ▶ Properties ..., "Routing -Mode" tab
2. Select the "active" routing option.
3. This activates input boxes in which you enter an internal IP address and an internal
subnet mask for addressing the router on the internal subnet.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
163
Firewall, router and other module properties
5.7 Routing mode
5.7.2
NAT/NAPT routing
Meaning
By configuring address conversion in the "Routing Mode" dialog, you operate the
SCALANCE S as NAT/NAPT router. With this technique, the addresses of the nodes in the
internal subnet are not known in the external network; the internal nodes are visible in the
external network only under the external IP addresses defined in the address conversion list
(NAT table and NAPT table) and are therefore protected from direct access.
● NAT: Network Address Translation
● NAPT: Network Address Port Translation
Operating view
This function is available in advanced mode.
To use all the functions and menu commands described in section, switch over the mode:
View ▶ Advanced Mode
The mode described here includes operation as default router. You should therefore refer to
the information in the section "Routing".
Relationship between NAT/NAPT router and firewall
Whatever the direction, packets first run through the address conversion in the NAT/NAPT
router and then pass through the firewall. The settings for the NAT/NAPT router and the
firewall rules must be matched so that packets with a converted address can pass through
the firewall.
The firewall and NAT/NAPT router supports the "Stateful Packet Inspection" mechanism. As
a result, reply packets can pass through the NAT/NAPT router and firewall without it being
necessary for their addresses to be included in the firewall rule and the NAT/NAPT address
conversion.
SCALANCE S and SOFTNET Security Client
164
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.7 Routing mode
SCALANCE S
H[WHUQDOQHWZRUN
1$71$37URXWHU
,3IUDPH
H[WHUQDO!LQWHUQDO
LQWHUQDOQHWZRUN
,3IUDPH
LQWHUQDO!H[WHUQDO
$GGUHVVFRQYHUVLRQ
)LUHZDOO
FRPSDUHGILUHZDOOUXOH
ZLWKLPSOHPHQWHG,3
DGGUHVV
Note the examples in the sections below.
Restrictions
The list described here contains a static, specified address conversion for the nodes on the
internal network (subnet).
Editing the dialog for enabling NAT/NAPT router mode
1. Select the module you want to edit and then the following menu command:
Edit ▶ Properties ..., "Routing -Mode" tab
2. When required, enable address conversion according to NAT(Network Adress
Translation) or NAPT (Network Address Port Translation).
3. Configure the address conversion as shown below.
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
165
Firewall, router and other module properties
5.7 Routing mode
"NAT" (Network Address Translation) group box
The following applies here: Address = IP address
Table 5- 8
NAT options
Check box
Meaning
NAT active
The input boxes for NAT are enabled.
NAT address conversions only take effect with the option described below
and with entries in the address conversion list.
You must also configure the firewall accordingly (see examples).
Allow Internal >
External for all users
By selecting this option, the internal IP address is converted to the external
module IP address for all packets sent from internal to external and an
additional port number is assigned by the module.
This behavior is indicated by an extra row being displayed at the bottom of
the NAT table. The symbol "*" in the "internal IP address" column indicates
that all packets sent from internal to external will be converted.
Note: Due to this effect on the address conversion list, this option is
assigned to the NAT group box despite the additional assignment of a port
number.
Table 5- 9
NAT table
Parameter
Meaning/comment
External IP address

For packet direction "Internal → External":
newly assigned IP address

For packet direction "External → Internal":
detected IP address

For packet direction "External → Internal":
newly assigned IP address

For packet direction "Internal → External":
detected IP address
Internal IP address
Direction
Available options / ranges
of values
Refer to the section "IP
addresses in IP packet
filter rules" in this chapter.
As an alternative, you can
enter symbolic names.
Assign the packet direction here.

Internal → external
Effect based on example "Internal → External":
Packets coming from the internal subnet are
checked for the specified internal IP address
and forwarded to the external network with the
specified external IP address.

External → Internal

Bidirectional
SCALANCE S and SOFTNET Security Client
166
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.7 Routing mode
"NAPT" (Network Address Port Translation) group box
The following applies here: Address = IP address + port number
Table 5- 10
NAPT options
Check box
Meaning
NAPT active
The input boxes for NAPT are enabled.
NAPT address conversions take effect only after entries have been made in
the address conversion list.
You must also configure the firewall accordingly (see examples).
External IP address
Table 5- 11
Displays the IP address of the SCALANCE S module used by the nodes on
the external network as the router address.
NAPT table
Parameter
Meaning/comment
Available options / ranges
of values
external port
A node in the external network can reply to a
node in the internal subnet or send a packet to
it by using this port number.
Port or port range
Example of entering a port
range:

Internal IP address
IP address of the node addressed on the
internal subnet
78:99
Refer to the section "IP
addresses in IP packet
filter rules" in this chapter.
As an alternative, you can
enter symbolic names.
internal port
Port number of a service on the node
addressed in the internal subnet.
Port (no port range)
Consistency check - these rules must be adhered to
When assigning addresses, remember the following rules to obtain consistent entries:
Check / rule
Check made
locally
The network ID of the internal subnet must be different from the network ID of the
external subnet.
project-wide
x
The internal IP addresses must not be identical to the IP addresses of the module.
x
Use the part specified by the subnet mask for the network ID.
x

For the external IP address, use the part of the address of the external
SCALANCE S IP address specified by the external subnet mask.

For the internal IP address, use the part of the address of the internal
SCALANCE S IP address specified by the internal subnet mask.
An IP address used in the NAT/NAPT address conversion list must not be a
multicast or broadcast address.
x
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
167
Firewall, router and other module properties
5.7 Routing mode
Check / rule
Check made
locally
project-wide
The default router must be in one of the two subnets of the SCALANCE S; in other
words, it must match either the external or internal IP address.
x
The external ports assigned for the NAPT conversion are in the range > 0 and
<= 65535.
x
Port123 (NTP), 443 (HTTPS), 514 (Syslog) and 500+4500 (IPsec; only for S612
and S613) are also excluded.
The external IP address of the SCALANCE S may only be used in the NAT table
for the direction "Internal → External".
x
The internal IP address of the SCALANCE S may only be used in the NAT table
and not in the NAPT table.
x
Checking for duplicates in the NAT table
x
An external IP address used in the direction "External → Internal" or "Bidirectional"
may only occur once in the NAT table.
Checking for duplicates in the NAPT table
x

An external port number may only be entered once. Since the IP address of
the SCALANCE S is always used as the external IP address, multiple use
would lead to ambiguities.

The port numbers or port ranges of the external ports must not overlap.
As soon as the routing mode is enabled, the second addresses (IP/subnet) must
be assigned to the SCALANCE S.
x
Internal NAPT ports can be between > 0 and <= 65535.
x
Once you have completed your entries, run a consistency check.
Select the following menu command:
Options ▶ Check Consistency
5.7.3
NAT/NAPT routing - Examples of configuration part 1
Overview
The section contains the following examples of configuring the NAT/NAPT router:
● Example 1: NAT address conversion "External → Internal"
● Example 2: NAT address conversion "Internal → External"
● Example 3: NAT address conversion "Bidirectional"
● Example 4: NAPT address conversion
SCALANCE S and SOFTNET Security Client
168
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.7 Routing mode
Project engineering
In the following routing configurations, you will find address assignments according to the
NAT and NAP address conversion:
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
169
Firewall, router and other module properties
5.7 Routing mode
Description
● Example 1: NAT address conversion "External → Internal"
A node in the external network can send a packet to the node with the internal IP address
192.168.12.3 in the internal subnet by using the external IP address 192.168.10.123 as
destination address.
● Example 2: NAT address conversion "Internal → External"
Packets of an internal node with the internal IP address 192.168.12.3 are forwarded to
the external network with the external IP address 192.168.10.124 as the source address.
In the example, the firewall is set so that packets with the source IP address
192.168.10.124 are allowed from internal to external and that nodes with the IP address
192.168.10.11 can be reached.
● Example 3: NAT address conversion "Bidirectional"
In this example, the address conversion is made both for internal and external incoming
packets as follows:
– A node in the external network can send a packet to the node with the internal IP
address 192.168.12.4 in the internal subnet by using the external IP address
192.168.10.101 as destination address.
– Packets of an internal node with the internal IP address 192.168.12.4 are forwarded
on the external network with the external IP address 192.168.10.101 as the source
address. The firewall is set so that frames with the source IP address 192.168.10.101
are allowed from internal to external.
● Example 4: NAPT address conversion
Addresses are converted according to NAPT so that additional port numbers are also
assigned. The destination IP address and destination port number of all TCP and UDP
packets entering the external network are checked.
– A node in the external network can send a packet to the node with IP address
192.168.12.4 and port number 345 in the internal subnet by using the external module
IP address 192.160.10.1 and the external or number 8000 as the destination address.
5.7.4
NAT/NAPT routing - Examples of configuration part 2
Overview
The section contains the following examples of configuring the NAT/NAPT router:
● Example 1: Allow external communication for all internal nodes
● Example 2: Also allow frames from external to internal.
SCALANCE S and SOFTNET Security Client
170
Operating Instructions, 02/2011, C79000-G8976-C196-07
Firewall, router and other module properties
5.7 Routing mode
Project engineering
In the following routing configurations, you will find address assignments according to the
NAT address conversion:
SCALANCE S and SOFTNET Security Client
Operating Instructions, 02/2011, C79000-G8976-C196-07
171
Firewall, router and other module properties
5.8 DHCP server
Description
Example 1 - Allow external communication for all internal nodes
The "Allow Internal -> External for all users" check box is selected in the "NAT" group box.
This makes communication from internal to external possible. The address conversion works
so that all internal addresses are converted to the external IP address of SCALANCE S and
a dynamically assigned port number.
Specifying a direction in the NAT address conversion list is now no longer relevant. All the
other information relates to the communication direction external to internal.
The firewall is set so that the frames can pass from internal to external.
Example 2 - Also allow frames from external to internal.
To also allow communication from external to internal over and above the communication in
example 1, entries must be made in the NAT or NAPT address conversion list. The entry in
the example, means that frames to the node with IP address 192.168.10.102 will be
converted to the internal IP address 192.168.12.3.
The firewall must be set accordingly. Since the NAT/NAPT conversion is always made first
and the converted address is then tested in a second step in the firewall, the internal IP
address is entered as the destination IP address in the firewall in our example.
5.8
DHCP server
Overview
You can operate SCALANCE S on the internal network as a DHCP server. This allows IP
addresses to be assigned automatically to the devices connected to the internal network.
The IP addresses are assigned either dynamically from an address band you have specified
or you can select a specific IP address for a particular device.
