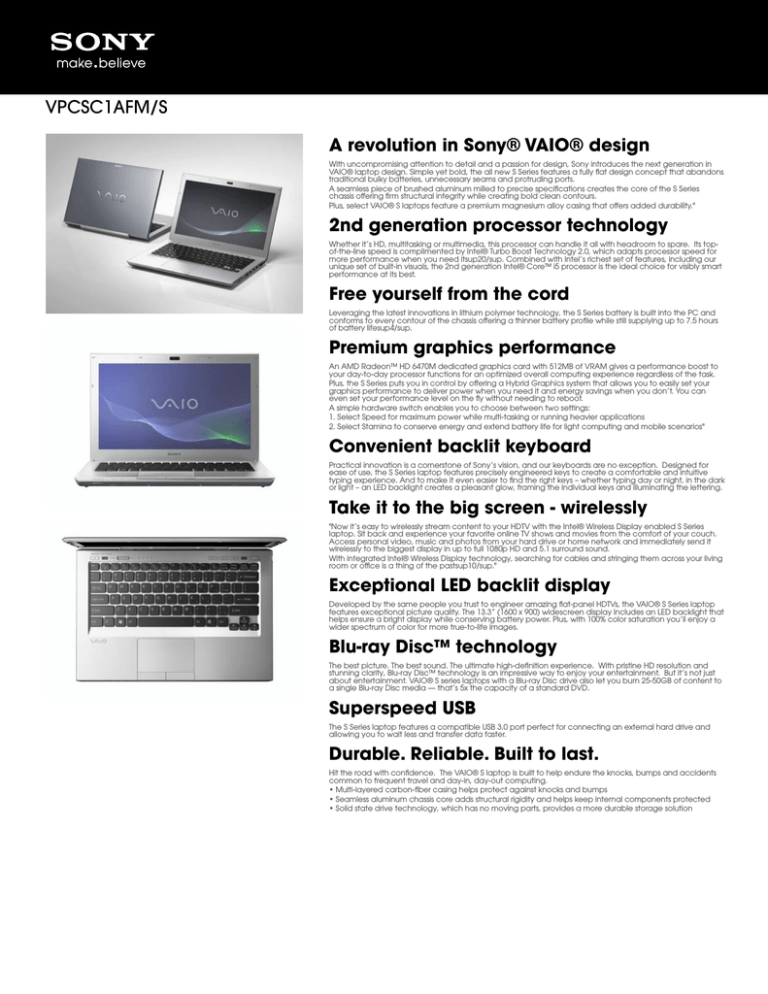

VPCSC1AFM/S
VPCSC1AFM/S
A revolution in Sony® VAIO® design
With uncompromising attention to detail and a passion for design, Sony introduces the next generation in
VAIO® laptop design. Simple yet bold, the all new S Series features a fully flat design concept that abandons
traditional bulky batteries, unnecessary seams and protruding ports.
A seamless piece of brushed aluminum milled to precise specifications creates the core of the S Series
chassis offering firm structural integrity while creating bold clean contours.
Plus, select VAIO® S laptops feature a premium magnesium alloy casing that offers added durability."
2nd generation processor technology
Whether it’s HD, multitasking or multimedia, this processor can handle it all with headroom to spare. Its topof-the-line speed is complimented by Intel® Turbo Boost Technology 2.0, which adapts processor speed for
more performance when you need itsup20/sup. Combined with Intel’s richest set of features, including our
unique set of built-in visuals, the 2nd generation Intel® Core™ i5 processor is the ideal choice for visibly smart
performance at its best.
Free yourself from the cord
Leveraging the latest innovations in lithium polymer technology, the S Series battery is built into the PC and
conforms to every contour of the chassis offering a thinner battery profile while still supplying up to 7.5 hours
of battery lifesup4/sup.
Premium graphics performance
An AMD Radeon™ HD 6470M dedicated graphics card with 512MB of VRAM gives a performance boost to
your day-to-day processor functions for an optimized overall computing experience regardless of the task.
Plus, the S Series puts you in control by offering a Hybrid Graphics system that allows you to easily set your
graphics performance to deliver power when you need it and energy savings when you don’t. You can
even set your performance level on the fly without needing to reboot.
A simple hardware switch enables you to choose between two settings:
1. Select Speed for maximum power while multi-tasking or running heavier applications
2. Select Stamina to conserve energy and extend battery life for light computing and mobile scenarios"
Convenient backlit keyboard
Practical innovation is a cornerstone of Sony’s vision, and our keyboards are no exception. Designed for
ease of use, the S Series laptop features precisely engineered keys to create a comfortable and intuitive
typing experience. And to make it even easier to find the right keys – whether typing day or night, in the dark
or light – an LED backlight creates a pleasant glow, framing the individual keys and illuminating the lettering.
Take it to the big screen - wirelessly
"Now it’s easy to wirelessly stream content to your HDTV with the Intel® Wireless Display enabled S Series
laptop. Sit back and experience your favorite online TV shows and movies from the comfort of your couch.
Access personal video, music and photos from your hard drive or home network and immediately send it
wirelessly to the biggest display in up to full 1080p HD and 5.1 surround sound.
With integrated Intel® Wireless Display technology, searching for cables and stringing them across your living
room or office is a thing of the pastsup10/sup."
Exceptional LED backlit display
Developed by the same people you trust to engineer amazing flat-panel HDTVs, the VAIO® S Series laptop
features exceptional picture quality. The 13.3” (1600 x 900) widescreen display includes an LED backlight that
helps ensure a bright display while conserving battery power. Plus, with 100% color saturation you’ll enjoy a
wider spectrum of color for more true-to-life images.
Blu-ray Disc™ technology
The best picture. The best sound. The ultimate high-definition experience. With pristine HD resolution and
stunning clarity, Blu-ray Disc™ technology is an impressive way to enjoy your entertainment. But it’s not just
about entertainment. VAIO® S series laptops with a Blu-ray Disc drive also let you burn 25-50GB of content to
a single Blu-ray Disc media — that’s 5x the capacity of a standard DVD.
Superspeed USB
The S Series laptop features a compatible USB 3.0 port perfect for connecting an external hard drive and
allowing you to wait less and transfer data faster.
Durable. Reliable. Built to last.
Hit the road with confidence. The VAIO® S laptop is built to help endure the knocks, bumps and accidents
common to frequent travel and day-in, day-out computing.
• Multi-layered carbon-fiber casing helps protect against knocks and bumps
• Seamless aluminum chassis core adds structural rigidity and helps keep internal components protected
• Solid state drive technology, which has no moving parts, provides a more durable storage solution
Specifications
Processor
USB 2.0
2
Environmental Information
Processor
Type
Intel® Core™ i52410M
VGA
Output(s)
1
ENERGY
STAR®
5.0
Processor
Technology
Dual Core
Headphone
Output
1
ROHS®
Compliant
Processor
Speed
2.3GHz1 with Turbo
Boost Technology11
up to 2.90GHz1
Memory
Stick® Media
Slot
1
Processor
Cache
3MB
Secure
Digital (SD)
Slot
1
Screen Size
13.3"
1
Resolution
1366 x 768
Port
Replicator
Connector(s)
Backlight
Technology
LED
HDMI®
Output(s)
1
Display
Memory
Type/Speed
Max.
Memory
4GB (4GB x 1,
onboard)
Bluetooth®
Technology
DDR3-1333MHz
Ethernet
Protocol
8GB
Bluetooth
Integrated Stereo
A2DP (2.1 + EDR)
WiFi Adapter
Intel® Centrino®
Advanced-N +
WiMAX 6250
Graphics
Graphics
Processor
AMD Radeon™
HD 6470M
WiDi Ready
Yes - Intel®
Wireless Display
technology10
Graphics
Video RAM
512MB dedicated
WiMAX
Ready
Yes (where
available)
Storage
Software
Storage Type
Serial ATA Hybrid
Storage
Capacity
500GB + 4GB2 SLC
Hybrid
Operating
System
Genuine
Windows® 7 Home
Premium 64-bit
Supplied
Software
Microsoft®
Office Starter6
with reducedfunctionality
versions of Word
and Excel, VAIO
Care™, Media
Gallery™, PMB VAIO Edition5
Optical Drive
Optical Drive
Type
Blu-ray Disc™ ROM
Drive
Hardware
Camera
Built-in MOTION
EYE® camera and
microphone
Keyboard
QWERTY, 82 keys
with 2.0mm stroke
and 19.05mm
pitch
Backlit
Keyboard
Yes
Audio
Sound
System
Intel® High
Definition Audio
Inputs and Outputs
DC-In
1
USB 3.0
1
Norton Internet
Security™ 2011 30Day Trial Offer7
Anti-Virus
Software
Dimensions
(Approx.)
Yes8
International
Service
Yes
Limited
Warranty
Term
2 Year Limited
Warranty. See
actual warranty
for details.
1. GHz denotes microprocessor internal clock speed and may vary.
2. 1 GB = 1 billion bytes. Actual formatted capacity will be less.
3. Viewable area measured diagonally.
4. Estimates only based upon Sony engineering testing. Actual performance will vary
based on notebook settings, environmental conditions, and usage. Battery capacity
decreases over time and use.
5. For certain third party software applications, Sony provides first level phone support.
Additional telephone support may be available from the applicable 3rd party vendor.
Availability and schedule for any such support is determined by the aplicable software
vendor. Long distance charges may apply.
6.This PC is preloaded with reduced-functionality versions of Word and Excel that include
advertising. Purchase an Office 2010 Product Key to activate full-featured Office
software on this PC.
7. Norton Internet Security™ 2011 30-day subscription is pre-installed on your Sony VAIO
PC. You need to activate the software for the product to work. After your 30-days are
finished, buy Norton Internet Security to continue to be protected from viruses, hackers
and identify theft.
3.89 lbs. (with
Standard
Capacity Battery)
Power
Battery Type
Standard
Capacity LithiumIon Battery
DVD
Playback
up to 4.5 hours4
Default
Brightness
up to 7.5 hours4
Maximum
Brightness
up to 6.5 hours4
Start-up Times
Average
Resume Time
from Suspend
2 seconds
Average
Boot Time
60 seconds
First Boot
Time
5 minutes
General
Action
Buttons
VAIO, ASSIST, WiDi,
Eject, Speed/
Stamina, Wireless
On/Off
Pointing
Device
Electrostatic
Touchpad (MultiFinger)
Accessories
Supplied
Accessories
Service and Warranty
Information
Onsite/
In-Home
Service
13.04" (W) x 0.95"
(H) x 8.84" (D)
Weights and Measurements
Weight
(Approx.)
Wireless/Networking
Memory
Installed
Memory
Dimensions (Approx.)
Standard
Capacity LithiumIon Battery
(4540mAh), AC
Adapter, Power
Cord
Model Information
UPC
027242823488
8.Availability may be limited. See limited warranty for details.
9. HDMI cable sold separately.
10. Excluding end user interaction.
11. Requires TV adapter and compatible television. Does not support Blu-ray® disc or
other protected content playback.
12. Requires a system with Intel® Turbo Boost Technology capability. Intel Turbo Boost
Technology 2.0 is available only on 2nd generation Intel® Core™ i5 and i7 processors.
Performance varies depending on hardware, software and system configuration.
13. Available on select Intel® Core™ processors. Requires an Intel® HT Technology
enabled system. Performance will vary depending on the specific hardware and
software used.
14. Mobile broadband service sold separately.
15. Compatible camera and supporting media sold separately.
16. Allocation of system memory to graphics varies depending on operating condition,
version of device driver and total system memory size.
Certain Microsoft products included with this computer may use technological measures
for copy protection. IN SUCH EVENT, YOU WILL NOT BE ABLE TO USE THE PRODUCT IF
YOU DO NOT FULLY COMPLY WITH THE PRODUCT ACTIVATION PROCEDURES. Product
activation procedures and Microsoft's privacy policy will be detailed during initial
launch of the product, or upon cvertain reinstallations of the software product(s) or
reconfigurations of the computer and may be completed by internet or telephone (toll
charges may apply).
© 2010 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part
without written permission is prohibited. Sony, VAIO, Media Gallery, and VAIO Care are
trademarks of Sony. PlayStation and PS3 are trademarks of Sony Computer Entertainment Inc. Intel and Core are trademarks of Intel Corporation. Microsoft, Windows, and
Excel are trademarks of Microsoft Corporation. Blu-ray Disc is a trademark. Bluetooth
is a trademark of Bluetooth SIG, Inc. HDMI is a trademark of HDMI Licencing LLC. All
other trademarks are trademarks of their respective owners. Features and specifications
are subject to change without notice. All non-metric weights and measurements are
approximate and may vary.
UPC: 027242823488 / Updated: October 12, 2011
