DeviceNet Scanner/Master

DeviceNet Scanner/Master

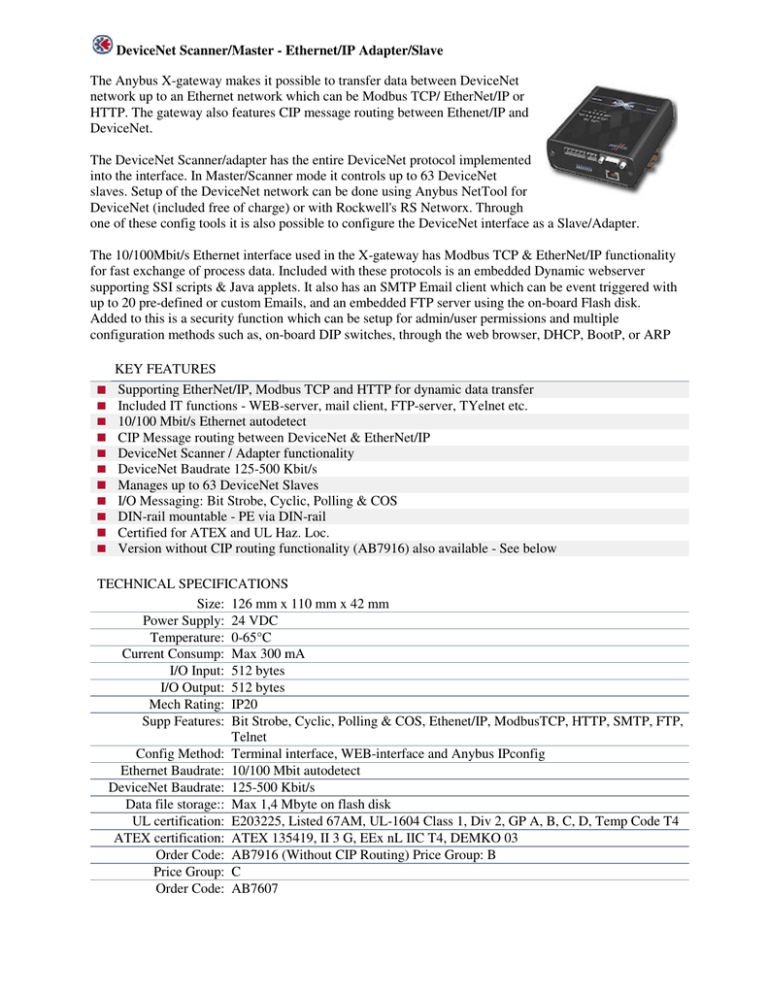

DeviceNet Scanner/Master - Ethernet/IP Adapter/Slave
The Anybus X-gateway
gateway makes it possible to transfer data between DeviceNet
network up to an Ethernet network which can be Modbus TCP/ EtherNet/IP or
HTTP. The gateway also features CIP message routing bet
between Ethenet/IP and
DeviceNet.
The DeviceNet Scanner/adapter has the entire DeviceNet protocol implemented
into the interface. In Master/Scanner mode it controls up to 63 DeviceNet
slaves. Setup of the DeviceNet network can be done using Anybus NetTool fo
for
DeviceNet (included free of charge) or with Rockwell's RS Networx. Through
one of these config tools it is also possible to configure the DeviceNet interface as a Slave/Adapter.
The 10/100Mbit/s Ethernet interface used in the X
X-gateway has Modbus TCP & EtherNet/IP functionality
for fast exchange of process data. Included with these protocols is an embedded Dynamic webserver
supporting SSI scripts & Java applets. It also has an SMTP Email client which can be event triggered with
up to 20 pre-defined or custom
ustom Emails, and an embedded FTP server using the on
on-board
board Flash disk.
Added to this is a security function which can be setup for admin/user permissions and multiple
configuration methods such as, on-board
board DIP switches, through the web browser, DHCP, BootP,
Boo or ARP
KEY FEATURES
Supporting EtherNet/IP, Modbus TCP and HTTP for dynamic data transfer
Included IT functions - WEB-server,
server, mail client, FTP
FTP-server, TYelnet etc.
10/100 Mbit/s Ethernet autodetect
CIP Message routing between DeviceNet & EtherNet/IP
DeviceNet Scanner / Adapter functionality
DeviceNet Baudrate 125-500
500 Kbit/s
Manages up to 63 DeviceNet Slaves
I/O Messaging: Bit Strobe, Cyclic, Polling & COS
DIN-rail mountable - PE via DIN
DIN-rail
Certified for ATEX and UL Haz. Loc.
Version without CIP routing functiona
functionality (AB7916) also available - See below
TECHNICAL SPECIFICATIONS
Size: 126 mm x 110 mm x 42 mm
Power Supply: 24 VDC
Temperature: 0-65°C
Current Consump: Max 300 mA
I/O Input: 512 bytes
I/O Output: 512 bytes
Mech Rating: IP20
Supp Features: Bit Strobe, Cyclic, Polling & COS, Ethenet/IP, ModbusTCP, HTTP, SMTP, FTP,
Telnet
Config Method: Terminal interface, WEB
WEB-interface and Anybus IPconfig
Ethernet Baudrate: 10/100 Mbit autodetect
DeviceNet Baudrate: 125-500
500 Kbit/s
Data file storage:: Max 1,4 Mbyte on flash disk
UL certification: E203225, Listed 67AM, UL
UL-1604
1604 Class 1, Div 2, GP A, B, C, D, Temp Code T4
ATEX certification: ATEX 135419, II 3 G, EEx nL IIC T4, DEMKO 03
Order Code: AB7916 (Without CIP Routing) Price Group: B
Price Group: C
Order Code: AB7607
