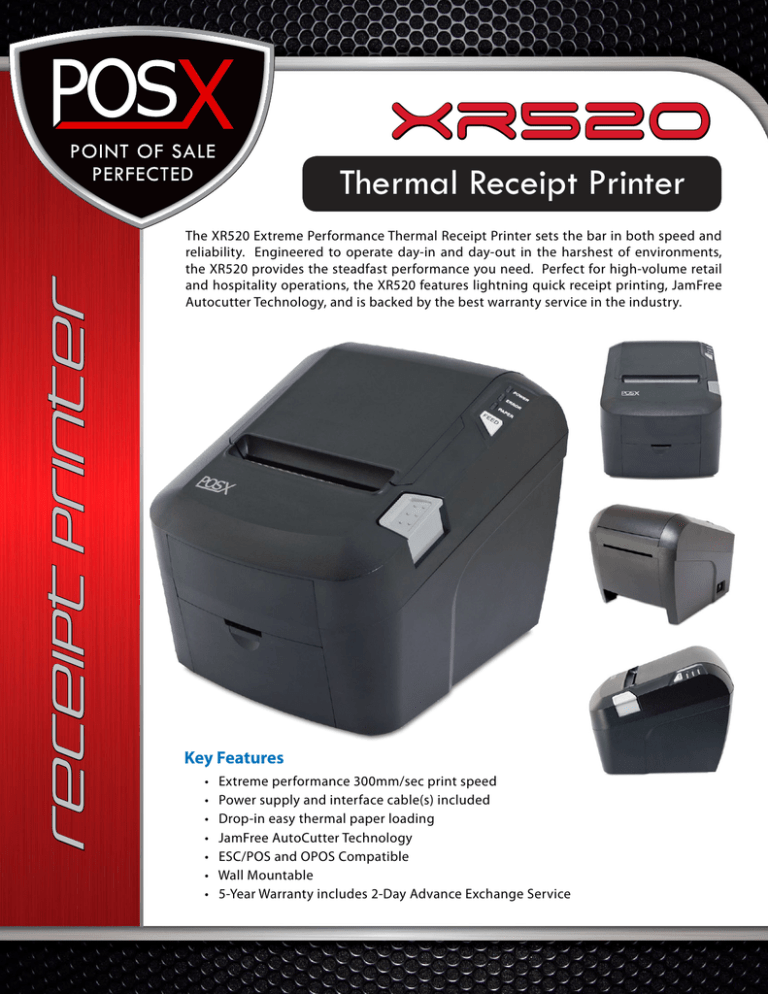

RECEIPT PRint er
xr52o
RECEIPT PRinter
Thermal Receipt Printer
The XR520 Extreme Performance Thermal Receipt Printer sets the bar in both speed and
reliability. Engineered to operate day-in and day-out in the harshest of environments,
the XR520 provides the steadfast performance you need. Perfect for high-volume retail
and hospitality operations, the XR520 features lightning quick receipt printing, JamFree
Autocutter Technology, and is backed by the best warranty service in the industry.
Key Features
•
•
•
•
•
•
•
Extreme performance 300mm/sec print speed
Power supply and interface cable(s) included
Drop-in easy thermal paper loading
JamFree AutoCutter Technology
ESC/POS and OPOS Compatible
Wall Mountable
5-Year Warranty includes 2-Day Advance Exchange Service
XR520 Thermal Receipt Printer Specifications
PART NUMBER
XR520-U
XR520-UP
XR520-US
XR520-UE
SPECIFICATIONS
Interfaces
Interface Details
USB
USB/Parallel
USB/Serial
USB/Ethernet
USB 2.0
USB 2.0/IEEE-1.284
USB 2.0/RS-232C
USB 2.0/(10/100)
Emulation
ESC/POS Command Compatible
Print Method
Direct Thermal
Printing Speed
11.81”/sec (300mm/sec)
Dot Density
180 DPI x 180 DPI
Printing Direction
Unidirectional with Friction Feed
Sensors
Cover Open, Paper Low, Paper End
CASH DRAWER PORTS
2 Circuits (24V, 1A max)
RELIABILITY
TPH Life 99.42 miles
MCBF 60,000,000 Lines
PAPER
Type
Thermal Paper
Width
1.9” (50mm) - 3.14” (80mm)
Thickness
0.002” (0.06mm) - 0.0035” (0.09mm)
Roll Diameter
Max 3.27“ (83mm)
Roll Core Inner Diameter
0.492” (12.5mm) ± 0.019 “(0.5mm)
Alpha Numeric Character 95 Extended Graphics 128 x 18 page (1 space per page)
International Characters 14
CHARACTER SET
CHARACTER/LINE
Font A (12 x24) 42 columns
BARCODES SUPPORTED
Font B (9 x17) 56 columns
EAN-8, EAN-13, CODE 39, ITF, UPC-A, CODABAR, CODE 93, CODE 128, PDF 417(2D)
AUTO CUTTER
Type
JamFree auto-retracting Guillotine
Life
1,500,000 Cuts
Cutting Method
Full/Partial Cut
PHYSICAL
6.1”(W) x 8”(D) x 6.1”(H)
Dimension
Weight
3.7 lbs
Color
Black
ELECTRICAL
100 - 240 Vac 50/50 Hz (input)
24Vdc/2.5A (output)
ENVIROMENTAL
410 F to 1040 F operating -40 F to 1400 F storage
Temperature
Humidity
35%-80% non condensing (operation)
WARRANTY
10%-90% non condensing (storage)
5 Years includes 2-Day Advance Exchange Warranty Service
CERTIFICATIONS
FCC, MIC, UL, CE, CCC, RoHs
OPERATING SYSTEM
WIN 95/WIN 98/WIN 2000/WIN XP/VISTA/Win 7/OPOS drivers available
ACCESSORIES
6.1”
8”
6.1”
RPCARD-P2
Parallel Interface Card for XR520
RPCARD-S2
Serial Interface Card for XR520
RPCARD-E2
Ethernet Interface Card for XR520
ZWE-CRW
2-Year Warranty Extension
ZOE-CRW3
3-Year Overnight Exchange
ZOE-CRW5
5-Year Overnight Exchange
POS-X, Inc. 1975 Midway Lane Suite O Bellingham, WA 98226
www.pos-x.com [email protected] tel 1.800.790.8657 fax 360.738.3495
