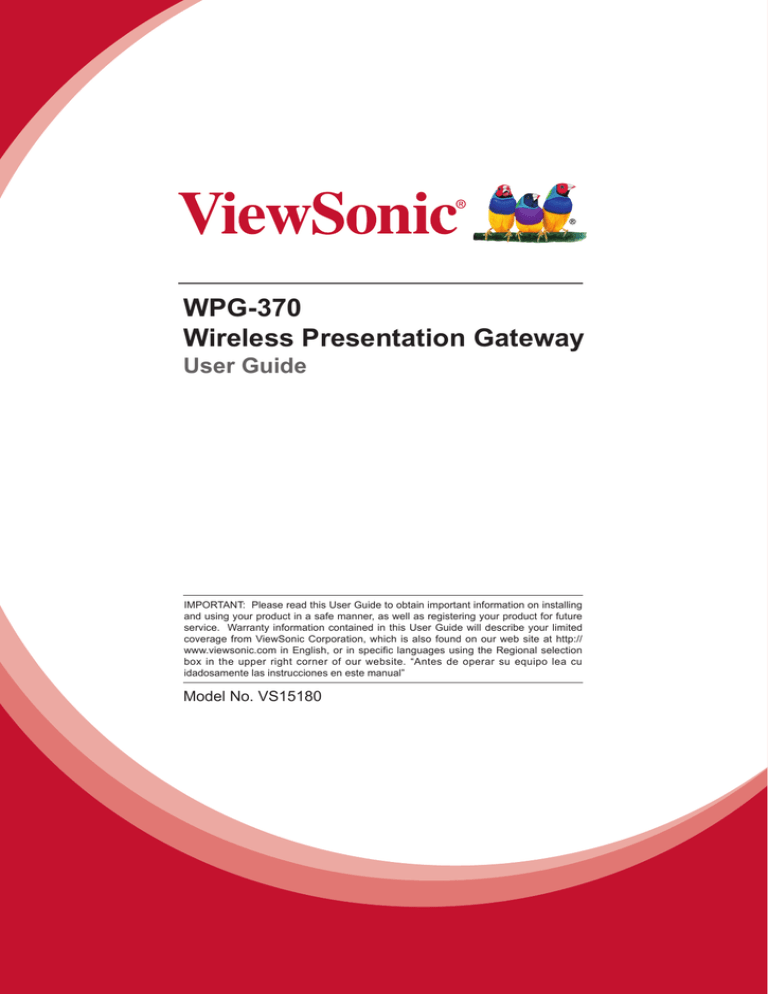

WPG-370

Wireless Presentation Gateway

User Guide

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http:// www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

Model No. VS15180

Compliance Information

Please read before proceeding

• Use only the batteries and power adapter provided by the manufacturer. The use of unauthorized accessories may void your warranty.

• Do not store your device in temperatures higher than 50°C (122°F).

• The operating temperature for this device is from 0°C (32°F) to 35°C (95°F).

FCC Notice

The following statement applies to all products that have received FCC approval. Applicable products bear the FCC logo, and/or an FCC ID in the format FCC ID: GSS-VS15180 on the product label.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation. This mobiledevice has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequencyenergy and, if not installed and used in accordance with the instructions, may cause harmful interferenceto radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void theuser’s authority to operate the equipment.The antenna(s) used for this transmitter must not be colocated or operating in conjunction with any otherantenna or transmitter.

The device was tested and complies to measurement standards and procedures specified in

FCC OET Bulletin 65, Supplement C

FCC SAR Information

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

i

CE Conformity for European Countries

The device complies with the EMC Directive 2004/108/EC and Low Voltage

Directive 2006/95/EC, R&TTE Directive 1999/5/EC.

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and

Electronic Equipment Directive 2002/96/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury, or more than 0.002% Cadmium, or more than 0.004% Lead.

European Union Regulatory Conformance

The equipment complies with the RF Exposure Requirement 1999/519/EC, Council

Recommendation of 12 July 1999 on the limitation of exposure of the general public to electromagnetic fields (0-300 GHz). This equipment meets the following conformance standards: EN301489-1, EN301489-17, EN55022/24, EN60950-1, EN300328, EN301893.

We, hereby, declare that this Wi-Fi radio is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

ii

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical

Adaptation Committee (TAC) as shown below:

Substance

Lead (Pb)

Mercury (Hg)

Cadmium (Cd)

Hexavalent Chromium (Cr6+)

Polybrominated biphenyls (PBB)

Polybrominated diphenyl ethers (PBDE)

Proposed Maximum

Concentration

0.1%

0.1%

0.01%

0.1%

0.1%

0.1%

Actual Concentration

< 0.1%

< 0.1%

< 0.01%

< 0.1%

< 0.1%

< 0.1%

Certain components of products as stated above are exempted under the Annex III of the

RoHS2 Directives as noted below:

Examples of exempted components are:

1. Mercury in cold cathode fluorescent lamps and external electrode fluorescent lamps

(CCFL and EEFL) for special purposes not exceeding (per lamp):

(1) Short length (≦500 mm): maximum 3.5 mg per lamp.

(2) Medium length (>500 mm and ≦1,500 mm): maximum 5 mg per lamp.

(3) Long length (>1,500 mm): maximum 13 mg per lamp.

2. Lead in glass of cathode ray tubes.

3. Lead in glass of fluorescent tubes not exceeding 0.2% by weight.

4. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.

5. Copper alloy containing up to 4% lead by weight.

6. Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).

7. Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

iii

Copyright Information

Copyright © ViewSonic

®

Corporation, 2014. All rights reserved.

ViewSonic

®

, the three birds logo, OnView

®

, ViewMatch

, and ViewMeter

®

are registered trademarks of ViewSonic

®

Corporation.

Disclaimer: ViewSonic

®

Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic without notice.

®

Corporation reserves the right to change product specifications without notice. Information in this document may change

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic

®

Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic.com.

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

For Your Records

WPG-370

Wireless Presentation Gateway

VS15180

WPG-370_UG_ENG Rev. 1C 12-13-13

Product disposal at end of product life

ViewSonic respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more.

USA & Canada: http://www.viewsonic.com/company/green/recycle-program/

Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/

Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

iv

Table of Contents

Chapter 1: Product Introduction .................................................................................................... 3

1-1 Package Contents .......................................................................................................... 3

1-2 Hardware Recommendation ........................................................................................... 3

(1) WiFi Presentation Mode (HDMI/VGA) ....................................................................... 3

(2) WiDi Presentation mode (HDMI) ............................................................................... 4

(3) Phone Screen Mirroring ............................................................................................ 5

(4) DLNA Media Streaming (HDMI/VGA) ....................................................................... 5

1-3 Highlights ....................................................................................................................... 6

1-4 Remote Controller .......................................................................................................... 7

1-5 Hardware Setup/Installation ........................................................................................... 7

(1) Connect your device ................................................................................................. 9

(2) Connect power and push power button to turn on WPG-370. ................................... 9

Chapter 2: WPG-370 administration setting. .............................................................................. 11

2-1 Connect to Web Configuration Menu ........................................................................... 11

2-2 Status & Info ................................................................................................................. 12

2-3 Network Setting ............................................................................................................ 13

2-4 Wireless Settings ......................................................................................................... 15

2-5 Virtual AP Bridge Setting .............................................................................................. 18

2-6 Projection Setting ......................................................................................................... 20

2-7 Password Setting ......................................................................................................... 21

2-8 Restart.......................................................................................................................... 22

2-9 Firmware Upgrade ....................................................................................................... 23

2-10 Logout ........................................................................................................................ 24

2-11 OSD Menu ................................................................................................................. 24

Network Setting ............................................................................................................ 25

Audio Setting ................................................................................................................ 28

Video Setting ................................................................................................................ 28

System Setting ............................................................................................................. 29

Chapter 3: Using WPG-370 on WiFi Presentation Mode ............................................................ 30

3-1 Switch WPG-370 to WiFi Presentation Mode ............................................................... 30

3-2 Check the IP address of WPG ..................................................................................... 31

3-3 Connect to WPG by wireless network .......................................................................... 32

3-4 Using application software ........................................................................................... 33

3-5 Using application software ........................................................................................... 38

3-6 Menu List ...................................................................................................................... 39

3-7 Display mode ............................................................................................................... 41

3-8 Firewall setting ............................................................................................................. 43

1

Chapter 4: Using WPG-370 on Intel WiDi Mode ......................................................................... 44

4-1 Switch WPG-370 to Intel WiDi Mode ............................................................................ 44

4-2 Connect to WPG-370 by Intel WiDi .............................................................................. 44

Chapter 5: Using WPG-370 on Screen Mirroring Mode .............................................................. 48

5-1 Switch WPG-370 to Screen Mirroring Mode (Android) ................................................. 48

Chapter 6: Using WPG-370 on DLNA Media Streaming Mode ................................................... 50

6-1 Switch WPG-370 to DLNA Media Streaming Mode ..................................................... 50

Appendix A: Support resolution .................................................................................................. 52

Appendex B: WPG-370 Support Media Format .......................................................................... 52

Video Format ...................................................................................................................... 52

Audio Format ...................................................................................................................... 52

Photo Format ...................................................................................................................... 53

2

Chapter 1: Product Introduction

Congratulations on your purchase of ViewSonic Wireless Presentation Gateway WPG-370.

This section introduces you to the WPG-370 (referred to as the WPG in this user guide).

1-1 Package Contents

(1) WPG-370

(2) AC adapter with UK/EU/US plug

(3) CD-ROM

(4) Quick Installation Guide

1-2 Hardware Recommendation

WPG-370 supports real time presentation, Intel Wireless Display® & Multimedia Media streaming play back functions.

(1) WiFi Presentation Mode (HDMI/VGA)

WPG-370 is designed to able to stream contents from PC (Windows 7 /Window 8 only) to your TV through this device.

PC or Notebook

 CPU: Core 2 Duo 2.0GHz or better

 Memory: 2.0 GB or better

 Network: 802.11g/n Wi-Fi and/or 100/1000 Mbps Ethernet

 Software: WPG-370 Utility. (Windows & MAC 10.6 or later)

3

(2) WiDi Presentation mode (HDMI)

Users must have Intel WiDi® compatible platforms to support Intel Wireless Display.

The requirement of Intel WiDi® compatible platforms is as below.

System

Component

Requirement

Processor

•2nd generation Intel® Core™ i3/i5/i7 Mobile Processor

•3rd Generation Intel® Core™ i3/i5/i7 Mobile and Desktop Processor

Go Intel web site to check in detail: http://www.intel.com/support/wireless/wtech/iwd/sb/CS-031059.htm

Graphics

Wireless

Software

OS

•Intel® HD Graphics 4000

•Intel® HD Graphics 3000 (mobile)

•Intel® HD Graphics 2500

•Intel® HD Graphics 2000 (mobile)

•Intel® Centrino® Wireless-N 1000, 1030, 2200, or 2230

•Intel® Centrino® Wireless-N 2200 for Desktop

•Intel® Centrino® Advanced-N 6200, 6205, 6230, or 6235

•Intel® Centrino® Advanced-N 6205 for Desktop

•Intel® Centrino® Wireless-N + WiMAX 6150

•Intel® Centrino® Advanced-N + WiMAX 6250

•Intel® Centrino® Ultimate-N 6300

Intel® My WiFi Technology (Intel® MWT)

2

and Intel® Wireless Display

1

must be pre-installed and enabled.

Windows 7 64-bit*, Home Premium, Ultimate or Professional

Windows 7 32-bit*, Home Premium, Ultimate, Professional or Basic

Windows* 8 32-bit and 64-bit editions

Minimum requirement of driver and Utility

Intel WiFi Driver - 15.5

Intel Graphics Driver - 15.28

Intel WiDi - 3.5

Automatically identify and find driver and software updates by below link, it will automatically check your system and install everything for you: http://www.intel.com/p/en_US/support/detect/wireless-display

4

(3) Phone Screen Mirroring

- Smart phone or Tablet that should be Miracast certified

- Android 4.2 OS or later

- Samsung / Sony (HDMI only)

(4) DLNA Media Streaming (HDMI/VGA)

WPG-370 is designed to able to stream video/music/photo contents from PC (Windows 7 based), smart phone, and Tablet-PC to your TV through this device.

Smart phone

 CPU: 800 MHz or better

 Memory: 256 MB or better

 Network: 802.11g/n Wi-Fi or better

Tablet-PC

 CPU: 600 MHz or better

 Memory: 256 MB or better

 Network: 802.11g/n Wi-Fi or better

Recommend software

 Android OS: BubbleUPnP

 iOS: iMediaShare Personal

5

1-3 Highlights

Thanks again for choosing the product. This product allows multiple users to connect to the same projector by wired or wireless network and avoiding the hassle of using VGA or HDMI cable.

Features

 802.11 a/b/g/n Wireless compatibility

 802.11n 2.4GHz & 5GHz dual band standards

 Supports both Wireless and Ethernet connectivity

 VGA or HDMI connections

 Wireless multimedia streaming up to Full HD 1080p

 Designed to work with Intel® WiDi and other wireless display standards

 PC content, movies, photo’s apps and more all on your big screen

 Compatible with Windows, Apple and Android devices

 USB display on Media Streaming mode

6

1-4 Remote Controller

No.

1

Button

2

3

4

5

6

7

8

9

10

description

Power on & off

Show standby screen (not available on this model)

Change mode (cycling Presentation, media streaming and WiDi)

Go to Previous Page ( not available on this model)

Go to next Page( not available on this model)

Return to top layer of OSD or Exit menu or stop play Music/ video

Show OSD Menu

Selection confirm

Move the cursor up

Move the cursor down

7

11 Move the cursor right

12 Move the cursor left

13 Play or Pause Music or video

14 Previous key

15

16

17

Next Key

Fast backward key

Fast Forward key

18 Mute on/off

19 Increase Volume

20 Decrease Volume

Notes:

1) Remote controller effective distance is 7 meters. This distance will be shortened in some environments, or when the battery is low.

2) If there’s strong light source near WPG and / or remote controller, remote controller may not be able to function properly.

8

1-5 Hardware Setup/Installation

(1) Connect your device

Note: HDMI and VGA can’t be connected at the same time.

Note: USB port is for Firmware upgrade only in Intel® WiDi mode.

(2) Connect power and push power button to turn on WPG-370.

9

Wait a few seconds for the screen below to load, and then select your preferred mode.

(3) You can switch between WiFi Presentation mode, Intel WiDi® Adapter mode, DLNA media streaming mode and Phone screen mirroring mode.

10

Chapter 2: WPG-370 administration setting.

2-1 Connect to Web Configuration Menu

Please key IP address and suffix (/remote/admin.html) in browser,

Ex: 192.168.59.254/remote/admin.html.

Default pass word is “admin”.

Item

Application download

Mode switch

Description

Download application from Internet.

Switch between WIFi Presentation, Intel WiDi®, Phone screen mirroring and Media streaming mode.

11

2-2 Status & Info

Displays system information, like system software version and IP address. Many useful information can be obtained here when you need help about system configuration and firmware upgrade.

12

2-3 Network Setting

Displays and configures the network settings.

13

Item Description

Obtain an IP address WPG will obtain an IP address from DHCP server automatically.

Automatically

Use the following IP

Address

Set WPG IP address manually. Fill the fields below to setup IP address.

DNS Server Please input the IP address of the DNS (Domain Name Service) server.

Click ‘Apply’ button to save the settings.

NOTE: When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking “Restart” on the web configuration menu.

14

2-4 Wireless Settings

Configures wireless network settings.

(1) ‘Basic’ Settings

Displays and configures the wireless settings.

Item Description

Wireless Function Select ‘Enable’ to enable wireless network function; ‘Disable’ to disable it.

Mode Select wireless mode. Only AP (Access Point) mode is supported.

Device Name

(SSID)

Input the Device Name of presentation gateway here. Default is

‘WPG-370”.

Channel Number It's fixed.

Click ‘Apply’ button to save the settings.

NOTE: When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking “Restart” on the main menu.

15

(2) “Security” Setting

Encryption: Disabled

Disables wireless encryption.

Encryption: WPA +WPA2

Enable WPA + WPA2 encryption. Wireless clients must support WPA encryption and know the encryption passphrase you set here.

NOTE: When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking “Restart” on the main menu.

16

(3) Band Setting

Item Description

Band Select the wireless band. Available options are:

2.4GHz (B+G+N) - 802.11b, 802.11g, and 802.11n clients.

5GHz (B+G+N) - 802.11b, 802.11g, and 802.11n clients.

17

2-5 Virtual AP Bridge Setting

Item Description

Virtual AP only Ad-hoc mode

Bridge to Wireless Connect to Internet via Wireless AP router

Bridge to Ethernet Connect to Internet via Wired AP router

Bridge to Ethernet/ Wired Connection

Step1: Connect LAN to the AP router

Step2: Change Virtual AP Bridge to “Bridge to Ethernet” and click “Apply”. Then you can bridge WPG370 to Internet.

Note:

1. WPG 370 must connect to AP router and can’t connect to WAN directly.

2. Bridge to Ethernet function just supports DHCP.

18

Bridge to Wireless/ Wireless connection

Step1: Change Virtual AP Bridge to “Bridge to Wireless” and click Apply.

Step2: Click Wireless connection button. Then there will show the Wireless AP list on the screen.

Please choose the AP you want to connect.

Note:

1. Make sure your Wireless Router supports the Bridge to Ethernet function.

2. Using the WPA, WPA2 security settings on your wireless router is recommended (WEP is not recommended).

19

2-6 Projection Setting

Displays and configures the projection setting.

Item

Instruction Page Language

Selection

HDMI Output Resolution

VGA Output Resolution

Description

Select the displaying language.

Select HDMI output resolution for projection.

Select VGA output resolution for projection.

NOTE: When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking “Restart” on the main menu.

20

2-7 Password Setting

Displays and configures the password setting.

Item Description

Current Password Input current password here. Default pass word is

“admin”.

New Password / Confirmed

Password

New Password: Enter new password.

Confirmed Password: Confirmed the new entered password.

Click ‘Apply’ button to save the settings.

NOTE: When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking “Restart” on the main menu.

21

2-8 Restart

Restart WPG when the device is not working properly or to apply changes made on web configuration menu.

Click ‘OK’ to restart the WPG, or click ‘Cancel’ to abort.

22

2-9 Firmware Upgrade

Select ‘Auto’, WPG will download and upgrade latest firmware automatically once WPG connects to Internet.

If "Auto" upgrade fail, suggest using Manual Firmware upgrade, update process as following:

1. Download the firmware by pressing "Manual" button.

2. Rename file name to "install.img" if file name is difference.

3. Copy "install.img" to the root directory of a USB flash.

4. Press & hold the mode selection key and power on the device till show "Waiting for USB upgrade".

5. Please plug the USB flash into the USB connector. Firmware will be upgraded automatically.

6. After upgrading, the system will reboot automatically. Please power off/power on the device after reboot.

Note:

It’s recommended to use wired Ethernet connection to perform firmware upgrade. Before you can update FW on the internet, you must connect to Internet.

If you have a AP router that connect to internet, you can follow the setting below to bridge

WPG370 to the AP router and then connect to internet. For more information, please refer to

2.7 AP Bridge setting.

23

2-10 Logout

If you wish to logout from web configuration menu, click ‘Logout’.

2-11 OSD Menu

Click “Menu” on remote control and will show below menu on the screen.

24

Network Setting

Wired Connection

Item Description

Obtain an IP address

Automatically

Use the following IP

Address

WPG will obtain an IP address from DHCP server automatically.

Set WPG IP address manually. Fill the fields below to setup IP address.

DNS Server Please input the IP address of the DNS (Domain Name Service) server.

Device Name

Item Description

Device Name (SSID) Input the Device Name of presentation gateway here. Default is

‘WPG-370”.

25

WiFi Connection

Click WiFi connection button. Then there will show the Wireless AP list on the screen. Please choose the AP you want to connect. The function is to bridge to Internet via another Wireless

AP.

Virtual AP Setup

Item Description

Radio Band Set the Radio band to 2.4GHz or 5GHz. Please confirm your

PC/NB support 5GHz before you set the radio band to 5GHz.

Security

Encryption: Disabled.

Disables wireless encryption.

Encryption: WPA +WPA2.

Enable WPA + WPA2 encryption. Wireless clients must support

WPA encryption and know the encryption passphrase you set here.

Region

Save Change

Choose your region.

Save the configuration.

Virtual AP Bridge

Item Description

Virtual AP only Ad-hoc mode.

Bridge to Wireless

Bridge to Ethernet

Connect to Internet via Wireless AP router.

Connect to Internet via Wired AP router.

26

Bridge to Ethernet/ Wired Connection

Step1: Connect LAN to the AP router

Step2: Change Virtual AP Bridge to “Bridge to Ethernet” and click “Apply”. Then you can bridge WPG370 to Internet.

Note:

1. WPG 370 must connect to AP router and can’t connect to WAN directly.

2. Bridge to Ethernet function just supports DHCP.

Bridge to Wireless/ Wireless connection

Step1: Change Virtual AP Bridge to “Bridge to Wireless” and click Apply.

Step2: Click Wireless connection button. Then there will show the Wireless AP list on the screen.

Please choose the AP you want to connect.

Note:

1. Make sure your Wireless Router supports the Bridge to Ethernet function.

2. Using the WPA, WPA2 security settings on your wireless router is recommended (WEP is not recommended).

27

Audio Setting

You can adjust the advanced audio setting such as Night mode, HDMI Audio output format,

SPDIF output format, Surround sound setting and Lip Sync setting in this page.

Video Setting

You can adjust Aspect Ratio, TV out video format, and other video setting in the video setup page.

28

System Setting

You can set the OSD language, reset to Factory default, check the detail firmware version, and do the firmware upgrade in the system setup page.

Note:

1. Main firmware version is shown on the startup screen.

2. Language selection is for OSD menu only, not for startup page.

29

Chapter 3: Using WPG-370 on WiFi Presentation Mode

3-1 Switch WPG-370 to WiFi Presentation Mode

Push mode selection button on the WPG‐370 till you see the screen below, the box is ready for WiFi Presentation Mode connection.

30

3-2 Check the IP address of WPG

When WPG is powered on, check the connected display, you can find the IP address and login code Instruction Page:

You can connect to WPG by the IP address of the connection type you’re using (wired

/wireless).

31

3-3 Connect to WPG by wireless network

Use your computer’s Wireless Network Connection window to access an available wireless network. Select the device from the list. Click Connect. The default device name is WPG-370.

Note: If using a wireless client other than Windows, the screen above may look differently.

For more details, see your PC user guide.

32

3-4 Using application software

You can install WPG370 application in the CD ROM or download the application from setup page of WPG-370.

(1) Install application in CD-ROM

33

34

35

(2) Download application from WPG-370 setup page.

Please follow instructions to download and install WPG-370 application software according to your system:

Please key IP address and suffix(/remote/admin.html) in browser,

Ex:, 192.168.59.254/remote/admin.htm

WPG’s IP address is shown at the

Instruction page.

Click ‘Windows x32’ or ”Windows x64” or

‘ MAC’ button to download application software.

A window is prompted, to execute, please check “run”, or “save” to save application software for future usage.

During the MAC application software installation, you will also be asked to install

“soundflower” program to make your MAC

PC to output audio correctly, please install it before going to next step.

If you see this message (or anything similar from your antivirus program) when running

WPG, please click ‘Unblock’ to allow WPG client software to access network, or WPG client program will not be able to work properly.

36

WPG will auto detect ‘Server IP’ please input login code as shown on instruction page.

If login code is correct, application software will appear.

37

3-5 Using application software

No Name

1 Menu Access menu list.

2 Play Start / pause presentation. When pausing a progressing presentation, the displaying image will freeze; press play button again to resume

4

5

Close

Stop

Closes Application Software window

Stop a progressing presentation

38

3-6 Menu List

Besides the buttons, you can also click ‘Menu’ button to access menu list.

Item

Display Mode

Aspect Ratio

VGA resolution

(VGA Out)

HDMI Resolution

(HDMI Out)

Web Page

Description

Extend Mode Create a secondary screen that is projected.

Mirror Mode

Auto

Main Display: Main screen is projected.

Extended Display: Screen of 2 nd

display is projected.

Depends on laptop screen’s aspect ratio.

Pan scan 4:3 Keep 1:1 ratio to enlarge screen.

Letter box 4:3 Full screen 4:3 aspect ratio.

16:9

16:10

Full screen 16:9 aspect ratio.

Full screen 16:10 aspect ratio.

Select the VGA output resolution for the WPG-370. 800x600

1024x768

1280x800

1280x1024

1366x768

NTSC

PAL

480p

576p

720p/50Hz

720p/60Hz

1080i/50Hz

Select the HDMI output resolution for the WPG-370.

1080i/60Hz

1080p/50Hz

1080p/60Hz

Configuration Links to webpage controls and settings.

Remote Links to the virtual remote.

39

Advance Option Performance

Hardware encoder: Select if your PC supports a hardware encoder. If there is no screen output, please disable this function.

Disable Win 7 Areo: Enhance PC performance by disabling Win 7 Areo.

FPS constraint: User can define the frame rate. “0” frame rate is “Auto”.

Auto Adjust

Resolution

Auto Save

Encoder option For professional user settings

Misc.

Disable overlay blending: Only disable/enable if you encounter cursor flicking.

On

Off

On

(**Don’t disable Win 7 Areo when playing)

WPG-370 will auto adjust PC screen resolution based on the display’s native resolution.

Turn off auto adjust.

Off

Information

WPG-370 software will remember all settings when exiting the software.

Turn off auto save.

Exit Exit the program.

40

3-7 Display mode

Extend mode:

WPG‐370

Mirror mode

Main Display (default)

On this mode, this  monitor is optional.

WPG‐370

41

Mirror Mode

Extend Display

WPG‐370

42

3-8 Firewall setting

Please disable firewall if encounter connection difficulty, Allow ViVAClient or WPG-370 to communication through Windows Firewall.

43

Chapter 4: Using WPG-370 on Intel WiDi Mode

4-1 Switch WPG-370 to Intel WiDi Mode

Push mode selection button on the WPG-370 till you see the screen below, the box is ready for Intel Wireless Display connection.

4-2 Connect to WPG-370 by Intel WiDi

For Intel WiDi platform device

Please follow the next steps to do Intel WiDi connection

44

1. Double click the Intel WiDi icon from your PC desktop.

Click “Scan” for available adapters” and then connect to the adapter with same ID on the screen.

45

2. For the first connection, users need to type the password show on the projector or

TV screen.

46

3. After the connection successful, PC screen will be projected to the screen of TV or projector.

47

Chapter 5: Using WPG-370 on Screen Mirroring Mode

5-1 Switch WPG-370 to Screen Mirroring Mode (Android)

48

1. Scan the QR code from the screen to download instructions on how to use the screen mirroring mode

2. Refer to this list of phones that support Miracast.

Miracast-compatible Phones (if your phone requests HDCP, please use the HDMI port)

HTC (Media Output)

 HTC New One

 ButterFly

Samsung (Screen Mirroring) / Android 4.1.1 (HDMI)

 Galaxy S3 / S4

 Galaxy Note 2 / Note 3

SONY (Screen Mirroring) / Android 4.0.4 (HDMI)

T TX

LG (Miracast) / Android 4.0.4

Google / Android 4.2.1

SHARP (Wireless Output)

 SH-09D

 SH-10D

49

Chapter 6: Using WPG-370 on DLNA Media Streaming

Mode

6-1 Switch WPG-370 to DLNA Media Streaming Mode

Push mode selection button on the WPG-370 till you see the screen below, the box is ready for DLNA Media Streaming Mode connection.

50

In Media Streaming mode, you can stream photo/music/video from your PC, Smartphone or tablet. Or play video/Music/photo form USB. Please follow the instruction to do media streaming.

1. Connect to WPG-370 in Wi-Fi AP list.

2. Play media by WiFi streaming, we recommend software/AP as following : For more information Please check user manual of each software.

 iOS: iMediaShare, Wi-Fi Media

3. Play media by USB

 Plug in USB drive in to WPG-370

 Use remote or virtual remote to control. (key in IP address with suffix “/remote”)

EX: 192.168.59.254/remote, will show below

 You can play Video, Photo or music that you select.

51

Appendix A: Support resolution

Interfac e

VGA

Output resolution

[email protected][email protected][email protected][email protected]

[email protected]

HDMI NTSC,PAL,480p,576p,720p50Hz,720p60Hz,1080i50Hz,1080i60hz,1080p50Hz,10

80p60Hz

Appendex B: WPG-370 Support Media Format

Video Format

Format File extension

AVI avi

MPEG-4 mp4, mp4v, mpeg4, m4v

MOV mov

WMV wmv

Audio Format

Format File extension

MP3 mp3

LPCM pcm, wav, l16

WMA wma

WAV wav

MP4 mp4

AAC aac

OGG ogg, oga, ogv

52

Photo Format

Format File extension

GIF gif

BMP bmp

PNG png

53

Customer Support

For technical support or product service, see the table below or contact your reseller.

Note : You will need the product serial number.

Country/Region

Australia/New Zealand

Canada

Europe

Hong Kong

India

Korea

Latin America (Argentina)

Website

www.viewsonic.com.au

www.viewsonic.com

T (Toll-Free)= 1-866-463-4775

T (Toll)= 1-424-233-2533 [email protected]

www.viewsoniceurope.com

www.viewsoniceurope.com/uk/support/call-desk/ www.hk.viewsonic.com

T= 852 3102 2900 [email protected]

www.in.viewsonic.com

ap.viewsonic.com/kr/ www.viewsonic.com/la/

T= Telephone

C = CHAT ONLINE

AUS= 1800-880-818

NZ= 0800-008-822

T= 1800 266 0101

T= 080 333 2131

C= http://www.viewsonic.com/la/ soporte/servicio-tecnico

Email

[email protected]

[email protected] [email protected]

[email protected]

Latin America (Chile)

Latin America

(Columbia)

Latin America (Mexico) www.viewsonic.com/la/ www.viewsonic.com/la/ www.viewsonic.com/la/

C= http://www.viewsonic.com/la/ soporte/servicio-tecnico

C= http://www.viewsonic.com/la/ soporte/servicio-tecnico

C= http://www.viewsonic.com/la/ soporte/servicio-tecnico [email protected]

[email protected]

[email protected]

Nexus Hightech Solutions, Cincinnati #40 Desp. 1 Col. De los Deportes Mexico D.F. Tel: 55) 6547-6454 55)6547-6484

Other places please refer to http://www.viewsonic.com/la/soporte/servicio-tecnico#mexico

Latin America (Peru)

Macau

Middle East

Puerto Rico & Virgin

Islands www.viewsonic.com/la/ www.hk.viewsonic.com

ap.viewsonic.com/me/ www.viewsonic.com

C= http://www.viewsonic.com/la/ soporte/servicio-tecnico

T= 853 2870 0303

Contact your reseller

T= 1-800-688-6688 (English)

C= http://www.viewsonic.com/la/ soporte/servicio-tecnico [email protected]

[email protected]

[email protected]

[email protected]

[email protected]

Singapore/Malaysia/

Thailand

South Africa www.viewsonic.com.sg

ap.viewsonic.com/za/

T= 65 6461 6044 [email protected]

[email protected]

United States www.viewsonic.com

Contact your reseller

T (Toll-Free)= 1-800-688-6688

T (Toll)= 1-424-233-2530 [email protected]

54

Limited Warranty

ViewSonic

®

Wireless Presentation Gateway

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:

ViewSonic Wireless Presentation Gateway is warranted for 1 year for labor from the date of the first customer purchase.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration, failure, or malfunction resulting from: a. Accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, improper maintenance, unauthorized product modification, or failure to follow instructions supplied with the product.

b. Operation outside of product specifications.

c. Operation of the product for other than the normal intended use or not under normal conditions.

d. Repair or attempted repair by anyone not authorized by ViewSonic.

e. Any damage of the product due to shipment.

f. Removal or installation of the product.

g. Causes external to the product, such as electric power fluctuations or failure.

h. Use of supplies or parts not meeting ViewSonic’s specifications.

i. Normal wear and tear.

j. Any other cause which does not relate to a product defect.

3. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support (please refer to “Customer Support” page). You will need to provide your product’s serial number.

2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.

4. For additional information or the name of the nearest ViewSonic service center, contact

ViewSonic.

55

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

Effect of local law:

This warranty gives you specific legal rights, and you may also have other rights which vary from local authority. Some local governances do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and

Canada, contact ViewSonic or your local ViewSonic dealer.

The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan

Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.

For users in Europe and Russia, full details of warranty provided can be found in www.

viewsoniceurope.com under Support/Warranty Information.

Wireless Presentation Gateway Warranty Term Template In UG

VSC_TEMP_2014

56

Mexico Limited Warranty

ViewSonic

®

Wireless Presentation Gateway

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period,

ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories.

How long the warranty is effective:

ViewSonic Wireless Presentation Gateway is warranted for 1 year for labor from the date of the first customer purchase.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product.

b. Any damage of the product due to shipment.

c. Causes external to the product, such as electrical power fluctuations or failure.

d. Use of supplies or parts not meeting ViewSonic’s specifications.

e. Normal wear and tear.

f. Any other cause which does not relate to a product defect.

3. Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.

4. Removal, installation, insurance, and set-up service charges.

How to get service:

For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the attached Customer Support page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.

For Your Records

Product Name: ________________________

Document Number: ____________________

Purchase Date: ________________________

Model Number: ____________________________

Serial Number: ____________________________

Extended Warranty Purchase? _____________(Y/N)

If so, what date does warranty expire? __________

1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name,

(c) your address, (d) a description of the problem, and (e) the serial number of the product.

2. Take or ship the product in the original container packaging to an authorized ViewSonic service center.

3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

4. Repair or attempted repair by anyone not authorized by ViewSonic.

57

Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:

Name, address, of manufacturer and importers:

México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,

Col. San Fernando Huixquilucan, Estado de México

Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm

NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004

Hermosillo:

Distribuciones y Servicios Computacionales SA de

CV.

Calle Juarez 284 local 2

Col. Bugambilias C.P: 83140

Tel: 01-66-22-14-9005

E-Mail: [email protected]

Villahermosa:

Compumantenimietnos Garantizados, S.A. de C.V.

AV. GREGORIO MENDEZ #1504

COL, FLORIDA C.P. 86040

Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09

E-Mail: [email protected]

Puebla, Pue. (Matriz):

RENTA Y DATOS, S.A. DE C.V. Domicilio:

29 SUR 721 COL. LA PAZ

72160 PUEBLA, PUE.

Tel: 01(52).222.891.55.77 CON 10 LINEAS

E-Mail: [email protected]

Chihuahua

Soluciones Globales en Computación

C. Magisterio # 3321 Col. Magisterial

Chihuahua, Chih.

Tel: 4136954

E-Mail: [email protected]

Distrito Federal:

QPLUS, S.A. de C.V.

Av. Coyoacán 931

Col. Del Valle 03100, México, D.F.

Tel: 01(52)55-50-00-27-35

E-Mail : [email protected]

Guerrero Acapulco

GS Computación (Grupo Sesicomp)

Progreso #6-A, Colo Centro

39300 Acapulco, Guerrero

Tel: 744-48-32627

Veracruz, Ver.:

CONEXION Y DESARROLLO, S.A DE C.V. Av.

Americas # 419

ENTRE PINZÓN Y ALVARADO

Fracc. Reforma C.P. 91919

Tel: 01-22-91-00-31-67

E-Mail: [email protected]

Cuernavaca

Compusupport de Cuernavaca SA de CV

Francisco Leyva # 178 Col. Miguel Hidalgo

C.P. 62040, Cuernavaca Morelos

Tel: 01 777 3180579 / 01 777 3124014

E-Mail: [email protected]

Guadalajara, Jal.:

SERVICRECE, S.A. de C.V.

Av. Niños Héroes # 2281

Col. Arcos Sur, Sector Juárez

44170, Guadalajara, Jalisco

Tel: 01(52)33-36-15-15-43

E-Mail: [email protected]

Monterrey:

Global Product Services

Mar Caribe # 1987, Esquina con Golfo Pérsico

Fracc. Bernardo Reyes, CP 64280

Monterrey N.L. México

Tel: 8129-5103

E-Mail: [email protected]

MERIDA:

ELECTROSER

Av Reforma No. 403Gx39 y 41

Mérida, Yucatán, México CP97000

Tel: (52) 999-925-1916

E-Mail: [email protected]

Tijuana:

STD

Av Ferrocarril Sonora #3780 L-C

Col 20 de Noviembre

Tijuana, Mexico

Oaxaca, Oax.:

CENTRO DE DISTRIBUCION Y

SERVICIO, S.A. de C.V.

Murguía # 708 P.A., Col. Centro, 68000, Oaxaca

Tel: 01(52)95-15-15-22-22

Fax: 01(52)95-15-13-67-00

E-Mail. [email protected]

FOR USA SUPPORT:

ViewSonic Corporation

381 Brea Canyon Road, Walnut, CA. 91789 USA

Tel: 800-688-6688 (English);

866-323-8056 (Spanish);

E-Mail: http://www.viewsonic.com

Wireless Presentation Gateway Mexico Warranty Term Template In UG

VSC_TEMP_2014

58

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
