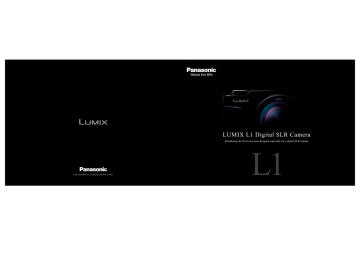

LUMIX L1 Digital SLR Camera

LUMIX L1 Digital SLR Camera
LUMIX L1 Digital SLR Camera
Introducing the first Leica lens designed especially for a digital SLR camera
http://panasonic.co.jp/pavc/global/lumix/
L1
D i g i t a l Re n a i s s a nc e
Right in Your Hands: The Digital SLR that Feels the Way a Camera Should-An operating feel
that is both perfectly intuitive and deeply satisfying. A level of responsiveness to capture even the
most fleeting moment. An expressive ability that inspires creativity. The LUMIX L1, from Panasonic.
In developing the L1, we began by delving into the essence of the single lens reflex camera and
image creation. We combined the first interchangeable lens designed by Leica specifically for
the digital SLR camera with the advanced technologies that make Panasonic a world leader in
digital imaging. We ended with a ground-breaking digital SLR that stands apart from all the others.
The LUMIX L1. A camera that aims to create a new photographic culture for the digital age.
02
From ''OUR PLACE'' - The Worlds Heritage
Program AE (shutter speed: 1/160 sec, aperture: F6.3)
L1
03
Extending the Leica Evolution
Leica Camera AG, renowned as the maker of lenses that have
captured some of the world's most memorable photographs,
has now created its first interchangeable lens exclusively for
the digital SLR. The new Leica D lens series (''D'' for digital)
derives from an entirely new design concept. Developed jointly
by Leica Camera AG and Panasonic specifically for digital
photography, this advanced lens fuses leading-edge optical and
digital technologies at an uncompromisingly high level. As it
joins the digital SLR arena, Panasonic has also chosen to adopt
the Four Thirds™* system in order to maximize the advantages
of both image sensor and lens. The new D lens inherits the
smooth tonal expression and rich shading that make Leica
lenses the choice of both professional and amateur
photographers the world over. Anxiously awaited by true
photography aficionados, the new lens helps the LUMIX L1
reach a new stage in the evolution of digital SLR cameras.
The LEICA D VARIO-ELMARIT Lens: Dual-Sided
Aspherical Lenses and a Maximum Aperture of F2.8
This wide-aperture zoom lens provides F2.8-3.5 brightness from
28mm wide-angle to 100mm telephoto (35mm film camera
equivalent). With 16 lens elements in 12 groups, including two glassmolded dual-sided large diameter aspherical lenses, the LEICA D
VARIO-ELMARIT lens delivers a superb optical performance. It
minimizes distortion in wide-angle shots and suppresses the loss of
peripheral resolution. An excellent multi-coating process helps reduce
ghosts and flaring. The lens provides the sharpness, high resolution
and superb color reproduction that convey even the ambience around
a subject. The lens barrel is fitted with an aperture ring for a new level
of easy, intuitive operation. With the new LEICA D VARIO-ELMARIT
lens, the L1 has an entirely different feel from other digital SLR
cameras, and lets you go as far as your creativity will take you.
MTF Chart**
0
04
Program AE (shutter speed: 1/50 sec, aperture: F3.4)
*Four Thirds™ is a trade mark.
20M
20S
40M
40S
Minimal Hand-Shake with MEGA O.I.S.
The new D lens features Panasonic's MEGA O.I.S., an
advanced optical image stabilizing system that makes it possible
to take clear, sharp macro and low-light shots. With MEGA O.I.S.,
the Venus Engine operates 4,000 times per second to detect the
amount and direction of hand-shake, and then shifts a corrective
lens accordingly. Light entering the camera is kept on a straight
path as it passes through the lens to the image sensor. Because
the shake is corrected entirely within the lens, the image is
preserved with original quality intact. Built into the lens, the
Venus Engine provides quick, precise image processing for
superb image stabilizing control. With these advanced features,
the L1 can shoot beautiful shots, without a tripod, in situations
where you cannot use a flash or in evening light. You get easier
shooting and a wider range of expressive possibilities to explore.
Mode 1
Mode 2
Image is corrected continually, so
you can see the image clearly on
the LCD monitor.
Correction occurs at the instant you
press the shutter button, so the
corrective effect is greater.
100
100
Contrast (mm)
The Leica D Lens - The First Leica Lens with
Optical Image Stabilizer (MEGE O.I.S.) Designed
Especially for a Digital SLR
The LEICA D VARIO-ELMARIT 14-50mm/F2.8-3.5 ASPH. Lens
50
14mm
0
Image Height (mm) 11
0
50mm
0
11
Dual-Sided Aspherical Lenses
**The Modulation Transfer Function (MTF) chart shows how faithfully the contrast of the subject is reproduced in the image, using spatial frequency characteristics.
05
A Familiar Feel -That Familiar Touch
06
Intuitive in Form and Function
An Aperture Ring that Responds Intuitively to Your Intent
Full-Time Live View on the Large, High-Resolution LCD
The L1 is much more than a collection of sophisticated
functions. It is designed to be a tool that photographers will
find both comfortable in their hands and a joy to use – a
camera that looks, feels and works the way a finely crafted
camera should. It is designed to deliver total satisfaction – in
operation, performance and results. The camera body is
formed to fit the hands naturally. The controls are laid out to
ensure intuitive operation from the moment you first pick up
the camera. Operation is not forced upon the photographer.
Rather, the camera becomes an extension of your own
expression, a seamless interface between the images you see
in your mind's eye and the advanced digital functions that bring
those images to life. Photographers
will immediately recognize the feel
of the L1, like a camera you've used
many times before. You'll find that
it comfortably, naturally extends
what a digital camera can do. You'll
find that with the L1, human
sensitivity and digital technology
Lightweight,
are beautifully combined.
durable magnesium alloy body
Photographers who appreciate the natural feeling of creating
photo images place top priority on the camera's operation. The L1
takes operation a big step beyond conventional digital SLR lenses
by adding an aperture ring to the lens barrel, alongside the zoom
ring and wide focus ring. You can set the aperture from 2.8 to 22 in
1/3 EV steps. This combines with the shutter speed dial to give you
quick, precise, intuitive control over the exposure setting. You'll
feel a distinct click as you turn the aperture ring. This not only
enhances your sense of control, it gives you the kind of shooting
joy you feel when photographer and camera become one.
The full-time Live View system is well suited to the coming
generation of digital still cameras that pursue the true "joy of
shooting." The L1's full-time Live View makes it easy to focus and
frame precisely on the 2.5-inch LCD monitor, which has superb
207,000-pixel image quality and a virtually 100% field of view. In this
system, a mirror flips up, directing the same light to both the Live
MOS sensor and the LCD monitor. Full-time Live View operates for
auto focusing. When you're focusing manually, full-time Live View lets
you magnify a part of the image by 10x for
greater focusing precision. The L1's large,
high-image-quality LCD gives you a precise
preview of the depth of field without
darkening*, as the display is bright and
easy to see. Checking the results of the 2axis white balance adjustment on the fulltime Live View screen also assures more
precise adjustment before shooting. These
versatile functions bring forth completely
new shooting styles for SLR cameras, and
Checking the depth of field
expand the possibilities for photo expression.
in Live View
A Shutter Speed Dial with a Familiar Feel
The shutter speed dial and shutter button are positioned along
the same axis on the camera top. They feel instantly familiar
to your fingers and provide comfortable, intuitive operation. In
manual mode, you can use the shutter speed dial and cursor
button to set the speed from 1/4,000 to 60 seconds, or you can
select bulb shooting. The 1/160-sec X-sync speed provides a
wide response to flash shots. Because the dial is right there
for you to see, operation is quick and easy.
* The LCD may become dark at times depending on the subject and the camera setting.
07
The Birth of Beauty
Beautiful High-Resolution Images: 7.5-Megapixel 4/3-type Live MOS Sensor for the Best of Both CMOS and CCD Sensors
The Rich Tonal Quality of the CCD,
the Low Power Consumption of CMOS
The L1 uses a high-imagequality 7.5-megapixel 4/3-type
Live MOS sensor. The ideal
sensor for digital SLR cameras,
the Live MOS sensor delivers
the same high image quality as
a CCD sensor with the low
power consumption of a CMOS
sensor. This advanced sensor draws on MOS signal amplification
technology but uses a simpler structure. It's molded as a single
unit onto a flexible circuit board, reducing both the number of
signal exchanges and the contact resistance from wiring. A
process technology with 5-V activation reduces heat and noise
while improving the image quality of the Live View function.
A Wide Dynamic Range for Richer Image Gradation
The Live MOS sensor featured in the L1 uses a new readout
circuit that reduces the three control wirings required with a
CMOS sensor to the two wirings required with a CCD sensor.
This provides a greater photoreceptive area per pixel than a
conventional CMOS sensor can provide. The result is the type of
wide dynamic range that makes it possible to capture detailed,
expressive images with rich gradation.
5.6 µm
Wiring-1
Wiring-2
Light receiving
area
Wiring-1
5.6 µm
5.6 µm
Data transfer
section
Wiring-3
Conventional
drive circuit
Wiring-2
Light receiving
area
Circuit section
Wiring-1
New
drive circuit
CCD
Light receiving area rate 50%
Circuit section
CMOS
Light receiving area rate 35%
Wiring-2
The Four Thirds Standard:
Designed to Maximize Image Quality
in Digital Cameras
For accurate imaging, the light must strike the image
sensor at a perpendicular angle. When a lens designed for
a film camera is used, light from the edge of the image
area enters at an angle, resulting in
Lens mount diameter
inaccurate color reproduction or
dark areas. The L1 uses a lens
mount with about twice the diameter
of the image circle. Light strikes the
sensor at an almost perpendicular
angle, so images are clear and
Image circle diameter
accurate all the way to the edges.
Light rays
Live MOS Sensor
Light receiving area rate 50%
Light receiving
area
Low-Noise Processing and Pinned Photodiode Array
Reduce Image Graininess
The Live MOS sensor not only slashes noise, it embeds the
photodiodes deeply into the silicon layer, where they are
resistant to noise generated on the photodiode surface. This
suppresses the rough image texture that is sometimes
noticeable (like viewing an image through an unwashed
window) when shooting in dim lighting, giving you clear,
smooth shots even in difficult conditions.
Light rays
sensor
(Image)
Film camera lens design
sensor
Protecting the Digital SLR Image Sensor:
Dust Reduction System
One of the risks with a digital SLR
camera is that, during a lens
change, dust or dirt could make its
way into the camera and adhere to
the image sensor. This would show
up as a flaw in the same location of
every photo you shoot. Even worse,
the foreign matter could damage
the image sensor. The only remedy
would be to have the image sensor
replaced – a costly undertaking.
The L1 solves this problem with a
supersonic wave Dust Reduction
System. Each time the camera is
turned on, a filter positioned
between the low pass filter and
shutter vibrates around 30,000
times a second to shake away dust
or dirt. The loosened dust is
collected by a dust adhesion
section located under the filter.
Because the area between sensor
and filter is completely airtight, no dust adheres to the low
pass filter or image sensor. This advanced supersonic wave
filter requires no maintenance. If you use a digital SLR camera
with interchangeable lenses, this kind of advanced protection
against dust is absolutely essential.
(Image)
FourThirds System lens design
Comparison of Light Receiving Areas per Pixel (Panasonic figures)
08
09
Imaging Expression
Venus Engine III: Extraordinary Processing Power to Reproduce Even Nuances in Texture and Atmosphere
Rich, Life-like Colors
The L1 features the Venus Engine III
LSI. This new image-processing LSI
precisely reproduces the magnificent
images that are captured by the Leica
D lens and sent to the Live MOS sensor.
Its color expression maximizes the
beauty of the original image to produce
highly natural picture quality. This superb level of performance
makes the Venus Engine III an ideal match for the digital SLR camera.
Smooth, Expressive Photos with Less Noise
The L1 noise-reduction system distinguishes luminance noise
from the chromatic noise that diminishes image quality, and
selectively targets the chromatic noise. Even when shooting at
a high ISO setting*, you can capture abundant detail and get
smooth, clear shots with minimal noise. *The ISO setting ranges from
the standard ISO 100 level to the ultra high-sensitive ISO 1600.
The Quick Response You Need to Catch Every Moment
The L1 is built for spectacular high-speed shooting, with a
startup of only 0.8 second and burst shooting at 3 frames per
second. The shutter works as fast as you do. The L1 has
unlimited consecutive shooting. You can keep shooting until the
memory card is full, and choose the best shots later.
Color: Standard
Color: Dynamic
Color: Nature
Low Power Consumption for More Shots and
Longer Shooting Sessions
The Venus Engine III combines superb speed and precision
with low power consumption. Together with the Live MOS
sensor's low power consumption, this means more shooting
time between battery charges. Enjoy extended shooting
sessions without worrying about the battery, even while taking
advantage of the L1's many digital functions.
Film Mode: Choose the Imaging Mode that
Best Suits Your Creative Intent
The L1 introduces a new Film mode function that lets you select
from several different image looks according to the subject you're
shooting and your creative intent. When shooting in color, you can
choose from Standard, Dynamic, Nature, and Smooth. With black
and white, you can choose from Standard,
Dynamic, and Smooth. You can also adjust the
contrast, sharpness, saturation and noise
reduction levels, to reproduce exactly the mood
and atmosphere you want. With these
functions, the L1 is a digital camera that gives
you the same kind of flexibility and satisfaction
you enjoy when choosing film for a film camera.
Color: Smooth
Black and White: Standard
Built-In Flash for Lighting Versatility
Choose from five flash settings, or use Bounce
Lighting or 1st Curtain/2nd Curtain Sync.
Exposure can be adjusted ±2 EV in 1/3 EV
steps. A hot shoe is provided. L1 compatible
flashes (sold separately) allow TTL auto
adjustment. The new FP Lighting function also
synchronizes the flash at the lightning shutter
speed of 1/4000 sec. This greatly expands
shooting possibilities by allowing more
versatile and precise lighting control.
Normal Lighting
Bounce Lighting
A Variety of Light Metering Methods and
Focusing Areas to Match Your Shooting Needs
Three light metering methods let you read delicate lighting
differences and accurately match shooting conditions. Use
Intelligent Multiple light metering to divide the image frame
into 49 blocks for multiple-zone light measurement. Or choose
either Center Weighted or Spot light metering. As for the
focusing area, the auto focus system employs a TTL phase
difference detection system with three measuring points
across a wide image area. You can also specify a particular
point as the focal point. This can be useful in certain shooting
situations or shooting techniques.
Black and White: Dynamic
Black and White: Smooth
Program AE (shutter speed: 1/100 sec, aperture: F3.5)
10
11
Proven Expressive Power
System Chart
Optional Accessories
PL Filter
MC Protector
External Flash
Shutter Remote Control
DMW-LPL72
DMW-LMCH72
DMW-FL500 / DMW-FL360
DMW-RSL1
Panasonic System
http://www.sigma-photo.co.jp/english/index.htm
PL Filter
DMW-LPL72
Leather Bag
Shoulder Strap
Battery Pack
HD Photoplayer
DMW-BAL1
DMW-SSTL1
CGR-S603
DMW-SDP1
SIGMA Lenses
Standard Accessories
MC Protector
DMW-LMCH72
External Flash
DMW-FL500
External Flash
DMW-FL360
APO 50-500mm
F4-6.3 EX DG HSM
CD-ROM
(SILKYPIX Developer Studio /
LUMIX Simple Viewer /
PHOTOfunSTUDIO-viewer- )
APO MACRO 150mm
F2.8 EX DG HSM
MACRO 105mm
F2.8 EX DG
55-200mm
F4-5.6 DC
Leather Bag
DMW-BAL1
Shoulder Strap
DMW-SSTL1
18-125mm
F3.5-5.6 DC
Shutter Remote Control
DMW-RSL1
18-50mm
F2.8 EX DC
LEICA D VARIO-ELMARIT
14-50mm/F2.8-3.5 ASPH.
18-50mm
F3.5-5.6 DC
30mm
F1.4 EX DC HSM
SD USB Reader/Writer
SD PC Card Adaptor
BN-SDCAPU/1B
(for Windows®98/
Me/2000/XP)
BN-SDABPU/1B
(for Windows®98/
Me/2000/XP)
SD/SDHC Memory Card
4GB*: RP-SDK04G
2GB*: RP-SDK02G
RP-SDQ02G
1GB*: RP-SDK01G
RP-SDQ01G
512MB*: RP-SDK512
256MB*: RP-SDH256
128MB*: RP-SD128B
64MB*: RP-SD064B
*1GB = 1 billion bytes.
1MB = 1 million bytes. Usable capacity will be less.
*Not compatible with SDHC Memory Card
*Not compatible with SDHC Memory Card
Living Room Photography
with SD Memory Cards
Other Brand
Personal Computer
Panasonic
Personal Computer
OLYMPUS E-System
USB
Connection Cable
K1HA05CD0004
http://www.olympus-global.com/en/global/
ZUIKO DIGITAL
ED 300mm F2.8
ZUIKO DIGITAL
ED 90-250mm F2.8
Optimized
Home Photo Printer
For LUMIX
KX-PX10 / KX-PX1
ZUIKO DIGITAL
ED 50-200mm F2.8-3.5
ZUIKO DIGITAL
ED 18-180mm F3.5-6.3
Software
SILKYPIX Developer Studio 2.0 SE
This software lets the
user process RAW data
images* in a variety of
ways to match the
original shooting intent.
Its advanced developing
capabilities suppress
problems like unnatural
edges at color borders
and color noise, while its high resolution and superb color
separating performance lend beautiful expression to details.
12
PHOTOfunSTUDIO-viewerHigh-Picture-Quality
DVD Recorder
SD USB Reader/Writer
BN-SDCAPU/1B
Tele Converter
EC-14
Mobile SD Projector
PT-P1SD
<Image Adjustment Menu>
• Exposure bias • Tone adjustment • Color adjustment
• Sharpness adjustment • White balance • Others
This image viewing software
lets you upload image data to a
PC, then organize the images
into categories, process them,
and print them. It can also be
used to convert RAW files to
JPEG format.
Compatible OS :
Microsoft Windows 98SE/Me/2000/XP Mac OS Xv 10.3-
Compatible OS:
Microsoft Windows 98SE/Me/2000/XP
Compatible OS:
Microsoft Windows 98SE/Me/2000/XP
ZUIKO DIGITAL
40-150mm F3.5-4.5
ZUIKO DIGITAL
ED 35-100mm F2.0
Battery Pack
CGR-S603
SD Memory Card
This software is used to upload
JPEG images taken by the L1 to
a PC, and easily manage, edit
or correct them. It also makes
it easy to upload images to a
Web site, create slide shows,
and print images.
*Only RAW data images taken by the L1
A wide lineup of high-performance Four Thirds lenses.
LUMIX Simple Viewer
ZUIKO DIGITAL
ED 150mm F2.0
ZUIKO DIGITAL
14-54mm F2.8-3.5
SD PC Card Adaptor
BN-SDABPU/1B
DC Cable
K2GJ2DZ00028
Extension Tube
EX-25
ZUIKO DIGITAL
14-45mm F3.5-5.6
ZUIKO DIGITAL
ED 50mm F2.0 Macro
Strap
VFC4189
Battery Charger
/ AC Adaptor
DE-972
ZUIKO DIGITAL
35mm F3.5 Macro
ZUIKO DIGITA
11-22mm F2.8-3.5
ZUIKO DIGITAL
ED 7-14mm F4.0
Video Cable
K2KJ2CB00001
High-Image-Quality
Plasma TV
Battery Pack
CGR-S603
AC Cable
K2CA2EA00002
ZUIKO DIGITAL
ED 8mm F3.5 Fisheye
For detailed information about the lenses made by SIGMA and OLYMPUS, please see each company's website.
13
DMC-L1 Specifications
Main Parts And Controls
1
2
3
4
10
9
11
12
13
14
16
15
38
17
39
40
41
TYPE
37
42
18
36
43
5
35
19
34
6
20
33
21
7
31
Strap eyelet
IR sensor
8
10
6
Lens fitting mark
AF assist lamp / Self-timer indicator
Lens lock pin
Lens release button
7
Mirror
1
2
3
4
5
Mount
Diopter adjustment dial
15
17
13
Viewfinder
Eye cup
[LIVE VIEW] button
Flash open button
14
Focus mode lever
9
11
12
Display
18
19
20
21
AEL
3
11
AEL
4
5
10
AUTO
SLOW
2
6
AUTO
SLOW
9
LCD Display
3
4
5
46
5
6
Auto bracket
Flash setting
Number of recordable pictures
Card access
-1
0
+1
+2
17
CUSTOM
16
NORMAL
19
15
14
11
10
13
12
Card access
Quality
6
6
7
7
Flash output adjustment
16
Flash setting
8
8
Custom set
17
ISO sensitivity
9
Number of recordable pictures
Optical image stabilizer
18
White balance
Film mode
9
10
14 13 12
11
Shutter speed
AF frame setting
Metering mode
Exposure compensation
5
-2
Recording mode
Aperture value
14
Picture size
Single / Burst /
Auto bracket / Self-timer
15
Battery indication
19
45
22
Playback button
Aperture value
9
23
28
12
8
24
27
26
Exposure compensation value /
Manual exposure assistance /
Auto Bracket compensation value
Exposure compensation
7
25
31
AE lock
8
26
29
4
7
27
Open/Close lever
Delete button
Aperture preview button
[DISPLAY] button
25
/ / / /Cursor buttons
28
DC cable cover
Battery door
3
3
P 2.8 2000
18
24
23
Focus
Shutter speed
4
19
22
Camera ON/OFF switch
Command dial
Card door
[MENU/SET] button
11
2
2
[AFL/AEL] button
Status indicator
10
1
1
29
AF frame
AF-LED display
12
1
30
2
1
Finder Display
16
RECORDING
SYSTEM
44
32
8
SENSOR
Tripod receptacle
2.5" LCD monitor
36
38
34
Flash output adjustment button
[USB] socket
[V OUT/REMOTE] socket
Terminal door
35
Flash button
30
32
33
37
[ISO] button
[WB] button
43
44
[FUNC.2] button
Drive mode lever
Single:
Burst:
Auto bracket:
Self-timer:
41
Flash
Shutter speed dial
Shutter button
Metering mode lever
45
Focus distance reference line
42
[FUNC.1] button
46
Hot shoe
39
40
SD/SDHC Memory Card Still Image Recording Capacity
Aspect ratio
Picture size
Quality
128MB
256MB
512MB
Card
1GB
2GB
4GB
Aspect ratio
Picture size
Quality
128MB
256MB
512MB
Card
1GB
2GB
4GB
Aspect ratio
Picture size
Quality
128MB
256MB
512MB
Card
1GB
2GB
4GB
3136 x 2352 pixels (7.4M)
16 (5)
32 (10)
65 (21)
130 (43)
260 (88)
530 (170)
33 (6)
65 (12)
130 (25)
260 (51)
530 (105)
1040 (200)
66 (7)
130 (14)
250 (28)
510 (57)
1040 (115)
2040 (220)
3136 x 2080 pixels (6.5M)
18 (5)
36 (11)
72 (24)
145 (48)
300 (99)
590 (195)
37 (7)
74 (14)
145 (28)
290 (58)
600 (115)
1180 (230)
74 (8)
145 (16)
290 (32)
580 (64)
1180 (130)
2310 (250)
3136 x 1760 pixels (5.5M)
22 (7)
45 (14)
91 (28)
180 (58)
370 (115)
730 (230)
46 (8)
91 (17)
180 (34)
360 (69)
730 (140)
1450 (270)
91 (9)
180 (19)
350 (38)
710 (76)
1420 (155)
2800 (300)
2560 x 1920 pixels (5M EZ)
24 (6)
49 (12)
98 (24)
195 (48)
400 (98)
790 (190)
49 (7)
98 (13)
195 (27)
390 (55)
790 (110)
1560 (220)
99 (7)
190 (14)
380 (29)
770 (59)
1530 (120)
3010 (230)
2560 x 1712 pixels (4.5M EZ)
27 (6)
55 (13)
110 (27)
220 (54)
450 (110)
880 (210)
55 (7)
110 (15)
210 (31)
440 (62)
880 (125)
1740 (240)
110 (8)
210 (16)
430 (33)
860 (66)
1700 (135)
3350 (260)
1920 x 1080 pixels (2M EZ)
58 (8)
115 (18)
230 (35)
460 (72)
930 (145)
1820 (280)
115 (10)
220 (19)
450 (39)
910 (78)
1800 (155)
3540 (310)
220 (10)
430 (20)
860 (40)
1720 (81)
3410 (165)
6700 (320)
77 (7)
150 (14)
300 (29)
600 (58)
1220 (115)
2410 (230)
150 (7)
290 (15)
590 (30)
1180 (61)
2360 (120)
4640 (240)
2048 x 1360 pixels (2.5M EZ)
44 (7)
86 (14)
170 (29)
340 (59)
700 (120)
1380 (230)
87 (8)
170 (16)
340 (32)
680 (65)
1360 (130)
2680 (260)
165 (8)
330 (17)
650 (34)
1310 (68)
2560 (135)
5020 (270)
*1GB = 1 billion bytes.
1MB = 1 million bytes. Usable capacity will be less.
•The numbers in brackets are when [RAW
REC.] is set to [ON].
•The number of recordable pictures is an
approximation. (These vary depending on the
recording conditions and the type of card.)
•The number of recordable
depends on the subjects.
pictures
• EZ: Extra Optical Zoom (with Live View only)
File size
Color space
Type
Field of view
Magnification
Eye point
VIEWFINDER Diopter adjustment
Focusing screen
Mirror
Depth-of-field preview
Eyepiece shutter
Type
Focusing mode
Focusing area
AUTO FOCUS Focusing area selection
AF detective range
AF assist lamp
AF lock
Light metering system
2048 x 1536 pixels (3M EZ)
38 (6)
76 (13)
150 (26)
300 (53)
620 (105)
1230 (210)
Type
Recording media
Image sensor size
Mount
Type
Total pixels
Camera effective pixels
Aspect ratio
Color filter
Dust reduction system
Recording file format
Aspect ratio
EXPOSURE
CONTROL
WHITE
BALANCE
Light metering mode
Metering range
Exposure mode
ISO sensitivity
Exposure compensation
AE lock
AE bracket
White balance
White balance adjustment
Color temperature setting
Interchangeable Lens Digital SLR Camera
SD Memory Card, SDHC Memory Card, Multimedia Card
17.3 x 13.0 mm
Four Thirds mount
Live MOS sensor
7.9 megapixels
7.5 megapixels
3:4 (vertical : horizontal)
Primary color filter
Supersonic Wave Filter
JPEG (Design rule for Camera File system, based on Exif 2.21 standard), DPOF corresponding, RAW
4:3, 3:2, 16:9 (3:2,16:9 with Live View only)
4:3 Aspect Ratio: 3136 x 2352 pixels, 2560 x 1920 pixels, 2048 x 1536 pixels
3:2 Aspect Ratio: 3136 x 2080 pixels, 2560 x 1712 pixels, 2048 x 1360 pixels
16:9 Aspect Ratio: 3136 x 1760 pixels, 1920 x 1080 pixels
sRGB, Adobe RGB
Eye level porro mirror type optical viewfinder
Approx. 95 %
Approx. 0.93x
Approx. 18 mm (-1[m-1])
-3.0 - +1 [m-1]
Fixed type
Quick return mirror
Enabled with aperture preview button (with Live View only)
Detachable
TTL Phase Difference Detection system
AFS / AFC / MF
3 points
Auto, 1-fixed point/left, 1-fixed point/center, 1-fixed point/right
EV 0-19 (ISO100)
YES
AFL / AEL button or shutter button halfway pressed in AFS mode
TTL full aperture light metering by 49-zone multi-pattern sensing system (with optical viewfinder),
256-zone multi-pattern sensing system (with Live View mode)
Intelligent multiple / Center weighted / Spot
0 - 20 EV (with optical viewfinder), 0 - 16 EV (with Live View mode with F2.0 lens, ISO 100)
Program AE / Aperture priority AE / Shutter priority AE / Manual
Auto / 100 / 200 / 400 / 800 / 1600
1/3 EV step ±2 EV
AFL / AEL button or shutter button halfway pressed
3 frames, 5 frames, 1/3 -1 EV step ±2 EV
Auto / Daylight / Cloudy / Shade / Halogen / Flash / White set 1,2 / Color temperature setting
Blue/Amber bias, Magenta/Green bias
2500 K to 10000 K in 31 steps
SHUTTER
SYSTEM
BURST
SHOOTING
Type
Shutter speed
Self timer
Remote control
Burst speed
Number of
recordable pictures
Type
Built-in flash
BUILT-IN
-FLASH
LCD
MONITOR
LIVE VIEW
X-Sync speed
Flash output adjustment
Flash synchronization
Hot shoe
Type
Monitor size
Pixels
Field of view
Type
Digital zoom
Extra optical zoom
FILM MODE
Color
Black and white
PLAYBACK
Playback mode
PROTECTION Protection
/ ERASE
Erase
DIRECT PRINT Print
Digital
INTERFACE
Analog Video
Battery
POWER
Battery life
DIMENSIONS Dimensions (W x H x D)
/ WEIGHT
Weight
OPERATING Operating temperature
CONDITION
Operating humidity
STANDARD
ACCESSORIES
Software
Standard accessries
Focal-plane shutter
1/4000 - 60 sec and Bulb (up to approx. 8 minutes)
10 sec / 2 sec
Remote control with bulb function by DMW-RSL1 (optional)
3 frames/sec or 2 frames/sec
6 pictures (when there are RAW file), Unlimited consecutive shooting (when there are no RAW file)
(depending on memory card size, battery power, picture size, and compression)
TTL Built-in-flash, GN10 (ISO100, m), Built-in pop-up, Bounce flash
Auto, Auto/Red-eye reduction, Forced on/Red-eye reduction,
Slow sync., Slow sync./Red-eye reduction, Forced on/off
Less than 1/160 second
1/3 EV step ±2 EV
1st. curtain sync. and 2nd curtain sync. (selectable)
TTL auto with FL360 / FL500 (optional)
Low temperature polycrystalline TFT LCD
2.5 inch
207 K pixels
Approx. 100 % (with Live View mode only)
YES (LCD monitor can be used as viewfinder, with Live MOS sensor set to monitor mode.)
2x, 4x (with Live View only)
Max. 1.5x (with Live View only. Not effective with full pixel recording.
Magnification ratio depends on the recording pixels.)
Standard / Dynamic / Nature / Smooth
Standard / Dynamic / Smooth
Single display, 9 or 25-thumbnail display, Calendar display, Zoomed playback (16x max.),
Image rotation (except for RAW), Slide show (duration is adjustable, also manual controllable),
Playback of favorite pictures, Resizing (selectable number of pixels),
Trimming, Protection, Aspect conversion, DPOF print setting
Single / Multi or cancel
Single / Multi / All
PictBridge (Print size, Layout, Date setting is selectable)
USB 2.0 (high speed)
NTSC / PAL composite (switched by menu)
Li-ion battery pack (7.2 V, 1500 mAh) (included)
Battery charger/AC Adaptor (Input: 110-240 V AC) (included)
Approx. 450 images (CIPA standard* with Leica D VARIO-ELMARIT 14-50mm / F2.8-3.5 ASPH. lens)
145.8 x 86.9 x 80 mm
Approx. 530 g (body only)
0˚C to 40˚C
10 % to 80 %
LUMIX Simple Viewer, PHOTOfunSTUDIO-viewer-,
SILKYPIX Developer Studio, Quick Time, USB Driver
Battery charger/AC adaptor, Battery pack, Eyepiece cap, Body cap,
Video cable, USB connection cable, AC cable, DC cable, Strap, CD-ROM
Leica D VARIO-ELMARIT 14-50mm/F2.8-3.5 ASPH. Specifications
Lens construction
Mount
Optical Image Stabilizer
Focal length
16 elements in 12 groups (2 aspherical lenses)
Four Thirds mount
On/Off (selectable mode1/2 with only DMC-L1)
f=14 mm to 50 mm (35 mm film camera equivalent 28 mm to 100 mm)
Aperture type
Minimum aperture
Closest focusing distance
Maximum magnification
7 diaghragm blades / Iris diaphragm
F22
0.29 m at all focal lengths
Approx. 0.32x (35 mm film camera equivalent)
Diagonal angle of view
Filter size
Overall length
Weight
75˚ (W) - 24˚ (T)
72 mm
102.8 mm
Approx. 490 g
*Based on the CIPA standard. Using the Panasonic SD Memory Card and supplied batteries. The CIPA (Camera & Imaging Products Association) creates standards for measuring battery life. CIPA measurement method: Switch on the power and LCD, begin shooting in 30 seconds, switch between telephoto and wide angle every 30 seconds, fire the flash every other shot. After
each series of 10 shots, turn the camera off until the battery cools. Ambient conditions: 23ºC temperature and 50% humidity. The battery life differs depending on the condition of storage or use, and the environment. The number of recordable pictures varies depending on the recording interval time. If the recording interval time becomes longer, the
number of recordable pictures decreases.
*LUMIX Simple Viewer and PHOTOfunSTUDIO-viewer- require Microsoft® Windows® 98SE, Windows® Me, Windows® 2000, or Windows® XP. SILKYPIX Developer Studio requires Microsoft® Windows® 98SE, Windows® Me, Windows® 2000, Windows® XP (Windows 2000/XP recommended. Installable only by a system administrator with authority to install
software on a Windows XP/2000.), or Apple® Mac OS® 10.3 - OS X (Classic mode) or newer (Version 10.3 or later is recommended.) *Weight and dimensions shown are approximate. *Design, functions, and specifications are subject to change without notice. *Some sample images are simulated. *Some accessories are not available in some countries. *The use of
recorded or printed materials that are protected by copyright for any purpose other than personal enjoyment is prohibited, as it would infringe upon the rights of the copyright holder. *Adobe is a trademark or registered trademark of Adobe Systems Incorporated in the United States and/or other countries.*Leica is a registered trademark of Leica Microsystems IR
GmbH. * Elmarit is a registered trademark of Leica Camera AG. *The LEICA D VARIO-ELMARIT lens is manufactured using measurement instruments and a quality assurance system that have been certified by Leica Camera AG based on the company's quality standards. *Microsoft® Windows® is a registered trademark of Microsoft Corporation in the United States
and other countries. *Apple® and Mac OS® are registered trademarks of Apple Computer Inc. in the United States and other countries. *All other company and product names are trademarks of their respective corporations. *QuickTime and the QuickTime logo are trademarks or registered trademarks of Apple Computer, Inc., used under license.
15
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
