Compact Stereo System
Model No. SC-AP01
METHOD 2
1
Press and hold both buttons for 2 sec.
Setting up SC-AP01
1
(Lights red)
“Wi-Fi”
Turn on
Turn on
“Setup _ _ _ _ _ _”
Your home
wireless network name
(SSID)*4
*4 : You may be prompted for the
password. Enter the password of
your home wireless network.
Enter your home wireless network details
1
Is your wireless network router
WPS compatible?
Display SC-AP01’s network setting page.
2
I don’t know
- Doesn’t support WPS
- METHOD 1 didn’t work*2
Select “Panasonic AP01 _ _ _ _ _ _” from the AirPlay “
and start play.
Address bar :
Type in
“192.168.1.12”
“Safari”
2
Preparation
Before proceeding,
check your home
wireless network name
(SSID) and password.
” icon
“Panasonic AP01 _ _ _ _ _ _ ”
“Music”
“Go”
- Supports WPS*1
(Push Button Configuration)
“Wi-Fi”
“Settings”
Connect your iOS device to SC-AP01’s setup network.
“Settings”
Set up SC-AP01 by following the method that suits you best.
Yes
Connect your iOS device to your home wireless network.
(Blinks purple)
Step 1
2
e.g., iPhone 4
(Lights blue)
VOLUME
Wireless network
router
SC-AP01
Preparation
- Make sure SC-AP01 is turned on.
Turn on SC-AP01 and then activate the network setup mode.
AirPlay function allows you to stream music wirelessly from an iOS device,
such as iPhone or iPod touch to the speakers of SC-AP01.
To use the AirPlay function, SC-AP01 must join the same wireless network
as the iOS device through the wireless network router (access point).
iOS 4.2 or later
- iPod touch (2nd, 3rd, and 4th generation)
- iPhone 4S, iPhone 4, iPhone 3GS
- iPad 2, iPad
iTunes 10.2 or later
- Mac / PC
The following explanations are based on an iPhone.
Connect your iOS device to SC-AP01

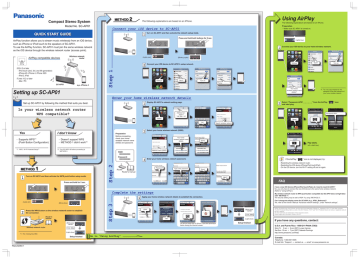

QUICK START GUIDE
AirPlay compatible devices
Using AirPlay
The following explanations are based on an iPhone.
“
”
“Search wireless network”
Select your home wireless network (SSID).
Your home
wireless network name
(SSID)
“Done”
“
”
Play starts.
(with a slight delay)
*2 : Turn SC-AP01 off before proceeding to
METHOD 2.
*1 : WPS : Wi-Fi Protected SetupTM
“Network name (SSID)”
SSID:
XXXXXXXXXXXX
METHOD 1
1
Turn on SC-AP01 and then activate the WPS push button setup mode.
Press and hold for 2 sec.
Step 2
Password:
XXXXXXXXXXXX
3
Enter your home wireless network password.
“Password”
Router
Router’s manual
If the AirPlay “
Type in the password
- Restarting the wireless network router.
- Restarting the iOS deviсe (iPhone/iPod touch/iPad).
- On the iOS device, turn the Wi-Fi® setting off and on again.
“Done”
“NEXT”
FAQ
I have a new iOS device (iPhone/iPod touch/iPad), do I need to reset SC-AP01?
No, you only have to connect the new iOS device to the same home wireless network.
(Refer to “Using AirPlay”)
VOLUME
VOLUME
Complete the settings
2
(Blinks blue)
Press the WPS button on the wireless network router to establish
the connection.
*
3
Router’s
manual
Step 3
1
(Lights red)
(Blinks blue
rapidly)
Wireless network router
*3 : The marking may differ.
My wireless network router is WPS push button compatible but SC-AP01 does not light blue
with “METHOD 1”.
The security setting may be set to WEP. Try using “METHOD 2”.
Apply your home wireless network details to establish the connection.
Can I change the display name for SC-AP01 (e.g., AP01_Bedroom)?
Yes, refer to the Owner’s Manual “Advanced network settings”, under “Network settings”.
“JOIN”
(Blinks blue
rapidly)
“
“
”
”
“OK”
2 min. (Max)
(Lights blue)
On devices other than an iPhone, close the tab/window
before closing the Internet browser.
Setup finished
AirPlay, the AirPlay logo, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance. "Wi-Fi" and "Wi-Fi Protected Setup" are marks or registered marks of
the Wi-Fi Alliance.
All other trademarks are trademarks of their respective owners.
Screen images used in this sheet : iPhone 4, iOS 5.0.1
If you have any questions, contact:
U.S.A. and Puerto Rico: 1-800-211-PANA (7262)
Mon-Fri: 9 am  9 pm (EST) Lunes-Viernes
Sat-Sun: 10 am  7 pm (EST) Sabado-Domingo
http://www.panasonic.com/help
2 min. (Max)
(Lights blue)
Setup finished
” icon is not displayed, try:
Go to “Using AirPlay”
Canada:
Telephone: 1-800-561-5505
E-mail link: “Support  contact us  email” on www.panasonic.ca
RQCA2060-1
