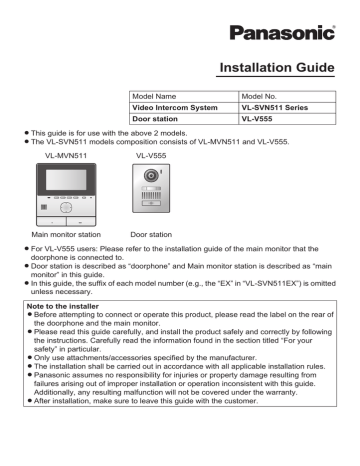

VL-SVN511 Installation Guide

VL-SVN511 Installation Guide
Installation Guide
Model Name
Model No.
Video Intercom System
VL-SVN511 Series
Door station
VL-V555
R This guide is for use with the above 2 models.
R The VL-SVN511 models composition consists of VL-MVN511 and VL-V555.
VL-MVN511
VL-V555
Main monitor station
Door station
R For VL-V555 users: Please refer to the installation guide of the main monitor that the
doorphone is connected to.
R Door station is described as “doorphone” and Main monitor station is described as “main
monitor” in this guide.
R In this guide, the suffix of each model number (e.g., the “EX” in “VL-SVN511EX”) is omitted
unless necessary.
Note to the installer
R Before attempting to connect or operate this product, please read the label on the rear of
the doorphone and the main monitor.
R Please read this guide carefully, and install the product safely and correctly by following
the instructions. Carefully read the information found in the section titled “For your
safety” in particular.
R Only use attachments/accessories specified by the manufacturer.
R The installation shall be carried out in accordance with all applicable installation rules.
R Panasonic assumes no responsibility for injuries or property damage resulting from
failures arising out of improper installation or operation inconsistent with this guide.
Additionally, any resulting malfunction will not be covered under the warranty.
R After installation, make sure to leave this guide with the customer.
For your safety
To prevent severe injury and loss of life/property,
read this section carefully before using the product
to ensure proper and safe operation of your
product.
WARNING
Preventing fire, electric shock and short circuits
R Leave installation work to the dealer.
Installation work requires technique and
experiences. Failure to observe this may
cause fire, electric shock, injury, or damage
to the product. Consult the dealer.
R Electrical connection work should be
performed by certified personnel only.
Certification is required for performing
electrical connection work. Consult your
dealer.
R Use only the specified power supply unit and
AC cable.
R Do not attempt to disassemble or modify this
product. Contact an authorised service centre
for repairs.
R Never install wiring during a lightning storm.
R Do not connect non-specified devices.
R Do not connect a power cable to a terminal that
is not specified in this guide.
R When opening holes in walls for installation or
wiring, or when securing the power cable, make
sure you do not damage existing wiring and
ductwork.
R Do not make any wiring connections when the
power supply is turned on.
R Do not use the supplied power supply unit for
outdoor installations (it is for indoor use only).
R Do not install the main monitor and power
supply unit in the following places:
– Places where the main monitor and power
supply unit may be splashed with water or
chemicals.
– Places where there is a high concentration of
dust, or high humidity.
R Do not perform any actions (such as fabricating,
twisting, stretching, bundling, forcibly bending,
damaging, altering, exposing to heat sources, or
placing heavy objects on the power cable) that
may damage the power cable. Using the
product with a damaged power cable may
2
cause electric shock, short circuits, or fire.
Contact an authorised service centre for repairs.
R When existing chime wires are used, it is
possible that they contain AC voltage.
Contact an authorised service centre.
Preventing accidents and injuries
R Do not install or use the product in health care
facilities if any regulations posted in the area
instruct you not to do so. Hospitals or health
care facilities may be using equipment that
could be sensitive to external RF (radio
frequency) energy.
R Do not install or use this product near
automatically controlled devices such as
automatic doors and fire alarms. Radio waves
emitted from this product may cause such
devices to malfunction, resulting in an accident.
CAUTION
Preventing electric shock
R If the wiring is underground, do not make any
connections underground.
R If the wiring is underground, use a protection
tube.
R If the wiring is outdoors, use a protection tube or
a surge protector.
Preventing injury
R Install the product securely adhering to the
instructions in this guide to prevent it from falling
off the wall. Avoid installing onto low-strength
walls, such as gypsum board, ALC (autoclaved
lightweight concrete), concrete block, or veneer
(less than 18 mm thick) walls.
Supplied accessories for installation
For the doorphone
*1
Mounting base ´ 1
Screw ´ 4
(4 mm ´ 12 mm)
For the main monitor *2
Screw ´ 2
(3.8 mm ´ 20 mm)
Name plate ´ 2
(incl. 1 spare)
Relay box *2
Cable binder ´ 21
Cable binder ´ 1
*1
*1
Mounting bracket ´ 1
Hex wrench ´ 1
Screw ´ 2
(4 mm ´ 16 mm)
Power supply unit and related items *3
Relay box´ 1
Screw ´ 2
(4 mm ´ 40 mm)
Power supply unit and related items *1
Cable binder ´
1
Power supply unit ´ 1
(Part No. VL-PS240)
Cable binder ´ 2
Power supply unit ´ 1
(Part No. VL-PS241)
AC cable ´ 1
Screw ´ 2
(4 mm ´ 40 mm)
Important:
R You will need the following additional items to install and configure the doorphone and the
main monitor.
[Locally procured]
– Screws (for mounting base: ´ 2, for mounting bracket: ´ 2):*3
Prepare the screws (athe drawing on the right) according to the
material, structure, strength and other factors of the mounting area
and the total weight of objects to be mounted.
4 mm
– Power cables (AC/DC cables), wires (for doorphone and other connections):
Prepare cables and wires of the appropriate specification. (a“Wire type and length”)
Note:
R The illustrations in the supplied manual(s) may vary slightly from the actual product.
*1 VL-SVN511 AZ models only
*2 VL-V555 models not included.
*3 VL-SVN511 EX/FX models only
3
Precautions for installation
To avoid malfunction or communication disturbances, do not install the doorphone or the main monitor in
the following locations:
– Places where vibration or any other kind of impact occurs.
– Places where echoing is frequent.
– Places near a high concentration of dust, hydrogen sulphide, ammonia, sulphur, or noxious fumes.
For the doorphone
R If a strong light is shining on the doorphone, the visitor’s face may not be distinguishable. Do not place
the doorphone in the following locations:
– Where most of the background is the sky.
– Where the background is a white wall, and direct sunlight will reflect off it.
– Where direct sunlight will shine on the doorphone.
R Do not place the doorphone in locations where echoing occurs, as this will cause the doorphone to
beep frequently.
R Dust protection/water protection is IP54.
Only when installation work specified in this guide is properly performed and appropriate water
protection treatment is performed.
R Make sure the rear of the doorphone is not subject to water.
R Depending on the installation location, condensation may form on the doorphone’s lens cover. This
may cause images to become obscured. Condensation will dissipate as the temperature rises.
For the main monitor
R Install the main monitor away from electronic appliances such as TVs, radios, personal computers, air
conditioners, boiler control panels with intercom, home security equipment, wireless devices, or digital
cordless phones.
R Do not install the main monitor in places where it will be affected by extremely high-frequency radio
waves (near broadcasting antennas etc.). This may cause the display to flicker or an interrupting noise
to occur.
R Leave at least 20 cm of space above, below, and to the left and right sides of the main monitor. Do not
install on a wall that is deeply recessed.
R Do not install the main monitor inside a wall.
R Be sure to install the main monitor more than 5 m away from the doorphone.
R The product operates in the frequency range of 2.412 GHz and 2.472 GHz with a peak transmission
power of 100 mW (max.). Refer to the “For best performance” section in the Operating Instructions.
R In areas surrounded by a high electrical field, disturbances may occur in the main monitor’s image or
sound.
4
Wiring schematic diagram
Set up correctly according to the following wiring schematic diagram and “Wire type and length”.
R For information, such as order numbers, about optional devices that can be connected to, refer to the
“Additional/replacement accessories” section in the Operating Instructions.
R For VL-V555 users: Refer to the wiring diagram of the Video Intercom device that VL-V555 is
connected to.
DOORPHONE 1 *4 DOORPHONE 2 *4
*1 You can also connect an
optional lobby station for
apartment complexes.
("Connecting an optional lobby
station" see page 7.)
MAIN MONITOR
S1 S2
1
1 2
R1 R2 R3
D
S3 S4
2
C
Electric lock
E
RELAY BOX
NP
A
12 V AC/DC
NP
A
12 V AC/DC
Electric lock
F
220-240 V AC *2
*3
NP
A
NP
*1
NP
1
2
3
4
5
6
7
8
9
10
11
12
13
NP
D1
D2
D3
D4
R1
R2
R3
IN1
IN2
IN3
IN4
P1
P2
B
NP
Connection device for option
Input (A contact)
G
NP
NP: Non-polarised
PBX
Terminal box
(4-conductor
wiring)
24 V DC
POWER SUPPLY UNIT
A Power supply
*1 VL-SVN511AZ models only
*2 VL-SVN511EX/FX models only
*3 VL-SVN511 AZ models: Use only the supplied AC cable.
*4 When you use an additional doorphone, the maximum number of the electric locks that can be
connected to the doorphone depends on the type of doorphone. Consult your dealer for further
information.
5
Wire type and length
Wire type *1
Wiring run
Main monitor –
Doorphone
(including lobby station)
Main monitor –
Power supply unit
Diameter
A
B
Length (Max.)
ø 0.65 mm
22 AWG
100 m
ø 1.0 mm
18 AWG
130 m
ø 0.5 mm
CAT 5
50 m
ø 0.65 mm
22 AWG
10 m
ø 1.0 mm
18 AWG
20 m
Power supply unit –
AC power source
ø 1.2 mm – ø 2.0 mm
(17 AWG – 12 AWG)
C
Main monitor –
Relay box
D
Relay box –
Electric lock *2
E
ø 0.5 mm – ø 1.2 mm
(24 AWG – 17 AWG)
According to
specification of
connected device.
Main monitor –
Connection device for
option input (A contact) *2
F
ø 0.5 mm – ø 1.2 mm
(24 AWG – 17 AWG)
According to
specification of
connected device.
Main monitor –
PBX
G
No requirement
ø 0.65 mm
22 AWG
100 m
ø 1.0 mm
18 AWG
130 m
ø 0.65 mm
CAT 3 or 22 AWG
100 m
*1 Type: Single-pair cable with outer sheath (jacket)
Conductor: Copper solid
R A certified power supply wiring has to be used with this equipment. The relevant national
installation and/or equipment regulations shall be considered. A certified power supply wiring not
lighter than ordinary polyvinyl chloride flexible wiring according to IEC 60227 shall be used.
*2 When using an electric lock or a connection device for option input (A contact), select a device that
meets the following guidelines:
R Electric lock connection terminal (S1/S2, S3/S4):
– N/O dry closure contact
– 12 V AC/DC, less than 1 A
R Connection device for option input (A contact) terminal (IN1/IN2/IN3/IN4):
– Input method: No-voltage contact
– Open-circuit voltage between terminals: DC 7 V or less
– Detection definite time: 0.1 second or more
– Short-circuit between terminals: 5 mA or less
– Resistance value: make: 500 W or less make, break: 15 KW or more
6
n Connecting an optional lobby station (VL-SVN511AZ models only)
Lobby station
(VL-V590)
MAIN MONITOR
<Rear view>
NP
S3 S4
2
1
2
3
4
5
6
7
8
9
10
11
12
13
S1 S2
1
1 2
R1 R2 R3
D1
D2
D3
D4
R1
R2
R3
IN1
IN2
IN3
IN4
P1
P2
NP
<Rear view>
Electric lock
NP
Power
supply
30 V AC/
24V DC
NP: Non-polarised
<Connecting an optional lobby station for apartment complexes>
R Be sure to perform the following to ensure proper operation
– Connect terminal D1/D2 on the main monitor with terminal D1/D2 on the lobby station.
– Connect terminal R1/R2 on the main monitor with terminal R1/R2 on the Relay box.
– Connect terminal S1/S2 on the Relay box with terminal S1/S2 on the lobby station.
– After connecting to the main monitor, change the [Lobby connection] setting to [Device connected]
using the main monitor. (®Operating Instructions of the Video Intercom System.)
R For information about lobby station connections, refer to the manuals of the lobby station.
7
Doorphone installation position
Installation height and area visible by the camera lens (when connected to VL-SVN511 series)
You can use the [Wide/Zoom settings] setting on the main monitor to select the area that is visible when
a visitor calls; available settings are [Wide] and [Zoom]. (Default setting: [Wide])
R The following values are for when the doorphone is installed in the standard position (the centre of the
doorphone’s height is approximately 1450 mm) and at a distance of approximately 500 mm from the
camera lens.
When set to wide (default)
(Units: mm)
A
F
B
A view when looking
from above
Image displayed on
main monitor
G
C
J
I
D
E
H
A Image range B 130° C Centre of doorphone D Approx. 1450 E Approx. 500 F Approx. 2500
G Approx. 2100 H Approx. 400 I Approx. 170° J Approx. 500
When set to zoom
Displays a portion of the wide image at 2 times the size.
R Because a digital zoom is used, the image quality of zoom display is
lower than that of wide display or entire image display.
Image displayed on
main monitor
R You can use the main monitor’s [Zoom position settings] setting to select the desired area visible when
zooming.
Refer to the following and configure the main monitor.
8
Up and down
Left and right (when looking from above)
(Units: mm)
Up
(Units: mm)
Left
A
F
B
A
G
B
C
C
D
E
D
H
A Image range B Approx. 80° C Center of
doorphone D Approx. 1450 E Approx. 500
F Approx. 2500 G Approx. 1200
H Approx. 1300
A Image range: Approx. 1200 B Approx. 500
C 100° D Approx. 170°
Centre (default)
Centre (default)
B
A
A
F
G
C
D
B
E
H
C
A Image range B Approx. 80° C Center of
A Image range: Approx. 1300 B Approx. 500
doorphone D Approx. 1450 E Approx. 500
C 105°
F Approx. 1900 G Approx. 900 H Approx. 1000
Down
Right
B
A
F
C
A
B
G
C
D
E
D
H
A Image range B Approx. 80° C Center of
A Image range: Approx. 1200 B Approx. 500
doorphone D Approx. 1450 E Approx. 500
C 170° D Approx. 100°
F Approx. 1600 G Approx. 1200 H Approx. 400
9
When using mounting box (option):
Model No. VL-MB554
Install the flush mounting box (A) in the
wall.
Installing the doorphone
Important:
R On the bottom surface of the doorphone and the
mounting base, there are holes to allow water to
drain. Do not cover them up when installing.
R When existing wiring (such as chime wires) is
used:
– It may contain AC voltage that may cause
electric shock and/or damage the product.
– Never use the following types of wiring.
Consult a qualified technician/dealer.
A
C
B
とる
D
E
R See “Wire type and length” for information about
wiring materials.
1
Attach the mounting base (B) (accessory) to
the wall securely.
R Install the mounting base on a vertical flat
wall.
*1
B
B Knockout hole*1
C 100 mm D 151 mm E 37 mm
*1 Only open the knockout holes as
required for the wiring.
2
Use a hex wrench (A) (accessory) to loosen
screw A (B) and remove the front panel (C)
of the doorphone.
とる
A
D
C
C
A Screws (locally procured) ´ 2
(VL-SVN511AZ models: included)
C Wire (locally procured)
D 83.5 mm
*1 To prevent dew condensation, fill a hole
for wiring as much as possible.
10
A
B
A 2 mm hex wrench
3
Connect the wires.
Loosen the screws. Push in the wires to the
terminal connectors (non-polar), then tighten
the screws (A).
When using mounting box (option):
Model No. VL-MB554
Attach the doorphone to the flush
mounting box.
1
とる
A
4
– Recommended-torque: 0.5 N·m
{5.1 kgf·cm}
– Maximum-torque: 0.7 N·m {7.1 kgf
cm}
A
Attach the doorphone to the mounting base.
A Screws (accessory) ´ 4
とる
5
Attach the name plate (A) (accessory) to the
doorphone and use screw A (B) to secure the
front panel.
R Write the name on the name plate as
needed.
A
Screws (accessory) ´ 4
A
B
B Recommended torque: 0.35 N·m
{3.6 kgf·cm}
11
Power supply unit (with cable covers removed)
Installing the power supply
unit (VL-SVN511EX/FX
models only)
About the installation location
R The device must be installed inside an electrical
panel or cabinet.
R A readily accessible disconnect device shall be
incorporated external to the equipment.
– External disconnect device must be certified
and have a creepage and clearance distance
of 3 mm or more.
Precautions for wiring
R Make sure you turn off the power at the breaker
before performing any wiring work.
R Always connect AC or DC cables to the
appropriate connection terminals. Incorrectly
connecting the AC or DC cables may damage
the power supply unit.
R To prevent the power cables from disconnecting
and to prevent electric shock, secure the power
cables using the cable binders (accessory) and
attach the cable covers.
Top view
L
M
J
B
K
L AC cable binder hole
M DC cable binder hole
1
Strip the AC/DC cables as follows:
AC cable (A, C), DC cable (B, C)
2
Remove the screws (E) and then remove the
cable covers (D).
3
Connect the AC cable (F) to the AC IN
terminal (J)/DC cable (H) to the DC OUT
terminal (K) on the top and bottom of the
power supply unit, and then secure the wires
by tightening the screws (G).
R Recommended torque:
– AC terminal: 0.4 N·m {4.1 kgf·cm}
– DC terminal: 0.45 N·m {4.6 kgf·cm}
CAUTION
Insert the cables firmly all the way into the
terminals. If the cables are not inserted all
the way, heat may be generated.
How to connect the power cable (AC/DC):
Connect the power supply unit (accessory) and
AC/DC cables (locally procured).
A
Bottom view
4
Use the cable binders (I) (accessory) to
secure the AC/DC cables (F) (H)
(double-coated area) to the power supply unit.
A 45 mm B 25 mm C 7 mm
5
Make sure to replace the cable covers (D).
Front view
Attach to the DIN rail:
Attach in the order described below so that hook
(A) is positioned at the bottom.
C
C
5
*1 I
F
G
1
2
3
1 Hang hook (B) on the DIN rail (C).
Pull and hold the lever down (D).
Secure hook (A) to the DIN rail (E).
B
D
5
E4
H I
C
*1
F AC cable H DC cable
*1 Do not connect the AC cable and DC cable
inversely. That would be a cause of
malfunctions.
Make sure that there are no bare wires
exposed outside the product.
12
E
A
D
Power supply unit (with cable cover removed)
Installing the power supply
unit (VL-SVN511AZ models
only)
About the installation location
R The AC cable plug is used as the main
disconnect device. Ensure that the power outlet
is installed near the product and is easily
accessible.
R A readily accessible disconnect device shall be
in corporated external to the equipment.
– External disconnect device must be certified
and have a creepage and clearance distance
of 3 mm or more.
Top view
K
I
A
B
J
K DC cable binder hole
1
Strip the DC cables as follows:
DC cable (A, B)
2
Remove the screws (D) and then remove the
cable cover (C).
3
Connect the AC cable (E) (accessory) to the
AC IN connector (I) on the top of the power
supply unit. Next, connect the DC cable (G)
(locally procured) to the DC OUT terminal (J)
on the bottom of the power supply unit, and
then secure the wires by tightening the screws
(F).
R Recommended torque: 0.45 N·m
{4.6 kgf·cm}
Precautions for wiring
R Make sure that the power supply unit is
unplugged before performing any wiring work.
R Always connect AC or DC cables to the
appropriate connector or connection terminal.
R To prevent the DC cable from disconnecting
and to prevent electric shock, secure the DC
cable using the cable binder (accessory) and
attach the cable cover.
How to connect the AC cable and DC cable:
Connect the power supply unit (accessory), the
AC cable (accessory), and a DC cable (locally
procured).
Bottom view
CAUTION
Insert the cables firmly all the way into the
terminals. If the cables are not inserted all
the way, heat may be generated.
4
Use the cable binder (H) (accessory) to
secure the DC cable (G) (double-coated area)
to the power supply unit.
5
Make sure to replace the cable cover (C).
4
Wall mounting:
Attach the power supply unit to the wall securely.
A 25 mm B7 mm
Front view
AScrews (accessory) ´ 2
E
A
F
4
C
D3
G H
*1
*1 Make sure that there are no bare wires
exposed outside the product.
13
Main monitor installation
position
About the installation position of the main
monitor and mounting bracket
R Place the main monitor in a location that your
eyes are the same height as the centre of the
display.
R For the following reasons, leave at least 20 cm
(A) of space above, below, and to the left and
right sides of the main monitor:
– To prevent malfunction and sound cutting out
– To ensure to make sure the reset button (B)
can be used (the reset button is on the
bottom of the main monitor)
Installing the main monitor
1
Attach the mounting bracket (A) to the wall
securely.
R Install the mounting bracket on a vertical flat
wall (B).
A
B
D
E
F
C
H
G
C Screws (locally procured)
(VL-SVN511AZ models: included)
D Hole in wall E 60 mm F 83.5 mm
G 7 mm H 50 mm
1
1
1
2
2
1
2-1 How to connect the DC cable
A Remove screw A (A) and then remove the
terminal cover.
B Loosen screw B (B) and push in the wires
of the DC cable to the terminal connectors
(non-polar), then tighten the screws.
R Recommended torque: 0.8 N·m {8.2 kgf·cm}
C Use the cable binder (E) (accessory) to
secure the DC cable (double-coated area) to
the main monitor.
D Make sure to replace the terminal cover.
R After deciding where to install the main monitor,
attach the mounting bracket in the location
shown below.
D
C
Connect the DC cable and wires.
R Connect the wires correctly according to
“Wiring schematic diagram”.
E
C Main monitor installation position
D 80.5 mm
E 86.8 mm
2-1
1
2-2
D
B
E
Bare wire at tip
C 7 mm D 30 mm
14
C
2-2 How to make wiring connections
While pressing on the button (F) with a
pointed object such as a screwdriver, insert
the wire into the terminal (G) connector. (To
disconnect a wire, while pressing on the
Button (F), pull out the wire.)
G
Installing the relay box
Wiring when you connect the main monitor cable
and electric lock using rely box
B
F
H
A
I
C
A 9 mm B 25 mm C 7 mm
Front view
H Bare wire at tip 9mm
I Wiring from doorphone
6 7 8
4
5
Important:
Do not connect the power cable.
(Damage may occur.)
3
S1 S2
1
S3 S4
2
9
1 2
R1 R2 R3
1 2
R1 R2 R3
button
Mount the main monitor to the mounting
bracket.
k
Relay box (with cable cover removed)
Top view
j
3-1 Line up the tab on the bottom of the
bracket with the groove on the main monitor.
3-2 Line up the tab on the top of the bracket
with the groove on the main monitor, and push
the main monitor down until it is secure.
L Cable binder hole
Bottom view
m
l
then the
1
Strip the cables from main monitor (A) and
cable from electric lock (B, C)
2
3
Remove the screws (D) and cable cover (E).
Connect the cables from the electric lock (F,
G: if 2 electric locks are connected) to the
electric lock terminal connector (J) on the top
of the relay box and then secure the wires by
tightening the screws (I).
R Recommended torque: 0.45 N·m
{4.6 kgf·cm}
s
4
Use the cable binder (H) (accessory) to
secure the cable from electric lock (F, G)
(double-coated area) to the relay box.
5
6
Make sure to replace the cable cover (E).
While pressing on the button with a pointed
object such as a screwdriver, insert the cable
from main monitor (K) into the main monitor
terminal connector (M). (To disconnect a
15
cable while pressing on the button, pull out the
cable.)
When installing with a DIN rail:
For more informaition, refer to “Attach to the DIN
rail:” (page 12) and “Wall mounting:” (page 13).
16
Notes
17
Notes
18
Notes
19
1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan
http://www.panasonic.com/
© Panasonic System Networks Co., Ltd. 2015
PNQX7572ZA C0915MM0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
