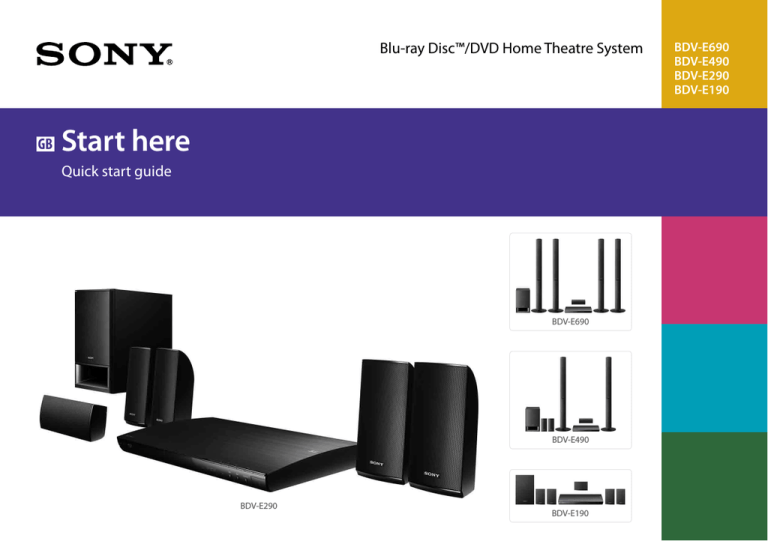

Blu-ray Disc™/DVD Home Theatre System
GB
Start here
Quick start guide
BDV-E690
BDV-E490
BDV-E290
BDV-E190
BDV-E690
BDV-E490
BDV-E290
BDV-E190
1
2
3
What’s in the box/Setting up the speakers
BDV-E690





Connecting your TV


BDV-E490


Connecting other devices




4
5
The on-screen Easy Setup
BDV-E290



 

Playing a disc and using other functions
BDV-E190




 
 Main unit
What’s in the box
 Front speakers
 Surround speakers
 Center speaker
 Subwoofer
Remote
Speaker-bottom covers
(BDV-E690 (4) /BDV-E490 (2))
Foot pads
(BDV-E190 (2))
Screws (with washer)
(BDV-E690 (4) /BDV-E490 (2))
Screws (without washer)
(BDV-E690 (12) /BDV-E490 (6))
R6 (size AA) batteries (2)
FM wire antenna (aerial)
Dock for iPod/iPhone
(BDV-E690/BDV-E490/BDV-E290)
Video cord
or
(TDM-iP30)
USB cable
(BDV-E690/BDV-E490/BDV-E290)
03
1
Start by positioning the speakers
according to the labels on the
rear panel.
SUBWOOFER
FRONT L
FRONT R
CENTER
Main unit
SUR L
04
SUR R
Next, connect the speakers to the
main unit.
For BDV-E690/BDV-E490, refer to
the supplied “Speaker Installation
Guide” for assembling the
speakers.
05
2
To enjoy high-quality video and
audio, connect via a High Speed
HDMI cable  (not supplied).
If your TV has no HDMI ARC jack,
you also need a digital optical
cord  (not supplied) to enjoy
TV sound through the system
speakers.


06
3
To connect your set-top box, game
console, or digital satellite receiver,
make an audio connection to the
main unit with a digital optical
cord  (not supplied). Separately,
make a video connection to the
TV.
For FM radio, connect the supplied
wire antenna (aerial) and extend it
for the best reception. 
You can also connect your iPod
or iPhone to the system and your
TV via the supplied dock. 
(BDV-E690/BDV-E490/BDV-E290
only)


or

07
3
You can connect to the Internet
and home network via a LAN
cable (not supplied). If you use
the optional USB Wireless LAN
Adapter, Wi-Fi is available.
Network settings can be found in
the home menu (page 12).
For further details, visit:
http://support.sony-europe.com/
To a broadband router
08
Connect the AC power cord
(mains lead) to a wall outlet
(mains).
09
4
Press / to turn the system on.
“SETUP” appears in the front
panel display.
To ready the system for use,
go through the on-screen Easy
Initial Settings using the supplied
remote. This should only take a
few minutes.
If the setup screen is not
displayed, select the correct AV
input in your TV.
/
///,
10
Once [Easy Initial Settings are
complete.] appears on the
screen, select [Finish] and the
system is ready to use.
5
To play a disc, press , then place
the disc on the disc tray. Press 
again to close the disc tray.
If playback does not start
automatically, select in the
[Video], [Music], or [Photo]
category, and press .
Enjoy!


11
To access more features, simply press
HOME.
Examples:
 Listen to the radio through the system’s
speakers
 Preset radio stations
 Access Internet content
 Play your iPod or iPhone through the
system’s speakers





You can make network
settings via this menu
when the main unit
is connected to a
broadband router.
12




HOME
Presetting radio stations
1 Press FUNCTION repeatedly
until “FM” appears in the front
panel display.
2 Press and hold TUNING +/–
until auto scanning starts.
3 Press OPTIONS.
4 Press / to select [Preset
Memory], then press .
5 Press / to select the preset
number you want, then press
.
6 Repeat Steps 2 to 5 to store
other stations.
Selecting a preset station
1 Press FUNCTION repeatedly
until “FM” appears in the front
panel display.
2 Press PRESET +/– repeatedly to
FUNCTION
///,
OPTIONS
HOME
PRESET +/–
select the preset station.
TUNING +/–
13
Troubleshooting
If you experience any of the following difficulties while using
the system, use this troubleshooting guide to help remedy the
problem before requesting repairs.
Also consult the Operating Instructions on the following website:
http://support.sony-europe.com/
The power does not turn on.
‚‚Check that the AC power cord (mains lead) is securely
connected to the wall outlet (mains).
The system does not work normally.
‚‚Disconnect the AC power cord (mains lead) from the wall
outlet (mains), then reconnect after several minutes.
The system does not output sound of the TV program when
connected to a set-top box.
‚‚Check the connections.
‚‚Select the correct input of the system to which the set-top box
is connected.
A disc does not play.
‚‚The region code of the disc does not match the system.
‚‚Moisture has condensed on the lenses inside the main unit.
Remove the disc and leave the main unit turned on for about
half an hour.
‚‚The disc is not correctly finalized.
Reducing power usage to less than 0.3 W in
Standby Mode
Press HOME, and then press /// to select [Setup] in [System
Settings]. Check that the following settings are made:
ˎˎ [Control for HDMI] in [HDMI Settings] is set to [Off ].
ˎˎ [Quick Start Mode] is set to [Off ].
14
15
This quick start guide saves paper
To save natural resources, Sony has drastically reduced paper by no longer including full
printed manuals. However, full operating instructions, and more, can be found online:
http://support.sony-europe.com/
4-418-867-11(1)
2012 Sony Corporation
Printed in Malaysia
(1)
