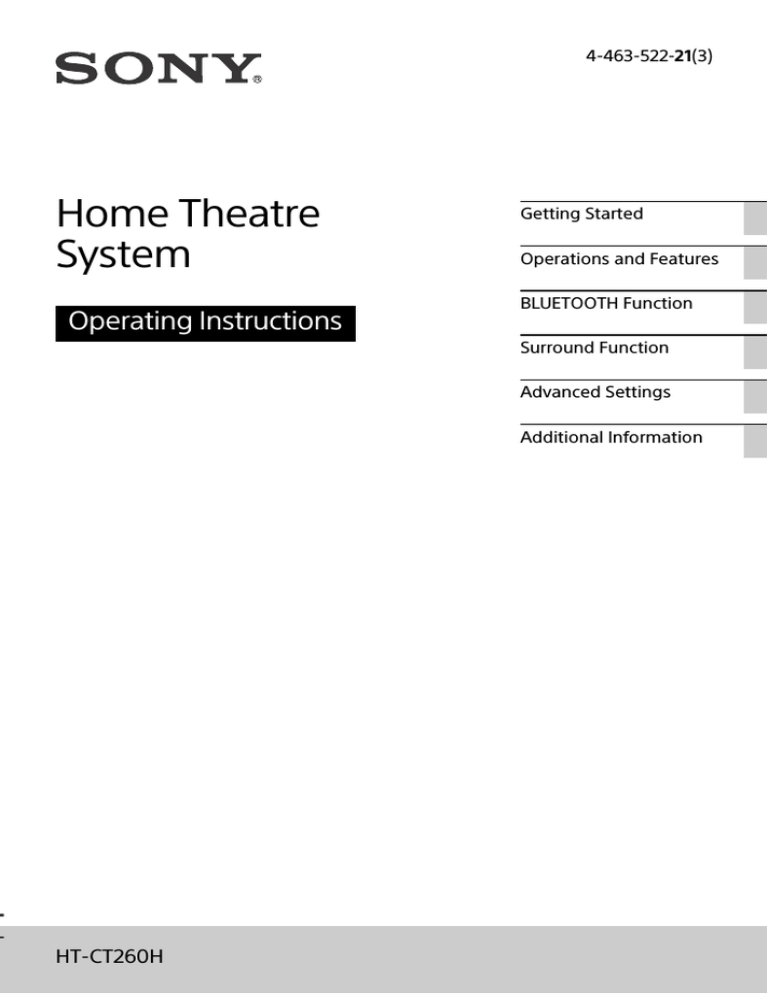

4-463-522-21(3)
Home Theatre
System
Operating Instructions
Getting Started
Operations and Features
BLUETOOTH Function
Surround Function
Advanced Settings
Additional Information
HT-CT260H
WARNING
Do not install the appliance in a confined
space, such as a bookcase or built-in
cabinet.
To reduce the risk of fire, do not cover the
ventilation opening of the appliance with
newspapers, tablecloths, curtains, etc.
Do not expose the appliance to naked
flame sources (for example, lighted
candles).
To reduce the risk of fire or electric shock,
do not expose this appliance to dripping
or splashing, and do not place objects
filled with liquids, such as vases, on the
appliance.
The unit is not disconnected from the
mains as long as it is connected to the AC
outlet, even if the unit itself has been
turned off.
As the main plug is used to disconnect
the unit from the mains, connect the unit
to an easily accessible AC outlet. Should
you notice an abnormality in the unit,
disconnect the main plug from the AC
outlet immediately.
Do not expose batteries or appliances
with battery-installed to excessive heat,
such as sunshine and fire.
Indoor use only.
Recommended cables
Properly shielded and grounded cables
and connectors must be used for
connection to host computers and/or
peripherals.
2GB
Notice for customers: the
following information is only
applicable to equipment sold in
countries applying EU
directives.
This product has been manufactured by
or on behalf of Sony Corporation, 1-7-1
Konan Minato-ku Tokyo, 108-0075 Japan.
Inquiries related to product compliance
based on European Union legislation
shall be addressed to the authorized
representative, Sony Deutschland
GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Germany. For any service or
guarantee matters, please refer to the
addresses provided in the separate
service or guarantee documents.
Hereby, Sony Corp., declares that this
equipment is in compliance with the
essential requirements and other
relevant provisions of Directive 1999/5/
EC.
For details, please access the following
URL:
http://www.compliance.sony.de/
This equipment has been tested and
found to comply with the limits set out in
the EMC Directive using a connection
cable shorter than 3 meters.
Disposal of Old
Electrical &
Electronic
Equipment
(Applicable in
the European
Union and other
European
countries with
separate collection systems)
This symbol on the product or on its
packaging indicates that this product
shall not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling
of this product. The recycling of materials
will help to conserve natural resources.
For more detailed information about
recycling of this product, please contact
your local Civic Office, your household
waste disposal service or the shop where
you purchased the product.
By ensuring these batteries are disposed
of correctly, you will help prevent
potentially negative consequences for
the environment and human health
which could otherwise be caused by
inappropriate waste handling of the
battery. The recycling of the materials will
help to conserve natural resources.
In case of products that for safety,
performance or data integrity reasons
require a permanent connection with an
incorporated battery, this battery should
be replaced by qualified service staff
only.
To ensure that the battery will be treated
properly, hand over the product at endof-life to the applicable collection point
for the recycling of electrical and
electronic equipment.
For all other batteries, please view the
section on how to remove the battery
from the product safely. Hand the battery
over to the applicable collection point for
the recycling of waste batteries.
For more detailed information about
recycling of this product or battery,
please contact your local Civic Office,
your household waste disposal service or
the shop where you purchased the
product.
Disposal of waste
batteries (applicable
in the European
Union and other
European countries
with separate
collection systems)
This symbol on the battery or on the
packaging indicates that the battery
provided with this product shall not be
treated as household waste.
On certain batteries this symbol might be
used in combination with a chemical
symbol. The chemical symbols for
mercury (Hg) or lead (Pb) are added if the
battery contains more than 0.0005%
mercury or 0.004% lead.
3GB
On placement
Precautions
On safety
 Should any solid object or liquid fall into
the system, unplug the system and
have it checked by qualified personnel
before operating it any further.
 Do not climb on the Sound Bar or the
subwoofer, as you may fall down and
injure yourself, or system damage may
result.
On power sources
 Before operating the system, check that
the operating voltage is identical to
your local power supply. The operating
voltage is indicated on the nameplate
at the rear of the Sound Bar.
 If you are not going to use the system
for a long time, be sure to disconnect
the system from the wall outlet (mains).
To disconnect the AC power cord
(mains lead), grasp the plug itself; never
pull the cord.
 One blade of the plug is wider than the
other for the purpose of safety and will
fit into the wall outlet (mains) only one
way. If you are unable to insert the plug
fully into the outlet, contact your dealer.
 AC power cord (mains lead) must be
changed only at the qualified service
shop.
On heat buildup
Although the system heats up during
operation, this is not a malfunction. If you
continuously use this system at a large
volume, the system temperature of the
back and bottom rises considerably. To
avoid burning yourself, do not touch the
system.
 Place
the system in a location with
adequate ventilation to prevent heat
buildup and prolong the life of the
system.
 Do not place the system near heat
sources, or in a place subject to direct
sunlight, excessive dust, or mechanical
shock.
 Do not place anything at the rear of the
Sound Bar that might block the
ventilation holes and cause
malfunctions.
 If the system is being used in
combination with a TV, VCR, or tape
deck, noise may result, and picture
quality may suffer. In this case, place
the system away from the TV, VCR, or
tape deck.
 Use caution when placing the system
on surfaces that have been specially
treated (with wax, oil, polish, etc.) as
staining or discoloration of the surface
may result.
 Take care to avoid any possible injury
on the corners of the Sound Bar or the
subwoofer.
On operation
Before connecting other equipment, be
sure to turn off and unplug the system.
If you encounter color
irregularity on a nearby TV
screen
Color irregularities may be observed on
certain types of TV sets.
If color irregularity is
observed...
Turn off the TV set, then turn it on again
after 15 to 30 minutes.
If color irregularity is observed
again...
Place the system further away from the
TV set.
4GB
On cleaning
Clean the system with a soft dry cloth. Do
not use any type of abrasive pad,
scouring powder or solvent such as
alcohol or benzine.
If you have any question or problem
concerning your system, please consult
your nearest Sony dealer.
“WALKMAN” and “WALKMAN” logo are
registered trademarks of Sony
Corporation.
“PlayStation®” is a registered trademark
of Sony Computer Entertainment Inc.
Other trademarks and trade names are
those of their respective owners.
Copyrights
This system incorporates Dolby* Digital
and the DTS** Digital Surround System.
* Manufactured under license from
Dolby Laboratories.
Dolby, and the double-D symbol are
trademarks of Dolby Laboratories.
** Manufactured under license under
U.S. Patent Nos: 5,956,674; 5,974,380;
6,487,535 & other U.S. and worldwide
patents issued & pending. DTS, the
Symbol, & DTS and the Symbol
together are registered trademarks &
DTS Digital Surround and the DTS
logos are trademarks of DTS, Inc.
Product includes software. © DTS, Inc.
All Rights Reserved.
The BLUETOOTH® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by Sony Corporation is under
license.
This system incorporates High-Definition
Multimedia Interface (HDMI™)
technology.
The terms HDMI and HDMI HighDefinition Multimedia Interface, and the
HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLC in the
United States and other countries.
“x.v.Colour”and “x.v.Colour” logo are
trademarks of Sony Corporation.
BLUETOOTH wireless
technology
Supported BLUETOOTH version
and profiles
Profile refers to a standard set of
capabilities for various BLUETOOTH
product capabilities. See
“Specifications” (page 31) on the
BLUETOOTH version and profiles
supported by this system.
Notes
 For
you to use the BLUETOOTH
function, the BLUETOOTH device to be
connected must support the same
profile as this system. Even if the device
supports the same profile, the functions
may differ because of the specifications
of the BLUETOOTH device.
 The audio playback on this system may
be delayed from that on the
BLUETOOTH device because of the
characteristics of the BLUETOOTH
wireless technology.
Effective communication range
BLUETOOTH devices should be used
within approximately 10 meters
(unobstructed distance) of each other.
The effective communication range
may become shorter under the
following conditions.
continued
5GB
When a person, metal object, wall or
other obstruction is between the
devices with a BLUETOOTH
connection
 Locations where a wireless LAN is
installed
 Around microwave ovens that are in
use
 Locations where other
electromagnetic waves occur

Effects of other devices
BLUETOOTH devices and wireless LAN
(IEEE 802.11b/g) use the same
frequency band (2.4 GHz). When using
your BLUETOOTH device near a device
with wireless LAN capability,
electromagnetic interference may
occur.
This could result in lower data transfer
rates, noise, or inability to connect. If
this happens, try the following
remedies:
 Try connecting this system and
BLUETOOTH mobile phone or
BLUETOOTH device when you are at
least 10 meters away from the
wireless LAN equipment.
 Turn off the power to the wireless
LAN equipment when using your
BLUETOOTH device within 10 meters.
Effects on other devices
The radio waves broadcast by this
system may interfere with the
operation of some medical devices.
Since this interference may result in
malfunction, always turn off the power
on this system, BLUETOOTH mobile
phone and BLUETOOTH device in the
following locations:
 In hospitals, on trains, in airplanes, at
gas stations, and any place where
flammable gasses may be present
 Near automatic doors or fire alarms
6GB
Notes
 This system supports security functions
that comply with the BLUETOOTH
specification as a means of ensuring
security during communication using
BLUETOOTH technology. However, this
security may be insufficient depending
on the setting contents and other
factors, so always be careful when
performing communication using
BLUETOOTH technology.
 Sony cannot be held liable in any way
for damages or other loss resulting
from information leaks during
communication using BLUETOOTH
technology.
 BLUETOOTH communication is not
necessarily guaranteed with all
BLUETOOTH devices that have the
same profile as this system.
 BLUETOOTH devices connected with
this system must comply with the
BLUETOOTH specification prescribed by
the Bluetooth SIG, Inc., and must be
certified to comply. However, even
when a device complies with the
BLUETOOTH specification, there may be
cases where the characteristics or
specifications of the BLUETOOTH device
make it impossible to connect, or may
result in different control methods,
display or operation.
 Noise may occur or the audio may cut
off depending on the BLUETOOTH
device connected with this system, the
communications environment, or
surrounding conditions.
Table of contents
Precautions ............................... 4
BLUETOOTH wireless
technology .......................... 5
Getting Started
Unpacking ................................. 8
Index to parts and controls ...... 9
Connecting a TV, player,
etc. ...................................... 13
Positioning the system ........... 15
Setting up the Wireless
System ................................ 17
Operations and Features
Operating the system using
the supplied remote
control ................................18
Using the Control for HDMI
function ..............................18
Setting up the sound output
of the connected
equipment .........................19
BLUETOOTH Function
Using the BLUETOOTH
function ............................. 20
Surround Function
Enjoying the surround
effect .................................. 23
Advanced Settings
Settings and adjustments
using the AMP menu ....... 24
Linking the system (LINK) ........27
Additional Information
Troubleshooting ..................... 28
Specifications ........................... 31
Index ........................................ 34
7GB
Getting Started
Unpacking


Subwoofer (SA-WCT260H) (1)
Sound Bar (SA-CT260H) (1)
Inserting a battery into the
remote control
Insert an R6 (size AA) battery
(supplied) by matching the  and 
ends on the battery to the diagram
inside the battery compartment of the
remote control. To use the remote
control, point it at the remote control
sensor at the front of the Sound Bar.
Digital optical cable for a TV (1)
Remote control (RM-ANP110) (1)
 R6 (size AA) battery (1)
 Operating Instructions (1)
 Warranty (1)


Notes
 Do
not leave the remote control in an
extremely hot or humid place.
 Do not drop any foreign object into the
remote control casing, particularly
when replacing the battery.
 Do not expose the remote control
sensor to direct sunlight or lighting
apparatus. Doing so may cause a
malfunction.
 If you do not intend to use the remote
control for an extended period of time,
remove the battery to avoid possible
damage from battery leakage and
corrosion.
 When you remove the battery, the
manufacturer of TV you set (page 12) is
reset.
8GB
Index to parts and controls
For more information, see the pages indicated in parentheses.
Sound Bar
Getting Started
  (on/standby)

(remote control sensor)

(BLUETOOTH) key/indicator
 INPUT key
Press to select the input source to
play back.
 VOL (volume) +/ keys
 Front panel display
continued
9GB
Jacks (on the rear of Sound Bar)
 ANALOG IN jack (page 14)
 OPTICAL IN jack (page 13)
 HDMI TV OUT (ARC) jack
(page 13)
Subwoofer




 (on/standby) indicator
 (on/standby) button
LINK button (page 27)
AC power cord (mains lead)
10GB
 HDMI IN jack (page 13)
 AC power cord (mains lead)
Remote control
This section describes how to operate
the subwoofer, Sound Bar, and
connected equipment using the
remote control supplied. If you cannot
operate the connected equipment,
use the remote control of the
equipment.
the remote control towards the
remote control sensor ( ) of the Sound
Bar.
  (on/standby)
  (input) +/ (page 18)
Press to select the equipment you
want to use.
 SOUND FIELD (page 23)
 DISPLAY
Each time you press the button,
the display turns on or off.
When the system is operated, the
display is lit for several seconds.
  (muting)
  (volume) +*/
 AMP MENU (page 24)
 PAIRING (page 21)
 RETURN
Returns to the previous screen of
any displayed menu.
  (return)/  (select)/
 (proceed) or
(enter)
Press , ,  or  to select the
menu items. Then press
to
enter the selection.
 NIGHT (page 23)
To control a TV
 TV  (on/standby)
Turns on or off the TV that the
remote control is assigned to
operate.
 TV  (volume) +/
Adjusts the volume.
 TV PROG (program) +/
Selects the next (+) or previous ()
program.
  (muting)
  (input)
Selects input.
To control a BLUETOOTH device
* The  and  + buttons have a
tactile dot. Use it as a guide during
operation.
 /
To go to the beginning of the
previous or next music.
continued
11GB
Getting Started
Note
 Point
To control the system
 /
To fast reverse or to fast forward
the music when pressed during
playback.
 Playback operation
* (playback)/ (pause)/
 (stop)
Starts/pauses/stops playback.
To resume normal playback
during pause, press  (pause)
again.
Note
 The above explanations are intended to
serve as an example only. Depending
on the equipment, the above
operations may not be possible, or may
operate differently than described.
Setting manufacturer of
controllable TVs
1
While holding down the TV 
button, press the button
corresponding to the
manufacturer.
Manufacturer
SONY
Button
 TV  +
Samsung
 TV PROG +
LG
 +
Panasonic
 TV  
VIZIO
 TV PROG 
Sharp
 
Toshiba
 STD
2
While keeping TV  held
down, press
.
3
Release TV .
Note
 When
you remove the battery, the
manufacturer of TV you set is reset.
Perform steps 1 to 3 again to set the
manufacturer.
12GB
Connecting a TV, player, etc.
Before connecting the AC power cord (mains lead) to a wall outlet (mains),
connect all other equipment and a TV to the system. No cable connection is
required between the Sound Bar and the subwoofer because they can be
connected wirelessly.
Getting Started
Connecting a TV
If you connect the system to a TV compatible with the Audio Return Channel
(ARC) technology via an HDMI input jack with “ARC” indicated, you do not need
to connect a digital optical cable.
If the digital optical cable has a cap, remove it before connecting the cable.
HDMI cable
(not supplied)
HDMI IN (ARC)
Digital Audio OUT
(optical)
Digital optical cable for a TV
(supplied)
TV
Notes
 You
can see the letters “ARC” beside the TV’s HDMI jack if it is compatible with the
Audio Return Channel (ARC) technology. Even if you connect an HDMI cable to the
jack, if the HDMI input jack is not compatible with the Audio Return Channel (ARC)
technology, you cannot use the Audio Return Channel (ARC) technology.
 The Audio Return Channel (ARC) technology is available only when the Control for
HDMI function is set to on. If the Control for HDMI function is set to off, use a digital
optical cable.
 Make sure that you connect cables by matching the shape of the plug to that of the
jack.
 Set “TV AUDIO” in the AMP menu according to how the Sound Bar is connected with
a TV (page 25).
 When connected via the HDMI jack, select “TV(HDMI).”
continued
13GB
 When connected via the OPTICAL IN jack, select “OPTICAL.”
 When connected via the ANALOG IN jack, select “ANALOG.”
Tip
 Even
if the system is turned off (active standby mode), the HDMI signal will be sent
from the connected equipment to the TV via the HDMI connection. You can enjoy
image and sound from the equipment on the TV.
Connecting equipment with an HDMI jack
HDMI OUT
HDMI cable
(not supplied)
“PlayStation®3,” Blu-ray Disc™ player,
DVD player, satellite tuner, cable
television tuner, etc.
Connecting audio equipment
Audio
signal OUT
Audio cable (not supplied)
Smartphone, “Walkman,” or
other audio equipment
Note
 When you connect a portable music player, etc. via its headphone jack to the ANALOG
IN jack of the system, adjust the volume on the portable music player to eliminate the
volume difference when you switch between the portable music player and other
input sources.
14GB
Positioning the system
The illustrations below are examples of how to install the Sound Bar.
Installing the Sound Bar

Installing the Sound Bar on a rack

Installing the Sound Bar on a wall
(page 16)
Getting Started
Notes
 Take
following precautions when installing the Sound Bar and the subwoofer.
 Do not block the ventilation holes on the rear panel.
 Do not place the Sound Bar and the subwoofer in a metal cabinet.
 Do not place an object such as an aquarium between the Sound Bar and the
subwoofer.
 Place the subwoofer close to the Sound Bar in a same room.
 When the Sound Bar is placed in front of a TV, the TV may not be controlled with the
remote control of the TV. In that case, place the Sound Bar away from the TV. If the
remote control of the TV still cannot control the TV, set “IR REP” of the AMP menu to
“ON” (page 26).
 Make sure that the remote control of the TV cannot control the TV, then set “IR REP”
to “ON.” If it is set to “ON” when the remote control can control the TV, appropriate
operation may not be obtained, because of the interference between the direct
command from the remote control and the command via the Sound Bar.
continued
15GB
Removing the stands
1
When the Sound Bar is to be placed
tilting upward or on a wall, remove the
2 stands at the bottom of the Sound
Bar, as shown below.
Prepare screws (not supplied)
that are suitable for the holes on
the back of the Sound Bar.
4 mm
More than 30 mm
Stand
5 mm
10 mm
Hole on the back of the Sound Bar
2
Installing the Sound Bar on
a wall
Fasten the screws to the wall.
The screws should protrude 11 to
12 mm.
592 mm
You can install the Sound Bar on the
wall.
Notes
 Use screws that are suitable for the wall
material and strength. As a plaster
board wall is especially fragile, attach
the screws securely to a wall beam.
Install the Sound Bar on a vertical and
flat reinforced area of the wall.
 Be sure to subcontract the installation
to Sony dealers or licensed contractors
and pay special attention to safety
during the installation.
 Sony is not responsible for accidents or
damage caused by improper
installation, insufficient wall strength,
improper screw installation or natural
calamity, etc.
16GB
11 to 12 mm
3
Hang the Sound Bar onto the
screws.
Align the holes on the back of the
Sound Bar to the screws, then
hang the Sound Bar onto the
2 screws.
Getting Started
Setting up the Wireless
System
The Sound Bar transmits sound from
the equipment to the subwoofer by
wireless communication.
1
2
3
Connect the AC power cord
(mains lead) of the subwoofer
to a wall outlet (mains).
The  indicator of the
subwoofer lights up in red.
If it does not light up, press the
 button of the subwoofer and
wait for the indicator to light up in
red.
Connect the AC power cord
(mains lead) of the Sound Bar to
a wall outlet (mains).
Press the  button of the
Sound Bar.
When the wireless connection is
made, the  indicator of the
subwoofer turns green. If it does
not turn green, perform the
operations of “Linking the system
(LINK)” (page 27).
17GB
Operations and Features
Operating the system
using the supplied
remote control
1
2
3
Turn on the system.
Press  to display the input
source on the front panel
display of the Sound Bar.
Input source
Playable equipment
HDMI
Equipment connected
to the HDMI IN jack
TV(HDMI)
TV connected to the
HDMI TV OUT (ARC)
OPTICAL
TV or other
equipment connected
to the OPTICAL IN jack
ANALOG
TV or other
equipment connected
to the ANALOG IN jack
BT AU
BLUETOOTH device
connected
Adjust the volume by pressing
 +/.
Tip
 The sound may be output from the TV’s
speaker. In this case, turn the volume of
the TV’s speaker down to minimum.
Using the Control for
HDMI function
By enabling the Control for HDMI
function (CTRL, page 25), and
connecting equipment that is
compatible with the Control for HDMI
function via an HDMI cable, operation
is simplified with the features below.
System Power Off
When you turn off the TV using the
power button on the TV’s remote
control, the system and the connected
equipment turn off automatically.
System Audio Control
If you turn on the system while you are
watching the TV, the TV sound is
output from the speakers of the
system automatically. The volume of
the system is adjusted when you
adjust the TV volume.
If the TV sound was output from the
speakers of the system the last time
you turned off the TV, the system is
turned on automatically when you
turn on the TV again, and the TV sound
is output from the speakers of the
system automatically.
Audio Return Channel
(ARC)
If the TV is compatible with the Audio
Return Channel (ARC) technology, an
HDMI cable connection also sends a
digital audio signal from the TV to the
system. You do not need to make a
separate audio connection for
listening to TV sound from the system.
18GB
One-Touch Play
When you play the equipment
connected to the system with an HDMI
cable, the connected TV is turned on
automatically and the input signal of
the system is switched to the
appropriate HDMI input.
Tip
 For
Notes
 The
above features may not operate
with certain equipment.
 Depending on the settings of the
connected equipment, the Control for
HDMI function may not work correctly.
Refer to the operating instructions of
the equipment.
Notes on HDMI
connections
Use a High Speed HDMI cable. If you
use a Standard HDMI cable, 1080p,
Deep Color, or 3D images may not be
displayed properly.
 We recommend that you use an
HDMI authorized cable or a Sony
HDMI cable.
 We do not recommend using an
HDMI-DVI conversion cable.
 Check the setup of the connected
equipment if an image is poor or the
sound does not come out of the
equipment connected via the HDMI
cable.
 Audio signals (sampling frequency,
bit length, etc.) transmitted from an
HDMI jack may be suppressed by the
connected equipment.

Setting up the sound
output of the connected
equipment
To output multi-channel digital audio,
check the digital audio output setting
on the connected equipment.
For details, refer to the operating
instructions supplied with the
connected equipment.
19GB
Operations and Features
example, set your TV as follows to
use the Control for HDMI function:
 Set the HDMI link setting to on.
 Select “AV amplifier” for a priority
speaker, etc.
Sound may be interrupted when the
sampling frequency or the number
of channels of audio output signals
from the playback equipment is
switched.
 When the connected equipment is
not compatible with copyright
protection technology (HDCP), the
image and/or the sound from the
HDMI TV OUT (ARC) jack may be
distorted or may not be output. In
this case, check the specification of
the connected equipment.
 This system supports Deep Color,
“x.v.Colour,” and 3D transmission.
 To enjoy 3D images, connect a 3Dcompatible TV and video equipment
(Blu-ray Disc player, “PlayStation®3,”
etc.) to the system using High Speed
HDMI cables, put on 3D glasses, and
then play back 3D compatible Bluray Disc.

6
BLUETOOTH Function
Using the BLUETOOTH
function
Pairing automatically
If the system is not paired with any
equipment, you must pair the system
with the equipment to be connected.
Select “BT AU” with the  +/ buttons
on the remote control to enter pairing
mode.
1
2
3
4
5
Make the BLUETOOTH
connection on the BLUETOOTH
device.
When the BLUETOOTH connection
is made correctly, the
(BLUETOOTH) indicator lights
up in blue and the pairing
information is stored in the
system.
About the LED for BLUETOOTH
The
(BLUETOOTH) indicator lights
up or flashes in blue to indicate the
BLUETOOTH status.
System status
Indicator status
During BLUETOOTH Flashes quickly in
pairing
blue.
Place the system and a
BLUETOOTH device within
1 meter.
The system is
attempting to
connect with a
BLUETOOTH device
Flashes in blue.
Press  +/ to select “BT AU.”
The system has
established in
connection with a
BLUETOOTH device
Lights up in blue.
Set the BLUETOOTH device in
pairing mode.
For details on setting the
BLUETOOTH device in pairing
mode, refer to the operating
instructions supplied with the
device.
When the detected devices are
listed on the BLUETOOTH
device, check that “SONY
HT-CT260H” is listed.
On some BLUETOOTH devices, the
list may not be displayed.
Select “SONY HT-CT260H” on
the list.
If entering a Passkey is requested,
enter “0000.”
20GB
The system is in
Flashes slowly in
BLUETOOTH
blue.
standby mode
(when the system is
off)
Notes
 For
details on operation of the
connected devices, refer to the
operating instructions supplied with the
devices.
 The BLUETOOTH devices to be
connected must support A2DP
(Advanced Audio Distribution Profile).
 Use a BLUETOOTH device such as
BLUETOOTH mobile phone in an easily
visible place in the same room where
the Sound Bar is placed.
 If Wi-Fi equipment is used, BLUETOOTH
communication may become unstable.
In that case, use the BLUETOOTH device
as close as possible to the Sound Bar.
 Sound may be interrupted because of a
Pairing manually
If you intend to pair the system with 2
or more BLUETOOTH devices, manual
pairing is necessary.
1
2
3
Place the BLUETOOTH device to
be connected to this system
within 1 meter of the system.
Press PAIRING on the remote
control, or press the
(BLUETOOTH) key on the
Sound Bar for more than
2 seconds.
 The
pairing standby status of the
system is canceled after about 1 minute.
If pairing is not successful, redo the
procedure from step 1.
 If you wish to pair with several
BLUETOOTH devices, perform the
procedure from steps 1 to 3 individually
for each BLUETOOTH device.
 If no pairing information is stored in the
system, the system automatically
enters pairing mode when “BT AU” is
selected as input. In this case, pairing
mode is not released automatically.
Listening to music with the
BLUETOOTH connection
You can listen to a music that supports
SCMS-T content protection.
Before starting music playback, check
the following:
 The BLUETOOTH function on the
BLUETOOTH device is on.
 The pairing procedure is completed
on both this system and the
BLUETOOTH device.
1
2
3
Perform steps 3 to 6 in “Pairing
automatically” (page 20).
Notes
 “Passkey”
may be called “Passcode,”
“PIN code,” “PIN number” or
“Password,” etc., depending on the
device.
4
Press  +/ to select “BT AU.”
Start the BLUETOOTH
connection from the
BLUETOOTH device.
The
(BLUETOOTH) indicator
lights up in blue when the
BLUETOOTH connection is
established.
Start playback on the
BLUETOOTH device.
For details on operation, see “To
control a BLUETOOTH device”
(page 11).
Adjust the volume.
Set the volume of the BLUETOOTH
device to a moderate level and
press  +/.
continued
21GB
BLUETOOTH Function
problem with the BLUETOOTH device.
 Once a pairing operation is performed,
it does not have to be performed again.
However, you must repeat pairing in the
cases listed below.
 Pairing information is deleted by
repairing the system.
 Pairing for 9 or more devices is to be
set.
This system can set pairing with up to
8 devices. If pairing is to be set on a
device after pairing has been set on
8 devices, the pairing information on
a device whose connection date is the
oldest is overwritten with new
information.
 The connection history with this
system is deleted on the connected
device.
 The system is reset to default.
Tips
 You
can adjust the volume of the
system via a BLUETOOTH device
supporting the volume command of
AVRCP (Audio Video Remote Control
Profile). You can set how this system
operates when the volume is adjusted
via the BLUETOOTH device with
“BT.VOL” on the AMP menu. For details,
refer to the operating instructions
supplied with the device.
 You may not be able to adjust the
volume, depending on the device.
Notes
 If
the source device has a bass boost
function or equalizer function, turn
them off. If these functions are on,
sound may be distorted.
 In the following cases, you will have to
make the BLUETOOTH connection
again.
 The power of the system is not on.
 The power of the BLUETOOTH device
is not on, or the BLUETOOTH function
is off.
 The BLUETOOTH connection is not
established.
 If more than one devices paired with the
system are playing, sound will be heard
from just one of those devices.
Finishing the BLUETOOTH
connection
Terminate the BLUETOOTH
connection by any of the operations
listed below.
 Operate the BLUETOOTH device to
terminate the connection. For
details, refer to the operating
instructions supplied with the device.
 Turn off the BLUETOOTH device.
 Turn off the system.
22GB
Available sound fields
Surround Function
Enjoying the surround
effect
This system can create multi-channel
surround sound. You can select one of
system’s optimized pre-programmed
sound fields.
Sound field
Effect
STANDARD
(STD)
Suits various sources.
MOVIE
Recreates powerful and
realistic sound, along with
clear dialog.
GAME
Produces powerful and
realistic sound, suited for
playing video games.
MUSIC
Suits for music programs or
music videos on Blu-ray
Discs/DVDs.
P.AUDIO
(Portable
audio)
Suits for music programs of
a portable music player.
STEREO
Suits for music CDs.
can set a different sound field for
each input source.
SOUND
FIELD
Using the NIGHT mode
NIGHT
You can enjoy sound effects and hear
the dialog clearly even at a low volume
level using this function.
Select a sound field by pressing the
SOUND FIELD button of your
desired sound field.
The selected sound field appears on
the display of the Sound Bar.
The default setting of the sound field
function of the system is “STANDARD.”
Press NIGHT.
The NIGHT function is enabled or
disabled cyclically. On the front panel
display, “N. ON” appears when the
NIGHT function is enabled and “N.
OFF” when it is disabled.
23GB
Surround Function
Tip
 You
Advanced Settings
Settings and adjustments using the AMP menu
Using the AMP menu
You can set the following items with AMP MENU on the remote control.
The default settings are underlined.
Your settings are retained even if you disconnect the AC power cord (mains lead).
1
2
3
Press AMP MENU to turn on the AMP menu.
Press  (return)/  (select)/ (proceed) repeatedly to select the item
and press
to decide the setting.
Press AMP MENU to turn off the AMP menu.
Menu list
Menu items
Function
LEVEL
Adjusts the subwoofer level.
 The parameters range from “6” to “+6” in 1-step
increments.
SW LVL
DRC
Useful for enjoying movies at low sound volume. DRC
(DYNAMIC RANGE applies to Dolby Digital sources.
CONTROL)
 ON: Compresses sound in accordance with the information
contained in the content.
 OFF: Sound is not compressed.
TONE
BASS
Adjusts the bass level.
 The parameters range from “6” to “+6” in 1-step
increments.
TREBLE
24GB
Adjusts the treble level.
 The parameters range from “6” to “+6” in 1-step
increments.
Menu items
AUDIO
SYNC
(AV SYNC)
Function
You can delay the sound using this function when the image
is slower than the sound.
 ON: Adjusts the difference between picture and sound.
 OFF: No adjustment.
EFFECT
(SOUND EFFECT)
DUAL
(DUAL MONO)
You can set the system's sound effects (sound field setting)
on/off.
 ON: Enables the sound effects of the sound field.
 OFF: The sound effects are disabled. You can hear sound as
it is recorded.
You can enjoy multiplex broadcast sound when the system
receives a Dolby Digital multiplex broadcast signal.
 MAIN/SUB: Main sound is output from the left speaker and
sub sound is output from the right speaker.
 MAIN: Plays back only the main channel.
 SUB: Plays back only the sub channel.
Selects the TV sound to be output.
 TV(HDMI): Select this setting when the system is connected
to a TV (ARC) jack of the TV with an HDMI cable.
 OPTICAL: Select this setting when the system is connected
to a TV with the digital optical cable.
 ANALOG: Select this setting when the system is connected
to a TV with an audio cable.
C.HDMI
(CONTROL FOR
HDMI)
 ON: Turns on the Control for HDMI function.
 OFF: Turns off the function. Select this setting when you
P. THRU
(PASS THROUGH)
 ON: When the system is in standby mode, it always passes
want to connect equipment not compatible with the
Control for HDMI function.
HDMI signals through.
 OFF: When the Sound Bar is turned off, the system does not
pass HDMI signals to a TV.
continued
25GB
Advanced Settings
HDMI
TV AUDIO
Menu items
SET BT
BT.STBY
(BT STANDBY)
Function
When the system has pairing information, the system is in
BLUETOOTH standby mode even when it is turned off.
 ON: BLUETOOTH standby mode is enabled. The
illumination LED flashes in blue slowly when the system is
turned off.
 OFF: BLUETOOTH standby mode is disabled.
Notes
 If the system does not have pairing information,
BLUETOOTH standby mode cannot be set.
 During BLUETOOTH standby mode, standby power
consumption increases.
BT.VOL
(BT VOLUME
CONTROL)
You can set how this system operates when the volume is
adjusted via a BLUETOOTH device.
 ON: Allows you to adjust the volume of the system via a
BLUETOOTH device. The range of volume turned up or
down by one operation is limited to within 5 steps of the
volume level of this system.
 OFF: The volume cannot be adjusted via a BLUETOOTH
device.
 DIRECT: The volume of the system is set as it is adjusted via
a BLUETOOTH device.
Note
 In the case of “DIRECT,” the system may output sound at a
large volume, depending on a BLUETOOTH device.
SYSTEM
WS
26GB
A. STBY
(AUTO STANDBY)
You can reduce power consumption. The Sound Bar enters
standby mode automatically when you do not operate the
Sound Bar for about 20 minutes and the Sound Bar is not
receiving an input signal.
 ON: Turns on the “A. STBY” function.
 OFF: Turns off the function.
IR REP
If the remote control of a TV cannot control the TV, the Sound
Bar can relay the remote control signal to the TV to control
the TV.
 ON: The relay function is enabled.
 OFF: The relay function is disabled.
VERSION
The current firmware version information appears on the
front panel display.
LINK
Use this item when you want to enable the wireless
transmission (page 27).
5
Linking the system
(LINK)
You can link the Sound Bar and the
subwoofer again to enable wireless
transmission between them.
AMP
MENU
6
2
3
4
Press AMP MENU.
The AMP menu turns off.
Advanced Settings
1
“START” appears, then press .
“SEARCH” appears, and the Sound
Bar searches for equipment that
can be used with Link. Proceed to
the next step within 1 minute.
To quit the Link function during a
search for equipment, press .
When subwoofer is linked with the
Sound Bar, the  indicator on
the subwoofer lights up in green
and the subwoofer beeps once.
“OK” appears on the front panel
display.
If “FAILED” appears or the
subwoofer does not stop beeping,
perform the process again from
step 1.
Press LINK on the rear of the
subwoofer with the point of a
pen, etc.
The subwoofer keeps beeping for
a certain time. Perform steps 2 to 5
before the subwoofer stops
beeping.
Press AMP MENU.
Select “WS” with   (select),
then press
.
Select “LINK,” then press
.
27GB
instructions supplied with the
connected equipment.
Additional Information
Troubleshooting
If you experience any of the following
difficulties while using the system, use
this troubleshooting guide to help
remedy the problem before
requesting repairs. Should any
problem persist, consult your nearest
Sony dealer.
POWER
The system is not turned on.
 Check that the AC power cord
(mains lead) is connected securely.
The system is turned off
automatically.
 The “A. STBY” function is working
(page 26).
SOUND
Dolby Digital or DTS multi-channel
sound is not reproduced.
 Check the audio setting of Dolby
Digital or DTS format on the Blu-ray
Disc player, DVD player, etc.,
connected to the system.
The surround effect cannot be
obtained.
 Depending on the input signal and
the setting for the sound field,
surround sound processing may not
work effectively. The surround effect
may be subtle depending on the
program or disc.
 If you connect a Blu-ray Disc player
or a DVD player compatible with the
surround effect function, the
surround effect of the system may
not work. In this case, set the
surround effect function of the
connected equipment to off. For
details, refer to the operating
28GB
No TV sound is output from the
system.
 Check the connection of the digital
optical cable or audio cable that is
connected to the system and the TV
(page 13).
 Check the sound output of the TV.
 If the TV is not compatible with the
Audio Return Channel (ARC)
technology, connect the digital
optical cable in addition to the HDMI
cable (page 13) in order to output
sound.
 Check that “TV AUDIO” in the AMP
menu is set correctly (page 25).
The sound is output from both the
system and the TV.
 Turn off the sound of the system or
the TV.
Sound lags behind the TV image.
 Set the “SYNC” to “OFF” if “SYNC” is
set to “ON” (page 25).
No sound or only a very low-level
sound of the connected equipment
is heard from the system.
 Press  + and check the volume
level.
 Press  or  + to cancel the
muting function.
 Check that the input source is
correctly selected.
 Check that all the cables and cords
of the system and the connected
equipment are fully inserted.
BLUETOOTH
There is no sound.
 Make sure this system is not too far
from the BLUETOOTH device, or this
system is not receiving interference
from a Wi-Fi network, other 2.4 GHz
wireless device, or microwave oven.
 Check that the BLUETOOTH
connection is made properly
between this system and the
BLUETOOTH device.
 Pair this system and the
BLUETOOTH device again.
Pairing cannot be done.
 Bring this system and the
BLUETOOTH device closer together.
The sound is not in sync with the
image.
 When you are watching movies, you
may hear the sound with a slight
delay from the image.
The BLUETOOTH connection cannot
be completed.
 Make sure the BLUETOOTH device
to be connected is turned on and
the BLUETOOTH function is
enabled.
 The BLUETOOTH connection has
become disconnected. Make the
BLUETOOTH connection again.
WIRELESS SOUND
Wireless transmission is not
activated or there is no sound from
the subwoofer.
 Check the status of the 
indicator on the subwoofer.
 Is off:
 Check that the AC power cord
(mains lead) of the subwoofer is
connected securely.
 Turn on the subwoofer by
pressing  on the subwoofer.
 Flashes in red:
 Press  to turn off the
subwoofer, and check that
nothing is blocking the
ventilation holes of the
subwoofer.
 Flashes in green slowly or is lit in
red:
 Move the subwoofer so that the
 indicator lights up in green.
 Link the system (page 27).
 Flashes in green quickly:
 Consult your nearest Sony
dealer.
Sound skips or has noise.
 If a device that generates
electromagnetic radiation, such as a
Wi-Fi network, or a microwave oven
is nearby, move this system away
from such sources.
 Remove any obstacle between the
Sound Bar and the subwoofer, or
move this system away from the
obstacle.
 Locate the Sound Bar and the
subwoofer as near as possible.
 Change the Wi-Fi frequency of the
Wi-Fi router, computer, etc., to
5 GHz band.
continued
29GB
Additional Information
Sound skips or the correspondence
distance is short.
 If a device that generates
electromagnetic radiation, such as a
Wi-Fi network, other BLUETOOTH
device(s), or a microwave oven is
nearby, move this system away
from such sources.
 Remove any obstacle between this
system and the BLUETOOTH device,
or move this system away from the
obstacle.
 Locate this system and the
BLUETOOTH device as near as
possible.
 Re-position this system.
 Re-position the BLUETOOTH device.
 Change the Wi-Fi frequency of the
Wi-Fi router, computer, etc., to
5 GHz band.
BLUETOOTH devices cannot be
operated on the remote control of
the system.
 Operate the BLUETOOTH device on
itself.
OTHERS
The remote control does not
function.
 Point the remote control at the
remote control sensor
on the
system.
 Remove any obstacles in the path
between the remote control and the
system.
 Replace the battery in the remote
control with new one, if it is weak.
 Make sure you select the correct
input on the remote control.
The Control for HDMI function does
not work properly.
 Check the HDMI connection
(page 13).
 Set up the Control for HDMI function
on the TV.
 Check the Control for HDMI settings
on the connected equipment. Refer
to the operating instructions
supplied with the connected
equipment.
 If you connect/disconnect the AC
power cord (mains lead), wait for
more than 15 seconds and operate
the system.
“PROTECT” appears on the front
panel display.
 Press  to turn off the system.
After “STBY” disappears, disconnect
the AC power cord (mains lead),
then check that nothing is blocking
the ventilation holes of the system.
RESET
If the system still does not operate
properly, reset the system as follows:
1
Press  to turn on the Sound
Bar.
30GB
2
Press  while pressing INPUT
and VOL  on the Sound Bar.
“RESET” appears and the system is
reset. AMP menu, sound field, etc.,
return to the default settings.
Specifications
Formats supported by this system
Dolby Digital
DTS
Linear PCM 2ch 48 kHz or less
HDMI
Input/Output (HDMI Repeater block)
3D
Side-by-Side
(Half)
Over-Under
(Top-andBottom)








1920 × 1080p @ 23.98/24 Hz




1920 × 1080i @ 59.94/60 Hz




1920 × 1080i @ 50 Hz




1280 × 720p @ 59.94/60 Hz




1280 × 720p @ 50 Hz




720 × 480p @ 59.94/60 Hz




720 × 576p @ 50 Hz




640 × 480p @ 59.94/60 Hz




2D
1920 × 1080p @ 59.94/60 Hz
1920 × 1080p @ 50 Hz
Additional Information
Frame packing
File
continued
31GB
Sound Bar (SA-CT260H)
Amplifier section
POWER OUTPUT (rated)
Front L + Front R: 50 W + 50 W
(at 4 ohms, 1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R: 85 W (per channel at
4 ohms, 1 kHz)
Inputs
HDMI IN
ANALOG IN
OPTICAL IN
Output
HDMI TV OUT (ARC)
BLUETOOTH section
Communication system
BLUETOOTH Specification version
3.0
Output
BLUETOOTH Specification Power
Class 2
Maximum communication range
Line of sight approx. 10 m1)
Frequency band
2.4 GHz band (2.4000 GHz 2.4835 GHz)
Modulation method
FHSS (Freq Hopping Spread
Spectrum)
Compatible BLUETOOTH profiles2)
A2DP (Advanced Audio Distribution
Profile)
AVRCP 1.4 (Audio Video Remote
Control Profile)
Supported Codecs3)
SBC4)
Transmission range (A2DP)
20 Hz - 20,000 Hz (Sampling
frequency 44.1 kHz)
1) The actual range will vary depending
on factors such as obstacles between
devices, magnetic fields around a
microwave oven, static electricity,
cordless phone, reception sensitivity,
operating system, software
application, etc.
32GB
2) BLUETOOTH standard profiles
indicate the purpose of BLUETOOTH
communication between devices.
3) Codec: Audio signal compression and
conversion format
4) Subband Codec
Front speaker unit
Speaker system
Full range speaker system,
Bass Reflex
Speaker unit
Woofer: 55 mm × 80 mm
cone type
Rated impedance
4 ohms
General
Power requirements
220 V - 240 V AC, 50/60 Hz
Power consumption
On: 32 W
“Control for HDMI” is off (Standby
mode): 0.5 W or less
BLUETOOTH Standby mode: 0.5 W
or less
Dimensions (approx.)
940 mm × 102 mm × 95 mm
(with stands)
940 mm × 90 mm × 100 mm
(without stands)
Mass (approx.)
2.2 kg
Subwoofer (SA-WCT260H)
POWER OUTPUT (reference)
130 W (per channel at 4 ohms,
100 Hz)
Speaker system
Subwoofer, Bass reflex
Speaker unit
130 mm cone type
Rated impedance
4 ohms
Power requirements
220 V - 240 V AC, 50/60 Hz
Power consumption
On: 30 W
Standby mode: 0.5 W or less
Dimensions (approx.)
271 mm × 390 mm × 271 mm
(w/h/d)
Mass (approx.)
6.3 kg
Wireless transmitter/receiver
Frequency band
2.4 GHz band (2.404 GHz 2.476 GHz)
Modulation method
GFSK
Design and specifications are subject to
change without notice.
 Standby
power consumption: 0.5 W
or less (Sound Bar), 0.5 W or less
(Subwoofer)
Additional Information
33GB
Index
Symbols
P
 18
 11
 11
P. THRU 25
Positioning the system 15
PROTECT 30
A
R
A. STBY 26
AMP menu 24
Remote control
operating 11
preparing 8
Reset 30
B
BASS 24
BLUETOOTH 5, 20
BT.STBY 26
BT.VOL 26
C
C.HDMI 25
Connecting
Digital optical cable 13
DVD player 14
TV 13
S
Sound field 23
SW LVL 24
SYNC 25
T
TREBLE 24
TV AUDIO 25
V
D
VERSION 26
VOL 9
DRC 24
DUAL 25
W
E
EFFECT 25
I
Installing 15
IR REP 26
L
LINK 27
N
NIGHT 23
34GB
Wireless System 17
Additional Information
35GB
4-463-522-21(3)
©2013 Sony Corporation
Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
