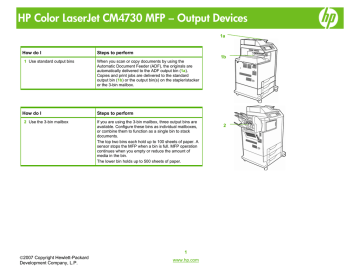

HP Color LaserJet CM4730 MFP – Output Devices
1a
How do I
1 Use standard output bins
How do I
2 Use the 3-bin mailbox
Steps to perform
1b
When you scan or copy documents by using the
Automatic Document Feeder (ADF), the originals are
automatically delivered to the ADF output bin (1a).
Copies and print jobs are delivered to the standard
output bin (1b) or the output bin(s) on the stapler/stacker
or the 3-bin mailbox.
Steps to perform
If you are using the 3-bin mailbox, three output bins are
available. Configure these bins as individual mailboxes,
or combine them to function as a single bin to stack
documents.
The top two bins each hold up to 100 sheets of paper. A
sensor stops the MFP when a bin is full. MFP operation
continues when you empty or reduce the amount of
media in the bin.
The lower bin holds up to 500 sheets of paper.
1
©2007 Copyright Hewlett-Packard
Development Company, L.P.
www.hp.com
2
HP Color LaserJet CM4730 MFP – Output Devices
How do I
3 Use the stapler/stacker
How do I
Steps to perform
○
It can staple jobs of up to 30 sheets of 75 g/m2 (20
lb) paper.
○
It can staple letter-size, A4-size, legal-size paper,
Executive (JIS), and 8.5 x 13.
○
It can stack up to 500 sheets of paper.
○
Paper weight can range from 60 to 120 g/m2 (16
to 32 lb).
○
If the job consists of only one sheet or more than
30 sheets, the MFP will print the job to the bin,
but will not staple the job.
○
It supports paper only.
Steps to perform
4 Configure the printer driver to
recognize the 3-bin mailbox or
stapler/stacker
a.
b.
c.
d.
e.
Open the Printers folder.
Select HP Color LaserJet CM4730 MFP.
On the File menu, click on Properties.
Select the Device Settings tab.
Scroll down to Accessory Output Bin, select
HP 500-Sheet Stapler/Stacker or one of the
HP 3-Bin Mailbox configurations, and click Apply.
5 Configure the device to stop or
continue when the staple cartridge
is empty
a.
b.
c.
d.
e.
Scroll to and touch Administration.
Scroll to and touch Device Behavior.
Scroll to and touch Stapler/Stacker.
Touch Staples Out.
Select Stop to stop all printing until the staple
cartridge is replaced. Select Continue to continue
printing jobs without stapling them.
2
©2007 Copyright Hewlett-Packard
Development Company, L.P.
3
www.hp.com
4
HP Color LaserJet CM4730 MFP – Output Devices
How do I
6 Set the stapling options for each
job (stapler/stacker only)
7 Select an output bin for print jobs
(3-bin mailbox only)
Steps to perform
a. On the File menu in the software program, click
Print.
b. Select the driver, and then click Properties or
Preferences.
c. Click the Output tab.
d. In the Staple box, select the stapling option that
you want to use for the print job.
e. Click OK.
a. On the File menu in the software program, click
Print.
b. Select the driver, and then click Properties or
Preferences.
c. On the Output tab, select the output bin from the
Output Bin Options drop-down menu.
d. Click OK.
3
©2007 Copyright Hewlett-Packard
Development Company, L.P.
www.hp.com
