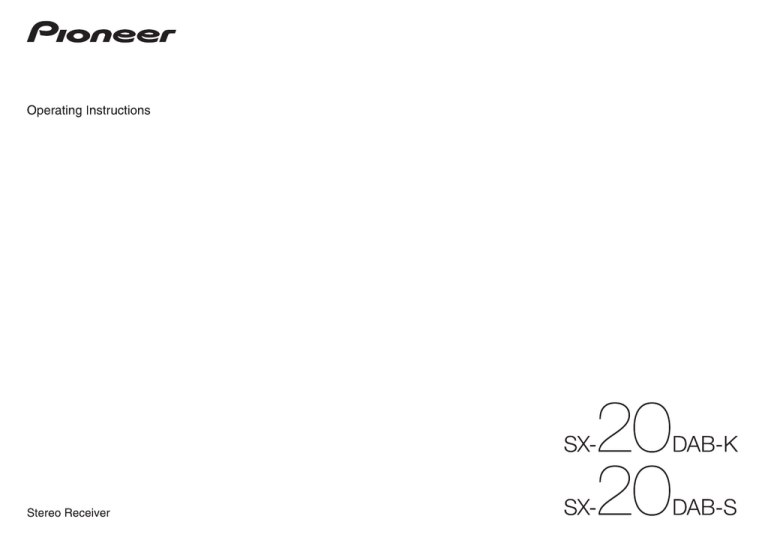

Pioneer SX-20DAB User manual

Pioneer SX-20DAB User manual
Information for users on collection and disposal of old equipment and used batteries
Symbol for
equipment
These symbols on the products, packaging, and/or accompanying documents mean
that used electrical and electronic products and batteries should not be mixed with
general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points in accordance with your national
legislation.
Symbol examples
for batteries
By disposing of these products and batteries correctly, you will help to save valuable
resources and prevent any potential negative effects on human health and the
environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries,
please contact your local municipality, your waste disposal service or the point of sale
where you purchased the items.
These symbols are only valid in the European Union.
For countries outside the European Union:
If you wish to discard these items, please contact your local authorities or dealer and
ask for the correct method of disposal.
Pb
K058a_A1_En
CAUTION
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
D3-4-2-1-1_B1_En
WARNING
This equipment is not waterproof. To prevent a fire or
shock hazard, do not place any container filled with
liquid near this equipment (such as a vase or flower
pot) or expose it to dripping, splashing, rain or
moisture.
D3-4-2-1-3_A1_En
WARNING
To prevent a fire hazard, do not place any naked flame
sources (such as a lighted candle) on the equipment.
D3-4-2-1-7a_A1_En
Operating Environment
Operating environment temperature and humidity:
+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH
(cooling vents not blocked)
Do not install this unit in a poorly ventilated area, or in
locations exposed to high humidity or direct sunlight (or
strong artificial light)
D3-4-2-1-7c*_A1_En
WARNING
Store small parts out of the reach of children and
infants. If accidentally swallowed, contact a doctor
immediately.
D41-6-4_A1_En
2
En
Thank you for buying this Pioneer product.
VENTILATION CAUTION
When installing this unit, make sure to leave space
around the unit for ventilation to improve heat radiation
(at least 40 cm at top, 10 cm at rear, and 20 cm at each
side).
WARNING
Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the product,
and to protect it from overheating. To prevent fire
hazard, the openings should never be blocked or
covered with items (such as newspapers, table-cloths,
curtains) or by operating the equipment on thick carpet
or a bed.
CAUTION
The
STANDBY/ON switch on this unit will not
completely shut off all power from the AC outlet.
Since the power cord serves as the main disconnect
device for the unit, you will need to unplug it from the
AC outlet to shut down all power. Therefore, make
sure the unit has been installed so that the power
cord can be easily unplugged from the AC outlet in
case of an accident. To avoid fire hazard, the power
cord should also be unplugged from the AC outlet
when left unused for a long period of time (for
example, when on vacation).
D3-4-2-2-2a*_A1_En
D3-4-2-1-7b*_A1_En
This product is for general household purposes. Any
failure due to use for other than household purposes
(such as long-term use for business purposes in a
restaurant or use in a car or ship) and which requires
repair will be charged for even during the warranty
period.
K041_A1_En
For Norway customers
POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the
plug by tugging the cord and never touch the power
cord when your hands are wet as this could cause a
short circuit or electric shock. Do not place the unit, a
piece of furniture, etc., on the power cord, or pinch the
cord. Never make a knot in the cord or tie it with other
cords. The power cords should be routed such that they
are not likely to be stepped on. A damaged power cord
can cause a fire or give you an electrical shock. Check
the power cord once in a while. When you find it
damaged, ask your nearest PIONEER authorized
service center or your dealer for a replacement.
S002*_A1_En
Ventilation
Utstyr som er koplet til beskyttelsesjord via nettplugg
og/eller via annet jordtilkoplet utstyr – og er tilkoplet
et kabel-TV nett, kan forårsake brannfare. For å unngå
dette skal det ved tilkopling av utstyret til kabel-TV
nettet installeres en galvanisk isolator mellom
utstyret og kabel-TV nettet.
For Sweden customers
Utrustning som är kopplad till skyddsjord via jordat
vägguttag och/eller via annan utrustning och
samtidigt är kopplad till kabel-TV nät kan i vissa fall
medföra risk för brand.
För att undvika detta skall vid anslutning av utrustningen till kabel-TV nät galvanisk isolator finnas mellan
utrustningen och kabel-TV nätet.
Please read through these operating instructions so that you will know how
to operate your model properly.
Contents
01 Before you start
What’s in the box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Loading the batteries in the remote control . . . . . . . . . . . . . . . . . . . . 4
Installing the receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
02 Connecting up
Making cable connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting speaker cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Plugging in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
03 Controls and displays
Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
04 Operation
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Making an audio recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Listening to the FM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
An introduction to RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Listening to the DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Selecting DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching the desired speakers on . . . . . . . . . . . . . . . . . . . . . . . . . 13
To set for automatic standby status (Auto Power Down) . . . . . . . . . 13
Restoring all the settings to the factory default settings . . . . . . . . . 13
05 Additional information
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
D3-11-15-5-2_A1_En
3
En
01
Before you start
Chapter 1:
Before you start
What’s in the box
Please confirm that the following accessories are in the
box when you open it.
• Remote control
• AAA/IEC R03 dry cell batteries x2
• FM/DAB wire antenna
• Power cord
• Warranty card
• Quick start guide
• Safety Brochure
• These operating instructions (CD-ROM)
2 Insert the new batteries, matching the
polarities as indicated inside the case.
3
Close the rear lid.
Note
• Illustrations featured in the Operating Instructions
may have been modified or simplified for ease of
explanation, and may therefore differ from the
actual product appearance.
• The illustrations used here are mainly of the SX20DAB-S (Silver) model.
Loading the batteries in the remote
control
1
• Do not use any batteries other than the ones
specified. Also, do not use a new battery together
with an old one.
• When loading the batteries into the remote control,
set them in the proper direction, as indicated by the
polarity marks ( and ).
• Do not heat batteries, disassemble them, or throw
them into flames or water.
• Batteries may have different voltages, even if they
are the same size and shape. Do not use different
types of batteries together.
• To prevent leakage of battery fluid, remove the
batteries if you do not plan to use the remote
control for a long period of time (1 month or more).
If the fluid should leak, wipe it carefully off the
inside of the case, then insert new batteries. If a
battery should leak and the fluid should get on your
skin, flush it off with large quantities of water.
• When disposing of used batteries, please comply
with governmental regulations or environmental
public institution’s rules that apply in your country/
area.
Using the remote control
The remote has a range of about 7 m at an angle of about
30º from the remote sensor.
The batteries included with the unit have been provided
to allow you check product operation and may not last
long. We recommend using alkaline batteries that have
a longer life.
Open the rear lid.
30 °
30 °
WARNING
• Do not use or store batteries in direct sunlight or
other excessively hot place, such as inside a car or
near a heater. This can cause batteries to leak,
overheat, explode or catch fire. It can also reduce
the life or performance of batteries.
CAUTION
Incorrect use of batteries may result in such hazards as
leakage and bursting. Observe the following
precautions:
• When inserting the batteries, make sure not to
damage the springs on the battery’s  terminals.
This can cause batteries to leak or overheat.
4
En
7m
Keep in mind the following when using the remote
control:
• Make sure that there are no obstacles between the
remote and the remote sensor on the unit.
• Remote operation may become unreliable if strong
sunlight or fluorescent light is shining on the unit’s
remote sensor.
• Remote controllers for different devices can
interfere with each other. Avoid using remotes for
other equipment located close to this unit.
• Replace the batteries when you notice a fall off in
the operating range of the remote.
Installing the receiver
When installing this unit, make sure to put it on a level
and stable surface.
• Don’t install it on the following places:
– on a color TV (the screen may distort)
– near a cassette deck (or close to a device that
gives off a magnetic field). This may interfere with
the sound.
– in direct sunlight
– in damp or wet areas
– in extremely hot or cold areas
– in places where there is vibration or other
movement
– in places that are very dusty
– in places that have hot fumes or oils (such as a
kitchen)
• Do not mount the unit on a sofa or other object or
material with absorbent qualities, since sound
quality may be adversely affected.
Connecting up
02
Chapter 2:
Important
Connecting up
Making cable connections
CAUTION
• Before making or changing the connections, switch off the power and disconnect the power cord from the AC
outlet.
• Connect the power cord after all the connections between devices have been completed.
Speaker system B
Right
Left
Network audio player
FM/DAB antennas
(see page 6)
R
• The SIGNAL GND terminal is provided to reduce
noise when connecting the unit to components
such as an analog turntable.
• Do not connect the PHONO (MM) terminals to any
component other than a turntable; also, do not
connect to a turntable equipped with built-in
equalizer. An excessively high sound output may be
produced, resulting in damage to your speakers or
other devices.
• The unit’s PHONO (MM) terminals are designed to
be used with turntables equipped with MM
(moving-magnet) type cartridges. Turntables
equipped with MC (moving-coil) cartridges cannot
be used.
• Make sure not to bend the cables over the top of
this unit (as shown in the illustration). If this
happens, the magnetic field produced by the
transformers in this unit may cause a humming
noise from the speakers.
L
AC IN
SPEAKERS
L
SIGNAL
GND
FM/DAB
R
B
L
A
L
• If your turntable has a grounding wire, secure it to
the ground terminal on this receiver.
SACD/CD NETWORK RECORDER
PHONO (MM)
IN
IN
ANTENNA
R
IN
OUT
IN
L
Note
R
R
R
L
R
R
L
R
L
R
Power cord
(included)
L
• When connecting a tape cassette deck, playback
noise may be heard, depending on the installation
location. This noise is caused by leakage flux from
the receiver’s transformer. In this event, change the
installation location, or move the deck farther from
the receiver.
Twist the cable cores.
2 Loosen the nut on the SPEAKERS
terminal, and insert the speaker cable into
the exposed hole in the terminal shaft.
3
Retighten the terminal nut.
1
2
3
10 mm
CAUTION
• When using only one set of speaker terminals
(SPEAKERS A or SPEAKERS B), the speaker used
should have a nominal impedance between 4 
and 16 . When using both sets of terminals,
the connected speakers should have nominal
impedance between 8  and 16 . Consult the
instructions accompanying your speakers for
details regarding the impedance value.
• Make sure the positive and negative (+/–) terminals
on the receiver match those on the speakers.
• These speaker terminals carry HAZARDOUS live
voltage. To prevent the risk of electric shock when
connecting or disconnecting the speaker cables,
disconnect the power cord before touching any
uninsulated parts.
• Make sure that all the bare speaker wire is twisted
together and inserted fully into the speaker
terminal. If any of the bare speaker wire touches the
back panel it may cause the power to cut off as a
safety measure.
Connect the white plug to the left (L) jack, and the red
plug to the right (R) jack. Be sure to insert the plugs fully
into the jacks.
REC
L
L
L
R
R
R
Left (white)
SACD/CD player
1
Connecting audio cables
L
PLAY
Turntable
Connecting speaker cables
CD recorder or
Cassette deck
Right
Left
Speaker system A
L
R
Right (red)
5
En
02
Connecting up
Connecting antennas
Plugging in
Connect the FM/DAB wire antenna as shown below. To
improve reception and sound quality, connect external
antennas (see Using external antennas below).
CAUTION
• Do not use any power cord other than the one
supplied with this unit.
• Do not use the supplied power cord for any purpose
other than that described below.
Important
• When going on a trip or otherwise not using the
unit for an extended period, always disconnect the
power cord from its outlet. Note that various
internal settings will not be lost even if the power
cord is disconnected from its outlet for an extended
time.
• If it is necessary to detach the power cord, first be
sure to press /I STANDBY/ON on the front panel
so receiver is turned OFF.
After you’ve finished making all connections, plug the
unit into an AC outlet.
FM/DAB
ANTENNA
1 Connect the FM/DAB wire antenna into
the FM/DAB antenna socket.
AC IN
Power cord
For best results, extend the FM/DAB antenna fully and fix
to a wall or door frame. Don’t drape loosely or leave
coiled up.
Using external antennas
To AC outlet
Use a F connector (not supplied) to connect an external
FM/DAB antenna.
1 Plug the supplied power cord into the
AC IN socket on the rear panel of the unit.
FM/DAB
F connector
ANTENNA
75 coaxial cable
6
En
2
Plug the other end into an AC outlet.
Controls and displays
03
Chapter 3:
Front panel
Controls and displays
1
2
3
STEREO RECEIVER
Rear panel
SX-20DAB
VOLUME
See pages 5-6 for details regarding connections.
MEMORY
TUNE / PRESET
TONE
BALANCE
STANDBY ON
STANDBY
AC IN
PHONES
A SPEAKERS B
SPEAKERS
SIGNAL
GND
FM/DAB
PHONO (MM)
IN
ANTENNA
R
B
L
R
A
L
SACD/CD NETWORK RECORDER
IN
IN
OUT
IN
L
4
R
1
1
2
3
4 5
6
1 SIGNAL GND (Turntable ground)
terminal
This ground terminal is designed to help reduce noise
when a turntable is connected. It is not a safety ground.
2
ANTENNA terminal
Connect supplied FM/DAB wire antenna.
7
8
9
5
6
7
/I STANDBY/ON button
Switches the receiver between off and on.
When power is turned on, the power indicator in the
center of the button will lights blue.
2
STANDBY indicator
When power is set to standby, the indicator lights red.
3
Character display
See Display on page 8.
4
Remote sensor
3
PHONO (MM) IN terminals
4
SACD/CD IN terminals
5
5
NETWORK IN terminals
Use to connect headphones. Be sure to switch off both
A and B speakers.
6
RECORDER IN/OUT terminals
6
7
SPEAKERS A terminals
8
SPEAKERS B terminals
9
AC IN jack
Connect power cord to here and an AC wall socket.
Receives the signals from the remote control (page 4).
PHONES jack
SPEAKERS A/B buttons
These buttons allow you to select various combinations
of speakers as follows:
• To drive A speakers, press SPEAKERS A button
(SPEAKER:A is displayed).
• To drive B speakers, press SPEAKERS B button
(SPEAKER:B is displayed).
• To drive both A and B speakers, press SPEAKERS A
and B buttons in order (SPEAKER:AB is displayed).
• When using headphones for private listening, press
these buttons in order to switch off the speakers A
and B (SPEAKER:OFF is displayed, and H
(Headphones) indicator lights).
8
7
9 10 11
12
Input function buttons
Use to select the input source to this receiver (page 9).
8
TONE DIRECT button
Press to select the TONE DIRECT mode (page 13).
9
Tuner control buttons
MEMORY – Press to store preset stations.
TUNE/PRESET – Press to select the tuning mode or
the preset mode.
10 Sound control buttons
TONE – When adjusting the tone (bass and treble),
press to select the desired tone mode.
• Each time this button is pressed, the tone mode
is changed to bass or treble.
BALANCE – When adjusting the sound volume
balance, press to enter the balance mode.
11 /– and +/ buttons
At the tuning mode, use to find radio frequencies.
At the preset mode, use to select preset radio stations.
Also used when setting up (TONE, BALANCE) the
receiver.
12 VOLUME control
Use to adjust the volume level. (Also allows adjustment
of the headphone sound volume.)
7
En
03
Controls and displays
Display
4
Remote control
1
2
3
5
STANDBY/ON
SLEEP
1
2
15
SACD/CD NETWORK PHONO RECORDER
1
2
3
4
5
6
APD
H (Headphones) indicator
8
0
9
17
DIR (Direct) indicator
5
SEARCH
TOP
MENU
(Sleep) indicator
6
4
7
Character display
Displays various system information.
8
9
SCAN VOLUME
TUNE
ENTER
22
TUNE
FM/DAB
RETURN
BASS
R
Switch between FM and DAB (page 10, 11).
24
10 FM MODE
TREBLE
NETWORK AUDIO PLAYER
13
14
Press to select the desired FM mode (Stereo or
monaural) (page 10).
11 MEMORY
Press to store preset stations (page 10).
SACD PLAYER
FUNC
SETUP
ENTER
HOME MENU
FM/DAB
23
BALANCE
L
ENTER
Press to confirm actions.
9
FM MODE MEMORY
10
11
12
20
21
///
Use to select system setting and switch modes.
TUNE / – Use to find radio frequencies
(page 10).
PRESET /– Use to select preset radio stations
(page 10).
8
PRESET
Lights when the receiver is in sleep mode.
RDS
PTY DISPLAY MUTE
18
19
TOP MENU
Press to display the DAB setting menu (page 11).
7
SURROUND DIMMER
4
Lights when the TONE DIRECT mode is switched on.
3
7
TONE DIRECT
SPEAKERS
B
Lights when both speakers A and B are switched off.
2
6
A
PRESET
1
3
RDS control buttons
SEARCH – Use to select the search mode (page 11).
PTY – Use to search for RDS program types
(page 11).
DISPLAY – Use to display the RDS information
(page 11).
16
4
TONE DIRECT
Press to select the TONE DIRECT mode (page 13).
RETURN
12 Tone control buttons
BASS +/– – Use to adjust Bass (page 12).
TREBLE +/– – Use to adjust Treble (page 12).
13 SACD PLAYER control buttons
Use to control Pioneer SACD/CD player.
STEREO RECEIVER
1
 STANDBY/ON
Switches the receiver between standby and on.
2
Input function buttons
Press to select an input source. These select the
component connected to the corresponding input on the
rear panel.
3
Numeric buttons (0 ~ 9)
Press to select or to store preset.
8
En
14 NETWORK AUDIO PLAYER control
buttons
Use to control Pioneer network audio player.
15 SLEEP
Press to change the amount of time before the receiver
switches into standby (10 min – 20 min – 30 min – 60 min
– 90 min – Off). You can check the remaining sleep time
at any time by pressing SLEEP once.
16 APD
Use to change the Auto Power Down function setting
(page 13).
17 SPEAKERS A/B buttons
These buttons allow you to select various combinations
of speakers as follows:
• To drive A speakers, press SPEAKERS A button
(SPEAKER:A is displayed).
• To drive B speakers, press SPEAKERS B button
(SPEAKER:B is displayed).
• To drive both A and B speakers, press SPEAKERS A
and B buttons in order (SPEAKER:AB is displayed).
• When using headphones for private listening, press
these buttons in order to switch off the speakers A
and B (SPEAKER:OFF is displayed, and H indicator
lights).
18 DIMMER
Dims or brightens the display. The brightness can be
controlled in four steps.
19 SURROUND
Press to select the surround sound options (page 13).
20 MUTE
Mutes/unmutes the sound.
21 SCAN
Use when performing the following operations.
• FM:Press to scan the stations in the preset
sequence (page 10).
• DAB:Select from DAB stations that can be received
(DAB SCAN) (page 11).
22 VOLUME +/–
Use to set the listening volume.
23 RETURN
Press to exit the current menu screen.
24 BALANCE
When adjusting the sound volume balance (page 12).
Operation
04
Chapter 4:
Set the power to Standby
Operation
Playback
• To listen to the FM radio broadcasts, see page 10.
• To listen to the DAB radio broadcasts, see page 11.
Turntable
SACD/CD player
Note
• If the power cord is disconnected when the unit is
in the standby mode the unit will turn off, but when
the cord is then reconnected, the unit will not
automatically turn on. After reconnecting the
power cord, press the remote control’s 
STANDBY/ON button to turn the power on.
1 Press the remote control’s  STANDBY/
ON button.
CD recorder or
Cassette deck
Network audio player
NETWORK AUDIO PLAYER
/I STANDBY/ON
FUNCTION
STANDBY
PURE AUDIO




The next time you wish to turn on the power, press the
remote control’s  STANDBY/ON button.
• If the front panel’s /I STANDBY/ON button is
pressed, the power will be turned off. In this case, if
the power is off, pressing the remote control’s 
STANDBY/ON button will not turn on the power. To
turn on the power again, press the front panel’s /
I STANDBY/ON button.
Making an audio recording
N-50
Hi-Bit 32
iPod/USB
5V
2.1A
You can make an audio recording from any audio source connected to the receiver.
Turntable
STEREO RECEIVER
SACD/CD player
SX-20DAB
Network audio player
VOLUME
NETWORK AUDIO PLAYER
MEMORY
TUNE / PRESET
TONE
BALANCE
/I STANDBY/ON
FUNCTION
STANDBY
PURE AUDIO




N-50
Hi-Bit 32
iPod/USB
5V
2.1A
STANDBY ON
STANDBY
PHONES
Playback
A SPEAKERS B
STEREO RECEIVER
Playback
Playback
2
3
6
TONE DIRECT
0
SURROUND DIMMER
SEARCH
RDS
PTY
DISPLAY MUTE
ENTER
TUNE
FM MODE MEMORY
BALANCE
L
BASS
4 Start playback of the component you
selected in step 1.
5 Adjust playback volume with VOLUME
control.
RETURN
R
TREBLE
6
6 Adjust the tone to your preference using
the TONE (BASS and TREBLE) controls.
7
Audio recording component
(Cassette deck, etc.)
1
STANDBY/ON
SLEEP
SACD/CD NETWORK PHONO RECORDER
FM/DAB
1
Select the source you want to record.
2 Start recording, then start playback of
the source component.
T
FM/DAB
BALANCE
Select the source you want to playback.
Select the playback component.
• When using the remote control, the input function
button can be used to select the component.
5
TONE
Recording
1
• If the unit is in the standby mode, press the remote
control’s  STANDBY/ON button.
3
TUNE / PRESET
A SPEAKERS B
2 Turn power ON to the unit. Press /I
STANDBY/ON button on the front panel.
7
SCAN VOLUME
PRESET
PRESET
TUNE
2
3
PHONES
P
SACD/CD NETWORK PHONO RECORDER
TOP
MENU
1 Turn on the power of the playback
component.
SLEEP
MEMORY
STANDBY ON
STANDBY
STANDBY/ON
SX-20DAB
VOLUME
5
TUNE
FM MODE MEMORY
RETURN
BALANCE
L
1
R
Select a surround mode you want.
9
En
Operation
Listening to the FM radio
If the
or
indicator does not light when tuning to an
FM station because the signal is weak, set the stereo
receiver to the mono reception mode.
• This should improve the sound quality and allow you
to enjoy the broadcast.
TOP
MENU
FM/DAB
ENTER
TUNE
SCAN VOLUME
TUNE
PRESET
SCAN VOLUME
PRESET
2
1
TUNE
PRESET
PRESET
TOP
MENU
ENTER
FM/DAB
TUNE
1
2
Saving station presets
If you often listen to a particular radio station, it’s
convenient to have the receiver store the frequency for
easy recall whenever you want to listen to that station.
This saves the effort of manually tuning in each time.
This unit can memorize up to 30 stations.
• Stations are stored in stereo.
TOP
MENU
– Lights when a stereo FM broadcast is being
received in auto stereo mode.
• You can also use the front panel controls. Press
TUNE/PRESET to enter tuning mode, then use /
– or +/ to change the frequency.
SCAN VOLUME
ENTER
FM/DAB
TUNE
RETURN
FM MODE MEMORY
2,4
1
En
R
Tune to a station you want to memorize.
See Listening to the FM radio above for more on this.
2
Press MEMORY.
Station preset display is blinking.
10
BALANCE
L
Listening to station presets
You will need to have some presets stored to do this. See
Saving station presets above if you haven’t done this
already.
1 Press / to select the station preset
you want.
• You can also use the numeric buttons on the
remote control to recall the station preset.
Note
• You can also use the front panel controls. Press
TUNE/PRESET to enter preset mode, then use /–
or +/ to select a preset station.
3
– Lights when a normal broadcast channel.
Note
TUNE
PRESET
• There are three ways to do this:
Automatic tuning
To search for stations in the currently selected band,
press and hold / for about 0.5 second. The receiver
will start searching for the next station, stopping when it
has found one. Repeat to search for other stations.
Manual tuning
To change the frequency one step at a time, press /.
High speed tuning
Press and hold / for high speed tuning.
R
Press FM MODE to select “FM MONO”.
PRESET
Tune to a station.
Press MEMORY.
Station preset display stop blinking and the receiver
stores the station.
BALANCE
L
1 Press FM/DAB repeatedly to select the
FM band.
You can also use the numeric buttons.
Examples:
For “2” : Press “2”.
For “17” : Press “1”, then press “7” within 2 seconds.
For “30” : Press “0”.
• A stored frequency is erased from the memory by
storing another frequency in its place.
• If station preset display stop blinking, start again
from the above step 2.
4
RETURN
FM MODE MEMORY
RETURN
3 Within 5 seconds, press / to select
the station preset you want.
Scanning preset stations in sequence
TOP
MENU
FM/DAB
1
TUNE
ENTER
TUNE
SCAN VOLUME
PRESET
The following steps show you how to tune in to FM radio
broadcasts using the automatic (search) and manual
(step) tuning functions. Once you are tuned to a station
you can memorize the frequency for recall later—see
Saving station presets below for more on how to do this.
Improving FM sound
PRESET
04
RETURN
Press SCAN.
The receiver will start scanning the stations in the preset
sequence.
• At the desired station, press this button again to
stop scanning.
Operation
SEARCH
TOP
MENU
4
1
RDS
PTY DISPLAY MUTE
TUNE
ENTER
SCAN VOLUME
Press / to search the station.
The system starts searching through the station presets
for a match, stopping when it was found one. Repeat to
search for other stations.
• NO RDS is displayed if no other RDS station is
found.
• If NO PTY is displayed it means the tuner couldn’t
find that program type at the time of the search.
Displaying RDS information
Use the RDS DISPLAY button to display the different
types of RDS information available.
SEARCH
TOP
MENU
FM/DAB
TUNE
RDS
PTY DISPLAY MUTE
TUNE
Listening to the DAB
DAB (Digital Audio Broadcasting) is a digital
transmission system where audio signals are converted
to digital signals for broadcasting.
DAB broadcasts a group of data called multiplex
(ensemble) which may contain one or more stations
(services). Each station contains a primary service and
there may be one or more secondary services.
This allows several programs or services to be
transmitted on a single frequency.
DAB SIGNAL
SCAN VOLUME
MULTIPLEX
(ENSEMBLE)
RETURN
1 Press FM/DAB repeatedly to select the
FM band.
• RDS is only possible in the FM band.
2 Press RDS SEARCH to select the search
mode you want.
The search mode changes as follows;
RDS SEARCH RDS search

PTY SEARCH PTY (Program Type) search

OFF
Off

(RDS
SEARCH)
3 When the PTY search mode is selected,
press RDS PTY to select the program type
you want to hear.
1
Press RDS DISPLAY for RDS information.
Each press changes the display as follows:
• Program Service Name (PS) – The name of the radio
station.
• Program Type (PTY) – This indicates the kind of
program currently being broadcast.
• Radio Text (RT) – Messages sent by the radio
station. For example, a talk radio station may
provide a phone number as RT.
Note
• If any noise is picked up while displaying the RT
scroll, some characters may be displayed
incorrectly.
• If the signals are too weak or no RDS service is
available, NO NAME, NO PTY, NO RDS or NO
TEXT will be displayed.
SERVICES
SERVICES
COMPONENTS
(STATIONS)
Selecting DAB
SEARCH
TOP
MENU
FM/DAB
RDS
PTY DISPLAY MUTE
TUNE
ENTER
TUNE
SCAN VOLUME
PRESET
• In addition, there are three other program types,
TEST, ALARM and NONE.
TEST and ALARM are used for emergency
announcements.
NONE appears when a program type cannot be
found.
2
3
4
PRESET
NEWS – News
AFFAIRS – Current Affairs
INFO – General Information
SPORT – Sport
EDUCATE – Educational
DRAMA – Radio plays, etc.
CULTURE – National or regional culture, theater, etc.
SCIENCE – Science and technology
VARIED – Usually talk-based material, such as quiz shows or
interviews.
POP M – Pop music
ROCK M – Rock music
EASY M – Easy listening
LIGHT M – ‘Light’ classical music
CLASSICS – ‘Serious’ classical music
OTHER M – Music not fitting above categories
WEATHER – Weather reports
FINANCE – Stock market reports, commerce, trading, etc.
CHILDREN – Programs for children
SOCIAL – Social affairs
RELIGION – Programs concerning religion
PHONE IN – Public expressing their views by phone
TRAVEL – Holiday-type travel rather than traffic
announcements
LEISURE – Leisure interests and hobbies
JAZZ – Jazz
COUNTRY – Country music
NATION M – Popular music in a language other than English
OLDIES – Popular music from the ’50s and ’60s
FOLK M – Folk music
DOCUMENT – Documentary
There are three ways of search for RDS programs as
follows.
• RDS search – Use to automatically search and
receive the stations offering RDS services.
• PTY search – Use to automatically search and
receive the stations broadcasting the desired
program type.
PRESET
Radio Data System (RDS) is a system used by most FM
radio stations to provide listeners with various kinds of
information—the name of the station and the kind of
show they’re broadcasting, for example.
One feature of RDS is that you can search by type of
program. For example, you can search for a station
that’s broadcasting a show with the program type, JAZZ.
You can search the following program types:
Searching for RDS programs
PRESET
An introduction to RDS
04
RETURN
11
En
04
Operation
1 Press the FM/DAB button repeatedly to
select "DAB".
If you select a station that cannot be received properly,
“DAB No Tuned” is displayed.
Frequency
Displays the frequency of the current multiplex.
DAB
No Tuned
DAB
BBC
FREQ:239.200MHz
Station name
BBC
News
Using the auto scan function manually
Using DAB for the very first time
The very first time you use DAB, press the SCAN button
to run the Auto Scan.
If a new DAB station is introduced, or you move to a new
area, you can run the Auto Scan function again.
1
Select DAB.
See Selecting DAB above for more on this.
2
Displaying DAB radio information
1
Select DAB.
2 Press the RDS DISPLAY repeatedly to
display information about the selected DAB
station.
Program Type
Displays the type of program.
1
Select DAB.
See Selecting DAB above for more on this.
2 Press the TUNE / button to select a
DAB service.
Noise may be generated and reception quality may
become poor according to Signal Noise Rate. If
reception quality is poor, move the antenna in different
directions to find a position where the good rate is
displayed.
DLS (Dynamic Label Segment)
BBC
All the late
Scroll
12
En
Audio Mode
Displays the audio mode (stereo or mono).
BBC
DAB Stereo
BALANCE
L
BASS
Bitrate
R
TREBLE
NETWORK AUDIO PLAYER
Displays the bit rate.
DAB setup
1
Press the TOP MENU button.
2 Press / to select the item to be set,
then press the ENTER button.
The following settings are available for DAB.
DRC
BBC
SNR:100
BBC
<BBC5Live>
BBC
(BBC5Live)
1 Use BASS +/– or TREBLE +/– on the
remote control to adjust bass or treble.
FM MODE MEMORY
BBC
BITRATE:192kbps
When tuned to a station which is broadcasting DLS text
data, the text will scroll across the display.
The station is tuned.While the primary service is
selected, brackets < > are displayed. While the
secondary service is selected, brackets ( ) are displayed.
Use the bass and treble controls to adjust the overall
tone.
BBC
BBC Station
BBC
News
3 Press the ENTER button to listen to the
service.
Adjusting the bass and treble
SACD PLAYER
FUNC
SNR (Signal Noise Rate)
Selecting DAB stations
Displays the name of the current multiplex.
See Selecting DAB above for more on this.
Press the SCAN button.
DAB
Scanning...
Multiplex Name
Sound settings
The DRC (Dynamic Range Control) function lets you
change the dynamic range of the received sound
depending on the content of the broadcast so that the
sound is easier to hear even when the volume is low.
Press the / button to select the following options,
and then press the ENTER button.
DRC:Off : DRC is switched off.
Any DRC level broadcast will be ignored. This is the
default setting.
DRC:On : Applies DRC level as sent with the broadcast.
Component Reset
Deletes all the stations.
While “Reset: Yes?” appears, press the ENTER button.
Note
• You can also use the front panel controls. Press
TONE repeatedly to select BASS or TREBLE, then
press /– or +/ to adjust the bass or treble as
desired.
Adjusting the sound volume balance
Adjust the sound volume balance between the left and
right speakers.
1 Press BALANCE then press L/R to adjust
the sound volume balance.
FM/DAB
TUNE
FM MODE MEMORY
RETURN
BALANCE
L
BASS
R
TREBLE
Note
• You can also use the front panel controls. Press
BALANCE to enter balance mode, then use /– or
+/ to adjust the balance.
Operation
04
Listening in surround sound
Allows you to create natural surround sound effects
using just the left and right speakers.
• Default setting: OFF
1 Press SURROUND repeatedly to select
the surround sound options.
• You can select MIN, MID, MAX or OFF. If set to
MAX, the surround sound effects will be more
emphasized.
4
5
6
7
8
9
Switching the desired speakers on
Then the corresponding speaker indication (SPK A (and/
or) B) is displayed and the sound can be heard from the
speakers connected to the selected speaker terminals.
1 Use SPEAKERS A/B buttons to listen to
the speaker system connected to SPEAKERS
A or B terminals.
A
SPEAKERS
0
2
3
4
5
6
7
8
9
SURROUND DIMMER
SPEAKERS
B
TONE DIRECT
SEARCH
APD
A
B
TONE DIRECT
1
0
To set for automatic standby status
(Auto Power Down)
Restoring all the settings to the
factory default settings
Set to automatically turn off the receiver after a specified
time has passed (when the power has been on with no
operation for several hours).
• Default setting: 6H
Use this procedure to reset all the receiver’s settings to
the factory default. Use the front panel controls to do
this.
SURROUND DIMMER
1
STANDBY/ON
Note
Note
Using Tone Direct
Use the Tone Direct modes when you want to hear the
truest possible reproduction of a source.
VOLUME
MEMORY
TUNE / PRESET
TONE
BALANCE
• You can select 2, 4 or 6 hours, or OFF (if no
automatic shutoff is desired).
RDS
PTY DISPLAY MUTE
• Depending on the sound source, in some cases it
may not be possible to achieve good results. In this
case, set the setting to OFF.
STEREO RECEIVER SX-20DAB
1 Press APD repeatedly to specify the
amount of time to allow before the power is
turned off (when there has been no
operation).
SLEEP
SACD/CD NETWORK PHONO RECORDER
• When using the headphones for private listening,
press the corresponding SPEAKERS A/B buttons to
switch off both A and B speakers.
1
2
3
4
5
6
APD
A
Note
2 1
1 When power is in standby mode, hold
SACD/CD button and MEMORY button
depressed simultaneously for two seconds.
2 When you see “RESET?” appear in the
display, press TONE DIRECT button.
OK appears in the display to indicate that the receiver
has been reset to the factory default settings.
• You can check the Auto Power Down setting at any
time by pressing APD once.
1 Press TONE DIRECT to switch the DIR
(Direct mode ON) or CONTROL (Direct mode
OFF).
When DIRECT is selected, independent tone settings
(Bass/Treble), Balance, Surround sound are disabled. In
addition, DIR lights up and the front panel’s display will
be turned off.
7
8
TONE DIRECT
0
9
SPEAKERS
B
SEARCH
SURROUND DIMMER
RDS
PTY DISPLAY MUTE
13
En
05
Additional information
Chapter 5:
Problem
Additional information
Troubleshooting
Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with
this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other
components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks
listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.
• If the unit does not operate normally due to external effects such as static electricity disconnect the power plug
from the outlet and insert again to return to normal operating conditions.
Problem
Remedy
The power does not turn on.
• Is the power plug disconnected from the power outlet? Connect the power plug
correctly to its outlet (page 6).
• Is the power cord disconnected from the AC IN connector? Connect the power cord
correctly (page 6).
Power turns off.
• Is the Auto Power Down function turned ON? If you do not want the power to turn off
automatically, disable the Auto Power Down function (page 13).
• There is a possibly that the speaker cord’s exposed wire is in contact with the rear
panel or another exposed wire, triggering the protection circuit. Firmly retwist the
speaker’s exposed wire and connect it ensuring that it isn’t sticking out from the
unit or the speaker terminal on the speaker.
• The temperature within the unit has exceeded the allowable value. Try moving the
unit for better ventilation (page 3).
• Lower the volume level.
• After about a minute (you won’t be able to switch the unit on during this time),
switch the receiver back on. If the message persists, call a Pioneer authorized
independent service company.
TEMP shows in the display and the
volume level drops.
• The temperature within the unit has exceeded the allowable value. Try moving the
unit for better ventilation (page 3).
• Lower the volume level.
No sound is output when a function is • A connection cable is disconnected or connected improperly. Check your
selected.
connections (page 5).
• Connectors or pin plugs on a cable are dirty. Wipe off any dirt from connectors and
pin plugs.
• Confirm that the unit’s input selector is set to the desired playback component. Set
selector correctly (page 9).
• Press MUTE on the remote control to turn muting off (page 8).
14
En
No sound from one speaker.
• Are the connection cables or speaker cables disconnected on one side? Reconnect
securely (page 5).
Considerable noise in radio
broadcasts.
• Connect the antenna (page 6) and adjust the position for best reception.
• Route any loose cables away from the antenna terminals and wires.
• Fully extend the FM/DAB wire antenna, position for best reception, and secure to a
wall (or connect an outdoor FM/DAB antenna).
• Turn off equipment causing interference or move it away from the receiver (or move
antennas farther away from equipment causing noise).
Remedy
Broadcast stations cannot be selected • Connect an outdoor antenna (page 6).
automatically.
Noise during playback of a cassette
deck.
• Move the cassette deck away from your receiver, until the noise disappears.
The display is dark or off.
• Press DIMMER on the remote control repeatedly to return to the default.
• The front panel display is automatically turned off when the Tone Direct mode is set
to TONE DIRECT (ON). To see the display, press TONE DIRECT and set the function
to TONE CONTROL (OFF).
Can’t operate the remote control.
•
•
•
•
•
Replace the battery (page 4).
Operate within 7 m, 30° of the remote sensor on the front panel (page 4).
Remove the obstacle or operate from another position.
Avoid exposing the remote sensor on the front panel to direct light.
Is the control cord for one component connected improperly? Confirm correct
connections (page 5).
Cleaning the unit
• Use a polishing cloth or dry cloth to wipe off dust
and dirt.
• When the surface is dirty, wipe with a soft cloth
dipped in some neutral cleanser diluted five or six
times with water, and wrung out well, and then
wipe again with a dry cloth. Do not use furniture
wax or cleansers.
• Never use thinners, benzine, insecticide sprays or
other chemicals on or near this unit, since these
will corrode the surface.
Additional information
05
Miscellaneous
Specifications
Power requirements. . . . AC 220 V to 230 V, 50 Hz/60 Hz
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . 210 W
In standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 W
Dimensions
. . . . . . . . . . . 435 mm (W) x 142.5 mm (H) x 364 mm (D)
Weight (without package) . . . . . . . . . . . . . . . . . . . . 8.3 kg
Amplifier section
Power output specification is for when power supply is
230 V.
• Rated power output
(both channels driven at 20 Hz to 20 kHz)
Accessories
100 W+100 W (THD 1 %, 8 )
Audio section
•
Input (Sensitivity/Impedance)
SACD/CD, NETWORK, RECORDER . . . . . 400 mV/47 k
PHONO (MM) . . . . . . . . . . . . . . . . . . . . . . . . 5.5 mV/47 k
•
Output (Level/Impedance)
REC OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 mV/2.0 k
•
Frequency response
SACD/CD, NETWORK, RECORDER
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Hz to 100 kHz
•
dB
RIAA Deviation
PHONO (MM) . . . . . . . . . . . . . . 20 Hz to 20 kHz ±0.5 dB
•
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
AAA/IEC R03 dry cell batteries . . . . . . . . . . . . . . . . . . . . 2
FM/DAB wire antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Power cord
Warranty card
Quick start guide
Safety Brochure
These operating instructions (CD-ROM)
Tone control
Bass . . . . . . . . . . . . . . . . . . . . . . . . . . . . .± 14 dB (100 Hz)
Treble . . . . . . . . . . . . . . . . . . . . . . . . . . . .± 14 dB (10 kHz)
Note
• Specifications and the design are subject to
possible modifications without notice, due to
improvements.
• Corporation and product names mentioned herein
are trademarks or registered trademarks of the
respective corporations.
• “Pioneer” is a trademark of Pioneer Corporation,
and is used under license.
• Signal-to-Noise Ratio (IHF SHORTED,
A-NETWORK)
SACD/CD, NETWORK, RECORDER . . . . . . . . . . 100 dB
PHONO (MM, 5.5 mV input) . . . . . . . . . . . . . . . . . . 80 dB
•
Total Harmonic Distortion
SACD/CD, NETWORK, RECORDER . . . . . 0.02 % or less
(1 kHz, 50 W, 8 )
•
Guaranteed speaker impedance
A, B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4  to 16 
A+B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8  to 16 
Tuner Section
Frequency Range (FM). . . . . . . . . . 87.5 MHz to 108 MHz
Frequency Range (DAB) . .174.928 MHz to 239.200 MHz
Antenna Input (FM/DAB). . . . . . . . . . . .75  unbalanced
15
En
Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu).
<Germany>
Hanns-Martin-Schleyer-Str. 35, 47877 Willich, Germany
Tel: +49(0)2154 913222
<UK>
Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QQ United Kingdom
Tel: +44(0)208 836 3612
<France>
6, Avenue de Marais F - 95816 Argenteuil Cedex FRANCE
Tel :+33(0)969 368 050
© 2015 Onkyo & Pioneer Corporation.
All rights reserved.
<ARB7605-A>
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
