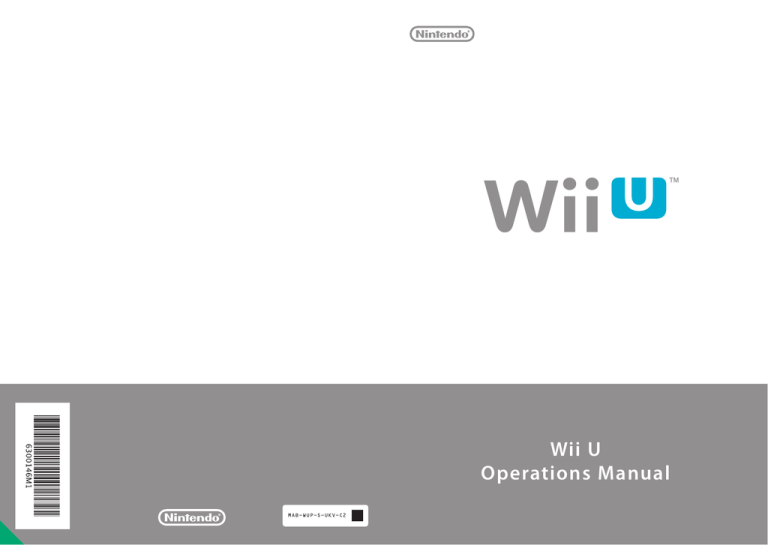

Nintendo Wii U Operating instructions

Nintendo Wii U Operating instructions

MAB-WUP-S-UKV-C2

Wii U

Operations Manual

[0712/UKV/WUP-HW]

T

his seal is your assurance that Nintendo has reviewed this product and that it has met our standards for excellence in workmanship, reliability and entertainment value. Always look for this seal when buying games and accessories to ensure complete compatibility with your Nintendo Product.

Thank you for selecting the Wii U™ console .

IMPORTANT: Please read this Operations Manual and accompanying Important Information booklet before use, paying careful attention to the health and safety information in both documents. Please also make sure you read the health and safety information in the Health and Safety Information application on the Wii U Menu once the console has been set up. If this product is to be used by young children, the documentation should be read and explained to them by an adult. Store all documentation in a safe place.

IMPORTANT: Nintendo may automatically update your Wii U console or Wii U software to ensure the security and proper functioning of your Wii U console, to improve the service or to protect the intellectual property of Nintendo or third parties.

This product contains technological protection measures. Your Wii U console is not designed for use with any existing or future unauthorised device or software that enables technical modification of the Wii U console or software.

Any such unauthorised use may render your Wii U console permanently unplayable and result in removal of content.

Any software included in the Wii U console as well as any updates of such software (together “the Software”) are licensed by Nintendo only for personal and non-commercial use on the Wii U console. The Software must not be used for any other purpose. In particular, without Nintendo’s written consent, you must neither lease or rent the Software nor sublicense, publish, copy, modify, adapt, translate, reverse engineer, decompile or disassemble any portion of the Software other than as expressly permitted by applicable law.

For use with the European/Australian version of Wii U and Wii software only.

Parental Controls

You can restrict the ways in which children use the Wii U console, for example by restricting the use of software, purchases in Nintendo eShop, viewing of websites and other features.

During initial setup of the console, you will be asked to configure Parental Controls. Follow the on-screen instructions to set specific restrictions. To view or change Parental Controls settings after the initial setup has been completed, select Parental Controls from the Wii U Menu.

The Parental Controls settings are protected by a PIN code that you are prompted to choose the first time you configure Parental Controls.

For more information, please see the Quick Start Guide.

Contents

Wii U Documentation . . . . . . . . . . . . . . . . 4

Types of Documentation . . . . . . . . . . . . . . . . . 4

Using Electronic Manuals . . . . . . . . . . . . . . . . 4

Important Health and Safety

Information (Please read) . . . . . . . . . . . . 5

Getting Started . . . . . . . . . . . 7

Component Names and Functions . . . 7

Wii U Console . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Wii U GamePad . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Charging the Wii U GamePad . . . . . . . . 11

How to Charge . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Reading the Battery LED . . . . . . . . . . . . . . . . . 12

Turning the Power On / Off . . . . . . . . . . . 13

Turning the Power On . . . . . . . . . . . . . . . . . . . 13

Turning the Power Off . . . . . . . . . . . . . . . . . . . 14

Turning the Wii U GamePad

Screen Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Pairing Controllers . . . . . . . . . . . . . . . . . . 15

Pairing Wii Remotes and

Other Controllers . . . . . . . . . . . . . . . . . . . . . . . . 15

Pairing a Wii U GamePad . . . . . . . . . . . . . . . . . 15

Positioning the Sensor Bar . . . . . . . . . . . 16

How to Position the Sensor Bar . . . . . . . . . . . 16

Play Environment . . . . . . . . . . . . . . . . . . . . . . . . 17

How-To . . . . . . . . . . . . . . . . . . 20

Transferring Software and Data . . . . . . 20

Transferable Data . . . . . . . . . . . . . . . . . . . . . . . . 20

Preparing for the Transfer . . . . . . . . . . . . . . . . 21

Transfer Procedure . . . . . . . . . . . . . . . . . . . . . . . 21

Entering Text . . . . . . . . . . . . . . . . . . . . . . . . 24

Screen Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Available Keyboards . . . . . . . . . . . . . . . . . . . . . 24

Calibrating Controllers . . . . . . . . . . . . . . 25

Calibrating the Touch Screen . . . . . . . . . . . . . 25

Calibrating the Control Sticks . . . . . . . . . . . . 25

Calibrating the Motion Controls . . . . . . . . . . 25

Replacing and Removing Batteries . . . 26

Wii U GamePad Battery . . . . . . . . . . . . . . . . . . 26

Handling Used Batteries . . . . . . . . . . . . . . . . . . 28

Wii U Console Battery . . . . . . . . . . . . . . . . . . . . 29

Handling Used Lithium

Coin Cell Batteries . . . . . . . . . . . . . . . . . . . . . . . 29

Troubleshooting . . . . . . . . . 30

Power and Temperature of Devices . . . . . . . 30

Charging and Batteries . . . . . . . . . . . . . . . . . . . 32

TV Display and Audio . . . . . . . . . . . . . . . . . . . . 33

Wii U GamePad Display and

Touch Screen Response . . . . . . . . . . . . . . . . . . 33

Controller Operations . . . . . . . . . . . . . . . . . . . . 35

Requesting Repairs . . . . . . . . . . . . . . . . . . . . . . 36

Settings . . . . . . . . . . . . . . . . . 18

System Settings . . . . . . . . . . . . . . . . . . . . . 18

Configuring Settings . . . . . . . . . . . . . . . . . . . . . 18

User Settings . . . . . . . . . . . . . . . . . . . . . . . . 19

Adding Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing Users . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Please note that Nintendo may amend or update product manuals and other important documents from time to time. Nintendo therefore recommends checking for the latest version of the manuals you may be referred to at http://docs.nintendo-europe.com/. Please note this service may not be available in some countries.

Trademarks are property of their respective owners .

Wii U is a trademark of Nintendo .

© 2012 Nintendo Co ., Ltd .

3

4

Wii U Documentation

Types of Documentation

Manuals packaged with the console

Quick Start Guide

Provides information on getting ready to use the Wii U™ console for the first time .

Wii U Operations Manual (this manual)

Provides information on topics such as part names, recharging, System Settings options and troubleshooting .

Important Information booklet

Contains important information regarding health and safety, warranties, support information, disposal of the product and so on .

Manuals built in to the Wii U console

Wii U Electronic Manual

Includes detailed explanations on how to use Wii U features and pre-installed software .

Wii Menu Electronic Manual

Includes detailed explanations on how to use Wii Menu features and pre-installed software .

· In order to reduce the use of paper, we are moving our documentation to electronic formats .

Using Electronic Manuals

Press the HOME Button on the Wii U GamePad while the Wii U Menu is displayed to open the HOME Menu, then touch . The Wii U Electronic Manual will appear .

· If you press the HOME Button while using a Wii U software title, touching will display the electronic manual for that software instead .

· To close the manual, touch in the bottom left of the screen . The console will return to the screen it was displaying before you pressed the HOME Button .

HOME Menu Electronic manual contents

Touch or slide on the screen using the Wii U GamePad stylus

(p . 9)

to view the contents of the manual .

Select items View page Change page

Important Health and Safety Information

(Please read)

To prevent damage to your health, and accidents caused by fire or electric shock etc ., make sure you read the contents of the

Health and Safety Information application on the Wii U Menu and the Important Information booklet packaged with the console, and use the console as instructed .

Use of this product by children

Read the contents of the Health and Safety Information application on the Wii U Menu and the Important

Information booklet as well as any instruction manuals before use, and accompany your child or children during their use of the console .

Perform regular checks

Perform regular checks of the console and its parts, for example making sure that the AC adapter cord or plug is not damaged, that dust has not gathered between the AC adapter plug and socket outlet, that dust has not collected in the air intake and air vents of the console, and so on .

If the system doesn’t operate properly

Review the Troubleshooting chapter of the manual

(p . 30)

.

If a problem occurs

(If you notice any damage to the console, smoke or unusual sounds or smells etc .)

Turn off

Hold down the POWER Button for at least one second .

· You should touch only the POWER Button . Do not touch any other part of the console .

Unplug

Unplug the AC adapter from the wall socket .

· Disconnect any connected peripherals as well .

Contact

Contact Nintendo Customer Support (see

Information booklet) .

Important

· Do not attempt to repair the console yourself . To do so could cause injury .

5

6

AC Adapter Warnings

Incorrect usage of the AC adapter could lead to fire, electric shock, overheating or damage to the AC adapter .

z

The AC adapter should be plugged into a nearby, easily accessible socket .

z Do not use or place the AC adapter in hot places or places where heat can accumulate, such as:

places that receive direct sunlight, or near sources of heat such as stoves and heaters

on electric blankets or carpets with long fibres

on top of AV equipment

outdoors or in hot cars z

Do not use the AC adapter in places which have high humidity or where water might leak .

Additionally, do not handle it with dirty or greasy hands .

z Do not place any items containing liquids such as vases on top of the AC adapter .

z

Ensure that the AC plug is fully inserted into the wall socket .

z

Be sure to connect the AC adapter to the correct voltage (230V) .

z

Do not apply force to the cord, for example by twisting or coiling the cord tightly, or by placing heavy objects on the cord (particularly at the base of the cord) .

z Do not step on the cord, pull on the cord, wind up the cord or perform technical modifications of the cord .

z Regularly remove any build-up of dirt such as dust from the AC plug by removing it from the wall socket and wiping it with a dry cloth .

z

Do not use an AC adapter that has become wet, for example with pet urine .

z

The use of these products by children should only be allowed with the full supervision of a parent or legal guardian .

AC adapter rating information is located on the bottom of the unit .

Component Names and Functions

Wii U Console

Front View

(Slot cover opened)

Rear View

· View from the right

· Please note that the illustrations published in this manual may differ from the final product .

POWER Button

Press to turn the Wii U console on and off .

Power LED

Shows you the status of the console .

(blue) : Power is on

(p . 13)

.

(orange) : Console is downloading/ installing data while power is off

(p . 14)

.

(red)

: Power is off

(p . 13)

.

EJECT Button

Press to eject a disc .

Disc LED

Lights up white when a disc is inserted .

Disc slot

Used to insert Wii U discs or Wii Game Discs .

SYNC Button

Press to pair controllers such as the

Wii U GamePad or separately-sold

Wii Remote™ / Wii Remote Plus

(p . 15)

.

SD Card slot

Used to insert separately-sold SD Cards

(see Wii U Electronic Manual, “Using

SD Cards”) .

USB ports

Used to connect separately-sold USB devices marked with (see Wii U Electronic

Manual, “Using USB Devices”) .

Battery cover

Covers the compartment containing the lithium coin cell battery (CR2032) .

· Do not remove this cover except when replacing the lithium coin cell battery .

Air intake

AC adapter connector

AV Multi Out connector

Sensor bar connector

HDMI™ port

Air vent

7

8

Wii U GamePad

Front View

Touch Screen Controls

Touch

Gently pressing the touch screen with the stylus is called “touching” (or “tapping”) .

Slide

Tracing over the touch screen with the stylus held gently against it is called “sliding” .

Left Stick (L Stick)

· The Left Stick can be pressed and used like a button .

Control Pad

Sensor bar

Detects movement of Wii Remotes when the

Wii Remote is used to control the screen on the Wii U GamePad . (Supported software only .)

· When used in this way, this component functions in effectively the same manner as the Sensor Bar

(RVL-014) which is included as part of the

Premium Pack .

· When using Wii Remotes to control software on the TV screen, you will need a separately-sold

Sensor Bar

(p . 16)

.

Camera

A, B, X and Y Buttons

Right Stick (R Stick)

· The Right Stick can be pressed and used like a button .

+ Button

– Button

Speakers

POWER Button

Press to turn the Wii U console and

Wii U GamePad on and off

(p . 13)

.

TV Button

Perform TV, digital video recorder and TV tuner

(e .g . cable television, satellite television) controls

(p . 13)

.

Battery LED

Lights up when charging and indicates battery level

(p . 12)

.

HOME Button

Press to configure settings for controllers such as the Wii U GamePad or Wii Remote, or to view the HOME Menu, where you can access features such as electronic manuals

(see Wii U Electronic Manual, “HOME Menu”) .

· The HOME Button LED will light up blue when someone on your friend list comes online (see

Wii U Electronic Manual, “Friend List”), or when you receive a call via the built-in Wii U Chat software, among other events .

Microphone

Touch screen

NFC touchpoint

Finds and reads data from items such as cards which support NFC (near-field communication) .

(Supported software only .)

· If the touch screen does not respond properly, please refer to the “Touch screen cannot be used (no response from touch screen)” part of the Troubleshooting section

(p . 34)

.

Standing the Wii U GamePad Up

Place the Wii U GamePad in a Wii U GamePad Stand or Wii U GamePad

Cradle on a flat, stable surface (e .g . a tabletop) .

· Do not place the Wii U GamePad on its side .

· Do not use the touch screen, buttons and so on when standing the

Wii U GamePad up in a stand or cradle .

· The Wii U GamePad Stand and Wii U GamePad Cradle are included in the

Premium Pack only .

9

10

Top View

Rear View

Bottom View

L Button / ZL Button

R Button / ZR Button

Stylus holder

Stores the Wii U GamePad stylus .

Volume control

Slide left and right to adjust the volume of the Wii U GamePad .

Infrared transceiver

Exchanges information using infrared communication .

Audio jack

Plug commercially-available headphones in here . When using headphones, ensure that you plug them in first before wearing them .

· When headphones are plugged in, the speakers will be muted .

AC adapter connector

Connects to the Wii U GamePad AC Adapter .

Support

Hand grips

Battery cover

The Wii U GamePad Battery is stored here .

· Do not remove the battery cover except when replacing the battery .

SYNC Button

Press to pair the Wii U GamePad with a

Wii U console

(p . 15)

.

Charging terminals

Connect to the charging terminals on the cradle .

Accessory connector

Connects to accessories for use with the

Wii U GamePad .

Charging the Wii U GamePad

The battery LED will turn orange while the Wii U GamePad is charging, and will turn off when charging has finished . The battery LED may not go out if you charge the Wii U GamePad while it is in use .

· Charge only in places where the temperature is between

10 and 35°C .

· Charge the Wii U GamePad if it is being used for the first time or if it has not been used for a long time .

How to Charge

Connect the Wii U GamePad AC Adapter as shown in the diagrams below to charge the Wii U GamePad .

Make sure to insert the plug the right way up, and ensure that the plug is firmly inserted .

· The illustrations below show the UK version of the AC adapter .

Directly Connecting the AC Adapter

Remove the AC plug from the wall socket after charging has completed, then carefully remove the plug from the Wii U GamePad, holding both the plug and the Wii U GamePad .

Using the Wii U GamePad Cradle

Place the cradle on a stable surface . If you have a commercially-available cover on your Wii U GamePad, remove it before charging .

· The cradle is only included as part of the Premium Pack .

11

12

Charging Time and Battery Life

· All times are intended as a rough guide . z

Charging time: approx . 2 .5 hours

Charging time may differ depending on factors such as usage environment and remaining battery level . z

Battery life: approx . 3 – 5 hours

Time may differ depending on factors such as screen brightness, features in use (e .g . camera or microphone), use of wireless communication and ambient temperature .

· The Wii U GamePad comes with the screen brightness set to 4 . You can change the brightness of the screen in Controller Settings on the HOME Menu .

Power-Saving Mode

The Wii U GamePad can automatically adjust the brightness and contrast of the screen based on the images displayed in order to reduce battery consumption . To use the power-saving mode, enable it from the Wii U GamePad section of Controller Settings on the HOME Menu .

Reading the Battery LED

The behaviour of the battery LED changes depending on the remaining battery level .

· If the battery becomes depleted while playing a game, you will not be able to use the Wii U GamePad .

Charge the Wii U GamePad when the battery LED turns red .

High

Low

Remaining battery level

Very low

Battery LED

(Off) (Red) (Flashing red)

Turning the Power On / Off

You can turn the power on / off using the Wii U console or controllers such as the Wii U GamePad .

Turning the Power On

There are a number of ways to turn the power on, including those given below . After turning the power on and selecting a user, the Wii U Menu will appear .

· You can start the Wii Menu directly . After turning the power on, press the B Button on the Wii U GamePad while the Wii U logo is displayed in the middle of the screen (see Wii U Electronic Manual, “Wii Menu”) .

Using the POWER Button on the Wii U GamePad ( )

Press the POWER Button on the Wii U GamePad to turn the power on and activate the Wii U GamePad screen display .

· The POWER Button on other controllers, such as the Wii Remote, can also be used to turn the Wii U console on .

· The controller must be paired with the Wii U console beforehand

(p . 15)

.

Using the Wii U GamePad TV Button ( )

Press on the Wii U GamePad to display the screen for the TV Remote feature . Touch PLAY Wii U .

· The TV Remote feature also allows you to control the TV using the Wii U GamePad, for example by turning on the TV or changing the input (see Wii U Electronic Manual, “TV Remote”) .

Using the Wii U Console POWER Button ( )

Press the POWER Button on the Wii U console to turn on the power and activate the Wii U GamePad screen display .

User-Selection Screen

The Wii U Menu will be displayed after you turn on the power and select a user

(p . 19)

.

13

14

Turning the Power Off

Press and hold the POWER Button on the Wii U console or a controller for at least one second . When the power has been turned off, the Wii U console’s power LED will turn from blue to red, and the Wii U GamePad screen will turn off .

· The power LED will remain on even if the power is turned off .

· The Wii U console cannot be turned off with the Wii U GamePad when using the Wii Menu or Wii Game Discs .

Warning: Turning the Power Back On

Do not immediately turn the power back on after turning it off . Doing so could damage the console .

Once the power LED has turned red, always wait at least four seconds before turning the power back on .

Auto Power-Down Feature

The Auto Power-Down feature powers down the console if there has been no user interaction with the console for a certain period of time . You can reset the desired period of time before the console powers down under Auto Power-Down, accessible from Power Settings in System Settings on the

Wii U Menu .

· The console comes preconfigured to automatically power down after one hour of no user interaction .

Standby Functions

This feature allows the console to automatically download and install data even after it has been turned off . If Standby Functions are enabled, the power LED will turn from red to orange shortly after the console is turned off . If software on the console needs updating or installing, the required data will be downloaded and installed . Once all data has been downloaded and installed, the power LED will turn back to red .

· This setting is disabled by default . (You can change it under Power Settings in System Settings on the

Wii U Menu .)

· The power consumption while the console is off is as follows:

• When Standby Functions are disabled and the power LED is red: less than 0.5W

• When Standby Functions are enabled and the power LED is orange: more than 0.5W

Turning the Wii U GamePad Screen Off

The screen of the Wii U GamePad can be turned off to reduce battery consumption if not in use . To turn off the screen, select DISPLAY OFF from under Controller Settings on the HOME Menu .

· When the screen is turned off, the battery LED will slowly turn off .

Pairing Controllers

Controllers, such as the separately-sold Wii Remote, must be paired with the Wii U console before use .

Once a controller has been paired, you can use the POWER Button on that controller to turn the Wii U console on and off .

· A Sensor Bar

(p . 16)

is required in order to use Wii Remotes (except for certain software titles) .

· If you pair a controller with one Wii U console and then wish to use it with another console, you must pair the controller with that console first . The same applies if you wish to use a Wii-compatible controller with a Wii™ console once it is paired with the Wii U console .

· To pair a Wii Balance Board™, refer to the manual for the software that supports it .

Pairing Wii Remotes and Other Controllers

To pair controllers such as Wii Remotes, press the SYNC Button on the Wii U console (once) while the Wii U Menu is displayed .

You can then pair controllers by following the instructions on the TV screen and pressing the SYNC Button on the controller .

· You can pair up to a total of ten controllers (this number does not include the Wii U GamePad) . Once you exceed this limit, existing controller pairings will be deleted, starting from the oldest pairing .

Once pairing has completed, a Player LED on the controller will light up . The Player LED that lights up indicates the player number assigned to that controller .

P1 P2 P3 P4

Example: Wii Remotes

Pairing a Wii U GamePad

To pair a Wii U GamePad, press the SYNC Button on the

Wii U console twice while the Wii U Menu is displayed .

Next, press the SYNC Button on the Wii U GamePad and pair it by entering the symbols shown on the TV screen, following the on-screen explanation .

15

16

Positioning the Sensor Bar

Before using Wii Remotes, you must position a Sensor Bar (RVL-014) following the steps below . A Sensor Bar is included as part of the Premium Pack . (Please note that Wii Remotes and the Sensor Bar are not compatible with some software .)

How to Position the Sensor Bar

Connect the Sensor Bar to the

Wii U console

Plug it into the sensor bar connector at the rear of the Wii U console . Ensure that the plug is firmly inserted . If you purchased the Basic Pack, you can use a Sensor Bar from a Wii console set you already own .

Remove the protective film from the bottom of the Sensor Bar

Place the Sensor Bar either above or below the television screen

Before placing the Sensor Bar, read the “Sensor Bar Placement Tips” section

(p . 17)

.

If You Place the Sensor Bar Below the TV Screen

Start System Settings from the Wii U Menu, select Wii REMOTE AND SENSOR BAR, then select

SET SENSOR BAR POSITION and finally select BELOW TV to specify the position of your Sensor Bar .

Sensor Bar Placement Tips

The Sensor Bar should be in a central position and facing straight ahead .

· Do not mount the Sensor Bar on the TV’s ventilation .

Place the Sensor Bar as far forwards

(so that it is slightly in front of the

TV) and as level as possible .

If placing the Sensor Bar on a TV stand, place it as near to the screen as possible .

Play Environment

Use the Wii Remote in an environment that meets the following conditions: z you should be able to see the Sensor Bar straight in front of you z there should be no obstacles between the Sensor Bar and the Wii Remote z you should be standing or sitting in front of the television z you should be 1– 3m away from the Sensor Bar

If you are having difficulty using the Wii Remote, adjust its settings by starting System Settings from the Wii U Menu and then selecting Wii REMOTE AND SENSOR BAR, or consult the

“Wii Remote cannot be operated (does not respond correctly)” section of the Troubleshooting chapter

(p . 35)

.

17

18

System Settings

In System Settings, you can configure Wii U console settings such as internet connections or data management, and view information such as the system version of the Wii U console .

· These settings are shared across all users . You cannot configure settings for individual users

(p . 19)

.

Configuring Settings

Configure settings by touching the Wii U GamePad screen . For information about the available options and the items you can configure, see Wii U Electronic Manual, “System Settings” .

Setting category

Select to configure individual items .

List of available settings for each category

System version

List of setting categories

Touch an icon to jump directly to the corresponding category .

Explanations of Settings

Explanations will appear on the TV screen while you are configuring settings . To scroll through the explanation on the TV screen, use the

Right Stick on the Wii U GamePad .

User Settings

On the Wii U console, game save data, play time and other such items can be managed or saved for individual users . If the console will be used by several people, for example a family, then you should first add users for each person who will use the console .

In order to use online services or features, you must configure an internet connection and link a Nintendo

Network ID (see Wii U Electronic Manual, “User Settings”) .

· More information will be displayed on the TV screen when you configure these settings .

A Nintendo Network ID is necessary to use Nintendo Network™ services and features . Each user must link a Nintendo Network ID in order to use Miiverse™ and Nintendo eShop, and manage friend information .

· A Nintendo Network ID is different from a Club Nintendo account .

· An email address is required to create a Nintendo Network ID .

· A parent or legal guardian should create a Nintendo Network ID for children .

The parent or legal guardian’s email address must be used .

Adding Users

Touch NEW USER on the user-selection screen that appears after turning the power to the console on, then follow the on-screen instructions .

· Up to 12 users can be added to one Wii U console .

· You can also add users by touching the Mii™ that appears at the top left of the Wii U Menu .

Changing Users

Touch the Mii that appears at the top left of the Wii U Menu to display the user-selection screen . To select a new user, touch the Mii for that user .

· Touch USER SETTINGS to edit a user’s Mii, change user information, delete users and so on .

19

20

Transferring Software and Data

Data saved on a Wii console, such as software and save data, can be transferred (moved) to a Wii U console .

· Data will be deleted from the Wii console once transferred .

· You cannot transfer data from a Wii U console to a Wii console .

Once data has been transferred to a Wii U console, it cannot be returned to a Wii console .

You will need the following to perform a transfer: z Wii U console pack and Wii console pack z

separately-sold SD / SDHC Memory Card (with at least 512MB of free space)

(hereafter referred to as “SD Card”) z

broadband internet environment (see Quick Start Guide, “Internet Settings”)

· For more information about connecting a Wii console to the internet, refer to the Wii Operations Manual –

Channels & Settings .

Transferable Data

The data listed below will be transferred as a set . You cannot select individual items to transfer, nor can you transfer any other kinds of data, such as save data for Nintendo GameCube™ software .

Wii Software

z

Save data for Wii software

1 z

WiiWare™ and save data

1, 2 z Virtual Console™ titles and save data 1, 2 z Add-on content for software

Wii Shop Channel

z

Wii Points

3 z

Wii Shop Channel account activity

Other

z Mii characters

4

1

If the save data has been moved to an SD Card, please move it back to the Wii console before starting the transfer .

2 Any software that came pre-installed on your Wii console cannot be transferred .

3

The Wii Points balance will be added to the Wii U console’s Wii Shop Channel balance . You cannot perform a transfer if the total balance would exceed 10,000 Wii Points .

4

The Mii characters will be moved to the Mii Channel on the Wii U console’s Wii Menu .

Software on the Wii console that has been deleted or moved to an SD Card

The Wii Shop Channel account activity will be moved to the Wii Shop Channel on the Wii Menu of the

Wii U console . If you have deleted any software acquired through the Wii Shop Channel or moved it to an SD Card, please redownload it (free of charge) from the Wii Shop Channel on the Wii U console .

Preparing for the Transfer

Connection Check

Check the connection between the Wii U console, the Wii console and the Sensor Bar, and check each console’s internet connectivity .

Example: A connected TV .

Sensor Bar

Wii console

Wii AV cable etc HDMI cable etc

Linking a Nintendo Network ID

You must link a Nintendo Network ID

(p . 19)

before transferring data . You can check whether one has been linked by the Mii icon in the upper left corner of the Wii U Menu screen .

: If the background of the Mii icon is blue, then a Nintendo

Network ID has been linked and you can continue with the transfer procedure .

: If the background of the Mii icon is grey, then a Nintendo

Network ID has not yet been linked . Touch the user Mii and link a Nintendo Network ID (see Wii U Electronic

Manual, “User Settings”) .

Wii U console

Transfer Procedure

When both consoles are connected to the TV, change the TV’s input to operate the Wii U and Wii in turn .

· If you are alternately connecting the Wii and Wii U consoles to the TV using one AV cable, switch the AV cable between consoles when swapping the SD Card .

· Do not remove the SD Card, turn either of the consoles off or disconnect AC adapters while data is being saved or loaded . Doing so could cause damage to the devices and/or data loss .

Select the Wii Menu icon from the

Wii U Menu .

21

22

Select Wii SYSTEM TRANSFER .

Wii System Transfer must be downloaded (free of charge) from the Wii Shop Channel . Its icon should appear in the Wii Menu .

Select the system memory as the save destination .

Select the newly-appeared

Wii SYSTEM TRANSFER .

Insert the SD Card to be used for the transfer into the Wii U console .

Read the warnings on the screen and follow the on-screen guide as you perform the transfer .

Information about the Wii U console will be saved to the SD Card .

Change the TV input from the Wii U console to the Wii console .

If you only have one Wii Remote to operate both consoles, then it must be paired with the

Wii console (see Wii Operations Manual – System Setup) .

Download the Wii U Transfer Tool from the Wii Shop Channel on the Wii console .

Select START SHOPPING to download the Wii U

Transfer Tool under Wii CHANNELS, free of charge .

Select the Wii System Memory as the save destination .

Select Wii U TRANSFER TOOL from the Wii Menu .

Remove the SD Card from the

Wii U console and insert it into the

Wii console .

Read the warnings on the screen and follow the on-screen guide as you perform the transfer . Data from the Wii console will be saved to the SD Card .

Only data saved to the Wii System Memory will be transferred to the SD Card .

Change the TV input from the Wii console to the Wii U console .

If you only have one Wii Remote to operate both consoles, then it must be paired with the

Wii U console

(p . 15)

.

Remove the SD Card from the

Wii console and insert it into the

Wii U console .

Follow the on-screen instructions to transfer the

Wii console data (saved to the SD Card) to the

Wii U console .

Once the transfer has completed, the data will be deleted from the SD Card .

23

24

Entering Text

Use the keyboard that appears on the screen when you need to enter text .

Screen Layout

Use the on-screen keys to enter text .

Text you have entered will appear here .

Predicted words will appear here as you type them . Select to cycle through candidates .

Space bar

Touch keys to enter characters .

Shift / Caps lock

Open the keyboard menu to change the word prediction language or switch to one of the additional keyboards

(see below)

.

Delete the character to the left of the cursor .

Start a new line .

Confirm text entry .

Switch between sections of the main keyboard

(alphabet / punctuation, numbers / some special characters, common punctuation / symbols) .

Available Keyboards

There are three main text entry methods to choose from . You can also set the language used for word prediction .

· The available methods may differ depending on the software in use .

Main keyboard

This is the normal keyboard used for text entry . The word-prediction feature will use the dictionary for the language you have selected . Dictionaries for English, French,

Spanish, German, Italian, Dutch, Portuguese and Russian are available . To switch to this keyboard from the Symbols or Special keyboards, select ENG, FRA, ESP, DEU, ITA,

NED, POR or РУС from the keyboard menu .

Symbols

Switch to the symbol-only keyboard .

Special

Switch to a special-characters-only keyboard, featuring accented characters and characters used in languages such as Greek or Russian .

· The layout of the normal keyboard is based on the language setting of the console . For example, if the console language is set to English, a British English QWERTY keyboard layout will be used, while if the language is set to

French, a French AZERTY keyboard layout will be used .

Calibrating Controllers

If the touch screen of the Wii U GamePad does not respond correctly, or if the control sticks of controllers in general do not respond correctly, follow the instructions here in order to perform calibration .

Calibrating the Touch Screen

Calibrate the touch screen using the Wii U GamePad option in System Settings on the Wii U Menu .

If you are unable to operate the Wii U Menu using touch controls, you can use the Control Pad and the

A Button instead .

Calibrating the Control Sticks

The Left Stick and Right Stick of the Wii U GamePad are analogue control sticks . The angle and direction of these control sticks are read by the controllers to allow you to perform precision controls . When the control sticks are not tilted in any direction, their status is referred to as the “neutral position” .

If the control sticks are tilted in any direction when performing the operations listed below, they will be misrecognised as being in the neutral position, causing them to function incorrectly: z Turning the power to the console on z Starting software z

Closing software and returning to the Wii U Menu

Example: Wii U GamePad Left Stick

Calibration (Resetting the Neutral Position)

To reset the neutral position, stop touching the control sticks, then press and hold the A, B, + and – Buttons for at least three seconds .

Calibrating the Motion Controls

If the screen moves during play even though you are not operating the Wii U GamePad, or the movement of the screen does not match the movement of the Wii U GamePad correctly, then go to the HOME Menu and hold the Y Button and the B Button for at least three seconds . When the calibration screen is displayed, place the Wii U GamePad on a flat surface, and select CALIBRATE or REVERT TO DEFAULTS .

· After selecting CALIBRATE, please make sure the Wii U GamePad is placed on a flat surface .

25

26

Replacing and Removing Batteries

You should replace the Wii U GamePad Battery if the controller can only be used for extremely short periods of time .

Additionally, you should replace or remove the lithium coin cell battery in the console itself if the internal clock does not function correctly or if you intend to dispose of the console .

· The replacement or removal of batteries should only be carried out by an adult .

· The capacity of the battery in the Wii U GamePad will gradually decrease over time with repeated recharging .

After 500 charges, the battery capacity will be at 70% .

Wii U GamePad Battery

Hold the POWER Button ( ) for at least one second to turn the power off

If the AC adapter is connected to the Wii U GamePad, ensure that you disconnect it as well .

Loosen the battery cover screws

There are two screws . They are designed not to fall out from the battery cover once loosened .

To avoid damaging the heads of the screws, use a size 0 cross-head screwdriver .

Remove the battery cover

Lift up the edge of the battery cover, then pull it out .

Remove the old battery

Unplug the battery from the terminal as shown in the diagrams below .

Never disconnect the battery from the terminal by pulling on the cable .

Please dispose of the battery properly after removal

(p . 28)

.

Wait for at least ten seconds, then install the new battery

Make sure the battery is the right way up, then install it as shown in the diagrams below .

If you insert the new battery without waiting, the battery LED may stop lighting up or flashing .

Replace the battery cover

Put the battery cover back into position and tighten the two screws .

Always replace the battery cover . If the battery cover is not put back into position, any shock to the battery may cause damage to the battery, fire or rupture of the battery .

To avoid damaging the heads of the screws, use a size 0 cross-head screwdriver .

27

28

Handling Used Batteries

z Insulate the battery using tape to prevent shorting by metallic objects .

z Do not disassemble the battery .

The Wii U GamePad uses a lithium-ion rechargeable battery .

Please dispose of this product in accordance with local regulations .

Wii U GamePad Battery

z Discarding batteries in your general household waste can be harmful to the environment . When disposing of the battery, follow appropriate local guidelines and regulations .

z In accordance with the Directive on Batteries and Accumulators and Waste Batteries and Accumulators

(2006 / 66 / EC), battery collection and recycling schemes should be in place in all EU Member States .

Wii U Console Battery

Ensure that the disc LED is not lit

If the disc LED is lit, press the EJECT Button and remove the disc .

Turn off the console and disconnect the AC adapter

Ensure that the power LED is red, then unplug the Wii U AC Adapter from the socket outlet .

Turn over the console and remove the battery cover

The battery cover screw is designed not to fall out once loosened .

To avoid damaging the head of the screw, use a size 0 cross-head screwdriver .

Remove the battery, install the new battery and replace the battery cover

After removing the battery, place the new lithium coin cell battery (CR2032) with the positive (+) side facing up, then replace the battery cover .

To avoid damaging the head of the screw, use a size 0 cross-head screwdriver .

Handling Used Lithium Coin Cell Batteries

z Insulate the positive (+) and negative (–) sides using tape to prevent shorting by metallic objects .

z

Do not disassemble the battery . z

Discarding batteries in your general household waste can be harmful to the environment . When disposing of the battery, follow appropriate local guidelines and regulations .

z In accordance with the Directive on Batteries and Accumulators and Waste Batteries and

Accumulators (2006 / 66 / EC), battery collection and recycling schemes should be in place in all EU Member States .

29

30

Troubleshooting

This manual covers the topics listed below . Please review the troubleshooting information carefully before contacting Nintendo Customer Support (see Important Information booklet) .

z

Power and temperature of devices

(below)

z Charging and batteries

(p . 32)

z TV display and audio

(p . 33)

z

Wii U GamePad display and touch screen response

(p . 33)

z

Controller Operations

(p . 35)

· For information on other topics, see the Troubleshooting chapter of the

Wii U Electronic Manual on the

Wii U GamePad .

· For information on the Wii Menu, see the

Wii Menu Electronic Manual .

· Also refer to any documentation for individual software titles or accessories .

Power and Temperature of Devices

Wii U console does not turn on

Is the AC or DC plug of the AC adapter inserted firmly?

Is the power LED of the Wii U console lit?

Ensure that the plugs are firmly inserted

(see Quick Start Guide) .

If the power LED does not light up after pressing the POWER

Button on the Wii U console, unplug the AC adapter from the wall socket, wait two minutes, then plug it back in to the wall socket .

If the power LED is flashing red, unplug the AC adapter from the wall socket, ensure that it is not placed somewhere that accumulates heat (e .g . on top of AV equipment) and that there is at least 10cm of well-ventilated space around the air intake and air vents . Wait for two minutes, then plug the AC adapter back in to the wall socket and turn the power on .

Wii U GamePad does not turn on

Is the battery depleted?

Is the battery correctly inserted?

Charge the Wii U GamePad

(p . 11)

.

If the battery LED flashes orange during charging, or if the problem continues even though the Wii U GamePad is already charged, take the Wii U GamePad Battery out for ten seconds .

Once replaced, check to see if it is charged

(p . 26)

.

Wii U console suddenly turns off

Has dust collected around the air intake or air vents?

Has the console been placed somewhere heat can accumulate or on top of AV equipment?

Is the Auto Power-Down feature enabled?

Are you using any unsupported USB devices with your Wii U console?

Unplug the AC adapter from the wall socket and use a vacuum cleaner or similar to remove the dust from the air intake or air vents .

Place the console somewhere else, or create at least 10cm of well-ventilated space around the air intake and air vents .

If the Auto Power-Down feature has been enabled, the console will power down automatically if there has been no user interaction for a certain period of time . This period of time can be reconfigured under the Auto Power-Down option in System

Settings on the Wii U Menu .

If you are using USB devices that are incompatible with the

Wii U console, there is a chance that the console will switch itself off without warning . Disconnect the USB device and only use

USB devices that have been verified as compatible by Nintendo .

See the Nintendo website (www .support .nintendo .com) for more information .

Wii U console or controller gets hot

Are you using it in somewhere with a high ambient temperature, or using the controller while it is charging?

Using the console or controllers under such conditions will cause them to become warmer . The operable environments

(room temperatures) for the console and controllers are as follows:

Wii U console: 10 – 40°C

Wii U GamePad: 10 – 35°C

· Please be careful, as contact with the hotter parts of the controller for long periods of time may cause skin burns, even if the controller does not feel particularly hot to touch .

Wii U console does not turn off (power LED does not turn red)

Are you holding down the POWER

Button for at least one second?

If the Wii U console does not turn off after holding the POWER

Button down for at least one second (the power LED does not turn red), hold the POWER Button for at least four seconds .

Please note that the power LED does not go off even when the power is off .

· The Wii U console cannot be turned off with the Wii U GamePad when using the Wii Menu or Wii Game Discs .

Are Standby Functions enabled?

If Standby Functions are enabled

(p . 14)

, when the console is powered down the power LED will turn from red to orange .

Once any outstanding downloads or installations are complete, the power LED will automatically turn back to red .

31

32

Wii U GamePad does not turn off

Are you holding down the POWER

Button on the Wii U GamePad for at least one second?

If the Wii U GamePad does not turn off after holding the

POWER Button down for at least one second, hold the POWER

Button for approximately four seconds .

Wii U GamePad Battery LED does not light up when turning the controller on

The battery LED lights up when charging or if the battery level is low .

Charging and Batteries

Cannot charge / charging takes a long time

Are you using a supported device? Use the Wii U GamePad AC Adapter

(WUP-011(UKV)/WUP-011(EUR)) .

Is the AC adapter firmly plugged in?

Is the battery LED flashing orange?

Unplug the AC adapter from the mains, wait at least 20 seconds, then charge the controller by plugging the AC adapter firmly into the AC adapter connector or cradle and the wall socket

(p . 11)

.

Is there a cover on the Wii U GamePad?

If you are using a commercially-available cover, the Wii U GamePad cannot be charged . Remove the cover before charging .

Are you charging the device in an environment of 10 – 35°C?

Charge the device in an environment of 10 – 35°C . The battery will not charge normally in warmer or cooler environments .

Ensure that the battery is correctly installed

(p . 26)

.

If the battery LED is still flashing orange, contact Nintendo

Customer Support (see Important Information booklet) .

Cannot use software for long periods of time even on a full charge / charging takes a long time

Are you using the software or charging the device in an environment under 10°C?

During use in environments cooler than 10°C, prolonged use may not be possible, and it may take longer than usual to charge the device .

Has the battery reached the end of its life?

The battery life will decrease with repeated charging . If the duration of time the battery can be used becomes extremely low, the battery has reached the end of its life . Please replace it with a new battery

(p . 26)

.

The battery has expanded

Lithium-ion batteries are subject to degradation over time and can expand through repeated recharging .

This is not a malfunction or a potential safety hazard . Please replace the battery if its expansion is affecting battery life

(p . 26)

.

If the battery leaks, do not touch it and contact Nintendo Customer Support (see

Information booklet) .

Important

TV Display and Audio

No picture on TV / no audio from TV

Is the TV set to the correct input?

Press the source/input button for your TV until the Wii U screen appears .

· If using an HDMI cable, it may take a moment before the picture appears depending on the make of your TV . Please wait after changing the input .

Has the connection type and/or resolution been set correctly in System

Settings?

If you are using a new cable or TV, configure the correct settings for the TV and the cable you are using to connect to it under the TV option in System Settings on the Wii U Menu .

Have you disassembled or modified the console, or connected any accessories etc . not authorised by Nintendo?

Remove or disconnect any parts / accessories installed in or connected to the console .

Display doesn’t match screen size

If the display expands beyond the edges of the TV screen, you can adjust it in Screen Size under the

TV option in System Settings .

· Depending on the type of TV you are using, the display may appear smaller than the screen . This can be adjusted in your TV’s screen size settings .

Wii U GamePad Display and Touch Screen Response

Wii U GamePad screen does not turn on

Is the Wii U GamePad Battery LED glowing blue?

If the battery LED is glowing blue, then the display has been turned off . Press any of the buttons (except for the POWER

Button) to turn the display back on .

Does the screen turn on several seconds after connecting the Wii U GamePad AC Adapter and pressing the POWER Button?

If the screen turns on after doing so, then the battery is depleted . Leave the AC adapter connected to charge the battery .

If the screen does not turn on, contact Nintendo Customer

Support (see Important Information booklet) .

33

34

Touch screen cannot be used (no response from touch screen)

Are there any obstacles that could cause wireless interference between the Wii U console and the Wii U GamePad?

Do not use any items such as metallic TV stands or shelves, or devices that could cause interference such as AV equipment, microwaves or cordless phones, near the Wii U console and

Wii U GamePad .

Is the touch screen response inaccurate?

Have you attached a commerciallyavailable protective sheet to the touch screen?

If the touch screen response is inaccurate, recalibrate it using the Wii U GamePad option in System Settings on the Wii U Menu .

If this problem prevents you from operating the Wii U Menu using touch controls, you can use the Control Pad and the

A Button to control the menu instead .

In the following circumstances, the touch screen may not function correctly . Please refer to the documentation supplied with the protective sheet, and reattach it correctly .

· Air or dirt has become trapped between the protective sheet and touch screen .

· The protective sheet is misaligned .

• If the protective sheet is misaligned, please reattach the sheet without pushing the edges under the

Wii U GamePad frame .

· The protective sheet has slid between the frame and the touch screen .

· The Wii U GamePad is operating correctly if you remove the protective sheet and touch screen controls work as normal .

Wii U GamePad picture is distorted (blocky) / sound cuts out

Are there any obstacles that could cause wireless interference between the Wii U console and the Wii U GamePad?

Do not use any items such as metallic TV stands or shelves, or devices that could cause interference such as AV equipment, microwaves or cordless phones, near the Wii U console and

Wii U GamePad .

Due to the way wireless communication works you may experience interruptions in sound or video during use . This is not indicative of a fault .

Wii U GamePad screen hue changes suddenly / brightness changes and it becomes difficult to see bright colours

Has power-saving mode been enabled?

When enabled, the power-saving mode will automatically adjust the screen brightness and colour gradient depending on the picture displayed in order to reduce battery consumption . This can lead to pale colours whitening and other colours changing . To maintain fixed colours and brightness levels, disable the power-saving mode from the HOME Menu

(p . 12)

.

Black or bright points on the Wii U GamePad screen that do not go away

Small numbers of stuck or dead pixels and occasional uneven brightness are a characteristic of LCD screens . These are normal and should not be considered as a defect .

Controller Operations

The cursor or character moves on its own

Have the controls slipped out of neutral position?

For the Wii U GamePad please

see page 25

. For other controllers, please refer refer to their respective manuals .

Wii Remote cannot be operated (does not respond correctly)

Is the Player LED for the Wii Remote lit?

Press any button on the Wii Remote (except for the POWER

Button) .

If no Player LEDs light up, check that the batteries are inserted correctly . If the Player LEDs still do not light up, replace both batteries in the Wii Remote .

Has the Wii Remote been paired with the Wii U console you are using?

Is the Sensor Bar too close or too far away?

Press the SYNC Button on the Wii U console and pair the

Wii Remote following the on-screen instructions .

Use the Wii Remote at a distance of one to three metres from the Sensor Bar . If the response is still erratic, adjust the sensitivity of the Wii Remote using the Adjust Wii Remote Pointer Sensitivity option in System Settings on the Wii U Menu .

Are there obstacles in front of the

Sensor Bar?

Has the Sensor Bar been positioned correctly?

Remove any obstacles between the Wii Remote and Sensor Bar .

Ensure that the Sensor Bar has been positioned correctly

(p . 16)

.

Make sure that the Sensor Bar plug has been inserted firmly .

35

36

Are there any bright sources of light coming from near the Sensor Bar, such as windows without curtains, bright light bulbs, and so on?

Check for the following possible causes: z

Bright sunlight coming through windows

If there is a window uncovered by curtains or blinds near the Sensor Bar, the Wii Remote will not function correctly .

Close the curtains or pull down the blinds .

z

Sensor Bar is reflected on a highly reflective tabletop etc .

The reflection of the Sensor Bar may cause the Wii Remote to not function correctly . Prevent the Sensor Bar from being reflected, for example by covering reflective tabletops with a tablecloth .

z

Visible light sources near the Sensor Bar

If there are any light sources (such as electric lights) near the Sensor Bar that are visible from where you are using the Wii Remote, these may prevent the Wii Remote from functioning correctly . Turn off those lights if this is the case .

z

Sources of infrared light near the TV

Move or stop using any items that emit light or heat that are near the Sensor Bar, such as electric, propane or kerosene heaters, candles or fireplaces, or stoves .

Use the Wii Remote while pointing it towards the Sensor Bar .

Is the Wii Remote pointing towards the Sensor Bar?

If the Wii Remote does not function correctly after checking all of the above, press the POWER Button on the Wii U console for at least four seconds, then unplug the Wii U AC Adapter from the wall socket once the power LED has turned red . Wait for approximately two minutes, then plug the AC adapter back in and turn the Wii U console on .

· If the power LED doesn’t turn red even after pressing the POWER Button for at least four seconds, unplug the

AC adapter from the plug socket .

Requesting Repairs

If you are still experiencing problems after checking and following the troubleshooting steps, you may refer to the manufacturer’s warranty provided in the Important Information booklet and request an inspection of the affected item by Nintendo Customer Support (see Important Information booklet) . Irrespective of this, you may also have statutory claims against your retailer under consumer protection legislation as the purchaser of consumer goods .

Notes

37

38

Notes

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
