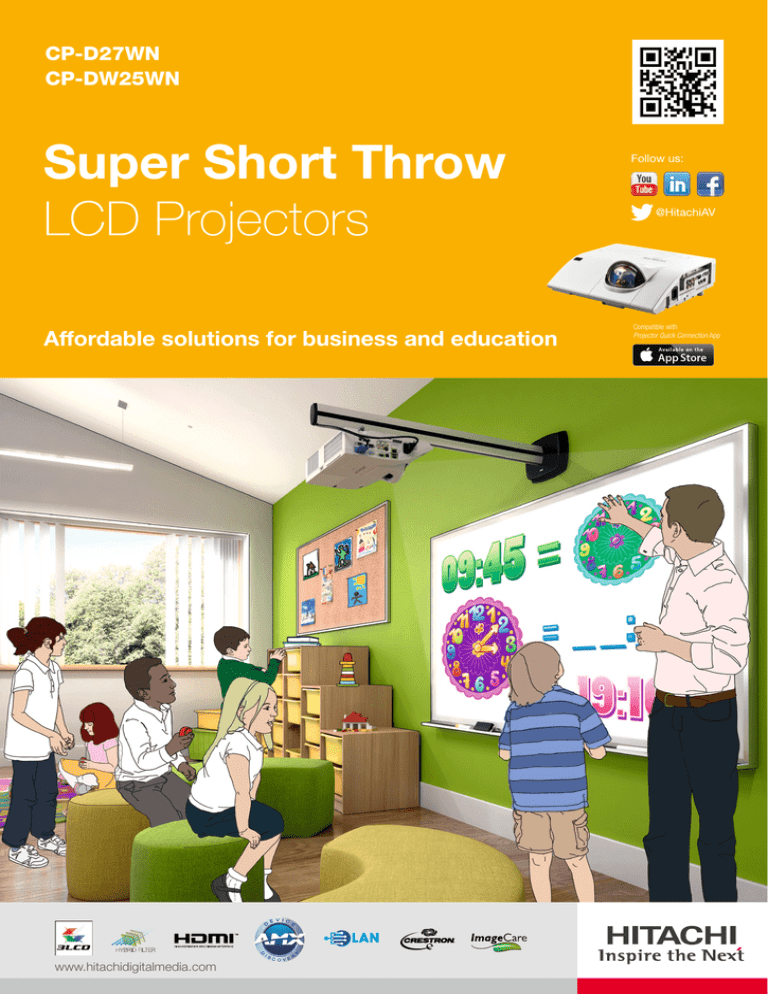

CP-D27WN
CP-DW25WN
Super Short Throw
LCD Projectors
Affordable solutions for business and education
www.hitachidigitalmedia.com
Follow us:
@HitachiAV
Compatible with
Projector Quick Connection App
Project large, bright images in tight spaces with Hitachi Super Short Throw Projectors
These lightweight and compact projectors are perfect for small and medium sized meeting rooms and can deliver an impressive 80" image from a distance of
only 75cm. They are easy to install and flexible to use with optional wireless networking, providing an affordable solution for business and education settings.
What is Super Short Throw?
Super Short Throw projectors enable users to
conduct effective lessons and presentations
without being affected by the projector’s light
source, allowing viewers to concentrate on the
content without being distracted by shadows.
These projectors use their unique lens design
to produce large images from class-leading
short distances.
Wireless connectivity
Ultimate
Short Throw
50cm*
A Super Short Throw projector can project a
2.0m (80") image from a distance of only 75cm*.
This provides the optimum balance between
extremely short throw distances of Ultimate Short
Throw projectors and the affordability of standard
short throw models. This is achieved through the
mirror-less high quality design combined with
advanced optical technology.
Super Short Throw
75cm* (CP-D27WN)
79.8cm* (CP-DW25WN)
Optional USB
wireless adapter
Short Throw
92.7cm*
Normal Throw
240cm*
Without access point
80"
(203cm)
screen
*From lens to screen.
*from lens to screen
With access point
Access point
Wireless capability and network functionality
iOS Connectivity*
Hitachi’s Super Short Throw projectors allow you to connect to your
wireless network, letting you run lessons or presentations wirelessly from
your laptop. The USB wireless adapter enables the projector and computer
to communicate both directly or via a wireless network infrastructure.
The optional USB wireless adapter supports all IEEE802.11b/g/n networks,
and simply slots into place.
Using our ‘Projector Quick Connection’ application, users can wirelessly
display documents, images and web pages from their iPad®, iPod touch®
and iPhone® on all of our Super Short Throw projectors. The application
allows users to control the projector via their iOS devices.
Eco features based on ImageCare® technology
ImageCare combines optimal picture performance with maximum energy savings. This technology has been integrated to enhance our existing
industry-leading eco features. Find out how much money and energy you can save using our Energy Savings Calculator at:
www.hitachidigitalmedia.com/energysavings
Template function
Network presentations
Hitachi’s CP-D27WN and CP-DW25WN come equipped with handy preinstalled templates that allow you to project lines, grids and maps onto a
whiteboard, blackboard or flip chart making drawing and writing easier.
You can project still or moving images from one or more networked
computers. Single PC mode allows one computer on the network to be
displayed, a useful feature for classroom and meeting rooms environments.
Multi PC mode is perfect for comparing work, as up to four computers can
be displayed simultaneously.
y
y
yy
a
a
aa
70% reduction in lamp power
xx
x
x
Auto
b
b
bb
Square Grid
Manual
Lamp power reduces down to 65%
Lamp power 100%
Saver Mode
Intelligent Eco Mode
The Saver Mode reduces lamp power by 70% compared to Normal Mode,
resulting in considerable energy savings. You can set the time for Saver
Mode from 1 to 30 minutes. If the projected image does not change within
the set time, the Saver Mode is activated.
When Intelligent Eco Mode is selected, the lamp power adjusts according
to screen brightness. Lamp power decreases when the image is dark and
increases when the image is bright. Using Intelligent Eco Mode increases
the contrast ratio of the projector while decreasing the use of electricity.
A bcc dd
A
AA b
bb cc dd
E
f g hh ii
E
EE fff g
gg hh ii
Horizontal lines
All new Super Short Throw models are fully compatible with our innovative
Hitachi Solution products*, which enhance interactivity, simplify installation
and easily accommodate multiple devices with complex connections.
With 2 USB Type A inputs both the optional wireless adapter and one of
our Solution products can be used simultaneously.
IM-1 Interactive
Camera Unit
USB memory stick
Circles
Projector 2
Projector 3
Affordable interactive solution
IM-1 Interactive Camera Unit
MS-1WL Wireless Multifunctional
Switcher/Scaler
When combined with a Super Short Throw projector, the IM-1 provides a
convenient and cost effective interactive solution. The included user-friendly
software brings all the benefits of interactivity to non-interactive Hitachi
projectors.
*Compatible Solution products include: TB-1 Wireless Pen Tablet, IM-1 Interactive Camera Unit, MS-1WL Wireless Multifunctional Switcher/Scaler. For further information and specifications please refer to our website www.hitachidigitalmedia.com.
Projector 1
Computer 2
Computer 3
Computer 4
25%
25%
25%
25%
Instead of setting up multiple projectors individually you can simply save the
settings from one projector to a USB memory stick and apply them to other
projectors you have installed, saving you valuable time. This feature is also
helpful for applying MyScreen messages or logo to multiple projectors.
Compatible with Hitachi Solution products
Computer 1
World map
Cloning
Value added features
TB-1 Wireless Pen Tablet
*Our ‘Projector Quick Connection’ application can be downloaded from the App StoreSM. Available using the following
file formats: jpg, bmp, png, gif, PDF, Excel®, Word®, PowerPoint®, Keynote®, Numbers®, Pages® and Web pages.
Usability features
Low total cost of ownership
Lamp power 100%
Optional USB
wireless adapter
Projector 4
Versatile connectivity
USB Type A x 2
LAN (RJ-45)
These projectors provide a wealth of connectivity options. You can connect
a variety of devices, to support all your projection needs. From DVD players
and PCs to a wireless network, a Local Area Network or a simple mouse
connection, Hitachi has done everything possible to ensure easy versatile
connections that make your projector do more for you.
USB Type B
HDMI
Computer In 1/2
Monitor Out
Microphone
HDMI input
HDMI provides completely digital connections,
ensuring that lessons and presentations can be
delivered with the highest image quality.
Audio In 1/2
Security Bar
Kensington Slot
Control (RS-232C)
S-Video
Composite Video
Model Optical
Resolution
White light output (brightness)
Colour light output (colour brightness)
Contrast ratio
Lens
Lamp life
Focus distance
Distance to width ratio (:1)
Diagonal display size
Keystone
COMPATIBILITY
Computer compatibility
Composite/S-Video
Component video/HDMI video
FEATURES
Speaker
Basic functions
Picture adjustments
Digital keystone
Advanced features
CP-D27WNCP-DW25WN
XGA (1024 x 768)
2700 ANSI Lumens (Normal Mode)/1800 ANSI Lumens (Eco Mode)
2700 ANSI Lumens (Normal Mode)/1800 ANSI Lumens (Eco Mode)
Manual focus, Digital zoom x 1.35
WXGA (1280 x 800)
2500 ANSI Lumens (Normal Mode)/1600 ANSI Lumens (Eco Mode)
2500 ANSI Lumens (Normal Mode)/1600 ANSI Lumens (Eco Mode)
3000:1
Manual focus, Digital zoom x 1.2
3000 Hours (Normal Mode)/5000 Hours (Eco Mode)*
0.51m~0.913m (Wide)
0.547m~0.972m (Wide)
0.4:1
60"~100" (152cm~254cm)
11:-1 upward shift, fixed
5.5:-1 upward shift, fixed
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA (compressed), MAC 16"
NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43
525i(480i), 525p(480p), 625i(576i), 1125i([email protected]/60), 1125p([email protected]/60), 750p([email protected]/60)
10W x 1 Mono
Freeze, Magnifying, Blank, Auto adjustment, Search, Page Up & Down (for USB mouse function), Auto signal search, Auto eco mode
Aspect selection (video, data, HDMI), Equalizing Digital Gamma Correction, Equalizing Colour temperature adjustment, 2-3 pull down for NTSC, Mirror reverse image, Up-side down image,
Progressive Scan, Noise Reduction, Overscan
Vertical ±5° ([email protected])
Vertical ±5° ([email protected])
MyScreen, My Memory, My Button, My Text, My Source, Picture mode (normal, cinema, dynamic, blackboard, whiteboard greenboard, photo), Daytime Mode, Input Source Naming (English),
Resolution setting, Template, Closed Caption (for NTSC & component 480i only), Audio pass through, Framelock, Audio ports assign, Cloning, Drawing function (Optional wireless pen tablet TB-1
is necessary), Eco Mode (Normal, Eco, Intelligent eco, Saver), iOS Connectivity, ImageCare®
Easy lamp replace from top, Air filter slides towards top
Direct on, Auto off
Security bar, PIN-Lock, MyScreen Password, Key Lock (key pad and remote control), Kensington slot, Transition detector, My Text Password, Security label
Network presentation (PC still/moving picture transfer), Configure and control projector via web browser, receive alerts via e-mail, projector management via SNMP, Crestron RoomView®,
Scheduling, My Image, displaying text data transferred via the network, Command Control via network, AMX Device Discovery, PJ Link™, Network Bridge
English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkey, Arabic, Persian,
Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil), Indonesian, Vietnamese
Outward
Power on & off
Security systems
Network
OSD language options
CONNECTIONS
Digital input
Computer input
Monitor output
Video input
Audio input
Audio output
USB
Control
Wired network
Wireless network
POWER
Power supply
Power consumption/standby
PHYSICAL
Dimensions (W x H x D)
Weight
Noise level
Air filter
MISCELLANEOUS
Audio In 3
Audio Out
1 x HDMI (HDCP compatible)
2 x 15-pin Mini D-sub
1 x 15-pin Mini D-sub
2 x 15-pin Mini D-sub (shared with analogue computer in 1/2), 1 x RCA for composite, 1 x Mini-DIN for S-Video
2 x Stereo Mini Jack, 1 x pair RCA (L/R), 1 x Microphone Jack
1 x pair RCA (L/R)
2 x USB Type A, 1 x USB Type B
1 x 9-pin D-sub for RS-232C control
1 x RJ-45
Option, IEEE 802.11 b/g/n ready (optional wireless adapter required)
100-120V/220-240V, auto switching
300W/<0.35W (AC 220-240V)
345 x 85 x 303mm (excluding feet and extrusions)
3.7Kg
28dB (Eco Mode)/35dB (Normal Mode)
28dB (Eco Mode)/34dB (Normal Mode)
Hybrid (up to 4000 hours)
Indicator lights (lamp, temp, power), Ceiling mount image, Rear projection image, Serial number label on side, MAC PC support: PJ Control software, MAC address label on front, LiveViewer software
ACCESSORIES SUPPLIED
Remote control with batteries (HL02881), Computer cable, Power cord, Lens cap, Security label, Adapter cover, User manual (detail & concise), Application CD
OPTIONAL ACCESSORIES
Replacement lamp/lamp Wattage
USB wireless adapter
Solution products
WARRANTY
Projector/Lamp
DT01381/215W UHP
USB-WL-11N
TB-1 wireless interactive tablet, IM-1 interactive camera unit, MS-1WL wireless multifunctional swicher/scaler
3 Years/6 Months** (for education and extended warranties, please contact your local dealer)
HITACHI DIGITAL MEDIA, Hitachi Europe Ltd, Whitebrook Park, Lower Cookham Road, Maidenhead, Berkshire SL6 8YA UNITED KINGDOM
Tel: +44 (0)1628 585 000 Fax: +44 (0)1628 585 163 www.hitachidigitalmedia.com
*The stated lamp and filter life refers to the average life expected in ideal operating conditions with usage in accordance with the manual. The majority of, but not all lamps and filters should achieve this figure. **Where a lamp fails within warranty and a replacement lamp is taken, the warranty for
the replacement lamp will be a maximum of 6 months (dependent on warranty hours stated). HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. AMX and the AMX logo, and Device Discovery are all registered trademarks
of AMX. Crestron® and RoomView™ are registered trademarks or trademark of Crestron Electronics, Inc. iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. The specification above and photography is for
reference only and may be subject to change.
