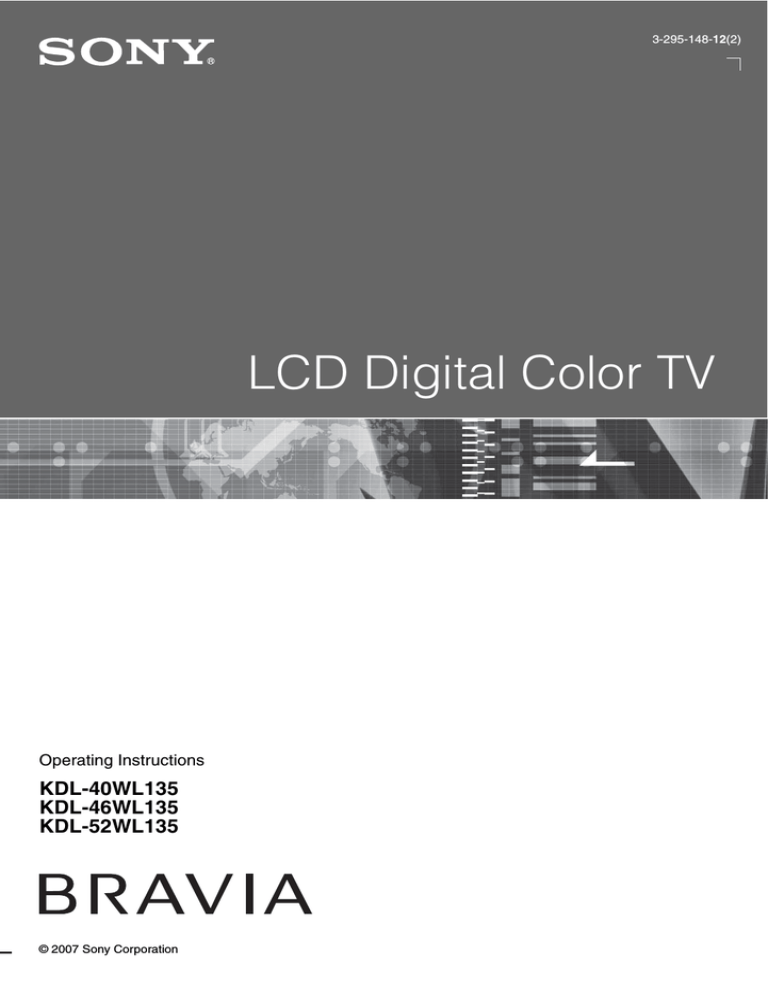

Operating Instructions

KDL-40WL135

KDL-46WL135

KDL-52WL135

© 2007 Sony Corporation

3-295-148-12(2)

LCD Digital Color TV

Owner’s Record

The model and serial numbers are located at the rear of the TV. Record these numbers in the spaces provided below.

Refer to them whenever you call upon your Sony dealer regarding this TV.

Model Name

Serial No.

WARNING

To reduce the risk of fire or electric shock, do not expose this TV to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

RISQUE DE CHOC ELECTRIQUE,

NE PAS OUVRIR

PRECAUCION

RIESGO DE CHOQUE ELECTRICO

NO ABRIR

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the TV’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the TV.

The TV shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

CAUTION

To prevent electric shock, do not use this polarized AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

Declaration of Conformity

Trade Name: SONY

Model: KDL-40WL135/KDL-46WL135/

KDL-52WL135

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the

FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTIFICATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

2

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: s Reorient or relocate the receiving antenna.

s Increase the separation between the equipment and receiver.

s Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

s Consult the dealer or an experienced radio/

TV technician for help.

Pursuant to FCC regulations, you are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Safety

s Operate the TV only on 120 V-240 V AC.

s Use the AC power cord specified by Sony and suitable for the voltage where you use it. s The plug is designed, for safety purposes, to fit into the wall outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.

s If any liquid or solid object should fall inside the cabinet, unplug the TV immediately and have it checked by qualified service personnel before operating it further.

s If you will not be using the TV for several days, disconnect the power by pulling the plug itself. Never pull on the cord.

s For details concerning safety precautions,

see “Important Safety Instructions” on page 4.

Installing

s The TV should be installed near an easily accessible power outlet.

s To prevent internal heat buildup, do not block the ventilation openings.

s Do not install the TV in a hot or humid place, or in a place subject to excessive dust or mechanical vibration.

s Avoid operating the TV at temperatures below 41°F (5°C).

s If the TV is transported directly from a cold to a warm location, or if the room temperature changes suddenly, the picture may be blurred or show poor color due to moisture condensation. In this case, please wait a few hours to let the moisture evaporate before turning on the TV.

s To obtain the best picture, do not expose the screen to direct illumination or direct sunlight. It is recommended to use spot lighting directed down from the ceiling or to cover the windows that face the screen with opaque drapery. It is desirable to install the TV in a room where the floor and walls are not of a reflective material.

CAUTION

Use the following Sony TVs only with the following WALL-MOUNT BRACKET or

TV-stand.

Sony TV Model No.

KDL-40WL135 KDL-46WL135 KDL-52WL135

Sony Wall-Mount

Bracket Mode No.

Sony TV-Stand

Model No.

SU-WL500

RHT-G800

SU-FL300M

SU-FL300M

SU-FL300L

SU-FL300L

Use with other WALL-MOUNT BRACKET or TV-stand may cause instability and possibly result in injury.

To Customers

Sufficient expertise is required for installing the specified TV. Be sure to subcontract the installation to Sony dealers or licensed contractors and pay adequate attention to safety during the installation.

Note

This television includes a QAM demodulator which should allow you to receive unscrambled digital cable television programming via subscription service to a cable service provider. Availability of digital cable television programming in your area depends on the type of programming and signal provided by your cable service provider.

Trademark Information

Macintosh is a trademark of Apple Inc., registered in the U.S. and other countries.

HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or registered trademarks of HDMI Licensing

LLC.

Manufactured under license from Dolby

Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Blu-ray Disc is a trademark.

“BRAVIA” and , Motionflow,

S-Force, BRAVIA Theatre Sync, , DMe x and “x.v. Color” are trademarks or registered marks of Sony Corporation.

“XMB” and “xross media bar” are the trademarks of Sony Corporation and Sony

Computer Entertainment Inc.

“PLAYSTATION” is a registered trademark and “PS3” is a trademark of Sony Computer

Entertainment Inc.

Adobe is a registered trademark or a trademark of Adobe Systems Incorporated in United

States and/or other countries.

Contents

Important Safety Instructions ............................4

Welcome to the World of BRAVIA™

The Four Steps to Full HD Experience: Set,

Sound, Source, and Setup ............................8

Picture Quality and Aspect Ratio.......................8

TV Home Menu: XMB

(XrossMediaBar)..........9

Getting Started

1. Installing the TV.............................................10

Preventing the TV from Toppling Over .........10

Preparation for Wall-Mounting......................10

2. Locating Inputs and Outputs .......................11

Left Side .......................................................11

Rear..............................................................12

3. Connecting the TV.........................................14

Cable System or VHF/UHF Antenna

System ......................................................14

Cable System and VHF/UHF Antenna

System ......................................................14

HD Cable Box/HD Satellite Box....................14

PC.................................................................16

Other Equipment ..........................................17

Using HDMI Control for BRAVIA Theatre

Sync™.......................................................18

Bundling the Connecting Cables ..................18

4. Setting Up the Channel List

– Initial Setup ...............................................19

Using the TV Features

Remote Control and TV Controls/

Indicators .....................................................20

Inserting Batteries into the Remote

Control.......................................................20

Remote Control and TV Controls .................20

Indicators ......................................................24

Using P&P and PIP Features............................ 25

To Display the Sub Window ......................... 25

To Change Inputs or Channels in the

Window ..................................................... 25

To Change the Window Size of P&P............ 25

To Exit from P&P and PIP ............................ 25

Using the Menus

Adjusting TV Settings ................................. 26

Watching TV................................................. 26

Accessing the Equipment Connected to

Your TV ......................................................... 26

Navigating through TV Home Menu on

XMB

............................................................ 27

TV Setting Description...................................... 28

Product Support...................................... 28

Clock/Timers Settings............................. 28

Picture Settings ...................................... 28

Sound Settings ....................................... 30

Screen Settings ...................................... 31

Video Options Settings ........................... 32

Audio Options Settings ........................... 33

Channel Settings .................................... 34

CC

Closed Captions (CC) Settings............... 35

Parental Lock Settings............................ 35

External Inputs Settings.......................... 38

HDMI Settings ........................................ 38

General Settings..................................... 39

Initial Setup............................................. 39

Other Information

Troubleshooting ................................................ 40

Specifications .................................................... 43

Securing the TV ................................................. 45

Index ................................................................... 47

Quick Setup Guide (separate volume)

Provides a variety of optional equipment connection diagrams.

Customer Support

http://www.sony.com/tvsupport

On-line Registration

United States http://productregistration.sony.com

Canada http://www.SonyStyle.ca/registration

3

Important

Safety

Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

USE

AC power cord

Observe the followings to prevent the AC power cord from being damaged. If the AC power cord is damaged, it may result in a fire or an electric shock. Stop using it and ask your dealer or Sony service center to exchange it.

s Do not place the TV where the power cord is subject to wear or abuse.

s Do not pinch, bend, or twist the cord excessively. The core lines may be bared and cut, causing a short-circuit, and resulting in a fire or an electric shock.

s Do not convert or damage the power cord.

s Do not allow anything to rest on or roll over the power cord.

s Do not move the TV with the power cord plugged in.

s Keep the power cord away from heat sources.

s When you disconnect the AC power cord, disconnect it from the wall outlet first.

s Be sure to grasp the plug when disconnecting the power cord. Do not pull the power cord.

s Do not use the supplied AC power cord on any other equipment.

s Use only an original Sony AC power cord, not other brands.

Wall outlet

The TV set with a three-wire grounding type AC power cord plug must be connected to an AC power socket outlet with a protective earthing connection.

Do not use a poor fitting outlet.

Insert the plug fully into the outlet. If it is loose, it may cause arcing and result in a fire.

Contact your electrician to have the outlet changed.

Wiring

When connecting cables, be sure to unplug the AC power cord for your safety.

Take care not to catch your feet on the cables. It may damage the TV set.

Electric shock

Do not touch the AC power cord or the TV with a wet hand. If you plug/unplug the AC power cord from the TV with a wet hand, it may cause electric shock.

Lightning storms

For added protection for this TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the TV due to lightning and power line surges.

When not in use

If you will not be using the TV set for several days, the TV set should be disconnected from the AC power outlet for environmental and safety reasons. The TV set is not disconnected from the AC power source when the TV set is switched off. To disconnect the TV set completely, pull the plug from the AC power outlet.

Overloading

This TV set is designed to operate on a

120 V-240 V AC supply only. Take care not to connect too many appliances to the same

AC power outlet as this could result in a fire or an electric shock.

Optional equipment

Do not install optional equipment too close to the TV set. Picture distortion and/or noisy sound may occur if the TV set is positioned in close proximity to any equipment emitting electromagnetic radiation.

Small accessories

Keep small accessories out of children’s reach.

ANTENNAS

Outdoor antenna grounding

If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits.

WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,

EXTREME CARE SHOULD BE TAKEN TO KEEP FROM

CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT

WITH THEM IS ALMOST INVARIABLY FATAL.

Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC) in the U.S.A. and

Section 54 of the Canadian Electrical Code in Canada provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Antenna grounding according to the National

Electrical Code, ANSI/NFPA 70

MAGNETIC INFLUENCE

This TV contains a strong magnet in the speaker unit that generates a magnetic field. Keep any items susceptible to magnetic fields away from the speaker.

SOUND

If a snapping or popping sound from the TV is continuous or frequent while the TV is operating, unplug the TV and consult your dealer or service technician. It is normal for some TV’s to make occasional snapping or popping sounds, particularly when being turned on or off.

CARRYING THE TV

Carry the TV in the specified manner

To avoid dropping the TV and causing serious injury, be sure to follow these guidelines: s Before carrying the TV, disconnect all cables.

s Carrying the large size TV requires two or more people.

s When you carry the TV, place your hand as illustrated and hold it securely. Do not put stress on the LCD panel.

s When carrying the TV, do not subject it to shocks or vibration, or excessive force.

Antenna lead-in wire

Ground clamps

Electric service equipment

Antenna discharge unit

(NEC Section 810-20)

Grounding conductors

(NEC Section 810-21)

Ground clamps

Power service grounding electrode system

(NEC Art 250 Part H) NEC: National Electrical Code

BATTERIES

s Do not dispose of batteries in a fire.

s Do not short circuit, disassemble or overheat the batteries.

s Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Disposal of used batteries

To preserve our environment, dispose of used batteries according to your local laws or regulations.

CLEANING

Cleaning the AC power plug

Unplug the AC power plug and clean it regularly.

If the plug is covered with dust and it picks up moisture, its insulation may deteriorate and result in a fire.

Cleaning the screen surface/ cabinet of the TV set

Unplug the AC power cord when cleaning this

TV. If not, it may result in electric shock. Clean the cabinet of the TV with a dry soft cloth. To remove dust from the screen, wipe it gently with a soft cloth. Stubborn stains may be removed with a cloth slightly dampened with a solution of mild soap and warm water. Never use strong solvents such as thinner or benzine for cleaning. If using a chemically pretreated cloth, please follow the instruction provided on the package. The ventilation holes can accumulate dust over time. To ensure proper ventilation, we recommend removing the dust periodically (once a month) using a vacuum cleaner.

s When lifting or moving the TV, hold it firmly from the bottom. Place your palm directly underneath but do not squeeze the panel’s speaker grill area.

(Continued)

VENTILATION

The slots and openings in the TV are provided for necessary ventilation.

To ensure reliable operation of the TV and to protect it from overheating, these slots and openings must never be blocked or covered.

Unless proper ventilation is provided, the TV may gather dust and get dirty. For proper ventilation, observe the following: s Do not install the TV face up, down or sideways.

s Do not install the TV turned over or upside down.

s Never cover the slots and openings with a cloth or other materials.

s Never block the slots and openings by placing the TV on a bed, sofa, rug or other similar surface.

s Never place the TV in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.

Objects and ventilation holes

Never push objects of any kind into the TV through the cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or an electric shock. Do not place any objects on the TV.

MOISTURE

Moisture and flammable objects

s The TV must not be exposed to dripping or splashing. Do not place objects filled with liquids, such as vases, on the TV.

s Do not use power-line operated TV sets near water — for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

It may result in a fire or an electric shock.

s Do not let this TV get wet. Never spill liquid of any kind on the TV. If any liquid or solid object does fall through, do not operate the

TV. It may result in electric shock or damage to the TV. Have it checked immediately by qualified personnel.

s To prevent fire, keep flammable objects or open flame (e.g. candles) away from the TV.

Leave some space around the TV set as shown below.

Otherwise, air-circulation may be inadequate and cause overheating, which may cause a fire or damage to the TV set.

Installed on the wall

11

7

/

8 inches

(30 cm)

4 inches

(10 cm)

4 inches

(10 cm)

Installed with stand

4 inches (10 cm)

11

7 /

8 inches

(30 cm)

Leave at least this space around the set.

4 inches

(10 cm)

4 inches

(10 cm)

/

(6 cm)

INSTALLATION

Wall mount installation requires the use of a

Wall-Mount Bracket. When installing or removing the TV, using the Wall-Mount

Bracket, be sure to use qualified contractors.

If not properly secured during installation or removal from the Wall-Mount Bracket, the

TV may fall and cause serious injury.

Optional wall mount

Observe the following when installing the TV using a Wall-Mount

Bracket.

s Be sure to follow the operating instructions supplied with the

Wall-Mount Bracket when installing the TV.

s Be sure to attach the brackets supplied with the Wall-Mount Bracket.

s Do not hang the TV from the ceiling. It may fall and cause serious injury.

Placement

The TV should be installed near an easily accessible AC power outlet.

Observe the following in placing the TV. Otherwise the TV may fall from the stand or wall mount, causing damage or serious injury.

s Place the TV on a stable, level surface. s Do not hang anything on the TV. Do not allow children to climb on the TV.

Leave at least this space around the set.

Never install the TV set as follows:

Air circulation is blocked.

Air circulation is blocked.

Wall Wall

Do not install the TV in places subject to extreme temperature, such as in direct sunlight, near a radiator, or heating vent. If the TV is exposed to extreme temperature, the TV may overheat and cause deformation of the enclosure or cause the TV to malfunction. Do not install the TV in a place exposed to direct air conditioning. If the TV is installed in such a location, moisture may condense inside and may cause a malfunction.

s Never place the TV in hot, oily, humid or excessively dusty places. s Do not install the TV where insects may enter. s Do not install the TV where it may be exposed to mechanical vibration.

s Do not install the TV in a location where it may protrude, such as on or behind a pillar, or where you might bump your head on it.

Otherwise, it may result in injury.

Preventing the TV from toppling over

Take measures to prevent the TV from toppling over and causing injury.

To prevent the TV from toppling over, secure the TV to a wall or stand.

Placement for viewing

It is recommended to watch the TV at a distance of 3 - 7 times that of the screen height, and in moderate brightness. Watching the TV for too long or in a dark room may cause eye fatigue. To obtain a clear picture, do not expose the screen to direct illumination or direct sunlight. If possible, use spot lighting directed down from the ceiling.

Outdoor use

Do not install this TV outdoors. If the TV is exposed to rain, it may result in a fire or an electric shock. Do not expose the TV to direct sunlight, it may heat up and become damaged.

Vehicle, ships and other vessels

Do not install this TV in a vehicle.

Bumping of the vehicle may cause the TV to fall down and cause injury.

Do not install this TV in a ship or vessel. If the TV is exposed to seawater, it may cause a fire or damage the

TV.

Medical institutions

Do not place this TV in a place where medical equipment is in use.

It may cause a malfunction of medical equipment.

VOLUME ADJUSTMENT

s Adjust the volume so as not to trouble your neighbors. Sound carries very easily at night. Therefore, closing the windows or using headphones is suggested.

s When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

LCD SCREEN

s Although the LCD screen is made with high-precision technology and has effective pixels of 99.99% or more, black dots or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD panel and is not a malfunction.

s The LCD screen is made with high-precision technology and to achieve a high level of performance and picture quality, this TV’s backlight setting is set to maximize the brightness of the TV.

However, uneven brightness may be observed when the LCD TV is viewed in a dark ambient without an input source or a blank screen.

This condition is normal and not a malfunction of the TV. Changing the Picture mode, Backlight setting, enabling the Light Sensor, or turning on the Power management will improve this condition.

s Do not expose the LCD screen surface to direct sunlight. Doing so may damage the LCD panel.

s Do not push or scratch the LCD screen, or place objects on top of the

TV. The image may be uneven or the LCD panel may be damaged.

s If the TV is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena improve as the temperature rises.

s Ghosting may occur when still pictures are displayed continuously. It should disappear after a few moments.

s The screen and cabinet get warm when the TV is in use. This is not a malfunction.

s Avoid spraying insect repellent with volatile material on the screen.

s Avoid prolonged contact with rubber or plastic material.

Broken pieces

Do not throw anything at the TV.

The screen glass may break by the impact and cause serious injury.

If the surface of the TV cracks, do not touch it until you have unplugged the AC power cord.

Otherwise electric shock may result.

Handling of broken glass and liquid crystal leakage

If the LCD panel gets damaged, crystalline liquid leakage may occur, or scattered broken glass may result. Do not touch broken glass or crystalline liquid which is toxic, with bare hands as cuts, poisoning or skin irritation may occur. Also, do not let glass fragments or leaked crystalline liquid get into your eyes or mouth. Should either contact your eyes or mouth, rinse the contacted area thoroughly with water and consult your doctor.

SERVICING

Do not attempt to service the TV yourself since opening the cabinet may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Replacement parts

When replacement parts are required, be sure the service technician certifies in writing that he/she has used replacement parts specified by the manufacturer that have the same characteristics as the original parts.

Unauthorized substitutions may result in a fire, an electric shock or other hazards.

Safety check

Upon completion of any service or repairs to the TV, ask the service technician to perform routine safety checks (as specified by the manufacturer) to determine that the TV is in safe operating condition, and to so certify. Ask a qualified service technician to dispose of the TV.

For Customers in the United States

Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance

(http://www.eiae.org).

Welcome to the World of BRAVIA™

8

Thank you for purchasing this Sony BRAVIA™ high-definition television. The quality of the image you see on your BRAVIA TV is only as good as the quality of the signal it receives. To experience the full detail of your new BRAVIA TV, you need access to HD programming. Your BRAVIA TV can receive and display HD programming from:

• Over-the-air broadcasting via HD-quality antenna

• HD cable subscription

• HD satellite subscription

• Blu-ray Disc™ Player or other external equipment

Contact your cable or satellite provider for information on upgrading to HD programming.

To learn more about HDTV, visit: http://www.sony.com/HDTV

The Four Steps to Full HD Experience: Set, Sound, Source, and Setup

Along with your BRAVIA TV set, a complete HD system requires an HD sound system, a

source of HD programming and proper setup connections. This manual explains basic setup

connections (see page 14). The Quick Setup Guide, enclosed separately, illustrates how to

connect other optional equipment.

Picture Quality and Aspect Ratio

You can enjoy crisp, clear images, smooth movement and high-impact visuals from 1080 HD signals. When you compare a high-definition signal to a standard analog signal, you will notice a big difference. The 1080 HD signals provide more than twice the vertical resolution of the standard TV signal.

High-definition and standard-definition signals are transmitted with different aspect ratios (the width-to-height ratio of the image). HDTV uses a wider screen than conventional standarddefinition TV.

16:9 (high-definition) source

Most HDTV signals use a wide screen aspect ratio of 16:9. The 16:9 fills your BRAVIA screen and maintains a crisp, clear, vivid picture.

4:3 (standard-definition) source

Most standard-definition signals use a boxy 4:3 aspect ratio. When a 4:3 image is displayed on an

HDTV, you will see black bars on the sides. The picture quality may not be as sharp as with HD sources.

~

• You can use the Wide Mode function of the TV to adjust the 4:3 image to fit the entire screen (see pages 22, 31

and 32).

TV Home Menu: XMB

(XrossMediaBar)

The XMB

is a menu of BRAVIA features and input sources displayed on the TV screen. The

XMB

is an easy way to select programming and adjust settings on your BRAVIA TV. Press the

HOME button on your remote control to access the XMB

.

HOME

Settings

Product Support

Clock/Timers

Sound

Screen

Video Options

Media

Category

Bar

TV

Category Object Bar

From the horizontal Media Category Bar you can control:

Settings: timer, picture, sound, screen and other options (see page 28 for customization

options).

TV Channels: available channels are displayed on the vertical Category Object Bar.

External Inputs: cable, satellite, VCR, DVD players or other inputs can also be selected from the Category Object Bar for the External Inputs.

~

• This manual is for the 40, 46 and 52 inch BRAVIA KDL-W Series model with screen size measured diagonally.

9

Getting Started

1. Installing the TV

Preventing the TV from Toppling Over

For details, see page 45.

Preparation for Wall-Mounting

This TV can be installed on a wall by using a Wall-

Mount Bracket (sold separately). Before mounting the TV on a wall, the Table-Top Stand must be removed from the TV.

Follow the simple steps below to remove the

Table-Top Stand:

1

Disconnect all the cables from the TV.

2

Start removing the screws behind the TV (See illustration below). Do not remove any other screws from the TV.

3

Secure the Mounting Hook to the rear of the

TV.

4

Adjust the angle of the Mounting Hook.

5

When screws are removed, lift the TV off the stand. Make sure that you carry out this task with at least two people. Do not attempt to lift the TV by yourself.

~

• Do not remove the Table-Top Stand for any reason other than to wall-mount the TV.

• When using an electric screwdriver, set the torque setting to approximately 2 N·m {20 kgf·cm}.

• Be sure to store the removed screws and Table-Top

Stand in a safe place until you are ready to reattach the

Table-Top Stand. Keep the screws away from small children.

• For bracket installation, refer to the supplied Installing

the Wall-Mount Bracket and the instruction guide provided by the Wall-Mount Bracket model for your

TV. Sufficient expertise is required in installing this

TV, especially to determine the strength of the wall for withstanding the TV’s weight.

• For product protection and safety reasons, Sony strongly recommends that you use the Wall-Mount

Bracket model designed for your TV and that the wall-mounting of your TV is performed by a Sony dealer or licensed contractor.

10

2. Locating Inputs and Outputs

Left Side

1

2

VIDEO IN

VIDEO

L

(MONO)

AUDIO

R

2

IN

2

3

Item

2 VIDEO IN 2

VIDEO/R-AUDIO-

L (MONO)

Description

1 Headphone jack Connects to your headphones. If your headphones do not match the jack, use a suitable plug adapter (not supplied).

~

• While headphones are connected, the TV speakers are muted.

Connects to the composite video and audio output jacks on your camcorder or other video equipment such as a VCR or video game equipment.

~

• If you have mono equipment, connect its audio output jack to the TV’s L (MONO) audio input jack.

3 HDMI IN 2

HDMI

HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital audio/video interface between this TV and any HDMI-equipped audio/video equipment, such as a set-top box, DVD player, Blu-ray Disc Player, A/V receiver as well as PC.

HDMI supports enhanced, or high-definition video, plus digital audio.

~

• HDMI connection is necessary to view 480i, 480p, 720p, 1080i, 1080p and 1080/24p formats. Note that this TV displays all video input signals in a resolution of 1,920 dots ×

1,080 lines.

• Be sure to use only an HDMI cable that bears the HDMI logo.

• When HDMI control compatible equipment is connected, communication with the

connected equipment is supported. Refer to page 38 to set up this communication.

• When connecting a HDMI control compatible audio system with HDMI jack, be sure to also connect to the OPTICAL OUT jack.

11

Rear

1

PC IN

RGB

1

2 3

IN

3

AUDIO

L

AUDIO

R

4

1

S VIDEO

VIDEO

L

(MONO)

AUDIO

R

VIDEO IN

3 1

Y

2

P

B

P

R

DMe

X

/SERVICE

DIGITAL

OUT

(OPTICAL)

L

AUDIO

R

L

AUDIO

R

COMPONENT IN

(1080p/1080i/

720p/480p/480i)

AUDIO OUT

(VAR/FIX)

5 6

7

8

9 q; qa

VHF/UHF/CABLE

Item

1 PC IN

(RGB/AUDIO)

Description

Connects to a personal computer’s video output connector using a HD15-HD15 cable with ferrite core (analog RGB, not supplied). Can also be connected to other analog RGB equipment.

See “PC Input Signal Reference Chart” on page 16 for the signals that can be displayed.

~

• For some Apple Macintosh computers, it may be necessary to use an adapter (not supplied). If this is the case, connect the adapter to the computer before connecting the

HD15-HD15 cable with ferrite core.

• If the picture is noisy, flickering or not clear, adjust Phase and Pitch of Screen

settings on page 32.

12

Item

2 HDMI IN 1

HDMI/

R-AUDIO-L

3 HDMI IN 3

HDMI

Description

HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital audio/video interface between this TV and any HDMI-equipped audio/video equipment, such as a set-top box, DVD player, Blu-ray Disc Player, A/V receiver as well as PC.

HDMI supports enhanced, or high-definition video, plus digital audio.

If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the

HDMI IN 1 (with DVI-to-HDMI cable or adapter) jack, and connect the audio jack to the

AUDIO IN (L/R) jacks of HDMI IN 1.

DVI-to-HDMI cable

Audio cable

DVI-to-HDMI adapter

~

• HDMI connection is necessary to view 480i, 480p, 720p, 1080i, 1080p and 1080/24p formats. Note that this TV displays all video input signals in a resolution of 1,920 dots ×

1,080 lines.

• Be sure to use only an HDMI cable that bears the HDMI logo.

• When HDMI control compatible equipment is connected, communication with the

connected equipment is supported. Refer to page 38 to set up this communication.

• When connecting a HDMI control compatible audio system with HDMI jack, be sure to also connect to the OPTICAL OUT jack.

4 VIDEO IN 1

S VIDEO

Connects to the S VIDEO output jack of your VCR or other video equipment that has

S VIDEO. S VIDEO provides better picture quality than composite video (5) connection.

If both composite video and S VIDEO are connected, S VIDEO signal has priority.

5 VIDEO IN 1/3

VIDEO/L(MONO)-

AUDIO-R

Connects to the composite video and audio output jacks on your A/V equipment such as a VCR or other video equipment. A third composite video and audio (VIDEO IN 2) is located on the left side of the TV.

6 COMPONENT IN

1/2 (1080p/1080i/

720p/480p/480i)/

L-AUDIO-R

Connects to your equipment’s component video (YP

B

P

R

) and audio (L/R) jacks.

Component video provides better picture quality than the S VIDEO (4) or the composite video (5) connection.

~

• Component video (YP

B

P

R

) connection is necessary to view 480i, 480p, 720p, 1080i and

1080p formats. Note that this TV displays all video input signals in a resolution of

1,920 dots × 1,080 lines.

7 DMe

x

/ SERVICE

This USB port is for service only unless you are connecting the optional BRAVIA external module (DMe x

).

8 DIGITAL OUT

(OPTICAL)

Connects to the optical audio input of your digital audio equipment that is PCM/Dolby

Digital compatible. Dolby Digital Audio signal from the HDMI input will be output as

PCM.

9 AUDIO OUT

(VAR/FIX)

Connects to the left and right audio input jacks of your analog audio equipment. You can use these outputs to listen to your TV’s audio through your stereo system.

0 AC IN Connects the supplied AC power cord.

qa VHF/UHF/CABLE

RF input that connects to your Cable or VHF/UHF antenna.

13

3. Connecting the TV

Cable System or VHF/UHF Antenna

System

You can enjoy high-definition and standarddefinition digital programming (if available in your area) along with standard-definition analog programming.

~

• This TV is capable of receiving unscrambled digital programming for both cable (QAM and 8VSB) and external VHF/UHF antenna (ATSC).

• It is strongly recommended that you connect the antenna/cable input using the 75-ohm coaxial cable

(not supplied) to receive optimum picture quality. A

300-ohm twin lead cable can be easily affected by radio frequency interference, resulting in signal degradation.

Cable or VHF/UHF (or VHF only)

75-ohm coaxial cable

Rear of TV

VHF/UHF/CABLE input

Cable System and VHF/UHF Antenna

System

Use an optional A-B RF switch (not supplied) to switch between the cable and over-the-air antenna programming, as indicated below.

Cable

Antenna

A-B RF switch

A

B

Rear of TV

VHF/UHF/CABLE input

~

• Be sure to set the Cable setting to On or Off in the

Channel settings for the type of input signal you

choose (see page 34).

HD Cable Box/HD Satellite Box

You can also enjoy high-definition programming by subscribing to a high-definition cable service or a high-definition satellite service. For the best possible picture, make sure you connect this equipment to your TV via the HDMI or component video (with audio) input on the back of your TV.

Shown with HDMI Connection

Rear of TV

PC IN

1

RGB

AUDIO

HDMI cable

L

AUDIO

R

HD cable box/

HD satellite box

CATV/Satellite antenna cable

14

Shown with DVI Connection

Rear of TV

PC IN

RGB

3

AUDIO

DVI-to-HDMI cable

HD cable box/

HD satellite box

CATV/Satellite antenna cable

AUDIO-L

(white)

AUDIO-R

(red)

Audio cable

~

• If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI IN 1 (with DVI-to-HDMI cable or adapter) jack and connect the audio jack to the AUDIO IN (L/R) jacks of HDMI IN 1. For details, see

page 13.

Shown with Component Connection

Rear of TV

1 3 2

CATV/Satellite antenna cable

HD cable box/HD satellite box

S VIDEO

VIDEO

L

(MONO)

AUDIO

R

VIDEO IN

P

R

DMex/SERVICE

DIGITAL

OUT

(OPTICAL)

(1080p/1080I/

720p/480p/480I)

L

AUDIO

R

AUDIO OUT

(VAR/FIX)

AUDIO-R (red)

AUDIO-L (white)

P

R

(red)

P

B

(blue)

Y (green)

Component video cable

Audio cable

15

PC

Use the TV as a monitor for your PC.

Shown below with the HD15 to HD15 connection. This TV can also be connected to a PC with DVI or

HDMI output. (Refer to the separate Quick Setup Guide.)

Rear of TV

PC IN

1

RGB

IN

3

HD15-HD15 cable (analog

RGB)

AUDIO

L

AUDIO

R

Audio cable

(stereo mini plugs)

Connect to an HDMI compatible PC with an HDMI cable.

~

• Connect the PC IN jack to the PC using the HD15-

HD15 cable with ferrite core (analog RGB, not

supplied) and audio cable (page 12).

• If the PC is connected to the TV and no signal has been input from the PC for more than 30 seconds, the TV

enters the standby mode automatically (page 39).

PC Input Signal Reference Chart

After connecting the PC to the TV, set the output signal from the PC according to the chart below.

Resolution

Signals ×

Horizontal frequency (kHz)

Vertical frequency (Hz)

Standard

VGA

SVGA

XGA

WXGA

SXGA

HDTV

Horizontal

(Pixel)

640

1024

1024

1280

1280

1280

1360

1280

1280

1920

640

720

800

800

1024

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Vertical

(Line)

480

768

768

768

768

768

768

1024

1024

1080

480

400

600

600

768

31.5

56.5

60.0

47.4

47.8

60.3

47.7

64.0

80.0

67.5

37.5

31.5

37.9

46.9

48.4

60

60

75

60

60

70

75

60

75

60

75

70

60

75

60

VGA

VESA

VGA-T

VESA Guidelines

VESA

VESA Guidelines

VESA

VESA

VESA

VESA

VESA

VESA

VESA

~

• This TV’s PC input does not support Sync on Green or

Composite Sync.

• This TV’s PC VGA input does not support interlaced signals.

• For the best picture quality, it is recommended to use the signals (boldfaced) in the above chart with a 60 Hz vertical frequency from a personal computer. In plug and play, signals with a 60 Hz vertical frequency will be detected automatically. (PC reboot may be necessary.)

16

Other Equipment

Personal computer

Blu-ray

Disc Player/

PS3

DVD player

Digital satellite receiver

Digital cable box

Headphones

Audio system

Rear of TV

Personal computer

3

L

AUDIO

R

2

P

B

P

R

DMex/SERVICE

DIGITAL

OUT

(1080p/1080I/

720p/480p/480I)

VHF/UHF/CABLE

VHF/UHF/CABLE

2

VIDEO IN

VIDEO

L

(MONO)

AUDIO

R

2

IN

VCR

Game system

Digital recorder

Analog audio

Digital audio equipment equipment

(A/V Receiver/Home Theater)

~

• Refer to the Quick Setup Guide (supplied) when connecting other equipment to your TV.

Camcorder/

PS3

Camcorder

17

Using HDMI Control for BRAVIA

Theatre Sync™

This TV is equipped with BRAVIA Theatre Sync.

The HDMI Control function enables BRAVIA

Theatre Sync to allow communication between

Sony TV’s and Sony equipment. Only Sony equipment with HDMI Control capability is supported.

To Connect HDMI Control Equipment

Use an HDMI cable that bears the HDMI logo for

connection. See page 17 or see the HDMI

connection shown in the Quick Setup Guide provided with the TV documentation.

Setting the HDMI Control

In order for the HDMI Control function to operate, the TV and other Sony HDMI Control equipment

must be setup. See page 38 on how to turn the

HDMI Control On. For other equipment, refer to

the operating instruction for that equipment.

HDMI Control Available with Your TV

Once the supported equipment is connected, the following operations are available:

• Turn off the equipment automatically when you turn off the TV.

• When the connected equipment is turned on by One-Touch-Play, the TV will automatically turn on and select the respective HDMI input.

• Automatically turn on equipment listed under the External Inputs on the XMB

when

selected, see pages 9 and 26.

When a Sony A/V receiver with BRAVIA Theatre

Sync is connected, the following additional operations are possible:

• Turning on the A/V receiver when the TV is turned on.

• Automatically switching to the audio output of the A/V receiver’s attached speakers.

• Adjusting the volume and muting of the A/V receiver with the TV’s remote control.

~

• The A/V receiver cannot be selected from the XMB

.

Bundling the Connecting Cables

You can bundle the connecting cables as illustrated below.

KDL-40/46WL135

KDL-52WL135

~

• Do not bundle the AC power cord with other connecting cables.

• The hook of the cable holder can be opened from either sides depending on attaching position.

18

4. Setting Up the Channel List

– Initial Setup

The Initial Setup screen appears when you turn on the TV for the first time.

Initial Setup

Please select a language. Language settings will apply to on screen display as well as default audio for digital channels.

Highlight a choice and press to continue.

Step 1 of 5

English

Español

Français

After you finish connecting the TV, you can run

Initial Setup to create a list of available analog

and digital channels if you have connected an antenna or cable directly to the TV’s VHF/UHF/

CABLE input.

You will be prompted to select the language of your choice to be used for all the on-screen settings.

Use the remote control to navigate through the

Initial Setup:

V/v button:

Allows you to highlight options where applicable.

HOME

button:

Allows you to select the highlighted option and advance to the next screen.

B button:

Allows you to move back to the previous screen.

b button:

Allows you to move to the next screen.

Follow the help text provided on the screen to run

Auto Program with the connected signal source

or select Skip to skip the Auto Program if you are receiving channels from a cable box or satellite receiver and the VHF/UHF/CABLE input is not connected. The Auto Program will scan for available channels. When the Auto Program is completed, the TV will display how many analog and digital channels are found.

~

• If you accidentally turn off the TV during the Initial

Setup process, the Initial Setup will restart from the beginning when the TV is turned back on.

• The Auto Program may be canceled while the channels are being scanned. Press RETURN first then press either B/b on the remote control, highlight “Yes” to cancel or “No” to resume Auto Program.

To Run Initial Setup Again or Auto

Program at a Later Time

Select the Initial Setup feature from the XMB

or refer to the Initial Setup described on page 39.

To run Auto Program, see page 34.

To Add Digital Channels

Use the Add Digital Channels feature as

described on page 34. (Useful for antenna

installations.)

To Display the Picture in Your Preferred

Aspect Ratio

Select the proper Wide Mode as described on

pages 31 and 32.

You may want to set up convenient features such

as Favorites (see page 21), Show/Hide

Channels (page 34), Edit Channel Labels

(page 35) when Auto Program is completed.

19

Using the TV Features

Remote Control and TV Controls/Indicators

Inserting Batteries into the Remote Control

Insert two size AA batteries (supplied) by matching e and E on the batteries to the diagram inside the battery compartment of the remote control.

Push and lift the cover to open.

1

2

3

Remote Control and TV Controls

Buttons located at the top of the TV will operate the same as these buttons on the remote control.

HOME

~

• The 5 button and CH + have a tactile dot. Use them as a reference when operating the TV.

• This remote control cannot be programmed to use with other equipment.

Button Description

1 DISPLAY Press once to display the information pertaining to the channel and/or program when available. The OSD (On Screen

Display) will time out in a few seconds or press again to immediately turn off the display. You can also set the display

to show minimal information. See Info Banner on page 39.

2 SLEEP Press repeatedly until the TV displays the time in minutes

(Off, 15min, 30min, 45min, 60min, 90min or 120min) that you want the TV to remain on before shutting off. To cancel Sleep Timer, press SLEEP repeatedly until Off appears.

3 THEATER Press to turn on and off the Theater Mode. The picture settings will be set for a cinema like experience and the audio will be switched to the audio output of the attached speakers of your

BRAVIA Theatre Sync audio system. Your BRAVIA Theatre

Sync audio system must be connected by an HDMI connection

to your TV (see page 17 for details).

20

9

0

4

5

6

7

8

Button Description

4 FREEZE

Press once to display a frozen image with the current program in a window. Press again to return to the current program.

Freeze

Frozen picture

Current program

~

• With the Freeze feature active, some features are unavailable.

• While the Freeze feature is active, pressing HOME will deactivate Freeze and display the XMB

.

5 FAVORITES

Press once to display the stored favorite channel list.

You can store up to 30 channels in your Favorites list.

How to Add to Favorites

While tuned to the channel you want to add to the list, press

OPTIONS and highlight “Add to Favorites”, then press .

A confirmation message of “Channel added to Favorites” will appear for a few seconds.

How to Remove from Favorites

While tuned to a channel that exists in the Favorites list, press OPTIONS and highlight “Remove from Favorites”, then press .

A confirmation message of “Channel removed from

Favorites” will appear for a few seconds.

~

Your Favorites list will be cleared each time you run Auto

Program (see page 19 and 34 for Auto Program).

6 RETURN

Press to go back to the previous screen or exit from the screen when displaying menu items and settings.

~

• While the P&P or PIP feature is active, pressing RETURN

will exit from the screen (see page 25).

7 HOME Press to display the TV Home Menu/XMB

to access the TV

Home Menu items such as the TV Settings, TV channels and

External Inputs list (see pages 9 and 26).

Product Support

Clock/Timers

Sound

Screen

Video Options

TV

8 DMe

x

Press to access features in the optional BRAVIA external module. See your dealer or www.sony.com/bravia for more information. The module may not be available in your region.

9 0-9 ENT

Press 0-9 to select a channel; the channel changes after two seconds. Press ENT to change channels immediately.

0 Use with 0-9 and ENT to select digital channels.

For example, to enter 2.1, press

2

, ,

1

and ENT.

(Continued)

21

qa qs qd qf

Button Description

qa VOL +/–

Press to adjust the volume.

qs MUTING

Press to mute the sound. Press again or press VOL + to restore the sound.

qd POWER Press to turn on and off the TV.

qf WIDE Press repeatedly to step through the Wide Mode settings:

Wide Zoom, Normal, Full, Zoom. The Wide Mode

settings can be also accessed in the Screen settings (see page

31).

Changing the Wide Screen Mode

(For PC timing, see below)

4:3 Original source

Standard-definition source

16:9 Original source

High-definition source m

Wide Zoom

Normal

Full

Zoom

m

Wide Zoom

Normal

Full

Zoom

Changing the Wide Screen Mode for PC Timing

Incoming PC signal Incoming PC signal

800 × 600

1280 × 768 m

Normal

m

Normal

Full 1 Full 1

Full 2 Full 2

22

qg qh qj qk ql w; wa

Button Description

qg PICTURE

Press repeatedly to cycle through the available picture modes:

Vivid, Standard, Cinema, Custom. (Available options depend on the current mode.) The picture modes can also be accessed in the Picture settings. For details, see Picture

settings on page 28.

qh INPUT

Press to display the list of External Inputs and TV mode.

Press repeatedly to toggle through the inputs.

~

• Inputs can be changed by pressing V/v and while the list of External Inputs is displayed.

• See page 38 on setting up the External Inputs labels,

including the Skip feature.

qj V/v/B/b Press V/v/B/b to move the on-screen cursor. Press to select/confirm an item.

qk OPTIONS Press to display a list of convenient functions and menu shortcuts. The option menu items vary based on input and content.

Menu Item


Sound

P&P or PIP

Exit P&P or Exit PIP

Motion Enhancer

Speakers

Audio Swap

Add to Favorites/

Remove from Favorites

MTS

Alternate Audio

Digital Rating

Screen

Reference Page

See page 28

See page 30

See page 25

See page 25

See page 32

See page 34

See page 25

See page 21

See page 33

See page 34

See page 36

See page 31

ql CC w; JUMP

~

Motion Enhancer can only be set for the current input.

• Detailed information of digital rating will appear if Digital

Rating is selected when an icon to inform you the digital rating information appears.

Press to turn on and off Closed Captions (CC). To change

or customize CC Display, see page 35.

Press to jump back and forth between two channels. The TV alternates between the current channel and the last channel that was selected.

JUMP JUMP

wa CH +/– Press to scan through channels. To scan quickly through channels, press and hold down either +/–.

23

Indicators

1

PIC OFF/TIMER STANDBY POWER

2 3 4 5

Item

1 Speaker

2 PIC OFF/

TIMER LED

3 STANDBY LED

4 POWER LED

5 (IR) Infrared

Receiver/Light

Sensor

Description

Outputs the audio signal.

Lights up in green when the Picture Off feature is activated. Lights up in orange when the timer is set. When the timer is set, this LED will remain lit even if the TV is turned

off. For details, see page 28.

Lights up in red when your TV is in PC standby mode. If the LED blinks in red continuously, this may indicate the TV needs servicing (see contacting Sony information on the back cover).

Lights up in green when the TV is turned on.

Receives IR signals from the remote control.

Senses room light level and adjusts the screen brightness accordingly (see page 39 for

details). Do not put anything near the sensor, as its function may be affected.

24

Using P&P and PIP Features

This TV comes with the P&P and PIP features which allow you to view two pictures simultaneously. P&P (picture and picture) provides two windows side by side. PIP (picture in picture) provides PC input signal and TV channels.

~

• The VHF/UHF/CABLE input must be connected to use the PIP feature.

• For the PIP feature, Closed Caption (CC) is not available.

P&P

Main window

Sub window

~

• To swap audio in P&P mode, use the

B/b button to swap the highlight between the main window and sub window.

• To swap audio in PIP mode, press OPTIONS, then press

V/v to highlight Audio Swap.

• 1080p signal cannot be displayed for Component 1/2 in the sub window in P&P mode.

• For compatible PC Timings, refer to the PC Input

Reference Chart (see page 16).

To Change Inputs or Channels in the

Window

Press

B/b to highlight the window to change, and press INPUT to select the input to watch, or press

CH +/

to change channels or enter the channel number using the 0-9 numeric buttons.

~

• You may also press JUMP to change channels.

• Inputs with Skip applied will not appear in the list of

External Inputs (see page 38 for External Inputs

settings).

PIP

Main window

(PC)

Sub window

(Location of the sub window can be moved by pressing

V

/ v

/

B

/ b

.)

To Display the Sub Window

1

Press OPTIONS to display the OPTIONS menu while watching one of the following inputs: TV channels, Video, Component,

HDMI or PC.

2

Press

V/v to highlight P&P or PIP, and press

to display the sub window.

P&P Availability

In main window In sub window

Video 1/2/3

Component 1/2

HDMI IN 1/2/3 (except PC timing)

TV Channel

(VHF/UHF/

CABLE IN)

Video 1/2/3

Component 1/2

To Change the Window Size of P&P

Press

B/b to highlight the window, and press V/v to change the window size.

To Exit from P&P and PIP

1

Press OPTIONS to display the OPTIONS menu.

2

Press V/v to highlight Exit P&P or Exit PIP

(depends on the mode you are in), and press

to exit.

~

• You may also press RETURN while in these features to exit.

• Additional compatible device with television tuner is required to watch two simultaneous live television program.

In main window

PIP Availability

In sub window

PC

HDMI IN 1/2/3 (PC timing)

TV Channel

(VHF/UHF/

CABLE IN)

25

Using the Menus

The HOME button allows you to access the TV Home Menu on the XMB

(XrossMediaBar) as well as a variety of TV features.

HOME

cc

Settings

Product Support

Clock/Timers

The XMB

displays the Media

Category icons (horizontally) and available features

(vertically) within the highlighted icon.

Sound

Screen

Video Options

The XMB

is shown here with

Settings highlighted.

TV

Media Category Icons

Settings

Adjusting TV Settings

Customize the TV settings with various options.

Explanations of different Settings start from page 28.

• The available options vary depending on the situations and conditions applied. Unavailable options are grayed out or not displayed.

TV

Watching TV

Select a channel.

• You can also select a TV channel using the number 0-9 or CH +/– buttons (see remote control

section pages 21 and 23).

External

Inputs

Accessing the Equipment Connected to Your TV

Watch a movie, play a game, record a program or work on your PC.

Assign a label using the Label Inputs feature for your convenience, see page 38.

26

Navigating through TV Home Menu on XMB

1

HOME

Press HOME to display the XMB

.

2

Press

B/b to select a Media Category icon.

3

Settings

Available TV settings and features are listed under the Settings icon.

Available channels are listed under the TV icon.

Select inputs from

Video1-3

Component 1-2

HDMI 1-3

PC

under the External Inputs icon.

Press

V/v to move within the Category Object Bar.

(The Category Object Bar shown below is for the Settings.)

CC

Product Support (page 28)

Clock/Timers (page 28)

Picture (page 28)

Sound (page 30)

Screen (page 31)

Video Options (page 32)

Audio Options (page 33)

Channel (page 34)

Closed Captions (CC) (page 35)

Parental Lock (page 35)

External Inputs (page 38)

HDMI Settings (page 38)

General (page 39)

Initial Setup (page 39)

4

5

6

RETURN

HOME

Press when desired item is highlighted.

Press

V/v to select the highlighted item.

27

TV Setting Description

Product Support

Contact Sony

Signal Diagnostics

Sony contact information is available from this screen for your convenience. Your TV’s specific information such as Model Name, Serial Number, Software Version and downloadable ratings if available from the TV is displayed here.

Press to display the diagnostics information for the current signal.

Clock/Timers Settings

Current Time

Timer

Sleep Timer

Sets the current time (day, hour, minutes, and AM/PM). The Timer feature will not be available until you set Current Time.

1

Use the V/v/B/b button to highlight the Clock/Timers icon and press .

2

Use the V/v/B/b button to set the current time.

3

Press RETURN to display the confirmation screen.

4

Select Yes or No to save changes you made. Selecting Yes will save your settings and exit the Current Time setting screen.

Timer can be set, so the TV tunes to a certain channel as well as a specified volume at the specified time you set. After this is executed the TV will turn off at the specified time you set.

1

Use the V/v/B/b button to highlight the Timer icon and press .

2

Press to select On to set the timer.

3

Use the

V/v/B/b button to set the following: Day of the Week, Time, Duration,

Channel, and TV On Volume.

4

Press RETURN to display the confirmation screen.

5

Select Yes or No to save changes you made. Selecting Yes will save your settings and will light up the TIMER LED. Exit the Timer setting screen.

Sets the time in minutes (Off, 15min, 30min, 45min, 60min, 90min, or 120min) that you want the TV to remain on before shutting off automatically. Can also be set using the

SLEEP button on the remote control (see page 20).

Picture Settings

Picture Mode Vivid

Standard

Cinema


Custom

For enhanced picture contrast and sharpness.

For standard picture settings. Recommended for home entertainment.

For viewing film-based content. Most suitable for viewing in a theater-like environment.

For viewing still image content.

Allows you to store your preferred settings.

28

~

Picture Mode for all inputs can also be accessed by pressing PICTURE on the remote control to directly toggle the modes.

• The options for Picture Mode may differ depending on the Video/Photo Optimizer setting (see page 33).

Reset

Backlight


Brightness

Color

Hue

Color Temperature

White adjustment

Sharpness

Noise Reduction

MPEG Noise

Reduction

DRC Mode

Resets the current Picture Mode setting to the default values.

Brightens or darkens the backlight.

Increases or decreases picture contrast.

Brightens or darkens the picture.

Increases or decreases color intensity.

Increases or decreases the green tones.

Cool

Neutral

Gives the white colors a bluish tint.

Gives the white colors a neutral tint.

Warm 1, 2 Gives the white colors a reddish tint.

Sharpens or softens the picture.

Reduces the noise level of connected equipment, and the VHF/UHF/CABLE input.

Reduces the mosaic effect in MPEG-compressed video. Useful for DVDs and Digital TV channels.

Produces a high-resolution picture for high-density sources (e.g., Blu-ray Disc Player,

DVD Player, satellite receiver).

Mode 1

Mode 2

Recommended mode.

Only available for 1080i format. Mode 2 is especially effective when original standard-definition signals have been up-converted to 1080i format.

DRC Palette

Off

Turns off DRC Mode.

~

DRC Mode is available with all sources except for 1080p.

DRC Mode is not available when Game/Text Mode is set to On.

Allows you to customize the level of detail (Reality) and smoothness (Clarity).

1

Press the arrow buttons to highlight DRC Palette then press .

The DRC Palette appears.

DRC Palette

TV

1

Clarity

RETURN

Back

1

2

Press the arrow buttons to adjust the position of the marker (z). As you move the z higher along the Reality axis, the picture becomes more detailed. As you move the z to the right along the Clarity axis, the picture becomes smoother.

~

DRC Palette is available with all sources except for 1080p.

DRC Palette is not available when Game/Text Mode is set to On.

(Continued)

29

Advanced Settings Reset

Resets all the advanced settings to the default values.

Black Corrector Enhances black areas of the picture for stronger contrast.

Advanced C.E.

(Advanced

Contrast

Enhancer)

Automatically optimizes the backlight and contrast. This setting is especially effective for dark picture scenes. It will increase the contrast distinction of the dark picture scenes.

Gamma

Clear White

Color Space

Live Color

Adjusts the balance between the light and dark areas of the picture.

Emphasizes white and light colors.

Selects the range of color reproduction from Wide or Standard.

Makes colors more vivid and reproduces clear skin tones.

White Balance

Adjusts the color temperature color by color.

Detail Enhancer Enhances the details of the picture.

Edge Enhancer Enhances the outline of the picture.

~

Picture settings for all inputs can also be accessed by pressing OPTIONS on the remote control, then selecting

Picture from the OPTIONS menu.

Picture settings for PC Timings (HDMI or PC input) are the same as other input modes (see above for details), but

Noise Reduction, MPEG Noise Reduction, DRC Mode, DRC Palette and Detail Enhancer are not available.

Sound Settings

Available Sound settings depend on the Speakers setting under Audio Options settings (page 34) or

headphone connection.

Sound Mode

Reset

Treble

Bass

Balance

Surround

Voice Zoom

Sound Booster

Dynamic

Standard

Enhances treble and bass.

Suitable for spoken dialog.

Custom

Customizes the sound settings including the Sound Booster setting.

~

Sound Mode can also be accessed by pressing OPTIONS on the remote control.

Resets the current Sound Mode setting to the default values.

Increases or decreases higher-pitched sounds.

Increases or decreases lower-pitched sounds.

Emphasizes left or right speaker balance.

S-FORCE

Front Surround

Off

Provides a virtual surround sound experience made possible using just two front speakers.

Select for normal stereo or mono reception.

Adjusts the clarity of human voices. For example, if the voice of a news announcer is indistinct, you can turn up this setting to make the voice clearer. Conversely, if you are watching a sports program, you can turn down this setting to soften the voice of the commentator.

Sound Booster provides a fuller sound with a greater sense of depth and width, by emphasizing the high and low frequency sounds. Select High or Low for the amount of boost you desire while in Custom of Sound Mode. Selecting Off will bypass the emphasis.

~

Sound Booster is automatically set to High for Dynamic of Sound Mode and

Low for Standard of Sound Mode.

30

Steady Sound On

Off

Stabilizes the volume across all programs and commercials.

Turns off Steady Sound.

Volume Offset

Adjusts the volume level of the current input (TV or video input) relative to other inputs.

~

Sound settings for PC Timings (HDMI or PC input) are same as all other input modes (see above for details).

Screen Settings

Wide Mode

Auto Wide

4:3 Default

Select the default screen mode to use for 4:3 sources

Display Area

Wide Zoom

Normal

Full

Fills the screen with minimum distortion.

Displays the 4:3 picture in its original aspect ratio when the original source is 4:3.

Enlarges the picture horizontally to fill the screen when the original source is 4:3 (Standard-definition source). When the original source is

16:9 (High-definition source), select this mode to display the 16:9 picture in its original size.

Zoom

Enlarges the picture horizontally and vertically to fill the screen while maintaining the aspect ratio.

~

Wide Mode can also be accessed by pressing WIDE on the remote control.

• See WIDE button description on page 22 for accessing Wide Mode.

On

Off

Wide Zoom

Normal

Full

Zoom

Automatically changes Wide Mode setting based upon content. If frequent screen changes are disturbing to you, select Off.

Turns off Auto Wide. Choose a screen mode from the Wide Mode option.

Enlarges the 4:3 picture to fill the 16:9 screen, displaying as much of the original image as possible.

Displays the 4:3 picture in its original aspect ratio.

Enlarges the 4:3 picture horizontally only, to fill the screen.

Enlarges the picture horizontally and vertically to fill the screen while maintaining the aspect ratio.

Off

Continues using the current Wide Mode setting when the channel or input is changed.

~

4:3 Default is not available when Auto Wide is set to Off.

• If 4:3 Default is set to anything but Off, the Wide Mode setting applies only to the current channel. When you change channels (or inputs), Wide Mode is automatically replaced with the 4:3 Default setting for 4:3 sources. To retain the current Wide Mode setting as channels and inputs are changed, set 4:3 Default to Off.

Full Pixel

Displays the picture for 1080i or 1080p sources in its original size.

+1

Normal

-1/-2

Displays the original picture area. This setting can be selected for

HDMI input video signals, except for 1080i or 1080p signals.

Displays the recommended picture area.

Enlarges the picture to hide the edge of the picture.

(Continued)

31

Screen Position

Vertical Size

Adjust the Vertical positioning by pressing V/v. Press B/b to adjust the Horizontal positioning.

~

• The Screen Position feature is useful if the TV is connected to game equipment.

Adjusts the vertical size of the picture.

Press B/b and press to adjust.

~

Vertical Size is available only when Wide Mode is set to Wide Zoom or Zoom.

Screen settings for PC Timings (HDMI or PC input) differ from all other input modes and are shown below.

Auto Adjust

Reset

Phase

Pitch

H Center

V Center

Wide Mode

Select Yes to start the auto adjust to display the PC input.

Resets the current screen setting to the default values.

Adjust after Pitch to fine tune overall sharpness.

Adjust uneven sharpness on screen.

~

• For the PC input Signal Reference Chart, see page 16.

Allows you to move the position of the picture horizontally (left and right).

To Adjust the H Center

Press

V/v to highlight H Center and press

.

Press

B/b to correct the centering then press

.

Allows you to move the position of the picture vertically (up and down).

To Adjust the V Center

Press

V/v to highlight V Center and press

.

Press

B/b to correct the centering then press

.

Normal

Displays the picture in its original resolution and aspect ratio.

Full 1

Enlarges the picture, while maintaining its original aspect ratio.

Full 2

Enlarges the picture to fill the screen.

~

Wide Mode can also be accessed by pressing WIDE on the remote control.

• See WIDE button description on page 22 for accessing Wide Mode.

Video Options Settings

Motion Enhancer

CineMotion

Activates Motionflow to enhance the smoothness of picture movement and to reduce blur.

High

Provides smoother picture movement such as for film-based content.

Standard

Provides smooth picture movement. Use this setting for standard use.

Off

Use this setting when the High and Standard settings result in noise.

~

• Depending on the video, you may not see the effect visually, even if you have changed the setting.

Motion Enhancer is not available when Game/Text Mode is set to On.

Select Auto 1 or Auto 2 to automatically detect film content and apply a reverse 3-2 pulldown process. Moving pictures will appear cleaner and more natural looking. Select

Off to disable the detection.

32

Game/Text Mode

Video/Photo

Optimizer

Video Color Space

(x.v.Color)

Provides the optimum screen for viewing images with fine lines and characters that are input from video game equipment and PCs. Set to On for the sharp display of fine lines or characters.

Provides suitable image quality by selecting the option depending on the input source

(video or photograph data).

Video-A

Sets suitable image quality, depending on the input source, video data or photograph data when directly connecting Sony HDMI outputcapable equipment that supports Video-A mode.

Video

Produces suitable image quality for moving pictures.


Produces suitable image quality for still images.

~

• Setting is fixed to Video when the HDMI input signal is 1080/24p, or when Video-A mode is not supported on the connected equipment, even if Video-A is selected.

Displays moving pictures that is more faithful to the original source by matching the color space of source.

~

• Setting is fixed to Normal when the input signal is HDMI (RGB), even if x.v.Color is selected.

Photo Color Space

Color Matrix

Selects the option to match the output color space within the output signal from the equipment connected to the HDMI or component input jacks. Select sYCC when using the equipment that supports x.v.Color.

~

• Setting is fixed to sRGB when the input signal is HDMI (RGB), even if sYCC is selected.

Allows you to reproduce the color-difference signals. It is recommended that you leave this at the factory default setting.

Auto

Automatically optimize based on signal.

Custom

If the tone of the picture from the input source is unnatural, select either ITU601 or ITU709, which normalizes the tone.

~

• When inputting VIDEO 1 to 3, ITU601 or ITU709 can be selected instead of Auto or

Custom.

RGB Dynamic Range

Produces natural color by changing the luminance tone reproduction of HDMI input color signals (RGB). Set to Auto for standard use. Change the settings only when the luminance tone of the display is unnatural.

Audio Options Settings

MTS

Enjoy stereo, bilingual and mono programs

Stereo

For stereo reception when viewing a TV program broadcast in stereo.

Auto SAP

Mono

Automatically switches the TV to second audio programs when a SAP signal is received. If no SAP signal is present, the TV remains in

Stereo mode.

For mono reception. Use to reduce noise during weak stereo broadcasts.

~

MTS is available only for analog programs.

(Continued)

33

Speakers

Audio Out

Easy control of volume adjustment

TV Speakers

Select to use the TV speakers for audio.

Audio System

Select this option if you wish to use an external audio system for the

TV sound. By selecting this option you are disabling the TV speakers.

Fixed

Select to fix the audio output and allow you to adjust the volume with your audio system’s remote control. (The TV’s remote control’s VOL and MUTING buttons have no effect on Audio Out.)

Variable

Select to control the Audio Out’s volume and muting with your TV’s remote control.

~

Alternate Audio is available only for digital programs. If the program you are watching is also available in other languages from the audio tracks, and if that language is what you have selected in the Language setting, your TV will automatically switch to the matching language with the Alternate Audio feature. The Alternate Audio option may be accessed by pressing OPTIONS on the remote control when alternate audio stream is available from the broadcaster.

Channel Settings

Cable On

For receiving cable channels via cable TV provider.

Off

For using an antenna.

~

• You should run Auto Program after changing the Cable setting.

Auto Program

Automatically sets up the channel list on the TV for all receivable channels. Channel scanning will be based on On/Off of Cable.

1

Select Auto Program.

2

Select OK to start Auto Program. When Auto Program is completed, the screen will display the number of channels found.

3

Press RETURN to exit Auto Program.

~

• Running Auto Program will clear Favorites list.

• If you run Auto Program again, previously scanned channels will be overwritten with the newly scanned channels.

Add Digital Channels

Select to add digital channels. Be sure to have the Cable option selected appropriately for the signal source. (Useful for antenna installation)

Show/Hide Channels

Allows you to show or hide channels when you surf with the CH +/– button or in the TV channel list on the XMB

.

1

Press V/v to scroll through the channels until you highlight the channel to show or hide.

2

Press to select Shown or Hidden.

To show or hide more channels, repeat steps 1-2.

~

Hidden channels can be accessed by entering the channel number with 0-9 buttons on the remote control.

34

Edit Channel Labels

Assigns labels (such as station call letters) to channel numbers.

1

Press V/v to scroll through the channel numbers. Then press to select the channel number to assign a label.

2

Press V/v to scroll through the label characters (A-Z, 0-9, etc.). Press b to move to the next character. Repeat to add up to 7 characters to the label. Press to set it.

To assign labels to more channels, repeat steps 1-2.

CC

Closed Captions (CC) Settings

CC Display

Allows you to turn On or Off the Closed Captions (CC) feature.

Analog CC

For the basic analog (EIA-608) closed caption options.

CC1, CC2,

CC3, CC4

Displays a printed version of the dialogue or sound effects of a program. (Should be set to CC1 for most programs.)

Text1, Text2,

Text3, Text4

Displays network/station information presented using either half or the whole screen (if available).

Digital CC

For both analog (EIA-608) and digital (EIA-708) closed caption options.

Select from Service 1-6 and CC1-4 (advanced digital closed caption options).

Display Options

Customizes the Closed Captions (CC) displays with Text, Character Size,

Character Style, Character Color, Character Opacity, Edge Type, Edge Color,

Background Color and Background Opacity.

~

Closed Captions (CC) can be turned on and off directly by pressing CC on the remote control.

Parental Lock Settings

The Parental Lock feature allows you to block programs according to their content and rating levels and block channels (regardless of the programs). Password is necessary in setting up blocking.

To View Blocked Programs

Press ENT when tuned to a blocked program, then enter the password. To reactivate the Parental Lock settings, turn off and on the TV.

Password

Country

Use 0-9 buttons on the remote control to enter a four-digit password. The first time the password is created, you must re-enter it again to confirm the password. “Password Set” message will appear on the screen upon confirmation.

Change Password

You can change your password by entering the Parental Lock setting with the previously set password, highlight and select Change Password then enter the new password.

~

• You need your password for any future access into the Parental Lock settings. If you

lose your password, see “Lost password” on page 42.

Select the country name of U.S.A. or Canada for the appropriate ratings. The rating

system varies between these two countries. See Custom Rating System Chart on page 37.

(Continued)

35

Rating Off

Child

Youth

Young Adult

Turns off Parental Lock. No programs are blocked from viewing based on their ratings.

Maximum ratings permitted are:

U.S.: TV-Y, TV-G, G

Canada: C, G, TV-Y

Maximum ratings permitted are:

U.S.: TV-PG, PG

Canada: C8+, PG, 8 ans+, TV-PG

Maximum ratings permitted are:

U.S.: TV-14, PG-13

Canada: 14+, 13 ans+, TV-14

Custom

Sets ratings manually.

U.S.: See page 37 for details.

Canada: See page 37 for details.

~

• If you are not familiar with the parental guideline rating system, you should select Child, Youth, or Young Adult to help simplify the rating selection. To set more specific ratings, select Custom.

Digital Rating

(Available only in U.S.A. where advanced ratings exist)

Off

Clear All

Custom

Turns off Digital Rating. No programs containing digital ratings are blocked from viewing.

Clears the downloaded ratings.

Customizes Parental Lock with downloadable digital ratings.

Unrated

(Available only when

Country is set to U.S.A.)

Allow

Block

~

Allows programs and movies that are broadcast without a rating.

Blocks all programs and movies that are broadcast without a rating.

• If you block unrated TV programs, be aware that the following types of programs may be blocked: programs broadcast from another country, emergency broadcasts, political programs, sports, news, public service announcements, religious programs and weather.

Channel Block

Allows you to block channels regardless of program ratings. The password needs to be set up prior to blocking channels. The blocked channel can only be viewed by entering the correct password.

To View a Blocked Channel

Press ENT when tuned to the blocked channel then enter the password.

36

Custom Rating System Chart

For Country selection of U.S.A.:

Movie Rating

TV Rating

Block programs by their rating, content or both

G

PG

PG-13

R

All children and general audience

Parental guidance suggested

Parental guidance for children under 13

Restricted viewing, parental guidance is suggested for ages under 17

NC-17 and X

Age-Based Ratings

No one 17 or under allowed

TV-Y

TV-Y7

TV-G

TV-PG

All children

Directed to children age 7 and older

General audience

Parental guidance suggested

D

L

S

TV-14

TV-MA

Parents strongly cautioned

Mature audience only

Content-Based Ratings

FV

Fantasy violence

Suggestive dialogue

Strong language

Sexual situations

V

Violence

~

• To ensure maximum blocking capability, set the Age-Based Ratings.

For Country selection of Canada:

English Rating

French Rating

U.S.A. Rating

C

C8+

G

PG

14+

18+

G

8 ans+

All children

Children 8 years and older

General programming

Parental guidance

Viewers 14 and older

Adult programming

General programming

Not recommended for young children

13 ans+

16 ans+

Not recommended for ages under 13

Not recommended for ages under 16

18 ans+

Programming restricted to adults

See TV Rating under U.S.A. for details.

37

External Inputs Settings

Label Inputs

You can label your inputs with the name of equipment you have connected.

To assign your own label or Skip the input:

1

Press

V/v to highlight the video input (Video 1-3, Component 1-2 and HDMI 1-

3, PC), then press to select the desired input.

2

Press

V/v to highlight the display label you want to assign, then press

.

~

• You can select from the following labels for each input.

Video 1-3, Component 1-2 and HDMI 1-3:, DVD, Cable Box, Satellite, BD,

VCR, Receiver, DVR, Game, Camcorder, PC, Skip.

PC:, Skip.

• “” indicates that no labels are assigned.

HDMI Settings

HDMI inputs of this TV will recognize and communicate with other Sony equipment equipped with

HDMI Control.

HDMI Control

On/Off feature allows your TV to communicate with other equipment that supports

HDMI Control.

Device Auto Power Off Select On to have your connected HDMI Control equipment to power off automatically when the TV is turned off. Select Off to disable this function.

TV Auto Power On

Select On to control your TV’s power on from your connected HDMI Control equipment.

Select Off to disable this function.

Device List

Displays a list of HDMI Control equipment connected to the TV.

38

General Settings

Language

Info Banner

Power Saving

Light Sensor

PC Power

Management

Select the language of your choice from English, Español and Français to be used for displaying all the on-screen settings.

Displays the program name and the program information such as program title and program rating (if available from the broadcaster) when option is set to On. Select Off for minimal display information. Selecting Off will not completely disable the banner display. Info Banner also appears on the screen each time the channel is changed or

DISPLAY on the remote control is pressed.

~

• To see the rating information on the banner, Info Banner setting must be set to On.

Reduces the power consumption by adjusting the backlight brightness. This also enhances the black level. Select from Off, Low, High and Picture Off.

Enables the automatic picture (screen) brightness control. Light Sensor measures the room brightness which allows the TV to automatically adjust the backlight brightness based on the picture settings and the ambient room light conditions.

~

• Be sure not to put anything around the sensor, as its function may be affected (see page

24).

• In low light the range of the backlight control is reduced when Light Sensor is set to

On.

On

Automatically enters to standby mode when there is no signal input for more than 30 seconds. The STANDBY LED on the front panel will illuminate when PC Power Management switches the TV to standby mode.

Off

Turns off PC Power Management.

~

• To bring the TV out of standby mode and recover TV features, press TV POWER on the remote control.

PC Power Management is not VESA-compliant.

Initial Setup

If you have missed the Initial Setup when you first connected the TV or if you want to scan all receivable channels, you can run the Initial Setup. Follow the instructions on the screen. Settings such as picture and sound adjustments will not be affected by this Initial Setup.

~

Favorites list will be cleared each time you run the Initial Setup.

39

Other Information

Troubleshooting

If you have questions, service needs, or require technical assistance related to the use of your

Sony TV, please visit our website or call one of the following numbers: http://www.sony.com/tvsupport

1-800-222-SONY(7669) for US Support

1-877-899-SONY(7669) for Canadian Support

Condition

No picture

Explanation/Solution

No picture

• Check the Power Saving settings (see page 39).

Cannot receive any channels • Make sure the power cord is connected securely.

• Turn on the power of the TV.

• Check antenna/cable connections.

• Make sure the Cable setting is correct for your TV signal source.

TV is locked to one channel • Perform Auto Program to add receivable channels that are not present in the

TV’s memory (see pages 19 and 34).

Cannot receive or select channels

• Perform Auto Program to add receivable channels that are not present in the

TV’s memory (see pages 19 and 34).

• To receive or select cable channels, make sure that Cable in the Channel

settings is set to On (see page 34). To receive or select UHF channels over an

antenna, make sure Cable is set to Off.

The TV turns off automatically

No picture from some video sources

• Check if Sleep Timer is activated, or confirm the Duration setting of Timer

(see page 28).

• Check PC Power Management in the General Settings (see page 39).

• Check the connection between the optional video equipment and the TV.

• Press INPUT on the remote control (see page 23).

• Press HOME on the remote control. Select your desired input from the

External Inputs list.

Poor picture

The quality of the images is not as good as what I saw at the store

• Picture quality depends on the signal content. See Quick Setup Guide

(supplied) to display the best possible picture for that signal.

Double images or ghosts

Only snow and noise appear on the screen

Dotted lines or stripes

No color/Dark picture/Color is not correct/The picture is too bright

• Keep the TV away from noise sources such as cars, motorcycles, or hair-dryers.

• If using the 300-ohm twin lead, move the excess lead away from the TV or try using the 75-ohm coaxial cable (not supplied) instead.

• Press PICTURE to select the desired Picture Mode (see page 23).

• Adjust the Picture Mode options in the Picture settings (see page 28).

• If you set Power Saving to Low or High, it will enhance the black level (see

page 39).

Noisy picture

• Check antenna/cable connections.

• Check the antenna location and direction.

• Check if the antenna is broken or bent.

• Check if the antenna has reached the end of its serviceable life. (3-5 years in normal use, 1-2 years at the seaside.)

• Make sure that the antenna is connected using the 75-ohm coaxial cable (not supplied).

• Keep the antenna cable away from other connecting cords.

• To avoid TV interference, make sure to use an undamaged antenna cable.

• Change the Display Area setting to enlarge the picture (see page 31).

40

The picture does not fill the entire screen or there are flashing lines around the edges of the screen

Condition

No sound/Noisy sound

Good picture, no sound

Explanation/Solution

Audio noise

• Check the volume control.

• Press MUTING or VOL + so that “Muting” disappears from the screen

(see page 22).

• Disconnect your headphones.

• Set Speakers to TV Speakers in the Audio Options settings (see page 34).

If it is set to Audio System, sound is not output from the TV’s speakers regardless of the TV’s volume control.

• When using HDMI input with Super Audio CD or DVD-Audio, DIGITAL OUT

(Optical) may not provide an audio signal.

• Make sure that the antenna is connected using the 75-ohm coaxial cable (not supplied).

• Keep the antenna cable away from other connecting cords.

• To avoid TV interference, make sure to use an undamaged antenna cable.

PC Input

No Picture / No Signal

Poor Picture

• Confirm the PC is correctly connected to the TV with either the PC IN (with

HD15-HD15 cable with ferrite core (not supplied)) or with the HDMI IN.

• Ensure the output signal from the PC is one of the formats listed on page 16.

• Turn the PC off. Confirm the PC connection and restart the PC. Plug and play will auto-detect the TV and correctly set up PC timing.

• Verify PC Power Management is activated (see page 39).

• Adjust the resolution (see page 16).

• Adjust Pitch and Phase.

General

Wide Mode changes automatically

Suddenly the picture gets smaller

“Black box” on screen

Black bands appear at the edges of the screen

• The current Wide Mode setting is automatically replaced with the 4:3

Default setting when you change the channel or video input, if 4:3 Default in the Screen settings is set to other than Off. If you want to lock in Wide Mode selected with the WIDE button on the remote control, set 4:3 Default to Off in

the Screen settings (see page 31).

• Check Auto Wide in the Screen settings (see page 31).

• The picture gets smaller during the commercials, this is due to the method the provider broadcasts their contents. When HD content channels switch to SD definition content (commercials), the picture may be small with a black border.

• You have selected a text option and no text is available (see page 35). To turn off

this feature, set CC Display to Off. If you were trying to select closed captioning, select CC1 instead of Text1-4.

• Some wide screen programs are filmed in aspect ratios that are greater than 16:9

(this is especially common with theatrical releases). Your TV will show these programs with black bands at the top and bottom of the screen. For more details, check the documentation that came with your DVD (or contact your program provider).

• Programs in 4:3 aspect ratio will have bands on left and right sides of the screen.

Certain programs on DVD or other digital sources display a loss of detail, especially during fast-motion or dark scenes

• This is due to the digital compression of the source content used by certain digital broadcasts and DVDs which may cause your TV’s screen to display less detail than usual, or cause artifacts (small blocks or dots, pixelations) to appear on your screen. These signal compressions are more visible and are dependent on the clarity and resolution of the television.

• Set the Game/Text Mode to ON (see page 33).

When playing a video game, there is delay between the remote control and the actual video

(Continued)

41

Condition

Remote control does not operate

Some digital cable channels are not being displayed

Explanation/Solution

• Check the polarity of the batteries or replace the batteries.

• Point the remote control at the remote control sensor located at the front of the

TV.

• Fluorescent lamps can interfere with your remote control operation; try turning off the fluorescent lamps.

• Keep the remote control sensor area clear from obstacles.

• Certain cable companies have limitations on the broadcast of digital cable channels. Check with your cable company for more information.

• The digital cable channel may be set to Hidden in the Show/Hide Channels

setting (see page 34).

Lost password • Select the Password settings on the Parental Lock settings, then enter the following master password: 4357. The master password clears your previous

password and allows you to enter a new password (see page 35).

How to reset the TV to factory settings

• Turn on the TV. While holding down

V on the remote control, press POWER on the TV. (The TV will turn itself off, then back on again.) Release V.

WARNING: The Reset will clear all of your customized settings including the

Parental Lock setting.

42

Specifications

Model

System

Television system

KDL-40WL135 KDL-46WL135 KDL-52WL135

Channel coverage

Panel system

Speaker output

Input/Output jacks

Antenna

VIDEO IN 1/2/3

Power requirement

Power consumption in use in standby

Screen size (inches measured diagonally)

Display resolution

(horizontal × vertical)

Speaker

NTSC: American TV standard

ATSC (8VSB terrestrial): ATSC compliant 8VSB

QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)

Analog terrestrial: 2-69 / Digital terrestrial: 2-69

Analog Cable: 1-125 / Digital Cable: 1-135

LCD (Liquid Crystal Display) Panel

11 W + 11 W

75-ohm external terminal for VHF/UHF

COMPONENT IN 1/2

HDMI IN 1/2/3

S VIDEO (4-pin mini DIN)(VIDEO 1 only): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative /

C: 0.286 Vp-p (Burst signal), 75 ohms

VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative

AUDIO: 500 mVrms (100% modulation)/ Impedance: 47 kilohms

YP

B

P

R

(Component Video): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative / P

B

: 0.7 Vp-p, 75 ohms /

P

R

: 0.7 Vp-p, 75 ohms / Signal format: 480i, 480p, 720p, 1080i, 1080p

AUDIO: 500 mVrms (100% modulation)/ Impedance: 47 kilohms

HDMI: Video: 480i, 480p, 720p, 1080i, 1080p, 1080/24p / Audio: Two channel linear PCM 32, 44.1 and 48 kHz,

16, 20 and 24bits, Dolby Digital

AUDIO (HDMI IN 1 only): 500 mVrms (100% modulation)/ Impedance: 47 kilohms

AUDIO OUT 500 mVrms (100% modulation) (Fixed) / 1 Vrms at the maximum volume setting (Variable)

DIGITAL OUT (OPTICAL)

Optical Digital Audio Output (PCM/Dolby Digital)

PC IN D-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive

See the PC Input Signal Reference Chart on page 16.

PC AUDIO INPUT

Headphones

Power and others

Stereo mini jack, 500 mVrms (100% modulation)/ Impedance: 47 kilohms

Stereo mini jack / Impedance: 16 ohms

120 V-240 V AC, 50/60 Hz

235 W

All models less than 0.4 W

40

1,920 dots × 1,080 lines

Full range: 42 × 150 mm

(1

5

/

8

× 5

7

/

8

inches) (2)

280 W

46

Full range: 55 × 155 mm

(2

1

/

8

× 6

1

/

8

inches) (2)

Tweeter: 40 mm (1

5

/

8

inches) (2)

320 W

52

Full range: 70 × 130 mm

(2

6

/

8

× 5

1

/

8

inches) (2)

Tweeter: 40 mm (1

5

/

8

inches) (2)

Dimensions (W × H × D) with stand (mm)

(inches) without stand (mm)

(inches) wall-mount hole pattern

(mm)

Mass with stand without stand

992 × 688 × 265

39

1

/

8

× 27

1

/

8

× 10

1

/

2

992 × 643 × 122

39

1

/

8

× 25

3

/

8

× 4

7

/

8

300 × 200

26.5 kg

59 lb.

23 kg

51 lb.

1135 × 779 × 306

44

3

/

4

× 30

3

/

4

× 12

1

/

8

1135 × 734 × 122

44

3

/

4

× 29 × 4

7

/

8

300 × 200

33.5 kg

74 lb.

29.5 kg

66 lb.

1278 × 874 × 384

50

3

/

8

× 34

1

/

2

× 15

1

/

8

1278 × 832 × 123

50

3

/

8

× 32

7

/

8

× 4

7

/

8

400 × 300

45.0 kg

100 lb.

37.5 kg

83 lb.

(Continued)

43

Model

Supplied accessories

Optional accessories

KDL-40WL135 KDL-46WL135 KDL-52WL135

Remote control RM-YD014 (1) / Size AA batteries (2) / AC power cord (1) / Cable holder (1 attached to the TV) /

Operating Instructions (1) / Quick Setup Guide (1) / Installing the Wall-Mount Bracket (1) / Warranty Card (1) /

Online Registration Card (U.S.A. only) (1)

Headphones plug adapter / Connecting cables / Support belt kit / Wall-Mount Bracket: SU-WL500

(KDL-40WL135/KDL-46WL135/KDL-52WL135) / TV-Stand: RHT-G800 (KDL-40WL135/KDL-46WL135),

SU-FL300M (KDL-40WL135/KDL-46WL135), SU-FL300L (KDL-46WL135/KDL-52WL135)

~

• Optional accessories availability depends on its stock.

• Design and specifications are subject to change without notice.

44

Securing the TV

Sony strongly recommends taking measures to prevent the TV from toppling over; as unsecured TVs may topple and result in property damage, serious bodily injury or even death.

Prevent the TV from Toppling

s Secure the TV to a wall and/or stand.

s

Do not allow children to play or climb on furniture and TV sets.

s

Avoid placing or hanging items on the TV.

s Never install the TV on:

• slippery, unstable and/or uneven surfaces.

• furniture that can easily be used as steps, such as a chest of drawers.

s

Install the TV where it cannot be pulled, pushed, or knocked over.

s

Route all AC power cords and connecting cables so that they are not accessible to curious children.

Use a Sony TV Stand

Use a Sony specified TV stand (see page 2) and

follow the instruction manual provided with the

Sony TV stand.

If a Sony specified TV stand is not used, consider the following recommended measures.

Recommended Measures to Secure the TV

1

Secure the stand for the TV.

Make sure the TV stand can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the stand.

For each angle brace use the appropriate hardware to:

• attach one side of the angle brace to the wall stud.

• attach the other side to the TV stand.

Angle brace

2

Secure the TV to the stand.

Use the optional hardware listed below (not supplied):

• M6 × 10-12 mm anchor bolt (screwed into the

TV’s Table-Top stand).

• A screw or similar (attach it to the TV stand).

• Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain.

An alternative way to secure the TV is with an optional Sony Support Belt Kit.

Anchor bolt

Screw

Screw hole on the

Table-Top stand

~

Contact Sony Customer Support to obtain the optional

Support Belt Kit by providing your TV model name.

• For United States call: 1-800-488-7669 or visit: www.sony.com/accessories

• For Canada call: 1-877-899-7669

Stand

45

3

Anchor the TV to the wall.

Use the hardware listed below (not supplied).

• Two M6 × 7-10 mm anchor bolts (screw into the top-most wall-mount holes located on the rear of the TV).

• Rope or chain (attach to one M6 anchor bolt).

• Wall-anchor (attach to the wall stud) strong enough to support the weight of the TV (pass the rope through the wall-anchor, then attach to the other M6 anchor bolt).

Anchor bolts

Wall-mount holes

Rope or chain

Wall- anchor

~

• Measure 2 provides minimal protection against the TV toppling over. For further protection, follow all three measures recommended above.

• When using an electric screwdriver, set the torque setting to approximately 2 N·m {20 kgf·cm}.

46

Index

0-9 buttons

21

4:3 Default

31

A

AC IN

13

Add Digital Channels

34

Advanced Settings

30

Analog CC

35

Audio Out

34

AUDIO OUT jack

13

Auto Adjust

32

Auto Program

19, 34

Auto Wide

31

B

Backlight

29

Balance

30

Bass

30

Brightness

29

C

Cable

34

Cable holder

18

CC button

23

CC Display

35

CH +/– button

23

Channel Block

36

CineMotion

32

Color

29

Color Matrix

33

Color Temperature

29

COMPONENT IN jack (1080p/1080i/

720p/480p/480i)

13

Connecting the TV

14

Contact Sony

28

Country

35

Current Time

28

D

Device Auto Power Off

38

Device List

38

Digital CC

35

DIGITAL OUT (OPTICAL) jack

13

Digital Rating

36

Display Area

31

DISPLAY button

20

Display Options

35

DMe x

button

21

DMe x

/SERVICE

13

DRC Mode

29

DRC Palette

29

E

Edit Channel Labels

35

English Rating

37

ENT button

21

F

FAVORITES button

21

FREEZE button

21

French Rating

37

G

Game/Text Mode

33

H

H Center

32

HDMI Control

18, 38

HDMI IN jack

11, 13

Headphone jack

11

HOME button

21

Hue

29

I

Info Banner

39

Infrared Receiver (IR)/Light Sensor

24

INPUT button

23

Installing the TV on a wall

10

J

JUMP button

23

L

Label Inputs

38

Language

39

Light Sensor

39

M

Motion Enhancer

32

Movie Rating

37

MPEG Noise Reduction

29

MTS

33

MUTING button

22

N

Noise Reduction

29

O

OPTIONS button

23

P

P&P

25

Password

35

PC IN jack

12

PC Power Management

39

Phase

32

Photo Color Space

33

PIC OFF/TIMER LED

24


29

PICTURE button

23

Picture Mode

28

PIP

25

Pitch

32

POWER button

22

POWER LED

24

Power Saving

39

R

Rating

36

Reset

29, 30, 32, 42

RETURN button

21

RGB Dynamic Range

33

S

S VIDEO jack

13

Screen Position

32

Setting up channels

19

Settings

Audio Options

33

Channel

34

Clock/Timers

28

Closed Captions (CC)

35

External Inputs

38

General

39

HDMI Settings

38

Initial Setup

39

Parental Lock

35


28

Product Support

28

Screen

Sound

31

30

Video Options

32

Sharpness

29

Show/Hide Channels

34

Signal Diagnostics

28

SLEEP button

20

Sleep Timer

28

Sound Booster

30

Sound Mode

30

Speaker

24

Speakers

34

STANDBY LED

24

Steady Sound

31

Surround

30

T

THEATER button

20

Timer

28

Treble

30

Troubleshooting

40–42

TV Auto Power On

38

TV Rating

37

47

U

U.S.A. Rating

37

Unrated

36

V

V Center

32

Vertical Size

32

VHF/UHF/CABLE input

13

Video Color Space (x.v.Color)

33

VIDEO/AUDIO (L/R) jacks

11, 13

Video/Photo Optimizer

33

Voice Zoom

30

VOL +/– button

22

Volume Offset

31

W

WIDE button

22

Wide Mode

31, 32

X

XMB

9, 26

48

For Your Convenience

Please contact Sony directly if you:

z

Have questions on the use of your television after reading your Operating Instruction manual and Quick Setup Guide z

Experience difficulty operating your television

Contact Sony Customer Support at: http://www.sony.com/tvsupport

or to speak with a support representative:

United States

1-800-222-SONY (7669)

Canada

1-877-899-SONY (7669)

Sony will work to resolve your questions more quickly than your retailer or place of purchase.

Please Do Not Return the Product to the Store

Printed in U.S.A.

Was this manual useful for you? yes no
Thank you for your participation!
