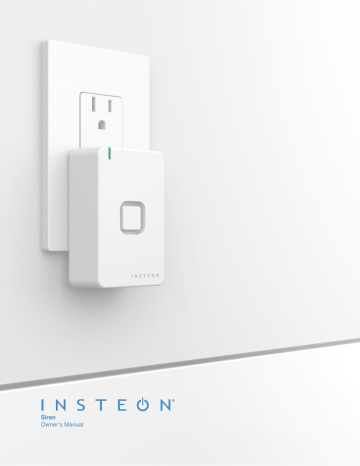

Siren

Owner’s Manual

Contents

Getting Started

Insteon Siren

Device Overview

4

4

Buttons

4

Installation

4

Protective Film

4

Alert Types

5

Insteon app for iPhone, iPad and iPod touch

Add to the Insteon Hub

Configure Audible Alerts

Configure Arm and Disarm

Insteon app for Android

Add to the Insteon Hub

Configure Audible Alerts

Configure Arm and Disarm

7

8

10

13

14

16

Local Programming

About Local Programming

Local Programming Flow Chart

Basic Linking

Triggering Siren from an Insteon Device

Arming and Disarming Siren from an Insteon Device

Factory Reset

Factory Reset

Appendix

Specifications

Troubleshooting

Certifications and Warnings

Product Warranty

19

20

22

23

26

28

30

31

32

Getting Started

Everything you need to quickly get up and running.

3

Status LED

Armed

Disarmed

Device Overview

Installation

Alert Speaker

Sound Now

Silence Now

Set Button

Plug Siren into an unswitched wall outlet.

Insteon Siren

Buttons

Sound Now

Tap to sound the currently selected alert tone.

Silence Now

Tap to stop the currently playing alert tone.

Set Button

Cycles through the available sound options and arm/disarm mode.

Also used for basic linking and local programming.

Protective Film

Insteon Siren is loud. To reduce the siren volume, leave the protective film over the speaker in place.

4

Alert Types

Siren features two types of audible alerts. Choose the suitable alert when creating a Scene via Insteon for Hub app or tap-tap linking.

Siren

Loud ringing will sound if Siren is armed and triggered by a linked device. The loud ringing will persist for 2 minutes unless stopped by disarming Siren.

Caution

Chime

Two short beeps will sound if

Siren is armed and triggered by a linked device.

Siren is loud. Use hearing protection when testing in close proximity.

5

Insteon app for iPhone, iPad and iPod touch

Use the Insteon app to configure and control Siren.

6

Add to the Insteon Hub

iPhone, iPad and iPod touch

Launch the Insteon App Tap the drawer icon or swipe from the right edge of the display to open the drawer

When prompted, press and hold the set button on Siren until the device double-beeps

Tap Add a Device

Tap Plug-in Module

X

You can now manage Siren with the Insteon app.

7

Configure Audible Alerts

iPhone, iPad and iPod touch

Open the Drawer and tap Create a Scene

Select the devices that you would like to trigger Siren

When selecting Siren, tap

Alarm

Tap Next Ensure that all triggering devices are set as Controller by tapping the

Controller, Responder, Both button until it reads Controller

To choose the audible alert for Siren, tap the Chime/Siren button until the desired alert tone is displayed

8

Configure Audible Alerts

iPhone, iPad and iPod touch

Tap Done to begin creating the scene

When prompted, press and hold the set button on any battery-powered sensors included in the Scene

Tap Yes

X

Your Siren is now configured for aduible alerts.

9

Configure Arm and Disarm

iPhone, iPad and iPod touch

Open the Drawer and tap Create a Scene

Select Siren and tap

Delayed Arm/Disarm

Select the devices that you would like to arm and disarm Siren

Tap Next To choose between an audible or silent 45 second arming countdown tap Audible/Silent until the desired setting is displayed

Ensure that all arming devices are set as Both by tapping the Controller,

Responder, Both button until it reads Both

10

Configure Arm and Disarm

iPhone, iPad and iPod touch

Tap Done to begin creating the scene

The Insteon app will create your Arm and Disarm scene

Tap Yes to complete the scene building process

X

Your Insteon device will now arm and disarm Siren.

11

Insteon app for Android

Use the Insteon app to configure and control Siren.

12

Add to the Insteon Hub

Android

Launch the Insteon App Navigate to Settings by tapping Edit Settings from the

Settings button

Tap Devices

When prompted, press and hold the set button on Siren until the device double-beeps

Tap the Add button Tap Plug-In Module

X

You can now manage Siren with the Insteon app.

13

Configure Audible Alerts

Android

Navigate to Settings and tap Scenes

Tap Add to create a new Scene Select the devices that you would like to trigger

Siren

Select siren and tap Alarm; when ready, tap Next

Ensure that all triggering devices are set as Controller by tapping the

Controller, Responder, Both button until it reads Controller

To choose the audible alert for Siren, tap the Chime/Siren button until the desired alert tone is displayed

14

Configure Arm and Disarm

Android

Tap Done to begin creating the scene

When prompted, press and hold the set button on any battery-powered sensors included in the scene

Tap Yes to complete the scene building process

X

Your Siren is now configured for aduible alerts.

15

Configure Arm and Disarm

Android

Navigate to Settings and tap Scenes

Tap Add to create a new Scene

Select Siren and tap

Delayed Arm and

Disarm

Select the devices that you would like to arm and disarm Siren

Tap Next To choose between an audible or silent 45 second arming countdown tap Audible/Silent until the desired setting is displayed

16

Configure Arm and Disarm

Android

Ensure that all arming devices are set as Both by tapping the

Controller, Responder, Both button until it reads Both

Tap Done to begin creating the scene

The Insteon app will create your Arm and

Disarm scene

X

Your Insteon device will now arm and disarm Siren.

17

Local Programming

Use the local programming to link Insteon devices together with the set button.

18

NEW

About Local Programming

Local Programming

The Local Programming Flowchart is a visual representation of the device’s settings. Many device features can be configured using this diagram. Some devices have more options than others but the Local Programming

Flowchart presents even the most complicated devices with a straightforward, navigable path.

Using a Central Controller

If using the Insteon Hub or any other central controller, it is strongly advised that you not use Local Programming. Your central controller can manage the device properties and links for you.

Navigation

To move right, press and hold the set button

To move down, tap the set button

Status LED double-blinks green

Status LED blinks red

Status LED double-blinks red

Local Programming Features

Linking Mode Readies the module for linking to another Insteon device. As linking is directional, the first device placed into linking mode will become the controller in the controller/responder relationship. The second device will become the responder. The device automatically exits linking mode after a link has been made with another Insteon device or four minutes have elapsed without linking.

Multi-Linking

Mode

Readies the module for linking to multiple Insteon devices. The module will remain in linking mode for four minutes or until the module’s set button is tapped. After each successful link, the four minute counter is reset. Use this mode to manually create a scene.

Unlinking

Mode

Allows the removal of links from the Insteon device. The device will automatically exit unlinking mode after a link has been removed from another Insteon device or four minutes have elapsed without linking.

Multi-

Unlinking

Mode

Allows the removal of multiple links from the Insteon device. The device will stay in unlinking mode for four minutes or until the device’s set button is tapped. After each successful unlink, the four minute counter is reset.

19

Local Programming Flow Chart

Chime

Press

Siren

Press

Linking Mode

Press

Unlinking

Mode Press

Exit

Multi-Linking

Mode Press

Exit

Multi-

Unlinking

Mode

Press

Exit

Arm & Disarm

Press

20

Basic Linking

Configure Insteon Siren without Insteon Hub; do not use these instructions if you intend to use Siren with Insteon Hub or other Insteon management software.

21

Triggering Siren from an Insteon Device

1

On the Insteon device that you would like to trigger Siren, press and hold the set button until its

LED begins blinking.

2

On Siren, tap the set button until you hear the desired alert tone.

3

Press and hold the set button until you hear a double-beep.

X

Test Siren by triggering your sensor or turning on your Insteon device.

Caution: Siren is loud.

22

Arming and Disarming Siren from an Insteon Device

You can use an Insteon device like a Wall Keypad or Mini Remote to arm and disarm Siren. When using a Wall Keypad, you can also see if Siren is armed or disarmed by looking at the arm and disarm button.

1

On the Insteon device that you would like to use to arm and disarm Siren, tap the desired button.

2

Press and hold the set button until the device’s LED begins blinking.

3

On Siren, tap the set button until the status LED glows red.

4

Press and hold the set button until you hear a double-beep.

23

Arming and Disarming Siren from an Insteon Device

5

Test Siren by arming from your

Insteon device. While arming,

Siren will beep for 45 seconds and any linked devices will not trigger the siren or chime.

To cancel arming, tap the button again (or turn controller off).

X

Your Insteon device will now arm and disarm Siren

24

Factory Reset

A factory reset will erase all links stored in the device’s database as well as any customized properties.

25

1

Unplug Siren from its power outlet

Factory Reset

2

Simultaneously press and hold the set button while reconnecting

Siren to power

3

Continue holding the set button until Siren stops beeping

4

When the reset is complete, Siren will double-beep

X

Your Siren has been restored to factory settings.

26

Appendix

Everything else you might need to know about your Insteon product.

27

Specifications

General

Operation

Available Colors White

Brand: Insteon

FCC ID SBP2457D2A

Industry Canada 5202A-2457D2A

Manufacturer Product No.: 2868-222

Patent No.: Protected under US and Foreign Patents (see www.insteon.com/ patents)

UPC: 813922015713

Warranty: 2 years, limited

Audio Alert Beeper, Chime, Siren

Chime Volume 100 dB at 1 meter

Siren Volume 115 dB at 1 meter

Setup Memory Non-volatile EEPROM

Status LED Red/Green LED

Insteon Features

Insteon Device Category 0x07

Insteon Device Subcategory 0x1E

Insteon Links 24

Insteon Messages Repeated Yes

Insteon Minimum Receive Level 10 mV

Insteon Minimum Transmit Level 3.2 Vpp into 5 Ohms

Insteon Powerline Device Yes

Insteon Powerline Frequency 131.65 KHz

Insteon RF Device Yes

Multi-Link Support Yes

Multi-Unlink Support Yes

RF Beacon Yes

28

Radio Frequency 915.0 MHz

Radio Frequency Range 150 feet

Scene Commands Supported as

Controller

Fast-On

Scene Commands Supported as

Responder

On, Fast-On

Software Configurable Yes

Fast-Off

Off

Mechanical

Dimensions 3.2” H x 2.05” W x 1.05” D

81.2mm H x 53mm W x 26.6mm D

Enclosure Material UV stabilized plastic

Mounting Ungrounded, polarized electrical outlet, NEMA 1-15

Operating Environment Indoors

Operating Humidity Range 0-85% relative humidity, non-condensing

Operating Temperature Range 32º to 104º F

0º to 40º C

Set Button Yes

Storage Temperature Range -4º to 158º F

-20º to 70º C

Weight 3.3 oz

Electrical

Power Consumption <0.75 Watts

Supply Voltage 120 Volts AC ± 10%, 60 Hertz, single phase

Surge Resistance Surges over 1,000 volts

29

Troubleshooting

For detailed troubleshooting information, visit

insteon.com/get-started-2868-222

30

Certifications and Warnings

Read and understand these instructions before installing and retain them for future reference.

This product is not designed or approved for use on powerlines other than 120VAC, 60Hz, single phase.

Attempting to use this product on unapproved powerlines may have hazardous consequences.

• Use only indoors or in outdoor rated box

• This product may feel warm during operation. The amount of heat generated is within approved limits and poses no hazards. To minimize heat buildup, ensure the area surrounding this product is as clear of clutter as possible.

• Each Insteon product is assigned a unique Insteon ID, which is printed on the product’s label.

This device complies with FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorise aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radiolectrique subi, mme si le brouillage est susceptible d’en compromettre le fonctionnement.

31

Product Warranty

Limited Warranty

Seller warrants to the original consumer purchaser of this product that, for a period of two years from the date of purchase, this product will be free from defects in material and workmanship and will perform in substantial conformity to the description of the product in this Owner’s Manual. This warranty shall not apply to defects or errors caused by misuse or neglect. If the product is found to be defective in material or workmanship, or if the product does not perform as warranted above during the warranty period, Seller will either repair it, replace it, or refund the purchase price, at its option, upon receipt of the product at the address below, postage prepaid, with proof of the date of purchase and an explanation of the defect or error. The repair, replacement, or refund that is provided for above shall be the full extent of Seller’s liability with respect to this product. For repair or replacement during the warranty period, call 866-243-8022 with the Model # and Revision # of the device to receive an RMA# and send the product, along with all other required materials to:

Insteon

ATTN: Receiving

16542 Millikan Ave.

Irvine, CA 92606-5027

Limitations

The above warranty is in lieu of and Seller disclaims all other warranties, whether oral or written, express or implied, including any warranty or merchantability or fitness for a particular purpose. Any implied warranty, including any warranty of merchantability or fitness for a particular purpose, which may not be disclaimed or supplanted as provided above shall be limited to the two-year of the express warranty above. No other representation or claim of any nature by any person shall be binding upon Seller or modify the terms of the above warranty and disclaimer.

Home automation devices have the risk of failure to operate, incorrect operation, or electrical or mechanical tampering. For optimal use, manually verify the device state. Any home automation device should be viewed as a convenience, but not as a sole method for controlling your home.

In no event shall Seller be liable for special, incidental, consequential, or other damages resulting from possession or use of this device, including without limitation damage to property and, to the extent permitted by law, personal injury, even if Seller knew or should have known of the possibility of such damages. Some states do not allow limitations on how long an implied warranty lasts and/or the exclusion or limitation of damages, in which case the above limitations and/or exclusions may not apply to you. You may also have other legal rights that may vary from state to state.

Protected under U.S. and foreign patents (see www.insteon.com/patents)

Copyright © 2016 Insteon

Rev 11.16.16
