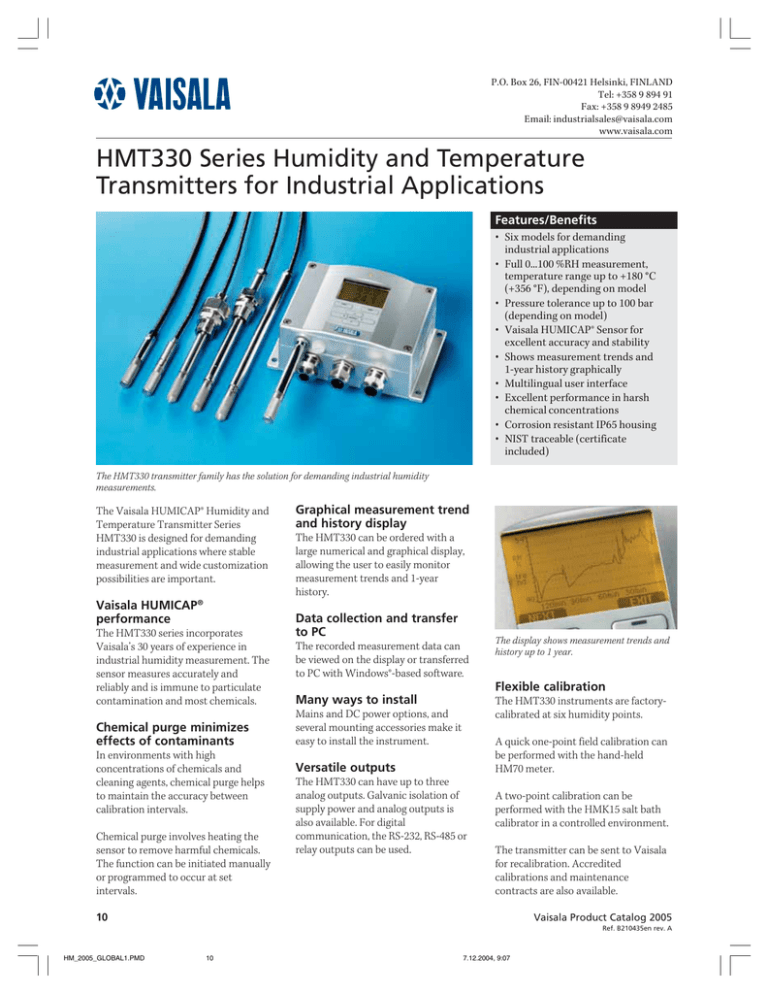

HMT330 Series Humidity and Temperature Transmitters for

HMT330 Series Humidity and Temperature Transmitters for
P.O. Box 26, FIN-00421 Helsinki, FINLAND
Tel: +358 9 894 91
Fax: +358 9 8949 2485
Email: [email protected]
www.vaisala.com
HMT330 Series Humidity and Temperature
Transmitters for Industrial Applications
Features/Benefits
•
•
•
•
•
•
•
•
•
Six models for demanding
industrial applications
Full 0...100 %RH measurement,
temperature range up to +180 °C
(+356 °F), depending on model
Pressure tolerance up to 100 bar
(depending on model)
Vaisala HUMICAP® Sensor for
excellent accuracy and stability
Shows measurement trends and
1-year history graphically
Multilingual user interface
Excellent performance in harsh
chemical concentrations
Corrosion resistant IP65 housing
NIST traceable (certificate
included)
The HMT330 transmitter family has the solution for demanding industrial humidity
measurements.
The Vaisala HUMICAP® Humidity and
Temperature Transmitter Series
HMT330 is designed for demanding
industrial applications where stable
measurement and wide customization
possibilities are important.
Vaisala HUMICAP®
performance
The HMT330 series incorporates
Vaisala’s 30 years of experience in
industrial humidity measurement. The
sensor measures accurately and
reliably and is immune to particulate
contamination and most chemicals.
Chemical purge minimizes
effects of contaminants
In environments with high
concentrations of chemicals and
cleaning agents, chemical purge helps
to maintain the accuracy between
calibration intervals.
Chemical purge involves heating the
sensor to remove harmful chemicals.
The function can be initiated manually
or programmed to occur at set
intervals.
Graphical measurement trend
and history display
The HMT330 can be ordered with a
large numerical and graphical display,
allowing the user to easily monitor
measurement trends and 1-year
history.
Data collection and transfer
to PC
The recorded measurement data can
be viewed on the display or transferred
to PC with Windows®-based software.
The display shows measurement trends and
history up to 1 year.
Flexible calibration
Many ways to install
The HMT330 instruments are factorycalibrated at six humidity points.
Mains and DC power options, and
several mounting accessories make it
easy to install the instrument.
A quick one-point field calibration can
be performed with the hand-held
HM70 meter.
Versatile outputs
The HMT330 can have up to three
analog outputs. Galvanic isolation of
supply power and analog outputs is
also available. For digital
communication, the RS-232, RS-485 or
relay outputs can be used.
A two-point calibration can be
performed with the HMK15 salt bath
calibrator in a controlled environment.
The transmitter can be sent to Vaisala
for recalibration. Accredited
calibrations and maintenance
contracts are also available.
10
Vaisala Product Catalog 2005
Ref. B210435en rev. A
HM_2005_GLOBAL1.PMD
10
7.12.2004, 9:07
HMT330 SERIES
HUMIDITY
DEWPOINT
Performance
Inputs and outputs
Relative humidity
Measurement range
0...100 %RH
Accuracy against factory standards including non-linearity,
hysteresis and repeatability
at +20 °C (+68 °F)
± 1 %RH (0...90 %RH)
± 1.7 %RH (90...100 %RH)
at -20...+40 °C (-4...+104 °F)
± (1.0 + 0.008 x reading) %RH*
at -40...-20 °C, +40...+180 °C (-40...-4 °F, +104...+356 °F)
± (1.5 + 0.015 x reading) %RH*
Factory calibration uncertainty** (+20 °C / +68 °F)
0...40 %RH
± 0.6 %RH
40...97 %RH
± 1.0 %RH
Humidity sensors
for typical applications
Vaisala HUMICAP® 180
chemical purge/warmed probe
Vaisala HUMICAP® 180C
high chemical concentrations*
Vaisala HUMICAP® 180L2*
* For Vaisala HUMICAP® 180L2 sensor
at -10...+40°C (+14...+104 °F)
± (1.0 + 0.01 x reading) %RH
at -40...-10 °C,+40...+180 °C (-40...+14 °F, +104...+356 °F)
± (1.5 + 0.02 x reading) %RH
** Defined as ±2 standard deviation limits.
Response time (90 %) at 20 °C (+68 °F) in still air
with grid filter
8s
with grid + steel netting filter
20 s
with sintered filter
40 s
Temperature
Measurement range
HMT331
-40...+60 °C
HMT333
-40...+80 °C
HMT334, HMT335, HMT337, HMT338
-70...+180 °C
Accuracy at +20 °C (+68 °F)
± 0.2 °C
Accuracy over temperature range
Operating voltage
10...35 VDC, 24 VAC
with optional power supply module
100...240 VAC 50/60 Hz
Power consumption @ 20 °C (Uin 24VDC)
RS-232
max 25 mA
max 25 mA
Uout 2 x 0...1V / 0...5V / 0...10V
max 60 mA
Iout 2 x 0...20 mA
display and backlight
+ 20 mA
during chemical purge
+ 110 mA max
during probe heating (HMT337)
+ 120 mA
Analog outputs (2 standard, 3rd optional)
current output
0...20 mA, 4...20 mA
voltage output
0...1 V, 0...5 V, 0...10 V
Accuracy of analog outputs at 20 °C
± 0.05 % full scale
Temperature dependence of analog outputs ± 0.005 %/°C of full scale
External loads
current ouputs
RL < 500 ohm
0... 1 V output
RL > 2 kohm
0... 5 V and 0... 10 V outputs
RL > 10 kohm
Max wire size
0.5 mm2 (AWG 20),
stranded wires recommended
Digital outputs
RS-232, RS-485 (optional)
Relay outputs (optional)
0.5 A, 250 VAC
Display
LCD with backlight, graphic
trend display of any parameter
Menu languages
English, French, Spanish,
German, Japanese, Swedish, Finnish
, ° C
0 .7
0 .6
0 .5
0 .4
0 .3
0 .2
0 .1
°C
0
Mechanics
Cable bushing
M20x1.5 (cable diameter 8...11mm)
Conduit fitting
M20x1.5 / 1/2"NPT
8-pole connector (male)
RKC8/9.M12
8-pole connector with 5 m cable (female)
RKT8-282/5M
Probe cable diameter
HMT333
6.0 mm
other probes
5.5 mm
Housing material
G-AlSi 10 Mg (DIN 1725)
Housing classification
IP 65 (NEMA 4)
Dimensions
dimensions in mm (inches)
-0 .1
-0 .2
-0 .3
-0 .4
-0 .5
-0 .6
-0 .7
-8 0
-6 0
-4 0
-2 0
0
2 0
4 0
6 0
8 0
1 0 0
1 2 0
1 4 0
1 6 0
1 8 0
Temperature sensor
Pt 100 RTD 1/3 Class B IEC 751
Other variables available (depends on model)
dewpoint temperature, mixing ratio, absolute humidity, wet bulb
temperature, enthalpy, water vapor pressure
Operating environment
Operating temperature
for probe
for transmitter body
with display
Operating pressure
HMT334
HMT338
HMT333, HMT335, HMT337
same as measurement ranges
-40...+60 °C (-40...+140 °F)
0...+60 °C (+32...+140 °F)
0...10 MPa (0...100 bar)
0...4 MPa (0...40 bar)
vapor tight
Complies with EMC standard EN61326-1:1997 + Am1:1998 +
Am2:2001; Industrial Environment.
HUMICAP® is a registered trademark of Vaisala.
Specifications subject to change without prior notice.
©Vaisala Oyj
11
Vaisala Product Catalog 2005
Ref. B210435en rev. A
HM_2005_GLOBAL1.PMD
11
7.12.2004, 9:07
P.O. Box 26, FIN-00421 Helsinki, FINLAND
Tel: +358 9 894 91
Fax: +358 9 8949 2485
Email: [email protected]
www.vaisala.com
HMT331 Humidity and Temperature Transmitter
for Demanding Wall-Mount Applications
Features/Benefits
•
•
•
•
•
•
•
For temperatures -40...+60 °C
(-40...+140 °F)
Vaisala HUMICAP® Sensor for
excellent accuracy and stability
High tolerance for chemicals
Shows measurement trends and
1-year history graphically
Corrosion resistant metal IP65
housing
NIST traceable (certificate
included)
Application examples: cleanrooms,
pharmaceutical processes,
greenhouses, swimming pools,
museums and archive spaces
The HMT331 is the state-of-the-art wall-mount humidity instrument.
Technical Data
The Vaisala HUMICAP® Humidity and
Temperature Transmitter HMT331 is
the top-of-the-line wall-mount
transmitter for demanding HVAC and
condition monitoring applications.
Compared to regular wall-mount
transmitters, the HMT331 offers:
- Higher measurement performance
- Better chemical tolerance
- Advanced graphical display features
- More powering options
- More output options
- A wider variety of output humidity
parameters.
Temperature measurement range
-40...+60 °C (-40...+140 °F)
Accessories
PC software + cable
Connection cable for HM70
Wall mounting plate (plastic)
Pole installation kit
Rain shield
DIN rail installation set
The display shows measurement trends and
1-year history.
215005
211339
214829
215108
215109
211477
Dimensions
Dimensions in mm (inches)
Outputs and power supply
options for every need
Graphical measurement trend
and history display
The output options include three
analog outputs, RS-232, RS-485, and
alarm relays.
The HMT330 series features a large
numerical and graphical display,
allowing the user to easily monitor
measurement trends and 1-year
history.
The voltage supply range is from 10 to
35 VDC. With an additional module,
the transmitter can be connected to all
universal mains AC supplies.
The measurement history is especially
useful in stability rooms and archives.
The minimum and maximum values
for the previous year can be viewed.
The input/output cable can be fed
through the back of the transmitter,
which is a useful installation feature
especially in cleanrooms.
12
Vaisala Product Catalog 2005
Ref. B210435en rev. A
HM_2005_GLOBAL1.PMD
12
7.12.2004, 9:08
HMT330 SERIES
HUMIDITY
DEWPOINT
HMT333 Humidity and Temperature Transmitter
for Ducts and Tight Spaces
Features/Benefits
•
•
•
•
•
•
•
•
•
For remote probe installations in
demanding HVAC applications
Vaisala HUMICAP® Sensor for
excellent accuracy and stability
High tolerance for chemicals
For temperatures -40...+80 °C
(-40...+176 °F)
Small thermal mass - fast response
to temperature changes
Shows measurement trends and
1-year history graphically
Corrosion resistant IP65 housing
NIST traceable (certificate
included)
Application examples: cleanrooms,
pharmaceutical processes,
greenhouses, environmental
chambers
The HMT333 transmitter has a small probe for remote applications.
The Vaisala HUMICAP® Humidity and
Temperature Transmitter HMT333 is a
versatile instrument for applications
where a small remote probe is needed.
Flexible installation
possibilities
For installing the probe in ducts,
channels, and through walls, an
installation kit consisting of an
aluminum flange, lead-through piece
and steel support bar is available.
The probe cable is flexible and available
in 2, 5 and 10-meter lengths.
In outdoor environments, the
DTR502B solar radiation shield
provides protection for the probe. The
shield can be installed on a pole, beam
or flat surface.
For moderate humidities and
temperatures
The HMT333 is typically used in
demanding HVAC applications such as
cleanrooms, pharmaceutical processes
and greenhouses.
For environments with continous high
humidity, the HMT337 with a warmed,
vapor-tight, stainless steel probe is
recommended instead of the HMT333.
Technical Data
Temperature measurement range
-40...+80 °C (-40...+176 °F)
Accessories
Duct installation kit
210697
Cable gland
HMP247CG
PC software + cable
215005
Connection cable for HM70
211339
Wall mounting plate (plastic)
214829
Pole installation kit
215108
Rain shield
215109
Solar radiation shield
DTR502B
DIN rail installation set
211477
Dimensions
Dimensions in mm (inches)
Duct installation kit.
13
Vaisala Product Catalog 2005
Ref. B210435en rev. A
HM_2005_GLOBAL1.PMD
13
7.12.2004, 9:08
P.O. Box 26, FIN-00421 Helsinki, FINLAND
Tel: +358 9 894 91
Fax: +358 9 8949 2485
Email: [email protected]
www.vaisala.com
HMT334 Humidity and Temperature Transmitter
for High Pressure and Vacuum Applications
Features/Benefits
•
•
•
•
•
•
•
•
For pressures up to 100 bar and
vacuum applications
For temperatures -70...+180 °C
(-94...+356 °F)
ISO and NPT threads available
Vaisala HUMICAP® Sensor for
excellent accuracy and stability
Shows measurement trends and
1-year history graphically
Corrosion resistant IP65 housing
NIST traceable (certificate
included)
Application example: test chambers
The HMT334 is ideal for permanent installations into pressurized or vacuum processes.
Technical Data
The Vaisala HUMICAP® Humidity and
Temperature Transmitter HMT334 is
designed to measure humidity in
pressurized spaces or vacuum
chambers. Each probe is tested to
ensure a gas and vacuum tight
installation.
Temperature measurement range
-70...+180 °C (-94...+356 °F)
Operating pressure
0...10 MPa (0...100 bar)
Accessories
Vaisala HUMICAP®
performance
The HMT334 incorporates Vaisala’s 30
years of experience in industrial
humidity measurement. The sensor
provides accurate and reliable
measurement and is immune to
particulate contamination and most
chemicals.
The display shows minimum and maximum
values for up to 1 year.
Using the serial line the measurement
data can be transferred to a PC, where
it can be further processed and copied
to other programs.
Fitting body ISO M22 x 1.5
Fitting body NPT 1/2”
PC software + cable
Connection cable for HM70
Wall mounting plate (plastic)
Pole installation kit
Rain shield
DIN rail installation set
17223
17225
215005
211339
214829
215108
215109
211477
Dimensions
Dimensions in mm (inches)
Graphical measurement trend
and history display
The HMT330 series features a
numerical and graphical display. The
user can easily monitor measurement
trends and history with minimum and
maximum values for up to 1 year.
14
Vaisala Product Catalog 2005
Ref. B210435en rev. A
HM_2005_GLOBAL1.PMD
14
7.12.2004, 9:08
HMT330 SERIES
HUMIDITY
DEWPOINT
HMT335 Humidity and Temperature Transmitter
for High Temperatures
Features/Benefits
•
•
•
•
•
•
•
•
•
For temperatures -70...+180 °C
(-94...+356 °F)
Long metal probe head
Stainless steel installation flange
available
Adjustable installation depth
Vaisala HUMICAP® Sensor for
excellent accuracy and stability
Shows measurement trends and
1-year history graphically
Corrosion resistant IP65 housing
NIST traceable (certificate
included)
Application example: hot drying
processes
The HMT335 has a robust stainless steel probe ideal for high flow rates in hot processes.
The Vaisala HUMICAP® Humidity and
Temperature Transmitter HMT335 has
a long stainless steel probe designed for
high temperatures.
Robust probe ideal for high
flow rates
The probe tolerates mechanical stress
and high flow rates. This makes the
HMT335 ideal for duct-type
measurements where smaller probes
are not sturdy enough. An example
application is a hot drying process.
Graphical measurement trend
and history display
The HMT335 features a numerical and
graphical display. The user can easily
monitor measurement trends and
history with minimum and maximum
values for up to 1 year.
Vaisala HUMICAP®
performance
The sensor provides accurate and
reliable measurement and is immune
to particulate contamination and most
chemicals.
Technical Data
Temperature measurement range
-70...+180 °C (-94...+356 °F)
Accessories
Mounting flange
PC software + cable
Connection cable for HM70
Wall mounting plate (plastic)
Pole installation kit
Rain shield
DIN rail installation set
210696
215005
211339
214829
215108
215109
211477
Dimensions
Dimensions in mm (inches)
The installation flange allows an adjustable
installation depth for the probe
15
Vaisala Product Catalog 2005
Ref. B210435en rev. A
HM_2005_GLOBAL1.PMD
15
7.12.2004, 9:09
P.O. Box 26, FIN-00421 Helsinki, FINLAND
Tel: +358 9 894 91
Fax: +358 9 8949 2485
Email: [email protected]
www.vaisala.com
HMT337 Humidity and Temperature Transmitter
for High Humidity Applications
Features/Benefits
•
•
•
•
•
•
•
•
•
For high-humidity applications in
industry and meteorology
Warmed probe head for superior
performance in condensing
environments
Small, stainless steel, vapor-tight
remote probe
For temperatures -70...+180 °C
(-94...+356 °F)
Vaisala HUMICAP® Sensor for
excellent accuracy and stability
High tolerance for chemicals
Shows measurement trends and
1-year history graphically
Corrosion resistant IP65 housing
NIST traceable (certificate
included)
The HMT337 is the transmitter for the most demanding process and meteorological
measurements.
The Vaisala HUMICAP® Humidity and
Temperature Transmitter HMT337 is
delivered in three configurations:
• Basic: non-warmed probe for
moderate humidities
• With warmed probe: for nearcondensing conditions, dewpoint
measurement
• With warmed probe and additional
temperature sensor: for nearcondensing conditions, relative
humidity measurement
True humidity readings in
condensing conditions
Vaisala’s unique warmed probe head
provides fast and reliable measurement
in environments where humidity is
near saturation. The heating helps the
sensor to recover very fast from
condensation.
As the probe head is warmed, the
humidity level inside the head stays
below the ambient level. With accurate
temperature measurement, the
ambient dewpoint can be calculated
precisely.
Technical Data
Temperature measurement range
-70...+180 °C (-94...+356 °F)
Accessories
Duct installation kit.
If the relative humidity value is needed,
an additional temperature sensor head
is used. The measured ambient
temperature provides the
compensation for calculating the
relative humidity and other humidity
parameters.
Cable gland AGRO
HMP247CG
Duct installation kit (RH-probe) 210710
Duct installation kit (T-probe)
215003
Swagelok fittings (NPT and ISO) for both
RH and T probes
Solar radiation shield
DTR502B
Meteorological inst. kit
HMT330MIK
PC software + cable
215005
Connection cable for HM70
211339
Wall mounting plate (plastic)
214829
Pole installation kit
215108
Rain shield
215109
DIN rail installation set
211477
Dimensions
Many ways to install
A tight installation through a process
wall can be achieved with Swagelok
fittings. A duct installation kit, and
meteorological installation kit for
outdoor installations are available.
Dimensions in
mm (inches)
16
Vaisala Product Catalog 2005
Ref. B210435en rev. A
HM_2005_GLOBAL1.PMD
16
7.12.2004, 9:09
HMT330 SERIES
HUMIDITY
DEWPOINT
HMT338 Humidity and Temperature Transmitter
for Pressurized Pipelines
Features/Benefits
•
•
•
•
•
•
•
•
•
Installed through ball valve: can be
inserted and removed while
the process is running
Adjustable sensor head depth
Pressure tolerance 40 bar
For temperatures -70...+180 °C
(-94...+356 °F)
Vaisala HUMICAP® Sensor for
excellent accuracy and stability
Shows measurement trends and
1-year history graphically
Corrosion resistant IP65 housing
Two probe lengths available
NIST traceable (certificate
included)
The HMT338 is ideal for installations in pressurized processes where the probe needs to be
removed while the process is running.
The Vaisala HUMICAP® Humidity and
Temperature Transmitter HMT338 is
designed for pressurized processes.
Insert or remove probe while
the process is running
With “hot tapping”, the probe is
inserted directly into the process while
it is running, without exposing the
need for venting or lowering the
process pressure.
The probe head is screwed into a ball
valve assembly that has been fixed to
the process pipe or wall. The adjustable
hex nut is hand-tightened to
temporarily hold the probe in the ‘up’
position. Then the ball valve is opened,
exposing the probe to the process, and
the probe is pushed to the proper
depth in the ‘down’ position. The hex
nut is tightened with a wrench to lock
the probe in place. Hot tapping is
possible in pressures up to 10 bar.
Graphical measurement trend
and history display
From the display, the user can easily
monitor measurement stabilization
and process trends. Measurement
history with minimum and maximum
values is available for up to 1 year.
Vaisala HUMICAP®
The HMT338 incorporates Vaisala’s 30
years of experience in industrial
humidity measurement. The sensor
provides accurate and reliable
measurement and is immune to
particulate contamination and most
chemicals.
Technical Data
Temperature measurement range
-70...+180 °C (-94...+356 °F)
Operating pressure 0...4 MPa (0...40 bar)
Accessories
Ball valve set
DMP248BVS
PC software + cable
215005
Connection cable for HM70
211339
Wall mounting plate (plastic)
214829
Pole installation kit
215108
Rain shield
215109
DIN rail installation set
211477
Dimensions
Dimensions in mm (inches)
17
Vaisala Product Catalog 2005
Ref. B210435en rev. A
HM_2005_GLOBAL1.PMD
17
7.12.2004, 9:09
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
