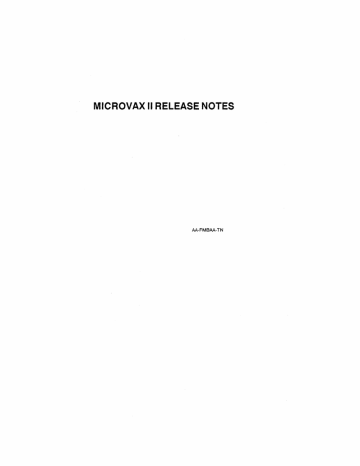

MICROVAX II RELEASE NOTES

MICROVAX II RELEASE NOTES

MICROVAX II RELEASE NOTES

AA-FMBAA-TN

MS630-CA Technical Information for MicroVAX 11-

based systems

1 DESCRIPTION OF MS630-CA MEMORY MODULE

The MS630-CA memory module, shown in Figure 1, is a standard, quad-height memory module that contains 8 megabytes of MOS memory storage. It employs 256K x 1-Bit Dynamic RAMs (DRAMS) in a ZIP (Zig Zag In-line Package) configuration. This packaging allows a two-fold increase (over conventional DRAM DIP packaging) in the number of DRAMs that can be mounted on the circuit board. The 8 megabyte array consists of eight blanks, with thirty-six 256K x 1 DRAMs in each bank.

The MS630-CA is a parity memory, and does not perform any error correction. Since parity is generated. on-board, via parity control logic in the board's data transceivers, errors are detected onboard and reported to the K:A630CPU module ..

The MS630-CA provides the same features and performance (except for capacity) as the MS630-BA and -AA modules. The MS630 can be used in any combination with other MS630 memory modules, which provides flexibility in terms of memory configuration for the MicroVAX II. The maximum physical address space of the MicroVAX II is 16 megabytes. There is one configuration where 17

Mbytes (two MS630-CA modules and the megabyte from the CPU module). Under this configuration, the megabyte of memory on the KA630-A CPU module is not used.

2 ORDERING INFORMATION

MS630-CA 8 Mbyte module

50-pin CPU memory interconnect cable (included)

M7609-AA

17-00716-00

3 OPERATING SYSTEM SUPPORT

MicroVMS

ULTRIX-32m

VAXELN

Version 4.1 m and later

Version 1.1 and later

Version 2.0 and later

NOTE:

The PQL_DWSDEFAULT SYSGEN parameter is set incorrectly for most 16 MB MicroVAX II systems, and will cause the following error message to be displayed every time these systems are booted: %SYSBOOT _ W _ WS, default and quota raised to PHD + MINWSCNT. There is no harm caused due to the low SYSGEN parameter value, and the customer can work around the error message by raising the value of the PQL DWSDEFAULT SYSGEN parameter. This parameter will be modified in a futUre release of MicroVMS.

NOTE:

When using the "SHOW MEMORY" utility under MicroVMS, a "BAD PAGE" is indicated whenever one or two 8 Mbyte memory modules are used in the system. A "PAGE" in this instance refers to a 512 byte block. When the total system memory equals 13 Mbytes

(one MS630-CA memory module installed), one "BAD PAGE" will appear in response to the "SHOW MEMORY" command. When the total system memory equals 16 Mbytes (two

MS630-CA memory modules installed), two "Bad Pages (1024 bytes) will be indicated. The

MOM diagnostic used to test the MS630-CA will not indicate these pages as "BAD", but rather indicates that these pages are "IN-USE" for supporting the console program (thus, they are not tested by MOM).

4 DIAGNOSTIC SUPPORT

MicroVAX Maintenance System

Power-up self-test version 113 and later

No LEOs

Figure 1 The MS630-CA memory module

5 INTERCONNECT INFORMATION

The MS630-CA modules interface with the KA630-A CPU through the Micro V AX local memory interconnect in the CD rows of slots 1 through 3 of the backplane, and through a 50-pin cable. This cable is installed between Jl of the KA630-A CPU and the corresponding connector on one or both

MS630 modules.

2

6 ADDRESS, VECTOR, AND SWITCH SETTINGS

No hardware

~ettings are necessary on MS630 memory modules. Memory module addresses are automatically determined by their position in the backplane.

CAUTION:

MS630-BA and ~BB modules can only be installed in slots 2 or 3. They must NOT be installed in Q22-Bus slots. MS630-AA modules can only be installed in the CD rows of slots 2 or 3.

7 CURRENT AND POWER VALUES FOR THE MS630-CA

NOTE:

This section provides the current and power values to be used when configuring a system which includes the MS630-CA. For information on the values for other components in a

Micro VAX II system, refer to Table 5-4 of the Micro VAX System Maintenance Guide (AZ-

GM3AB-MN). .

The MS630-CA module draws 2.11 amps of current at + 5V, for a total power consumption of 10.55 watts. The module draws no current at

+

12V, nor does it present any AC or DC bus loads.

8 MOM Tests, Utilities, and Error Messages

8.1 Customer Tests

1. FUNCTIONAL VERIFY-checks bitmap created during power-up diagnostics, fails if bitmap shows any missing pages.

2. EXERCISER-Copies bitmap generated during power-up, turns off the interrupt, and turns the bit for a particular page of memory off, turns interrupt back on, and then exercises the corresponding memory page. Performs pattern check and check for soft parity error. All accesses to memory are done through the Q22-bus mapping regIster. When testing for a particular page is completed, the bit in the bitmap corresponding· to that page is returned to the on position. This procedure is repeated for each bit in the map.

NOTE:

The exerciser should take no more than 1 minute per megabyte of memory.

8.2

Service Tests

NOTE:

All the tests listed in the Customer Tests section above are also available in Service Tests.

8.3 Utilities

NOTE:

1.

Utilities are available only with the Service Version of MOM.

UTILITY #l-performs the same check as the functional verify test, but prints out memory map, including bad areas, instead of passing or failing.

3

2. UTILITY H2-Destroys contents of memory, and performs endless stand-alone memory test (the same tests as in the power-up diagnostics). Prints summary of test results on 1st, 10th, 20th, passes, etc.

NOTE:

Once this test is performed, anything needed in system memory (MOM, the operating system, etc.) will have to be rebooted.

8.4 Error Messages

ERR_MEM_10-Illegal FRU indication in MSER

ERR_MEM_11-Master bit map shows memory error on KA630 board

ERR_MEM_12-Master bit map shows memory error in expansion module

HI

ERR_MEM_13-Master bit map shows memory error in expansion module

H2

ERR_MEM_14-Parity error during exerciser test

ERR_MEM_15-Bad data found during exerciser test

ERR_MEM_ 992-Could not extend PO space to switch to physical addressing

ERR_MEM_993-Could not allocate page table entry

ERR_MEM_994-Could not allocate contiguous space in 110 region

ERR_MEM_ 995-Could not transfer control to MEMTEST procedure

ERR_MEM_996-Could not force bad parity

ERR_MEM_ 997-Master bit map found in corrupted state

ERR_MEM_998-Could not locate master bit map

ERR_MEM_ 999-Full complement of memory not found

4

RD54 Technical Information for MicroVAX II-based systems

1 DESCRIPTION OF RD54 DISK DRIVE

The RD54 is a 150 Mbyte 133.4 cm (5.25 in) fixed disk drive. The RD54 can be controlled by the

RQDX3 MSCP controller. The RD54 drive is shown in Figure 1.

2 RD54 DISK DRIVE ORDERING INFORMATION:

RD54 disk kit (BA23-A or H9642)

RD54 disk drive

20-pin cable to signal distribution

34-pin cable to signal distribution

RD54 disk kit (BA 123)

RD54 disk drive

20-pin cable to signal distribution

34-pin cable to signal distribution

Control panel assembly

RD54-AA

R054-A

17-00282-00

17-00286-00

R054-BA

RD54-A

17-00282-01

17-00286-01

70-22393-01

3 OPERATING SYSTEM SUPPORT:

MicroVMS

ULTRIX-32m

VAXELN

Version 4.1 m and later

Version 1.2-a and later

Version 2.0 and later

4 DIAGNOSTIC SUPPORT:

MicroVAX Maintenance System Revision 1 .13 and later

Figure 1 The RD54 disk drive

5 INTERCONNECTION INFORMATION

The RD54 disk drive is connected to a Micro V AX II system via by means of one 20-pin cable, and one

34-pin cable. The length of the cable depends on the enclosure in which the drive is to be installed.

The correct part numbers for the cable are given under Ordering Information above.

6 DRIVE SELECTION

The RD54 drive has jumpers that determine the drive select lines to which the drive responds. The jumpers are located on the printed circuit board assembly, shown in Figure 2. The drive select number, and the corresponding pins to be jumpered, are as follows:

JUMPER BLOCK FUNCPIN NUMBERS

TION

ALTERNATE PIN NUMBERS

Drive Select 0

Drive Select 1

Drive Select 2

Drive Select 3

1,C

2,C

3,C

4,C

5,6

4,5

2,3

1,2

2

Figure 2 Drive select jumpers on the printed circuit board

Jl J3

NOTE:

4 C 3 2 C l

/1

SOME BOARDS HAVE

PINS MARKED: 1 23456

1 2 3 4 56

THE BOARDS ARE

ELLECTRICALLY

I

n

TERMINATOR

L.,.J -------

RES I ST 0 R

PACK

EOUIVALENT: ONLY

THESE LABELS ARE

DIFFERENT. REFER

TO TABLE 2-1

When an R054 drive is used as a single fixed-disk drive in a BA23 enclosure, it should be configured to respond to drive select line 3 (053). This will make the drive ROO.

When R054 drive is used in a BA123 enclosure, drive numbering is determined by the choice of connectors used on the M9058 distribution board. Provided the M9058 board is set to factory configuraton, jumpers on the R054 drive has no effect.

7 Current and Power Values for the RD54

NOTE:

This section provides the current and power values to be used when configuring a system which includes the R054. For information on the values for other components in a Micro VAX

II system, refer to Table 5-4 of the MicroVAX System Maintenance Guide (AZ-GM3AB-MN).

The R054 disk drive draws 1.7 amps at

+

5V and 1.57 amps at

+

12V, for a total power consumption of 27.34 watts.

8 PRINTED CIRCUIT BOARD ASSEMBLY REMOVAL AND REPLACEMENT

The printed circuit board assembly (PCB A) is the only Field Replaceable Unit (FRU) within the drive itself. In the case of drive failure, always try replacing the printed circuit board before replacing the entire drive.

3

S.1 PCBA REMOVAL

1. Locate the four screws holdinbg the skid plate to the casting (Figure 3).

2. Using a phillips screwdriver, remove these four screws.

3. Remove the skid plate

4. Disconnect the green ground wire from J4 (Figure 4)

5. Locate the four screws holding the small bracket (Figure 4).

6. Using a phillips screwdriver, remove these four screws. There are two on each side of the bracket.

7. Remove the small bracket.

S. Using a 3/8 inch open-end wrench, rotate the nut on the threaded stud (Figure 4) until the stud is free of the casting.

9. Remove the four screws holding the peBA to the casting. Only two of these screws will have captive lock washers. Note their location.

10. Using a thin screwdriver as an aid, carefully remove the three connectors at the front of the drive.

11.

Gently slide the peBA as far as it will go in the direction shown in Figure

5.

12. Swing the board up as shown in Figure 6. It may be necessary to pull the bracket back slightly.

Do not pull the bracket back more than is necessary to remove the board. do not flex the peBA when removing it.

13. Remove the remaining connect on the side of the peBA. Place the peBA aside.

14. Do not remove the paper insulator.

Figure 3 Skid plate removal fRONT

PANEL

4 SCREWS

4

Figure 4 Drive disassembly

GROUND

WIRE

Figure 5 Sliding the PCBA as far as it will

go.

/ rH~EE

CONN"ECTORS

5

Figure 6 Swing the PCBA up

8.2

REPLACING THE PCBA

1. Make sure the paper insulator is in place.

2. Replace the connector on the side of the peBA that was removed last during the removal procedure.

3. Place the edge of the peBA against the bracket as shown in Figure 6, then lay the peBA flat against the paper insulator.

4. Reconnect the other three connectors to the reBA.

5. Replace the four screws holding the peBA to the casting. Make sure that the two screws with captive washers are in the proper locations.

NOTE:

To avoid stripping the threaded stud, Replace the large bracket exactly as described here.

6. Place the threaded stud over the hole in the casting.

7. Using a 3/8 inch open-end wrench, turn the nut on the threaded stud counterclockwise at least one half turn. This will align the threads and prevent them from being stripped.

8. Tighten the threaded stud by turning the nut clockwise.

9. Replace the small bracket.

10. Reconnect the green ground wire.

11. Replace the skid plate.

6

9 USING MOM TO FORMAT THE R054

NOTE:

If an RD54 drive is added to the system, it must be formatted. The formatting utility is available in the service version of the Micro VAX Maintenance System. Consult Chapter 6 of the Micro VAX Maintenance Guide (AZ-GM3AB-MN) for further information.

7
