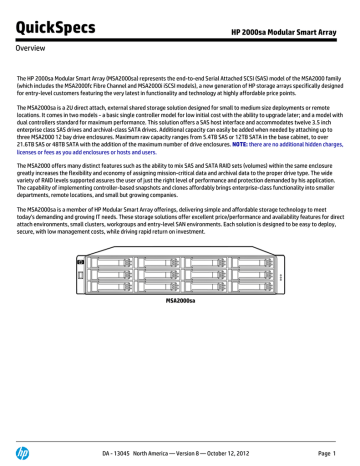

HP 2000sa Modular Smart Array

QuickSpecs

Overview

HP 2000sa Modular Smart Array

The HP 2000sa Modular Smart Array (MSA2000sa) represents the end-to-end Serial Attached SCSI (SAS) model of the MSA2000 family

(which includes the MSA2000fc Fibre Channel and MSA2000i iSCSI models), a new generation of HP storage arrays specifically designed for entry-level customers featuring the very latest in functionality and technology at highly affordable price points.

The MSA2000sa is a 2U direct attach, external shared storage solution designed for small to medium size deployments or remote locations. It comes in two models - a basic single controller model for low initial cost with the ability to upgrade later; and a model with dual controllers standard for maximum performance. This solution offers a SAS host interface and accommodates twelve 3.5 inch enterprise class SAS drives and archival-class SATA drives. Additional capacity can easily be added when needed by attaching up to three MSA2000 12 bay drive enclosures. Maximum raw capacity ranges from 5.4TB SAS or 12TB SATA in the base cabinet, to over

21.6TB SAS or 48TB SATA with the addition of the maximum number of drive enclosures. NOTE: there are no additional hidden charges, licenses or fees as you add enclosures or hosts and users.

The MSA2000 offers many distinct features such as the ability to mix SAS and SATA RAID sets (volumes) within the same enclosure greatly increases the flexibility and economy of assigning mission-critical data and archival data to the proper drive type. The wide variety of RAID levels supported assures the user of just the right level of performance and protection demanded by his application.

The capability of implementing controller-based snapshots and clones affordably brings enterprise-class functionality into smaller departments, remote locations, and small but growing companies.

The MSA2000sa is a member of HP Modular Smart Array offerings, delivering simple and affordable storage technology to meet today's demanding and growing IT needs. These storage solutions offer excellent price/performance and availability features for direct attach environments, small clusters, workgroups and entry-level SAN environments. Each solution is designed to be easy to deploy, secure, with low management costs, while driving rapid return on investment.

MSA2000sa

DA - 13045 North America — Version 8 — October 12, 2012 Page 1

QuickSpecs

Models

HP 2000sa Modular Smart Array

Models

HP MSA2000sa Modular

Smart Array

HP 2012sa Single Controller Modular Smart Array

HP 2012sa Dual Controller Modular Smart Array

HP 2000sa Modular Smart Array Controller

HP MSA2000 Single I/O 3.5 in 12 Drive Enclosure (w/ two .6m SAS cables)

HP MSA2000 Dual I/O 3.5 inch 12 Drive Enclosure (w/ two .6m SAS cables)

HP MSA2000 Drive Enclosure I/O Module

Related Items

MSA2000sa Switch Bundle HP 2000sa Modular Smart Array 3Gb SAS BL Switch Bundle

3Gb SAS Switch

NOTE: The HP MSA2000sa 3Gb SAS BL Switch Bundle contains the following components:

* HP MSA2012sa DC Modular Smart Array (Qty 1)

* HP 3Gb SAS BL Switches (Qty 2)

* HP mini-SAS 2M Cable (Qty 4)

HP 3Gb SAS BL Switch (CTO Only)

HP 3Gb SAS BL Switch - Dual Pack

Configuration Rules:

1.

2.

3.

4.

5.

6.

the SAS Switch is supported only in the HP c-Class Enclosures (C7000 & C3000) switch is placed into an interconnect bay in the back of the c-Class Enclosure chassis. C7000 chassis has 6 interconnect bays for switches & C3000 chassis has

3 interconnect bays for switches, however for this solution we will only support the use of 4 interconnect bays in the C7000 and 2 interconnect bays in the C3000.

(2) SAS Switches are required in the same c-Class enclosure interconnect bay row.

for the C3000 enclosure, the SAS Switch can only be placed into interconnect bays (3 and 4) for the C7000 enclosure, the SAS Switch can only be placed into interconnect bays (3 and 4), or (5 and 6) or (7 and 8). The preferred interconnect bays are (5 and 6) then (7 and 8).

for the C3000 enclosure, using a server's mezzanine slot 1 along with enclosure interconnect bay 2 is not supported.

Blade Mezzanine Module HP Smart Array P700m Controller/256BBWC Controller

HP Smart Array P700m Controller/512 BBWC Controller

Battery Kit

Configuration Rules:

1.

2.

3.

A half height blade server must have a P700m(508226-B21 or 507925-B21) installed in server mezzanine slot 1 or mezzanine slot 2. The preferred mezzanine slot is slot 2.

A full height blade server must have a P700m(508226-B21 or 507925-B21) installed in server mezzanine slot 1, mezzanine slot 2 or mezzanine slot 3. The preferred mezzanine slot is slot 2.

A double density blade server must have a P700m(508226-B21 or 507925-B21) installed in server mezzanine slot 2 of each server. 4 SAS Switches, in

AJ752A

AJ753A

AJ754A

AJ749A

AJ750A

AJ751A

AP716A

AJ864A

AJ865A

507925-B21

508226-B21

452348-B21

DA - 13045 North America — Version 8 — October 12, 2012 Page 2

QuickSpecs

3.

Models

HP 2000sa Modular Smart Array

interconnect bays 5, 6, 7 and 8, must also be included in this configuration.

DA - 13045 North America — Version 8 — October 12, 2012 Page 3

QuickSpecs

Features and Benefits

Key Features

Highly efficient consolidation and sharing of storage

HP 2000sa Modular Smart Array

Geared to departmental and small to medium business requirements

Grows as the storage demands increase - up to 48 drives and 21.6TB SAS or 48TB SATA

Supports up to 4 hosts with SAS direct connect and 32 hosts (BladeSystem servers) using 3Gb SAS

BL switch along with support for 256 LUNs and LUN sizes up to 16TB

Optional controller-based snapshot and clone capability for increased data protection

Flexibility in drives

(MSA2000 familyspecific)

Cost efficient plus highavailability choices

Enterprise-class SAS or archival-class SATA drives as the need and budget dictate

Dual-ported SAS drives for enterprise needs

Large capacity SATA drives for inexpensive archival storage

Able to mix SAS and SATA drives within the same drive enclosure

Choose either single (future upgradeable) or dual controller array models

Choice of low cost single I/O or high-availability dual I/O drive enclosure models.

Customer Benefits

The HP 2000 Modular Smart Array family manages growing storage requirements across multiple HP ProLiant servers for customers who need a centralized dedicated storage solution for applications. Shared storage allows for controlled, costeffective growth and increased protection of data.

Its ease of management allows a department or small company to effectively handle growing storage requirements with a minimum of complexity.

The MSA2000sa extends the benefits of shared storage resources to first time implementers on a tight budget

The modular design allows the user to start relatively small but supports future growth to hundreds of users and up to 21.6TB

of SAS or 48TB of SAS storage

The optional controller-based snapshot and clone capability as part of the MSA2000 family allows the smaller departmental user or company to implement functionality once only available to much larger firms with expensive arrays.

DA - 13045 North America — Version 8 — October 12, 2012 Page 4

QuickSpecs

At a Glance

HP 2000sa Modular Smart Array

HP MSA2000sa Models At a Glance:

High performance Modular Smart Array controller with two 3Gb SAS ports

Single and dual controller models

MSA2012sa models utilize Celeron 566MHz processor(s)

1 GB transportable cache per controller - battery-free cache backup with super capacitors and compact flash

256 LUNs with 16TB LUNs supported

2U rack mount chassis combining both the controller and disk shelf

Twelve 3.5 inch dual-ported SAS or SATA MSA2000-specific drives (supports mixing of drive types in a single shelf)

Support expansion to 3 additional enclosures & total of 48 disk drives

Redundant power supplies and fans are standard

RAID levels 0, 1, 3, 5, 6, 10, 50

Non-disruptive on-line controller code upgrade

Heterogeneous support for 32- bit and 64-bit Windows, Red Hat and SuSE Linux

Qualified and certified for Windows and Linux clustering

Optional controller-based snapshot and clone functionality

DA - 13045 North America — Version 8 — October 12, 2012 Page 5

QuickSpecs

Family Information

HP 2000sa Modular Smart Array

Capacity (raw)

Minimum / with maximum additional drive enclosures

5.4TB SAS or 12TB SATA w/ 3 enclosures:

21.6TB SAS or 48TB SATA

Controller Cache

1GB per controller

5.4TB SAS or 12TB SATA w/ 3 enclosures:

21.6TB SAS or 48TB SATA

5.4TB SAS or 12TB SATA w/ 3 enclosures:

21.6TB SAS or 48TB SATA

1 GB per controller 1 GB per controller

Host connect

MSA2000 has 1 or 2 controllers, EVA has 2 controllers standard

Maximum Drives

Maximum host supported

MSA2000sa

Two 3Gb

SAS ports per controller

48

4

MSA2000fc

Two 4Gb

Fibre Channel ports per controller

48

64

MSA2000i

Two 1GbE iSCSI ports per controller

48

16

EVA4400

5.4TB FC or 12TB FATA w/ 8 enclosures

43TB FC or 96 TB FATA

2 GB per controller

Two 4Gb

Fibre Channel ports per controller

Snapshot, remote replication

Snapshot, clone Snapshot, clone Snapshot, clone

96

512

Snapshot, clone, remote data replication

Use for Storage

Primary Storage with SAS

Secondary with SATA

Primary Storage with SAS

Secondary with SATA

Primary Storage with SAS

Secondary with SATA

Primary Storage with

Fibre Channel Secondary with FATA

*maximum available storage capacity depends on the RAID level being implemented, and is based on maximum number of LUNs and

LUN size

Product Technology SAS

Two 3Gb host ports per controller

Modular Chassis

Drives available

Scalability

2U, 12 Large Form Factor drive bays, accommodating MSA2 SAS and SATA hard drives (MSA2000-specific). Comes standard with one or two controllers.

Serial Attached SCSI (SAS) enterprise-class drives designed for high volume,

24x7 usage. Serial-ATA (SATA) are usually reserved for archival of data as they are both relatively inexpensive and are available in very large capacities. The

MSA2000 family of arrays can accommodate both SAS and SATA drives within the same enclosure making it ideal to have both business-critical, high activity files on SAS drives while using snapshot or clone capability to keep back-up data on the less expensive drives. SAS drive performance can be approximately 30%greater than SATA performance on sequential host IO. SAS performance excels in sequential lower latency response time and random IO per second transaction performance due to higher rpm disk speeds yielding lower seek times.

NOTE: MSA2 3.5 inch Large Form Factor (LFF) drives are for use only in the

MSA2000 family.

Up to 5.4TB SAS or 12TB SATA, expandable to 21.6TB SAS or 48TB SATA with the addition of a maximum of three MSA2000 3.5 inch Disk Enclosures.

LUNs

The MSA2000 family of arrays supports 256 LUNs and LUN sizes up to 16TB.

The arrays support LUN expansion and deletion of any LUN.

RAID 0, 1, 3, 5, 6, 10, 50

In addition to the usual RAID levels, the MSA2000 family features several important additional levels. RAID 6 is the highest level of RAID protection. It allocates two sets of parity data across drives and allows simultaneous write operations. It can withstand two simultaneous drive failures without downtime or data loss. RAID 10 is mirroring and striping without parity. It is the most popular of the multiple RAID levels, allowing large arrays with high performance in most cases and superior fault tolerance. RAID 50 combines the

DA - 13045 North America — Version 8 — October 12, 2012 Page 6

QuickSpecs

Family Information

HP 2000sa Modular Smart Array

Performance

Workload

Random Reads IOPs

Random Writes IOPs

Sequential Reads MBs

Sequential Writes MBs

Random Mix IOPs 60/40 read/write

Configuration and

Management Tools

Hot Plug Expansion and

Replacement Support

Snapshot and Clone

block striping and parity of RAID 5 with the straight block striping of RAID 0, yielding higher performance than RAID 5 through the addition of RAID 0, particularly during writes.

Performance numbers are a guideline as established by tests in a lab environment. Forty-eight 300GB 15K SAS drives were used in dual controller configurations of four vDisks with 12 physical drives per vDisk.

Each vDisk presented a single volume of maximum capacity according to RAID level.

Number and type of applications, number of hosts will affect overall performance.

MSA2012sa MSA2212fc MSA2012fc MSA2012i

MSA2000 RAID 10 Performance Results (rounded)

Random Reads IOPs 10,600

Random Writes IOPs

Random Mix IOPs 60/40 read/write

Sequential Reads MB

Sequential Writes MBs

4,900

6,800

700

350

MSA2000 RAID 5 Performance Results (rounded)

Random Reads IOPs 10,200

Random Writes IOPs

Sequential Reads MBs

Sequential Writes MBs

Random Mix IOPs 60/40 read/write

2,000

700

380

3,300

MSA2000 RAID 6 Performance Results (rounded)

10,100

1,400

700

380

2,750

11,200

7,800

8,900

1000

470

10,700

2,400

1,000

580

3,500

10,700

1,700

1,000

580

4,200

10,600

5,000

6,700

650

330

10,200

1,700

670

380

5,700

10,100

1,200

680

380

2,650

8,200

4,500

6,100

300

260

7,800

1,600

300

270

3,200

7,800

1,200

300

270

2,560

HP MSA Storage Management Utility (SMU), Management access, out-of-band:

WEB GUI, CLI. Interface Types: Mini DB9 RS232, 10/100 Ethernet Protocols

Supported SNMP, SSL, SSH, SMTP, HTTP, Telnet

The MSA2000sa supports hot plug expansion and replacement of redundant controllers, fans, power supplies, and I/O modules for simple, fast installation and maintenance.

Optional controller based functionality. Offers higher levels of data protection, enabling an almost instant recovery from data failure or corruption. Offers alternative development testing of 'offline' production data and the ability to backup snapped/cloned data

DA - 13045 North America — Version 8 — October 12, 2012 Page 7

QuickSpecs

Family Information

Overview

Server Compatibility

Industry Standard X86 servers support

OS Support

Supported Clustering

Solutions

Web Browser support

HP 2000sa Modular Smart Array

The MSA2000sa comes integrated with web browser based software for storage and RAID management, setup, configuration and troubleshooting. This reduces the cost of ownership by reducing the training and technical expertise necessary to install and maintain your HP storage solution.

Supports most HP ProLiant servers including:

HP ProLiant DL, ML

Following BladeSystem servers are supported ONLY when connected using 3Gb SAS Switch:

HP ProLiant BL2x 220c G5

HP Proliant BL460c

HP Proliant BL465c

HP ProLiant BL465c G5

HP ProLiant BL480c

HP Proliant BL495c G5

HP Proliant BL680c G5

HP Proliant BL685c

HP ProLiant BL685c G5

Supports most multi-vendor industry standard 32-bit Intel and AMD based (x86) servers. HP requires the Third-Party Server to be logo'd and listed on the Microsoft Windows Server Catalog.

Refer to the Microsoft website: http://www.microsoft.com/windows/catalog/server/

HP Storage Division recommends that the Third-Party Server Vendor is an active member of TSANet.

Refer to the TSANet website for details: www.tsanet.com

Microsoft Windows Server 2008

Microsoft Windows Server 2003 and 2003 R2 (32/64)

Red Hat Linux 5 (32/64)

SuSE 10 (32/64)

VMware ESX 3.5 (32/64)

Microsoft Cluster Service for Microsoft Windows Server 2008 and 2003

SteelEye's LifeKeeper for Linux on Red Hat Enterprise Linux AS 5 and SuSE Linux Enterprise Server

10 (supported with ProLiant servers only)

MSA2000sa supports target based management, and requires a web browser for management. Only

Microsoft Internet Explorer V6.X and above, and Mozilla Firefox 1.0.7 or later are supported

DA - 13045 North America — Version 8 — October 12, 2012 Page 8

QuickSpecs

Optional Software

HP 2000sa Modular Smart Array

Optional Software

MSA2000 Snapshot and

Volume Copy Software

Product Features

Data Protection

Path Failover (MPIO)

Snapshots create up to 64 point-in-time pictures of data

Volume Copies create up to 128 point-in-time copies of data

Recovery is instant - revert data from any previous Snapshot or Volume Copy

Backup 'snapped' data to disk, virtual tape, or physical tape without a backup window

Data Testing

Snap or clone data to test the performance of a software application on 'offline' production data

Snap or clone data to test how a software patch or enhancement will function on 'offline; production data

HP 2000 Modular Smart Array Snapshot 64 Software LTU

HP 2000 Modular Smart Array Snapshot 8 Software LTU

T5512A

T5513A

HP 2000 Modular Smart Array Snapshot 8 to 64 Upgrade Software LTU

HP 2000 Modular Smart Array Volume Copy Software LTU

T5515A

T5514A

MPIO Failover for Windows provides a single multi-path solution for HP MSA2000sa Modular Smart Array on HP ProLiant servers by providing basic path failover. Supports Windows 2008, Windows 2003, Windows

2003 R2, and Windows 2003 X64 operating systems.

HP Storage Mirroring

Failover support for Linux is with Device Mapper 4.0.

NOTE: For more information visit http://h18006.www1.hp.com/products/sanworks/multipathoptions/index.html

HP Storage Mirroring Software provides host-based, continuous replication for customers seeking a lowcost alternative to fabric or array-based replication. Patented replication and failover technology continuously captures byte-level data changes as they happen and replicates those changes to one or more target servers at any location without geographic limitations. By replicating only the bytes that change, Storage Mirroring Software uses the absolute minimum bandwidth on your existing LAN or WAN to replicate your data. Storage Mirroring also provides server failover where a production server can automatically be 'replaced' by the storage mirroring server in the event of failure. Couple Storage Mirroring with MSA2000 Snapshots and/or Volume Copy to achieve an Enterprise class data protection strategy creating different data recovery points using continuous data protection with Storage Mirroring and pointin-time data protection with Snapshots and/or Volume Copy.

Storage Mirroring Software supports:

Any DAS, NAS, and SAN storage device.

Any Windows ProLiant server including all ML, DL, and BL platforms

Many Windows platforms including Windows Server 2000, Windows Server 2003, Windows Server

2003 R2, Windows Storage Server 2003, Windows Storage Server 2003 R2, 64-bit Windows, and

Windows on Itanium

For more information visit: http://h18006.www1.hp.com/products/storage/software/sm/index.html

Storage Mirroring Media Kit v5 T5437A

DA - 13045 North America — Version 8 — October 12, 2012 Page 9

QuickSpecs

Optional Software

Storage Mirroring Server Edition 1 LTU

Storage Mirroring Server Edition 10 LTU

Storage Mirroring Enterprise Server Edition 1 LTU

Storage Mirroring Enterprise Server Edition 10 LTU

Storage Mirroring NAS Edition 1 LTU

Storage Mirroring NAS Edition 10 LTU

Storage Mirroring for 5 Virtual Machines 1 LTU

Storage Mirroring for Itanium Servers 1 LTU

Storage Mirroring for AiO Edition 1 LTU

Storage Mirroring Srvr Rcvry Op 1 LTU

Storage Mirroring SW Linux 1 LTU

Storage Mirroring SW Linux 10 LTU

Storage Mirroring Virtual Infrastructure 1LTU

HP 2000sa Modular Smart Array

T5438A

T5439A

T5440A

T5441A

T5442A

T5443A

T5444A

T5445A

T5446A

T5447A

T5448A

T5449A

T5450A

DA - 13045 North America — Version 8 — October 12, 2012 Page 10

QuickSpecs

Service and Support, HP Care Pack, and Warranty Information

HP 2000sa Modular Smart Array

Configure to Order Program Information - Future support, No CTO Available at Launch

Warranty

Three-year limited warranty

Three years parts exchange

Next Business day delivery

Enclosures, Hard drives, and Options for the MSA2000sa carry their own warranty. Refer to HP's Limited

Warranty Statement for more information.

The MSA2000sa has been designed with customer self repairable parts to minimize repair time and provide greater flexibility in performing defective parts replacement. Please refer to HP's limited warranty

Statement and parts replacement instructions for further details.

http://h18006.www1.hp.com/products/storageworks/warranty.html

Products included in various Kits carry their own individual warranties.

NOTE: The warranty of the hard drive options purchased with the MSA2000sa product is different for SAS hard drives versus SATA hard drives. SAS hard drive options have a three year warranty and SATA hard drives options have a one year warranty. Reference HP's communication for further details: http://www.hp.com

go to search, enter CN0089W

Warranty Upgrade

Options

Response - Upgrade on-site response from next business day to same day 4-hour response or 6

Hour Call To Repair

Coverage - Extend hours of coverage from next business day to 9 hours x 5 days to 24 hours x 7 days

Duration Select duration of coverage for a period of 1, 3, 4 or 5 years

HP Care Pack Information

HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific duration and hours of coverage.

HP Care Pack is not available for less than the product's warranty duration.

HP Care Pack is available for sale anytime during the warranty period for most products, but the commencement date will be the same as the Warranty Start Date (delivery date to end user customer). Proof of purchase may be required.

HP Care Pack services are prepaid.

For additional information on Product Services and HP Care Pack, as well as orderable part numbers, please refer to the URL: http://www.hp.com/hps/carepack/ .

If you have specific questions about availability or how to obtain services contact your local HP representative. Contact information for your local area can be found at: http://welcome.hp.com/country/us/en/contact_us.html

DA - 13045 North America — Version 8 — October 12, 2012 Page 11

QuickSpecs

HP 2000sa Modular Smart Array

Service and Support, HP Care Pack, and Warranty Information

Software Product

Services

Product support provides the customer access to HP's experienced technical support resources, as well as access to HP's Information Services database for support on a variety of multivendor/multiplatform software products. Product support includes escalation and problem coordination with the appropriate engineering group. HP Services offer a variety of options to allow you to tailor your product service to meet the needs of your organization. Basic warranty on products can be uplifted from day one to ensure you receive the service you need when you need it.

Warranty and Support

HP warrants only that the software media will be free of physical defects for a period of ninety (90) days from delivery.

The following services are offered as HP Care Pack Services at the time of software product order:

Software Technical Support 24 x 7 (1, 3, 4, and 5 years) is available 24 hours per day, Monday through Sunday, including holidays (includes phone-in software technical support 24 x 7 and software product and documentation updates).

Installation Service (software installation) and Installation and Startup Service (software installation, configuration, startup testing and knowledge transfer).

HP Care Pack services must be ordered with the product and are prepaid.

For tailored support contracts based on personalized statement of work contact your local support center via http://www.hp.com/support .

For additional software product services information for HP Care Pack services, as well as orderable part numbers, please refer to the URLs listed below:

All storage services: http://www.hp.com/services/storage.

All HP Care Pack Services: http://www.hp.com/hps/carepack/storage/cp_networked.html

.

Software Support HP Care Pack Services: http://www.hp.com/hps/carepack/software/cp_storage.html

.

Installation and Startup Services: http://www.hp.com/hps/storage/ns_implementation.html

.

If you have specific service questions contact your local HP representative. Contact information for your local area can be found at: http://welcome.hp.com/country/us/en/contact_us.html

Maintenance releases, bug fixes and software patches are available at: http://welcome.hp.com/country/us/en/support.html

.

Hardware Product

Services

Installation services that include basic installation and Array Installation and Startup

On-site maintenance (includes warranty support)

Response time upgrades during the warranty period

Post-warranty coverage or warranty extension

RAID setup and performance consulting via statement of work

Migration service consulting via statement of work

Environmental, Mission Critical Services

For product services information for HP Care Pack services, as well as orderable part numbers, please refer to the URLs listed below:

All storage services: http://www.hp.com/services/storage.

All HP Care Pack Services: http://www.hp.com/hps/carepack/storage/cp_networked.html

.

Installation and Startup Services: http://www.hp.com/hps/storage/ns_implementation.html

.

If you have specific service questions contact your local HP representative. Contact information for your local area can be found at: http://welcome.hp.com/country/us/en/contact_us.html

DA - 13045 North America — Version 8 — October 12, 2012 Page 12

QuickSpecs

HP 2000sa Modular Smart Array

Service and Support, HP Care Pack, and Warranty Information

Array Installation and

Startup Services

The HP installation and Startup for HP Disk Arrays service package provides installation and configuration of HP Disk Array products. Service highlights include:

Service planning

Installation and Startup provides installation, and configuration of the MSA2000i. This includes:

Service planning

Service deployment

Installation Verification Testing (IVT) required for this service

Customer orientation session

Please contact your local HP sales organization for further details

Installation & Startup Care Packs: Flex - HA114A1#5J0; Fixed: UA868E

Support Services via HP Authorized Commercial Resellers - Flex Care Packs

Array SKUs: AJ752A, AJ753A

Support Description

Support - 1 Yr Next Day Hardware

Support - 3 Yr Next Day Hardware

Support - 4 Yr Next Day Hardware

Support - 5 Yr, Next Day Hardware

Support - 1 Yr 4 hr 13x5 Hardware

Support - 3 Yr, 4 hr 13x5 Hardware

Support - 4 Yr, 4 hr 13x5 Hardware

Support - 5 Yr, 4 hr 13x5 Hardware

Support - 1 Yr, 4 hr 24x7 Hardware

Support - 3 Yr, 4 hr 24x7 Hardware

Support - 4 Yr, 4 hr 24x7 Hardware

Support - 5 Yr, 4 hr 24x7 Hardware

Support - 1 Yr, 6 hr, CTR

Support - 3 Yr, 6 hr, CTR

Support - 4 Yr, 6 hr, CTR

Support - 5 Yr, 6 hr, CTR

Support - 1 Yr, Support Plus

Support - 3 Yr, Support Plus

Support - 4 Yr, Support Plus

Support - 5 Yr Support Plus

Support - 1 Yr, Support Plus 24

Support - 3 Yr, Support Plus 24

Support - 4 Yr, Support Plus 24

Support - 5 Yr, Support Plus 24

Support - 1 Yr, Proactive 24 Service

Support - 3 Yr, Proactive 24 Service

Support - 4 Yr, Proactive 24 Service

DA - 13045 North America — Version 8 — October 12, 2012

Care Pack

HA101A1#9CJ

HA101A3#9CJ

HA101A4#9CJ

HA101A5#9CJ

HA103A1#9CJ

HA103A3#9CJ

HA103A4#9CJ

HA103A5#9CJ

HA104A1#9CJ

HA104A3#9CJ

HA104A4#9CJ

HA104A5#9CJ

HA105A1#9CJ

HA105A3#9CJ

HA105A4#9CJ

HA105A5#9CJ

HA109A1#9CJ

HA109A3#9CJ

HA109A4#9CJ

HA109A5#9CJ

HA110A1#9CJ

HA110A3#9CJ

HA110A4#9CJ

HA110A5#9CJ

HA111A1#9CJ

HA111A3#9CJ

HA111A4#9CJ

Page 13

QuickSpecs

Service and Support, HP Care Pack, and Warranty Information

Support - 5 Yr, Proactive 24 Service

Support - 1 Yr, Critical Service

Support - 3 Yr, Critical Service

Support - 4 Yr, Critical Service

Support - 5 Yr, Critical Service

Support Services via HP Authorized Commercial Resellers - Flex Care Packs

Drive Enclosure

SKUs: AJ749A, AJ750A

Support - 1 Yr Next Day Hardware

Support - 3 Yr Next Day Hardware

Support - 4 Yr Next Day Hardware

Support - 5 Yr, Next Day Hardware

Support - 1 Yr 4 hr 13x5 Hardware

Support - 3 Yr, 4 hr 13x5 Hardware

Support - 4 Yr, 4 hr 13x5 Hardware

Support - 5 Yr, 4 hr 13x5 Hardware

Support - 1 Yr, 4 hr 24x7 Hardware

Support - 3 Yr, 4 hr 24x7 Hardware

Support - 4 Yr, 4 hr 24x7 Hardware

Support - 5 Yr, 4 hr 24x7 Hardware

Support - 1 Yr, 6 hr, CTR

Support - 3 Yr, 6 hr, CTR

Support - 4 Yr, 6 hr, CTR

Support - 5 Yr, 6 hr, CTR

Support - 1 Yr, Support Plus

Support - 3 Yr, Support Plus

Support - 4 Yr, Support Plus

Support - 5 Yr Support Plus

Support - 1 Yr, Support Plus 24

Support - 3 Yr, Support Plus 24

Support - 4 Yr, Support Plus 24

Support - 5 Yr, Support Plus 24

Support - 1 Yr, Proactive 24 Service

Support - 3 Yr, Proactive 24 Service

Support - 4 Yr, Proactive 24 Service

Support - 5 Yr, Proactive 24 Service

Support - 1 Yr, Critical Service

Support - 3 Yr, Critical Service

Support - 4 Yr, Critical Service

Support - 5 Yr, Critical Service

HP 2000sa Modular Smart Array

DA - 13045 North America — Version 8 — October 12, 2012

HA111A5#9CJ

HA112A1#9CJ

HA112A3#9CJ

HA112A4#9CJ

HA112A5#9CJ

HA105A5#9CL

HA109A1#9CL

HA109A3#9CL

HA109A4#9CL

HA109A5#9CL

HA110A1#9CL

HA110A3#9CL

HA110A4#9CL

HA110A5#9CL

HA111A1#9CL

HA111A3#9CL

HA111A4#9CL

HA111A5#9CL

HA112A1#9CL

HA112A3#9CL

HA112A4#9CL

HA112A5#9CL

HA101A1#9CL

HA101A3#9CL

HA101A4#9CL

HA101A5#9CL

HA103A1#9CL

HA103A3#9CL

HA103A4#9CL

HA103A5#9CL

HA104A1#9CL

HA104A3#9CL

HA104A4#9CL

HA104A5#9CL

HA105A1#9CL

HA105A3#9CL

HA105A4#9CL

Page 14

QuickSpecs

HP 2000sa Modular Smart Array

Service and Support, HP Care Pack, and Warranty Information

NOTE: MSA2000sa Switch Bundle SKU AP716A has all the same Support Levels, but uses Support Band 4ZS

Support Services via HP Authorized Commercial

Resellers - Flex Care Packs

Software SKUs:

Support - 1 Yr, 9X5, Software Technical Support

Support - 3 Yr, 9X5, Software Technical Support

Support - 4 Yr, 9X5, Software Technical Support

Support - 5 Yr, 9X5, Software Technical Support

Support - 1 Yr, 24x7, Software Technical Support

Support - 3 Yr, 24x7, Software Technical Support

Support - 4 Yr, 24x7, Software Technical Support

Support - 5 Yr, 24x7, Software Technical Support

Support - 1 Yr, Support Plus

Support - 3 Yr, Support Plus

Support - 4 Yr, Support Plus

Support - 5 Yr, Support Plus

Support - 1 Yr, Support Plus 24

Support - 3 Yr, Support Plus 24

Support - 4 Yr, Support Plus 24

Support - 5 Yr, Support Plus 24

Support - 1 Yr, Proactive 24

Support - 3 Yr, Proactive 24

Support - 4 Yr, Proactive 24

Support - 5 Yr, Proactive 24

Support - 1 Yr, Critical Services

Support - 3 Yr, Critical Services

Support - 4 Yr, Critical Services

Support - 5 Yr, Critical Services

T5512A

HA106A1#9CM

HA106A3#9CM

HA106A4#9CM

HA106A5#9CM

HA107A1#9CM

HA107A3#9CM

HA107A4#9CM

HA107A5#9CM

HA109A1#9CM

HA109A3#9CM

HA109A4#9CM

HA109A5#9CM

HA110A1#9CM

HA110A3#9CM

HA110A4#9CM

HA110A5#9CM

HA111A1#9CM

HA111A3#9CM

HA111A4#9CM

HA111A5#9CM

HA112A1#9CM

HA112A3#9CM

HA112A4#9CM

HA112A5#9CM

T5513A

HA106A1#9CN

HA106A3#9CN

HA106A4#9CN

HA106A5#9CN

HA107A1#9CN

HA107A3#9CN

HA107A4#9CN

HA107A5#9CN

HA109A1#9CN

HA109A3#9CN

HA109A4#9CN

HA109A5#9CN

HA110A1#9CN

HA110A3#9CN

HA110A4#9CN

HA110A5#9CN

HA111A1#9CN

HA111A3#9CN

HA111A4#9CN

HA111A5#9CN

HA112A1#9CN

HA112A3#9CN

HA112A4#9CN

HA112A5#9CN

T5514A

HA106A1#9CQ

HA106A3#9CQ

HA106A4#9CQ

HA106A5#9CQ

HA107A1#9CQ

HA107A3#9CQ

HA107A4#9CQ

HA107A5#9CQ

HA109A1#9CQ

HA109A3#9CQ

HA109A4#9CQ

HA109A5#9CQ

HA110A1#9CQ

HA110A3#9CQ

HA110A4#9CQ

HA110A5#9CQ

HA111A1#9CQ

HA111A3#9CQ

HA111A4#9CQ

HA111A5#9CQ

HA112A1#9CQ

HA112A3#9CQ

HA112A4#9CQ

HA112A5#9CQ

T5515A

HA106A1#9CP

HA106A3#9CP

HA106A4#9CP

HA106A5#9CP

HA107A1#9CP

HA107A3#9CP

HA107A4#9CP

HA107A5#9CP

HA109A1#9CP

HA109A3#9CP

HA109A4#9CP

HA109A5#9CP

HA110A1#9CP

HA110A3#9CP

HA110A4#9CP

HA110A5#9CP

HA111A1#9CP

HA111A3#9CP

HA111A4#9CP

HA111A5#9CP

HA112A1#9CP

HA112A3#9CP

HA112A4#9CP

HA112A5#9CP

DA - 13045 North America — Version 8 — October 12, 2012 Page 15

QuickSpecs

Service and Support, HP Care Pack, and Warranty Information

Support Services via HP Authorized Commercial Resellers - Fixed Care Packs

Array SKUs: AJ752A, AJ753A

Support Description

HP 1y NBD 9x5 MSA2000 Array HWSupp

HP 1y 4 hr 13x5 MSA2000 Array HWSupp

HP 1y 4h 24x7 MSA2000 Array HWSupp

HP 1y 6h CTR MSA2000 Array HWSupp

HP 3y NBD 9x5 MSA2000 Array HWSupp

HP 3y 4h 13x5 MSA2000 Array HWSupp

HP 3y 4h 24x7 MSA2000 Array HWSupp

HP 3y 6h CTR MSA2000 Array HWSupp

HP 3y 4h 13x5 w/DMR MSA2000 Array HWSupp

HP 3y 4h 24x7 w/DMR MSA2000 Array HWSupp

HP 3y 6h CTR w/DMR MSA2000 Array HWSupp

HP 4y NBD 9x5 MSA2000 Array HWSupp

HP 4y 4h 13x5 MSA2000 Array HWSupp

HP 4y 4h 24x7 MSA2000 Array HWSupp

HP 4y 6h CTR MSA2000 Array HWSupp

HP 5y NBD 9x5 MSA2000 Array HWSupp

HP 5y 4h 13x5 MSA2000 Array HWSupp

HP 5y 4h 24x7 MSA2000 Array HWSupp

HP 5y 6h CTR MSA2000 Array HWSupp

HP 5y 4h13x5 w/DMR MSA2000 Array HWSup

HP 5y 4h 24x7 w/DMR MSA2000 Array HWSupp

HP 5y 6h CTR w/DMR MSA2000 Array HWSupp

HP 1Y PW NBD MSA2000 Array HWSupp

HP 1Y PW 4H 13x5 MSA2000 Array HWSupp

HP 1Y PW 4H 24x7 MSA2000 Array HWSupp

HP 1Y PW 6H CTR MSA2000 Array HWSupp

HP 2000sa Modular Smart Array

Fixed Care Pack Part Number

UJ677E

UJ678E

UJ679E

UJ680E

UJ681E

UJ682E

UJ683E

UJ684E

UJ669E

UJ670E

UJ671E

UJ672E

UJ673E

UJ674E

UJ675E

UJ676E

UJ685E

UJ686E

UJ687E

UJ688E

UJ689E

UJ690E

UK193PE

UK194PE

UK195PE

UK196PE

DA - 13045 North America — Version 8 — October 12, 2012 Page 16

QuickSpecs

Service and Support, HP Care Pack, and Warranty Information

Support Services via HP Authorized Commercial Resellers - Fixed Care Packs

MSA2000sa Switch Bundle SKU AP716A

Support Description

HP 1y NBD 9x5 MSA2000 Array HWSupp

HP 1y 4 hr 13x5 MSA2000 Array HWSupp

HP 1y 4h 24x7 MSA2000 Array HWSupp

HP 1y 6h CTR MSA2000 Array HWSupp

HP 3y NBD 9x5 MSA2000 Array HWSupp

HP 3y 4h 13x5 MSA2000 Array HWSupp

HP 3y 4h 24x7 MSA2000 Array HWSupp

HP 3y 6h CTR MSA2000 Array HWSupp

HP 3y 4h 13x5 w/DMR MSA2000 Array HWSupp

HP 3y 4h 24x7 w/DMR MSA2000 Array HWSupp

HP 3y 6h CTR w/DMR MSA2000 Array HWSupp

HP 4y NBD 9x5 MSA2000 Array HWSupp

HP 4y 4h 13x5 MSA2000 Array HWSupp

HP 4y 4h 24x7 MSA2000 Array HWSupp

HP 4y 6h CTR MSA2000 Array HWSupp

HP 5y NBD 9x5 MSA2000 Array HWSupp

HP 5y 4h 13x5 MSA2000 Array HWSupp

HP 5y 4h 24x7 MSA2000 Array HWSupp

HP 5y 6h CTR MSA2000 Array HWSupp

HP 5y 4h13x5 w/DMR MSA2000 Array HWSup

HP 5y 4h 24x7 w/DMR MSA2000 Array HWSupp

HP 5y 6h CTR w/DMR MSA2000 Array HWSupp

HP 1Y PW NBD MSA2000 Array HWSupp

HP 1Y PW 4H 13x5 MSA2000 Array HWSupp

HP 1Y PW 4H 24x7 MSA2000 Array HWSupp

HP 1Y PW 6H CTR MSA2000 Array HWSupp

HP 2000sa Modular Smart Array

Fixed Care Pack Part Number

UN309E

UN310E

UN311E

UN312E

UN313E

UN314E

UN315E

UN316E

UL224E

UL225E

UL226E

UN304E

UN305E

UN306E

UN307E

UN308E

UN317E

UN318E

UN319E

UN320PE

UN321PE

UN322PE

UN323PE

UN324PE

UN325PE

UN326PE

DA - 13045 North America — Version 8 — October 12, 2012 Page 17

QuickSpecs

HP 2000sa Modular Smart Array

Service and Support, HP Care Pack, and Warranty Information

Support Services via HP Authorized Commercial Resellers - Fixed Care Packs Drive Enclosure

SKUs: AJ749A, AJ750A

Support Description

HP 1y NBD 9x5 MSA2000 Enclosure HWSupp

HP 1y 4h 13x5 MSA2000 Enclosure HWSupp

HP 1y 4h 24x7 MSA2000 Enclosure HWSupp

HP 1y 6h CTR MSA2000 Enclosure HWSupp

HP 3y NBD 9x5 MSA2000 Enclosure HWSupp

HP 3y 4h 13x5 MSA2000 Enclosure HWSupp

HP 3y 4h 24x7 MSA2000 Enclosure HWSupp

HP 3y 6h CTR MSA2000 Enclosure HWSupp

HP 3y 4h 13x5 w/DMR MSA2000 Encl HWSup

HP 3y 4h 24x7 w/DMR MSA2000 Encl HWSup

HP 3y 6h CTR w/DMR MSA2000 Encl HWSupp

HP 4y NBD 9x5 MSA2000 Enclosure HWSupp

HP 4y 4h 13x5 MSA2000 Enclosure HWSupp

HP 4y 4h 24x7 MSA2000 Enclosure HWSupp

HP 4y 6h CTR MSA2000 Enclosure HWSupp

HP 5y NBD 9x5 MSA2000 Enclosure HWSupp

HP 5y 4h 13x5 MSA2000 Enclosure HWSup

HP 5y 4h 24x7 MSA2000 Enclosure HWSupp

HP 5y 6h CTR MSA2000 Enclosure HWSupp

HP 5y 4h13x5 w/DMR MSA2000 Enclosure HWSupp

HP 5y 4h 24x7 w/DMR MSA2000 Encl HWSup

HP 5y 6h CTR w/DMR MSA2000 Encl HWSup

HP 1Y PW NBD MSA2000 Enclosure HWSupp

HP 1Y PW 4H 13x5 MSA2000 Encl HWSup

HP 1Y PW 4H 24x7 MSA2000 Encl HWSup

HP 1Y PW 6H CTR MSA2000 Encl HWSupp

Fixed Care Pack Part Number

UK231E

UK232E

UK233E

UK234E

UK235E

UK236E

UK237E

UK238E

UK223E

UK224E

UK225E

UK226E

UK227E

UK228E

UK229E

UK230E

UK239E

UK240E

UK241E

UK242E

UK243E

UK244E

UK245PE

UK246PE

UK247PE

UK248PE

Support Services via HP Authorized Commercial Resellers - Fixed Care Packs

Software SKUs: T5512A, T5513A, T5514A, T5515A

Support Description

HP 3y 24x7 MSA2000 Snpsht64 SW Support

HP 3y 24x7 MSA2000 Snpsht8 SW Support

HP 3y 24x7 MSA2000 Snpsht8-64 SW Supp

HP 3y 24x7 MSA2000 Vol Cpy SW Supp

Fixed Care Pack Part Number

UK249E

UK250E

UK251E

UK252E

DA - 13045 North America — Version 8 — October 12, 2012 Page 18

QuickSpecs

Configuration Information

1. Expansion Port

2. Ethernet Port

3. CLI Port

Dual Controller MSA2000sa

4. Service Port

5. SAS host Ports

6. Power Switch

HP 2000sa Modular Smart Array

1. Service Port

2. Unit Locator

3. Power Switch

4. DC Voltage / Fan Fault

MSA2000 Dual I/O 3.5 inch 12 Drive Enclosure

5. AC Power Good

6. SAS In Port

7. SAS Out Port

Step 1 - MSA2000sa - Base Configuration

Select one:

Model Name

MSA2012sa

MSA2012sa

MSA2000sa-3Gb SAS BL

Switch Bundle

Model Description:

HP 2012sa Single Controller Modular Smart Array

HP 2012sa Dual Controller Modular Smart Array

HP 2000sa Modular Smart Array 3Gb SAS BL Switch Bundle

NOTE: The HP MSA2000sa 3Gb SAS BL Switch Bundle contains the following components:

* HP MSA2012sa DC Modular Smart Array (Qty 1)

* HP 3Gb SAS BL Switches (Qty 2)

* HP mini-SAS 2M Cable (Qty 4)

DA - 13045 North America — Version 8 — October 12, 2012

Part Number

AJ752A

AJ753A

AP716A

Page 19

QuickSpecs

HP 2000sa Modular Smart Array

Configuration Information

Step 2 - Choose Supported Options For SAS HBA

Select each required option with quantities specified.

SAS HBA Description with Parts Shipped:

HP SC08Ge HBA SAS HBA to connect to a host

Step 2b - SAS Cables (as needed for connecting MSA2000sa to an HBA)

Model Description

mini-SAS 4x 1M Cable All mini-SAS 4x 2M Cable All mini-SAS 4x 4M Cable All

Part Number

488765-B21

Part Number

407337-B21

407339-B21

432238-B21

Step 3 - Options

The base controller chassis with one or two controllers has twelve drive bays for both SAS and/or SATA drives. For additional twelve additional drive bays purchase an MSA2000 3.5" Disk Enclosure. You may attach a total of three Drive Enclosures for a total of fortyeight drive bays. Single controller arrays support Single I/O Disk Enclosures; dual controller arrays support Dual I/O Disk Enclosures.

Step 3a - MSA2 SAS and SATA Drive Options

NOTE: MSA2000 3.5 inch drives are for use only with MSA2000 products.

HP MSA2 146GB 3G 15K 3.5-inch SAS DP HDD

HP MSA2 300GB 3G 15K 3.5-inch SAS DP HDD

HP MSA2 450GB 3G 15K 3.5-inch SAS DP HDD

HP MSA2 500GB 7.2K 3.5-inch SATA HDD

HP MSA2 750GB 7.2K 3.5-inch SATA HDD

HP MSA2 1TB 7.2K 3.5-inch SATA HDD

AJ735A

AJ736A

AJ737A

AJ738A

AJ739A

AJ740A

Step 3b - Drive Enclosure Options

The array itself has twelve drive bays. Should you require a drive enclosure, the model you choose depends to which array model it will be attached. If it is a single controller array, then choose the JBOD designated as "Single I/O". If it is attaching to a dual controller array then choose the "Dual I/O" JBOD

HP MSA2000 Single I/O 3.5-inch 12 Drive Enclosure (w/ two .6m SAS cables)

HP MSA2000 Dual I/O 3.5-inch 12 Drive Enclosure (w/ two .6m SAS cables)

SAS Cables (as needed for additional Drive Enclosures where standard .6m not sufficient length)

HP Ext SAS 1m Cable

HP Ext SAS 2m Cable

HP Ext SAS 4m Cable

AJ749A

AJ750A

389665-B21

389668-B21

389671-B21

DA - 13045 North America — Version 8 — October 12, 2012 Page 20

QuickSpecs

Configuration Information

Step 4 - Other MSA2000sa Options

Description

HP 2000sa Modular Smart Array Controller

(for future upgrading of a single controller MSA2000sa array to a dual controller model)

HP MSA2000 Drive Enclosure I/O Module

(for future upgrading of a single I/O 3.5 inch Disk Enclosure to a dual controller model)

Must choose optional Power Cord for Non-U.S. Configurations

NOTE: Shipped standard with all units.

Power Cord, 220/240 VAC

HP 2000sa Modular Smart Array

Quantity

2

Part Number

AJ754A

AJ751A

227099-001

Step 5 - Choose Rack Options

Select each required option with quantities specified.

Rack Cabinet, Customer Assembled

5642 - 5000 Series rack

14U rack

HP S10614 Rack with Shock Pallet

Rack Cabinets 10622 G2

10622 G2 Universal Rack w/Shock Pallet

10622 G2 Universal Rack w/Standard Pallet

Rack Cabinets under 10636 G2

10636 G2 (36U) Rack Cabinet - Pallet

10636 G2 (36U) Rack Cabinet - Shock Pallet

10636 G2 (36U) Rack Cabinet - Crated

10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet

Rack Cabinets 10642 G2

10642 G2 (42U) Rack Cabinet - Pallet

10642 G2 (42U) Rack Cabinet - Shock Pallet

10642 G2 (42U) Rack Cabinet - Crated

10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet

Modular Cooling System G2 (MCS G2)

MCS G2 10642 G2 Expansion Rack

Rack Cabinets 10842 G2

10842 G2 Universal Rack w/Shock Pallet

10842 G2 Universal Rack w/Standard Pallet

358254-B21

292302-B22

AF022A

AF021A

AF011A

AF012A

AF013A

AF014A

AF001A

AF002A

AF003A

AF004A

AF025A

AF026A

AF042A

AF041A

DA - 13045 North America — Version 8 — October 12, 2012 Page 21

QuickSpecs

Configuration Information

Rack Cabinets 10647 G2

10647 Rack G2 Pallet

HP 2000sa Modular Smart Array

AF031A

Configure to Order Program Information

HP introduces Configure to Order program so customers can customize their order according to their needs. It allows customers, at no additional cost, the ability to add Servers, Storage and options pre-racked and ready for deployments. However, It may not be available with all SKUs. The MSA2000sa may be integrated with ProLiant servers as standalone storage.

NOTE: No CTO Available at Launch

Configure to Order (CTO)

MSA2000sa Base Components

HBA

Cables (as needed for connecting MSA2000sa to

HBA)

MSA2 SAS and SATA Drives

MSA Drive Enclosures

Cables (as needed for additional Drives

Enclosures)

Product approved for CTO

HP MSA2012sa SC Factory Integrated

HP MSA2012sa DC Factory Integrated

HP MSA2012sa Controller Factory Integrated

HP SC08Ge HBA mini-SAS 4x 1M Cable All mini-SAS 4x 2M Cable All mini-SAS 4x 4M Cable All

HP MSA2 146GB 3G 15K 3.5 inch SAS DP HDD

HP MSA2 300GB 3G 15K 3.5 inch SAS DP HDD

HP MSA2 450GB 3G 15K 3.5-inch SAS DP HDD

HP MSA2 500GB 7.2K 3.5 inch SATA HDD

HP MSA2 750GB 7.2K 3.5 inch SATA HDD

HP MSA2 1TB 7.2K 3.5 inch SATA HDD

HP MSA2000 Single I/O 3.5 inch 12 Drive Enclosure

HP MSA2000 Dual I/O 3.5 inch 12 Drive Enclosure

HP Ext SAS 1m Cable

HP Ext SAS 2m Cable

HP Ext SAS 4m Cable

NOTE: MSA2 3.5 inch drives are for use only with

MSA2000 products.

AJ752A#0D1

AJ753A#0D1

AJ754A #0D1

488765-B21#0D1

407337-B21#0D1

407339-B21#0D1

432238-B21#0D1

AJ735A#OD1

AJ736A#OD1

AJ737A#OD1

AJ738A#OD1

AJ739A#OD1

AJ740A#OD1

AJ749A#OD1

AJ750A#OD1

389665-B21#OD1

389668-B21#OD1

389671-B21#OD1

DA - 13045 North America — Version 8 — October 12, 2012 Page 22

QuickSpecs

Technical Specifications

HP 2000sa Modular Smart Array

MSA2000sa POWER REQUIREMENTS

Input Power Requirements 100-240VAC, 50/60 Hz, 4.5-1.9A

Max Input Power 475W maximum continuous

Heat Dissipation 1622 BTU/hour

TEMPERATURE AND HUMIDITY RANGES

Operating Temperature 41° F to 104° F (5°C to 40°C)

Shipping Temperature -40° F to 158° F (-40° C to 70° C) meters

NOTE: Derate 2°C for every km, up to 3000

Operating Humidity 10% to 90% RH @ 104° F (40° C), non-condensing

Non-Operating Humidity Up to 93% RH @ 104° F (40° C), non-condensing

DECLARED ACOUSTIC NOISE LEVELS

Sound Power

Sound Pressure

<6.03B Sound Power

<55dBA Sound Pressure

SHOCK AND VIBRATION

Shock, Operational 5.0G, 10ms, half sine

Shock, Non-Operational 15G 11ms, half sine

Vibration, Operational 0.21Grms Random 5Hz to 500Hz flat spectrum/feed forward

Vibration, Non-Operational 0.5G 1 octave/minute 5Hz to 500Hz to 5 Hz sine sweep

0.5Grms Random 20Hz to-1000Hz flat spectrum

PHYSICAL

Height 3.5 in (8.9 cm)

Depth (excluding cables) 23.7 ins (60.2 cm)

Width 17.6 in (44.7 cm)

Chassis Weight 44 lbs (19.96 kg)

MSA2000sa Controller Host Interface

Protocol Support

RAID Support

Cache Memory

Cache Backup

2 x4 lane SAS ports - 3Gb/s per lane

SAS

0, 1, 3, 5, 6, 10, 50

1GB Read/Write.

ECC protection with back up to flash memory ( indefinite backup)

Upgradeable Firmware

- yes - partner firmware update (PFU)

Disk Drive and Enclosure

Protocol Support

3Gb SAS - Serial Attached SCSI / 3 Gb SATA=II

Expansion Port

One 4X SAS connector (SFF8470) Expand up to 3 more drive enclosures

DA - 13045 North America — Version 8 — October 12, 2012 Page 23

QuickSpecs

HP 2000sa Modular Smart Array

Technical Specifications

Regulatory Safety

Electromagnetic

Compatibility

RoHS and WEEE

Country Approvals

UL 60950-1:2003 (USA)

CAN/CSA-C22.2 No.60950-1-03 (Canada)

EN 60950-1 :2001 + A11 (European Union)

IEC 60950-1 :2001 (International)

CFR 47 Part 15 Subpart B (U.S.A., Class A)

ICES-003 Issue 4 (Canada, Class A)

EN 55022 :98 +A1 +A2 (European Union, Class A)

EN61000-3-2:2000+A1,+A2,+A14 (Harmonics)

EN 61000-3-3 :2001 (Flicker)

EN 55024 :1998 +A1 (European Union, Immunity)

CISPR 22 :2005 (International, Class A)

CISPR 24 :97 (International, Immunity)

RoHS-5 Compliance , China RoHS, WEEE

Australia/New Zealand, Canada, China (PRC), European Union, Germany (GS

Mark), Japan, South Korea, Taiwan, United States

© Copyright 2011 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel

Corporation. Unix is a registered trademark of The Open Group.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA - 13045 North America — Version 8 — October 12, 2012 Page 24

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
