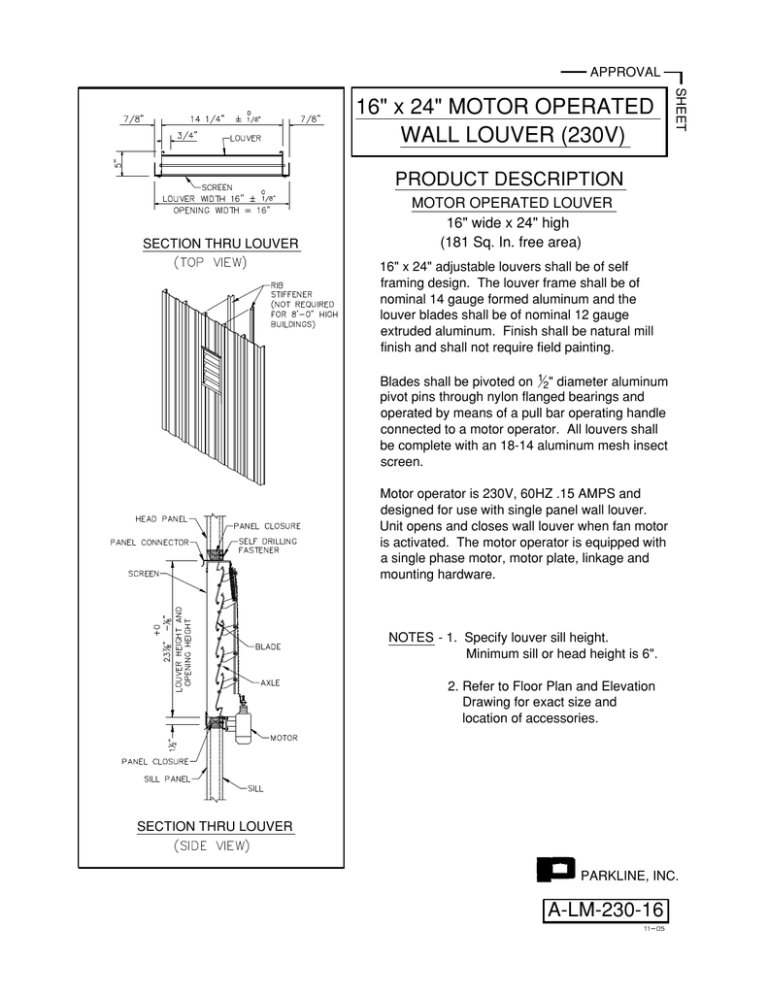

16 x 24 MOTOR OPERATED WALL LOUVER (230V)

16 x 24 MOTOR OPERATED WALL LOUVER (230V)
—— APPROVAL —
0
7/8" 14 1/4" + 1/8 | 7/8”
i e pe VER
$ |
|
N_SCREEN
|
0
LOUVER WIDTH 16” + 1/8”
| OPENING WIDTH = 16”
SECTION THRU LOUVER
(TOP VIEW)
RIB
e LT SVEFENER
MM I £ (NOT REQUIRED
vd FOR 8-0" HIGH
Na
a BUILDINGS)
SA
IT
SCREEN
+0
» —k”
23%
LOUVER HEIGHT AND
OPENING HEIGHT
PANEL CLOSURE
SILL PANEL
SECTION THRU LOUVER
(SIDE VIEW)
16" x 24" MOTOR OPERATED
133HS
WALL LOUVER (230V)
PRODUCT DESCRIPTION
MOTOR OPERATED LOUVER
16" wide x 24" high
(181 Sq. In. free area)
16" x 24" adjustable louvers shall be of self
framing design. The louver frame shall be of
nominal 14 gauge formed aluminum and the
louver blades shall be of nominal 12 gauge
extruded aluminum. Finish shall be natural mill
finish and shall not require field painting.
Blades shall be pivoted on %" diameter aluminum
pivot pins through nylon flanged bearings and
operated by means of a pull bar operating handle
connected to a motor operator. All louvers shall
be complete with an 18-14 aluminum mesh insect
screen.
Motor operator is 230V, 60HZ .15 AMPS and
designed for use with single panel wall louver.
Unit opens and closes wall louver when fan motor
Is activated. The motor operator is equipped with
a single phase motor, motor plate, linkage and
mounting hardware.
NOTES - 1. Specify louver sill height.
Minimum sill or head height is 6".
2. Refer to Floor Plan and Elevation
Drawing for exact size and
location of accessories.
m PARKLINE, INC.
A-LM-230-16
11—05
