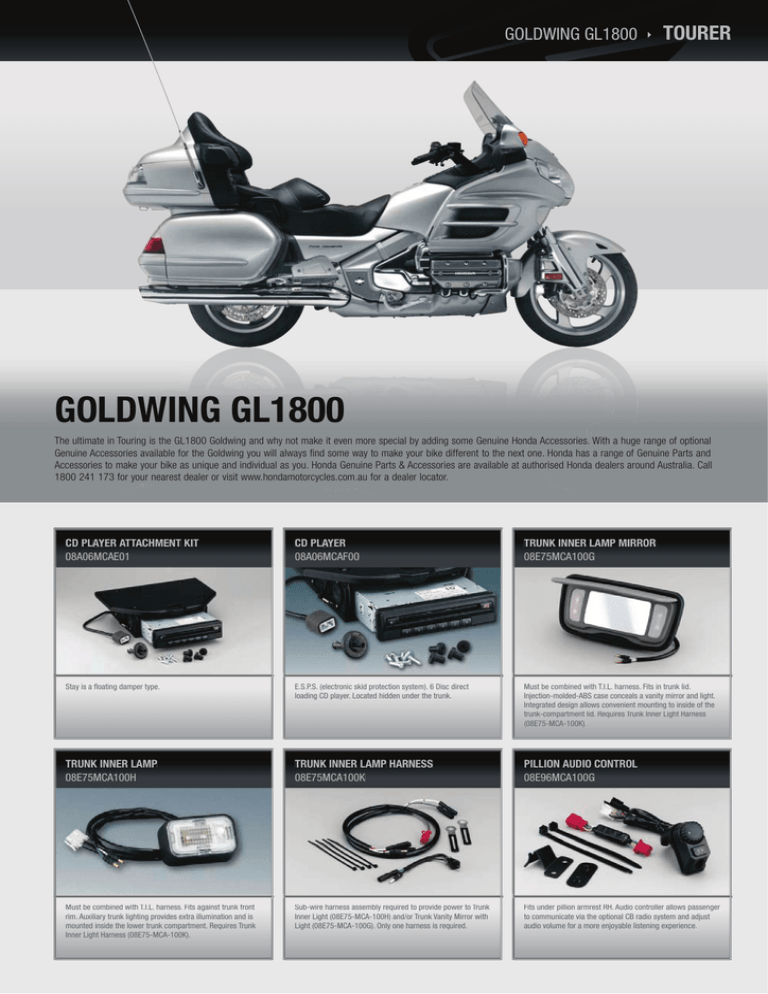

GOLDWING GL1800
TOURER
GOLDWING GL1800
The ultimate in Touring is the GL1800 Goldwing and why not make it even more special by adding some Genuine Honda Accessories. With a huge range of optional
Genuine Accessories available for the Goldwing you will always find some way to make your bike different to the next one. Honda has a range of Genuine Parts and
Accessories to make your bike as unique and individual as you. Honda Genuine Parts & Accessories are available at authorised Honda dealers around Australia. Call
1800 241 173 for your nearest dealer or visit www.hondamotorcycles.com.au for a dealer locator.
CD PLAYER
PLAY
A ER ATTACHMENT KIT
08A06MCAE01
CD PLAY
PLAYER
A ER
08A06MCAF00
TRUNK INNER LAMP MIRROR
08E75MCA100G
Stay is a floating damper type.
E.S.P.S. (electronic skid protection system). 6 Disc direct
loading CD player. Located hidden under the trunk.
Must be combined with T.I.L. harness. Fits in trunk lid.
Injection-molded-ABS case conceals a vanity mirror and light.
Integrated design allows convenient mounting to inside of the
trunk-compartment lid. Requires Trunk Inner Light Harness
(08E75-MCA-100K).
TRUNK INNER LAMP
08E75MCA100H
TRUNK INNER LAMP HARNESS
08E75MCA100K
PILLION AUDIO CONTROL
08E96MCA100G
Must be combined with T.I.L. harness. Fits against trunk front
rim. Auxiliary trunk lighting provides extra illumination and is
mounted inside the lower trunk compartment. Requires Trunk
Inner Light Harness (08E75-MCA-100K).
Sub-wire harness assembly required to provide power to Trunk
Inner Light (08E75-MCA-100H) and/or Trunk Vanity Mirror with
Light (08E75-MCA-100G). Only one harness is required.
Fits under pillion armrest RH. Audio controller allows passenger
to communicate via the optional CB radio system and adjust
audio volume for a more enjoyable listening experience.
TOURER
GOLDWING GL1800
CHROME REAR LOWER COWL
08F81MCA800F
CHROME GL ICON FR M/GUARD ORNAMENT
08F85MCA100
GOLD CYLINDER HEAD EMBLEM
08F85MCA100F
Made with high-quality chrome-plated stamped steel. chrome
rear lower cowl replaces stock painted cowl, yet its aerodynamic
design contours and integrates with original Goldwing style.
Chrome trim accents front mudguard with classic styling.
Included in kit is front fender emblem. Chrome front
fender ornament will not mount with chrome front
mudguard rail installed.
Gold plated cylinder head emblems replace standard
chrome emblems.
CYLINDER HEAD EMBLEM (TYPE1)
08F85MCA100G
CYLINDER HEAD EMBLEM (TYPE2)
08F85MCA100H
CYLINDER HEAD EMBLEM (TYPE3)
08F85MCA100J
Unique gold plated cylinder head cover emblems featuring new
Goldwing icon.
Unique gold plated cylinder head cover emblems featuring new
Goldwing icon and lettering in black.
Unique two-tone 1 gold plated cylinder head cover emblems
with new Goldwing icon in gold and black Honda lettering.
WOODY PA
P
PANEL
NEL
08F86MCA100
CHROME PILLION STEP UNDER COVER
08F86MCA100G
ALUMINIUM LIKE METER PANEL
P NEL
PA
08F86MCA100K
Wood patterned injection moulded plastic instrument panel
accent offers luxurious styling.
Injection-molded ABS is chrome-plated and contoured to
accent the underside of the passenger floorboards.
Aluminium finish injection moulded plastic instrument panel
accent offers contemporary styling.
CHROME FR FENDER EX (NON ABS)
08P08MCA100
CHROME FR DISK COV (NON ABS)
08P54MCA100
GRIP HEATER W/THERMOSTAT
08T50MCA802
Chrome plated injection moulded plastic extends rear of front
mudguard for added styling and function. Extends by 2cm.
Contoured chrome plated stamped steel provides
aerodynamically integrated brake disc protection and styling.
Heated grips with thermostat control module integrates into
fairing body and provides variable temperature control. Hondaengineered battery-protection circuit helps prevent excessive
battery-power drainage when grips are in use.
GOLDWING GL1800
REAR SPEAKER KIT
08A10MCA100
H/SET COILED CORD
08118KM10A01
Fits in pillion armrests. STD unit has no rear speakers. 15-watt
output weatherproof speakers integrate with the standard
audio system to offer premium sound quality.
TOURER
HEAD SET (FULL FA
FFACE)
CE)
08B80MCA100
Face-guard-mounted microphone and improved speaker
configuration feature soft case construction with Bass-port
design to reduce noise interference and increase bass response.
5 pin connector adapts to all Honda MC audio systems.
HEAD SET(OPEN FACE)
F CE)
FA
08B82MCA100
CB ANTENNA (LONG)
08E96MCA100
Boom microphone and improved speaker configuration feature
soft case construction with Bass-port design to reduce noise
interference and increase bass response. Five-pin connector
adapts to all Honda motorcycle audio systems.
For Europe, antenna only.
REAR SPOILER (NH-1-Z)
08F64MCA110
REAR SPOILER (Y-130
(Y-130P)
Y
P)
08F64MCA1B0
Impact resistant ABS plastic construction. Colour matched to
the unit colour. Designed to integrate with the unit shape and
styling. Black NH-1Z. Comes with high mount stop light.
SIDE AIR DEFLECTOR
08F62MCA100
REAR SPOILER (PB-304P)
08F64MCA130
Impact resistant ABS plastic construction. Colour matched to
the unit colour. Designed to integrate with the unit shape and
styling. Blue PB-304P. Comes with high mount stop light.
REAR SPOILER (PB-356M)
08F64MCA1J0
TRUNK UPPER SPOILER
08F64MCA8Q0C
TRUNK UPPER SPOILER
08F64MCA1U0C
Impact resistant ABS plastic construction. Colour matched to
the unit colour. Designed to integrate with the unit shape and
styling. Blue PB-356M. Comes with high mount stop light.
Impact resistant ABS plastic construction. Colour matched to
the unit colour. Designed to integrate with the unit shape and
styling. R303-M cabernet red metallic.
Impact resistant ABS plastic construction. Colour matched to
the unit colour. Designed to integrate with the unit shape and
styling. NH-A27M Billet silver metallic.
TOURER
GOLDWING GL1800
TRUNK UPPER SPOILER
08F64MCA1R0C
TRUNK UPPER SPOILER
08F64MCA1T0C
TRUNK UPPER SPOILER
08F64MCA1W0C
Impact resistant ABS plastic construction. Colour matched to the
unit colour. Designed to integrate with the unit shape and styling.
Dark blue metallic B192M. Comes with high mount stop light.
Impact resistant ABS plastic construction. Colour matched to the
unit colour. Designed to integrate with the unit shape and styling.
Dark orange metallic YR275M. Comes with high mount stop light.
Impact resistant ABS plastic construction. Colour matched to
the unit colour. Designed to integrate with the unit shape and
styling, includes rear brake light. R-325M caliente red metallic.
TRUNK UPPER SPOILER
08F64MCA1X1C
TRUNK UPPER SPOILER
08F64MCA141C
TRUNK UPPER SPOILER
08F64MCA1Y1C
Impact resistant ABS plastic construction. Colour matched to the
unit colour. Designed to integrate with the unit shape and styling,
includes rear brake light. NH-A45M pewter silver metallic.
Impact resistant ABS plastic construction. Colour matched to the
unit colour. Designed to integrate with the unit shape and styling,
includes rear brake light. B-191M columbia blue metallic.
Impact resistant ABS plastic construction. Colour matched to the
unit colour. Designed to integrate with the unit shape and styling,
includes rear brake light. R-287M bloodstone red metallic.
TRUNK
KS
SPOILER
POILER KIT (NH-1-Z)
08F65MCA110
TRUNK
KS
SPOILER
POILER KIT (Y-130P)
(Y-130
Y
P)
08F65MCA1B0
TRUNK
KS
SPOILER
POILER KIT (PB-304P)
08F65MCA130
Impact resistant ABS plastic construction. Colour matched to
the unit colour. Designed to integrate with the unit shape and
styling. Black NH-1Z.
Impact resistant ABS plastic construction. Colour matched to
the unit colour. Designed to integrate with the unit shape and
styling. Blue PB-304P.
REAR SPEAKER
08A10MCA800A
12V DC DC ELECTRICAL SOCKET
08U55MCA101
CHROME SWINGARM PIVOT COVER
08F68MCA100
Fits in pillion armrests. STD unit has no rear speakers. 15-watt
output weatherproof speakers integrate with the standard
audio system to offer premium sound quality. Compatible with
passenger armrests.
DC electrical socket provides power to operate additional
electronic equipment.
Chrome plated plastic with “Goldwing” logo, easy installation.
GOLDWING GL1800
INSTRUMENT ACCENT - CARBON TYPE
08F86MCA100N
TOURER
CHROME HEATED GRIPS WITH GL LOGO
08T50MCA100A
TRUNK HANDLE
08U94MCA100
Provides variable temperature control. Battery protection circuit
helps prevent excessive battery power drainage. Chrome and
rubber design to enhance rider comfort. Chrome end caps
included. Comfort package required.
Injection molded and chrome plated plastic.
Featuring GoldWing logo.
TALL WINDSHEILD WITH VENT
TTALL
08R80MCA100J
PANNIER & TRUNK INNER BAG SET
08L56MCA101
2.08 (53.5 mm) taller than the standard Gold Windshield.
Polycarbonate construction protects from nature’s elements.
Windshield includes cut out for fresh air vent. Requires
assembly from the unit standard windshield.
Approximately 150 litre capacity. Embroidrered Goldwing
logo, abraison resistant ballistic nylon, external buttoned
pocket and leather trim makes a perfect traveling.
Companion for those long hauls.
INNER PA
P
PANNIER
NNIER LID ORGANIZER
08L63MCA100A
HEADSET COILED CORD A
08118HT27A
CARBON-TYPE FRONT FENDER ORNAMENT
08F85MCA100K
Fits A4 sheet. Embroidered “Goldwing” logo, fits left or right
pannier lid. Secured with double-face tape.
1/2 Cord Helmet side (female coupler).
Carbon trim accents the front fender. Front fender emblem
(08F85-MCA-100L) included. Will not mount with chrome front
fender rail installed.
GOLDWING OWNER’S MANUAL FOLIO
A1770MCAFOLIO
LED FOG LIGHT KIT - NON AIR BAG MODEL
08V31MCA100D
FOG LIGHT LENS PROTECTORS
08V31MCA100B
Features one inside and one outside pocket for service
documents, owner’s manual or 5” x 8” tablet. Also includes a
six-pocket card holder and pen loop with detachable.
Integrated LED lamps feature performance-inspired
styling, lower battery draw and longer life than traditional
halogen lamps. LEDs emit a brilliant white light for much
enhanced visibility.
Clear Plastic cover to protect fog lights.
WINDSHEILD COVER W/ GL LOGO DEFLECTORS
08P38MCA100
TOURER
GOLDWING GL1800
TRUNK
KS
SPOILER
POILER KIT (PB-356M)
08F65MCA1J0
SADDLEBAG SPOILER KIT (NH-1-Z)
08F66MCA110
SADDLEBAG SPOILER KIT (Y-130P)
(Y-130
Y
P)
08F66MCA1B0
Impact resistant ABS plastic construction. Colour matched to
the unit colour. Designed to integrate with the unit shape and
styling. Blue PB-356M. Comes with high mount stop light.
Impact resistant ABS plastic construction. Colour matched to
the unit colour. Designed to integrate with the unit shape and
styling. Black NH-1Z.
SADDLEBAG SPOILER KIT (R-259P)
08F66MCA140
SADDLEBAG SPOILER KIT (PB-304P)
08F66MCA130
SADDLEBAG SPOILER KIT (PB-356M)
08F66MCA1J0
Impact resistant ABS plastic construction. Colour matched to
the unit colour. Designed to integrate with the unit shape and
styling. Red R-259P.
Impact resistant ABS plastic construction. Colour matched to
the unit colour. Designed to integrate with the unit shape and
styling. Blue PB-304P.
Impact resistant ABS plastic construction. Colour matched to
the unit colour. Designed to integrate with the unit shape and
styling. Blue PB-356M. Comes with high mount stop light.
CHROME FRONT LOWER COWL
08F81MCA101
CHROME PILLION STEP COVER
08F86MCA100F
LOU.V.ER COVER
08F86MCA101H
Chrome plated finish, injection moulded ABS plastic Lower
Cowl adds style and function.
Chrome finished, injection moulded ABS plastic accents the
area above the passenger floorboard with style.
Chrome plated steel fairing accents install in minutes and
mount directly to the existing fairing body (set of 2).
CHROME GARNISH SCREEN
08F86MCA100J
SPOILER REAR ACCENT
08L42MCA100A
TRUNK
K RA
RACK
CK
08L42MCA100
Chrome plated finish, impact resistant ABS plastic windscreen
garnish adds style and function.
Spoiler rear accent,is a chrome plated plastic trim, adds style.
Cant be used with top box spoiler.
GOLDWING GL1800
TRAVEL NET
08L63MCA100
TOURER
CHROME SIDE STAND
08M50MCA100
TRUNK
K MAT SET
08P11MCA100H
Hand polished and double nickle chrome plate.
Premium quality carpet material with patch type Goldwing logo
on mats. Custom shaped for the new Goldwing and feature
serged edge binding and a slip resistant backing.
Trunk carpet fits for old CD player kit 08A06 MCA 800.
SEAT COVER
08P32MCA100
BODY COVER
08P34MCA100
FRONT NOSE MASK
K SET
08P35MCA100
Constructed of weather-resistant synthetic material and
silkscreened with the Goldwing icon and logo, this cover protects
the seat from damp weather and the sun’s damaging U.V. rays.
Constructed of weather-resistant synthetic material, this cycle
cover features a moisture venting system as well as a soft
inner liner to prevent windshield scratching.
FRONT FENDER GUARD PIPE
08P50MCA100
SADDLEBAG GUARD PIPE
08P52MCA100
TRUNK GUARD PIPE
08P53MCA100
Chrome plated tubular steel contours to stylishy accent factory
front mudguard. Cannot be combined with the chrome front
mudguard ornament.
Smartly styled double-nickle chrome tubular steel rails protect
the paintwork on the saddlebags; corrosion resistant.
Smartly styled double-nickle chrome tubular steel rails protect
the paintwork on the trunk; corrosion resistant.
SCUFF COVER
08P56MCA100
CHROME SADDLEBAG MOULDING KIT
08P76MCA100
CHROME TRUNK
K MOULDING
MOULDING KIT
08P76MCA100F
Steel construction is plated with double-nickel and chrome for
corrosion resistance and quality finish. Contoured design offers
factory fit. Set of 2 (left and right sides).
Original factory fit, injection molded ABS plastic.
Chrome mouldings. Set of 4.
Original factory fit, injection molded ABS plastic.
Chrome mouldings. Set of 3.
TOURER
GOLDWING GL1800
SADDLEBAG MOULDING KIT CARBO
C
CARBON
N FINISH
08P76MCA100J
TRUNK
K MO
MOULDING
ULDING KIT CARBON FINISH
08P76MCA100K
LARGE SCREEN
08R80MCA100
At 53.5mm (2.08”) taller than the standard windshield, this
polycarbonate windshield offers additional wind protection
while maintaining Honda’s factory standards. WVTA cleared.
SCREEN DEFLECTORS
08R80MCA100F
LARGE SCREEN DEFLECTORS
08R80MCA100H
KIT SECURITY ATTACHMENT
08E55MCA800B
Alarm unit hidden under the CD changer in the trunk.
(ref. security system sheet for correct alarm unit partnumbers)
Applicable in combination with old CD player set
08A06 MCA 800.
FOG LIGHT KIT - NON AIR BAG MODEL
08V31MCA100
DELUXE INNER BAG
08L56MCA100
NYLON INNER BAG
08L56MCA100F
Approximately 150 litre capacity. Embroidrered Goldwing logo,
abraison resistant ballistic nylon, external buttoned pocket and
leather trim makes a perfect travelling companion for those
long hauls.
AVERTO ALARM
A
08E55MCA800B
PANNIER COOLER
08L56MCA100E
PROTECTIVE FILM
08P73KBV800
Alarm unit hidden under the CD changer in the trunk.
Applicable in combination with old CD player set
08A06 MCA 800.
15.5L, seam sealed liner, EVA Foam insulation, 600 Denier
coated polyester,”glow in the dark” soft touch zipper pulls,
detachable shoulder strap with pad, Honda Wing red logo.
A4 size, protects paintwork against scratches. Self adhesive,
may be cut to suit. Prices shown are Honda suggested retail
prices only and includes GST, but does not include installation
and labour costs. Actual costs may vary as dealers set their
own prices. Please consult your local Honda Dealer.
GOLDWING GL1800
TOURER
PASSENGER ARMREST EXTENSION
08R32MCA800
CHROME EXHAUST TIP (BULLET TYPE)
08F53MCA100K
CHROME HANDLEBAR END SET
08F69MCA100
Allows audio pass through and does not impede passenger
egress. Prices shown are Honda suggested retail prices only
and includes GST, but does not include installation and labour
costs. Actual costs may vary as dealers set their own prices.
Please consult your local Honda Dealer.
Chrome plated Die Cast Aluminum and steel construction; easy
installation. Prices shown are Honda suggested retail prices
only and includes GST, but does not include installation and
labour costs. Actual costs may vary as dealers set their own
prices. Please consult your local Honda Dealer.
Chrome plated steel. Prices shown are Honda suggested retail
prices only and includes GST, but does not include installation
and labour costs. Actual costs may vary as dealers set their
own prices. Please consult your local Honda Dealer.
CHROME EXHAUST TIP (TURN DOWN TYPE)
08F88MCA100
CHROME
ME 33D
D GL IC
ICON
ON FR M/GUARD ORNAMENT
08F85MCA100A
CHROME PILLION FLOORBOARD CVR SET
08F86MCA100F
“Turn down” type. Chrome plated steel designed to fit with the
unit muffler; easy installation (3 bolts).
Chrome 3D GL ornament accents front mudguard with classic
styling. Chrome front mudguard ornament will not mount with
Chrome front mudguard rail installed.
Chrome finished, injection moulded A.B.S plastic accents the
area above the passenger floorboard with style.
FAIRING POUCH
08L56MCA100A
INNER TRUNK LID ORGANIZER
08L63MCA100B
INNER TRUNK POUCH
08L56MCA100C
Compression molded with “quick” release mounting
system,”Goldwing” Logo. Prices shown are Honda suggested
retail prices only and includes GST, but does not include
installation and labour costs. Actual costs may vary as dealers
set their own prices. Please consult your local Honda Dealer.
Attaches to the trunk lid. Co-fits with accessory mirror, has
3 compartments, secured with double-face tape.
Storage pouch/bag that fits along either the left or right inner wall
of the trunk. Is held in place with double-face tape. Prices shown
are Honda suggested retail prices only and includes GST, but does
not include installation and labour costs. Actual costs may vary as
dealers set their own prices. Please consult your local Honda Dealer.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
