 € difference by looking through the huvitz Sl
+ Fi e rara LIC ГАА Ta LH En E TÍ Y

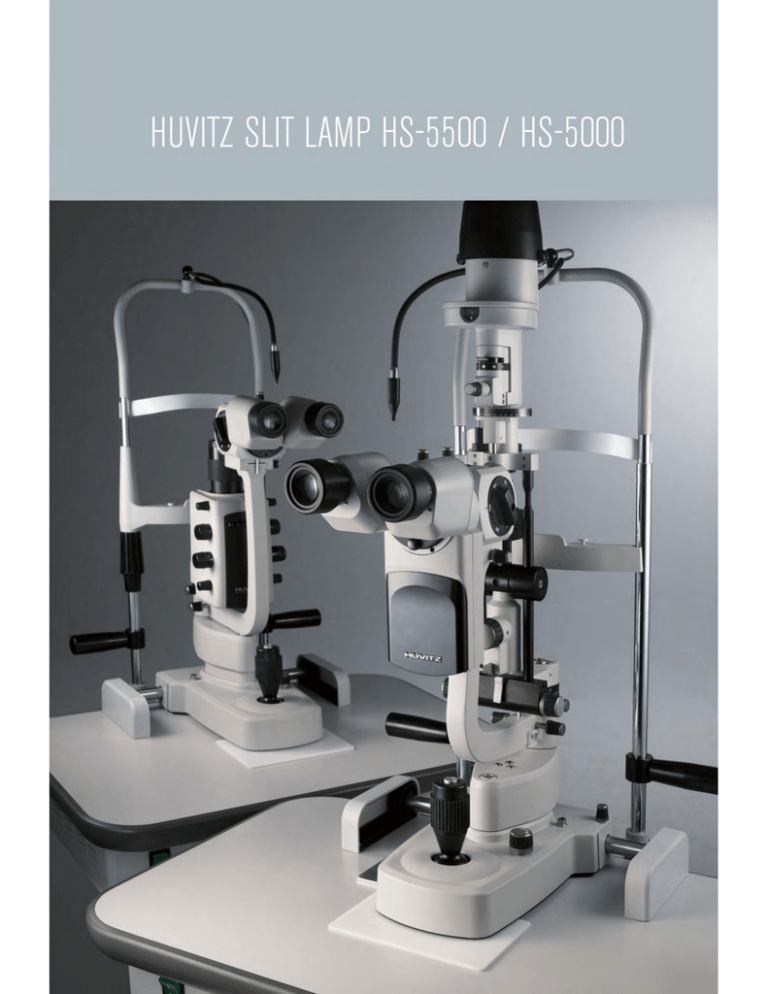

dustry: HS-5000 and HS-5500
ILLUMINATION
The light source is a 12-volt, 30-watt high luminance
halogen lamp that provides incredible clarity in both the
Tower Illumination and Integrated Illumination type slit
lamps.
MICROSCOPE
HS-5000 and HS-5500 deliver crisp images and a wide
field of view with the global standard Galilean Converging
Binocular optical system.
* 12.5x eye pieces / 6x:38.5mm, 10x:22.2mm,
16x:15.2mm, 25x:10.5mm, 40x:6.1mm
DESIGN
The slit lamps are offered in the Tower Illumination type
(HS-5000) and the Integrated Illumination type (HS-5500)
slit lamp models.
Both types are designed in the industry standard type
models used for their proven accuracy and reliability.
= Fa Hr == A 1
en by opinion leaders
|
MAGNIFICATION CONTROL SYSTEM
The five-position drum-style magnification changer
provides a wide range of magnification from 6x to 40x
easily accessible by rotating the drum.
The design of this system and the uniquely designed
Huvitz optic system allows you to offer a more accurate
diagnosis and observation to patients without any image
distortion in any magnification level.
YELLOW FILTER
A yellow filter is conveniently located near the ocular for
effortless insertion of the fluorescein pattern.
With a control lever, any filters are easily inserted.
(Options include cobalt blue, red free, heat absorption,
grey, and yellow.)
INTEGRATED CONTROL
The integrated omni style joystick is simple to control.
A trigger button is conveniently mounted on the joystick
for easy image and video capture.
Images and videos can be stored simultaneously if the slit
lamp is connected to image devices.
SPECIFICATION
> | Hs7000 HS-7500 “HS-5000 | HS-5500
Slit length{mm) | 0.3~14 0.3~12 0.3-14
Slit width(mm) | | 0-14 continuous | 0-12 continuous | 0-14 continuous
SLIT Slit projection | 1.167x 1x | 1.167x
ILLUMINATION Aperture diaphragms 12.5x
Filters Cobalt blue, Red-free, Grey, Heat absorption and Yellow
Slit rotation 0°~180° continuous
PATENTSENE Angie olnodenze 0,5, 10,512 | 0-20 coins [05,10 15, 20° | 0-20 cons
/ PRISM Surface working distance | 80mm 66mm 80mm | 66mm
Microscope 5 steps
Type Galilean converging binocular
Magnification 5 position rotating drum
MICROSCOPE Eyepieces 12.5x, 10x | 12.5х
Total magnifications | Bx, 10x, 16x, 25x, 40x
“Real fields of view (mm) | 38.5, 24, 15, 9, 6 | 38.5, 22.2, 15.2, 10.5, 6.1
Interpupilary adjustment — 55mm-80mm
Vertical movement © 28mm
Longitudinal movement 78mm
Lateral movement | 98mm
Fine base | 10mm
Power supply | Free voltage 100-240V AC
ны Voltage frequency 50 / 60Hz
Power consumption ТОМА
Instrument voltage 12V DC
Halogen bulb 12V 30W
Fixation point bulb 3.4V 20mA
Image sensor 1/2" interline CCD
Image size up to 1,388 x 1,036 pixels
Cell size 4.65ym x 4.65 ;m
Resolution depth bit or 12bit Raw RGB, YUV 4:2:2
Transmit method | IEEE 1394 (6pin)
OE Transmit speed | 400Mbps
Frame rate | 15fps, 7.5fps, 3.75fps
Lens mount C-Mount
Photographing External trigger or Software trigger
— Dimension —44mm (W) x 29mm (H) x 63mm (0) -
Power consumption | 3W (12V DC, from IEEE 1394 cable)
CU | © PentiumlV,2GHz
Memory 512 MB (over 16B recommended)
Video card ATI Radeon 9200 (128MB) or similar
System Microsoft Windows NT (with service pack 6), Windows 2000 (with service pack 4)
HIS-5000 | Windows XP, Microsoft Internet Explorer 6 (Explorer 7 recommended)
Transmit method Standard IEEE 1394a Firewire port OHCI 1.1 compatible
(with auxiliary 12V power connector if connected to a laptop computer)
LCD or CRT
Monitor
(minimum resolution 1,280 x1,024 pixels, over 1,600 x1,200 pixels recommended)
OPTION : PC, Table
Huvitz
Designs and details can be changed without prior notice for the purposes of improvement.
