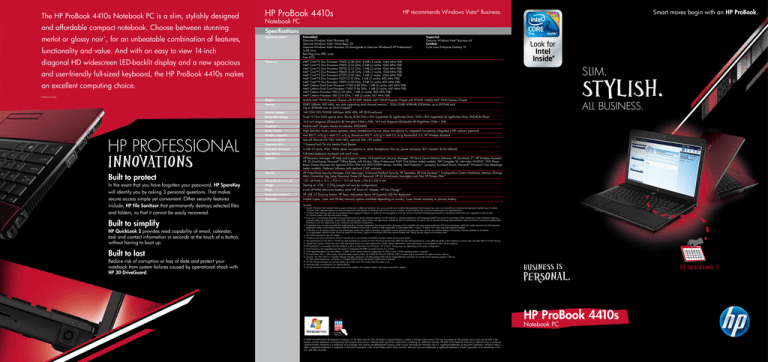

The HP ProBook 4410s Notebook PC is a slim, stylishly designed
and affordable compact notebook. Choose between stunning
merlot or glossy noir , for an unbeatable combination of features,
*
HP ProBook 4410s
Notebook PC
Specifications
Operating system
Preinstalled:
Genuine Windows Vista® Business 321 Genuine Windows Vista® Home Basic 321 Genuine Windows Vista® Business 32 downgrade to Genuine Windows® XP Professional1,2 SuSE Linux
Red Flag Linux (PRC only)
Free DOS
Processor3 Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
functionality and value. And with an easy to view 14-inch
diagonal HD widescreen LED-backlit display and a new spacious
and user-friendly full-sized keyboard, the HP ProBook 4410s makes
an excellent computing choice.
* Varies by country.
HP PROFESSIONAL
INNOVATIONS
Built to protect
In the event that you have forgotten your password, HP SpareKey
will identify you by asking 3 personal questions. That makes
secure access simple yet convenient. Other security features
include, HP File Sanitizer that permanently destroys selected files
and folders, so that it cannot be easily recovered.
Built to simplify
HP QuickLook 2 provides read capability of email, calendar,
task and contact information in seconds at the touch of a button,
without having to boot up.
Built to last
Reduce risk of corruption or loss of data and protect your
notebook from system failures caused by operational shock with
HP 3D DriveGuard.
Smart moves begin with an HP ProBook.
HP recommends Windows Vista® Business.
Supported:
Genuine Windows Vista® Business 641
Certified:
SuSe Linux Enterprise Desktop 10
Core™2 Duo Processor T9600 (2.80 GHz, 6 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor P8700 (2.53 GHz, 3 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor P8600 (2.40 GHz, 3 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor P7370 (2.00 GHz, 3 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor T6570 (2.10 GHz, 2 MB L2 cache, 800 MHz FSB)
Core™2 Duo Processor T5870 (2.00 GHz, 2 MB L2 cache, 800 MHz FSB)
Celeron Dual Core Processor T1700 (1.83 GHz, 1 MB L2 cache, 667 MHz FSB)
Celeron Dual Core Processor T1600 (1.66 GHz, 1 MB L2 cache, 667 MHz FSB)
Celeron Processor 900 (2.20 GHz, 1 MB L2 cache, 800 MHz FSB)
Celeron Processor 585 (2.16 GHz, 1 MB L2 cache, 667 MHz FSB)
Chipset
Mobile Intel® PM45 Express Chipset with ICHM9, Mobile Intel® GM45 Express Chipset with ICHM9, Mobile Intel® GL40 Express Chipset
Memory
DDR2 SDRAM, 800 MHz, two slots supporting dual channel memory11, 1024/2048/4096MB SODIMMs, up to 8192MB total
(Up to 4096MB max on GL40 Chipset)12
Internal storage13
160/250/320/500GB 5400rpm SATA HDD, HP 3D DriveGuard
Removable storage
Fixed 12.7mm SATA optical drive: Blu-ray ROM DVD+/-RW SuperMulti DL LightScribe Drive5, DVD+/-RW SuperMulti DL LightScribe Drive, DVD-ROM Drive4
Display6 14.0-inch diagonal LED-backlit HD Anti-glare (1366 x 768), 14.0-inch diagonal LED-backlit HD BrightView (1366 x 768)
Graphics9
Mobile Intel® Graphic Media Accelerator 4500MHD
Audio/Visual
High Definition Audio, stereo speakers, stereo headphone/line out, stereo microphone in, integrated microphone, integrated 2 MP webcam (optional)
Wireless support7,8
Intel 802.11 a/b/g/n draft 2.0, a/b/g, Broadcom 802.11 a/b/g/n draft 2.0, b/g; Bluetooth® 2.0, HP Wireless Assistant
Communications14
Marvell Ethernet (10/100/1000 NIC), optional 56K v.92 modem
Expansion slots
1 ExpressCard/34 slot, Media Card Reader
Ports and connectors
4 USB 2.0 ports, VGA, HDMI, stereo microphone in, stereo headphone/line out, power connector, RJ-11/modem, RJ-45/ethernet
Input device
Full-sized keyboard, touchpad with scroll zone
Software
HP Recovery Manager, HP Help and Support Center, HP ProtectTools Security Manager, HP Quick Launch Buttons Software, HP QuickLook 210, HP Wireless Assistant,
HP 3D DriveGuard, Microsoft® Office Ready with 60-day Office Professional 2007 Trial Edition (select models), PDF Complete SE, Intervideo WinDVD - DVD Player,
Roxio Creator Business (for optional DVD+/-RW and DVD/CDRW drives), McAfee Total Protection17, Synaptics Touchpad Driver, Microsoft® Windows® Live Messenger
(select models), Webcam Software (with optional 2 MP webcam)
Security
HP ProtectTools Security Manager, One Step Login, Enhanced Pre-Boot Security, HP SpareKey, HP Disk Sanitizer14, Configuration Control Hardware, Memory Change
Alert, Ownership Tag, Setup Password, Power-On Password, HP 3D DriveGuard, Kensington Lock Slot, HP Privacy Filter16
Dimension (h x w x d)
1.22 (at front) x 13.2 x 9.15 in / 31.0 (at front) x 336.0 x 232.4 mm
Weight
Starting at: 5.0lb / 2.27kg (weight will vary by configuration)
Power
6-cell (47WHr) Lithium-Ion battery, 65W HP Smart AC Adapter, HP Fast Charge15
Expansion solutions16
HP USB 2.0 Docking Station, HP Basic Adjustable Stand, HP Essential USB Port Replicator
Warranty
Limited 3-year, 1year and 90-day warranty options available depending on country, 1-year limited warranty on primary battery
SLIM.
STYLISH.
ALL BUSINESS.
Footnote
1. Certain Windows Vista® product features require advanced or additional hardware. See www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and www.microsoft.com/windowsvista/getready/capable.mspx for details.
Windows Vista® Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit www.windowsvista.com/upgradeadvisor.
2. Windows Vista® Business disk may be included for future upgrade if desired. To qualify for this downgrade an end user must be a business (including governmental or educational institutions) and is expected to order at least
25 customer systems with the same custom image.
3. Dual Core is a technology designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology 64-bit computing on Intel architecture requires a
computer system with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation) without an Intel 64 architecture-enabled BIOS.
Performance will vary depending on your hardware and software configurations.
4. Double-layer discs can store more data than single layer discs. However, double-layer discs burned with this drive may not be compatible with many existing single-layer DVD drives and players. LightScribe media required and sold separately.
LightScribe creates a monochrome image. Note that DVD-RAM cannot read or write to 2.6GB single-sided/5.2GB double-sided – version 1.0 media. Don’t copy copy-right protected materials.
5. As Blu-Ray is a new format containing new technologies, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute defects in the product. Flawless playback on all systems
is not guaranteed. HD-DVD movies cannot be played on this device. Support for the Blu-Ray DVD drive requires Mobile Intel® GM45 Express chipset and Windows Vista®.
6. HD content required to view HD images
7. Wireless access point and Internet service is required and is not included. Availability of public wireless access points limited
8. The specifications for the 802.11n WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices.
9. Shared video memory (UMA) uses part of the total system memory for video performance. System memory dedicated to video performance is not available for other use by programs.
10.HP QuickLook 2 is accessible when the notebook is off or in hibernation from Windows® XP or Vista®. Timings may vary depending on the system configuration.
11. Dual Channel is only supported when the system is configured with DDR2 symmetric memory (i.e. 2x256).
12.32-bit operating systems can only address ~3.2GB. To fully utilizing memory configurations of 4GB or more, a 64-bit operating system is required.
13.For hard drives, GB = 1 billion bytes. Actual formatted capacity is less. Up to 8GB (for XP) and 10GB (for Vista®) of system disk is reserved for the system recovery software.
14.The term “10/100/1000” or “Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1GB/sec.
For high speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.
15.HP Fast Charge recharges your primary battery up to 90% within 90 minutes when the system is off.
16.Sold separately or purchased as an optional feature.
17. 60 day trial period. Internet access required to receive updates. First update included. Subscription required for updates.
HP QuickLook 2
HP ProBook 4410s
Notebook PC
© 2009 Hewlett-Packard Development Company, L.P. All rights reserved. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein. Bluetooth is a trademark of its proprietor and used by Hewlett-Packard Company under license. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. Windows Vista is
either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Intel and Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the
U.S. and other countries.
SLIM.
STYLISH. ALL BUSINESS.
2MP Webcam
(optional)
KEY FEATURES
Integrated
microphone
HP ProBook 4410s Notebook PC.
HP recommends Windows Vista® Business.
HP UNIVERSAL ACCESSORIES
HP offers you a comprehensive range of accessories to
enhance and enrich your computing experience.
14-inch diagonal,
LED-backlit HD display
WLAN
antennas
HP USB 2.0 Docking Station
Part No: FQ834AA#UUF
Stereo speakers
• Connect to a variety of peripherals with four USB ports, DVI-D and
VGA monitor ports (only one external monitor supported), one network connector, and two audio jacks.
• Add an optional locking cable to secure it to your workspace.
• Use it with any HP business notebook PC.
Memory – Extract maximum performance from your notebook.
HP Memory DDR2 800 MHz
Full-size, user-friendly
QWERTY keyboard
Notebook docking solution – Turn your notebook into a desktop.
Part No:
1GB – KT292AA
2GB – KT293AA
4GB – KT294AA
•Protect your investment with certified and warranted HP Memory.
•Maximise system performance by reducing bottlenecks caused by
memory-intensive applications.
• Faster start-up times with fewer delays during routine operations.
•More cost effective than upgrading the processor or adding a hard
drive.
•Thoroughly tested and qualified ensuring the highest reliability for your HP notebook.
Case – Stylish protection for your notebook.
HP Basic Backpack
Part No: AM863AA
• The HP Basic Backpack is great for both students and business professionals and offers practical features such as a cellphone pocket and an MP3 pocket with a pass-through for headphones.
Security options – Keeping your data and notebook safe.
HP/Kensington Security Cable Lock
Part No: PC766A
Power button with LED indicator
Adaptor solution – Power and charge your battery simultaneously.
QuickLook 2 button
HP 65W Smart AC Adapter
Part No: ED494AA
Touchpad with scroll zone
HP 90W Smart AC Adapter
Media Card Reader
Part No: ED495AA
Wireless switch with LED indicator
Left view
Many ways to stay connected
Right view
Kensington Lock slot
A brand new business style
The HP ProBook 4410s Notebook PC boasts a sleek
design that packs an array of features normally reserved
for more expensive notebooks. Available in a new
glossy noir or merlot* finish.
Up to 2.8 GHz – the new Intel Core™2
Duo processors
®
Experience new levels of system responsiveness when
running multiple applications and smarter battery
performance designed to help extend mobility.
New sleek and maintenance-free keyboard
Widescreen HD display with LED backlit
The keyboard’s innovative layout provides a visually
open and spacious keyboard with keys raised from the
surface, resulting in fewer places for dirt and dust to
gather, making it easy to clean.
With the low-profile 14.0-inch diagonal, 16:9 HD
LED-backlit display, you get improved brightness, contrast
and clarity from a screen that is more power-efficient than
regular LCD screens.
* Varies by country.
RJ-45 Network jack
Battery charging
LED indicator
Part No: AJ652AA
HP 90W Smart Auto/Truck Adapter
Part No: ED493AA
USB 2.0 ports
Optical drive
VGA connector
Front view
USB 2.0 ports
Power connector
HP External USB CD/DVD R/RW
Part No: FS943AA#UUF
Back view
HP Mobile Audio Speakers
Part No: FS944AA
Microphone jack
Storage solutions – Expand your business storage capability.
• Portable design, using USB 2.0 connection to ensure the best performance.
• Highly efficient power saving mode, slim size, and ultra light weight.
• Up to 4.7 GB of DVD data storage capacity (up to 8.5 GB double
layer DVDs).
Audio solution – Bring your multimedia presentation to life.
Hard drive activity LED indicator
Headphone jack
• Convenient and portable power source for use in a mobile environment.
• Energy-efficient power adapters designed to draw minimal power.
• Integrated surge protector to guard against power fluctuations.
• Recharges notebook battery when attached to electrical outlet and/
or automobile power charger.
• Notebooks with discrete graphics require 90W adapters.
HP 90W Smart Combo Adapter
Optional RJ-11/modem port
HDMI port
ExpressCard/34 slot
Wi-Fi CERTIFIED™ WLAN and integrated Bluetooth®
wireless technology keep you in touch with the Internet
and your peripherals.
• Physically secure your notebook and docking accessories.
• Can be used as a regular cable security lock for any notebook PC.
• Lightweight and portable.
• USB powered.
• Carrying case included.
The HP ProBook 4410s Notebook PC is a slim, stylishly designed
and affordable compact notebook. Choose between stunning
merlot or glossy noir , for an unbeatable combination of features,
*
HP ProBook 4410s
Notebook PC
Specifications
Operating system
Preinstalled:
Genuine Windows Vista® Business 321 Genuine Windows Vista® Home Basic 321 Genuine Windows Vista® Business 32 downgrade to Genuine Windows® XP Professional1,2 SuSE Linux
Red Flag Linux (PRC only)
Free DOS
Processor3 Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
functionality and value. And with an easy to view 14-inch
diagonal HD widescreen LED-backlit display and a new spacious
and user-friendly full-sized keyboard, the HP ProBook 4410s makes
an excellent computing choice.
* Varies by country.
HP PROFESSIONAL
INNOVATIONS
Built to protect
In the event that you have forgotten your password, HP SpareKey
will identify you by asking 3 personal questions. That makes
secure access simple yet convenient. Other security features
include, HP File Sanitizer that permanently destroys selected files
and folders, so that it cannot be easily recovered.
Built to simplify
HP QuickLook 2 provides read capability of email, calendar,
task and contact information in seconds at the touch of a button,
without having to boot up.
Built to last
Reduce risk of corruption or loss of data and protect your
notebook from system failures caused by operational shock with
HP 3D DriveGuard.
Smart moves begin with an HP ProBook.
HP recommends Windows Vista® Business.
Supported:
Genuine Windows Vista® Business 641
Certified:
SuSe Linux Enterprise Desktop 10
Core™2 Duo Processor T9600 (2.80 GHz, 6 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor P8700 (2.53 GHz, 3 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor P8600 (2.40 GHz, 3 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor P7370 (2.00 GHz, 3 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor T6570 (2.10 GHz, 2 MB L2 cache, 800 MHz FSB)
Core™2 Duo Processor T5870 (2.00 GHz, 2 MB L2 cache, 800 MHz FSB)
Celeron Dual Core Processor T1700 (1.83 GHz, 1 MB L2 cache, 667 MHz FSB)
Celeron Dual Core Processor T1600 (1.66 GHz, 1 MB L2 cache, 667 MHz FSB)
Celeron Processor 900 (2.20 GHz, 1 MB L2 cache, 800 MHz FSB)
Celeron Processor 585 (2.16 GHz, 1 MB L2 cache, 667 MHz FSB)
Chipset
Mobile Intel® PM45 Express Chipset with ICHM9, Mobile Intel® GM45 Express Chipset with ICHM9, Mobile Intel® GL40 Express Chipset
Memory
DDR2 SDRAM, 800 MHz, two slots supporting dual channel memory11, 1024/2048/4096MB SODIMMs, up to 8192MB total
(Up to 4096MB max on GL40 Chipset)12
Internal storage13
160/250/320/500GB 5400rpm SATA HDD, HP 3D DriveGuard
Removable storage
Fixed 12.7mm SATA optical drive: Blu-ray ROM DVD+/-RW SuperMulti DL LightScribe Drive5, DVD+/-RW SuperMulti DL LightScribe Drive, DVD-ROM Drive4
Display6 14.0-inch diagonal LED-backlit HD Anti-glare (1366 x 768), 14.0-inch diagonal LED-backlit HD BrightView (1366 x 768)
Graphics9
Mobile Intel® Graphic Media Accelerator 4500MHD
Audio/Visual
High Definition Audio, stereo speakers, stereo headphone/line out, stereo microphone in, integrated microphone, integrated 2 MP webcam (optional)
Wireless support7,8
Intel 802.11 a/b/g/n draft 2.0, a/b/g, Broadcom 802.11 a/b/g/n draft 2.0, b/g; Bluetooth® 2.0, HP Wireless Assistant
Communications14
Marvell Ethernet (10/100/1000 NIC), optional 56K v.92 modem
Expansion slots
1 ExpressCard/34 slot, Media Card Reader
Ports and connectors
4 USB 2.0 ports, VGA, HDMI, stereo microphone in, stereo headphone/line out, power connector, RJ-11/modem, RJ-45/ethernet
Input device
Full-sized keyboard, touchpad with scroll zone
Software
HP Recovery Manager, HP Help and Support Center, HP ProtectTools Security Manager, HP Quick Launch Buttons Software, HP QuickLook 210, HP Wireless Assistant,
HP 3D DriveGuard, Microsoft® Office Ready with 60-day Office Professional 2007 Trial Edition (select models), PDF Complete SE, Intervideo WinDVD - DVD Player,
Roxio Creator Business (for optional DVD+/-RW and DVD/CDRW drives), McAfee Total Protection17, Synaptics Touchpad Driver, Microsoft® Windows® Live Messenger
(select models), Webcam Software (with optional 2 MP webcam)
Security
HP ProtectTools Security Manager, One Step Login, Enhanced Pre-Boot Security, HP SpareKey, HP Disk Sanitizer14, Configuration Control Hardware, Memory Change
Alert, Ownership Tag, Setup Password, Power-On Password, HP 3D DriveGuard, Kensington Lock Slot, HP Privacy Filter16
Dimension (h x w x d)
1.22 (at front) x 13.2 x 9.15 in / 31.0 (at front) x 336.0 x 232.4 mm
Weight
Starting at: 5.0lb / 2.27kg (weight will vary by configuration)
Power
6-cell (47WHr) Lithium-Ion battery, 65W HP Smart AC Adapter, HP Fast Charge15
Expansion solutions16
HP USB 2.0 Docking Station, HP Basic Adjustable Stand, HP Essential USB Port Replicator
Warranty
Limited 3-year, 1year and 90-day warranty options available depending on country, 1-year limited warranty on primary battery
SLIM.
STYLISH.
ALL BUSINESS.
Footnote
1. Certain Windows Vista® product features require advanced or additional hardware. See www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and www.microsoft.com/windowsvista/getready/capable.mspx for details.
Windows Vista® Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit www.windowsvista.com/upgradeadvisor.
2. Windows Vista® Business disk may be included for future upgrade if desired. To qualify for this downgrade an end user must be a business (including governmental or educational institutions) and is expected to order at least
25 customer systems with the same custom image.
3. Dual Core is a technology designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology 64-bit computing on Intel architecture requires a
computer system with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation) without an Intel 64 architecture-enabled BIOS.
Performance will vary depending on your hardware and software configurations.
4. Double-layer discs can store more data than single layer discs. However, double-layer discs burned with this drive may not be compatible with many existing single-layer DVD drives and players. LightScribe media required and sold separately.
LightScribe creates a monochrome image. Note that DVD-RAM cannot read or write to 2.6GB single-sided/5.2GB double-sided – version 1.0 media. Don’t copy copy-right protected materials.
5. As Blu-Ray is a new format containing new technologies, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute defects in the product. Flawless playback on all systems
is not guaranteed. HD-DVD movies cannot be played on this device. Support for the Blu-Ray DVD drive requires Mobile Intel® GM45 Express chipset and Windows Vista®.
6. HD content required to view HD images
7. Wireless access point and Internet service is required and is not included. Availability of public wireless access points limited
8. The specifications for the 802.11n WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices.
9. Shared video memory (UMA) uses part of the total system memory for video performance. System memory dedicated to video performance is not available for other use by programs.
10.HP QuickLook 2 is accessible when the notebook is off or in hibernation from Windows® XP or Vista®. Timings may vary depending on the system configuration.
11. Dual Channel is only supported when the system is configured with DDR2 symmetric memory (i.e. 2x256).
12.32-bit operating systems can only address ~3.2GB. To fully utilizing memory configurations of 4GB or more, a 64-bit operating system is required.
13.For hard drives, GB = 1 billion bytes. Actual formatted capacity is less. Up to 8GB (for XP) and 10GB (for Vista®) of system disk is reserved for the system recovery software.
14.The term “10/100/1000” or “Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1GB/sec.
For high speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.
15.HP Fast Charge recharges your primary battery up to 90% within 90 minutes when the system is off.
16.Sold separately or purchased as an optional feature.
17. 60 day trial period. Internet access required to receive updates. First update included. Subscription required for updates.
HP QuickLook 2
HP ProBook 4410s
Notebook PC
© 2009 Hewlett-Packard Development Company, L.P. All rights reserved. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein. Bluetooth is a trademark of its proprietor and used by Hewlett-Packard Company under license. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. Windows Vista is
either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Intel and Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the
U.S. and other countries.
SLIM.
STYLISH. ALL BUSINESS.
2MP Webcam
(optional)
KEY FEATURES
Integrated
microphone
HP ProBook 4410s Notebook PC.
HP recommends Windows Vista® Business.
HP UNIVERSAL ACCESSORIES
HP offers you a comprehensive range of accessories to
enhance and enrich your computing experience.
14-inch diagonal,
LED-backlit HD display
WLAN
antennas
HP USB 2.0 Docking Station
Part No: FQ834AA#UUF
Stereo speakers
• Connect to a variety of peripherals with four USB ports, DVI-D and
VGA monitor ports (only one external monitor supported), one network connector, and two audio jacks.
• Add an optional locking cable to secure it to your workspace.
• Use it with any HP business notebook PC.
Memory – Extract maximum performance from your notebook.
HP Memory DDR2 800 MHz
Full-size, user-friendly
QWERTY keyboard
Notebook docking solution – Turn your notebook into a desktop.
Part No:
1GB – KT292AA
2GB – KT293AA
4GB – KT294AA
•Protect your investment with certified and warranted HP Memory.
•Maximise system performance by reducing bottlenecks caused by
memory-intensive applications.
• Faster start-up times with fewer delays during routine operations.
•More cost effective than upgrading the processor or adding a hard
drive.
•Thoroughly tested and qualified ensuring the highest reliability for your HP notebook.
Case – Stylish protection for your notebook.
HP Basic Backpack
Part No: AM863AA
• The HP Basic Backpack is great for both students and business professionals and offers practical features such as a cellphone pocket and an MP3 pocket with a pass-through for headphones.
Security options – Keeping your data and notebook safe.
HP/Kensington Security Cable Lock
Part No: PC766A
Power button with LED indicator
Adaptor solution – Power and charge your battery simultaneously.
QuickLook 2 button
HP 65W Smart AC Adapter
Part No: ED494AA
Touchpad with scroll zone
HP 90W Smart AC Adapter
Media Card Reader
Part No: ED495AA
Wireless switch with LED indicator
Left view
Many ways to stay connected
Right view
Kensington Lock slot
A brand new business style
The HP ProBook 4410s Notebook PC boasts a sleek
design that packs an array of features normally reserved
for more expensive notebooks. Available in a new
glossy noir or merlot* finish.
Up to 2.8 GHz – the new Intel Core™2
Duo processors
®
Experience new levels of system responsiveness when
running multiple applications and smarter battery
performance designed to help extend mobility.
New sleek and maintenance-free keyboard
Widescreen HD display with LED backlit
The keyboard’s innovative layout provides a visually
open and spacious keyboard with keys raised from the
surface, resulting in fewer places for dirt and dust to
gather, making it easy to clean.
With the low-profile 14.0-inch diagonal, 16:9 HD
LED-backlit display, you get improved brightness, contrast
and clarity from a screen that is more power-efficient than
regular LCD screens.
* Varies by country.
RJ-45 Network jack
Battery charging
LED indicator
Part No: AJ652AA
HP 90W Smart Auto/Truck Adapter
Part No: ED493AA
USB 2.0 ports
Optical drive
VGA connector
Front view
USB 2.0 ports
Power connector
HP External USB CD/DVD R/RW
Part No: FS943AA#UUF
Back view
HP Mobile Audio Speakers
Part No: FS944AA
Microphone jack
Storage solutions – Expand your business storage capability.
• Portable design, using USB 2.0 connection to ensure the best performance.
• Highly efficient power saving mode, slim size, and ultra light weight.
• Up to 4.7 GB of DVD data storage capacity (up to 8.5 GB double
layer DVDs).
Audio solution – Bring your multimedia presentation to life.
Hard drive activity LED indicator
Headphone jack
• Convenient and portable power source for use in a mobile environment.
• Energy-efficient power adapters designed to draw minimal power.
• Integrated surge protector to guard against power fluctuations.
• Recharges notebook battery when attached to electrical outlet and/
or automobile power charger.
• Notebooks with discrete graphics require 90W adapters.
HP 90W Smart Combo Adapter
Optional RJ-11/modem port
HDMI port
ExpressCard/34 slot
Wi-Fi CERTIFIED™ WLAN and integrated Bluetooth®
wireless technology keep you in touch with the Internet
and your peripherals.
• Physically secure your notebook and docking accessories.
• Can be used as a regular cable security lock for any notebook PC.
• Lightweight and portable.
• USB powered.
• Carrying case included.
SLIM.
STYLISH. ALL BUSINESS.
2MP Webcam
(optional)
KEY FEATURES
Integrated
microphone
HP ProBook 4410s Notebook PC.
HP recommends Windows Vista® Business.
HP UNIVERSAL ACCESSORIES
HP offers you a comprehensive range of accessories to
enhance and enrich your computing experience.
14-inch diagonal,
LED-backlit HD display
WLAN
antennas
HP USB 2.0 Docking Station
Part No: FQ834AA#UUF
Stereo speakers
• Connect to a variety of peripherals with four USB ports, DVI-D and
VGA monitor ports (only one external monitor supported), one network connector, and two audio jacks.
• Add an optional locking cable to secure it to your workspace.
• Use it with any HP business notebook PC.
Memory – Extract maximum performance from your notebook.
HP Memory DDR2 800 MHz
Full-size, user-friendly
QWERTY keyboard
Notebook docking solution – Turn your notebook into a desktop.
Part No:
1GB – KT292AA
2GB – KT293AA
4GB – KT294AA
•Protect your investment with certified and warranted HP Memory.
•Maximise system performance by reducing bottlenecks caused by
memory-intensive applications.
• Faster start-up times with fewer delays during routine operations.
•More cost effective than upgrading the processor or adding a hard
drive.
•Thoroughly tested and qualified ensuring the highest reliability for your HP notebook.
Case – Stylish protection for your notebook.
HP Basic Backpack
Part No: AM863AA
• The HP Basic Backpack is great for both students and business professionals and offers practical features such as a cellphone pocket and an MP3 pocket with a pass-through for headphones.
Security options – Keeping your data and notebook safe.
HP/Kensington Security Cable Lock
Part No: PC766A
Power button with LED indicator
Adaptor solution – Power and charge your battery simultaneously.
QuickLook 2 button
HP 65W Smart AC Adapter
Part No: ED494AA
Touchpad with scroll zone
HP 90W Smart AC Adapter
Media Card Reader
Part No: ED495AA
Wireless switch with LED indicator
Left view
Many ways to stay connected
Right view
Kensington Lock slot
A brand new business style
The HP ProBook 4410s Notebook PC boasts a sleek
design that packs an array of features normally reserved
for more expensive notebooks. Available in a new
glossy noir or merlot* finish.
Up to 2.8 GHz – the new Intel Core™2
Duo processors
®
Experience new levels of system responsiveness when
running multiple applications and smarter battery
performance designed to help extend mobility.
New sleek and maintenance-free keyboard
Widescreen HD display with LED backlit
The keyboard’s innovative layout provides a visually
open and spacious keyboard with keys raised from the
surface, resulting in fewer places for dirt and dust to
gather, making it easy to clean.
With the low-profile 14.0-inch diagonal, 16:9 HD
LED-backlit display, you get improved brightness, contrast
and clarity from a screen that is more power-efficient than
regular LCD screens.
* Varies by country.
RJ-45 Network jack
Battery charging
LED indicator
Part No: AJ652AA
HP 90W Smart Auto/Truck Adapter
Part No: ED493AA
USB 2.0 ports
Optical drive
VGA connector
Front view
USB 2.0 ports
Power connector
HP External USB CD/DVD R/RW
Part No: FS943AA#UUF
Back view
HP Mobile Audio Speakers
Part No: FS944AA
Microphone jack
Storage solutions – Expand your business storage capability.
• Portable design, using USB 2.0 connection to ensure the best performance.
• Highly efficient power saving mode, slim size, and ultra light weight.
• Up to 4.7 GB of DVD data storage capacity (up to 8.5 GB double
layer DVDs).
Audio solution – Bring your multimedia presentation to life.
Hard drive activity LED indicator
Headphone jack
• Convenient and portable power source for use in a mobile environment.
• Energy-efficient power adapters designed to draw minimal power.
• Integrated surge protector to guard against power fluctuations.
• Recharges notebook battery when attached to electrical outlet and/
or automobile power charger.
• Notebooks with discrete graphics require 90W adapters.
HP 90W Smart Combo Adapter
Optional RJ-11/modem port
HDMI port
ExpressCard/34 slot
Wi-Fi CERTIFIED™ WLAN and integrated Bluetooth®
wireless technology keep you in touch with the Internet
and your peripherals.
• Physically secure your notebook and docking accessories.
• Can be used as a regular cable security lock for any notebook PC.
• Lightweight and portable.
• USB powered.
• Carrying case included.
The HP ProBook 4410s Notebook PC is a slim, stylishly designed
and affordable compact notebook. Choose between stunning
merlot or glossy noir , for an unbeatable combination of features,
*
HP ProBook 4410s
Notebook PC
Specifications
Operating system
Preinstalled:
Genuine Windows Vista® Business 321 Genuine Windows Vista® Home Basic 321 Genuine Windows Vista® Business 32 downgrade to Genuine Windows® XP Professional1,2 SuSE Linux
Red Flag Linux (PRC only)
Free DOS
Processor3 Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
Intel®
functionality and value. And with an easy to view 14-inch
diagonal HD widescreen LED-backlit display and a new spacious
and user-friendly full-sized keyboard, the HP ProBook 4410s makes
an excellent computing choice.
* Varies by country.
HP PROFESSIONAL
INNOVATIONS
Built to protect
In the event that you have forgotten your password, HP SpareKey
will identify you by asking 3 personal questions. That makes
secure access simple yet convenient. Other security features
include, HP File Sanitizer that permanently destroys selected files
and folders, so that it cannot be easily recovered.
Built to simplify
HP QuickLook 2 provides read capability of email, calendar,
task and contact information in seconds at the touch of a button,
without having to boot up.
Built to last
Reduce risk of corruption or loss of data and protect your
notebook from system failures caused by operational shock with
HP 3D DriveGuard.
Smart moves begin with an HP ProBook.
HP recommends Windows Vista® Business.
Supported:
Genuine Windows Vista® Business 641
Certified:
SuSe Linux Enterprise Desktop 10
Core™2 Duo Processor T9600 (2.80 GHz, 6 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor P8700 (2.53 GHz, 3 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor P8600 (2.40 GHz, 3 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor P7370 (2.00 GHz, 3 MB L2 cache, 1066 MHz FSB)
Core™2 Duo Processor T6570 (2.10 GHz, 2 MB L2 cache, 800 MHz FSB)
Core™2 Duo Processor T5870 (2.00 GHz, 2 MB L2 cache, 800 MHz FSB)
Celeron Dual Core Processor T1700 (1.83 GHz, 1 MB L2 cache, 667 MHz FSB)
Celeron Dual Core Processor T1600 (1.66 GHz, 1 MB L2 cache, 667 MHz FSB)
Celeron Processor 900 (2.20 GHz, 1 MB L2 cache, 800 MHz FSB)
Celeron Processor 585 (2.16 GHz, 1 MB L2 cache, 667 MHz FSB)
Chipset
Mobile Intel® PM45 Express Chipset with ICHM9, Mobile Intel® GM45 Express Chipset with ICHM9, Mobile Intel® GL40 Express Chipset
Memory
DDR2 SDRAM, 800 MHz, two slots supporting dual channel memory11, 1024/2048/4096MB SODIMMs, up to 8192MB total
(Up to 4096MB max on GL40 Chipset)12
Internal storage13
160/250/320/500GB 5400rpm SATA HDD, HP 3D DriveGuard
Removable storage
Fixed 12.7mm SATA optical drive: Blu-ray ROM DVD+/-RW SuperMulti DL LightScribe Drive5, DVD+/-RW SuperMulti DL LightScribe Drive, DVD-ROM Drive4
Display6 14.0-inch diagonal LED-backlit HD Anti-glare (1366 x 768), 14.0-inch diagonal LED-backlit HD BrightView (1366 x 768)
Graphics9
Mobile Intel® Graphic Media Accelerator 4500MHD
Audio/Visual
High Definition Audio, stereo speakers, stereo headphone/line out, stereo microphone in, integrated microphone, integrated 2 MP webcam (optional)
Wireless support7,8
Intel 802.11 a/b/g/n draft 2.0, a/b/g, Broadcom 802.11 a/b/g/n draft 2.0, b/g; Bluetooth® 2.0, HP Wireless Assistant
Communications14
Marvell Ethernet (10/100/1000 NIC), optional 56K v.92 modem
Expansion slots
1 ExpressCard/34 slot, Media Card Reader
Ports and connectors
4 USB 2.0 ports, VGA, HDMI, stereo microphone in, stereo headphone/line out, power connector, RJ-11/modem, RJ-45/ethernet
Input device
Full-sized keyboard, touchpad with scroll zone
Software
HP Recovery Manager, HP Help and Support Center, HP ProtectTools Security Manager, HP Quick Launch Buttons Software, HP QuickLook 210, HP Wireless Assistant,
HP 3D DriveGuard, Microsoft® Office Ready with 60-day Office Professional 2007 Trial Edition (select models), PDF Complete SE, Intervideo WinDVD - DVD Player,
Roxio Creator Business (for optional DVD+/-RW and DVD/CDRW drives), McAfee Total Protection17, Synaptics Touchpad Driver, Microsoft® Windows® Live Messenger
(select models), Webcam Software (with optional 2 MP webcam)
Security
HP ProtectTools Security Manager, One Step Login, Enhanced Pre-Boot Security, HP SpareKey, HP Disk Sanitizer14, Configuration Control Hardware, Memory Change
Alert, Ownership Tag, Setup Password, Power-On Password, HP 3D DriveGuard, Kensington Lock Slot, HP Privacy Filter16
Dimension (h x w x d)
1.22 (at front) x 13.2 x 9.15 in / 31.0 (at front) x 336.0 x 232.4 mm
Weight
Starting at: 5.0lb / 2.27kg (weight will vary by configuration)
Power
6-cell (47WHr) Lithium-Ion battery, 65W HP Smart AC Adapter, HP Fast Charge15
Expansion solutions16
HP USB 2.0 Docking Station, HP Basic Adjustable Stand, HP Essential USB Port Replicator
Warranty
Limited 3-year, 1year and 90-day warranty options available depending on country, 1-year limited warranty on primary battery
SLIM.
STYLISH.
ALL BUSINESS.
Footnote
1. Certain Windows Vista® product features require advanced or additional hardware. See www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and www.microsoft.com/windowsvista/getready/capable.mspx for details.
Windows Vista® Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit www.windowsvista.com/upgradeadvisor.
2. Windows Vista® Business disk may be included for future upgrade if desired. To qualify for this downgrade an end user must be a business (including governmental or educational institutions) and is expected to order at least
25 customer systems with the same custom image.
3. Dual Core is a technology designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology 64-bit computing on Intel architecture requires a
computer system with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation) without an Intel 64 architecture-enabled BIOS.
Performance will vary depending on your hardware and software configurations.
4. Double-layer discs can store more data than single layer discs. However, double-layer discs burned with this drive may not be compatible with many existing single-layer DVD drives and players. LightScribe media required and sold separately.
LightScribe creates a monochrome image. Note that DVD-RAM cannot read or write to 2.6GB single-sided/5.2GB double-sided – version 1.0 media. Don’t copy copy-right protected materials.
5. As Blu-Ray is a new format containing new technologies, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute defects in the product. Flawless playback on all systems
is not guaranteed. HD-DVD movies cannot be played on this device. Support for the Blu-Ray DVD drive requires Mobile Intel® GM45 Express chipset and Windows Vista®.
6. HD content required to view HD images
7. Wireless access point and Internet service is required and is not included. Availability of public wireless access points limited
8. The specifications for the 802.11n WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices.
9. Shared video memory (UMA) uses part of the total system memory for video performance. System memory dedicated to video performance is not available for other use by programs.
10.HP QuickLook 2 is accessible when the notebook is off or in hibernation from Windows® XP or Vista®. Timings may vary depending on the system configuration.
11. Dual Channel is only supported when the system is configured with DDR2 symmetric memory (i.e. 2x256).
12.32-bit operating systems can only address ~3.2GB. To fully utilizing memory configurations of 4GB or more, a 64-bit operating system is required.
13.For hard drives, GB = 1 billion bytes. Actual formatted capacity is less. Up to 8GB (for XP) and 10GB (for Vista®) of system disk is reserved for the system recovery software.
14.The term “10/100/1000” or “Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1GB/sec.
For high speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.
15.HP Fast Charge recharges your primary battery up to 90% within 90 minutes when the system is off.
16.Sold separately or purchased as an optional feature.
17. 60 day trial period. Internet access required to receive updates. First update included. Subscription required for updates.
HP QuickLook 2
HP ProBook 4410s
Notebook PC
© 2009 Hewlett-Packard Development Company, L.P. All rights reserved. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein. Bluetooth is a trademark of its proprietor and used by Hewlett-Packard Company under license. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. Windows Vista is
either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Intel and Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the
U.S. and other countries.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
