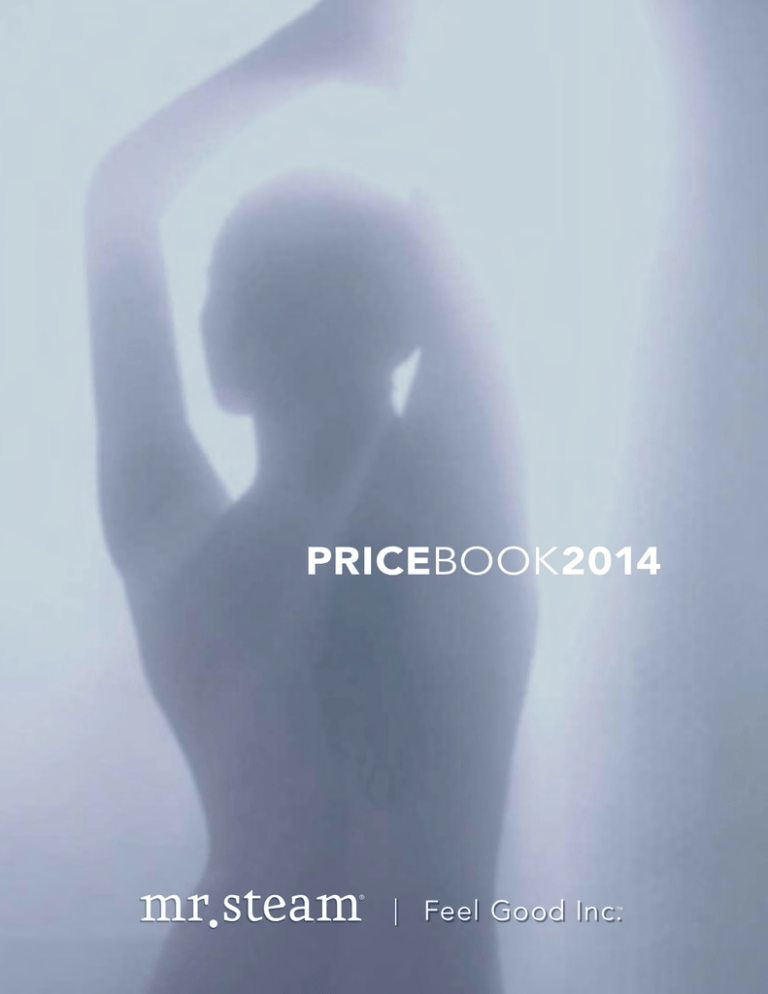

PRICEBOOK2014

PRICEBOOK2014

PRICEBOOK2014 mr

.

steam

®

Feel Good Inc.

I

Mr.Steam

®

has been in the “Feel Good” business since 1917, as a manufacturer of top-quality steam systems and products that promote unsurpassed spa experiences. Mr.Steam is a champion of

SteamTherapy

®

–a company committed to making wellness a way of life

®

.

mr

.

steam

Feel Good Inc.

®

Steam Baths

l

Steam Bath Rooms

l

Towel Warmers

l

Accessories

TaBle OF COnTenTS

ReSIdenTIal STeaMBaThS

2 Introducing iSteam

®

2.0

3 Introducing the iSteam

® app

4-5 Introducing audioWizard

2.0

6 SmartSizing

Virtual Spa Sizing Chart

7 Residential Steambaths / Specification Chart

8 idream

Package

9 iButler

and Butler Packages

®

10 iSpa and Spa Packages

®

ChromaSound Spa Package

11 Steambath Controls

12-13 Individual Components

14 aroma Oils

15-17 Tala

Bath & Body

TOWel WaRMeRS

18-19 Broadway Collection

20 Broadway Collection

accessories

21 Fifth avenue Collection

22-23 Metro Collection

[email protected]

®

SySTeMS

24-25 [email protected]

®

Systems

CT day SPa STeaMBaTh SySTeMS

26-27 CT Sizing & Selection

28 CT day Spa Systems / Spa Package

29 CT day Spa accessories

COMMeRCIal STeaMBaTh SySTeMS

30-31 CU Commercial Steam Generators

32 CU Sizing & Selection Chart / Packages

33 CU Optional Operating equipment

34 additional CU accessories

STeaM ROOMS FaBRICaTIOn SySTeMS

35 Introducing FORM

Systems

36-37 Features & Benefits

38 Sizing

COMPany InFORMaTIOn

39 Worldwide Installations

40 Top Reasons to Choose Mr.Steam

41 Contact Info & Warranties

New iSteam

®

2.0 with WiFi

iSteam, the revolutionary touch screen control, now has WiFi, allowing for seamless connectivity. The iSteam’s feature-rich menu offers an unsurpassed, customizable user experience. along with a stunning graphic interface and bespoke design by renowned Industrial designer david Farrage, the iSteam evokes elegance.

With a swipe of the finger, the iSteam’s intuitive touch screen navigation allows the user to effortlessly control temperature, time, aroma infusion, chroma lighting, audio entertainment, and overall steam system functionality.

iSteam’s accessories include optional chromatic lighting and aromatic infusers to transform your shower into a luxurious spa.

The iSteam’s auto-fading display incorporates autoStart

, a real-time clock, ambient temperature, and individual user preference settings.

With an optional Bluetooth

®

audioWizard

System, it can pair up to eight devices and four in-shower speakers.

iSteam employs an exclusive three-tier safety system with pass code protection, temperature limit and time-out features built to ISO-9001: 2008 certified processes.

designed and manufactured with the highest quality fused silica glass and polished cast aluminum, iSteam is designed with a Moisture

Protection of IP-67 and is capable of full water immersion of up to three feet.

iSteam

®

with steamhead

available in black or white

$1,300

mrsteam.com Sales & Support: east Coast 1 800 76 Steam (800-767-8326) West Coast 1 800 72 Steam (800-727-8326)

iSteam

®

Introducing the

iSteam

®

Mobile App

The iSteam

®

control now has an app!

The full-function smart phone app that lets you control your steam room’s

WiFi-enabled iSteam system from your local WiFi network.

The app is compatible with apple

®

iOS 4.0 and up; android

2.0 and up, and lets you:

• Customize user preferences

• Enable user presets

• Monitor current room temperature

• Set steam session duration and temperature

• Adjust ChromaSteam

®

and aromaSteam

• Access your entire music library and internet radio

• Have full control of your music with record artwork and song selection

iSteam

®

Mobile app available at the app Store and Google Play

Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326) mrsteam.com

Introducing

AudioWizard

2.0

4

mrsteam.com Sales & Support: east Coast 1 800 76 Steam (800-767-8326) West Coast 1 800 72 Steam (800-727-8326)

Tune-in to

AudioWizard

Mr.Steam’s audioWizard

2.0 with its sleek and stylized redesign is ready to amplify your surroundings.

The speakers can be mounted in any indoor or outdoor space, including a steam room or shower.

With the integrated Bluetooth

®

audio Streaming System, the audioWizard can pair up to eight Bluetooth-enabled devices, a subwoofer and an auxiliary input.

• Compatible with all smart devices and smart phones equipped with

Bluetooth

®

• The AudioWizard

allows you to stream music, store it on your smart device and enjoy it in the steam room/shower

• AudioWizard aluminum enclosure is beautiful enough to be easily installed on a wall or tabletop

• Includes an amplifier, power supply and back lit control

• Install up to four speakers, enabling sound output within the bathroom and throughout the house and outdoor spaces

• Seamlessly connect to a dedicated in-shower control, including the premier iSteam control for music management, including play/pause, last track, next track, mute, and volume

AudioWizard

Control

AudioWizard

with control*

$1,300

*available with iSteam

®

Control

See page 12

Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326) mrsteam.com

5

6

SmartSizing

virtualspa.mrsteam.com

Virtual Spa

GeneRaTOR SIze MaTTeRS

MaTeRIalS MaTTeR

Steambath Sizing & Selection

Measure length, width & height of the steam enclosure (in feet):

Multiply the length ___ x Width____ x height ____

ROOM VOlUMe =

Construction Materials:

For natural stones: natural marble, stone, shale, glass block or concrete

Add 110%

For ceramic, porcelain or glass tile on cement board or mortar bed

Add 40%

For illustrative purposes only

Mr.Steam’s new Virtual Spa System

makes it fast and easy for website visitors to create and envision a personalized home steam shower.

SmartSizing

takes you from the required generator and control components to optional accessories such as Chroma-

Therapy, aromaTherapy, MusicTherapy, wall seats and towel warmers–all in a simple, step-by-step guided process.

Ceilings above 8 ft. Add 15%

(per foot, max 10 ft.) add all figures above to obtain the Total Room Volume required

TOTal VOlUMe

Compare your TOTal ROOM VOlUMe to the Specification Chart on Page 7.

Our Virtual Spa System takes you from

Bathroom to Spa in Five Simple Steps

1. enter your shower dimensions and room material for automatic generator and room selection.

2. Choose a control package and finish that’s perfect for your home.

3. Select a spa package or items à la carte.

4. Opt for accessories that will enhance your steam experience.

5. add a towel warmer and your virtual spa tour is complete.

you can print or email your selections, find a dealer or call us. Technical specs will automatically be sent out with your email. It’s that simple!

IMPORTANT:

Please refer to the MS generator Installation,

Operation and Maintenance Manual for complete information. Refer to the manual before specifying, installing or using a MS generator. Failure to do so may result in improper installation or personal injury. The MS generator Installation, Operation and Maintenance Manual is available online at www.mrsteam.com or by calling 1-800-76-STeaM .

Mr.Steam

Eco-friendly

Products

• Mr.Steam’s most popular model uses only one gallon of water per 20-minute session.

• Made from 100% recyclable stainless steel inside and out.

[email protected] Fingertips

Start working smarter and leave your pencil at home. Mr.Steam’s mobile sizing app works with most smart devices and smart phones. http://isizing.mrsteam.com

mrsteam.com Sales & Support: east Coast 1 800 76 Steam (800-767-8326) West Coast 1 800 72 Steam (800-727-8326)

• Single operating platform does it all, from the most basic installation to the most elaborate

• Easy to add plug & play spa therapy accessories

• Built with corrosion resistant and recyclable stainless steel

• Can be installed up to 60 feet from the steam shower

• Limited Lifetime Warranty

• Designed, engineered and assembled in the USA

The Intelligent Steambath

• Exclusive microprocessor operating system

• Precision temperature probe for optimal steam room temperature control

• Removable and serviceable industrial grade heating elements

• AutoSteam ® standard with every generator for even flow of steam

All drawings for illustrative purposes only

MS 9 0 E - 4 0 0 E

14.5” l

x 14.75” h

x 6.75” d

R E SI D EN T I A L S T E A M GEN ER ATO R S SPECIFI C AT I O N CH A R T

Model No.

Total Room Amps Wire

Volume

(cu.ft.)

KW 240/1PH Size

Water Usage

Gallons

††

Shipping

Wt. (lbs)

**

List

Price

**

MS90E

MS150E up to 100

101-150

MS225E 151-225

MS400E 226-360

5

6

7.5

9

21

25

32

38

10

8

8

8

0.67 30

$1575

0.80 30 $2050

MS SUpER 1-3E

17” l

x 18.5” h

x 7.9” d

MS SUPER 1E

MS SUPER 2E

MS SUPER 3E

361-475

476-575

576-675

MS SUPER 4E 676-875

MS SUPER 5E 876-1075

MS SUPER 6E 1076-1275

10

12

15

20

24

30

42

50

63

84

100

125

8

6

4

8

6

4

1.4

4.0

40

80

$2850

$6600

MS SUpER 4 - 6E

17” l

x 18.5” h

x 7.9” d x

2

OptiOnal EXpRESS StEaM

®

MS EXpRESS $300

Suitable for all MS Models, Express Steam lets you steam in seconds. This option includes a built-in heating element to make steam quickly while still draining water safely to meet Code requirements. MS Super 4-6E requires two MS EXPRESS

all Mr.Steam MS Models are cUl us

listed and CE and nOM approved.

‡ Wire size (AWG) based on minimum 90˚C rated THHN copper conductors.

Refer to the National Electrical Code for other types of conductors.

*Dimensions are for generator only, without AutoFlush ® or plumbing features.

**Shipping weight & pricing are for generator only, without control or steamhead.

†† Water usage based on 20 minutes of operation .

iMpORtant:

All MS Generators available in 240v/1PH, 208v/1PH and other voltages/phases.

Add B1 to Model No. for the 208V/1PH. Add C1 suffix to Model No. for the 240V/1PH.

See Mr.Steam Installation and Operation Manual for complete dimensional and installation information.

MS SUPER 4E includes two MS SUPER 1E steam generators, and require either iSteam or iTempoPlus Control, and two matching steamheads.

MS SUPER 5E includes two MS SUPER 2E steam generators, and require either iSteam or iTempoPlus Control, and two matching steamheads.

MS SUPER 6E includes two MS SUPER 3E steam generators, and require either iSteam or iTempoPlus Control, and two matching steamheads.

Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326)

Designed, Engineered and Assembled in the

U S A

mrsteam.com

7

iDreamPackage

8

For illustrative purposes only

Innovation, luxury, and ease are at the core of Mr.Steam’s flagship idream Package

. all the components of an exquisite steam system combine to create the convenience and comfort of a home spa retreat.

available in Black or White Finishes

iDREAM PACKAGE

For models MS 90e to MS Super 3e i n c l u d e s

:

(1) iSteam

®

Touch Control with app

(1) Matching iSteam

®

Steamhead

(1) iGenie

®

Remote Control

(1) autoFlush

®

(1) drip Pan

(1) aromaSteam Oil delivery System

(1) ChromaSteam

®

Mood lighting System

(1) audioWizard

2.0 Sound System

(1) Pair of Square In-shower

MusicTherapy

®

Speakers

(1) liter eucalyptus Oil

iDream Black

$5,700

iDream White $5,700

iDREAM PACKAGE

2

For model MS Super 4e to MS Super 6e

Same as idream Package with an additional iSteam Steamhead, autoFlush, and drip Pan.

iDream2 Black $6,500

iDream2 White $6,500 additional oils sold separately. See page 14 for a selection of Mr.Steam aromaSteam oils.

mrsteam.com Sales & Support: east Coast 1 800 76 Steam (800-767-8326) West Coast 1 800 72 Steam (800-727-8326)

iButlerPackage

Innovation comes to the already convenient and affordable Butler

Package. Including the new iSteam

®

2.0 touch control and iGenie

® remote, the iButler

package provides enhanced convenience and savings. available in black or white.

iBUTLER

PACKAGE

For models MS 90e to MS SUPeR 3e

Includes:

(1) iSteam

®

2.0 Touch Control

(1) iSteam

®

Steamhead

(1) iGenie

®

Remote Control

(1) autoFlush

®

(1) drip Pan

iButler Black $2,100

iButler White $2,100

iBUTLER 2 PACKAGE

For models MS SUPeR 4e to MS SUPeR 6e

Same as iButler Package 1 with an additional iSteam Steamhead, autoFlush and drip Pan

iButler2 Black $2,725

iButler2 White $2,725

ButlerPackage

™ everything you need to get started in one convenient — and discounted — package.

BUTLER PACKAGE 1 Round

For models MS 90e to MS SUPeR 3e

Includes:

(1) iTempoPlus

®

Control

(1) aromaSteam Steamhead

(1) autoFlush

®

(1) iGenie

®

Remote Control

(white)

(1) drip Pan

MS BUTLER 1RD

PC Polished Chrome designer Finishes

$1775

$1875

Select finish below and add code.

BUTLER PACKAGE 2 Round

For models MS SUPeR 4e to MS SUPeR 6e

BUTLER PACKAGE 1 Square

For models MS 90e to MS SUPeR 3e

Includes:

(1) iTempoPlus

®

Control

(1) aromaSteam Steamhead

(1) autoFlush

®

(1) iGenie

®

Remote Control

(white)

(1) drip Pan

MS BUTLER 1SQ

PC Polished Chrome

$1775

designer Finishes

$1875

Select finish below and add code.

Same as iButler Package with an additional aromaSteam Steamhead, autoFlush, and drip Pan.

MS BUTLER 2RD

PC Polished Chrome

$2400

designer Finishes

$2550

Select finish below and add code.

BUTLER PACKAGE 2 Square

For models MS SUPeR 4e to MS SUPeR 6e

Same as iButler Package with an additional aromaSteam Steamhead, autoFlush, and drip Pan.

MS BUTLER 2SQ

PC Polished Chrome

$2400 designer Finishes

$2550

Select finish below and add code.

Codes for Finishes: PC Polished Chrome BN Brushed nickel PN Polished nickel ORB Oil-Rubbed Bronze BB Brushed Bronze PB Polished Brass RAW Custom Plating

Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326) mrsteam.com

9

10

iSpaPackage

&

SpaPackage

® experience the full benefits of

SteamTherapy

ChromaSteam

®

® with AromaSteam,

and MusicTherapy all in one convenient package.

®

Spa Package

®

For use with iTempoPlus

®

Controls complete with

:

(1) aromaSteam Oil delivery System

(1) ChromaSteam

®

Mood lighting System

(1) audioWizard ™ 2.0 Sound System

with independent control (black)

(1) Pair of In-shower MusicTherapy

®

speakers in

Square

(SQ)

or Round

(Rd)

Black

(BK)

or White

(Wh)

MS SPA SQ BK $3700

MS SPA SQ WH $3700

MS SPA RD BK $3700

MS SPA RD WH $3700

iSpa Package

For use with iSteam ® Controls complete with

:

(1) aromaSteam Oil delivery System

(1) ChromaSteam

®

Mood lighting System

(1) audioWizard ™ 2.0 Sound System

(1) Pair of Square In-shower MusicTherapy

Speakers Black

(BK)

or White

(Wh)

MS iSPA BK $3500

MS iSPA WH $3500

See page 12-13 for complete descriptions of the aromaSteam, ChromaSteam & audioWizard Systems.

See page 14 for a selection of Mr.Steam

®

aromaSteam oils.

nOTeS: ChromaSteam System is for mood lighting only and not a substitute for general illumination.

The aromaSteam System is controlled directly from the iSteam and iTempoPlus control keypad.

Chroma

Convert any Shower into a light and Sound Spa

complete with

:

(1) ChromaSteam ® Mood lighting System

(1) audioWizard ™ 2.0 Sound System with Independent Control

(available in black only)

(1) Pair of In-Shower Speakers;

Square (SQ) or Round (Rd), Black (BK) or White (Wh)

MS ChromaSound SQ BK $2400

MS ChromaSound SQ WH $2400

MS ChromaSound RD BK $2400

MS ChromaSound RD WH $2400

See page for 12 for complete description of the ChromaSteam

®

and audioWizard

Systems. and MusicTherapy

®

Speakers.

SteambathControls

iSteam

®

2.0 with matching Steamhead

• Intuitive in-shower Touch Control with built-in WiFi

• Standard features include AutoStart

programming, ambient temperature, and user preferences settings

• Designed to IP-67 standard for water immersion of up to three feet

• Free app available at iTunes store and Google Play

Suitable for all e Series generators

iSteam-White $1300 iSteam-Black $1300

30-foot cable included

Optional 60-foot cable 104117-60 $175

iTempo Plus

®

• Flush mounted in-shower control

• Matching AromaSteam steamhead

• Digital display lets you program time, and temperature

• Stores two preferred time and temperature settings

• Integrated On/Off feature for AromaSteam and ChromaSteam

®

• Can be switched on with optional wireless iGenie

®

Remote Control

• Includes digital clock

• Suitable for all E Series generators

Square MS ITPlUS SQ

Round MS ITPlUS RD

Polished Chrome

$950

designer Finishes

$1050

Select finish below & add code

30-foot cable included

Optional 60-foot cable 103990-60 $105

iGenie

®

Remote Control

• A simple, one-touch wireless connection to the steam generating system

• Automated, water resistant remote control has a color ring status indicator

• With Magnetic docking

• iGenie initiates steam shower preheating up to 100 feet away

• Works with iSteam

®

, iTempo

®

and iTempoPlus

®

Controls, with an interface module of up to 100 feet

iGenie-White $450 iGenie-Black $450

iTempo

®

• Flush mounted in-shower control

• Round or Square with matching aromaSteam steamhead

• Digital temperature display

• Standard 60 Minute Timer

• Operates with optional wireless iGenie ® Remote Control

Square MS ITEMPO SQ

Round MS ITEMPO RD

Polished Chrome designer Finishes

$550

$650

Select finish below & add code

30-foot cable included

Optional 60-foot cable 103990-60 $105

Codes for Finishes: PC Polished Chrome BN Brushed nickel PN Polished nickel ORB Oil-Rubbed Bronze BB Brushed Bronze PB Polished Brass RAW Custom Plating

Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326) mrsteam.com

11

IndividualComponents

12

AudioWizard

2.0

Sound System for any shower

• Sleek and beautiful aluminum enclosure

• Installs on a wall or tabletops

• Compatible with popular audio sources including smart devices and smart phones equipped with Bluetooth

®

• Easy Plug & Play, can install up to four speakers

• c

ETL us

listed

• 9.25” l

x 7.5” w

x 3.625” h

MS AUDIOWIZ2.0-BK $1300

(with AW control in black)

MS AUDIOWIZ2.0-iS $1200

(works with iSteam control)

ChromaSteam

®

System

For use in any shower

• Ceiling mounted, vapor-sealed

• Energy efficient 72 LED module

• Includes a built-in low-voltage transformer

• Integral color selection microprocessor

• Can be controlled from a dedicated wall switch

or directly from iSteam or iTempoPlus

®

Control keypad

• c

ETLus listed

• 14.5” l

x 4.875” w

x 4.5” h

MS CHROMA-72 $950

IMPORTANT: ChromaSteam System is for mood lighting only and is not a substitute for general illumination.

MusicTherapy

®

Speakers

For use in any shower

• Designed for use inside or outside the shower enclosure

• Ceiling, flush mount

• Square: 7.06” x 7.06”

Round: 6.5” diameter

• Two-way marine-grade speakers,

polypropylene cones

• ABS frames with white/black

powder-coated grills.

• Suitable for most sources of

audio input

• Rated 60W peak power with full

range sound.

• 30 watts RMS and 8 ohm impedance

MS SPEAKERS SQ-BK $250

MS SPEAKERS RD-BK $250

MS SPEAKERS SQ-WH $250

MS SPEAKERS RD-WH $250

Shower Speakers, now available in a rich black finish.

HomeWizard

System

• Allows easy connection to new or existing home automation system

• Comes complete with interface module and iGenie

®

FOB

• Suitable for all E Series generators

HOMEWIZARD $625

New Recessed Light

• Halogen

®

PAR 30, 75 Watt lamp

• Recessed designed ceiling mount for architectural integration

• Designed for steam room moisture and temperature levels

• 120 Volt

• c

ETLus listed

• Energy efficient, less expensive to operate

• 14” l

x 12.5” w

x 8.25” h

• Non Ic Rated

MS LIGHT-RCS-SS $850

MS LIGHT-RCS-NKL $950 mrsteam.com Sales & Support: east Coast 1 800 76 Steam (800-767-8326) West Coast 1 800 72 Steam (800-727-8326)

IndividualComponents

SEDIMENT-RICH WATER

autoFlush

®

Clean Steam… every Time

®

• Hands-free activation

• Introduces fresh water before each steambath and drains the generator tank following use

• Proven performance, lengthens system life

• Simple plug-and-play connection

• Quiet operation

• cUlus listed

MS81500E $425

aromaSteam Steamhead

• even distribution of steam while remaining cool to the touch

• No field assembly required

• No moving parts

• Integrated aromatherapy oil well for in-shower use

iSteam Steamhead

104104 WH

White

$160

104104 BlK

Black

$160 iTempo Steamhead

103937

(Round) or

104040

(Square)

Polished Chrome

$130

designer Finishes

$210

Select finish below & add code

drip Pan

• 3/4” nPT drain copper fitting

• Suitable for all residential generators

• Dimensions: 25” l

x 9” w

x 1.5” d

MS 103867 $130

MS light

• MS light designed for wall or ceiling mounting

• Robust, surface-mounted architectural light

• Aluminum body in two designer finishes

• cULus wet-locations listed

• Fluorescent compact bulb

• Energy Star rated, ADA

• 8.5” diameter x 4” height

MS lIGHT

Brushed Chrome BC

Oil Rubbed Bronze ORB

$700

$700

aromaSteam System

• Electronic oil delivery system evenly infuses scent into the steam line

• Complete with hoses, fittings and oil atomizer

• Controlled directly from an iSteam

®

or iTempoPlus

®

Control

• AromaSteam System oils available in 1-liter bottles

(See page 14)

MS AROMA $1300

Wall-Mounted Seat

• Teak wood, beautifully finished and sealed

• Seat drops for use, folds for storage

• Dimensions 19.75” w x 13.25” d x 1.25” h

• Rated max 250 lbs.

MS WAll SEAT

Polished Chrome PC

Brushed nickel Bn

Oil Rubbed Bronze ORB

$525

$575

$575

Chlorine Filter System

• Reduces Chlorine in water

• Connects to standard 3/8” NPT plumbing

• Meets NSF/ANSI Standard 42

• Easy in-line installation

• Replace activated charcoal filter cartridge yearly

• See-through cartridge for easy maintenance

• Dimensions: 13” h

x 5.5” d

MS FIlTER $250

MS CARTRIDGE $ 50

Codes for Finishes: PC Polished Chrome BN Brushed nickel PN Polished nickel ORB Oil-Rubbed Bronze BB Brushed Bronze PB Polished Brass RAW Custom Plating

Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326) mrsteam.com

13

AromaOils

add scent to enhance your

SteamTherapy

®

experience... aromatherapy has been used for centuries to revitalize the bathing experience. Our earthfriendly organic essential oils contain an alcoholfree coconut emulsifier and can be used with aromaSteam steam heads and the Broadway and the Metro Collection Towel Warmers.

14

Mr.Steam essential Oils

• Pure essential oils made from natural

plant extracts

• 10 ml bottles with integral dropper

• Also available as a 5-pack, one of each fragrance

103810

eucalyptus

$30

103813 energizing Mint $30

103811 lavender $30

103814

Breathe $30

103812

evergreen $30

MS ESSENTIAl 5 5-Pack $125

Chakra Blend essential Oils

• Formulated to work in harmony with

ChromaSteam

®

System color settings

• Made from organic plant and flower extracts

• 10 ml. bottles with integral dropper

• Also available as a 7-pack, one of each fragrance

104006 Red Vitality

$35

104010 Celestial Blue $35

104007 Invigorating Orange $35

104011 Mystic Indigo $35

104008 yellow awakening $35

104012 Violet nirvana $35

104009 Green harmony $35

MS CHAKRA7 7-Pack $175

aromaSteam Oils

For use with aromaSteam pump

• Available in one liter bottles

• Specially formulated & package for use with the aromaSteam System

MS OIl 1 eucalyptus

$100

MS OIl 2 lavender $100

MS OIl 3 evergreen $100

MS OIl 4 energizing Mint $100

MS OIl 5 Breathe $100 mrsteam.com Sales & Support: east Coast 1 800 76 STeaM (800-767-8326) West Coast 1 800 72 STeaM (800-727-8326)

The Arabic word “Hammam” literally translates as “bath” in English.

Turkish baths are direct descendants of the Hammam houses of ancient Rome and Byzantium that were dedicated to cleanse the body as well as a place to relax and to rejuvenate the mind and the soul.

Mr. Steam reproduces that ancient experience of bathing to the modern day bather through the soothing presence of scent, sound and color that is combined with steam’s revitalizing qualities.

To bring you back to the Hammam’s calming origins, Mr.Steam introduces Tala Bath & Body essential oils, clays, scrubs and soaps.

These products are derived from the Moroccan landscape and crafted locally. By using these products, bathers and wellness seekers transcend their demanding lifestyle to a time when relaxation and renewal were a part of every day.

Tala

, is a traditional Arabic word from the Berbers of Morocco’s Fez region. Its meaning is profound:

“A palm, a cool fountain spring, a beam of bright morning starlight...simply heavenly.”

Tala

Bath & Body.

Prepare yourself for a peek into the fountain of youth, and a blissful journey into the world of wellness.

M ade in

M orocco

16

TALA

Bath & Body

Tala

Bath & Body Bliss Set

All of Tala Bath & Body products were created from the purest materials, derived from luxurious Moroccan and Middle Eastern bathing traditions. The Tala Bath &

Body Bliss Kit brings all of Tala’s health and wellness products into one heavenly collection.

It’s your blissful spa day or routine in a box!

TA GIFT-SET $225

Tala

Bath & Body Argan Oil

Tala Bath & Body Argan Oil is the liquid gold of Morocco.

Traditionally used for generations by Berber women as a beauty tool, Tala Bath & Body Argan Oil works as a food for the skin. It nourishes, helping your skin combat environmental damage and other aging factors.

The nutrients in Tala Bath & Body Argan Oil are beneficial in soothing a wide variety of skin imperfections, wrinkles and crow’s feet. No matter how old you are, your skin can feel more youthful. 120 ml / 4.06 oz.

TA ARGAN-OIL $75

Tala

Bath & Body Face Cream

A daily care regimen specifically designed for dry and dehydrated skin, Tala Bath & Body Face Cream is enriched by the velvety texture of Argan oil. This cream can illuminate the skin, improve firmness and texture, and reduce signs of aging. As it banishes old skin and unveils a clear new layer, your appearance may be transformed: you may look radiantly younger, shining with a fresh, new glow. 100 ml /3.38 oz.

TA ARGAN-CREAM $50

Tala

Bath & Body Beldi Black Soap

Tala Bath & Body Beldi Black Soap is an integral part of the traditional

Hammam ritual, the first treatment applied in the public baths of Turkey and the Middle East. With the luxurious texture of butter, this paste of black olive pulp is rich in vitamin E.A rich mixture of oil and crushed olives, the soap is soaked in salt and potash. Tala

Bath & Body Beldi Black Soap prepares the skin for exfoliation by softening it, making it scrub-ready. As it exfoliates and moisturizes, it softens and nourishes the skin.

200 ml / 6.76 oz.

TA BElDI-SOAP $40

Tala

Bath & Body Moroccan Lava Clay

Tala Bath & Body Moroccan Lava Clay is unique to the underground mine shafts in Morocco’s Fez region. Exceptional in its quality and purity, this mineral-laden clay is meticulously extracted, dried, and transformed into a fine silken powder. When water is added, this powder forms a smectic clay that can absorb large amounts of liquid or oil from skin, and especially from our hair, removing excess oils while replacing them with healthful minerals.

This soapy Lava Clay is known for its exceptional quality, purity and exfoliating capability.

200 ml / 6.76 oz.

TA-ClAY $50

Tala

Exfoliating Glove

The Tala Bath & Body Hammam Glove is a high quality cotton stretch terry cuff exfoliating glove, designed specifically to remove dry or flaking skin and leave skin renewed and refreshed. The glove creates a rich lather while stimulating skin. The glove can be used to alleviate itchy dead skin as a cellulite massage tool or to help improve blood circulation.

TA EXF-GlOVE $10

17

AffordableIndulgence

18

W219 shown mrsteam.com Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326)

AffordableIndulgence

BRoADWAy CoLLECTIoN

Towel Warmers

• Quality, design and performance you expect from a Mr.Steam product

• Prices that fit even the tightest budget

• Sleek curved lines maximize surface heating area

• Simple elegance complements any bathroom

• cULus listed

W216

20”h x 15.75”w x 4.375”d

100 Watts 120 Volts

Ship Weight: 23 lbs.

Polished Chrome

W216C PC $600

White

W216C WH $700

Oil-Rubbed Bronze

W216C ORB $700

W228

28”h x 20”w x 4.25”d

400 Watts 120 Volts

Ship Weight: 30 lbs.

Polished Chrome

W228C PC $900

White

W228C WH $1000

Oil-Rubbed Bronze

W228C ORB $1000

W219

20”h x 20”w x 4.25”d

200 Watts 120 Volts

Ship Weight: 24 lbs.

Polished Chrome

W219C PC $700

White

W219C WH $800

Oil-Rubbed Bronze

W219C ORB $800

W236

36”h x 20”w x 4.25”d

400 Watts 120 Volts

Ship Weight: 37 lbs.

Polished Chrome

W236C PC $1000

White

W236C WH $1100

Oil-Rubbed Bronze

W236C ORB $1100

W248

48”h x 20”w x 4.25”d

400 Watts 120 Volts

Ship Weight: 45 lbs.

Polished Chrome

W248C PC $1100

White

W248C WH $1200

Oil-Rubbed Bronze

W248C ORB $1200

a Mr.Steam

®

exclusive:

Built In Aromatherapy Oil Well

For added luxury, we’ve integrated a small well into the

Towel Warmer to heat Mr.Steam’s aromatherapy essential oils.

See page 14 for Mr.Steam’s selection of aromaSteam essential oils.

Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326) mrsteam.com

19

BROadWay COlleCTIOn

Accessories

ValetPackage

®

PaCKaGed FOR COnVenIenCe & SaVInGS

Includes Robe Hook, Essential Oil and Digital Timer with Cover Plate

The Valet Package allows you to:

• Pre-program and preheat your towel warmer

• Enjoy an uplifting aromatherapy experience

• Wrap yourself in a warmed robe

WT VAlET PC Polished Chrome

$190

WT VAlET WH White $

210

WT VAlET ORB Oil-Rubbed Bronze $

210

eucalyptus oil included additional oils can be ordered, see page 14

20

Robe hook

Ideal for hanging and gently warming a robe.

RHOOK PC

RHOOK WH

RHOOK ORB

Polished Chrome

$45

White $55

Oil-Rubbed Bronze $55

Single Towel Rack*

For storing or draping facial or small towel.

not heated. extends 3” from towel warmer front.

SBRACK-CU PC

Polished Chrome

$85

SBRACK-CU WH White $95

SBRACK-CU ORB Oil-Rubbed Bronze $95

Triple Towel Rack*

Perfect for storing bath towels.

not heated. extends 8.5” from towel warmer front.

TBRACK-CU PC

Polished Chrome

$150

TBRACK-CU WH White $170

TBRACK-CU ORB Oil-Rubbed Bronze $170

* not for model W216 a V a I l a B l e F O R a l l T O W e l W a R M e R S cUlus listed

Digital Timer & Designer Finish Cover Plate

For a Warmed Towel, Ready When you Are

In-wall, 24-hour electronic timer for pre-start and automatic shut-off of the towel warmer at programmed times. White cover plate standard. designer finishes available. digital Timer

Polished Chrome

103588DIG

designer Finish Plate 103872D

$110

103872D-PC $55

$60

Select finish below & add code

Codes for Finishes: PC Polished Chrome WH White ORB Oil-Rubbed Bronze SSP Stainless Steel Polished SSB Stainless Steel Brushed PN Polished nickel BN Brushed nickel mrsteam.com Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326)

W634 shown

SuperiorStyle

• Highest quality 100% brass construction for efficient and superior heating

• Stainless steel heater for controlled, quiet operation

• Durable designer finishes

• cULus listed

F I F T H AV E N U E C O l l E C T I O N

Towel Warmers

W500

25” h x 22.5”w x 5”d

100 Watts, 120 Volts

Ship Weight: 20 lbs.

Pivoting Model

PC Polished Chrome $1150

PN Polished nickel

$1500

BN Brushed nickel

$1500

ORB Oil Rubbed Bronze $1500

W542

26”h x 23.75”w x 5.25”d

150 Watts, 120 Volts

Ship Weight: 25 lbs.

Can be installed with wiring box on left or right side.

PC Polished Chrome $1650

PN Polished nickel $2100

BN Brushed nickel $2100

ORB Oil Rubbed Bronze $2100

H542

(Hydronic)

29.4375”h x 21” w x 5”d

BTU/hR: 500 Weight: 20 lbs.

PC Polished Chrome $1100

BN Brushed nickel $1500

W634

27.5”h x 19.5”w x 7.25”d

200 Watts, 120 Volts

Ship Weight: 25 lbs.

PC Polished Chrome $2550

PN Polished nicke

$3300

BN Brushed nickel

$3300

ORB Oil Rubbed Bronze $3300

Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326) mrsteam.com

21

metro collection

Towel Warmers

• Elegant and durable, constructed from the highest quality stainless steel

• Available in Brushed or Polished finish

• Freestanding floor models allow for design flexibility

• Built-in Aromatherapy Oil Well standard

• cULus listed

22

W336

38.875”h x 20”w x 4.75”d / 133 Watts

120 Volts / Ship Weight: 14 lbs.

Stainless Steel Polished

W336 SSP $1050

W336 Cord SSP

(factory Installed Cord)

$1150

Stainless Steel Brushed

W336 SSB $1050

W336 Cord SSB

(factory Installed Cord)

$1150

mrsteam.com Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326)

W348

49.25”h x 20”w x 4.75”d

168 Watts 120 Volts

Ship Weight: 18 lbs.

Stainless Steel Polished

W348 SSP $1150

W348 Cord SSP $1250

(Factory Installed Cord)

Stainless Steel Brushed

W348 SSB $1150

W348 Cord SSB $1250

(Factory Installed Cord)

W336 shown all drawings for illustrative purposes only

Wall mounted towel warmers available with or without power cord

Built-in aromatherapy oil well dimensions are approximate. See Installation Manuals for exact measurements.

Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326)

W328

31.375”h x 20”w x 4.75”d

98 Watts 120 Volts

Ship Weight: 10 lbs.

Stainless Steel Polished

W328 SSP $950

W328 Cord SSP $1050

(Factory Installed Cord)

Stainless Steel Brushed

W328 SSB $950

W328 Cord SSB $1050

(Factory Installed Cord)

F328

34.375”h x 20”w x 11.75”d

98 Watts 120 Volts

Ship Weight: 10 lbs.

Standard with Cord

Includes On/OFF power switch

Stainless Steel Polished

F328 SSP $950

Stainless Steel Brushed

F328 SSB $950

mrsteam.com

23

[email protected]

®

all drawings for illustrative purposes only mrsteam.com Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326)

PB

[email protected]

®

Affordable Luxury for Small Spaces

For illustrative purposes only

• Ideal for starter homes and guest baths

• Ideal for ceramic, porcelain, glass tiles and acrylic enclosures

• Rugged stainless steel generator with electronic printed circuit board available in 208V or 240V 1 Phase

• Uses less than one gallon of water for a 20-minute session

• 23% more compact than standard MS steam generators

• Integral safety time-out feature

• Built-in drain valve

Designed, engineered and assembled in the USA

[email protected] Generator specification and sizing Chart

Total Room

Model No. Volume (cu.ft.)

SAH3000

SAH4500

SAH6000

60-75

76-110

111-150

Room

Size kW (240V/1

3' x 3'*

3' x 4'

3' x 5'

3.0

4.5

6.0

Amps ph

13

19

25

)

Wire

Size (per 20 min. session)

12

10

8

Water Usage

3

8 Gallon

1

2 Gallon

3

4 Gallon

Budget-Friendly

List Price

$1275

$1375

$1475

*Acrylic/Fiberglass showers use SAH 3000 for 60-150 cu.ft. enclosures

Dimensions: 14

1

/

2

” l

x 14

7

/

8

” h

x 5

1

/

4

” d

• Shipping Weight: 25lbs

Included in Box:

SteamStart

20-minute In-Shower Control in Polished Chrome,

30-Foot Cable and Cooler-to-the-Touch Steamhead with Acrylic Shield

Designed, Engineered and Assembled in the

U S A

Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326) mrsteam.com

25

DAY SPA STeaM BaTh SySTeMS

For day spas, medical spas, hotels, destination resorts, spas & clubs

CHROMASTEAM

®

MUSICTHERAPY

®

iTEMPO PlUS

®

CONTROl

Temperature

Sensor

Steamhead

SteamStop

AUTOFlUSH

®

AROMASTEAM

SEDIMENT-RICH WATER

Mr.Steam

®

pioneered the CT day Spa Series of light commercial steam room products. now, Mr.Steam CT Club Therapy

®

day Spa Steambath Systems provide spaceconscious spa facilities with high performance, low maintenance steam room solutions.

Constructed of 100% recyclable stainless steel inside and out, Mr.Steam CT Day Spa steam generators combine safety and aesthetics with reliability.

26

all drawings for illustrative purposes only.

mrsteam.com Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326)

Provides space-conscious spa facilities with high performance, low maintenance steam room solutions.

S e l e C T I n G T h e

R I G h T

C T d ay S Pa

G e n e R aTO R :

CT SIZING CHART

1. Measure length, width & height of the steam enclosure (in feet):

Multiply the length ___ x Width____ x height ____

ROOM VOlUMe =

2. Construction materials:

For natural stones: Add 110% natural marble, stone, shale, glass block or concrete.

For ceramic or porcelain tile Add 40% on cement board or mortar bed.

Ceilings above 8 ft Add 15%

(per foot, max 10 feet)

3. add all figures above to obtain the Total Room Volume required

TOTal VOlUMe

Compare your TOTal adJUSTed ROOM VOlUMe to the Specification Chart on page 13 and select the appropriate model.

Mr.Steam makes it easy to determine which commercial system is right for your location.

Choose a CT day Spa Steam System if ...

• Steam room will be in operation less than 6 hours a day.

• Steam room is designed to accommodate up to

2 people at a time.

• Steam room does not exceed 675 cu. ft.

Compactly designed for functionality and durability, CT generators install easily in most service closets, storage areas, or similar dry, heated locations. The CT day

Spa Series comes complete with Mr.Steam’s iTempoPlus

®

control, aromaSteam steamhead, autoFlush

®

, express Steam

®

, drip pan,

CT SteamStop

®

, and in-room temperature sensor. also available with Mr.Steam’s advanced iSteam

®

control. See page 28.

IMPORTANT:

• The guidelines for selecting the steambath generator are a recommendation only. not for multiple steam room applications.

• For steam rooms constructed of acrylic or synthetic materials, select next lower-rated CT model.

• The Total Volume allows for up to 60 feet of insulated steam line from the MS generator to the steam room. If the 60-feet line length is exceeded, consult with the factory.

• For instructions on installing, operating and maintaining the steam generator unit, accessories and aroma oils, refer to the Mr.Steam CT day Spa

Installation, Operation & Maintenance Manual

Pn - PUR100426. Visit mrsteam.com to download this Manual or call for a copy.

Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326) mrsteam.com

27

CT Day Spa System

CT day Spa steam generators are ideal for light commercial venues such as day spas and resort spas.

28

Generator Size: 17” l

x 18.5” h

x 7.875” d

(without autoFlush or plumbing features)

CT Day Spa Steam Generators Specification Chart list

Model No. Room Volume KW Amps V/PH Size

Gallons

††

Wt. (lbs)

**

Price

CT6e C1 up to 150 6 25 240/1 8 0.8

CT9e C1 151-360

CT12e C1 361-575 12 50 240/1 6

CT15e C1 576-675 15 63 240/1 4

STandaRd

CT PaCKaGe

9 38 240/1 8 1.2

CT DAY SPA SYSTEM

COMeS STandaRd WITh:

(1) iTempoPlus ® Control* in Polished Chrome

(1) Matching aromaSteam Steamhead*

with acrylic Shield (not shown)

(1) autoFlush

®

System

(1) express Steam

® factory installed

(not shown)

(1) drip Pan

(1) CT-SteamStop ™ (not shown)

(1) MSTS In-Room Temperature Sensor

(not shown)

CT PKG-PC Price included in chart above

*available in designer finishes.

Additional $100

See codes below

60 $3900

60

CT PaCKaGe iSTeaM

$4250

NOTES: all CT Generators available in 240v/1Ph,

208V/1Ph and other voltages/phases

‡ Wire Size (aWG) based on minimum 90° C Thhn insulation for copper conductors

†† Water usage based on 20-minute steambathing session

**Shipping weight and pricing are for generator, control and steamhead

IMPORTANT: all Models must use iTempoPlus control and CT-SteamStop. all

Mr.Steam CT units are cUlus listed and Ce and nOM approved. See Mr.Steam Installation and Operation Manual for dimensional and installation information. Refer to PUR 100426.

neW COnTROl UPGRade OPTIOn

CT-PACKAGE iSTEAM

(1) iSteam Control (Black or White)

(1) Matching iSteam Steamhead

(1) autoFlush ®

System

(1) express Steam

® factory installed

(not shown)

(1) drip Pan

(1) CT-SteamStop

(not shown)

(1) MSTS In-Room Temperature Sensor

(not shown)

See prices above and add

$350

CT-PKG-IS-WH

See prices above and add

$350

Designed, Engineered and Assembled in the

U S A

Day Spa Package

Providing the healing elements of light, scent and sound

With the CT day Spa Package, you can offer your clients the full mental, physical and emotional benefits associated with SteamTherapy

®

SPa PaCKaGe InClUdeS:

For all CT day Spa models

(1) audioWizard

2.0 Sound System

with Independent Control

(1) Pair of MusicTherapy

®

Speakers

(1) ChromaSteam

®

System

(1) aromaSteam System

Codes for Finishes: PC Polished Chrome BN Brushed nickel PN Polished nickel

ORB Oil-Rubbed Bronze BB Brushed Bronze PB Polished Brass RAW Custom Plating

CT SPA $3700

NOTE: ChromaSteam system is for mood lighting only and not a substitute for general illumination. aromaSteam oil is not included and must be selected separately.

Please select oils on page 29.

mrsteam.com Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326)

CT Day Spa Accessories

AudioWizard

2.0 Sound System

• Compatible with popular audio sources including smart devices and smart phones equipped with Bluetooth

®

wireless technology.

Send digital music files or internet radio from your smart device to the AudioWizard Sound System

• Includes a beautifully sleek water-proof in-shower room control

• Dimensions: 9.25” l

x 7.5” w

x 3.625” h

• cETLus listed

MS AUDIOWIZ 2.0 BK $1300

MusicTherapy

®

Speakers

• Designed for use inside or outside the shower enclosure

• Ceiling, flush mount

• Square: 7.06” x 7.06” Round: 6.5” diameter

• Two-way marine-grade speakers, polypropylene cones

• ABS frames with white/black powder-coated grills.

• Suitable for most sources of audio input

• Rated 60W peak power with full range sound.

• 30 watts RMS and 8 ohm impedance

• Available in White or Black.

AromaSteam System

• Electronic oil delivery system evenly infuses scent into steam

• Complete with hoses, fittings and oil atomizer

• Controlled directly from an iTempoPlus

®

or iSteam control

• cULus listed

IMPORTANT:

The AromaSteam pump operates only with the iTempoPlus ® control.

MS SPEAKERS SQ-BK $250 MS SPEAKERS RD-BK $250

MS SPEAKERS SQ-WH $250 MS SPEAKERS RD-WH $250

Mr.Steam

®

Essential Oils

• Pure essential oils made from natural plant extracts

• 10 ml bottles with integral dropper

• Available as a 5-pack, one of each fragrance

MS AROMA $1300

AromaSteam Oils

• 1 gallon container

• Specially formulated and packaged for use with the AromaSteam System

CU-EUCALYPTUS $140

CU-LAVENDER $140

103810 Eucalyptus

103811 Lavender

$30.00

$30.00

103812 Evergreen

$30.00

103813 Energizing Mint $30.00

103814 Breathe $30.00

MS Essential5 5-Pack $125.00

ChromaSteam

®

• Ceiling mounted, vapor-sealed

• Low-voltage 72 LED module

• Energy efficient

• Color selection microprocessor

• Controlled from a dedicated wall switch or directly from an iTempoPlus ® or iSteam ® Control

• c

ETL us

Listed

• 14.5” l

x 4.875” w

x 4.5” h

Chakra Blend Essential Oils

• Formulated to work in harmony with the

ChromaSteam

®

System’s color settings

• Made from organic plant and flower extracts

• 10 ml. bottles with integral dropper

• Available as a 7-pack, one of each fragrance

IMPORTANT:

ChromaSteam System is for mood lighting only and is not a substitute for general illumination. For Day Spa type installations only. Not for commercial steam rooms.

MS CHROMA-72 $950

MS Light

• 8.5”diameter x 4” height

• Robust, surface mounted architectural light

• Aluminum body in designer finishes

• cULus wet-locations listed with a fluorescent compact bulb

• Energy Star rated, ADA

MS LIGHT-BC

Brushed Chrome

$700

MS LIGHT-ORB

Oil Rubbed Bronze

$700

104006 Red Vitality $35.00

104007 Invigorating Orange $35.00

$35.00

104009 Green Harmony

104010 Celestial Blue

104011 Mystic Indigo

104012 Violet Nirvana

$35.00

$35.00

$35.00

$35.00

MS CHAKRA7 7-Pack $175.00

Wall-Mounted Seat

• Teak wood, beautifully finished and sealed

• Seat drops for use, folds for storage

• Dimensions: 19.75”w x 13.25”d x 1.25” h

• Rated max. 250 lbs.

MS WALL SEAT

PC Polished Chrome $525

BN Brushed Nickel

$575

ORB Oil Rubbed Bronze $575

New Recessed Light

• Recessed designed ceiling mount for architectural integration

• Designed for steam room moisture and temperature levels

• Non IC Rated

• Halogen

®

PAR 30, 75 Watt lamp, / 120 Volt

• Energy efficient, less expensive to operate

• 14” l

x 12.5” w

x 8.25” h

• c

ETLus listed

MS LIGHT-RCS-SS $850

MS LIGHT-RCS-NKL $950

Chlorine Filter System

• Reduces Chlorine in water

• Connects to standard 3/8” NPT plumbing

• Meets NSF/ANSI Standard 42

• Easy in-line installation

• Replace activated charcoal filter cartridge yearly

• See-through cartridge for easy maintenance

• Dimensions: 13” h

x 5.5” d

MS FILTER $250

MS CARTRIDGE $ 50

Sales & Support: East Coast 1 800 76 STEAM

(800-767-8326);

West Coast 1 800 72 STEAM

(800-727-8326)

mrsteam.com

29

30

SPECIFYING A CU COMMERCIAl

S T e a M B a T h G e n e R a T O R

Measure length, width & height in feet of the steam room:

Multiply the length ___x Width ____ x height =

STeaM ROOM VOlUMe cu.ft.

Compare your STeaM ROOM VOlUMe to the Specification Chart on page 32 and select the appropriate model.

For other than ceramic tile wall construction, consult factory.

eXaMPle 1

a steamroom 8’l x 10’w x 8’ h = 640 cu. ft. (volume).

Select the next size Mr.Steam

®

steambath generator model which exceeds the calculated room volume. In this example, specify Model CU750 with one digital 1

Control Package.

Stainless Steel CU Series

digital 1

TM

Temperature Control management sets desired steam room temperature, the system makes it happen

Stainless Steel

Jacket

STeaM-On-deMand

® maintains pre-selected temperatures utilizing minimum energy for maximum heat... instantly

2 steamrooms each 6’ l

x 10’ w

x 7’ h

x 2 = 840 cu. ft.

In this example specify Model CU1000 with two

(2) digital 1

Control Packages.

IMPORTANT: When specifying a CU Commercial

Steambath Generator the following is strongly recommended for best performance and user satisfaction.

1. One (1) CU steambath generator should service no more than two (2) steam rooms, each relatively similar in size and construction.

2. If two (2) steam rooms are serviced by one (1) CU generator, the combined resultant room volume of the two rooms should not exceed 1400 cubic feet

(39.6 cubic meters).

3. each room must be operated with the appropriate digital 1 Temperature Control System.

4. In all installations, the purchaser and/or owner/operator must consult with a designer, architect, and or consultant to assure the proper specification of the steambath generator and required and optional operating equipment.

For more detailed product information, please visit mrsteam.com for the Mr.Steam Commercial Installation,

Operation and Maintenance Manual Pn - PUR100376 .

aSMe and national

Board Registered

Pressure Vess el

Designed, Engineered and Assembled in the

U S A

long-life

Stainless Steel heating elements all drawings for illustrative purposes only note: Optional accessories shown mrsteam.com Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326)

MR.STEAM

®

CU COMMERCIAl STEAM SYSTEMS

FOR hOTelS, ReSORTS, SPaS & ClUBS

aROMaFlO

® aroma oil delivery system

Mr.Steam

® aROMa OIl

(1 gallon) automatic Blowdown Timer (not shown)

Provides 24 hour - 7 day automatic start-up, shutdown and autoFlush ® daily maintenance

operation reducing automatic Blowdown Valve (not shown) for programmed daily discharge of accumulated sediment all Mr.Steam CU generators are designed, assembled and inspected with one goal in mind — to provide consistent performance in commercial steam rooms and peace of mind for the owner/operator.

Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326) mrsteam.com

31

S Ta I n l e S S S T e e l

Commercial Steam Unit

for all model s

• Stainless steel jacket prolongs life of unit

• Carbon steel pressure vessel meets ASME and National

Board requirements for low-pressure operation

• Adherence to National and Local Codes, and cULus listed

32

Total Room Ship Wt. Shipping Dim. (in)

CU360

CU360

CU500

CU500

CU750

CU750

CU1000

Up to 360

Up to 360

361-500

361-500 1 12 200 36 26 43

501-750 3 18 200 36 26 43

501-750

751-1000

1

3

18

24

200

200

36

36

26

26

43

43

CU1000

CU1250

751-1000

1001-1250

CU1400 1251-1400

2501-3000

3001-4500

3

CU2000 1401-2000 3

CU2500 2001-2500 3

CU3000 3

3

1

3

3

1

3

9

9

12

24

30

36

48

60

72

108

200 36 26 43

200 36 26 43

200 36 26 43

200

200

200

300

300

320

525

36

36

36

37

37

37

47

26

26

26

31

31

31

37

43

43

43

52

52

52

74

list

Price

$4800

$4900

$5400

$5600

$5750

$5950

$7400

$7600

$8000

$8100

$9900

$10,200

$10,350

$15,950

all CU Commercial Steambath Generators are available in 208/3, 240/3 and 480/3 and other Voltage/Phase combinations.

Only models CU360–CU1000 are available in 208/1 and 240/1 as priced. Specify Voltage/Phase when ordering.

Models CU360–CU1400 measure 20”l x 20”W x 38”h. Models CU2000–CU3000 measure 33”l x 24”W x 44”h.

Model CU4500 measures 34”l x 28”W x 59”h. dimensions are approximate.

CU1000 shown

Designed, Engineered and Assembled in the

U S A

Digital 1

Control Package

The digital 1 Control maintains selected room temperature and features a high limit shutoff. Provides Steam-On-demand® for consistent room temperature comfort and control.

IMPORTANT:

• If more than one room is being serviced by one CU generator, the appropriate CU1digital1 or CU2-digital1 Control Package must be specified for eaCh room

• See Page 30 for sizing and selection guidelines for CU generators

• Note all “IMPORTANT” guidelines on page 30 when one CU generator is servicing more than one room

Price

CU1-D1 CU360 - CU1400 $1050

Includes one (1) digital 1 Control, one (1) aromaSteam steamhead with acrylic shield and one (1) Steam Solenoid Valve

CU2-D1 CU2000 - CU4500 $1500

Includes one (1) digital 1 Control, two (2) aromaSteam steamheads with acrylic shields and two (2) Steam Solenoid Valves digital 1 Control

Commercial

Steamhead

Steam

Solenoid Valve mrsteam.com Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326)

Optional Operating Equipment

automatic Blowdown System

• Programmable hour/day time cycle

• Boiler-grade heavy duty motorized ball valve

• Industrial steam-rated 100 PSIG ball valve with Teflon

®

Seals

• Plated brass valve body with stainless steel ball and stem

• Owner/operator schedules start-up/ shut-down, and blowdown times from generator

CU81600-1 CU360–1400 $1500

CU81600-2 CU2000–3000 $1600

CU81600-3 CU4500 $1800

aromaFlo

®

aroma Oil delivery System

• Electronic oil delivery system evenly infuses scent into steam

• Complete with electronic metering control pump, hoses and oil atomizer

• AromaSteam System oils available in one gallon bottles

(see below)

• 120v/60hz / cULus listed

CU AROMAFlO $1050

aromaFlo

®

aroma Oils

• One gallon bottle

• Specially formulated and packaged aroma oils

for use with aromaFlo System

CU-EUCAlYPTUS $140

CU-lAVENDER $140

aSMe Code Blowdown Tank

• Essential equipment for automatic blowdown maintenance where building codes require maximum 140° F discharge

• Blowdown separators built to ASME Section VIII

• Separators reduce temperature and pressure to ensure a safe discharge of water and sludge

• Designed to utilize a water seal at the outlet which reduces outlet temperature to a safe discharge level

• No electrical hookup required

• Complete with temperature gauge, pressure gauge, and gauge glass assembly

• ASME Code UM vessel

Product no. Generator Model dimensions

CU-BDT-ASME36 CU360–2000 32”h x 12” dia.

CU-BDT-ASME42 CU2500-4500 42”h x 18” dia.

Shipping Wt. Price

125 lbs. $2600

230 lbs. $380

0

Sales & Support: east Coast 1 800 76 STeaM

(800-767-8326);

West Coast 1 800 72 STeaM

(800-727-8326)

mrsteam.com

33

34

Additional

CU Accessories

CU Recessed Light

Recessed light designed for ceiling mount and for steam room durabillity. Halogen

®

75 Watt, PAR 30 lamp.

120 Volt. c

ETL us

listing for steam room use.

14” l

x 12.5” w

x 8.25” h

CU LIGHT-RCS-SS $850

CU LIGHT-RCS-NKL $950

CU Light

Robust, surface-mounted architectural light.

Aluminum body finished in brushed chrome. cULus wet-locations listed with a fluorescent compact bulb. Energy Star rated, ADA.

8.5”diameter x 4” height.

CU LIGHT $700

MusicTherapy

®

Speakers

• Designed for use inside or outside the shower enclosure

• Ceiling, flush mount

• Square: 7.06” x 7.06” Round: 6.5” diameter

• Two-way marine-grade speakers, polypropylene cones

• ABS frames with white/black powder-coated grills.

• Suitable for most sources of audio input

• Rated 60W peak power with full range sound.

• 30 watts RMS and 8 ohm impedance

• Available in White or Black.

MS SPEAKERS SQ-BK $250

MS SPEAKERS RD-BK $250

MS SPEAKERS SQ-WH

MS SPEAKERS RD-WH

$250

$250

Digital Timer

30-minute digital timer provides guests in your steam room with accurate, easy-touse-timers so that they can safely time their steam sessions up to 30 minutes. Only for installation outside the steam room. Must use with Steam Vent pn

104072.

CU 99216DIG $525

Mechanical Timer

Mechanical Timer - 30-minute mechanical timer. Only for installation outside the steam room. cULus listed. Must use with Steam

Vent pn

104072.

CU 99216B $80

CU Alarm

Audible alarm sounds if the steam room maximum set temperature is exceeded.

Suitable for use with Digital 1. Choose from multiple alarm sounds. Mounting in a standard 4x4 electrical box for installation. cULus listed for general signaling, indoors and outdoors.

IMPORTANT: Do not install the CU Alarm inside the steam room.

NOTE: Pressing the CU Steam Stop will cause the alarm to sound.

CU ALARM $210

CU AromaSteam

Steamhead

3/4” NPT, 100% solid brass, complete with polycarbonate cover. Available in polished chrome. Included with a Digital 1 ™

Temperature Control System.

Order only if additional or replacement steamhead is required.

CU 103984 PC $145

Auxiliary Manual Reset

Low Water Cutoff

Many states (including GA, IA, MA, NC,

TX, WA) and local jurisdictions require an independent, manual reset, second lowwater cutoff control as standard. Verify code requirements in your area.

CU 81017MR $625

CU SteamStop

®

Emergency stop switch to electronically shut down the steam generator. Multiple Steam

Stop switches can be used with one steam generator. Water-resistant, IP-69K rating suitable for use inside or outside the steam room.

CU STEAMSTOP $375

Transformer 1/4 KVA

Provides control circuit voltage where 120V is inaccessible or costly to provide. cULus listed.

CU 99331C 240V $475

CU 99331F 480V $525

mrsteam.com Sales & Support: East Coast 1 800 76 STEAM (800-767-8326) West Coast 1 800 72 STEAM (800-727-8326)

Prestigious Mr.Steam

®

Installations

The BellaGIO hOTel las Vegas, nV

BlISS SPaS WORldWIde

BReaKeRS hOTel

Palm Beach, Fl

MelIa CanCUn

BeaCh & SPa ReSORT

Cancun, Mexico

OlyMPIC ClUB

San Francisco, Ca

One 57 new york, ny

ReVel CaSInO atlantic City

The BROadMOOR hOTel

Colorado Springs, CO

CanyOn RanCh

Tucson, aR el dORadO hOTel

Santa Fe, nM

GRand FlORIdIan

ReSORT & SPa

Orlando, Fl la COSTa ReSORT

& SPa la Costa, Ca

The FOUR SeaSOnS hUalalaI ReSORT

Kona, hI

MandaRIn ORIenTal hOTel

Miami, Fl

MayO ClInIC

Rochester, Mn

The RITz-CaRlTOn ClUB aspen, CO

The RITz-CaRlTOn

Montreal, Canada

The RITz-CaRlTOn new york, ny

ST. ReGIS

Monarch Beach, Ca

The Wynn hOTel las Vegas nV

W hOTel ReSIdenCeS austin, TX

WeSTIn SIRay Bay

& SPa

Phuket, Thailand

“after trying a number of home steam therapy systems, I have found Mr.Steam products to be the best.

They allow me to enjoy steam therapy regularly, just the way

I like it.”

– andrew Weil,

m

.

d

.

author, “8 Weeks to Optimum health”

Mr.Steam

®

has been in the

Feel Good

since 1917 business

(How does something like that happen you ask?)

Experience: Mr.Steam is the Feel Good brand of Sussman automatic Corporation with its more than 95 years of experience designing and manufacturing steam generating equipment for industrial applications.

Customer Service: at Mr.Steam, we proudly provide the industry’s best customer service, with fully staffed offices on both coasts. Customer care representatives are on hand to answer any questions, Monday through Friday, 8 a.m. to 7 p.m. eST.

Reliability: all Mr.Steam products are made of serviceable industrial grade components. Some systems feature state-of-theart self-diagnostic tools.

Sustainability: Mr.Steam is environmentally friendly. all home generators utilize recyclable stainless steel and use water and energy efficiently.

Quality Certified: all residential generators are USa and Canadian Ul listed, Ce and nOM certified.

Smart Sizing: Use smart iSizing™ from your mobile phone or our online Virtual Spa System to per- fectly size your steam generator, ensuring your installation will provide the ideal steam experience.

Simple language Warranty: Our comprehensive warranty is written in plain english and is easily available online or from a customer care representative.

36

P R O U D lY M A N U F A C T U R I N G P R O D U C T S I N T H E U S A S I N C E 1 9 1 7

AIA

D P H

A

DECORATIVE PLUMBING &

HARDWARE ASSOCI AT ION

Mr.Steam

®

products have one or more of the following recognized approvals:

Built to aSMe B & PV

COde

City of los angeles approved deSIGn eXCellenCe

ConnectwithUs

We’d love to hear from you.

Let us keep you up to date on all things steam, and of course, make sure you’re feeling good. Because when you feel good, we feel good.

Web: Visit mrsteam.com for additional information including product specifications, locating a dealer, sizing calculator technical downloads and other resources.

Call Monday - Friday: 8 a.m. to 7 p.m. EST

East Coast 1.800.76.Steam (767-8326)

West Coast 1.800.72.Steam (727-8326)

Worldwide 1.718.937.4500

Email: [email protected]

facebook.com/mrsteamtherapy twitter.com/steamtherapy pinterest.com/steamtherapy youtube.com/steamtherapy houzz.com/mr-steam

Fax 24/7: East Coast 718.472.3256

West Coast 310.216.2944

Mr.Steam Warranties

Mr.Steam has manufactured quality products for more than 95 years. For details about our “plain English” product warranties, including the Mr.Steam Residential Generators Limited Lifetime Warranty, visit mrsteam.com.

Prices quoted are FOB Long Island City, NY. Prices and product specifications are subject to change without notice.

Handling charges apply to equipment, accessories and part orders.

S ussman-Automatic Corporation ® • 43 -20 34th Street. Long Island City, NY 11101 tel

800 76 STEAM fax

718 472 3256

9410 S. LaCienega Blvd. Inglewood, CA 90301 tel

800 72 STEAM fax

310 216 2944 • [email protected] • mrsteam.com

©2014 Sussman-Automatic Corporation. MR.STEAM and des., AromaFlo, AutoFlush, AutoSteam, Butler Package, Clean Steam...Every Time, ChromaSteam, Club Therapy, Digital 1, Express Steam, Feel

Good Inc., Form, iGenie, iSizing, iSpa Package, iSteam, Making Wellness a Way of Life, MusicTherapy, Spa Package, Steam Genie, Steam-on-Demand, [email protected], SteamTherapy, Sussman, Valet

Package and Virtual Spa System are registered trademarks of Sussman-Automatic Corporation. AudioWizard, AutoStart, Broadway Collection, ChromaSound Package, Fifth Avenue Collection, iButler, iTempo, iTempoPlus, HomeWizard,Metro Collection, The Intelligent Steambath, Smart Sizing, SteamStart, SteamStop and Tala are trademarks of Sussman-Automatic Corporation. pur

100409 12.14-2

www.mrsteam.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
