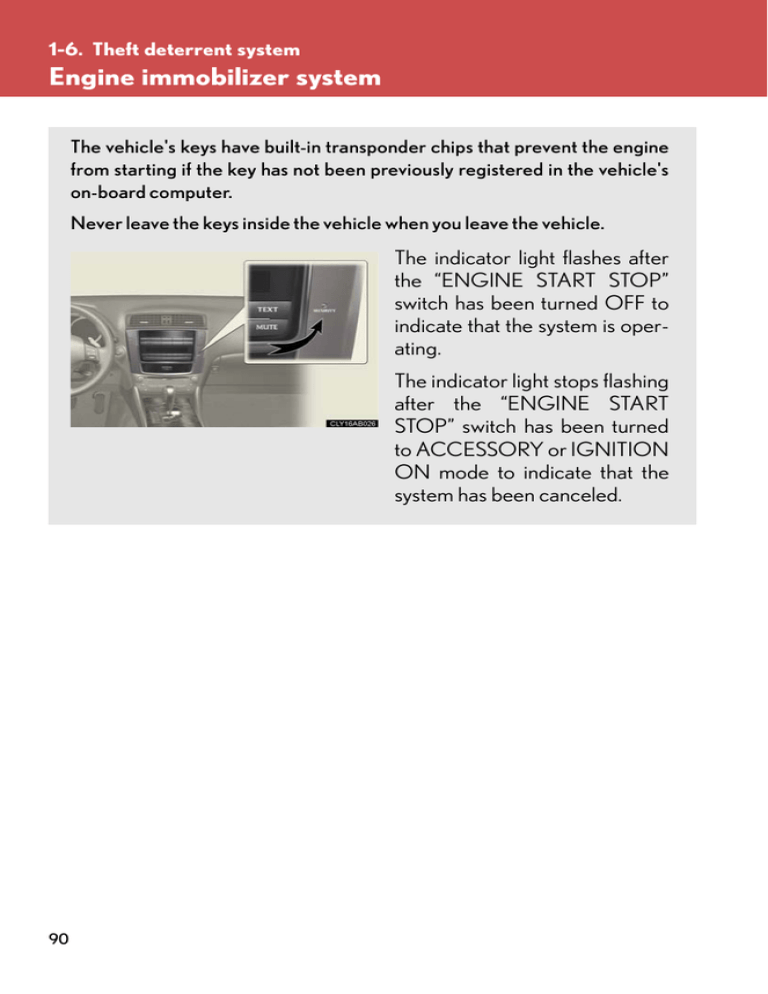

Engine immobilizer system

Engine immobilizer system
1-6. Theft deterrent system
Engine immobilizer system
The vehicle's keys have built-in transponder chips that prevent the engine
from starting if the key has not been previously registered in the vehicle's
on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the “ENGINE START STOP”
switch has been turned OFF to
indicate that the system is operating.
The indicator light stops flashing
after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNITION
ON mode to indicate that the
system has been canceled.
90
1-6. Theft deterrent system
■ System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
1
● If the grip portion of the key is in contact with a metallic object
Before driving
● If the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle
■ Certifications for the engine immobilizer system
For vehicles sold in the U.S.A.
FCC ID: NI4TMIMB-1
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
NOTE:
L’utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes:
(1) il ne doit pas produire de brouillage, et (2) l’utilisateur du dispositif doit être prêt
à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
91
1-6. Theft deterrent system
Alarm
The system sounds the alarm and flashes the lights when forcible entry is
detected.
■ Triggering of the alarm
The alarm is triggered in the following situations when the alarm is
set:
● A locked door or trunk is unlocked or opened in any way other
than using the entry function, wireless remote door lock function
or mechanical key.
● The hood is opened.
■ Setting the alarm system
Close the doors, trunk and
hood, and lock all doors.
The system will be set automatically after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■ Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
● Unlock the doors or trunk.
● Turn the “ENGINE START STOP” switch to ACCESSORY or
IGNITION ON mode or start the engine by pressing the
“ENGINE START STOP” switch. (The alarm will be deactivated
or stopped after a few seconds.)
92
1-6. Theft deterrent system
■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Points to remember before locking the doors
To prevent unexpected triggering of the alarm, make sure to check the following
before locking the doors:
● The windows and moon roof are closed before the alarm is set.
● The alarm system does not guarantee absolute security. To help prevent theft,
make sure to check that no valuables and so forth are left in the vehicle.
■ Unexpected triggering of the alarm
In the following situations, perform an operation that will deactivate or stop the
alarm (→P. 92)
● When someone without a key is left in the
vehicle and the doors are locked.
When a door, the trunk or hood is opened
from inside the vehicle, the alarm may be
triggered.
● When the battery is recharged or
replaced, due to battery discharge and so
forth, after locking the doors.
The alarm may be activated when the hood
is opened and the battery is reconnected
after the mechanical key has been used to
unlock the doors.
■ When the battery is disconnected
Be sure to deactivate the alarm system.
If the battery is disconnected before deactivating the alarm system, the alarm may
be triggered when the battery is reconnected.
93
Before driving
● Nobody is in the vehicle.
1
1-6. Theft deterrent system
■ Alarm-operated door lock
● When the alarm is operating, the doors are locked automatically to prevent
intruders.
● Do not leave the key inside the vehicle when the alarm is operating, and make
sure the key is not inside the vehicle when recharging or replacing the battery.
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
94
1-6. Theft deterrent system
Theft prevention labels (U.S.A.)
These labels are attached to the
vehicle to reduce vehicle theft
by facilitating the tracing and
recovery of parts from stolen
vehicles. Do not remove under
penalty of law.
1
Before driving
95
