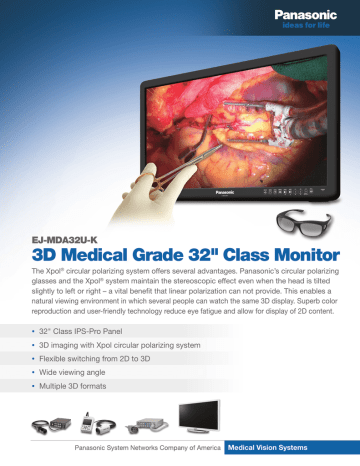

3D Medical Grade 32" Class Monitor

3D Medical Grade 32" Class Monitor
EJ-MDA32U-K
3D Medical Grade 32" Class Monitor
The Xpol® circular polarizing system offers several advantages. Panasonic’s circular polarizing
glasses and the Xpol® system maintain the stereoscopic effect even when the head is tilted
slightly to left or right – a vital benefit that linear polarization can not provide. This enables a
natural viewing environment in which several people can watch the same 3D display. Superb color
reproduction and user-friendly technology reduce eye fatigue and allow for display of 2D content.
•
32" Class IPS-Pro Panel
•
3D imaging with Xpol circular polarizing system
•
Flexible switching from 2D to 3D
•
Wide viewing angle
•
Multiple 3D formats
Medical Vision Systems
Specifications
EJ-MDA32U-K 3D Medical Grade 32" Monitor
LCD Panel
31.5 inch (16:9 aspect ratio)
Screen Dimensions
698mm (27.5") (W) x 393mm (15.5") (H)
801 mm (31.5") (Diagonal)
Number of pixels
2,073,600 pixels (1,920 x 1,080)
Viewing angle
Horizontal: 178° Vertical: 178° (at 2D mode CR>10)
Contrast
1200:1
Luminance
340cd/m2 (typ.)
Number of colors
16.77 Million (8bit)
Display modes
Dual display mode / Triple display mode / PIP and POP modes / Mirror image mode
Video input /output
BNC
S Video input / output
4 pin mini DIN
SDI input / output
X2 (HD-SDI/SDI) BNC
DVI-D input / output
X2 (DVI-1 supports HDCP) DVI-D
RGB/YPBPR input / output
BNC
HD15 input
Mini D-sub15 pin
RS-232C
D-sub 9 pin
GPI input
D-sub 9 pin
Power
AC100-120/200-240V±10% 50/60Hz
Dimensions (WxHxD)
30.6" x 18.6" x 4.5" (776 mm x 473 mm x 114 mm)
Weight
Approx. 34.2lbs (15.5 kg)
Mounting
200mm VESA
Certification
UL60601-1, IEC60601-1-2, FCC 47 CFR Part 15, Subpart B Class A
3D Technology
Xpol filter polarization system using the 3D polarized eyewear
(Xpol is a registered trademark of ARISAWA Mfg.Co.,Ltd.)
3D Format
SIMUL (Dual input) / Line-by-Line / Side-by-Side / Top & Bottom
3D Input
HD-SDI / DVI-D
3D viewer
3D polarized eyewear (3 pairs supplied)
panasonic.com/visionsystems
*Xpol® is a registered trademark of Arisawa Manufacturing.
Medical Vision Systems
Panasonic System Networks Company
Panasonic Corporation of North America
3 Panasonic Way, Secaucus, NJ 07094
201-271-3254
panasonic.com/visionsystems
Panasonic Technical Support
1-800-528-6747
Design and specifications subject
to change without notice.
Dec 2011
