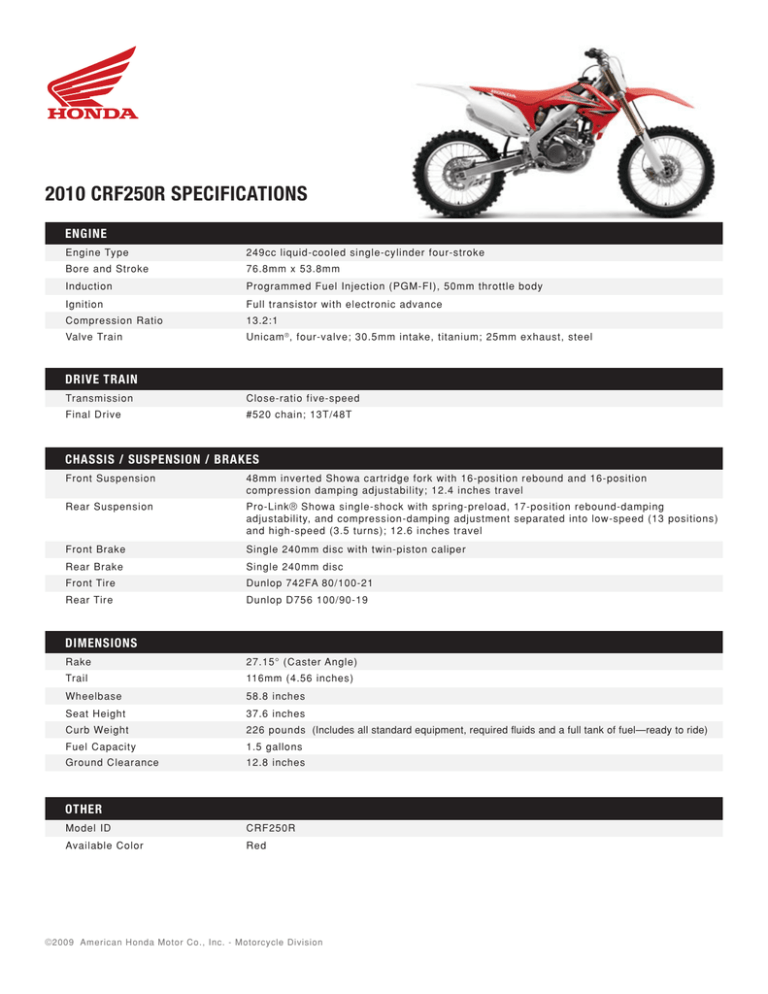

2010 CRF250R SPECIFICATIONS
ENGINE
Engine Type
249cc liquid-cooled single-cylinder four-stroke
Bore and Stroke
76.8mm x 53.8mm
Induction
Programmed Fuel Injection (PGM-FI), 50mm throttle body
Ignition
Full transistor with electronic advance
Compression Ratio
13.2:1
Valve Train
Unicam ® , four-valve; 30.5mm intake, titanium; 25mm exhaust, steel
DRIVE TRAIN
Transmission
Close-ratio five-speed
Final Drive
#520 chain; 13T/48T
CHASSIS / SUSPENSION / BRAKES
Front Suspension
48mm inverted Showa cartridge fork with 16-position rebound and 16-position
compression damping adjustability; 12.4 inches travel
Rear Suspension
Pro-Link® Showa single-shock with spring-preload, 17-position rebound-damping
adjustability, and compression-damping adjustment separated into low-speed (13 positions)
and high-speed (3.5 turns); 12.6 inches travel
Front Brake
Single 240mm disc with twin-piston caliper
Rear Brake
Single 240mm disc
Front Tire
Dunlop 742FA 80/100-21
Rear Tire
Dunlop D756 100/90-19
DIMENSIONS
Rake
27.15° (Caster Angle)
Trail
116mm (4.56 inches)
Wheelbase
58.8 inches
Seat Height
37.6 inches
Curb Weight
226 pounds (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity
1.5 gallons
Ground Clearance
12.8 inches
OTHER
Model ID
CRF250R
Available Color
Red
©2009 American Honda Motor Co., Inc. - Motorcycle Division
