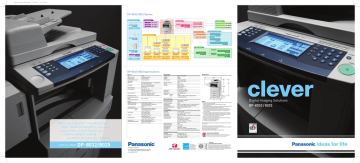

Digital Imaging Solutions DP-8032 / 8025

Digital Imaging Solutions DP-8032 / 8025
8032us_outside_EN_FA.pdf
11/25/08
2:21:35 PM
DP-8032 / 8025 Options
Paper Exit Options
Exit Tray (Inner)
DA-XN201
Consumables
Fax Options
Toner
DQ-TU15E
Developer
DQ-Z120E
Drum
DQ-H060E
Other Option
Flash Memory
G3 Fax
DA-FG300
Inner Tray
Key Counter Cable Kit DA-KH200
8MB UE-410048F
HDD / Software Options
64MB DA-SM64B
Hard Disk Drive Unit
Accounting
System
128MB DA-SM28B
Exit Tray (Outer)
DA-SC06
Data Security Kit
Image Memory Options
Paper Feed Options
DA-UC200
Platen Cover
4MB UE-410047F
Fax Communication
Board
DA-XT200
DA-HD31
Accounting Software
DA-WA10
3rd Paper Tray
Panasonic Document Distribution System
DA-DS305
DA-WR10
3rd Paper Tray
DA-DS305
4th Paper Tray
3rd Paper Tray
DA-DS306
DA-DS305
Printer Options
PCL Printer
1-Bin Finisher
DA-FS300
Staple
FQ-SS32
(Standard with the optional Finisher)
Printer Controller Module
Deluxe Stand (High) Deluxe Stand (Low) Base Plate with Casters
DADA310R
2-Paper Tray
Configuration
DADA320R
DADA230
3-Paper Tray
Configuration
4-Paper Tray
Configuration
DADA320R
DADA230
2-Paper Tray
Configuration
3-Paper Tray
Configuration
Full-Height Configurations
Outer Tray
DA-PC302
Expansion Board
Deluxe Stand (Low) Base Plate with Casters
PS/PCL Printer
DA-EM600F
Multi-Page Description
Language Controller Module
DA-MC302
Wheelchair Configurations
DP-8032 / 8025 Specifications
General
Type
Copy / Print Process
Developing Process
Inverting Automatic Document
Feeder (Option)
Paper Feed
Paper Weight
Power Requirements
Power Consumption
Warm-up Time (20°C)
Dimensions (W x D x H)*1
(Excluding optional equipment)
Weight*1
(Excluding optional equipment)
Printer
Network Printer Interface
Communication Protocol
Local Printer Interface
Printer Language (Standard)
(Option)
Printing Speed*2
Paper Size
Printing Resolution
Space-saving inner tray design and
high-speed productivity supported by
superior ease of use, enhanced
networking versatility
and enhanced security features.
THE ALL NEW
DP-8032/8025
Printer Memory
Compatible Operating Systems
Digital Copier
Desktop
Laser Indirect Electrostatic
Dry Dual Component
50 sheets (Letter, 20 lb)
First Copy Time
Resolution
Gray Scale
Multi Copy Speed*2
Std. 550-sheet paper tray unit x 2 + 50-sheet bypass
Max. 2,250 sheets with option
Paper Tray : 16 to 24 lb (60 to 90 g/m2)
Bypass: 15 to 35 lb (55 to 133 g/m2)
AC 120 V, 60 Hz
Max.: Less than 1.5 kW
Power saver mode: Approx. 28 W
Sleep mode: Approx. 18 W
Approx. 35 sec. (Main power switch ON)
Approx. 30 sec. (Power saver mode)
23.6" x 27.9" x 33.9"(597 mm x 707 mm x 860 mm)
Maximum Original Size
Copy Size
Copy Ratio
Approx. 181 lb (82 kg)
Ethernet 10Base-T/100Base-TX
TCP/IP (LPD [Port9100/RAW], SNMP, DHCP)
AppleTalk (PS), IPP (PCL, PS)
USB 1.1
Panasonic Printing System for Windows®
PCL 5e Emulation*3, PCL 6 Emulation*3
Adobe® PostScript®3™*4
Up to 32 ppm (DP-8032)
Up to 25 ppm (DP-8025)
Paper Tray: Ledger - Invoice
Bypass: Ledger - Invoice
1,200 dpi equivalent x 600 dpi (PCL, PS),
600 dpi x 600 dpi, 300 dpi x 300 dpi
50MB + 6 GB with optional HDD
Windows®Vista/XP/2000/Server 2003,
MacOS 8.6-10.5 (PS Only)*4
Zoom (variable)
Multiple Copy
Exposure Control
Sort Memory (Standard)
(Option)
Network Scanner
Network Scanner Interface
Communication Protocol
Maximum Scanning Size
Scanning Speed*5
Scanning Resolution
Compatible Operating Systems
Data Format
Dimensions
Approx. 4.5 sec. (Letter)
600 dpi
256 steps
Up to 32 cpm (DP-8032)
Up to 25 cpm (DP-8025)
Ledger
Ledger - Invoice
Enlargement (fixed)
200% 155% 129% 121%
Reduction (fixed)
79% 77% 65% 61% 50%
25-400 % (in 1% increments)
1 to 999, Automatic reset to 1
Text, Text/Photo, Photo
16 MB
Base Memory (16 MB) plus / 64 MB / 128 MB (max.144 MB)
12 GB (with optional HDD)
Ethernet 10Base-T/100Base-TX
TCP/IP (LPR, FTP)
Ledger
Approx. 32 opm (Originals per minute – Letter portrait with ADF)
150 dpi x 150 dpi, 300 dpi x 300 dpi, 600 dpi x 600 dpi
Windows® Vista/XP/2000/Server 2003
TIFF, PDF
G3 Fax (Option)
Compatibility
Modem Speed
Coding Scheme
Scanning Speed*5
Transmission Speed*6
Scanning Resolution
Maximum Original Size
Effective Scanning Width
Recording Resolution
Standard Memory*7
Optional Memory*7
Speed Dials
ITU-T Group 3, ECM
33.6-2.4 kbps with automatic fallback
JBIG / MMR / MR / MH
Approx. 0.7 sec. (Letter portrait in Standard or Fine mode with ADF)
Approx. 2.7 sec.
Standard: 8 dots/mm x 3.85 lines/mm
Fine: 8 dots/mm x 7.7 lines/mm
Super Fine: 16 dots/mm x 15.4 lines/mm
600 dpi: 600 dpi x 600 dpi
Ledger
10.7"(274mm)
600 x 600 dpi
3 MB (Approx. 180 pages)
Base memory plus 4 MB (320 pages)/8 MB (640 pages)
200 (Max. 1,000 with optional HDD and optional Image Memory)
Internet Fax/Scan-to-E-mail
Compatibility
IETF RFC 3965, ITU-T T.37
Communication Protocol
TCP/IP (SMTP, POP3, LDAP)
Network Connectivity
Ethernet 10Base-T/100Base-TX
Data Format
TIFF-FX (Profile S/F/J), PDF*9
38.5"
46"
33.8"
27.9"
23.6"
Notes
*1 Dimensions and weight are approximate.
*2 Speeds are contingent upon applications, machine configuration, and status.
Individual speeds may vary.
*3 Printer Controller Module or Multi-Page Description Language Controller Module option required.
*4 Multi-Page Description Language Controller Module option required.
*5 Scanning speed applies to the feeding process from the top to the end of a single page
test chart. The time for the feeding process does not include the time that it takes for the top
edge of the page to reach the scanning point and page ejection. Time for entire storing
process is not applied.
*6 Transmission time applies to memory transmission of text data using only ITU-T Image No.1
between the same models at maximum modem speed. Transmission time may vary in actual
usage. Usually public telephone lines can only support communication speeds of 28.8 Kbps
or lower. Via PBX, transmission speed may fall back to a lower speed.
*7 Based on ITU-T Image No.1 scanned in Standard mode.
*8 Depending on the receiving machines capability, the document may not be correctly printed
depending on the chosen resolution and document size.
*9 This function is not available in certain destinations.
*10 T.37 Internet Fax only supports TIFF format.
Design and specification are subject to change without notice. Not all options may be available at the
time of notification.
Microsoft® Windows® is a registered trademark of Microsoft Corporation.
Adobe, PostScript and PostScript 3 are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
PCL is a registered trademark of Hewlett-Packard.
All other brand or product names are the property of their respective holders.
Common Criteria Validated EAL2
Data Security Kit DA-SC06 V.1.01
The certification obtained for this product regarding information security indicates that, as a result of
evaluation based on given evaluation criteria and evaluation method, the target of evaluation used for
such evaluation has been determined to conform to the security assurance requirements.
ISO 9001
Quality Management System
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, ON, L4W 2T3
For a local dealer, please call (905) 238-2380
www.panasonic.ca
As an Energy Star®
Partner, Panasonic has
determined that this
product meets the
Energy Star® Guidelines
for energy efficiency.
Our business processes which produce document, information and network
products, from manufacturing to marketing, conform to ISO9001 Quality
Management Systems standard. Design, development, manufacture,
installation, repair and maintenance of document, information and network
products, their associated devices and consumables. In addition, the plants
outside Japan have acquired ISO9001 certification.
