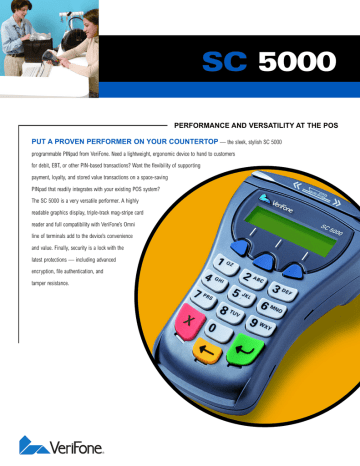

SC 5000
PERFORMANCE AND VERSATILITY AT THE POS
PUT A PROVEN PERFORMER ON YOUR COUNTERTOP — the sleek, stylish SC 5000
programmable PINpad from VeriFone. Need a lightweight, ergonomic device to hand to customers
for debit, EBT, or other PIN-based transactions? Want the flexibility of supporting
payment, loyalty, and stored value transactions on a space-saving
PINpad that readily integrates with your existing POS system?
The SC 5000 is a very versatile performer. A highly
readable graphics display, triple-track mag-stripe card
reader and full compatibility with VeriFone’s Omni
line of terminals add to the device’s convenience
and value. Finally, security is a lock with the
latest protections — including advanced
encryption, file authentication, and
tamper resistance.
SC 5000
FEATURES & BENEFITS
SPECIFICATIONS
Adapts to any environment
32-bit microprocessor
•
•
•
•
•
•
•
Programmable PINpad with mag-stripe card reader makes it easy to handle
virtually any card-based transaction — from loyalty applications to age
verification.
Securely supports multiple payment and value-added applications on the
same device.
High-speed processor and ample memory streamline transactions to keep
lines moving.
Quickly and efficiently integrates into any POS environment.
Allows cost-effective controller/host application development — connects with
PC-based controllers, terminals, or hosts through a standard RS-232 interface.
Small footprint preserves precious counter space.
Works with any VeriFone Omni terminal.
Provides exceptional ease of use
•
•
•
•
Palm-sized, “handover” design is perfect for customer PIN entry.
Offers the largest keys of any VeriFone terminal or peripheral, minimizing
training and reducing costly errors.
Highly readable display provides excellent graphic support.
Optional backlighting improves readability in low-light environments.
Includes essential security
•
•
•
•
Tamper-detection circuitry resists unauthorized intrusions.
Provides sophisticated security protections, including the latest Triple DES
encryption, Master Key/Session Key and DUKPT key management, and
VeriShield file signing for screens.
Visa PED-approved for PIN-based applications.
Offers the unsurpassed quality and reliability that is synonymous with the
VeriFone name.
Processor
Memory
1 MB RAM
Display
2 lines x 16 characters, up to 4 lines x 20 characters, 122 x 32 pixel graphical
LCD display, with optional backlighting
Magnetic Card Reader
ISO 7813 choice of dual-track (1,2) or triple-track (1,2,3), bi-directional
Optional Primary Smart Card Reader
Reads all asynchronous microprocessor cards conforming to ISO 7816 -1, -2,
and –3. Reads synchronous memory and protected memory cards conforming to
ISO 7816-1 and –2. Reads EMV cards conforming to EMV 3.1.1 and EMV 4.0
SAM Card Reader
Choice of 0, 2, or 4 Security Access Module (SAM) readers
Keypad
16 keys; 3 programmable function keys; 3 command keys
Serial Interface
Asynchoronous serial (7/8 data bits, even/odd/no parity). Baud rate of
1,200 - 115,200. Compatible with RS-232 signal levels
Security
Cryptographic algorithms include: DES, 3DES, RSA, and AES. Key management
schemes include Master/Session, DUKPT and virtually any other key management
scheme through the use of VeriShield Security Scripts. All cryptography and key
management functions performed by integrated security chip. Communication
between the keyboard, display, and security module is fully safeguarded.
Physical
Height: 155 mm (6.1 in.); width: 95 mm (3.7 in.); depth: 50 mm (2.0 in.);
weight: 360 g
Environmentals
0˚ to 40˚ C (32˚ to 104˚ F) operating temperature; 15% to 90% operating
humidity, non-condensing; -18∞ to 66∞ C (0∞ to 151∞ F) storage temperature
Power
7-20V DC; 3.7W (maximum consumption with optional backlight on)
w w w. v e r i f o n e . c o m
© 2004 VeriFone. All rights reserved. VeriFone, the
VeriFone logo, Omni, SC, and VeriShield are either
trademarks or registered trademarks of VeriFone in the
United States and/or other countries. All features and
specifications are subject to change without notice.
05/04 45399 2M/DH Rev A
