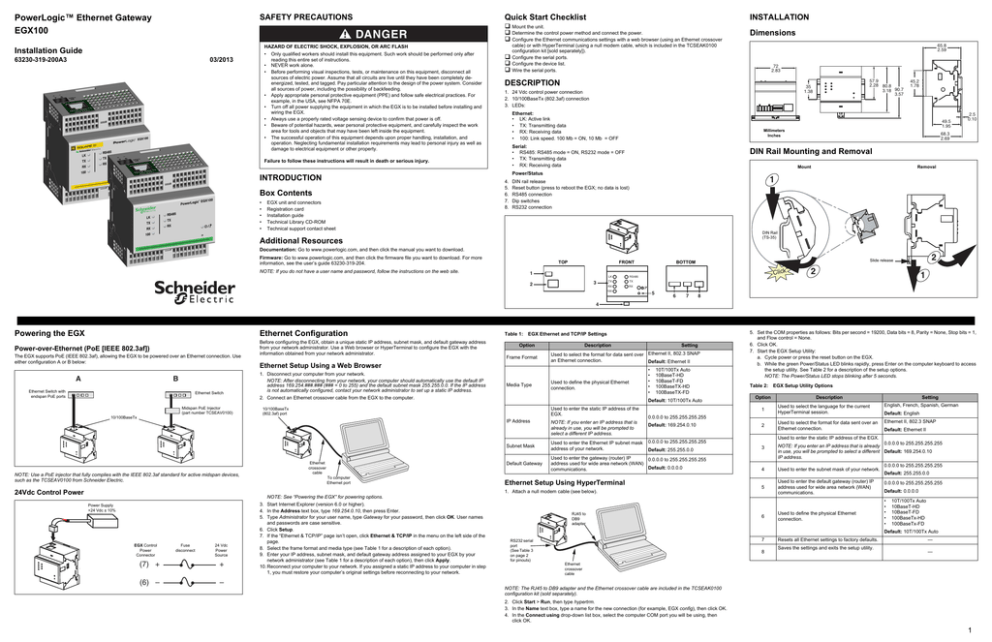

Schneider Electric EGX100 Ethernet Gateway Instruction Sheet

PowerLogic™ Ethernet Gateway
EGX100
SAFETY PRECAUTIONS
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Only qualified workers should install this equipment. Such work should be performed only after
reading this entire set of instructions.
• NEVER work alone.
• Before performing visual inspections, tests, or maintenance on this equipment, disconnect all
sources of electric power. Assume that all circuits are live until they have been completely deenergized, tested, and tagged. Pay particular attention to the design of the power system. Consider
all sources of power, including the possibility of backfeeding.
• Apply appropriate personal protective equipment (PPE) and follow safe electrical practices. For
example, in the USA, see NFPA 70E.
• Turn off all power supplying the equipment in which the EGX is to be installed before installing and
wiring the EGX.
• Always use a properly rated voltage sensing device to confirm that power is off.
• Beware of potential hazards, wear personal protective equipment, and carefully inspect the work
area for tools and objects that may have been left inside the equipment.
• The successful operation of this equipment depends upon proper handling, installation, and
operation. Neglecting fundamental installation requirements may lead to personal injury as well as
damage to electrical equipment or other property.
Installation Guide
63230-319-200A3
03/2013
Quick Start Checklist
INSTALLATION
 Mount the unit.
 Determine the control power method and connect the power.
 Configure the Ethernet communications settings with a web browser (using an Ethernet crossover
Dimensions



65.8
2.59
72
2.83
DESCRIPTION
57.9
2.28 80.8
3.18 90.7
3.57
35
1.38
1. 24 Vdc control power connection
2. 10/100BaseTx (802.3af) connection
3. LEDs:
Ethernet:
• LK: Active link
• TX: Transmitting data
• RX: Receiving data
• 100: Link speed. 100 Mb = ON, 10 Mb = OFF
45.2
1.78
49.5
1.95
Millimeters
Inches
Serial:
• RS485: RS485 mode = ON, RS232 mode = OFF
• TX: Transmitting data
• RX: Receiving data
Failure to follow these instructions will result in death or serious injury.
2.5
0.10
68.3
2.69
DIN Rail Mounting and Removal
Mount
Removal
Power/Status
INTRODUCTION
Box Contents
•
•
•
•
•
cable) or with HyperTerminal (using a null modem cable, which is included in the TCSEAK0100
configuration kit [sold separately]).
Configure the serial ports.
Configure the device list.
Wire the serial ports.
EGX unit and connectors
Registration card
Installation guide
Technical Library CD-ROM
Technical support contact sheet
4.
5.
6.
7.
8.
1
DIN rail release
Reset button (press to reboot the EGX; no data is lost)
RS485 connection
Dip switches
RS232 connection
DIN Rail
(TS-35)
Additional Resources
Documentation: Go to www.powerlogic.com, and then click the manual you want to download.
Firmware: Go to www.powerlogic.com, and then click the firmware file you want to download. For more
information, see the user’s guide 63230-319-204.
TOP
NOTE: If you do not have a user name and password, follow the instructions on the web site.
FRONT
1
3
2
LK
RS485
TX
TX
RX
RX
100
2
Slide release
BOTTOM
Click
2
1
/
5
6
7
8
4
Powering the EGX
Ethernet Configuration
Power-over-Ethernet (PoE [IEEE 802.3af])
Before configuring the EGX, obtain a unique static IP address, subnet mask, and default gateway address
from your network administrator. Use a Web browser or HyperTerminal to configure the EGX with the
information obtained from your network administrator.
The EGX supports PoE (IEEE 802.3af), allowing the EGX to be powered over an Ethernet connection. Use
either configuration A or B below:
A
B
Ethernet Switch with
endspan PoE ports
Ethernet Switch
Midspan PoE Injector
(part number TCSEAV0100)
10/100BaseTx
Table 1:
EGX Ethernet and TCP/IP Settings
Option
Frame Format
Ethernet Setup Using a Web Browser
1. Disconnect your computer from your network.
NOTE: After disconnecting from your network, your computer should automatically use the default IP
address 169.254.###.### (### = 0 to 255) and the default subnet mask 255.255.0.0. If the IP address
is not automatically configured, contact your network administrator to set up a static IP address.
2. Connect an Ethernet crossover cable from the EGX to the computer.
Media Type
24Vdc Control Power
Used to define the physical Ethernet
connection.
Ethernet
crossover
cable
To computer
Ethernet port
Setting
•
•
•
•
•
10T/100Tx Auto
10BaseT-HD
10BaseT-FD
100BaseTX-HD
100BaseTX-FD
Default: 10T/100Tx Auto
Used to enter the static IP address of the
EGX.
10/100BaseTx
(802.3af) port
IP Address
NOTE: Use a PoE injector that fully complies with the IEEE 802.3af standard for active midspan devices,
such as the TCSEAV0100 from Schneider Electric.
Description
Used to select the format for data sent over Ethernet II, 802.3 SNAP
an Ethernet connection.
Default: Ethernet II
NOTE: If you enter an IP address that is
already in use, you will be prompted to
select a different IP address.
Power Supply
+24 Vdc ± 10%
EGX Control
Power
Connector
Fuse
disconnect
24 Vdc
Power
Source
(7) +
+
(6) –
–
Table 2:
Option
Default: 169.254.0.10
Used to enter the Ethernet IP subnet mask
address of your network.
Default Gateway
Used to enter the gateway (router) IP
0.0.0.0 to 255.255.255.255
address used for wide area network (WAN)
Default: 0.0.0.0
communications.
Default: 255.255.0.0
Ethernet Setup Using HyperTerminal
RJ45 to
DB9
adapter
Description
Setting
Used to select the language for the current
HyperTerminal session.
English, French, Spanish, German
2
Used to select the format for data sent over an
Ethernet connection.
Ethernet II, 802.3 SNAP
Default: English
Default: Ethernet II
Used to enter the static IP address of the EGX.
0.0.0.0 to 255.255.255.255
Subnet Mask
EGX Setup Utility Options
1
0.0.0.0 to 255.255.255.255
1. Attach a null modem cable (see below).
NOTE: See “Powering the EGX” for powering options.
3. Start Internet Explorer (version 6.0 or higher).
4. In the Address text box, type 169.254.0.10, then press Enter.
5. Type Administrator for your user name, type Gateway for your password, then click OK. User names
and passwords are case sensitive.
6. Click Setup.
7. If the “Ethernet & TCP/IP” page isn’t open, click Ethernet & TCP/IP in the menu on the left side of the
page.
8. Select the frame format and media type (see Table 1 for a description of each option).
9. Enter your IP address, subnet mask, and default gateway address assigned to your EGX by your
network administrator (see Table 1 for a description of each option), then click Apply.
10. Reconnect your computer to your network. If you assigned a static IP address to your computer in step
1, you must restore your computer’s original settings before reconnecting to your network.
5. Set the COM properties as follows: Bits per second = 19200, Data bits = 8, Parity = None, Stop bits = 1,
and Flow control = None.
6. Click OK.
7. Start the EGX Setup Utility:
a. Cycle power or press the reset button on the EGX.
b. While the green Power/Status LED blinks rapidly, press Enter on the computer keyboard to access
the setup utility. See Table 2 for a description of the setup options.
NOTE: The Power/Status LED stops blinking after 5 seconds.
3
NOTE: If you enter an IP address that is already 0.0.0.0 to 255.255.255.255
in use, you will be prompted to select a different Default: 169.254.0.10
IP address.
4
Used to enter the subnet mask of your network.
5
Used to enter the default gateway (router) IP
address used for wide area network (WAN)
communications.
6
Used to define the physical Ethernet
connection.
7
Resets all Ethernet settings to factory defaults.
0.0.0.0 to 255.255.255.255
Default: 255.255.0.0
0.0.0.0 to 255.255.255.255
Default: 0.0.0.0
•
•
•
•
•
10T/100Tx Auto
10BaseT-HD
10BaseT-FD
100BaseTx-HD
100BaseTx-FD
Default: 10T/100Tx Auto
RS232 serial
port
(See Table 3
on page 2
for pinouts)
8
Saves the settings and exits the setup utility.
—
—
Ethernet
crossover
cable
NOTE: The RJ45 to DB9 adapter and the Ethernet crossover cable are included in the TCSEAK0100
configuration kit (sold separately).
2. Click Start > Run, then type hypertrm.
3. In the Name text box, type a name for the new connection (for example, EGX config), then click OK.
4. In the Connect using drop-down list box, select the computer COM port you will be using, then
click OK.
1
Serial Configuration
1.
2.
3.
4.
Start Internet Explorer.
In the Address text box, type the IP address assigned to your EGX, then press Enter.
Type Administrator for your user name, type Gateway for your password, then click OK.
Click Serial Port or Device List as appropriate and proceed to the sections below.
3. In Master mode, enter the Local ID and select the Protocol for each attached device on the daisy
chain. In Slave mode, enter the Local ID, Remote ID, and select the Connection for each device that
needs to be remotely connected.
4. Click Apply.
RS485 Biasing and Termination
2-wire Devices
Dip Switch Settings
Up to 32 devices
NOTE: Do not use address 1 or 16 in a mixed mode daisy chain (for example, a single daisy chain with
some devices using PowerLogic™ protocol and others using Modbus/Jbus protocol).
Tx Rx Rx- Rx+ –
MCT2W485
terminator or
120  resistor
Belden 9841
ON
OFF
1
NOTE: For surge protection, we recommend connecting the shield wire directly to an external earth ground
at a single point.
Parameter
Options
Mode
Master, Slave
Master
Physical Interface
RS485 4-wire, RS485 2-wire, RS232
RS485 2-wire
Master mode: Automatic1, Modbus ASCII
Master mode:
Automatic
Transmission Mode
Slave mode: Modbus RTU, Modbus ASCII
Slave mode: Modbus
RTU
Baud Rate
2400, 4800, 9600, 19200, 38400, 560002, 576002
19200
Parity
None, Even
Even
1
2
4-wire Devices
Up to 32 devices.
Default Setting
Automatic mode allows you to communicate to Modbus RTU, PowerLogic™ (SY/MAX), and Jbus
slave devices on the same daisy chain at the same time.
RS232/Modbus ASCII only.
Two (2)
MCT2W485
terminators or
Belden 8723 or 9842
Blue
White
Shield
EGX
Slave 1
Slave 2
(3) Rx+ (D1)
(4) Rx- (D0)
(5)
L+
L-
L+
L-
Green
White
Red
Slave 1
Slave 2
Slave 3
(1) Tx+ (TXD1)
(2) Tx- (TXD0)
(3) Rx+ (RXD1)
(4) Rx- (RXD0)
(5)
Rx+
RxTx+
Tx-
Rx+
RxTx+
Tx-
Rx+
RxTx+
Tx-
Terminators
4
Slave 3
L+
L-
5
6
4-wire
2-wire
UP/ON DOWN/OFF
RS232 Serial Port
The RS232 port is used to configure the EGX network parameters, and also can be used for serial
communication using Modbus. The EGX RS232 port is wired as a data terminal equipment (DTE) device
and uses a standard RJ45 connector.
Baud Rate
Max. distance for 1–16 devices
Max distance for 17–32 devices
1200
10,000 ft (3,048 m)
10,000 ft (3,048 m)
2400
10,000 ft (3,048 m)
5,000 ft (1,524 m)
4800
10,000 ft (3,048 m)
5,000 ft (1,524 m)
NOTE: An RJ45 to DB9 adapter is included in the TCSEAK0100 configuration kit (sold separately) for use
with an Ethernet crossover cable.
Table 3:
RS232 Pin Assignments (EIA/TIA-561 for RJ45)
Pin No.
Description
Pin 1
Data Set Ready
Pin 2
Received Line Signal Detector (Data Carrier Detect)
Pin 3
Data Terminal Ready
Pin 4
Signal Ground
Pin 5
Received Data
For daisy-chain devices on the COM port:
Pin 6
Transmit Data
•
Pin 7
Clear To Send
Pin 8
Request To Send
3. If Mode is set to Slave, enter a unique IP address for each remotely connected device. See the User’s
Guide 63230-319-204 for more information about the slave mode.
4. Click Apply to save changes.
Shield
NOTE: The color code shown is for Belden 8723. The color code for Belden 9842 is Blue/White (Tx+),
White/Blue (Tx-), Orange/White (Rx+), and White/Orange (Rx-).
Device List
•
Black
Dip switch settings
shown are the
recommended settings
for 4-wire and 2-wire
daisy chains. The 2wire dip switch settings
are the default.
Terminator
Daisy Chain Maximum Distances
EGX
3
Jumper (2-wire)
1. Click Serial Port.
2. Select the mode, physical interface, transmission mode, baud rate, and parity for the serial COM port.
NOTE: Attached serial devices must have the same baud rate, parity, and wiring mode settings. If you are
using RS485, set the mode according to whether your daisy chain is 2-wire or 4-wire.
2
Bias
RS485 Wiring
Termination
Serial Port
+
9600
10,000 ft (3,048 m)
4,000 ft (1,219 m)
19200
5,000 ft (1,524 m)
2,500 ft (762 m)
38400
5,000 ft (1,524 m)
1,500 ft (457 m)
NOTE: This table is only to be used as a guide.
In Master mode, Modbus/Jbus devices do not have to be defined in the Device List, but it helps you
manage your system.
PowerLogic™ protocol (SY/MAX) devices must be defined in the Device List.
To set up the Device List for the EGX:
1. Click Device List.
2. Select the number of viewable devices (1 to 128). The default number of devices is eight.
SPECIFICATIONS
MAINTENANCE AND TROUBLESHOOTING
Control Power Input
Power-over-Ethernet
Class 3
Operating Input Range
24 Vdc (±10%) sourced by Class 2 rated power
supply
Burden, maximum
4W
Isolation
1.5 kV
Environmental
Ambient Operating Temperature
–25°C to +70°C
Storage Temperature
–40°C to +85°C
Humidity Rating
5–95% Relative Humidity (non-condensing) at
+55°C
Pollution Degree
Class 2
Physical
Troubleshooting
Maintenance
The EGX does not require maintenance, nor does it contain any user-serviceable parts. If the EGX
requires service, contact your local sales representative for help. Refer to the technical support contacts
provided in the shipping carton for a list of support phone numbers by country. Do not open the EGX
enclosure; this will void the product warranty agreement.
Diagnostics
The Diagnostics page served by the EGX, displays diagnostic data that may be helpful in troubleshooting
network problems. This page also contains information about your specific EGX, including the serial
number, manufacturing date, and media access control (MAC) address. Clicking the Reset button on this
page clears all cumulative counters.
NOTE: This page will show accumulated readings since the EGX was last activated. If power to the EGX is
lost, all values reset to zero.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• This equipment must be installed and serviced only by qualified personnel.
• Qualified persons performing diagnostics or troubleshooting that require electrical conductors to be
energized must comply with and follow safe electrical work practices. For example, in the USA, see
NFPA 70E.
Failure to follow these instructions can result in death or serious injury.
Problem
Possible Cause
Source power is not
Power/Status LED applied or is not stable.
is not lit.
LED is burned out.
Weight
6 oz. / 170 g
Dimensions
Height (3.18 in. / 80.8 mm),
Width (2.83 in. / 72 mm),
Depth (2.59 in. / 65.8 mm)
Ethernet link LED
is not lit.
Proper link is not
established.
Enclosure
IP30
Power/Status LED
repeats a four
blink-pause
pattern
The IP address that the
EGX was assigned is
being used by another
networked device.
Regulatory/Standards Compliance for Electromagnetic Interference
Emissions (radiated and conducted)
EN 55022 / EN 55011 / FCC Class A
Immunity for Industrial Environments:
Electrostatic Discharge
Radiated RF
Electrical Fast Transients
Surge
Conducted RF
Power Frequency Magnetic Field
EN 61000-6-2
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
Regulatory / Standards Compliance for Safety
International (CB Scheme)
IEC 60950
USA
UL 508 / UL 60950
Canada
cUL (complies with CSA C22.2, #60950)
Europe
EN 60950
Australia / New Zealand
AS/NZS 60950
Other Regulatory / Standards Compliance
Solution
Apply power or check power source.
Check to see if other LEDs operate properly.
Make sure the proper cable is used and connected.
Make sure the proper media type is selected in the EGX
Communications setup configuration.
Assign a new IP address to the EGX or to the conflicting
device.
NOTE: When a duplicate IP address is detected, the
EGX resets its specified IP address to the default IP
address. When the EGX detects the conflict no longer
exists, it will use the specified IP address.
Verify all IP parameters are correct.
Cannot browse the Incorrect network
EGX.
configuration.
Verify EGX receives requests (ping EGX by going to
DOS prompt and typing “ping” and the EGX IP address,
e.g., ping 169.254.0.10).
Verify all browser internet options connections settings
are correct.
Forgot
administrator
password.
Call your local sales representative for assistance.
Schneider Electric
35 rue Joseph Monier
Europe
CE
92500 Rueil-Malmaison, France
Transparent Ready
B15
www.schneider-electric.com
Australia
C-Tick
Electrical equipment should be installed, operated, serviced, and maintained only by
qualified personnel. No responsibility is assumed by Schneider Electric for any
consequences arising out of the use of this material.
63230-319-200A3 03/2013
Replaces 63230-319-200A2 12/2008
© 2005-2013 Schneider Electric. All Rights Reserved.
2

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
