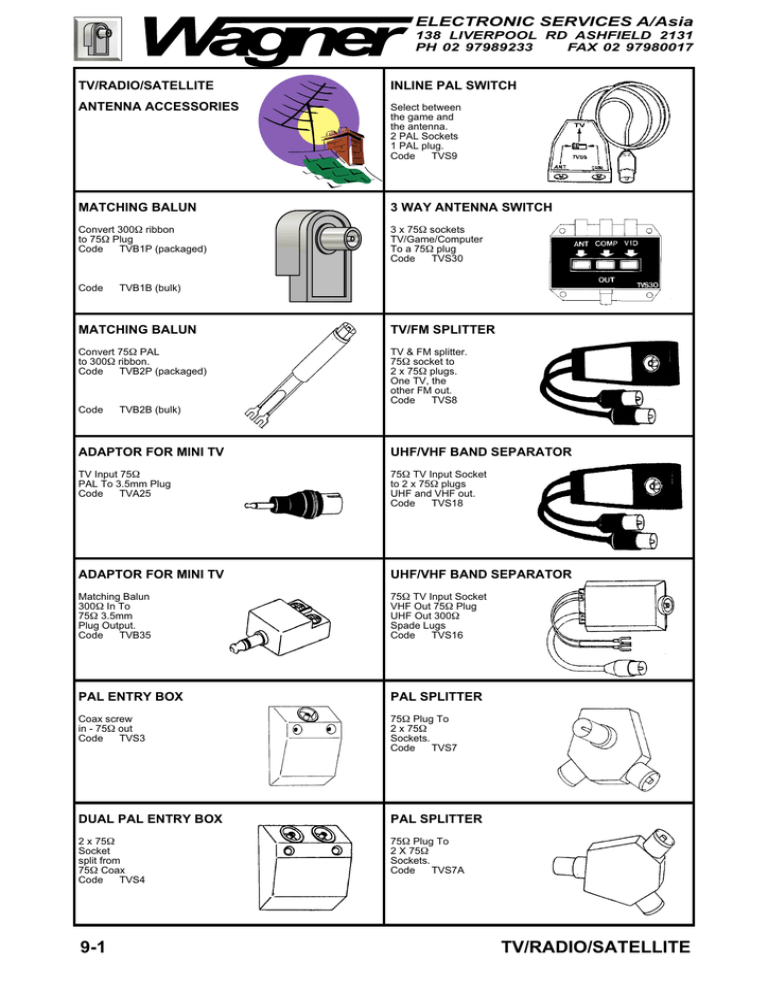

TV/RADIO/SATELLITE
INLINE PAL SWITCH
ANTENNA ACCESSORIES
Select between
the game and
the antenna.
2 PAL Sockets
1 PAL plug.
Code
TVS9
MATCHING BALUN
3 WAY ANTENNA SWITCH
Convert 300W ribbon
to 75W Plug
Code
TVB1P (packaged)
3 x 75W sockets
TV/Game/Computer
To a 75W plug
Code
TVS30
Code
TVB1B (bulk)
MATCHING BALUN
TV/FM SPLITTER
Convert 75W PAL
to 300W ribbon.
Code
TVB2P (packaged)
TV & FM splitter.
75W socket to
2 x 75W plugs.
One TV, the
other FM out.
Code
TVS8
Code
TVB2B (bulk)
ADAPTOR FOR MINI TV
UHF/VHF BAND SEPARATOR
TV Input 75W
PAL To 3.5mm Plug
Code
TVA25
75W TV Input Socket
to 2 x 75W plugs
UHF and VHF out.
Code
TVS18
ADAPTOR FOR MINI TV
UHF/VHF BAND SEPARATOR
Matching Balun
300W In To
75W 3.5mm
Plug Output.
Code
TVB35
75W TV Input Socket
VHF Out 75W Plug
UHF Out 300W
Spade Lugs
Code
TVS16
PAL ENTRY BOX
PAL SPLITTER
Coax screw
in - 75W out
Code
TVS3
75W Plug To
2 x 75W
Sockets.
Code
TVS7
DUAL PAL ENTRY BOX
PAL SPLITTER
2 x 75W
Socket
split from
75W Coax
Code
TVS4
75W Plug To
2 X 75W
Sockets.
Code
TVS7A
9-1
TV/RADIO/SATELLITE
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
PAL SPLITTER
OUTDOOR DIPLEXER
75W Socket
to 2 X 75W
Sockets.
Code
TVS7B
Direct mount to
antenna mast.
2 X 75W UHF/VHF In
Output 75W Coax To TV
Code
TVD11
PAL SPLITTER
MASTHEAD BALUN
75W Socket
to 2 X 75W
Sockets.
Code
TVS7C
300W To 75W. Fits
Direct to Antenna
Wing nuts.
Code
TVB6
2 WAY SPLITTER/COUPLER
MASTHEAD BALUN
With Power
Pass Circuit
75W Plug to
2 x Sockets
Code
AS2
300W To 75W
Fits Direct
To Antenna
Code
TVB6A
4 WAY SPLITTER/COUPLER
MASTHEAD BALUN “F” TYPE
With Power Pass
75W plug to
sockets x 4
Code
AS4
300W To 75W
Fits Direct To
Antenna.
Code
TVB40
BOOSTED SPLITTER
MASTHEAD BALUN SCREW TYPE
For more splitter
solutions, see
pages 9-9 to 9-12
Fits direct to antenna.
Screw terminating.
TVB46 PACKAGED
15dB booster with
2 way splitter.
Code
EU365
TVB45 BULK
SPLITTER/COUPLER BOXES
TV SIGNAL ATTENUATORS
UHF/VHF/FM with power pass
75W plug to socket
Available in 3,6,
12 or 18 dB.
Codes SA3
SA6
SA12
SA18
2 WAY 300W
Code AS300-2
AS300-2
2 WAY 75W
Code AS75-2
3 WAY 75W
Code AS75-3
PLUGS AND SOCKETS
AS75-2
Saddle & Screw
4 WAY 75W
Code AS75-4
PAL SPLITTER
SEE SECTION SEVEN
P515
PAL PLUG
S520
PAL SOCKET
P540
PAL PLUG METAL
P541
PAL PLUG CRIMP
AS75-4
9-2
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
“F” ENTRY BOX
SATELLITE LINE AMP
“F” to “F” sockets
through plate for
minimum loss.
Teflon insulator.
Code
TVS70
In-Line 20dB
950-2050MHz
Amplifier.
12®20Vdc (inline
with power thru’)
F®F connectors.
Code
SAT1700
PAY TV APPROVED
050MHz
950-200
90
20dB COAXIAL
ER
LINE AMPLIFI
DC12-18V
“F” WALL SOCKET
2-WAY SATELLITE SPLITTER
“F” to “F” sockets
through plate for
minimum loss.
Teflon insulator.
Code
TVS60
Power Pass
All Legs.
F®F Connectors
5®2050MHz
Code
SAT1800
IN
TER
2 WAY SPLIT
POWER PASS
5-2050MHz
OUT
OUT
PAY TV APPROVED
2 WAY “F” SPLITTER/COUPLER
3-WAY SATELLITE SPLITTER
All Female F
with Power pass
Metal Construction
Code
FS102
Freq.
5®900MHz
Power Pass
All Legs.
F®F Connectors
5®2050MHz
Code
SAT1805
3 WAY “F” SPLITTER
4-WAY SATELLITE SPLITTER
All Female F
with Power pass
Metal Construction
Freq.
5®900MHz
Code
FS103
Power Pass
All Legs.
F®F Connectors
5®2050MHz
Code
SAT1801
TER
3 WAY SPLIT
POWER PASS
5-2050MHz
OUT
OUT
IN
“F” TERMINATOR
All Female F
with Power pass
Metal Construction
Freq.
5®900MHz
Code
FS104
For correct band-width,
all outputs should be
connected to something.
If you have any left over
for expansion, etc. then
terminate it! 75W male.
Code
FTM75
6 WAY “F” SPLITTER
“F” PLUGS
All Female F
with Power pass
Metal Construction
Freq.
5®900MHz
Code
FS106
PPC Sealed RG6 Crimp
Code
F325
Attached Crimp Collar
Code
FL65
Twist On 6.5mm
Code
FT65
OUT
OUT
TER
4 WAY SPLIT
POWER PASS
5-2050MHz
OUT
4 WAY “F” SPLITTER
OUT
IN
OUT
SEE SECTION SEVEN
8 WAY “F” SPLITTER
"F" SIGNAL ATTENUATORS
All Female F
with Power pass
Metal Construction
Freq.
5®900MHz
Code
FS108
75W plug to socket.
Available in 3,6,
12 or 18 dB.
Codes FSA3
FSA6
FSA12
FSA18
9-3
“F” Connector Solutions (See Also Section 7)
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
WALL PLATE PAL SOCKET (LINE RELAY)
WALL PLATE MOUNTING BRACKET
Flush mount screw
terminated. 75W I/O
Includes Tap-off
for multiple
installations.
Code
TVS5
Universal mount.
Plaster type.
Code
UMB5
TVS5
TVS5A
Standard L bracket
Code
UMB10
WALL PLATE PAL SOCKET (LINE END)
WALL PLATE BLOCKS
Flush mount screw
terminated. 75W I/O
No Tap-off.
Code
TVS5A
STAND-OFF
35mm mounting base
Code
MBL1
TVS5A
TVS5
WALL PLATE PAL SOCKET (“F” BACK)
Wiring your house
with “F” connectors?
(Back of plate)
to PAL socket
(Front of plate).
Code
TVS65
“F”
METAL BACK SHIELD
Code
MWB10
“PDL” STYLE KEYSTONE SYSTEM
PAL
NEW! Wall plate system with interchangeable Keystones.
Select the wall plate with the required socket holes, then select
your keystones to suit from below. “PDL” Style wall plates.
WALL PLATES
Available in 5 choices.
Requires Inserts (below).
Code
WP321
WP322
WP323
WP324
WP326
DOUBLE WALL PLATE PAL SOCKET
Flush mount
1x75W Coax input
to splitter &
2x75W sockets
Code
TVS6
Holes
One
Two
Three
Four
Six
PAL INSERT
PAL Socket
Saddle & Screw.
Code WPI10
PAL [“F”] INSERT
PAL Socket front
“F” Socket rear
Code WPI12
TV/FM SPLITTER SOCKET
Single saddle & screw
to two 75W PAL Sockets.
One socket goes direct
to TV and the other is
filtered for the FM band
to reduce interference.
Code
TVS67
TV
“F” INSERT
FM
“F” Socket front
“F” Socket rear
Code WPI20
RCA INSERTS (X1 X2 X3)
VIDEO WALL PLATE
Three Labeled PAL Sockets
VCR-IN / VCR-OUT / TV
No Splitters or Combiners
involved, just Three
Screw terminated sockets.
See GME-Kingray following pages ®
Code
WPVU
WALL PLATE BLANK
None of the above
suitable? You could
make your own.
See section 7
for plugs.
Code
WBP10
Wall Plate Solutions
RCA Socket to Solder type.
VCR
VCR
IN
OUT
TV
VIDEO SINGLE RCA
1x YELLOW. Composite Video.
Code WPI31
AUDIO PAIR [L&R]
Sold in pairs! RED & WHITE.
Code WPI30
pair.
DVD TRIPLE [RGB]
3 pieces. RED GREEN BLUE.
Code WPI33
(3pcs)
4MM INSERTS (X2)
4mm Binding posts Suit speakers, etc.
Sold in pairs! RED & BLACK
Code WPI40
pair.
9-4
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
COMPACT INDOOR ANTENNA
POPULAR TV ANTENNA
UHF / VHF / FM
Telescopic and loop
antenna with tuning
dial for optimising
reception. PAL plug.
Code
ANT645
Plugs into the
back of the set.
See Next Pages
Code
ANT109
Ext.
1000mm
Sect.
5ea.
FM DIPOLE ANTENNA
75W UHF/VHF/FM INDOOR ANTENNA
Extra Long Dipoles For VHF, Directional
Tuning UHF Antenna. Built-in VHF-UHF Diplexer
Wide Base For Stability. Supplied
With 75W Cable And Plug.
Code
ANT650
Indoor antenna
designed for
improving signal
reception for FM
receivers, etc.
300W ribbon.
Code
FM620
75W TV/FM INDOOR ANTENNA
UHF/VHF/FM INDOOR ANTENNA
Adjustable Telescopic
Antennae extend to
approximately 1M each.
Economical and a top
performer. Low Loss
Balun ensures correct
Impedance Match.
Supplied with 75W
plug & cable 1.5M.
Metal weighted base.
Suction cup feet.
WHITE
Code
ANT643W
Offers good indoor
reception with a more
rugged construction
to handle every day
knocks and crashes.
75W plug terminated.
Code
ANT313
BLACK
Code
ANT643B
75W TV/FM INDOOR ANTENNA
SPIRAL ANTENNA
Rods click into position
to ensure they don’t move.
The base is heavy for
stability. Has a matching
built-in balun and coaxial
cable (1.5M) with 75W plug.
Black in colour.
Code ANT536
New strong sturdy
construction.
300W ribbon.
May require
Balun TVB1.
Code ANT630
9-5
COMPACT INDOOR ANTENNA
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
PANASONIC “RUBBER DUCKY” ANTENNA
SANYO CORDLESS PHONE ANTENNA
Don’t break another antenna!
Replacement for the popular
Panasonic cordless phone
model KX-T3000.
Code
ANT300
Don’t break another!
Replace it with a
Rubber-Ducky Type.
Suit
CLT5280,
CLT5780,
CLT5880.
Code
ANT310
PANASONIC ANTENNA
POPULAR TV ANTENNA
Suits the popular
Panasonic cordless phone
model KX-T3000.
Code
KX-A81
Suit
PANASONIC ANTENNA
REAR MOUNT TV ANTENNA
Suits the popular
Panasonic cordless phone
model KX-T3716
KX-T3916ALR
Code
PQSA10028Z
Code
Ext.
Sect.
PANASONIC “RUBBER DUCKY” ANTENNA
CAR TV ANTENNAE
Don’t break another antenna!
Replacement for Panasonic
cordless phones.
Suit
KX-T3806
KX-T3826
KX-T3836
Code
ANT305
Baywatch while driving
is NOT recommended !
Two antannae, both with
two 60cm telescopics.
Includes 5.5M cable to
3.5mm plugs.
Code
AP171
PANASONIC PHONE ANTENNA
WIDE BAND TUNABLE BASE STATION
Suit
5.5M with mounting
hardware, etc.
5.75dB 26-31MHz
See Section 17
for more info.
Code
ANT2531
Orig.
Code
KXT4000AL
KXT4001AL
PQSA10021Z
ANT302
Code
Ext.
Sect.
SNAP
Samsung
Tempest
Akai, etc.
ANT109
1000mm
5ea.
ANT139
980mm
5
PANASONIC KX-T3000 LEAD WIRE
COMMUNICATION ANTENNAE
Membrane type
interconnect
suits the
hand piece.
Code
PQJE58Y
CB, SSW, UHF, etc.
See Section 17
PANASONIC KX-T3000 PUSH OPEN
CELLULAR PHONE ANTENNAE
Green button
Suits the
hand piece.
Code
PQBD92Z
Too many to list here.
You will find the
direct replacement
types listed with our
extensive range of
accessories for mobiles
in section 17.
Also mobile antenna
for the car, etc.
MISCELLANEOUS ANTENNAE
9-6
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
TELESCOPIC ANTENNA
ANT111
All dimensions are measured in millimeters.
EXT:
Length extended.
SECT: Number of sections.
EXT:
SECT:
1000mm
5
EXT:
SECT:
1250mm
6
EXT:
SECT:
475mm
6
Remember: Although the base may differ from yours,
the antenna may be interchangeable.(or Visa-Versa)
ANT102
ANT113
EXT:
SECT:
1000mm
4
ANT103
ANT114
EXT:
SECT:
1150mm
4
M3
2
ANT104
ANT116
EXT:
SECT:
950mm
8
ANT105
EXT:
SECT:
725mm
6
EXT:
SECT:
900mm
9
EXT:
SECT:
1000mm
7
EXT:
SECT:
925mm
7
ANT117
EXT:
SECT:
1000mm
7
2
ANT107
ANT119
EXT:
SECT:
750mm
6
3
8
ANT109
ANT120
EXT:
SECT:
900mm
5 ea
12
290
| 9 | 12 |
ANT110
EXT:
SECT:
9-7
750mm
4
ANTENNAE
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
TELESCOPIC ANTENNA
ANT131
All dimensions are measured in millimeters.
EXT:
Length extended.
SECT: Number of sections.
EXT:
SECT:
575mm
3
Remember: Although the base may differ from yours,
the antenna may be interchangeable.(or Visa-Versa)
8
ANT122
8
ANT132
EXT:
SECT:
1225mm
10
ANT123
EXT:
SECT:
800mm
5
EXT:
SECT:
1000mm
5
EXT:
SECT:
920mm
7
ANT135
EXT:
SECT:
950mm
8
ANT124
ANT137
EXT:
SECT:
1100mm
10
2
ANT125
ANT138 SONY-TV
EXT:
SECT:
960mm
3
Ext.
Sect.
1100mm
8
12
ANT126
ANT139
EXT:
SECT:
750mm
6
ANT128
Ext.
Sect.
980mm
5
EXT:
SECT:
340mm
6
ANT140
EXT:
SECT:
1000mm
5
ANT130 replaces NEC 62O66O11
EXT:
SECT:
ACCESSORIES
1000mm
5
9-8
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
VIDEO DISTRIBUTION
& CONVERSION, etc.
OUTDOOR ANTENNA ROTATOR
Get an improved signal from all stations
by controlling the 360’ direction of your
outdoor antenna from inside your home.
Tough metal weatherproof construction.
Rotation torque 220kg-cm (192 lb-in) min.
Mast size 28-44mm (1.1/8’-1.3/4’)
Vertical load 45kg (100lb) max.
Unit weight is 4.6kg (10lb)
Control box 240V in / 18VAC out.
Requires 3 core control cable. (Not Inc.)
Code AR300XL
For more couch-potato accessories
See section Twenty.....
WIRELESS REMOTE CONTROL EXTENDER
ANTENNA AMPLIFIER BOOSTER
You have your entertainment system in the family room with cable
TV, DVD, Video, etc. You then had your house wired to distribute
this to the bedrooms, living room, etc. Now all thats missing is
CONTROL! A multi-room remote control extender will allow you to
remote control any equipment from any room in the house with an
IRX400 IR transmitter. Change the channel on cable TV. Turn up
the volume of your “piped music”. Adjust the climate control of
your central airconditioning from your bed! Anything that has a
remote can now be controlled from anywhere in the house! No
wiring involved. Just requires a power point for the included
powerpacks. Included in the IRX550 kit is one receiver (located
near the equipment you want to control) and one transmitter (for
the room where you and the remote control is). The system is
expandable by purchasing additional IRX400 transmitters
(maximum of 4 total) and placing them in the required rooms.
Improve your lifestyle. Add convenience. Solve wiring problems.
EXTENDER KIT
RX & TX units pair.
Code IRX550
Picture a bit snowy?
Want to split a weak signal?
Doing a long cable run?
Grab one of these!
Quick, Easy, Economical!
Built-in 2 way splitter.
PAL socket in,
PAL plug out x2.
Supplied in bulk form,
NO packaging, etc.
Plugs directly into 240VAC.
Range 40MHz - 862MHz.
Gain
UHF 15dB
VHF 15dB
Size
100x70x35mm
Code EU365
TRANSMITTERS
Additional TX units.
Code IRX400
WIRELESS REMOTE CONTROL EXTENDER
Converts Infra-Red signals
into Radio and transmits them
through walls and ceilings to
control units in another room.
Excellent solution for the
spare tele in the bed room.
Place in the
Secondary room
and position to
pick up the
remotes signal
Transmitter
RA
DI
O
Dont buy an extra VCR or DVD,
dont hire an extra CTV box,
control your VCR and Cable-TV
from the compfort of your bed
or any room in the house.
This compact adaptor connects between any composite video
source such as a DVD player, camera, etc., and transmits picture
and sound to channel 0/1 (switchable) for viewing on TVs without
any RCA input connections. Supplied with powerpack, if switched
OFF then antenna connection is feed-thru, if switched ON then
signal is transmitted (antenna blocked).
With 1.5M 3x RCA connections.
Code MOD650
Antenna In / Out
To TV and
Antenna.
RF-UNIT
CH0/1
Also available for game consoles:
PLAYSTATION (All)
CH36 RFU-5
CH3/4 PSM555
Kit includes one transmiter and
one receiver, with power packs.
NINTENDO N64
CH3/4 MOD565
IR300
Receiver
Place next to equipment
or aim the IR module
9-9
RF Adaptor / Modulator
A/V in
Power In
(Note: If you wish to expand the
system to include additional rooms,
now or in the future, please
consider the IRX’ system above.)
Code
DVD TO TV-RF ANTENNA IN
X-Box
DVD
TV
CH36 RFU-5
CH3/4 XB0107
www.gamemaster.com.au - see section 15 for more!
ANTENNAE
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
AUDIO/VIDEO to RF MODULATOR
Suitable for an Audio/Video output from a video, game or a
camera. Converts a composite picture and audio signal into an
RF Signal which can be then distributed into the antenna system
as a dedicated channel without interruption of the existing
antenna signal Two units are available. One transmits in VHF,
the other UHF. The VHF units channel can be adjusted between
47-82MHz (0 - 2) if interference exists or if more than one unit is
operating. Likewise the UHF (470®550MHz). The video input
level may also be adjusted so as to obtain the optimum picture
quality. The same for the audio levels. The unit plugs directly
into 240VAC. Antenna connections are “F” type and the AV
connections are RCA. Includes instructions.
VHF MODULATOR
Code VHF326
UHF MODULATOR
Code UHF167
AUDIO/VIDEO to RF MODULATOR
As above but Digital controlled PLL for greater stability and less
sideband noise. Allows multiple units to be connected in series.
Push-button channel select from CH28 to CH69. Digital display
with locking button. Compact 100x75x30mm. “F” antenna
connections. 9Vdc powerpack and leads included.
Excellent quality and very stable.
Video 52dB
Audio 50dB
RF
88dBuV
Drift
±5KHz
Code CVS-5
AUDIO/VIDEO to RF MODULATOR X4
X4
X
8
FOUR CHANNEL
As above, but accepts up to four AV inputs!
Selectable channels (34 to 69).
Optimised 80dBµV output of the
combined RF signals.
Attractive compact
290x250x50mm metal box.
Low noise high quality
outputs by use of the
latest filter technology.
Auto gain circuitry for
each channel gives seamless
matching of signal levels
regardless of input levels.
Easy connection and operation.
Ideal for security camera or
video closed circuit broadcasting.
Code CVS-6
See Also GME-KINGRAY TELESTE next pages!
ACCESSORIES
9-10
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
DIGITAL CONVERTER SUPER MULTI-SYSTEM
DIGITAL FORMAT CONVERTER DELUX
PREMIUM BROADCAST QUALITY
NTSC / PAL / SECAM CONVERTER
RCA S-VHS IN ® RCA S-VHS YUV OUT
NTSC-3.58(60Hz), 4.43(50Hz), N3, N4 or PAL-(BDGIK,M,N)
or Secam and Converts in 3 x 8 bit High-Res to
NTSC-3.58(60Hz), 4.43(50Hz), N3, N4 or PAL-(BDGIK,M,N)
Professional quality digital system converter that allows you to
convert virtually any video system into any other video system
(Secam excluded). Features automatic input selection with
manual override push button. Surface mount technology in a
fully shielded enclosure for reliability and low noise. Built-in
Time-Base-Correction (TBC) function for signal synchronisation.
Fully digital encoding and decoding for minimal signal
degradation. Powerful microprocessors, 8 bit 13.5MHz
conversion and 4Meg field memory. Converts 525 to 625 lines,
60 to 50 fields ( or vice-versa ) digitally. Built-in AGC for
optimum conversion and output signal (1Vp-p out).
Automatically sends a colour bar picture if there’s no input
signal. Very easy to set-up and use!
Code CDM631
Pre
Qu mium
Ve ality
rsi
on
Multi-system converter provides
broadcast quality conversion
between numerous worldwide
broadcast television standards:
N3, N4, PAL, PAL M, PAL N, Secam.
Built-in TBC Genlock capability
for synchronizing equipment with
multiple asynchronous video
sources. Two sets of video and
S-VHS inputs. One output for each
of composite video, S-VHS and
Component YUV. Digital comb
filter for input system decoding.
Adjustable control on contrast,
brightness, color, Tint and
Horizontal/Vertical phase of TBC
video. Professional quality and
applications.
Code CDM830T
SU
DIGIT PERIOR
A
CON L SYSTEM
VERT
ERS
DIGITAL FORMAT CONVERTER MULTI-SCAN
D
Pre igita
l
Qu mium
alit
y
HI-RES S-VHS
VIDEO SYSTEM CONVERTER
Y/C input and output provides
best conversion picture.
Convert any video system to
any other video systems.
Input system auto detected.
Digital conversion from
input TV signals of
NTSC 3.58, NTSC 4.43,
PAL, PAL M, PAL N, SECAM to
output signals of NTSC 3.58,
NTSC 4.43, PAL, PAL M, PAL N.
8-bit broadcast quality decoding.
Digital comb filter.
Adjustable control on Contrast,
Brightness, Color, Tint.
Code CDM640A
Please Note: If you wish to record from an NTSC source to a
standard Australian PAL VCR, it will be necessary for you
change the pictures frequency from 60Hz to 50Hz. The CN100
unit will not do that! (below) Please see the CDM630 or
CDM631 digital converters (above).
62
Lin 5
es
VCR HI-FI WITH MULTI-SYSTEM CONVERTER
This HiFi VCR has a multi-system
digital converter built-in,
carry out video cassette conversion
quickly and conveniently.
Playback a tape from a foreign video
system with output converted to your
local video system (view on any TV).
The VCR works like a multi-system
video converter and or a conventional
HiFi, Long-play video.
High resolution: 400 lines for converter,
240 lines for player/recorder.
Vertical-lock tracking removes
vertical jitter and flickering.
Hi-Fi stereo sound. Sturdy chassis,
gold finish cabinet. DA-4 head.
Auto voltage (110~240 volts AC).
Automatic head cleaner.
Auto crystal view control.
New simple remote controller.
SP/LP playback/record speed.
RF output function.
Code MCV6
9-11
LP
/S
P
H
St iFi
er
eo
NTSC-3.58(60Hz), 4.43(50Hz), N3, N4 or PAL-(BDGIK,M,N)
or Secam and Converts in 3 x 8 bit High-Res to
NTSC-3.58(60Hz), 4.43(50Hz), N3, N4 or PAL-(BDGIK,M,N)
Same circuit and technology as the above CDM631 unit but in a
compact package for being portable or for periodic usage.
RCA in and outs. Plastic box but internals are fully shielded.
Professional quality with full 100% conversion standards.
Automatic or manually switched.
Code CDM630
R
SUPERIO TEM
SYS
DIGITAL TERS
R
CONVE
S-VHS and/or
Composite RCA
S-VHS
Hi-Res
DIGITAL FORMAT CONVERTER PORTABLE
Re
c/P
Sy AN lay
ste Y
m
!
Us
S e
Co ysteas a
nv m
er
te
r
International
STOP-PRESS
New Model Due Soon!
Price On Application
TV/VIDEO SYSTEM CONVERTER ANALOGUE
This analogue version converts the colour information from
NTSC to PAL. The rest of the picture signal is maintained.
This includes the line and refresh frequencies. This unit
is designed for one way operation for Playback of any NTSC
source, (Tape, Disk, Satellite, etc.) on a PAL television.
The resulting signal is PAL colour with 525 lines (not 625)
at 60Hz (not 50). This may result in a picture with a black
band on the top & bottom of the screen. Most TVs are
compatible with 50 & 60Hz horizontal frequencies, but since
they were made for Australia, they don’t contain the NTSC colour
interpreter. This converter will be compatible with those
units, and therefore suitable with most modern TV sets.
For older sets it may be necessary to adjust the vertical
hold to resize the picture correctly. Power pack included.
Code CN100P
RF-OUT VERSION UHF CH36
Identical to CN100P with
the addition of an RF output.
Code CN100P-RF
PAL TO NTSC CONVERTER - NEW!
Vica-Versa to the above!
Code CP100N
ANTENNAE
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
WIRELESS AV EXTENDER
AVAILABLE
WITH or WITHOUT
Remote Control extender
2.4GHz TRANSMISION
VERY EASY TO SET UP
TRANSMIT VIDEO IN STEREO
OPTIONAL REMOTE SIGNAL
Watch Pay-TV or DVD, etc.
anywhere in the house!
Optional IR remote extender.
Up to 4 receivers can be used.
Excellent picture quality.
AV SENDER & RECEIVER
WITH REMOTE EXTENDER
Kit, power, leads, RX & TX.
TR2420
Add more
receivers!
Additional receivers:
RX2421
Application:
Now you only need ONE of each source device!
View your DVD, VCR, etc., from anywhere in the house.
Watch your SD Digital TV or Cable TV too!
(Requires the set-top-box for DTV or CTV).
“Pipe” your favorite music in stereo!
AV SENDER & RECEIVER
No IR extender. Kit.
TR1200
Additional receivers:
RX1201
AVC PROFESIONAL DISTRIBUTION SYSTEMS
Premium quality audio and video
distribution amplifiers. Best.
Code
VAS300
ADA500
VADA300
SVDA600
VADA1010
VADA1023
Description
AV Switch box & cycler x3
Audio Distribution x6
AV Distribution x3
SVHS Distribution x6
AV Distribution x10
AV Balanced input “ x10
Details - See Section Twenty
AUDIO & VIDEO ACCESSORIES - SEE SECTION 20
Turntable
urntable
CD DVD PC VCR
Any Audio Device
ACCESSORIES
PH26
Un-Equalizer
Receiver / Amp
PHONO INPUT
9-12
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
GME KINGRAY
& TELESTE
For unmatched performance.
Latest innovations in technology.
Long service life and easy installation.
Compliance with the latest EMC standards
AS/NZS 1053:1996 electromagnetic emission.
Australian made MATV products.
Catalogue available on request.
UHF AMPLIFY / VHF DIPLEXED
DIGITAL TV
READY
High performance UHF only Boost (Adjustable)
Diplexed VHF (Unity gain) for fringe areas.
MHU24GP
14®24dB UHF Variable/VHF Thru
MHU34G
24®34dB UHF Variable/VHF Thru
MHU34GP
24®34dB UHF Variable/VHF Thru
MHU34FP
As above with “F” Sockets
MHU34FSP As above, “F” & Shield case
MHU44GP
34®44dB UHF Variable/VHF Thru
MHU44B5GP 34®44dB Band-5/Band-1®4 Thru
PSK08
NO
PSK08
PSK08
PSK08
PSK08
PSK08
GME-KINGRAY & TELESTE
VHF AMPLIFY / UHF DIPLEXED
The above GME-Kingray product lines are for general domestic
TV Signal boosting and are suitable for both professional and
do-it-yourself type installation solutions. The following products
however, are just a small selection of whats available for
professional, large scale, distribution solutions in Free-to-air,
MATV, Pay-TV, CATV, Satellite, SMATV, Post modulator
distribution, etc. For more information on any product, and a
complete listing of GME-Kingray & Teleste solutions, please
enquire and/or request a free GME-Kingray / Teleste catalogue:
Input One: Boosted channel (See description),
other channels are diplexed(0dB) or blocked(-60dB).
Input Two: VHF Low and/or UHF for 0dB diplexing.
All require PSK02 or MH21D, 22VAC P/Pack.
Code
DESCRIPTION
POWER
MHV34
40dB CH0-11 Band1,2,3 VHF Wide NO
MHV44HLG 44dB CH6-11 and 10dB CH28-69
NO
0dB CH0-5A Diplexed (or Blocked).
FREE CATALOGUE
UHF/VHF MASTHEAD FOUR STAGE AMP
A free catalogue is
available for additional
information on the products
listed on these pages. PLUS!
Many more products listed
for specialised installations.
Code
GMECAT
FREE
Delux model with all the features!
Adjustable gains: VHF®28dB, UHF®40db.
Adjustable Notch filter 140®170MHz
30dB FM filter. 17.5VAC or 14VDC input.
Combined or separate antenna input.
Complete with PSK08 Power pack.
Code MHW38GP
NEW! “F” TYPE MASTHEAD AMPS
DIPLEXER UHF/VHF PASSIVE
Available in fully shielded diecast housing or
non-shielded version Weather resistant plastic.
“F” type connectors for modern installations.
Code
DESCRIPTION
POWER
MHW34FP “F” Sockets. Power Included
PSK08
MHW34FSP “F” Sockets, shielded casing
PSK08
MHU34FP
“F” Sockets. Power Included
PSK08
MHU34FSP “F” Sockets, shielded casing
PSK08
Mast or wall mount
with bypassable
power through.
Highest quality
low loss design.
Loss
Only 1dB !
Code
DPOUV
POWER SUPPLY - PAL INJECTOR
“PAL” Plug to Socket power injectors.
Code
DESCRIPTION
PSK08
17.5VAC 150mA
PSK09
17.5VAC 300mA
PSK02
22VAC 100mA
PSK01
12VDC 100mA
PSK06
14VDC 150mA
PIK170
Injector Only!
UHF/VHF MASTHEAD AMPLIFIERS
POWER SUPPLY - “F” INJECTOR or 3.5mm PLUG
Installs directly to the mast, just
below the antenna for maximum
effectivness. Remote powered via
coax. 17.5VAC p/pack included.
Weather proof, UV resistant.
24dB UHF, 4®18dB VHF adjustable.
Single antenna input.
Code MHW24GP
“F” Socket to Socket power injector.
Code
DESCRIPTION
PSK18 18VDC 300mA “F”
UHF/VHF AMPLIFIERS DUAL INPUT
POWER SUPPLIES S&S
Same as MHW24GP (above) with more!
Variable gain 24®34dB. FM trap switch.
Single or Dual UHF/VHF Antenna Input.
MHW34G
Requires PSK08 or MH21D
MHW34GP Includes P/Pack
MHW34FP “F” Sockets. Power Included
MHW34FSP “F” Sockets, shielded casing.
MHW34GLV 14Vdc type for caravans, boats..
MHW34GIL Power Through - Inline Type
Wall mount with Saddle
and screw connections.
Includes coax splitter
output for two TVs,
22VAC or 17.5VAC
Short circuit protected.
Code
MH21D
9-13
Required to power the DW42.
PSK18S 18VDC 300mA 3½mm
Other power supply solutions available:
See GME-CAT or please enquire
NO
PSK08
PSK08
PSK08
PIK170
NO
GME-Kingray
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
FM FILTERS MAST MOUNT
FREE-TO-AIR AMPLIFIERS
Mast or wall mount.
Weather proof.
A very low ½dB loss.
Complete in masthead box.
Code
DESCRIPTION
FLOFMW Band-Stop 88-108MHz -30dB
FLOFML Band-Stop 88-100MHz -30dB
FLOFMH Band-Stop 100-108MHz -30dB
FLOFMWP “ ” 88-108 & 148MHz -30dB
Ideal for the customer
with self-install type
installations for TV.
Improve weak reception.
For best results, install
in a protected area,
and as close to the
antenna as practicable.
FILTERS IN-LINE “PAL”
SPLITTER BOOSTER 2 WAY PAL
Indoor Right Angle Fully Shielded PAL M®F.
Code
DESCRIPTION
FLBPO
Band-Pass 0-52MHz
FLBP34 Band-Pass 80-120MHz
FLBSO
Band-Stop 0-52MHz -30dB
FL2BS12 Band-Stop 44-160MHz -12dB
FLBS34 Band-Stop 80-120MHz -30dB
FLBSP
Band-Stop 120-160MHz -30dB
High quality economical unit
Made in Australia. 240VAC.
One-in, Two-out PAL Sockets.
12dB gain 44-860MHz Boost.
Inside use. Plastic case.
Code
DESCRIPTION
SA122
No packaging
SA122DP Display Packaged
BAND-PASS
BAND-STOP
SA122
FILTERS IN-LINE “F” (Suit Trade-Filter-Kit)
SPLITTER BOOSTER 4 WAY PAL
Code
TFBB1
TF40HP
TF160HP
TF520HP
TF600HP
TF670HP
TF820LP
TFB2BS
Same as above
Adjustable Equaliser
for VHF gain.
Total gain of 10dB
Four Pal Socket Outputs
One Pal Socket Input
Code
SA124
DESCRIPTION
Braid Breaker (75W:75W)
High-Pass 40MHz -50dB
High-Pass 160MHz -12dB
High-Pass 520MHz -45dB
High-Pass 600MHz -63dB
High-Pass 670MHz -37dB
Low -Pass 820MHz -60dB
Band-Stop 80-160MHz -30dB
HIGH-PASS
LOW-PASS
NEW! ALL-N-ONE FILTER
SPLITTER BOOSTER 4 WAY “F”
A fully shielded passive bandpass
filter/combiner with 1 to 3 inputs.
Rejects AM, 27MHz, Paging, CDMA,
GSM, CB, 477MHz and FM (Switchable).
Low 2dB insertion loss. “F” Sockets.
Can also be used as a band separator.
Code
FL3BPMH
Same as above but:
Remote powered version
5x “F” connectors
Includes PSK06 P/Pack.
Adjustable Equaliser
for VHF. 10dB gain.
Code
SA124R
DISTRIBUTION AMPLIFIER 30dB “F”
SPLITTER BOOSTER 4 WAY S&S
High performance distribution of Free-To-Air (up-to 50 outlets!)
Adjustable gain 20®30dB.
Adjustable equalisation.
Includes 12VDC Power Pack.
Cast-aluminium casing.
I/O = “F” connectors.
Code
DW30
Saddle and screw type.
Weather proof casing for
indoor or outdoor mounting.
Adjustable VHF gain 10dB.
Fixed UHF gain 12dB.
Requires remote power
(14VDC or 17.5 / 22VAC)
Code SAM204
DISTRIBUTION AMPLIFIER SPLIT BAND
AUDIO/VIDEO MODULATORS
Hi-Gain Split band CH Optimising.
Diecast alloy construction. GaAs SMD.
Future DV compatible. Dual I/P.
Gain 1
44 -144MHz 35dB Adjustable
Gain 2
174-300MHz 37dB Adjustable
Gain 3
470-860MHz 40dB Adjustable
Code
DESCRIPTION
DW42
“F” Sockets
Requires Power (eg PSK18 / S )
Adjustable level and
frequency. RCA in.
Composite A/V to
adjustable frequency
80dBuV “F” output.
Code
DESCRIPTION
MD100V 44-350MHz
MD100U 470-860MHz
Requires Power (eg PSK18 / S )
DISTRIBUTION AMPLIFIER WIDEBAND
TOO MUCH TO LIST HERE!
High In/Out 40-860MHz.
Adjustable gain & equalization.
New Improved GaAs technology.
Quality diecast housing.
Test point & “F” connections.
Wideband distribution amplifier.
Code
DESCRIPTION
KDA43 43dB
Requires Power (eg PSK18 / S )
Please request a GME catalogue.
TELESTE
240VAC
240VAC - 12VDC
Power
Injector
SA124
Also available, many more items
for the professional installer.
Including the TELESTE equipment.
MATV CATV SMATV CCTV DVX DSB VSB
Distribution systems, large or small.
9-14
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
FM / VHF / UHF ANTENNA
A good antenna for average reception areas.
Channels 0 to 11 VHF and FM, with the
UHF section tuned for Band 4 with high gain
for channel 28 and 31, etc.
Code ANT15
FM / VHF / UHF ANTENNA
Extra elements for higher gain.
Ideal for multiple output installations.
Good for fringe area reception, etc.
Channels 0 to 11 VHF and FM, with the
UHF section tuned for Band 4 and 5
for channel 28 and 31, 69 (Wollongong), etc.
Code ANT60
FM / VHF / UHF ANTENNA
Extra elements for higher gain in lower
channels. Good for fringe areas, etc.
Channels 0 to 11 VHF and FM, with the
UHF section tuned for Band 4 and 5
for channel 28 and 31, 69 (Wollongong), etc.
Code ANT30
PLEASE NOTE!
PLEASE NOTE!
For low power
transmitters such as
CH31, CH69 or distant
reception such as
Wollongong you may
require more than one
antenna due to direction
and reception gain.
DIGITAL TV
COMPATIBLE!
All TV antennae
are ready for the
new Digital TV
reception.
9-15
HOME ANTENNA
ELECTRONIC SERVICES A/Asia
138 LIVERPOOL RD ASHFIELD 2131
PH 02 97989233
FAX 02 97980017
UHF ONLY BUTTERFLY TV ANTENNA
Features include water resistant 75 ohm balun,
anodised metal and UV resistant plastics.
These antennae offer high gain and
excellent receiving capability for their cost.
We also stock a range of antenna accessories.
Cable, Balluns, Plugs, Sockets, Joiners,
Splitters, Crimps, Masts, Diplexers, Tools,
Boosters, Video combiners and modulators,
Signal strength meters, Fly leads, adapters,
and much more! Please enquire!
OUTDOOR ANTENNA ROTATOR
Get an improved signal from all stations
by controlling the 360’ direction of your
outdoor antenna from inside your home.
Tough metal weatherproof construction.
Rotation torque 220kg-cm (192 lb-in) min.
Mast size 28-44mm (1.1/8’-1.3/4’)
Vertical load 45kg (100lb) max.
Unit weight is 4.6kg (10lb)
Control box 240V in / 18VAC out.
Requires 3 core control cable. (Not Inc.)
Code
AR300XL
For low power transmitters such as
CH31 or distant reception such as
CH69 in Wollongong, etc., you may
require more than one antenna due
to direction and reception gain.
43 ELEMENT UHF ANTENNA
91 ELEMENT UHF ANTENNA
Channels 20-69
Gain
9-13dB
Code
AS4543
Channels 20-69
Gain
8-15dB
Code
AS4591
GALVANISED MASTS
STAND OFF EVE MOUNT GALVANISED
Length 2.4M
Code MAST24
Length 22cm (9")
Code EVE9
Length 3.6M
Code MAST36
Length 66cm (27")
Code EVE27
Length 88cm (36")
Code EVE36
GALVANISED "J" MAST
V BLOCK & U BOLT KIT GALVANISED
"J or "L" mast
Stand-off 22cm
Length 1.8M
Code
JMAST
Includes one "U" bolt
and one "V" block
with nuts and washers.
Suitable for mating
stand-offs with masts
at right-angle, etc.
Code
UBOLT
ACCESSORIES
9-16
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
