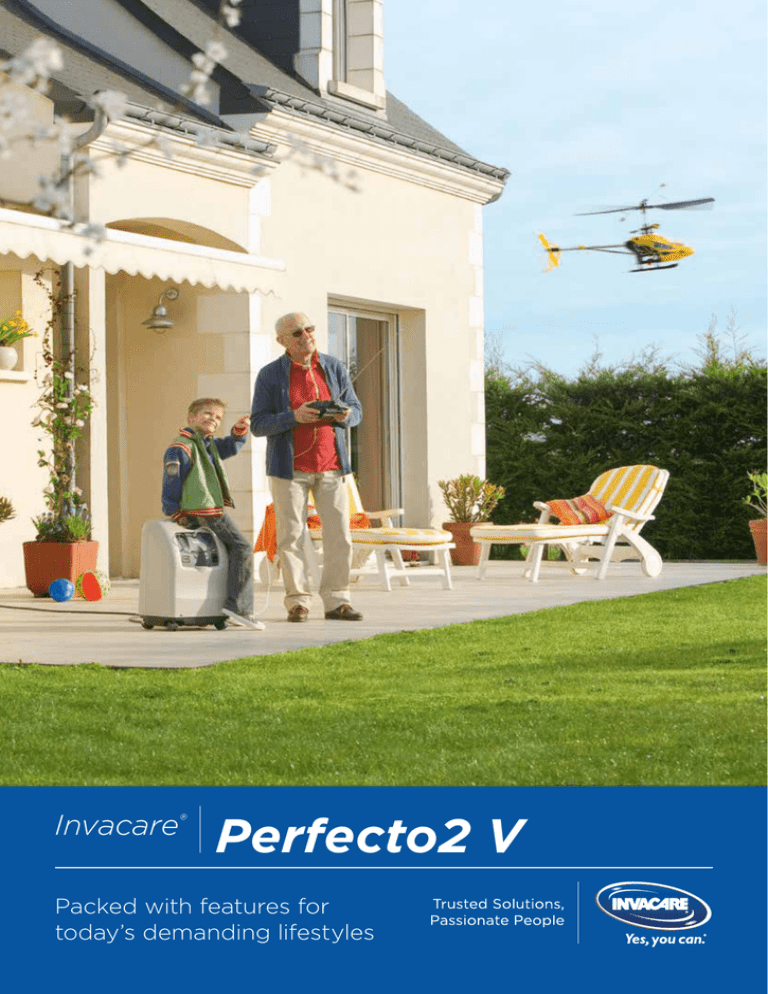

Perfecto2 V

Perfecto2 V
Invacare®
Perfecto2 V
Packed with features for
today’s demanding lifestyles
The new Invacare Perfecto2 V Oxygen Concentrator is an economical addition to the premier Invacare
stationary concentrator line. This full 5-litre concentrator is small, quiet and lightweight and incorporates
SensO2 oxygen sensor technology. The Perfecto2 V is your cost-effective home oxygen concentrator, and
comes with no scheduled maintenance for 3 years.
Quiet and Lightweight
Features and Options
Innovative techniques reduce the compressor and
purge sounds to an almost undetectable level. By
utilising the latest advancement in sieve material
Perfecto2 V has reduced weight whilst maintaining
the highest oxygen purity at all flow rates.
High-performance, safe and reliable
All of Invacare’s rigorously tested safety features
are incorporated into this latest evolution of our
proven line of home oxygen concentrators. The
durable product design and construction ensures
years of reliable service with a minimum of fuss.
No scheduled
maintenance for 3
years
Provider maintenance
is effortless and fast.
Simple for the user
All device controls are
on the front panel and
within easy reach of
the user.
HomeFill compatible
Paediatric flowmeter
Simplify your home
oxygen business
with HomeFill – the
cylinder refilling
system designed with
patients in mind.
50 to 750cc stand
alone device for
accurate low flow
delivery. (Art. no.:
1514913)
®
Technical data
For more comprehensive pre-sales information about this product, including the product’s user manual, please refer to
your local Invacare website.
Length
Width
Height
Weight
Power
consumption
Charger
Noise
O2 purity
< 40dB(A)
(TÜV certified)
87 - 96%
kg
Perfecto2 V
305 mm
380 mm
585 mm
Outlet
pressure
Pulse dose
delivery
Altitude
TOTAL PRODUCT WEIGHT
18.2 kg
ISO Compliant
230 V, 50 Hz
(±10%)
320 W
SensO2 -System
O2-concentration
higher than 85%
- green light -
Perfecto2 V
34.5 kPa ± 10%
0.5 – 5.0 LPM
Up to 2500m
ISO8359, AMD1
Alarms & safety
• Compressor High
Temperature shut down
• High & Low internal
• Battery-free power-loss alarm
pressure alarms
• Resettable circuit breaker
• Self-diagnostic codes with
• SensO2 oxygen purity monitoring
memory for technicians
• Compressor High Pressure relief valve
• Low flow alarm
0434
Tel: +41 (0)22 354 60 10
Fax: +41 (0)22 354 60 11
[email protected]
www.invacare.eu.com
Invacare International Sàrl
Route de Cité-Ouest 2 - 1196 Gland
Switzerland
Service interval
No provider routine
preventative maintenance
for 3 years, replace filters
as required.
Normal
between 73% and 85%
- yellow light Check filter and flow
rate
lower than 73%
- red light & audible
alarm -
Scan here to access the website
http://oxygen-therapy.net/en/
Call service technician
© 2016 Invacare International Sàrl. All rights reserved. All information quoted is believed to be correct at time of print. Invacare reserves the right to alter product specifications without prior consultation.
Perfecto2 V - EU - 09/2016
