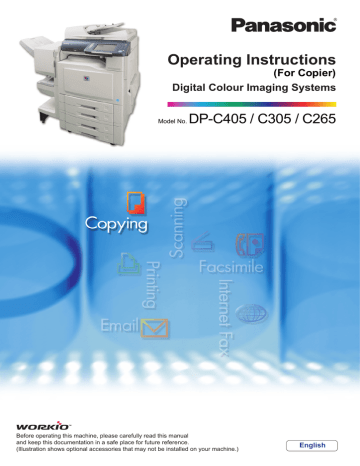

Operating Instructions

(For Copier)

Digital Colour Imaging Systems

Model No.

DP-C405 / C305 / C265

Before operating this machine, please carefully read this manual and keep this documentation in a safe place for future reference.

(Illustration shows optional accessories that may not be installed on your machine.)

English

2

Operating Instructions

The following Operating Instruction manuals are included with this machine. Please refer to the appropriate manual and keep all manuals for future reference. If you lose the manual, contact the authorized Panasonic dealer.

Operating Instructions (For Setting Up)

This manual contains essential information for setting up the machine.

Accessories

Operating Instructions (For Basic Operations)

This manual contains essential information for proper operation of the machine.

It describes basic Copy, Print, Facsimile/Internet Fax,

Scan/Email, and other functions.

For a more detailed explanation of each function, please refer to the Operating Instruction manuals included on two CD-ROMs as illustrated below.

Operating Instructions CD

Contains manuals with detailed information for Copy,

Facsimile/Internet Fax, Scan/Email functions, Function

Parameters, and User Authentication.

Operating Instructions CD

Copy Function

Describes how to make a Colour Copy with creative features.

Facsimile and Internet Fax

Function

(The Facsimile function is available when the optional G3 Fax Communication

Board is installed.)

Describes how to send/receive a

Facsimile/Internet Fax, and describes the course of action to take when a trouble message appears, etc.

Scan and Email Function

Describes how to scan and how to send

Email through the machine.

Document Management System CD

Contains the Panasonic Document Management

System Application software, and manuals with detailed information for the Print function and Panasonic

Document Management System Application software.

Document Management System CD

Print Function

Describes how to print with colour and change the default printer settings, and describes the course of action to take when a problem message appears, etc.

Application Software

Describes how to use the application software.

Ex: Panafax Desktop, Fax Driver, Quick

Image Navigator, Device Monitor/

Device Explorer, Network Config/

Add Editor

Function Parameters

Describes how to change the default settings of each function using the Control

Panel of the machine.

User Authentication

Describes how to enable and use the

User Authentication function.

Conventions

Icons

The following icons are used in this manual.

Icon Description

Indicates important information that must be read in detail.

Indicates reference information.

Notation

The following notation is used in this manual.

Notation

For Keys and Buttons

Description

Hard buttons on the Control Panel are depicted as **** key, and soft buttons on the Touch

Panel Display are depicted as “xxx”.

Ex:

Press the Start key and select “More Menus”.

3

Table of Contents

Chapter 1 Basic Menu Features

Basic Operation Procedure .................................................................................................

6

Selecting the Colour Mode ..................................................................................................

8

Full Colour Mode........................................................................................ “Full Colour” 9

Black Mode ......................................................................................................... “Black” 9

2 Colour Mode................................................................................................ “2 Colour” 10

1 Colour Mode................................................................................................ “1 Colour” 12

New Colour Registration ..........................................................................“Add Custom” 14

Selecting Original Type and Adjusting the Density........................................ “Quality Adj.” 16

Registering Quality Preset.........................................................................................“Save” 18

Using Quality Preset............................................................................................... “Recall” 20

Quality Adjusting........................................................................................ “More Settings” 22

Background Removal............................................................... “Background Removal” 24

Bleed-Through Prevention ............................................... “Bleed-Through Prevention” 25

Tint ..........................................................................................................................“Tint” 26

Contrast.......................................................................................................... “Contrast” 27

Sharpness ...................................................................................................“Sharpness” 28

Saturation.................................................................................................... “Saturation” 29

Colour Balance....................................................................................“Colour Balance” 30

Proof Copying.................................................................................................... “Proof Set” 32

Confirming/Editing the Selected Copy Features................................... “Confirm Settings” 33

Storing a Job in Memory................................................................................“Preset Jobs” 34

Recalling a Preset Job Stored in Memory ........................................................................... 35

Checking the Waiting to Copy Job ............................................................ “Output Queue” 36

Displaying a List of All Jobs ............................................................................................ 36

Displaying a List of Copy Jobs ........................................................................................ 36

Deleting Copy Jobs ......................................................................................................... 37

Completion Notice ............................................................................. “Completion Notice” 38

4

Chapter 2 More Menus Features

2-Sided Copy Mode................................................................. “2-Sided / Original->Copy” 40

Basic Operation for the 2-Sided Copy Mode................................................................... 40

Copying 2-Sided Original(s) onto Two Separate Sheets .....................................“2 -> 1” 41

Copying Facing Page Original to Two Separate Sheets................................... “2 Page” 42

From 1-Sided Originals to 2-Sided Copies Using Saddle Stitch (Booklet)....... “Booklet” 43

Copying Mixed Size Originals from the ADF.......................................“Multi-Size Feed” 45

Copying Special Originals (Thin Paper, etc.) from the ADF........“Job Build and SADF” 47

Sort Mode..................................................................................................... “Sort / Finish” 50

Zoom Mode............................................................................................... “Zoom / Effects” 52

Variable Ratios .................................................................................................... “Zoom” 52

Auto Zoom ..................................................................................................“Auto Zoom” 54

Effect Modes............................................................................................. “Zoom / Effects” 56

Setting a Blank Edge ............................................................................................ “Edge” 56

Eliminating Dark Inner Binding Shadows .............................................................“Book” 58

Shifting Image to Right, Left, Up, or Down ........................................................ “Margin” 59

Copying Mirror Image ......................................................................................... “Mirror” 61

Copying with Stamping..................................................................................“Stamping” 62

Centering ...................................................................................................... “Centering” 71

Image Repeat ........................................................................................ “Image Repeat” 72

Copying Inverse Image..................................................................................... “Inverse” 73

Insertion Modes ................................................................................... “Insertion/Overlay” 74

Adding a Cover Page to Copies ..........................................................................“Cover” 74

Inserting Blank/Copied Pages Between Copies ................................... “Page Insertion” 76

Inserting Blank Pages Between Transparency Films ....... “Transparency Interleaving” 78

Overlay Modes..................................................................................................................... 80

Overlaying an Image onto the Copies ..............................................................“Overlay” 80

Overlay Copying with Registered Image ................................................“Form Overlay” 83

File Edit............................................................................................................“File Edit” 85

Chapter 3 Other Features

Making Copies with the ADF Opened.................................................................................. 90

Digital Skyshot Mode....................................................................................................... 90

Manual Skyshot Mode ..................................................................................................... 91

Reserving the Next Copy Job while the Current Copy Job is Progressing .... “Reverse a Job” 92

Interrupt the Current Copy Jobs to Make an Urgent Copy .................................................. 93

Chapter 4 Appendix

Combined Copy Functions .................................................................................................. 94

Index .................................................................................................................................... 96

5

6

Chapter 1

Basic Operation Procedure

Basic Menu Features

The machine automatically detects original(s) and decides on the Copy Size and Colour mode to use.

If the detection fails, manually set the settings.

1

Place original(s).

3

Select the required settings if necessary.

Face up. Up to 100 sheets (80 g/m

2

/ A4)

Face down. Align with top left corner. Close ADF.

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

z The original size is detected and a corresponding Copy Size is automatically selected.

z If the orientation of original does not match the orientation of copy paper, the image of original is rotated automatically and copied.

z When copying A4 size originals, selecting

A4 for the Copy Size accelerates the continuous copying speed. If the orientation is not the same for both settings, the copied image is automatically rotated by 90 degrees. z

For more details of the Basic Menu screen,

refer to Basic Menu Features (see pages 8

to 38).

z

When setting other features, refer to More

Menus Features (see pages 40 to 88).

Ex: 2-Sided Copy, Sort / Finish, Zoom/

Effects, etc.

4

Enter the desired number of copies.

(Up to 999) z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

z When inputting a number (4 to 8 digits) with the optional Fax Communication Board installed, the machine automatically interprets it as a telephone number, switches to the Fax mode, and displays the

Number Pad screen.

z The number of digits interpreted as a fax number can be set from 4 to 8 digits in the

Function Parameter “118 Fax Function

Detect” (Fax/Email Settings > Fax

Parameters). For more details, refer to Fax/

Email Settings in the Operating Instructions

(For Function Parameters) of provided CD-

ROM.

5

Press the Start key.

z When copying from the Platen Glass, place the next original and follow the instructions described on the touch panel display.

7

8

Selecting the Colour Mode

You can copy in the Colour mode selected by the machine, or select the Colour mode manually.

Full colour

Full Colour

Monochrome

2 Colour

1 Colour Monochrome

Monochrome

1 Colour

Ex: Full Colour z The default Colour mode settings can be changed. Refer to Copier Settings (Key Operator Mode) in the

Operating Instructions (For Function Parameters) of provided CD-ROM.

z The manually selected Colour mode settings will return to the default settings under the following conditions.

- If the Reset key is pressed.

- If Auto Reset Time interval has lapsed (default = 1 min).

- If the power is turned OFF.

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “Quality Adj.”.

4

Select the desired Colour mode, and then select “OK”.

Auto:

The colour original is copied in Full

Colour and the monochrome original is copied in black and white by automatically detecting the original’s colour.

Black (Monochrome) (see page 9)

Full Colour (see page 9)

2 Colour (see page 10)

1 Colour (see page 12)

5

Enter the desired number of copies.

6

Press the Start key.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

Full Colour Mode

Colour original can be copied in Full Colour.

Full Colour Full Colour

Black Mode

Colour and monochrome originals can be copied in black and white.

Full Colour Black & White

1

Select “Full Colour”, and then select

OK”.

Black & White Black & White

1

Select “Black”, and then select “OK”.

z To display this screen, refer to steps 1 to 3 of

Selecting the Colour Mode (see page 8).

z

For the following procedure, refer to steps 5

to 6 of Selecting the Colour Mode (see page 8).

z To display this screen, refer to steps 1 to 3 of

Selecting the Colour Mode (see page 8).

z For the following procedure, refer to steps 5

to 6 of Selecting the Colour Mode (see page 8).

9

2 Colour Mode

Colour original can be copied in 2 colours, which can be achieved by using black and another specified colour.

The specified colour can be selected from the basic colours (red, green, blue, yellow, magenta, and cyan) and the registered colours.

Ex: When copying a full colour original in cyan and black.

z

When the 2 Colour mode is selected, the Original Type setting selection is not available.

1

Select “2 Colour”.

3

Select a colour from the basic colours or custom colours, and then select

OK”.

‰

When selecting a colour from the basic colours

10 z To display this screen, refer to steps 1 to 3 of

Selecting the Colour Mode (see page 8).

2

Select “Change Colour”.

‰ When selecting a colour from the custom colours z The colour and the specified name are displayed.

z When registering a custom colour, refer to

New Colour Registration (see page 14).

4

Select “OK”.

Ex: “Green” is selected.

z For the following procedure, refer to steps 5

to 6 of Selecting the Colour Mode (see page 8).

11

1 Colour Mode

Colour and monochrome originals can be copied in one specified colour.

The colour can be selected from the basic colours (red, green, blue, yellow, magenta, and cyan) and the registered colours.

Ex: Copying a full colour original in cyan.

Ex: Copying a monochrome original in cyan.

z When the 1 Colour mode is selected, the Original Type setting selection is not available.

1

Select “1 Colour”.

3

Select a colour from the basic colours or custom colours, and then select

OK”.

‰ When selecting a colour from the basic colours

12 z To display this screen, refer to steps 1 to 3 of

Selecting the Colour Mode (see page 8).

2

Select “Change Colour”.

‰

When selecting a colour from the custom colours z The colour and the specified name are displayed.

z When registering a custom colour, refer to

New Colour Registration (see page 14).

4

Select “OK”.

Ex: “Green” is selected.

z For the following procedure, refer to steps 5

to 6 of Selecting the Colour Mode (see page 8).

13

14

New Colour Registration

1

Select “Add Custom”.

3

Adjust the colour level of Cyan,

Magenta, and Yellow colours.

z To display this screen, refer to steps 1 to 2 of

2 Colour Mode (see page 10).

2

Select any button without a colour name registered, and then select

OK”.

Colour

Colour Ratio

Colour Sample Indicator z The created new colour can be confirmed with the Colour Sample Indicator in real time.

z The total combined colour level of Cyan,

Magenta, and Yellow should be 240% or less.

4

Check the adjusted colour, and then select “OK”.

‰ When changing the registered colour

Select the registered colour name button, and then select “OK”.

5

Enter the original colour name with the

Keyboard, and then select “OK”.

z Up to 20 characters.

z For instructions on how to enter characters, refer to Using the Keyboard in the

Operating Instructions (For Function

Parameters) of provided CD-ROM.

6

Confirm the registered colour, and then select “OK”.

15

16

Selecting Original Type and Adjusting the

Density

Select the original type corresponding to your documents.

Text Text/Photo Photo

Adjust the copy density according to your requirements.

Other Types

Decreased density

Lighter Darker Increased density z The Original Type setting selection is not available when the 2 Colour or 1 Colour mode is selected.

z To change the “Original Type” default setting, refer to Copier Settings (Key Operator Mode) in the Operating

Instructions (For Function Parameters) of provided CD-ROM.

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “Quality Adj.”.

4

Select the Original Type.

Text

Text/



Other

Types

Select when copying text without any pictures.

“Printed”:

Original full of printed characters

“Pencil”:

Original written with pencil to make it darker

Select when copying originals containing text and pictures.

“Photo Paper”

“LaserPrinted”

“Commercial”

Ex: Brochure

Select when copying photos.

“Photo Paper”:

Photos printed on paper

“LaserPrinted”:

Photos printed by laser printer

“Commercial”:

Photos on printed material

Ex: Brochure

Select when copying the following types of originals.

“Map”

“TracingPaper”:

Select when the original is thin to prevent the image from bleeding through on the copy.

“NewsPaper”:

Select when the background colour is not white (Ex:

Newspaper).

5

Adjust the density using “Lighter” or

Darker”, and then select “OK”.

Lighter

Each time it is selected, the density level is decreased, brightening the printed colour.

Darker

Each time it is selected, the density level is increased, darkening the printed colour.

6

Enter the desired number of copies.

7

Press the Start key.

z

After finishing copying, press the Reset key to return to the initial screen of the current active mode.

17

18

Registering Quality Preset

Save your favourite quality adjustment setting by registering up to 5 Quality Presets.

The following quality adjustment settings can be registered:

• Auto, Black, Full Colour, 2 Colour, or 1 Colour

• Original Type

• Density

More Settings

• Background Removal

• Bleed-Through Prevention

• Tint

• Contrast

• Sharpness

• Saturation

• Colour Balance z

For details on how to use the Quality Preset, refer to Using Quality Preset (see page 20).

z The registered image quality setting is kept until it is overwritten by a new setting.

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “Quality Adj.”.

4

Select the desired quality settings.

5

Select “Save”.

6

Select a Quality Preset button, and then select “OK”.

‰ When registering a new Quality Preset

Select an empty Quality Preset button.

7

Enter the Quality Preset name, and then select “OK”.

‰ When updating a registered Quality

Preset

Select the registered Quality Preset button.

z Registration will not be permitted without assigning a name.

z Up to 20 characters.

z For instructions on how to enter characters, refer to Using the Keyboard in the

Operating Instructions (For Function

Parameters) of provided CD-ROM.

8

Select “OK”.

9

Enter the desired number of copies.

10

Press the Start key.

Confirm the image quality of the copied papers.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

19

20

Using Quality Preset

You can recall the registered quality adjustment settings by the following procedures.

z

For details on how to register image quality adjustment settings into Quality Preset, refer to Registering

Quality Preset (see page 18).

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “Quality Adj.”.

5

Select a Quality Preset button, and then select “OK”.

The selected Quality Preset settings are reflected.

6

Select “OK”.

4

Select “Recall”.

7

Enter the desired number of copies.

8

Press the Start key.

Confirm the image quality of the copied papers.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

Memo

21

22

Quality Adjusting

Image quality items can be easily set by selecting from 4 image quality types (Vivid, Bright, Warmer, and Cooler).

Additionally, in the Custom Setting selection, the following 7 image quality adjustments can be set.

• Background Removal

• Bleed-Through Prevention

• Tint

• Contrast

• Sharpness

• Saturation

• Colour Balance z The default setting of Bleed-Through Prevention, Tint, Contrast, Sharpness, and Saturation can be changed.

Refer to Copier Settings (Key Operator Mode) in the Operating Instructions (For Function Parameters) of provided CD-ROM.

z Under the following situations, the Colour mode settings return to the standard settings.

- If the Reset key is pressed.

- If Auto Reset Time interval has lapsed (default = 1 min).

- If the power is turned OFF.

- If “Default” is selected in “More Settings”.

z If you select the Original Type after selecting the custom settings, the custom settings return to the standard settings.

1

Place original(s).

z

Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “Quality Adj.”.

5

Select an Image Quality type, and then select “OK”.

4

Select “More Settings”.

Custom Setting

(See pages 24 to 30)

Default

Vivid

Bright

Warmer

Cooler

Copies with the default image quality set by the function parameters.

Copies with vivid image quality.

Copies with bright image quality.

Copies with reddish colour accentuated.

Copies with bluish colour accentuated.

z If “TracingPaper” is selected in “Original

Type”, the Bleed-Through Prevention is set to 3 regardless of the selected image quality type.

z The default values are set upon shipment.

Key operations can change these values.

Refer to Copier Settings in the Operating

Instructions (For Function Parameters) of provided CD-ROM.

6

Select “OK”.

7

Enter the desired number of copies.

8

Press the Start key.

Confirm the image quality of the copied papers.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

23

Background Removal

The original can be copied with the background colour removed. This function is useful when copying newspapers or an original with background colour.

z The settings of Background Removal and Bleed-Through Prevention become invalid if “Photo” is selected in

Original Type”.

1

Select “Custom Setting”.

3

Adjust the level of Background

Removal with “-” and “+”, and then select “OK”.

24 z To display this screen, refer to steps 1 to 4 of

Quality Adjusting (see page 22).

2

Select “Background Removal”.

Background

Removal

There are 6 levels. The higher the value, the more Background

Colour removed.

4

Select “OK”.

z If “TracingPaper” is selected in “Original

Type”, Background Removal is set to 3.

z For the following procedure, refer to steps 6

to 8 of Quality Adjusting (see page 23).

Bleed-Through Prevention

Thin sheets of original can be copied without bleeding through.

z The setting of Bleed-Through Prevention becomes invalid if “Photo” is selected in “Original Type”.

z When setting the Tint adjustment to More Blue or More Red, the copies may come out with bleed through contamination.

1

Select “Bleed-Through Prevention”.

z

If you set the Background Removal to “Off”, the Bleed-Through Prevention will not be adjustable.

Bleed-

Through

Prevention

3

Select “OK”.

There are 6 levels. The higher the level, the higher the prevention effect.

z To display this screen, refer to step 1 of

Background Removal (see page 24).

z If “TracingPaper” is selected in “Original

Type”, Bleed-Through Prevention of each image quality type is set to 3.

2

Adjust the level of Bleed-Through

Prevention with “-” and “+”, and then select “OK”.

z

For the following procedure, refer to steps 6

to 8 of Quality Adjusting (see page 23).

25

26

Tint

The original can be copied with reddish or bluish colour accentuated.

Reddish colour accentuated

1

Select “Tint”.

Bluish colour accentuated

2

Adjust the colour tone with “More

Red” or “More Blue”, and then select

OK”.

z To display this screen, refer to step 1 of

Background Removal (see page 24).

More Red

More Blue

Each time it is selected, the level of reddish colour increases by 1 grade. (The bluish colour level decreases by 1 grade.)

Each time it is selected, the level of bluish colour increases by 1 grade. (The reddish colour level decreases by 1 grade.) z The screen will return to step 1.

Select “OK”, and then proceed to steps 6 to

8 of Quality Adjusting (see page 23).

Contrast

The original can be copied with the adjusted contrast.

1

Select “Contrast”.

Higher

Lower

2

Adjust the contrast with “Lower” or

Higher”, and then select “OK”.

z

To display this screen, refer to step 1 of

Background Removal (see page 24).

Lower

Higher

Each time it is selected, the contrast level decreases by 1 grade lower. (The distinction between brightness and darkness is reduced.)

Each time it is selected, the contrast level increases by 1 grade higher. (The distinction between brightness and darkness is increased.) z The screen will return to step 1.

Select “OK”, and then proceed to steps 6 to

8 of Quality Adjusting (see page 23).

27

28

Sharpness

The original can be copied by softening or sharpening the outline of the image.

Lower

1

Select “Sharpness”.

Higher

2

Adjust the sharpness with “Lower” or

Higher”, and then select “OK”.

z To display this screen, refer to step 1 of

Background Removal (see page 24).

Lower

Higher

Each time it is selected, the sharpness level decreases by

1 grade lower. (The image outline is softened.)

Each time it is selected, the sharpness level increases by 1 grade higher. (The image outline is sharpened.) z

The screen will return to step 1.

Select “OK”, and then proceed to steps 6 to

8 of Quality Adjusting (see page 23).

Saturation

The original can be copied with the adjusted saturation.

Lower

1

Select “Saturation”.

Higher

2

Adjust the saturation with “Lower” or

Higher”, and then select “OK”.

z To display this screen, refer to step 1 of

Background Removal (see page 24).

Lower

Higher

Each time it is selected, the saturation level decreases by 1 grade lower, reducing the colour saturation.

Each time it is selected, the saturation level increases by 1 grade higher, increasing the colour saturation.

z The screen will return to step 1.

Select “OK”, and then proceed to steps 6 to

8 of Quality Adjusting (see page 23).

29

30

Colour Balance

The original can be copied with the adjusted density level (Darker, Medium, and Lighter) of Yellow,

Magenta, Cyan, and Black.

z The density of each colour can be fine tuned for each of the three density levels.

This function is useful for the fine adjustment of colour photos. Unlike image editing software, this function cannot greatly change the colour tone since the adjustable range at each density level is very narrow.

1

Select “Colour Balance”.

3

Select remaining colours, and then adjust the Colour Balance as shown in step 2.

z To display this screen, refer to step 1 of

Background Removal (see page 24).

2

Select “Cyan”, and then adjust Darker

Areas, Medium Areas, and Lighter

Areas with “-” or “+”.

4

Select “OK”.

z The density range from the darkest level

(100%) to the lightest level (0%) is equally divided into three range areas.

Darkest area

Darker

Areas

Medium

Areas

Lighter

Areas

Area between the darkest and lightest areas

Lightest area z The screen will return to step 1.

Select “OK”, and then proceed to steps 6 to

8 of Quality Adjusting (see page 23).

Memo

31

Proof Copying

When making more than one copy, the first copy can be printed as a proof copy.

After confirming its quality, the remaining copies can be printed.

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select the copy features if necessary.

One copy as a proof copy

The remaining copies are made after confirmation.

6

Press the Start key.

The first copy is printed and the Confirmation screen appears.

7

If the copy quality is satisfactory, select “Yes”.

32

4

Enter the desired number of copies.

5

Select “Proof Set”.

The remaining copies are printed.

‰ If the copy quality is not satisfactory.

1

Select “No” to return to the Basic Menu screen.

2

Place the original again.

3

Adjust the quality settings.

4

Press the Start key.

A proof copy is printed and the Confirmation screen appears. Confirm if the copy quality is acceptable.

5

Select “Yes”.

The remaining copies are printed.

Confirming/Editing the Selected Copy

Features

Before copying, the settings of “More Menus” can be checked, changed, and deleted.

1

Select “Confirm Settings”.

Ex: Changing the Non Sort mode to the Shift-Sort mode when optional Finisher is installed

Select “Non Sort”.

2

Check the settings, and then select

Close”.

Select “Shift-Sort”, and then select “OK”.

z If “Confirm Settings” is selected, the setting screen is displayed and the settings (except

1 -> 1) can be changed.

z If “Reset All” is selected, all the settings are cancelled.

z If “Preset Jobs” is selected, the job registration screen is displayed to register

jobs. Refer to Storing a Job in Memory

(see page 34).

Select “Close”.

33

34

Storing a Job in Memory

A copy job can be registered as a preset job. It is useful to register the frequently used settings as

Preset Jobs.

z

Refer to Recalling a Preset Job Stored in Memory (see page 35).

z Once registered, the copy job settings are kept in the job memory until they are overwritten by new settings.

z A Proof Copy job cannot be registered in the job memory. z “M1:”/“M2:” cannot be registered when the Manual Skyshot mode is selected. Refer to Copier Settings in the

Operating Instructions (For Function Parameters) of provided CD-ROM.

1

Place original(s).

z

Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select the copy features (see pages 8

to 33 and 40 to 91).

6

Select “Save”, and then select a job button without a job registered.

z

The job button, in which a job has been registered, has a job name.

7

Enter a job name, and then select

OK”.

4

Enter the desired number of copies.

5

Select “Preset Jobs”.

z

Up to 20 characters can be entered.

z For instructions on how to enter characters, refer to Using the Keyboard in the

Operating Instructions (For Function

Parameters) of provided CD-ROM.

z

After completing the editing of the job name, press the Reset key to return to the initial screen of the current active mode.

Recalling a Preset Job Stored in Memory

The specific copy job will be done by recalling the registered preset jobs.

A job called “Double Exposure” is set in M10 as default.

Refer to Double Exposure in the Operating Instructions (For Basic Operations) of provided booklet.

z

Refer to Storing a Job in Memory (see page 34).

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “Preset Jobs”.

5

To confirm the job settings, select

Confirm Settings”, and then select

Close”.

z

To change the setting, refer to Confirming/

Editing the Selected Copy Features (see page 33).

6

Press the Start key.

4

Select a stored job.

z Job buttons without names, indicate that jobs are not registered.

z If the Confirmation screen “Ready for M 1

Memory Copy” is displayed, select “Close”.

35

36

Checking the Waiting to Copy Job

A list of jobs currently being printed or waiting to print can be displayed. The following types of jobs can be displayed.

• All jobs

• Copy jobs

The waiting to print jobs can be deleted.

Displaying a List of All Jobs

A list of all the jobs currently being printed or waiting to print can be displayed.

1

Press the Copy key if the machine is set to other function mode.

2

Select “Output Queue”.

Displaying a List of Copy Jobs

A list of Copy jobs currently being printed or waiting to print can be displayed.

1

Select “Copy” in the Output Queue screen.

The Output Queue screen is displayed, and a list of all the jobs currently being printed or waiting to print are displayed.

3

Select “Close”.

z A list of Copy jobs currently being printed or waiting to print is displayed.

2

Select “Close”.

Deleting Copy Jobs

The jobs in the Ready status can be deleted.

1

Select “Copy” in the Output Queue screen.

3

Select “Yes”.

Copy

Print

Select when deleting a copy job.

Select when deleting a print job.

z Refer to the Operating

Instructions (Printer

Driver) of provided CD-

ROM.

z To display the Output Queue screen, refer to

Checking the Waiting to Copy Job (see page 36).

2

Select a job, and then select “Delete”.

The selected Copy job is deleted.

4

Select “Close”.

z When deleting all jobs, select “Select All”, and then select “Delete”.

The screen to confirm the job deletion is displayed.

37

38

Completion Notice

If the Completion Notice is set, you will be notified on your computer when copying is completed.

z Before using this function, install the Panasonic Document Management System and PCL Printer Driver, and then configure each software.

z To register the IP Address of your computer, refer to Network Scanner Settings and Completion Notice

Function in the Operating Instructions (For Setting Up) of provided booklet.

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select the copy features if necessary.

4

Select “Completion Notice”.

6

Select a designated computer, and then select “OK”.

7

Enter the desired number of copies.

8

Press the Start key.

A completion notice will be sent to the specified computer when copying is completed.

z When copying from the Platen Glass, place the next original, and follow the instructions described on the Touch Panel Display.

5

Select an index tab or “Favourites” to display the registered computers.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

Memo

39

40

Chapter 2

2-Sided Copy Mode

More Menus Features z For information on “1 -> 2”, “2 -> 2”, “Book -> 2”, and “N in 1”, refer to the Operating Instructions (For Basic

Operations) of provided booklet.

z The standard setting of “2-Sided / Original->Copy” can be changed. Refer to Copier Settings in the

Operating Instructions (For Function Parameters) of provided CD-ROM.

z Special papers such as cardboard cannot be used for the 2-Sided copy.

Basic Operation for the 2-Sided Copy Mode

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

z For “2 -> 1”, “2 -> 2”, “Booklet”, “Multi-Size

Feed”, and “Job Build and SADF”, place originals on the ADF.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

4

Select the desired 2-Sided mode.

1 -> 1 : Clears the 2-Sided copy mode.

2 -> 1 : (see page 41)

2 Page : (see page 42)

Booklet : (see page 43)

Multi-Size Feed: (see page 45)

Job Build and SADF: (see pages 47 to 48)

z When “Multi-Size Feed” is selected, only

1 -> 1” can be selected.

For N in 1, 1 -> 2, 2 -> 2, and Book -> 2

Modes

z Refer to the Operating Instructions (For

Basic Operations) of provided booklet.

5

Enter the desired number of copies.

6

Press the Start key.

z When copying from the Platen Glass, place the next original, and follow the instructions described on the Touch Panel Display.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

Copying 2-Sided Original(s) onto Two Separate Sheets

2-sided original(s) can be copied as separated into two 1-sided pages.

1

Select “2-Sided / Original->Copy”, and then select “2 -> 1”.

2

Select the bind position, and then select “OK”.

z To display this screen, refer to steps 1 to 3 of

Basic Operation for the 2-Sided Copy

Mode (see page 40).

z When “Multi-Size Feed” is selected, “2 -> 1” cannot be selected.

Long Edge:

Copies both sides of original aligning to the long edge of the original.

Short Edge:

Copies both sides of original aligning to the short edge of the original.

z For the following procedure, refer to steps 5

to 6 of Basic Operation for the 2-Sided

Copy Mode (see page 40).

41

Copying Facing Page Original to Two Separate Sheets

Two facing pages or an A3 size original can be copied as separated into two 1-sided sheets.

1

Select “2-Sided / Original->Copy”, and then select “2 Page”.

3

Select the copy layout, and then select

OK”.

42 z To display this screen, refer to steps 1 to 3 of

Basic Operation for the 2-Sided Copy

Mode (see page 40).

z When “Multi-Size Feed” is selected, “2

Page” cannot be selected.

2

Select the Page Order of original.

The first through last page are copied.

The first page and beyond are copied, but the last page is not copied.

The first page is not copied, but the rest including the last page is copied.

The first and the last page are not copied.

z For the following procedure, refer to steps 5

to 6 of Basic Operation for the 2-Sided

Copy Mode (see page 40).

The left page of the facing pages is copied first.

The right page of the facing pages is copied first.

From 1-Sided Originals to 2-Sided Copies Using Saddle Stitch

(Booklet)

z

2-sided original cannot be copied into a booklet.

z Originals should be placed on the ADF. (A5 or A4 size is only available, up to 60 originals) z

Saddle stitch binding is possible only when the optional 1Bin Saddle-Stitch Finisher (DA-FS405) is installed.

A3, B4, and A4R are the only applicable paper sizes (B4 size can be selected only when printing from computer).

z The standard setting for the copy size is the reduced size, however, the setting can be changed to the original size. Refer to Copier Settings in the Operating Instructions (For Function Parameters) of provided CD-ROM.

z

When the fold position does not match with the centre position of the copies, set the binding margin. Refer to General

Settings (Key Operator Mode) in the Operating Instructions (For Function Parameters) of provided CD-ROM.

z

Stamping can be combined with the Booklet function. For copying with stamp, refer to Copying with Stamping

(see pages 62 to 70).

1

Select “2-Sided / Original->Copy”, and then select “Booklet”.

Select when binding the left side or the top side of the page.

Select when binding the right side or the bottom side of the page.

3

Select the cover page type if necessary.

Select “Cover”.

z To display this screen, refer to steps 1 to 3 of

Basic Operation for the 2-Sided Copy

Mode (see page 40).

z When “Multi-Size Feed” is selected,

Booklet” cannot be selected.

2

Select the bind position.

Continued on the next page...

43

44

Select the cover type.

5

Select “OK”.

Blank

Copy

Not copied on the cover.

Copied on the cover.

z When “Blank” is selected for the cover type, up to 56 originals can be placed on the ADF.

Select “Cover” to select a paper.

z For the following procedure, refer to steps 5

to 6 of Basic Operation for the 2-Sided

Copy Mode (see page 40).

z When the fold position does not match with the centre position of the copies, set the binding margin. Refer to General Settings in the Operating Instructions (For Function

Parameters) of provided CD-ROM.

z The stapled copies are delivered to the

Saddle Tray of the 1Bin Saddle-Stitch

Finisher as shown below.

z When changing paper for copies other than the cover, select “Copy”. If the paper of desired size is available on the tray, the display changes.

Select a paper size from the display.

4

Select “OK” to exit the cover settings.

Staple Position

Saddle Tray

Copying Mixed Size Originals from the ADF

Use this function when copying mixed size originals (A4 and A3, or A5, A4R, and B4). Using the ADF, original size can be detected automatically and copied in the same size or the specified size.

Ex: Original Size (Standard Setting) Ex: Specified Size

A4 and A3 A4 and A3 A4 z

When copying in the 2-Sided mode

Combination

Combination 1

Combination 2

Original Size 1

A3

A4R

Original Size 2

A4

A5 z If no copy size is specified, the original is copied in the original size. If the copy size is specified, the original is copied automatically enlarged or reduced in accordance with the specified size.

z Only when specifying the same copy size, the 2-Sided copy is possible by setting “2-Sided”.

z Only when specifying the same copy size (A4 only), the copies can be rotated and printed as a booklet or a unit of specified number of pages by setting “Rotate-Sort” or “Rotate-Group”.

1

Select “2-Sided / Original->Copy”, and then select “Multi-Size Feed”.

2

Select the Orientation, and then select

OK”.

z To display this screen, refer to steps 1 to 3 of

Basic Operation for the 2-Sided Copy

Mode (see page 40).

Continued on the next page...

45

When all originals are vertically long

Ex:

ABC

When the smaller original is vertically long, and the larger original is horizontally long

Ex:

ABC

ABC

When the smaller original is horizontally long, and the larger original is vertically long

Ex:

When all originals are horizontally long

Ex:

ABC

3

When copying the same paper size, select “Basic Menu”, and then select a desired copy size with the Copy Size buttons.

Ex: Combination of A4 (Portrait layout) and A3

(Landscape layout) size original

Copy images (1 -> 2 copy mode)

Bind position is Short Edge.

A4

(Portrait)

A3

(Landscape)

Copy size is not set.

Face

A4

(Portrait)

Blank

Copy size is set to A4.

Face

A4

(Portrait)

Back

Back

A3

(Landscape)

*1 A3 size will be reduced to A4 size.

46 z For the following procedure, refer to steps 5

to 6 of Basic Operation for the 2-Sided

Copy Mode (see page 40).

Copying Special Originals (Thin Paper, etc.) from the ADF

„

SADF

This mode adds a 5-second delay to allow another original to be placed on the ADF. Special originals

(thin paper, etc.) can be fed from the ADF and copied continuously using the SADF mode.

1

Place one original (minimum 50 g/m

2

) on the ADF.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

4

Select “2-Sided / Original->Copy”, and then select “Job Build and

SADF”.

5

Enter the desired number of copies.

6

Press the Start key.

7

Place the next original within 5 seconds of last ejected original(s).

8

After the last page is scanned, select

No” in the Confirmation screen.

47

48

„

Job Build

This is useful for copying multiple sets of originals that exceed the maximum capacity of the ADF of

100 sheets (80 g/m

2

/ A4). (See the example below.)

Ex: To make 5 sets of sorted copies of 115-sheet of originals.

(a) Place the first 100 sheets of originals on the ADF.

(b) Select “2-Sided / Original->Copy”, and then select “Job Build and SADF”.

(c) Select “Sort / Finish”, and then select the desired Sorting/Finishing end result.

(d) Enter 5 for the number of copies.

(e) Press the Start key.

(f) After scanning the first 100 sheets, you can place the remaining 15 sheets of originals on the ADF within 5 seconds to continue copying without interrupting the cycle.

If you do nothing, the machine will display the message “Another original?”.

(g) Place the remaining 15 sheets of originals on the ADF, and then select “Yes”.

(h) After scanning the remaining 15 sheets, the message “Another original?” will be displayed. Select

No” to start the printing process.

1

100

Originals:100 sheets <1st scan>

1

115

101

115

The 1st and 2nd scanned data are combined into one job.

Originals: Remaining 15 sheets <2nd scan>

5 sets of 115-sheet sorted copies are printed.

z Originals should be placed on the ADF.

z Up to 999 sheets of originals can be scanned in one job.

The maximum capacity of the scanned data can be reached less than 999 sheets of originals depending on the type of sheets being scanned.

If the memory becomes full during scanning, follow the instructions on the display.

Memo

49

Sort Mode

The original can be copied, printed, and sorted in a specified number of sets.

• When optional Finisher is not installed

Refer to the Operating Instructions (For Basic Operations) of provided booklet.

• When optional Finisher is installed

The Shift-Sort, Shift-Group, and Staple-Sort mode are available.

• When optional Punch Unit is installed

The Punch mode is available.

Shift-Sort Shift-Group Staple-Sort Punch

50 z The maximum number of pages to staple are as follows.

For 1Bin Finisher

A4: 30 sheets, B4 / A3: 20 sheets

For 1Bin Saddle-Stitch Finisher

A4: 50 sheets, B4 / A3: 25 sheets

Saddle-Stitch:

A4 (A4R), B4, A3: 10 sets (6-10 sheets/11-15 sheets*) / 20 sets (2-5 sheets)

* 64 g/m

2

4

Select “Sort / Finish”, and then select a sort mode.

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

z When “Staple-Sort” or “Punch” is selected, refer to the next page.

‰ When the optional 1Bin Saddle-Stitch

Finisher is installed.

Select the Staple position.

‰ When the optional 1Bin Finisher is installed.

Select the Staple position.

2 positions on the left side

1 position on the upper left side

2 positions on the upper side

2 positions on the right side

1 position on the upper right side

‰ When the optional Punch Unit is installed to the 1Bin Saddle-Stitch Finisher.

Select the Punch position.

1 position on the upper left side

1 position on the upper right side

5

Enter the desired number of copies.

6

Press the Start key.

z When copying from the Platen Glass, place the next original and follow the instructions described on the Touch Panel Display.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

51

Zoom Mode

Variable Ratios

The original can be copied by setting the Enlargement/Reduction Ratio.

52

1

Place original(s).

z

Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

5

Select the item to enlarge/reduce.

4

Select “Zoom / Effects”, and then select “Zoom”.

XY

X

Y

Select to set the same enlargement/ reduction ratio vertically and horizontally.

Select to set the horizontal enlargement/reduction ratio.

Select to set the vertical enlargement/ reduction ratio.

When a reduction copy is selected, it is printed on the following position and size.

Place original(s) on the

ADF.

ABC

Place an original on the Platen Glass.

ABC

ABC

ABC

Ex.25%

ABC

ABC

Ex. 50%

Ex.25%

Ex. 50%

100% 100%

6

Enter the zoom ratio with “S” and “T”, or the Keypad, and then select “OK”.

z

The ratio can be set in 1% increments from

25% to 400%.

z When changing the paper size after setting the zoom ratio, select “Basic Menu”, and select “Paper/Output Tray”, and then select the paper size.

7

Enter the desired number of copies.

8

Press the Start key.

z

When copying from the Platen Glass, place the next original, and follow the instructions described on the Touch Panel Display.

z

After finishing copying, press the Reset key to return to the initial screen of the current active mode.

53

54

Auto Zoom

By setting Auto Zoom, originals can be automatically enlarged/reduced to fit the size of the loaded paper.

z This function can be selected when the original is placed on the Platen Glass.

z As the original is placed on the Platen Glass, the position of the original may be erroneously detected if influenced by ambient light.

z If the margin around the original is 5 mm wide or less, the original may not be correctly detected, and the copy image may be unclear.

1

Open the ADF more than 45 degrees, and place original on the Platen Glass, and then leave the ADF open.

4

Select “Zoom / Effects”, and then select “Auto Zoom”.

Face down. Align with top left corner.

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

5

Select the desired zoom type ratio, and then select “OK”.

Enlarged or reduced according to the vertical or horizontal size of the paper

(the one with the smaller magnification ratio is selected).

Enlarged or reduced according to both vertical/ horizontal size of the paper.

6

Select the desired size of paper, and then select “OK”.

7

Enter the desired number of copies.

8

Press the Start key.

z When copying from the Platen Glass, place the next original, and follow the instructions described on the Touch Panel Display.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

55

56

Effect Modes

Setting a Blank Edge

Unnecessary edge can be erased by setting a blank edge.

z When “Zoom” is selected, the erasing width varies depending on the zoom ratio.

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

4

Select “Zoom / Effects”, and then select “Edge”.

5

Select “XY” to set the same value for X and Y, or “X” or “Y” to set a different value for X and Y.

XY

X

Select to set the same erasing width for all sides.

Select to set the erasing width for the right and left sides.

Y

Select to set the erasing width for the top and bottom sides.

6

Enter the erasing width with “S” and

“T”, or the Keypad, and then select

OK”.

z The erasing width can be set in 1 mm increments from 5 mm to 99 mm.

7

Enter the desired number of copies.

8

Press the Start key.

z When copying from the Platen Glass, place the next original, and follow the instructions described on the Touch Panel Display. (The instructions are displayed only when the

Sort mode other than “Non Sort” is selected.) z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

57

58

Eliminating Dark Inner Binding Shadows

When copying original such as the centre of folding position may be shaded, the shade can be easily eliminated.

The shade is erased.

z

When “Zoom” is selected, the erasing width varies depending on the zoom ratio.

z

When “Overlay” or “Form Overlay” is selected, this function cannot be executed for the overlay original.

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

5

Enter the erasing width with “S” and

“T”, or the Keypad, and then select

OK”.

4

Select “Zoom / Effects”, and then select “Book”.

z The erasing width can be set in 1 mm increments from 5 mm to 99 mm.

6

Enter the desired number of copies.

7

Press the Start key.

z

When copying from the Platen Glass, place the next original, and follow the instructions described on the Touch Panel Display. (The instructions are displayed only when the

Sort mode other than “Non Sort” is selected.) z

After finishing copying, press the Reset key to return to the initial screen of the current active mode.

Shifting Image to Right, Left, Up, or Down

The margin can be added on any 4 sides of the image with the image shifted to the right, left, up, or down accordingly.

Margin

Margin Margin Margin z If a part of the copied image is missing, change the Margin Reduction setting to “Yes”. Refer to Copier

Settings in the Operating Instructions (For Function Parameters) of provided CD-ROM.

z When “Overlay” or “Form Overlay” is selected, the binding margin is also set for the overlay original.

z If this setting is made when the 2-Sided copy is selected, the print position comes out different between the front and back sides of copy.

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

4

Select “Zoom / Effects”, and then select “Margin”.

Continued on the next page...

59

60

5

Select the desired position of the binding margin.

7

Enter the desired number of copies.

8

Press the Start key.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

Select to set the binding margin on the left side of the paper.

Select to set the binding margin on the right side of the paper.

Select to set the binding margin on the top side of the paper.

Select to set the binding margin on the bottom side of the paper.

6

Enter the width of the binding margin with “S” and “T”, or the Keypad, and then select “OK”.

z The width of the binding margin can be set in 1 mm increments from 5 mm to 99 mm.

Copying Mirror Image

The laterally reversed image of original can be copied.

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

5

Enter the desired number of copies.

6

Press the Start key.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

4

Select “Zoom / Effects”, and then select “Mirror”.

61

62

Copying with Stamping

Page Number or Date, etc. can be stamped on each sheet.

z This function can be selected when the original is placed on the ADF.

z Only one kind of stamp can be selected from Page Number, Date, Issue Number, and Text for each scan job.

z Stamped only in black.

z No stamp is printed on a blank page when an odd number of originals is copied with “1 -> 2” selected.

„

Basic Operation for Stamping

1

Place original(s) on the ADF.

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

4

Select “Zoom / Effects”, and then select “Stamping”.

Page Number (see page 63)

Issue Number (see page 65)

Date (see page 67)

Text Stamp (see page 69)

5

Enter the desired number of copies.

6

Press the Start key.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

„

Page Number

The original can be copied with page numbers printed.

z The default is -n- (number) format. To change to n/m (number/maximum) format, refer to Copier Settings in the Operating Instructions (For Function Parameters) of provided CD-ROM.

z Make sure to select “Sort”.

1

Select “Page Number”.

3

Select the Stamp Position.

z To display this screen, refer to steps 1 to 4 of

Basic Operation for Stamping (see page

62).

2

Select the Orientation of the original.

The page number is printed on the bottom at the centre.

The page number is printed on the bottom right side.

The page number is printed on the upper right side.

4

To change the start page and start number, select “Change”.

Select the orientation of the original according to the orientation of its characters

(vertical direction).

Select the orientation of the original according to the orientation of its characters

(horizontal direction).

Continued on the next page...

63

64

5

If “Change” was selected in step 4, select the Starting Page.

7

Select “OK”.

The page numbering starts from the first page.

The page numbering starts from the second page.

The page numbering starts from the third page.

6

If “Change” was selected in step 4, enter the Starting Number with “S” and “T”, or the Keypad, and then select “OK”.

z For the following steps, refer to steps 5 to 6

in Basic Operation for Stamping (see page 62).

z Starting page number can be set from 1 to

999.

Each time it is selected, the number increments by 1.

Each time it is selected, the number declines by 1.

„

Issue Number

The original can be copied with consecutive numbers from 001 to 999 printed.

z The Issue Numbers can be set from 001 to 999. After 999, the number returns to 001.

1

Select “Issue Number”.

3

Select the Stamp Position.

z To display this screen, refer to steps 1 to 4 of

Basic Operation for Stamping (see page

62).

2

Select the Orientation of the original.

The issue number is printed on the bottom at the centre.

The issue number is printed on the bottom right side.

The issue number is printed on the upper right side.

Select the orientation of the original according to the orientation of its characters

(vertical direction).

Select the orientation of the original according to the orientation of its characters

(horizontal direction).

Continued on the next page...

65

66

4

Enter the Starting Number with “S” and “T”, or the Keypad, and then select “OK”.

Each time it is selected, the number increments by 1.

Each time it is selected, the number declines by 1.

z

For the following steps, refer to steps 5 to 6

in the Basic Operation for Stamping (see page 62).

„

Date

The original can be copied with a date printed. The date is printed in the DD/MM/YYYY format.

1

Select “Date”.

01/02/2008

01/02/2008

3

Select the Stamp Position.

z To display this screen, refer to steps 1 to 4 of

Basic Operation for Stamping (see page

62).

2

Select the Orientation of the original.

The date is printed on the bottom at the centre.

The date is printed on the bottom right side.

The date is printed on the upper right side.

4

To change the date, follow the steps below.

Select “Change”.

Select the orientation of the original according to the orientation of its characters (vertical direction).

Select the orientation of the original according to the orientation of its characters (horizontal direction).

The cursor is displayed.

Continued on the next page...

67

68

Move the cursor to the desired position using

and .

Change the date with the Keypad.

5

Select “OK”.

z For the following steps, refer to steps 5 to 6

in the Basic Operation for Stamping (see page 62).

„

Text Stamp

The original can be copied with text printed.

z Up to 32 characters, including A to Z, a to z, 0 to 9, symbols, @, . (Period), _ and space can be printed.

z The font size is 2.1 mm x 3.1 mm.

1

Select “Text Stamp”.

3

Select the Stamp Position.

z To display this screen, refer to steps 1 to 4 of

Basic Operation for Stamping (see page

62).

2

Select the Orientation of the original.

The text stamp is printed on the bottom at the centre.

The text stamp is printed on the bottom right side.

The text stamp is printed on the upper right side.

4

Select “Change”.

Select the orientation of the original according to the orientation of its characters

(vertical direction).

Select the orientation of the original according to the orientation of its characters

(horizontal direction).

Continued on the next page...

69

70

5

Enter text, and then select “OK”.

z Up to 32 characters.

z For instructions on how to enter characters, refer to Using the Keyboard in the

Operating Instructions (For Function

Parameters) of provided CD-ROM.

6

Select “OK”.

z For the following steps, refer to steps 5 to 6

in the Basic Operation for Stamping (see page 62).

Centering

The copying image can be centered automatically on a selected paper.

z This function can be selected when the original is placed on the Platen Glass.

z As the original is placed on the Platen Glass, the position of the original may be erroneously detected if influenced by ambient light.

z If the margin around the original is 5 mm wide or less, the original may not be correctly detected, and the copy image may be unclear.

1

Open the ADF more than 45 degrees, and place original on the Platen Glass, and then leave the ADF open.

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

5

Select the desired type of paper, and then select “OK”.

6

Enter the desired number of copies.

7

Press the Start key.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

4

Select “Zoom / Effects”, and then select “Centering”.

71

72

Image Repeat

Create multiple images on a sheet from a single original.

The minimum size of the original is 20 mm x 20 mm.

z Dotted lines can be printed between each of the copied images. Refer to Copier Settings in the Operating

Instructions (For Function Parameters) of provided CD-ROM.

z This function can be selected when the original is placed on the Platen Glass.

z As the original is placed on the Platen Glass, the position of the original may be erroneously detected if influenced by ambient light.

z If the margin around the original is 5 mm wide or less, the original may not be correctly detected, and the copy image may be unclear.

5

Select the desired type of paper, and then select “OK”.

1

Open the ADF more than 45 degrees, and place original on the Platen Glass, and then leave the ADF open.

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

4

Select “Zoom / Effects”, and then select “Image Repeat”.

6

Enter the desired number of copies.

7

Press the Start key.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

Copying Inverse Image

The tonal inversion of image can be copied in black and white.

z This function is only available when “Black” is selected in the Colour mode. If the “Inverse” is selected when the other Colour mode has been set, a message appears prompting you to change the setting to “Black”.

z This function is cancelled if the Colour mode is changed from “Black” to the other Colour mode after selecting

Inverse”.

z The Colour mode remains set to “Black” even if the Inverse mode is cancelled. To cancel the “Black” mode, select other Colour mode or press the Reset key.

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

4

Select “Zoom / Effects”, and then select “Inverse”.

5

Enter the desired number of copies.

6

Press the Start key.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

73

74

Insertion Modes

Adding a Cover Page to Copies

The original can be copied using other types of paper for a cover page. Only the Front cover, or Front and Back covers can be selected.

1

Place original(s) on the ADF.

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

The front cover is copied on colour paper.

4

Select “Insertion / Overlay”, and then select “Cover”.

5

Select the Front, or Front and Back covers.

7

Select “OK”.

Front

Blank

Front

Copy

Front+Back

Blank

Select to add a Blank

Front cover.

Select to add a copied

Front cover.

Select to add a Blank

Front and Back cover.

Front+Back

Copy

Select to add a copied

Front and Back cover.

6

Select “Cover” until the desired Paper

Tray is displayed.

8

Enter the desired number of copies.

9

Press the Start key.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

z

When changing paper for copies other than the cover page, select “Copy”, and change the Paper Tray.

z

When using colour or Special paper for the cover page, place the paper in the Sheet

Bypass or any tray beforehand, and also select the type of paper that you will use. If the type of paper is not selected properly, the quality of the image may become poor.

Refer to the Operating Instructions (For

Basic Operations) of provided booklet.

75

Inserting Blank/Copied Pages Between Copies

The original can be copied by inserting other types of paper between specified pages.

You can copy specified pages (including the cover page) on paper such as coloured paper set in a

Paper Tray or on the Sheet Bypass.

76

1

2

3

4

5

6

1

Place original(s) on the ADF.

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

1

2

3

4

5

6

Blank Pages

1

2

3

4

5

6

Copied Pages

5

Select the type of page to insert.

Blank

Inserts blank pages.

Copy

Inserts copied pages.

6

Select “Page Insert” until the desired

Paper Tray is displayed.

4

Select “Insertion / Overlay”, and then select “Page Insertion”.

z When changing paper for copies other than the inserted page, select “Copy”, and change the Paper Tray.

z When using colour paper for the inserted page, place the paper in the Sheet Bypass beforehand, and also select the type of paper that you will use. If the type of paper is not selected properly, the quality of the image may become poor. Refer to the

Operating Instructions (For Basic

Operations) of provided booklet.

7

Select “OK”.

10

Select “OK”.

8

Enter the page numbers with Keypad where the insertion pages are placed.

11

Enter the desired number of copies.

12

Press the Start key.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

z To erase an entered number, press the

Clear key.

9

Select to enter the following page numbers where the insertion pages are placed.

z By selecting and the cursor to enter the insertion page numbers.

, move z Up to 20 insertion page numbers can be entered.

77

78

Inserting Blank Pages Between Transparency Films

1

Place original(s) on the ADF.

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

6

When changing the paper to be inserted between Transparency Films, select “Page Insert” until the desired

Paper Tray is displayed.

7

Select “OK”.

4

Place the Transparency Films on the

Sheet Bypass.

z How to use the Sheet Bypass and change the Printing Media, refer to Adding Paper

<Printing Media> in the Operating

Instructions (For Basic Operations) of provided booklet.

5

Select “Insertion / Overlay”, and then select “Transparency Interleaving”.

8

Enter the desired number of copies.

9

Press the Start key.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

Memo

79

80

Overlay Modes

Overlaying an Image onto the Copies

The original can be overlaid with the first page of the original.

The first page is called the overlay original, and the second page onwards are called the scanned original, respectively.

Ex: Overlay on Top

Scanned Originals

Overlay Original z The size available for both of the overlay original and scanned original is A4.

z “Auto” cannot be selected in the Colour mode.

z When “Margin” is selected, a binding margin is also set for the overlay original.

z When “Cover” or “Page Insertion” is selected, if the cover page and insertion pages are not set to be copied, the overlay is not executed for blank pages. If these pages are set to be copied, the overlay is executed for copied pages.

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

4

Select “Insertion / Overlay”, and then select “Overlay”.

5

Select colours for the overlay original from the basic colours or registered custom colours, and then select “OK”.

‰ When selecting from the basic colours

7

Select the overlay position, and then select “OK”.

‰ When selecting from the registered custom colours z If “Add Custom” is selected, the Add

Custom screen is displayed, and colours

can be registered. Refer to New Colour

Registration (see page 14).

6

Adjust the overlay density with “Lighter”, and “Darker”, and then select “OK”.

Overlay on Top

Copied with the scanned original overlaid on the overlay original.

Overlay on Bottom

Copied with the overlay original overlaid on the scanned original.

8

Enter the desired number of copies.

9

Press the Start key.

z When copying from the Platen Glass, place the next original, and follow the instructions described on the Touch Panel Display.

z When the overlay copying is completed, the overlay original registration confirmation screen is displayed.

10

Select “Yes” or “No”.

Lighter

Darker

Overlay density level is decreased.

Overlay density level is increased.

Yes

No

Register the overlay image.

Clear the overlay image.

Continued on the next page...

81

82

11

If “Yes” was selected in step 10, select a desired button with no names registered, and then select “OK”.

12

Enter the button name with Keyboard, and then select “OK”.

z Up to 20 characters can be entered.

z For instructions on how to enter characters, refer to Using the Keyboard in the

Operating Instructions (For Function

Parameters) of provided CD-ROM.

Overlay Copying with Registered Image

Overlay an image stored in memory onto the copy.

Form Scanned

Original z To use this function, overlay forms must be registered in advance. For instructions on registering overlay forms,

refer to File Edit (see page 85).

z Available size is A4.

z “Auto” cannot be selected in the Colour mode.

z If the orientation of original is different from the form, the image of original is rotated automatically when overlaid.

z If enlargement or reduction is selected using “Zoom” or the paper size setting, the size of the original is enlarged or reduced according to the setting. However, the size of the form is not enlarged or reduced.

z When “Edge” or “Book” is selected, the edge erasing function and the centre erasing function are not executed for the overlay original.

z When “Margin” is selected, a binding margin is also effective for the overlay original.

z If “Blank” is selected for “Cover” or “Page Insertion”, overlay will not be executed. The image overlay is executed for “Copy” pages.

1

Place original(s).

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

4

Select “Insertion / Overlay”, and then select “Form Overlay”.

Continued on the next page...

83

84

5

Select the registered form, and then select “OK”.

8

Press the Start key.

z When copying from the Platen Glass, place the next original, and follow the instructions described on the Touch Panel Display.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

z For the details about how to register the

form, refer to Save (see page 85).

6

Select the overlay position, and then select “OK”.

Overlay on Top

Copies with the scanned original overlaid on the form.

Overlay on Bottom

Copies with the form overlaid on the scanned original.

7

Enter the desired number of copies.

File Edit

Up to 12 settings can be registered for the overlay form.

z

Refer to Overlay Copying with Registered Image (see page 83).

„

Save

z The size of the original, which can be registered in the form, is A4.

z After the registration, the form transparency level and the specified colours cannot be changed.

z “Auto” cannot be selected in the Colour mode.

1

Place the original for overlay form.

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select “More Menus”.

4

Select “Insertion / Overlay”, and then select “File Edit”.

5

Select a button without a file name registered.

Continued on the next page...

85

6

Select “Save”, and then select “OK”.

8

Adjust the overlay level with “Lighter” and “Darker”, and then select “OK”.

7

Select colours for the form from the basic colours and registered custom colours, and then select “OK”.

‰ When selecting from the basic colours

Lighter

Darker

Overlay level is decreased.

Overlay level is increased.

z To cancel saving the overlay form, select

Cancel”.

86

‰ When selecting from the registered custom colours

9

Press the Start key.

10

Select “Yes”.

z If “Add Custom” is selected, the Add

Custom screen is displayed, and colours

can be registered as New Colour

Registration (see page 14).

11

Enter the file name, and then select

OK”.

z Up to 20 characters can be entered.

z For instructions on how to enter characters, refer to Using the Keyboard in the

Operating Instructions (For Function

Parameters) of provided CD-ROM.

z After completing the editing of the file name, press the Reset key to return to the initial screen of the current active mode.

87

„

Erase

1

Select the file name to be deleted.

„

File Name Edit

1

Select the file name to be edited.

z To display the File Edit screen, refer to steps

2 to 4 in Save (see page 85).

2

Select “Erase”, and then select “OK”.

z To display the File Edit screen, refer to steps

2 to 4 in Save (see page 85).

2

Select “File Name Edit”, and then select “OK”.

3

Select “Yes”.

3

Change the file name, and then select

OK”.

88 z After completing the deletion of the file, press the

Reset key to return to the initial screen of the current active mode.

z Up to 20 characters can be entered.

z For instructions on how to enter characters, refer to Using the Keyboard in the

Operating Instructions (For Function

Parameters) of provided CD-ROM.

z After completing the editing of the file name, press the Reset key to return to the initial screen of the current active mode.

Memo

89

Chapter 3

Making Copies with the ADF Opened

The original can be copied without generating dark borders even if the ADF is opened.

Digital Skyshot Mode

The Digital Skyshot mode can be selected in the standard settings.

Other Features z When “2 Page” or “N in 1” is selected, only “Normal” can be set in the Digital Skyshot mode.

z If there is a white margin less than 5 mm around the original, the edge of the copy may come out abnormal

(white lines/streaks). To avoid the problem, change the setting of “Digital Skyshot Mode” to “No”. For setting of “Digital Skyshot Mode”, refer to Copier Settings in the Operating Instructions (For Function Parameters) of provided CD-ROM.

1

Open the ADF more than 45 degrees, and place original on the Platen Glass, and then leave the ADF open.

5

Press the Start key.

z Place the next original, and then follow the instructions described on the Touch Panel

Display.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

Face down. Align with top left corner.

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select copy features if necessary.

90

4

Enter the desired number of copies.

Manual Skyshot Mode

The original can be copied with the pre-registered scan size in memory.

z Before using the Manual Skyshot mode, set M1 or M2 in the preset jobs. Refer to Copier Settings in the

Operating Instructions (For Function Parameters) of provided CD-ROM.

z Originals with black borders may not be copied properly.

z If the Manual Skyshot mode is selected in “Sort”, “Shift-Sort”, “Rotate-Sort”, “Staple-Sort”, “Shift-Group” or

Rotate-Group”, the setting is automatically changed to “Non Sort”.

1

Open the ADF more than 45 degrees, and place original on the Platen Glass, and then leave the ADF open.

z Refer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

2

Press the Copy key if the machine is set to other function mode.

3

Select copy features if necessary.

4

Select “Preset Jobs” on the Basic

Menu screen.

5

Select the Original Size from either

M1:” or “M2:”.

6

Enter the desired number of copies.

7

Press the Start key.

z Place the next original, and then follow the instructions described on the Touch Panel

Display.

z After finishing copying, press the Reset key to return to the initial screen of the current active mode.

91

Reserving the Next Copy Job while the

Current Copy Job is Progressing

The next copy job can be reserved while the current copy job is under way.

z The previous copy job settings can be saved if the Function Parameter “41 Reserve a Job Settings” (Copier

Settings > Key Operator Mode) is set to “Save”. This is useful when using the previous copy job settings to the next copy job. To save the previous copy job settings, refer to Copier Settings (Key Operator Mode) in the

Operating Instructions (For Function Parameters) of provided CD-ROM.

1

Place the next original while copying current job.

2

Select “Reserve a Job”.

3

Select copy features if necessary.

92

4

Enter the desired number of copies.

5

Press the Start key.

z While the current job is progressing, the next copy job will be scanned and stored into the Hard Disk Drive.

Interrupt the Current Copy Jobs to Make an

Urgent Copy

You can interrupt the current copy jobs and make an urgent copy.

z When scanning the current copy job, other copy jobs cannot be interrupted.

1

Press the Interrupt key while copying.

7

After the copy operation is completed, press the interrupt key again.

The screen returns to the previous copy mode.

2

Place original(s).

3

Select copy features if necessary.

8

Press the Start key to resume the previous copying operation.

4

Enter the desired number of copies.

5

Press the Start key.

6

Repeat steps 2 to 5 to start the urgent copy job.

93

Chapter 4

Combined Copy Functions

Newly Set Functions

Initially Set Functions

1 -> 2

2 -> 1

2 -> 2

2 Page

Book -> 2

N in 1

Booklet

Multi-Size Feed

Job Build and SADF

Sort

Non Sort

Shift-Sort *1

Shift-Group *1

Rotate-Sort

Rotate-Group

Staple-Sort *1

Punch *1

Zoom

Auto Zoom

Edge

Book

Margin

Mirror

Stamping

Centering

Image Repeat

Inverse

Cover

Page Insertion

Transparency Interleaving

Overlay

Form Overlay

Digital Skyshot

Manual Skyshot

Completion Notice

Interrupt

Proof Copy

Double Exposure

A

A

A

A x

A

/

A

A

A

A

A x

/

A

A

A x x x x x x x x x x x x x x x x x

A

A

A

A

A

/

A x x x

A

/

A

A

A

A

A

*3 x x x x

A

A

/

A

A

A

A x x x

A

A

A

A

/

A

A

A x

/

A

A

A

A

A x x

*1 x

*1

A x

A

/

A

A

A

A x x x

A

A

/

A

A

A

A x x

A

A

/

*3 x x x x x x x x x x x x x

*3 x x x x x x x x x x x x x x x x x x

/

A x x x x

A

/ x x x x x x x

A x x x

Appendix

94

Blank: Combined setting is available.

x: Combined setting is not available.

A:

/:

The latter selection has the priority over the initially selected function.

There is no combination.

*1:

*2:

*3:

The setting is possible only when the paper size is the same.

Saddle Stitch” is set.

When “Issue Number” is selected in the Stamp function, “Non Sort”, “Shift-Group”, or “Rotate-Group” cannot be selected.

Newly Set Functions

Initially Set Functions

1 -> 2

2 -> 1

2 -> 2

2 Page

Book -> 2

N in 1

Booklet

Multi-Size Feed

Job Build and SADF

Sort

Non Sort

Shift-Sort *4

Shift-Group *4

Rotate-Sort

Rotate-Group

Staple-Sort *4

Punch *4

Zoom

Auto Zoom

Edge

Book

Margin

Mirror

Stamping

Centering

Image Repeat

Inverse

Cover

Page Insertion

Transparency Interleaving

Overlay

Form Overlay

Digital Skyshot

Manual Skyshot

Completion Notice

Interrupt

Proof Copy

Double Exposure

x x x

/ x x x x x x

/ x x

/ x x

/ x x

*5

*5

*5 x

/ x x x x x x x x x x x x x x x x x

/

A x x x

A x x x x x x x x x x x x x x x x x x

A

/ x

A

A

A

A x x x

/ x x

A

A

A

A

A

A

A

A

A

A x x x

/

A x x x

A

A

A

A

A

A

A

A

A

A x x x

/

A x x x

*4: Settings are possible when the optional Finisher is installed.

Rotate-Sort

Rotate-Group

Shift-Sort

Shift-Group

Staple-Sort

Punch

Saddle -Stitch

DA-FS402

Not Available

Not Available

Available

Available

Stapled in 1 position.

Not Available

Not Available

DA-FS405

Not Available

Not Available

Available

Available

Stapled in 1 front position.

Stapled in 1 inner position.

Stapled in 2 centre position.

Available

Available

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A x

A

A

/ x x x x x

*5:

A

A x x x x x x

/

A

A

A x x

A

A x x x x x x

A

/

A

A x x x x x x x x x x

/ x x x x

A

/

A

/

A

A

/ x

/

When “Issue Number” is selected in the Stamp function, “Non Sort”, “Shift-Group”, or “Rotate-Group” will be automatically changed to “Sort”.

A

A

A

A

A

A

A

A

A

A

/

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A x

A

A x

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

95

Index

96

Symbols

“M1:”/“M2:” ............................................................... 34, 91

Numerics

1 -> 1 .............................................................................. 40

1 -> 2 ............................................................ 40, 62, 94, 95

1 Colour ......................................................... 8, 12, 16, 18

1Bin Finisher ............................................................ 50, 51

1Bin Saddle-Stitch Finisher ......................... 43, 44, 50, 51

1-Sided Pages ............................................................... 41

2 -> 1 .................................................................. 40, 94, 95

2 -> 2 .................................................................. 40, 94, 95

2 Colour ......................................................... 8, 10, 16, 18

2 Colours ....................................................................... 10

2 Page ......................................................... 40, 42, 94, 95

2-Sided .................................................................... 43, 45

2-Sided / Original->Copy ........... 40, 41, 42, 43, 45, 47, 48

2-Sided Mode ................................................................ 40

A

A3 .................................................................................. 43

A4R ................................................................................ 50

Add Custom ....................................................... 14, 81, 86

ADF ............................................. 6, 40, 44, 45, 47, 48, 54,

62, 71, 72, 74, 76, 78, 90, 91

All Jobs .......................................................................... 36

Auto ................................................................................. 8

Auto Zoom ......................................................... 54, 94, 95

B

B4 ............................................................................ 45, 50

Background Colour ........................................................ 24

Background Removal .................................. 18, 22, 24, 25

Basic Colours ............................................... 10, 12, 81, 86

Basic Menu ........................................................ 46, 53, 91

Bind Position .................................................................. 41

Binding Margin ............................................. 43, 44, 59, 60

Black ............................................ 9, 10, 18, 30, 62, 73, 91

Black (Monochrome) ........................................................ 8

Black and White ........................................................... 8, 9

Blank .................................................................. 44, 80, 83

Blank Edge .................................................................... 56

Bleed-Through Prevention ................................. 18, 22, 25

Bluish Colour ................................................................. 26

Book ............................................................. 58, 83, 94, 95

Book -> 2 ........................................................... 40, 94, 95

Booklet ......................................................... 40, 43, 94, 95

C

Centering ........................................................... 71, 94, 95

Change .................................................................... 67, 69

Change Colour ............................................................... 10

Colour Balance .................................................. 18, 22, 30

Colour Level ................................................................... 14

Colour Mode .............................................................. 8, 85

Colour Ratio ................................................................... 14

Colour Sample Indicator ................................................ 14

Commercial ....................................................................17

Completion Notice ..............................................38, 94, 95

Confirm Settings .......................................................33, 35

Confirmation Screen ...........................................32, 47, 81

Contrast ..............................................................18, 22, 27

Copy .........................................................................36, 44

Copy Features ................................................................32

Copy Job ........................................................................37

Copy Jobs ......................................................................36

Copy Layout ...................................................................42

Copy Size .................................................................43, 46

Cover ....................................43, 44, 74, 75, 80, 83, 94, 95

Cover Page Type ...........................................................43

Custom Colour ...............................................................10

Custom Colours ............................................10, 12, 81, 86

Custom Setting .........................................................22, 24

Cyan ...............................................................................30

D

Darker .......................................................................17, 30

Darker Areas ..................................................................30

Date ................................................................................67

Default ............................................................................22

Default Values ................................................................23

Delete .......................................................................33, 37

Deleting ..........................................................................37

Density ...................................................16, 17, 18, 30, 81

Digital Skyshot ..........................................................94, 95

Digital Skyshot Mode ......................................................90

Double Exposure ................................................35, 94, 95

E

Edge .............................................................56, 83, 94, 95

Enlarge/Reduce ..............................................................52

F

Facing Pages .................................................................42

Favourites .......................................................................38

Fax Communication Board ...............................................7

File Edit ..........................................................................85

File Name Edit ................................................................88

Fold Position ...................................................................43

Form Overlay ..........................................58, 59, 83, 94, 95

Front and Back Covers .............................................74, 75

Front Cover ....................................................................74

Full Colour ..................................................8, 9, 10, 12, 18

H

Hard Disk Drive ..............................................................92

Higher .............................................................................27

I

Image Quality Setting .....................................................18

Image Quality Type ........................................................22

Image Repeat .....................................................72, 94, 95

Index Tab .......................................................................38

Inserting ..........................................................................76

Insertion ..........................................................................80

Insertion / Overlay ............................74, 76, 78, 80, 83, 85

Install ................................................33, 38, 43, 50, 51, 95

Interrupt ..............................................................93, 94, 95

Inverse ................................................................73, 94, 95

IP Address ......................................................................38

Issue Number .................................................................65

J

Job Build and SADF .....................................47, 48, 94, 95

Job Registration Screen .................................................33

L

LaserPrinted ...................................................................17

Lighter ......................................................................17, 30

Lighter Areas ..................................................................30

Long Edge ......................................................................41

Lower ..............................................................................27

M

Manual Skyshot ........................................................94, 95

Manual Skyshot Mode ..............................................34, 91

Margin ..................................54, 59, 71, 72, 80, 83, 94, 95

Margin Reduction ...........................................................59

Medium ...........................................................................30

Medium Areas ................................................................30

Memory ........................................................34, 48, 83, 91

Mirror ..................................................................61, 94, 95

Monochrome ....................................................................8

More Blue .......................................................................26

More Menus ........................40, 50, 52, 54, 56, 58, 59, 61,

62, 71, 72, 74, 76, 78, 80, 83, 85

More Red ........................................................................26

More Settings .................................................................22

Multi-Size Feed ............................................40, 45, 94, 95

N

N in 1 ............................................................40, 90, 94, 95

Network Scanner Settings ..............................................38

Non Sort .......................................................33, 91, 94, 95

O

Optional Finisher ......................................................33, 50

Optional Punch Unit .......................................................50

Original Colour Name .....................................................15

Original Type ....................................12, 16, 18, 22, 24, 25

Original Type setting ......................................................10

Output Queue ...........................................................36, 37

Overlaid ..........................................................................80

Overlay .....................58, 59, 80, 81, 83, 84, 85, 86, 94, 95

P

Page Insert .....................................................................78

Page Insertion ........................................76, 80, 83, 94, 95

Page Number .................................................................63

Page Order .....................................................................42

Panasonic Document Management System ..................38

Paper/Output Tray ..........................................................53

PCL Printer Driver ..........................................................38

Photo ..............................................................................16

Photo Paper ...................................................................17

Platen Glass ......................... 38, 40, 54, 71, 72, 81, 90, 91

Preset Jobs .................................................. 33, 34, 35, 91

Printing Media ................................................................ 78

Proof Copy ......................................................... 32, 94, 95

Proof Set ........................................................................ 32

Punch ........................................................... 50, 51, 94, 95

Punch Mode ................................................................... 50

Punch Unit ..................................................................... 51

Q

Quality Adj. ............................................... 8, 16, 18, 20, 22

Quality Preset .................................................... 18, 19, 20

R

Ready Status ................................................................. 37

Recall ............................................................................. 20

Reddish Colour .............................................................. 26

Registered Colour .................................................... 14, 15

Registered Colour Name Button .................................... 14

Registered Colours ........................................................ 12

Registered Computers ................................................... 38

Remaining Colours ........................................................ 30

Remaining Copies .......................................................... 32

Reset All ......................................................................... 33

Rotate-Group ..................................................... 45, 94, 95

Rotate-Sort ................................................... 45, 91, 94, 95

S

Saddle Stitch .................................................................. 94

Saddle Stitch Binding ..................................................... 43

Saddle Tray .................................................................... 44

Saddle-Stitch .................................................................. 50

SADF ............................................................................. 47

SADF Mode ................................................................... 47

Saturation ........................................................... 18, 22, 29

Save ................................................................... 18, 34, 86

Select All ........................................................................ 37

Sharpening ..................................................................... 28

Sharpness .......................................................... 18, 22, 28

Sheet Bypass ........................................................... 76, 78

Shift-Group ............................................................... 50, 95

Shift-Sort ...................................................... 33, 50, 91, 95

Shift-Sort Mode .............................................................. 33

Short Edge ..................................................................... 41

Size of Paper ................................................................. 55

Softening ........................................................................ 28

Sort ........................................................ 50, 63, 91, 94, 95

Sort / Finish .............................................................. 48, 50

Special Paper ................................................................. 40

Specific Copy Job .......................................................... 35

Specified Colour ....................................................... 10, 12

Specified Colours ........................................................... 85

Stamp Position ............................................. 63, 65, 67, 69

Stamping ...................................................... 43, 62, 94, 95

Staple ............................................................................. 51

Staple-Sort ......................................................... 50, 91, 95

Staple-Sort Mode ........................................................... 50

Starting Number ....................................................... 64, 65

T

Text ................................................................................ 16

Text Stamp ..................................................................... 69

Continued on the next page...

97

98

Tint ............................................................... 18, 22, 25, 26

Tone ......................................................................... 26, 30

Transparency Films ....................................................... 78

Transparency Interleaving ................................. 78, 94, 95

X

X .................................................................................... 57

XY .................................................................................. 57

Y

Y .................................................................................... 57

Z

Zoom ................................................ 52, 56, 58, 83, 94, 95

Zoom / Effects ...................... 52, 54, 56, 58, 59, 62, 71, 72

Zoom Ratio .................................................................... 53

Zoom Type Ratio ........................................................... 55

Memo

99

The following trademarks and registered trademarks are used throughout this manual:

Microsoft, Windows, Windows Server, Windows Vista, Excel, PowerPoint, Outlook & Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the USA and other countries.

Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation.

Adobe, Acrobat Reader & Adobe logo are either registered trademarks or trademarks of Adobe Systems

Incorporated.

All other trademarks identified herein are the property of their respective owners.

Eudora is a registered trademark of QUALCOMM Incorporated.

PEERLESSPage

TM

is a trademark of the PEERLESS Systems Corporation; and,

PEERLESSPrint

TM

and Memory Reduction Technology

®

are registered trademarks PEERLESS Systems

Corporation; and, COPYRIGHT © 2002 PEERLESS Systems Corporation

Universal Font Scaling Technology (UFST) and all typefaces have been licensed from Monotype Imaging Inc.

Monotype

®

is a registered trademark of Monotype Imaging Inc. registered in the U.S. Patent and Trademark

Office and may be registered in other jurisdictions.

ColorSet

TM

is a registered trademark of Monotype Imaging Inc. registered in the U.S. Patent and Trademark

Office and may be registered in other jurisdictions. ColorSet

TM

Profile Tool Kit, Profile Studio and Profile

Optimizer are trademarks of Monotype Imaging Inc. and may be registered in certain jurisdictions.

Copyright © 2005 Monotype Imaging Inc. All rights reserved.

Captaris and RightFax are trademarks of Captaris, Inc.

Novell and NetWare are registered trademarks of Novell, Inc. in the United States and other countries. libtiff is a software written by Sam Leffler while working for Silicon Graphics.

Copyright © 1988-1997 Sam Leffler

Copyright © 1991-1997 Silicon Graphics, Inc.

zlib is a library written by Jean-loup Gailly and Mark Adler.

Copyright © 1995-2005 Jean-loup Gailly and Mark Adler libjpeg is a library maintained by the Independent JPEG Group.

Copyright © 1991-1998, Thomas G. Lane

For Service, Call:

For Customer Support:

Panasonic Communications Co., Ltd.

Fukuoka, Japan http://panasonic.net

© 2007 Panasonic Communications Co., Ltd. All Rights Reserved.

Unauthorized copying and distribution is a violation of law.

The contents of these Operating Instructions are subject to change without notice.

Tr1207-1018 (01)

PJQMC1069ZB

January 2008

Published in Japan

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
