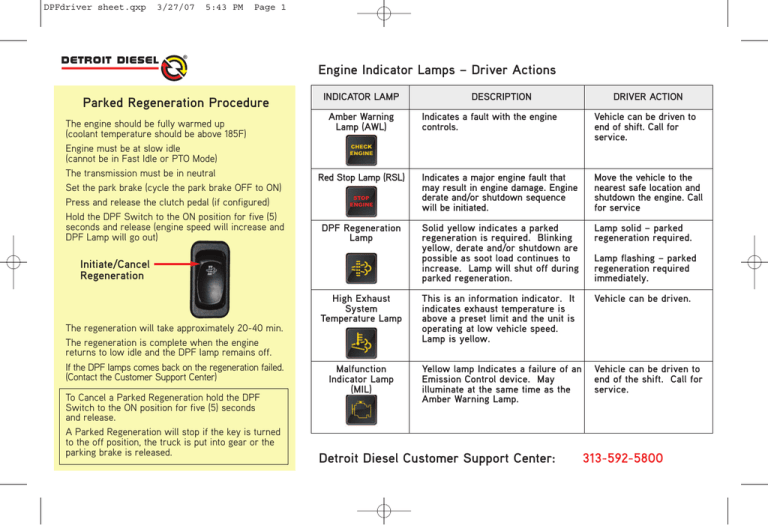

Engine Indicator Lamps – Driver Actions
Parked Regeneration Procedure
The engine should be fully warmed up
(coolant temperature should be above 185F)
Engine must be at slow idle
(cannot be in Fast Idle or PTO Mode)
The transmission must be in neutral
Set the park brake (cycle the park brake OFF to ON)
Press and release the clutch pedal (if configured)
Hold the DPF Switch to the ON position for five (5)
seconds and release (engine speed will increase and
DPF Lamp will go out)
INDICATOR LAMP
Amber Warning
Lamp (AWL)
Vehicle can be driven to
end of shift. Call for
service.
Red Stop Lamp (RSL)
Indicates a major engine fault that
may result in engine damage. Engine
derate and/or shutdown sequence
will be initiated.
Move the vehicle to the
nearest safe location and
shutdown the engine. Call
for service
DPF Regeneration
Lamp
Solid yellow indicates a parked
regeneration is required. Blinking
yellow, derate and/or shutdown are
possible as soot load continues to
increase. Lamp will shut off during
parked regeneration.
Lamp solid – parked
regeneration required.
High Exhaust
System
Temperature Lamp
To Cancel a Parked Regeneration hold the DPF
Switch to the ON position for five (5) seconds
and release.
A Parked Regeneration will stop if the key is turned
to the off position, the truck is put into gear or the
parking brake is released.
DRIVER ACTION
Indicates a fault with the engine
controls.
Initiate/Cancel
Regeneration
The regeneration will take approximately 20-40 min.
The regeneration is complete when the engine
returns to low idle and the DPF lamp remains off.
If the DPF lamps comes back on the regeneration failed.
(Contact the Customer Support Center)
DESCRIPTION
Malfunction
Indicator Lamp
(MIL)
Lamp flashing – parked
regeneration required
immediately.
This is an information indicator. It
indicates exhaust temperature is
above a preset limit and the unit is
operating at low vehicle speed.
Lamp is yellow.
Vehicle can be driven.
Yellow lamp Indicates a failure of an
Emission Control device. May
illuminate at the same time as the
Amber Warning Lamp.
Vehicle can be driven to
end of the shift. Call for
service.
Detroit Diesel Customer Support Center:
313-592-5800
DPFdriver sheet.qxp
3/27/07
5:43 PM
Page 2
Regeneration Process - Engine Indicator Lamps
Soot accumulates in filter over time
SOLID
NO DRIVER INTERACTION REQUIRED, FILTER CLEANING
(also called regeneration) IS FULLY AUTOMATIC.
FLASHING
About
1 hour
+
+
FLASHING
FLASHING
Less than
1 hour
You will only see warning lights if the filter cannot perform an automatic cleaning.
Heavy-Duty
About 4 hrs
Medium-Duty
About 1 hour
When soot loading reaches this level the DPF lamp will come on SOLID.
PARKED REGENERATION IS REQUIRED
SOLID
FLASHING
If vehicle continues to be driven the DPF lamp will begin FLASHING.
PARKED REGENERATION IS REQUIRED AS SOON AS POSSIBLE
If Parked Registration is not performed the CHECK ENGINE LIGHT will come on. Engine derate is 25%.
PARKED REGENERATION IS REQUIRED IMMEDIATELY
+
FLASHING
+
FLASHING
+
If Parked Regeneration is still not performed the STOP ENGINE LIGHT will come on.
Move vehicle to nearest safe location and SHUT DOWN THE ENGINE. CALL FOR SERVICE.
Note: Consult the Owner Operators Guide for a
complete description of aftertreatment system.
Detroit Diesel Customer Support Center:
313-592-5800
6SA101 (0703) For the nearest Detroit Diesel Distributor or Dealer visit, www.detroitdiesel.com RP 10M 3/07
Example of visor label
Specifications are subject to change without notice. Detroit Diesel and the spinning arrows design are registered trademarks of Detroit Diesel.
©2007, Freightliner LLC. All rights reserved. Detroit Diesel is a member of the Freightliner Group. Freightliner LLC is a DaimlerChrysler company.
