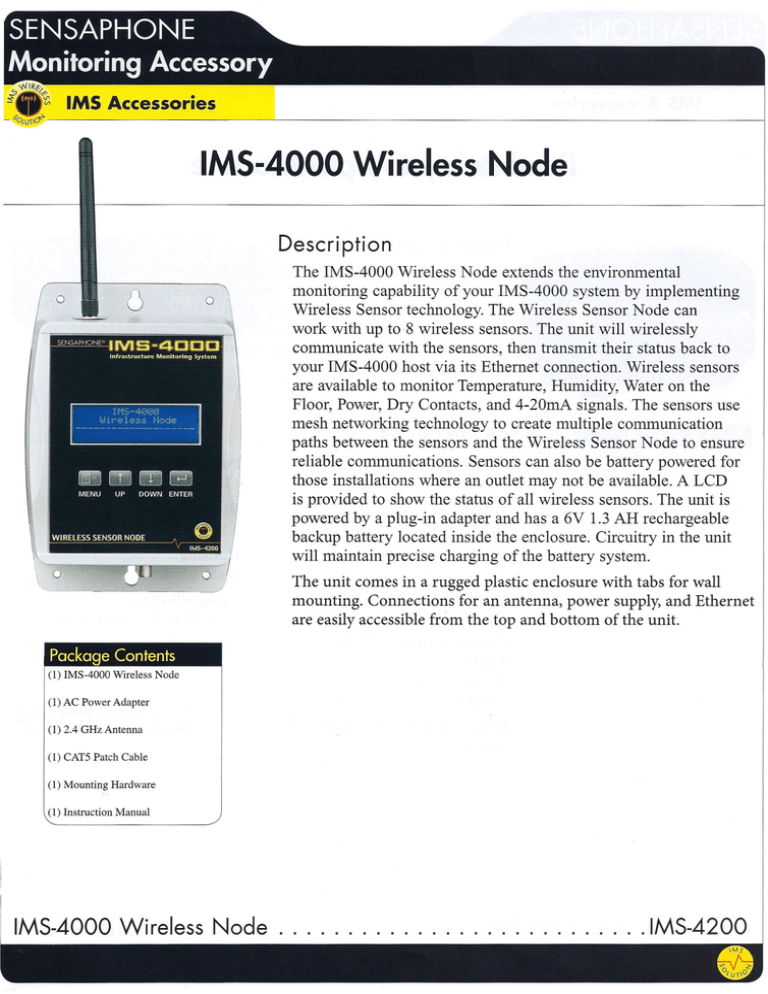

IMS-4000 Wireless Node

IMS-4000 Wireless Node
IMS Accessories
IMS-4000 Wireless Node
Description
o \
\
The IMS-4000 Wireless Node extends the environmental
monitoring capability of your IMS-4000 system by implementing
Wireless Sensor technology. The Wireless Sensor Node can
work with up t08 wireless sensors. The unit will wirelessly
communicate with the sensors, then transmit their status back to
your IMS-4000 host via its Ethernet connection. Wireless sensors
are available to monitor Temperature, Humidity, Water on the
Floor, Power, Dry Contacts, and 4-20mA signals. The sensors use
mesh networking technology to create multiple communication
paths between the sensors and the Wireless Sensor Node to ensure
reliable communications. Sensors can also be battery powered for
those installations where an outlet may not be available. A LCD
is provided to show the status of all wireless sensors. The unit is
powered by a plug-in adapter and has a 6V 1.3 AH rechargeable
backup battery located inside the enclosure. Circuitry in the unit
will maintain precise charging of the battery system.
The unit comes in a rugged plastic enclosure with tabs for wall
mounting. Connections for an antenna, power supply, and Ethernet
are easily accessible from the top and bottom of the unit.
Package Contents
(1) IMS-4000 Wireless Node
(1) AC Power Adapter
(1) 2.4 GHzAntenna
(1) CATS Patch Cable
(1) Mounting Hardware
(1) Instruction Manual
IMS-4000 Wireless Node
IMS-4200
